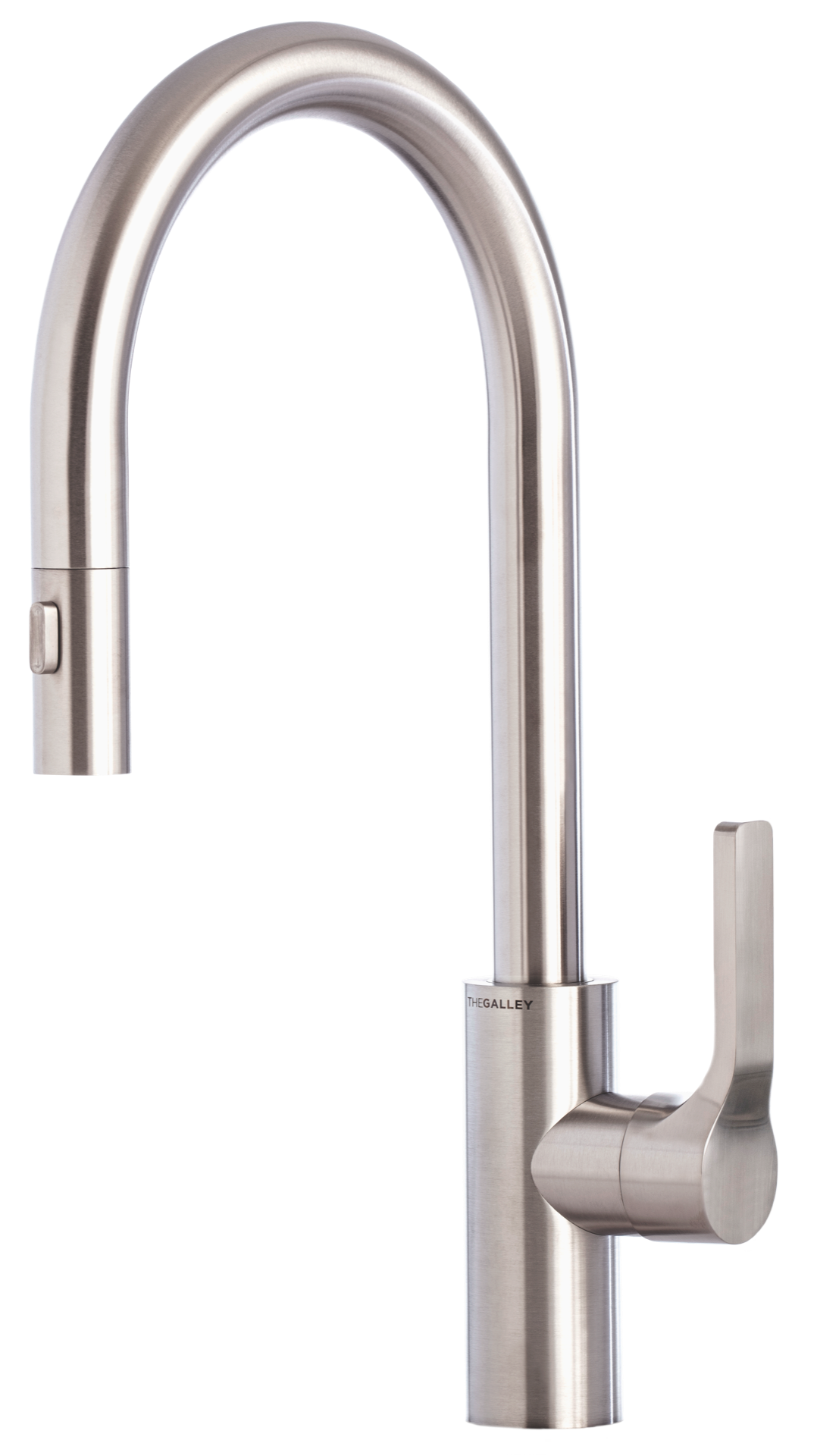

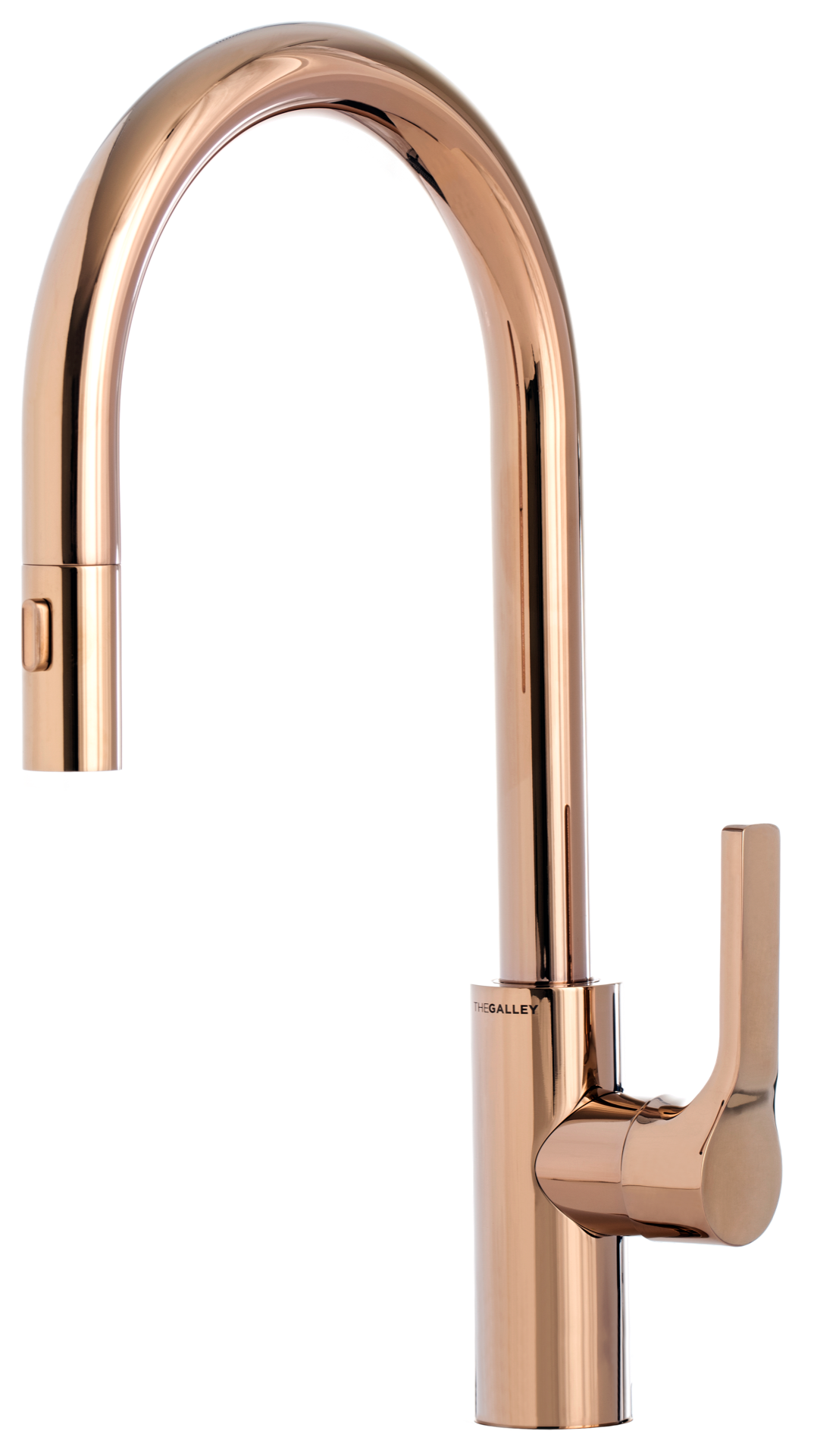

The Galley Ideal Tap High Flow with Water Filtration System
Contact us to learn more and purchase!
The Galley Ideal Tap High Flow with Water Filtration System
Sale price$2,716.00
Regular price$3,395.00 (/)
Product details
Focal Point is an Authorized The Galley Retailer!
About The Galley Ideal Tap High Flow with Water Filtration System
Specifications
About The Galley Ideal Tap High Flow with Water Filtration System
Specifications
- Single-lever control ceramic disk cartridge
- Forward rotating COMFORTFEEL lever handle
- 11" CENTERSTATION s pout projection
- 11" Pot f ll h eight from deck to spout outlet
- Hand s pray extends up to 26" from spout
- Q-Dock docking system h olds h and s pray in place
- Ergonomic slide s witch to s elect Ideal Flow® Laminar or Spray Flow
- Automatic return to laminar flow
- Concealed easy clean s pray face
- Spout rotates 360°
- Quiet, smooth gliding hose
- Counterweight
- Dual check valves
- 24" stainless steel flexible hoses 3/8" compression
- Maximum counter thickness 2"
- Minimum install hole diameter 1 3/8"
- Optional base ring included
- Total h eight 21 1/4"
- High Flow 2.2 GPM maximum flow rate
- Eco Flow 1.8 GPM maximum flow rate
- For use with Water Filtration System* (included)
- *Note: May reduce water flow
- Service flow rate 2.0 gpm
- Rated capacity 7,900 gallons
- Operating pressure 10 - 125 psi
- Operating temperature 35 - 100°F
- Overall dimensions 16 7/8" x 4 1/8"
- Reduces lead, chlorine, cysts and other contaminants
- Quick twist-lock cartridge replacement
- Replacement flter cartridge dimensions 14 1/2" x 3"
- Internal parts never exposed to human handling
- Filtration protects capital equipment from early breakdown
- Installs vertically (allow 2 1/2" clearance)
- Parts Included: Mounting bracket and screws, plastic tubing, push-fit Tee
- Solid 316L machined stainless steel construction
- Indoor & outdoor
- Made in Italy
- Made in the USA
Product Specifications
Specifications Sheet
