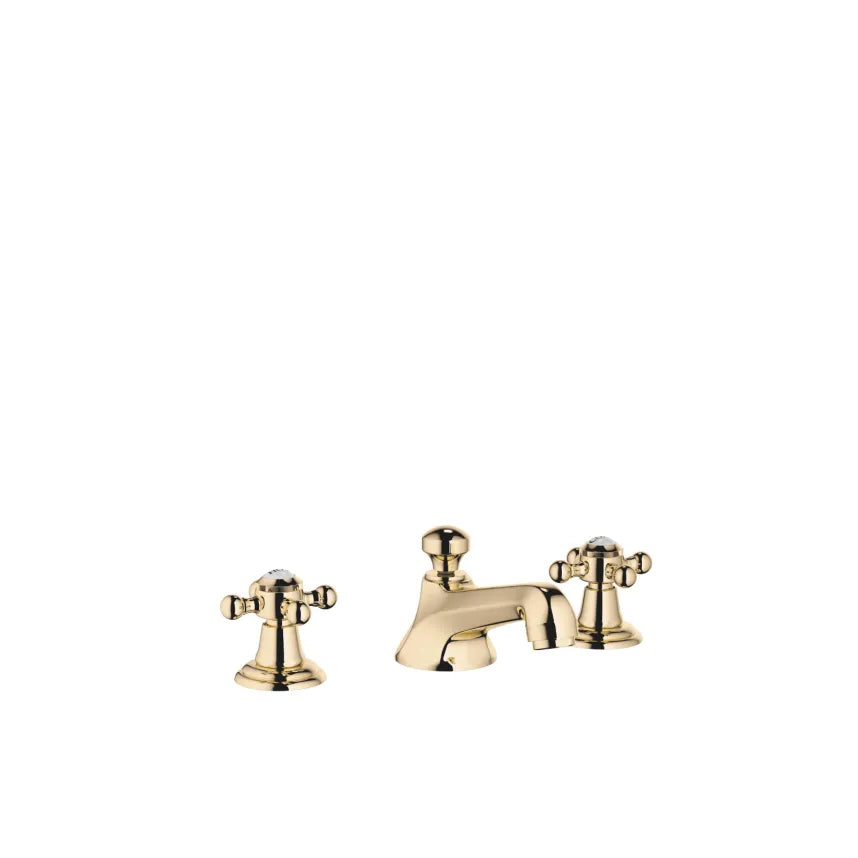

Dornbracht MADISON Three-Hole Lavatory Mixer with Drain
![chrome lavatory mixer](http://focalpointhardware.com/cdn/shop/files/image_5f07a02d-e49e-41ef-a09f-7d0c24193ef9.webp?v=1698075342&width=858)
Dornbracht MADISON Three-Hole Lavatory Mixer with Drain
Sale price$1,798.72
Regular price$2,248.40 (/)
Product details
Focal Point is an Authorized Dornbracht Retailer!
About The Dornbracht MADISON Three-Hole Lavatory Mixer with Drain
About The Dornbracht MADISON Three-Hole Lavatory Mixer with Drain
- Application area: Lavatory
- Construction type: Deck-mounted
- Product concept: MADISON
- Flow rate Max.: 1.2 gpm
- 5-3/8" Projection
- US drain with overflow
- Rigid spout
- Round aerated stream
- Total height 2-7/8"
- Height to aerator/spout outlet 1-5/8"
- Valve hole diameter 1-1/4"
- Spout hole diameter 1-3/8"
- Without flange
- 2x 1/2" x 1/2" flex lines
- Water flow rate limited to max. 1.2 gpm
- Lead-free
- Codes & Standards
- NSF/ANSI 372
- California Energy Commission (CEC)
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61
- ADA
- Suitable only for basins with overflow.

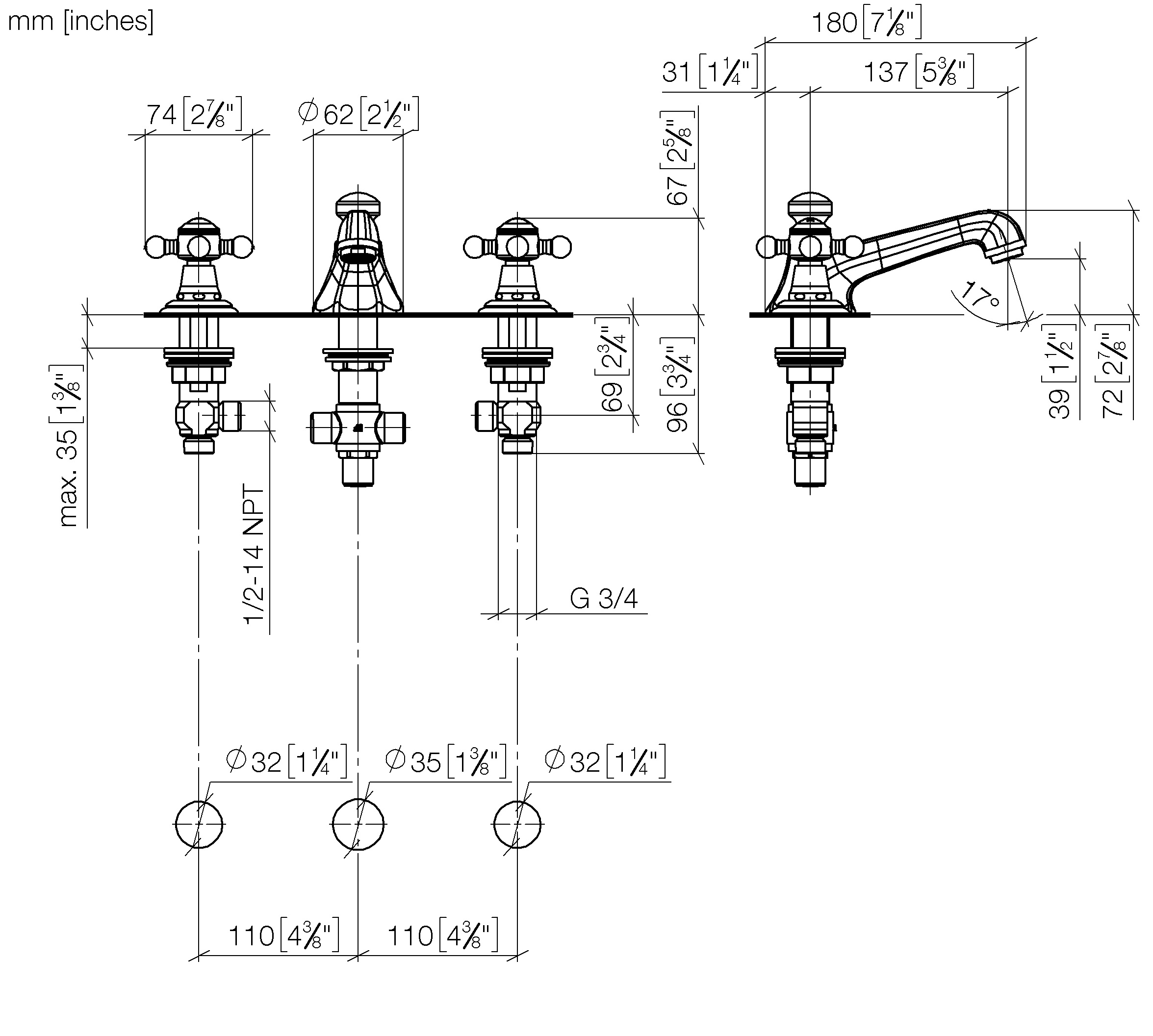

Product Specifications
Specifications Sheet
