Dornbracht MADISON Tub Mixer for Wall-Mounted Installation with Hand Shower Set
![chrome tub mixer](http://focalpointhardware.com/cdn/shop/files/image_1796fd81-e833-4fab-824f-e79167f6a3b6.webp?v=1698075560&width=858)
Dornbracht MADISON Tub Mixer for Wall-Mounted Installation with Hand Shower Set
Sale price$1,719.52
Regular price$2,149.40 (/)
Product details
Focal Point is an Authorized Dornbracht Retailer!
About The Dornbracht MADISON Tub Mixer for Wall-Mounted Installation with Hand Shower Set
About The Dornbracht MADISON Tub Mixer for Wall-Mounted Installation with Hand Shower Set
- Application area: Tub
- Construction type: Wall surface mounted
- Product concept: MADISON
- Flow rate Max.: 6.9 gpm
- 6-1/4" Projection
- Hand shower: Standard spray
- Spout: Rectangular aerator
- Hand shower bracket
- Tub / shower diverter
- Flange diameter 2-3/4"
- 1/2" connection
- Center to center 6"
- Metal shower hose 49-1/4" with anti-twist device
- Spout flow rate max. 6.9 gpm
- Hand shower water flow rate limited to max. 2 gpm
- Codes & Standards
- California Energy Commission (CEC)
- NOTE: Local building codes may require the use of an anti-scald device. Please refer to remote pressure balance valve (35 914 970 90)
- Internal backflow preventer.

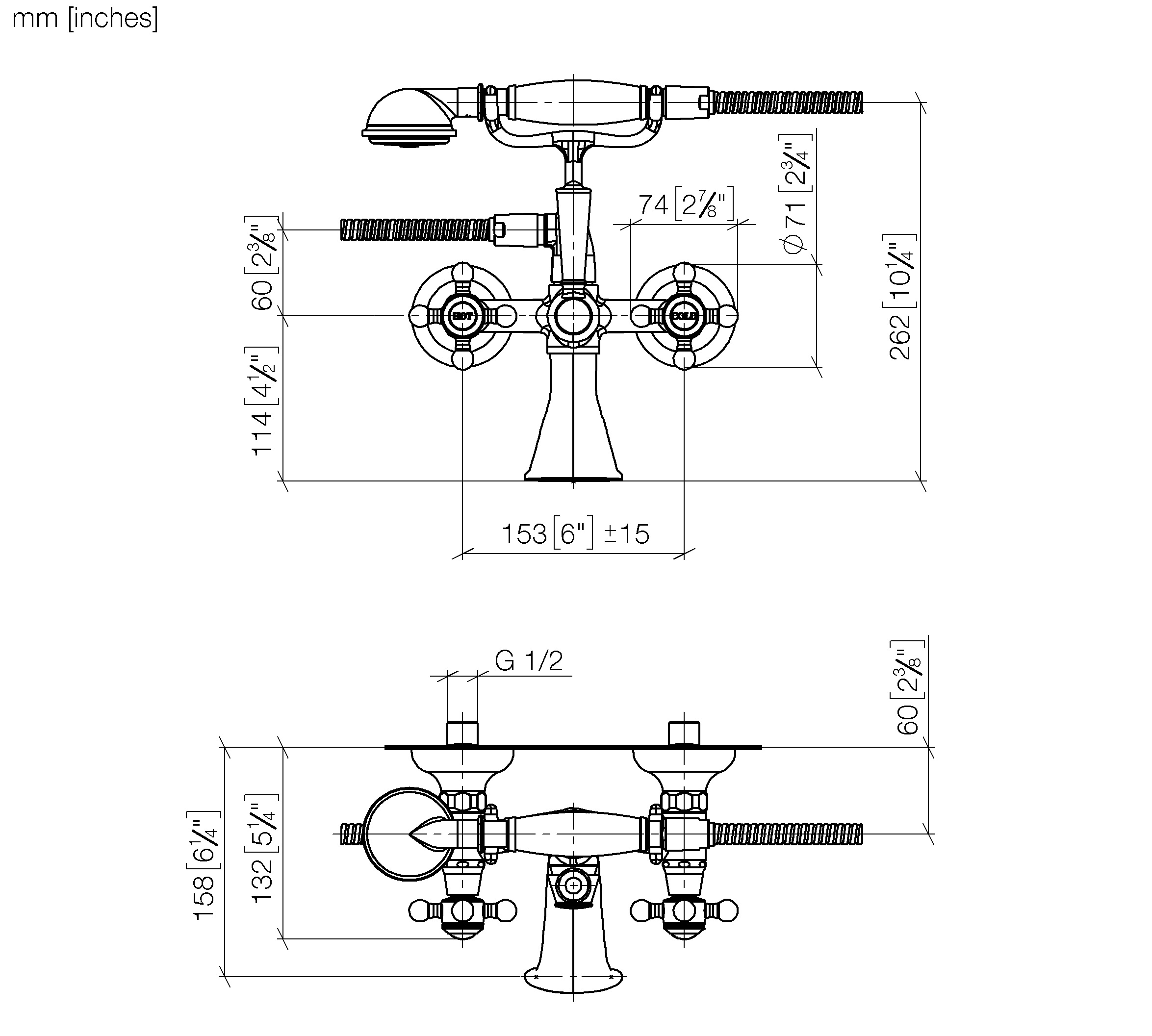

Product Specifications
Specifications Sheet
