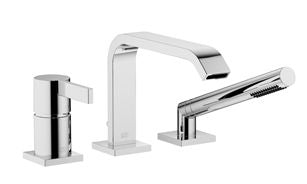

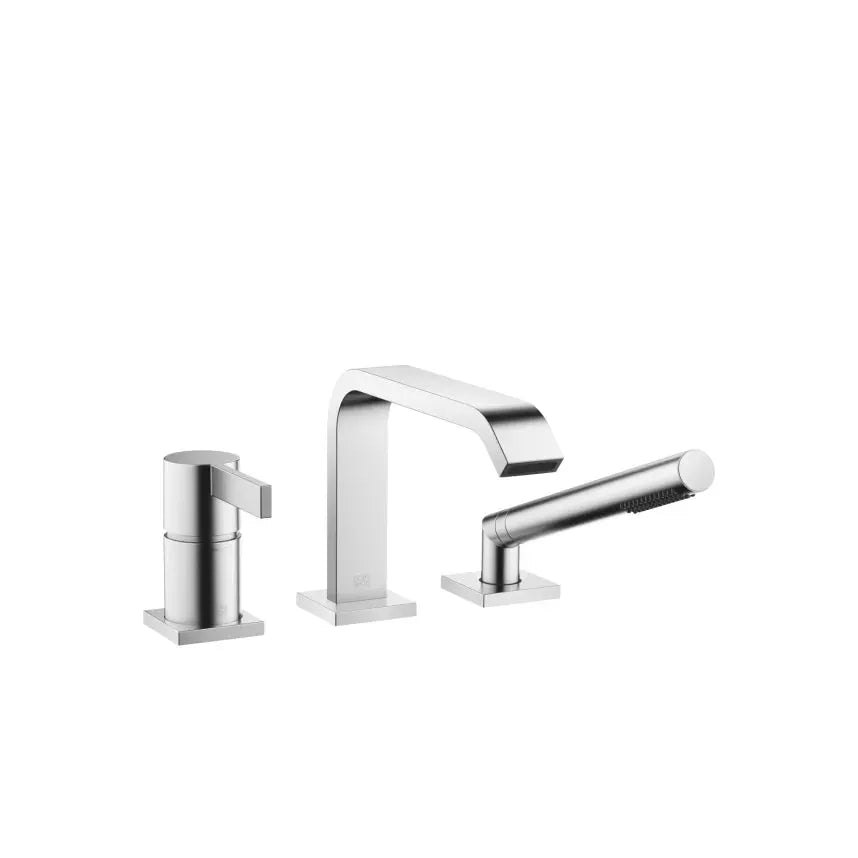

Dornbracht IMO Three-Hole Single-Lever Tub Mixer for Deck-Mounted Tub Installation

Focal Point is an Authorized Dornbracht Retailer!

Introducing the Dornbracht IMO Three-Hole Single-Lever Tub Mixer for Deck-Mounted Tub Installation, a perfect blend of functionality and elegant design for your bathroom. This innovative tub mixer not only enhances the aesthetic appeal of your space but also offers superior performance and convenience.

Unique Selling Points

• Deck-mounted installation for a clean and modern look.
• Integrated diverter for seamless switching between spout and hand shower.
• Hand shower set equipped with anti-scale technology, ensuring durability and easy maintenance.

Functionality

• Single-lever mixer for effortless water temperature and flow adjustment.
• Total height of 4-3/8" with a spout projection of 8-7/8" for optimal reach.
• Water flow rate limited to a maximum of 5.1 gpm, ensuring water efficiency without compromising performance.
• Hand shower flow rate max. 1.8 gpm, providing a refreshing experience.

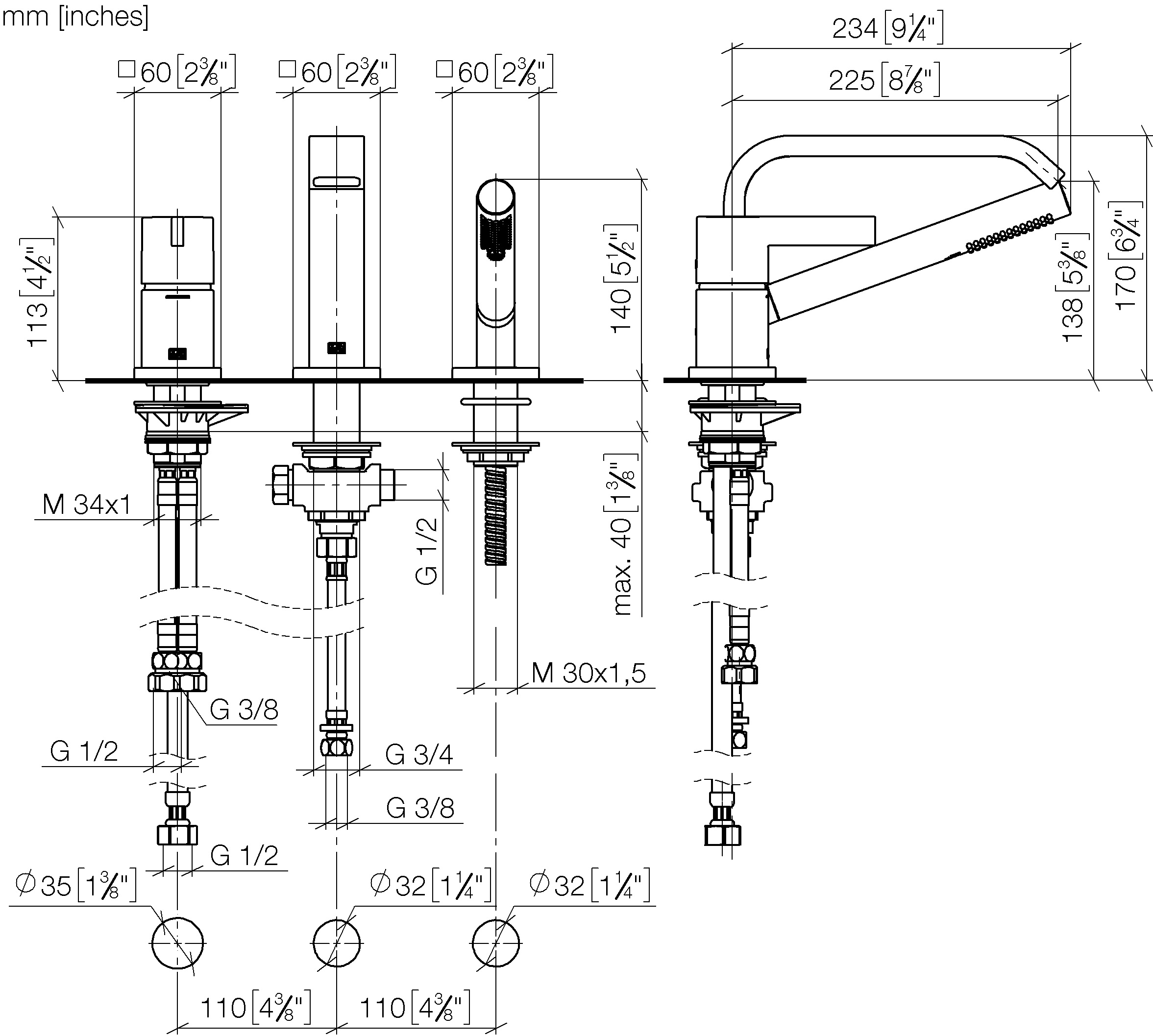

Specifications

• Height to aerator/spout outlet: 5-3/8"
• Spout hole diameter: 1-1/4"
• Single-lever mixer hole diameter: 1-3/8"
• Flange dimensions for mixer and spout: 2-3/8" x 2-3/8"
• Metal shower hose length: 88-5/8" with anti-twist device.

Compliance

• Meets California Energy Commission (CEC) standards.
• Complies with ASME A112.18.1/CSA B125.1 regulations.
• Note: Local building codes may require the use of an anti-scald device. Refer to remote pressure balance valve (35 914 970 90) and ensure internal backflow prevention.

Elevate your bathing experience with the Dornbracht IMO Three-Hole Single-Lever Tub Mixer, an essential addition for any modern bathroom.
