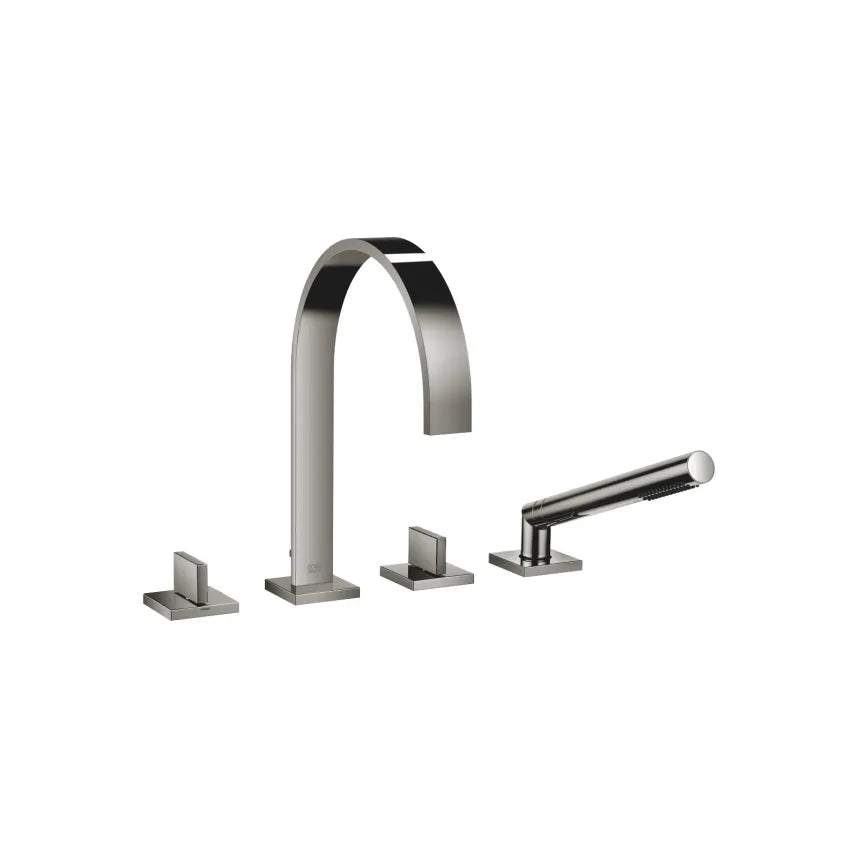

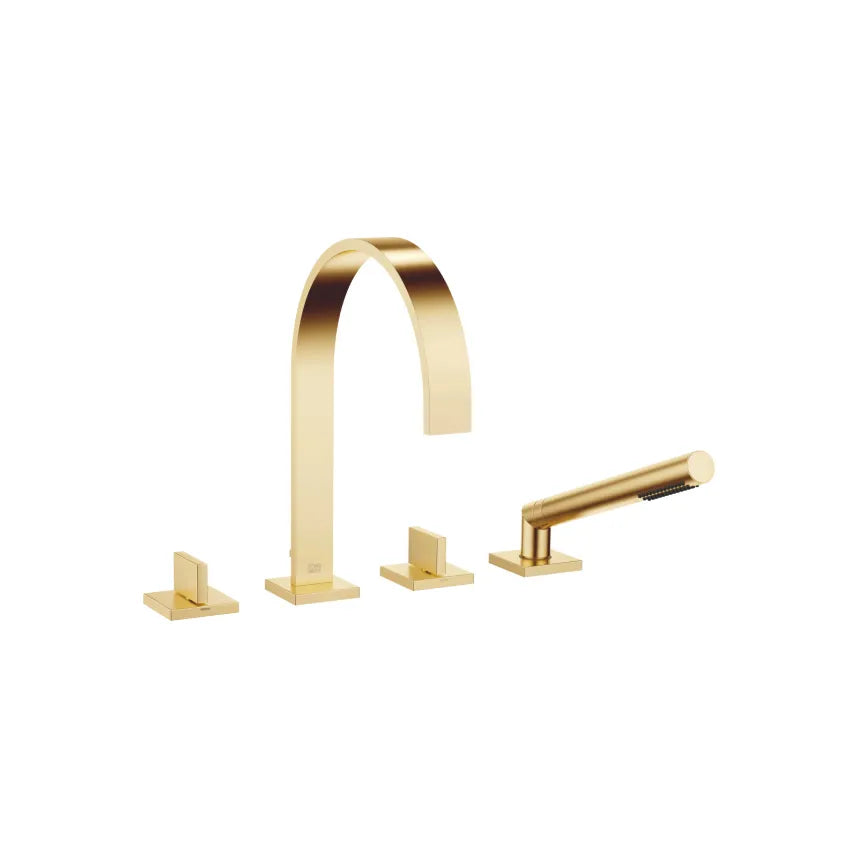

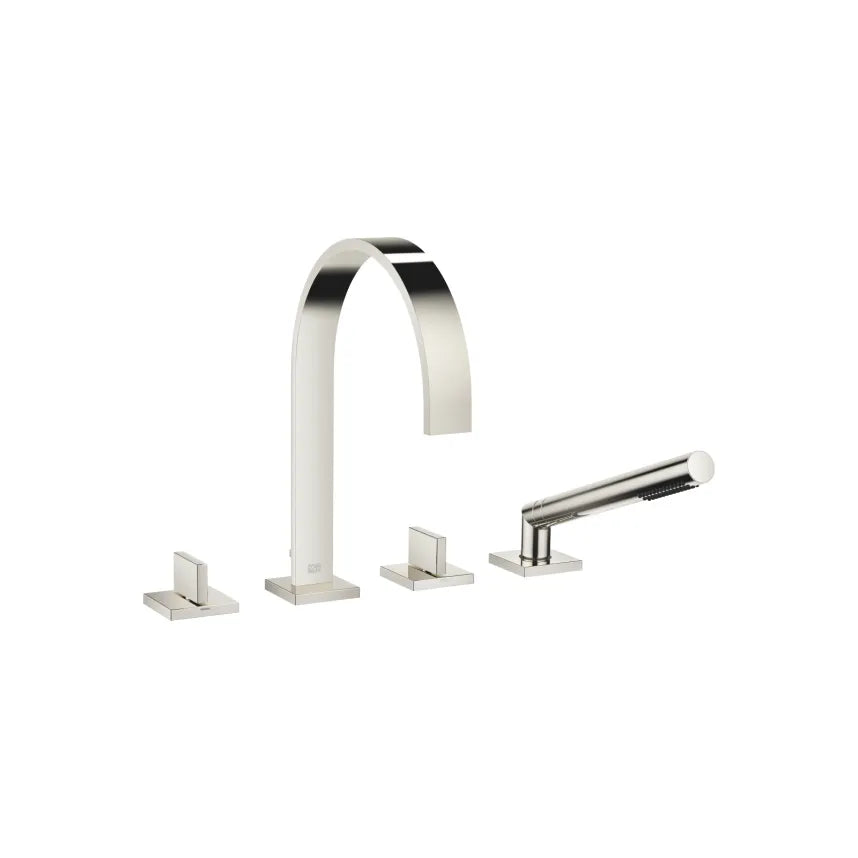

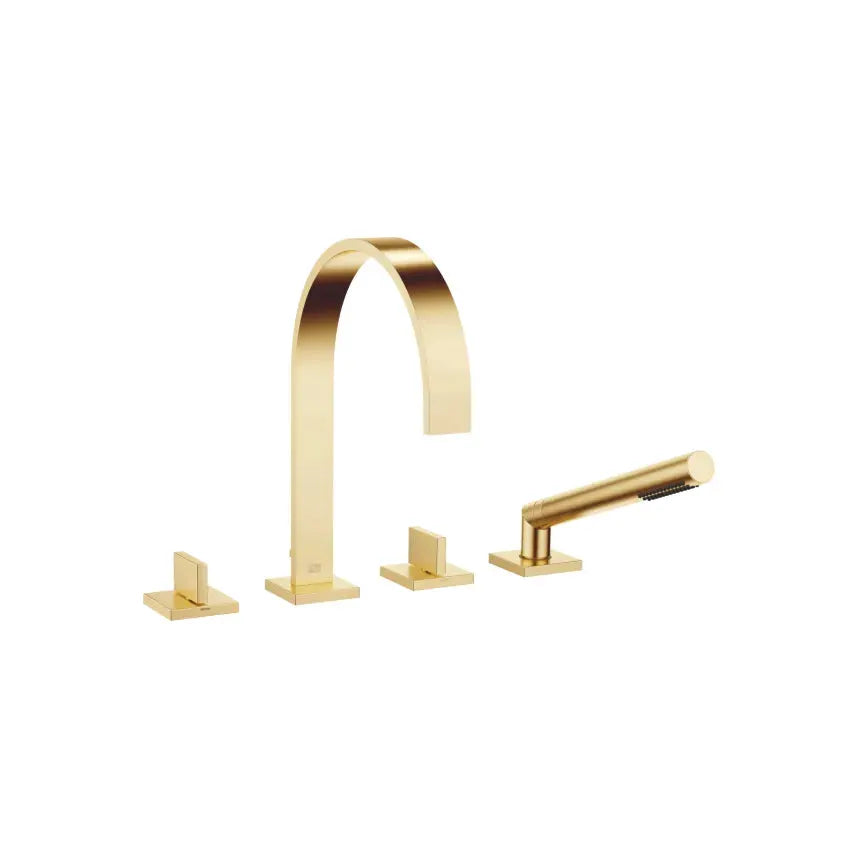

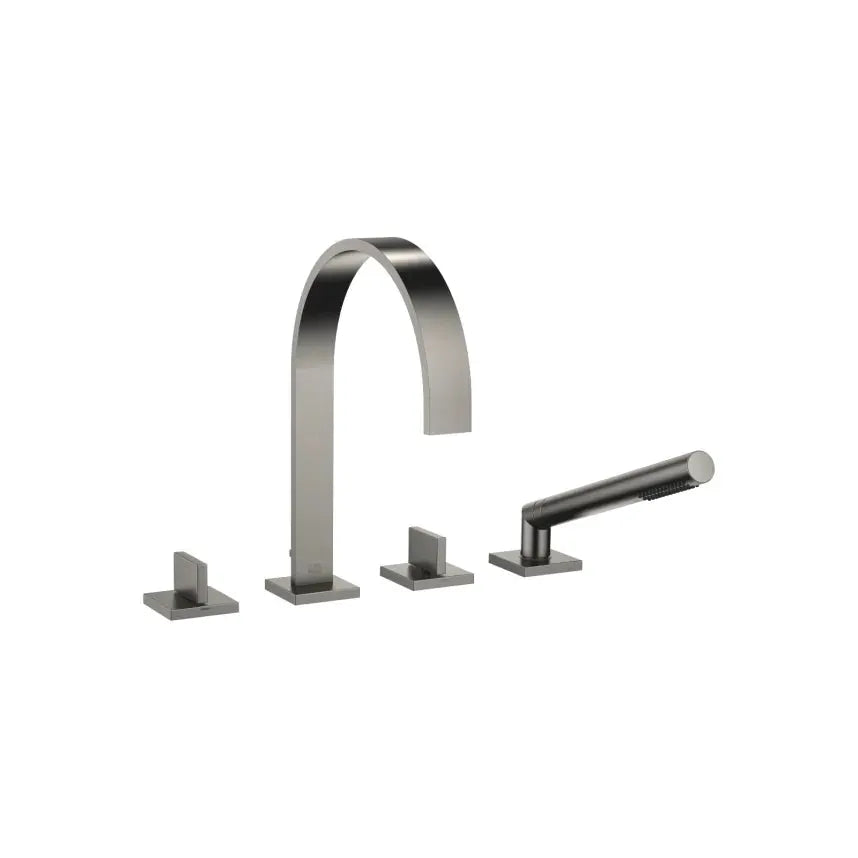

Dornbracht MEM Deck-Mounted Tub Mixer, with Hand Shower Set for Deck-Mounted Tub Installation
![chrome deck mounted tub mixer](http://focalpointhardware.com/cdn/shop/files/image_15c9dec4-c794-4e66-b883-c4667310d09e.webp?v=1698075837&width=858)
Dornbracht MEM Deck-Mounted Tub Mixer, with Hand Shower Set for Deck-Mounted Tub Installation
Sale price$3,564.64
Regular price$4,455.80 (/)
Product details
Focal Point is an Authorized Dornbracht Retailer!
About The Dornbracht MEM Deck-Mounted Tub Mixer, with Hand Shower Set for Deck-Mounted Tub Installation
About The Dornbracht MEM Deck-Mounted Tub Mixer, with Hand Shower Set for Deck-Mounted Tub Installation
- Application area: Tub
- Construction type: Deck-mounted
- Product concept: MEM
- Product type BU: Fitting
- 8-5/8" Projection
- Hand shower set: Standard spray
- Spout: Rectangular aerator
- Hand shower set with anti-scale technology
- Integrated diverter
- Total height 11-3/4"
- Height to aerator/spout outlet 6-3/4"
- Valve hole diameter 1-1/4"
- Spout hole diameter 1-1/4"
- Hole diameter for hand shower set 1-1/4"
- 2-3/8" x 2-3/8" flange for spout
- Hand shower set with flange 2-3/8" x 2-3/8"
- Valve with flange 2-3/8" x 2-3/8"
- Metal shower hose 68-7/8" with anti-twist device
- Water flow rate limited to max. 7.2 gpm
- Handshower flow rate max. 1.8 gpm
- WRAS: 1711017
- Codes & Standards
- California Energy Commission (CEC)
- ASME A112.18.1/CSA B125.1
- Internal backflow preventer.
- NOTE: Local building codes may require the use of an anti-scald device. Please refer to remote pressure balance valve (35 914 970 90)

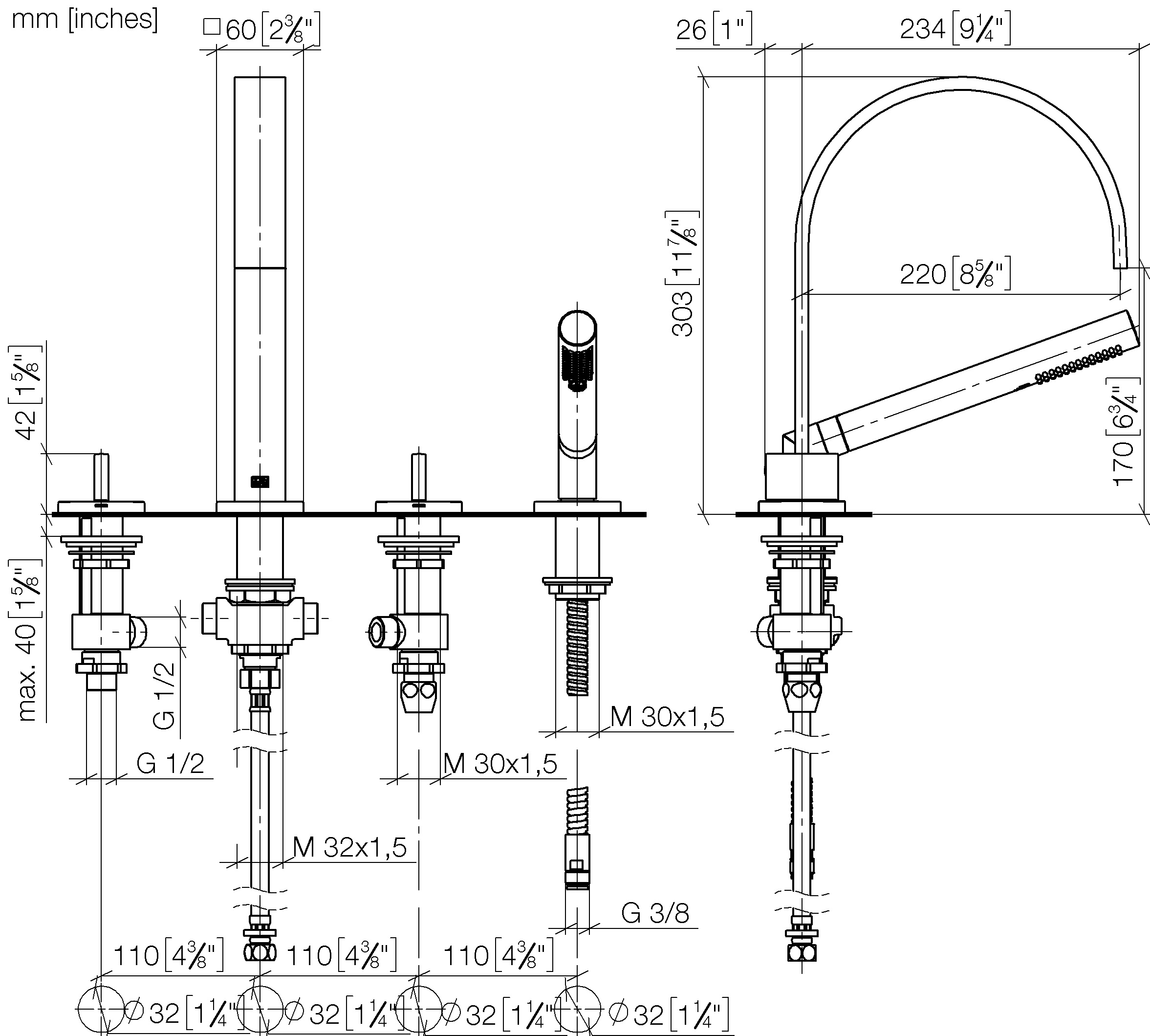

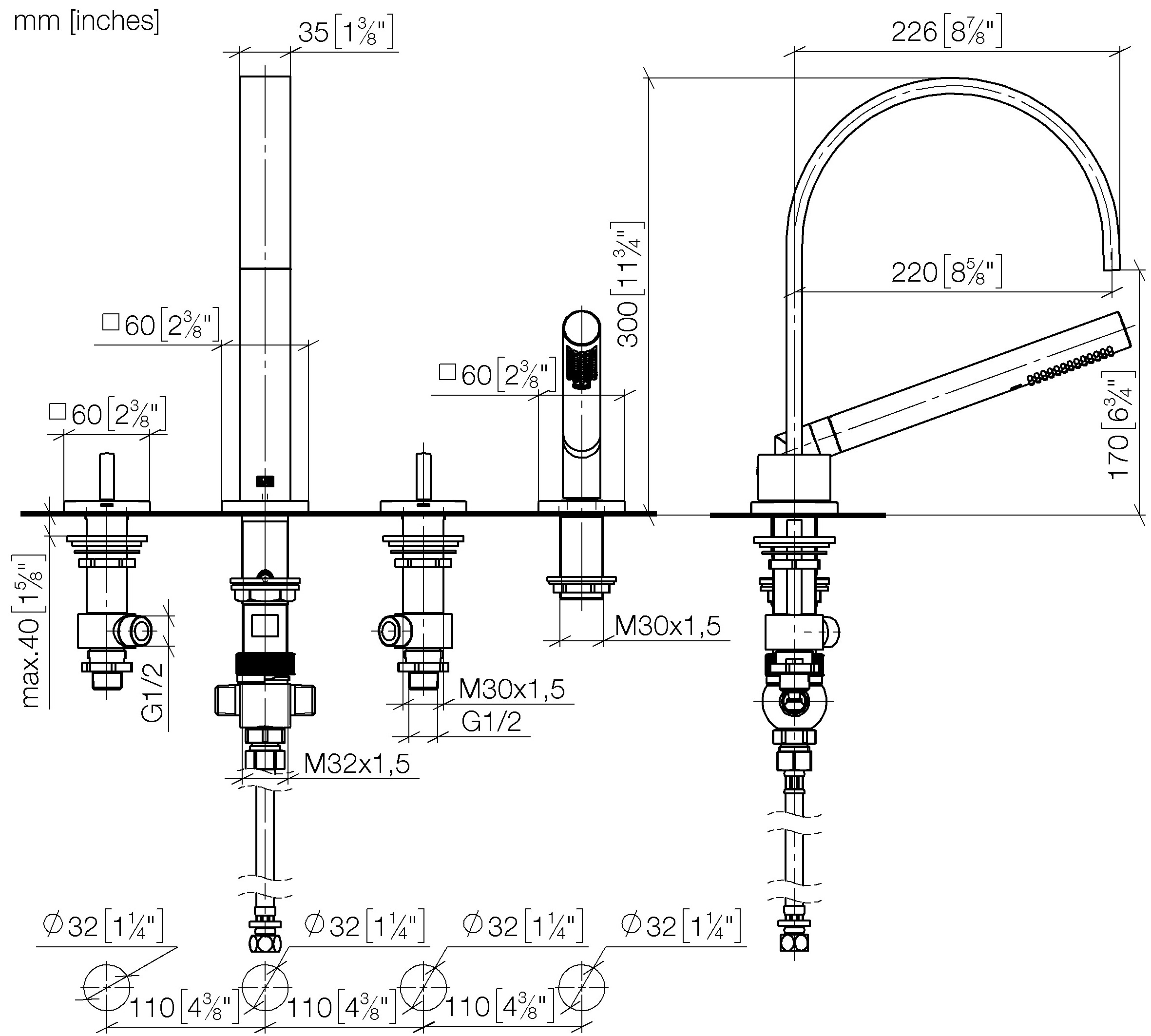

Product Specifications
Specifications Sheet
