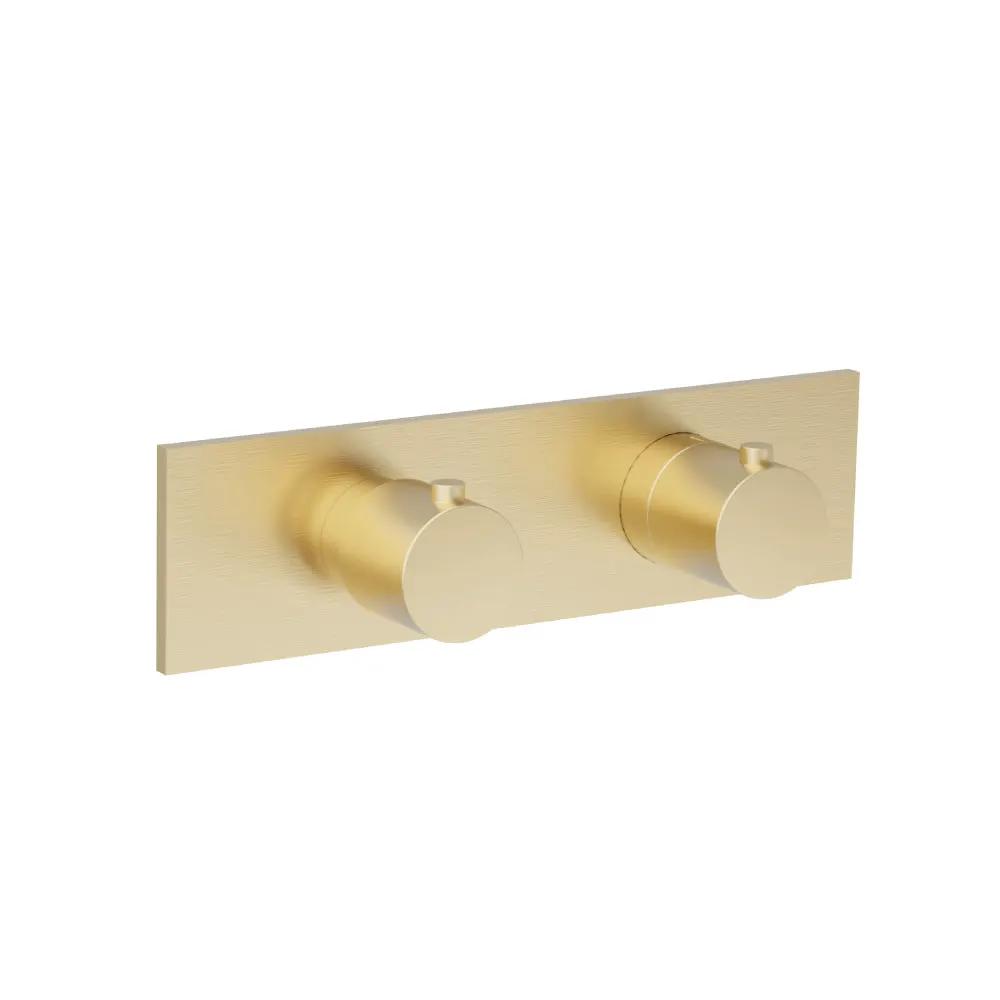

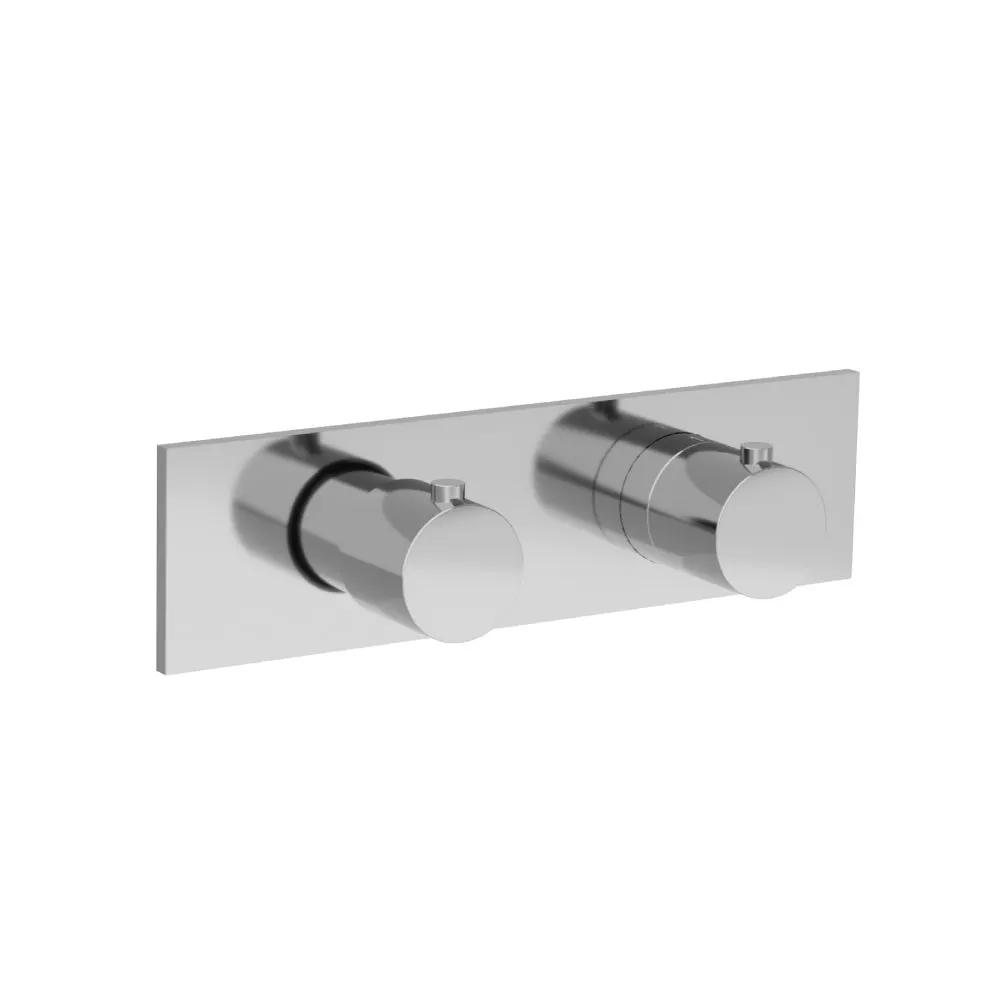

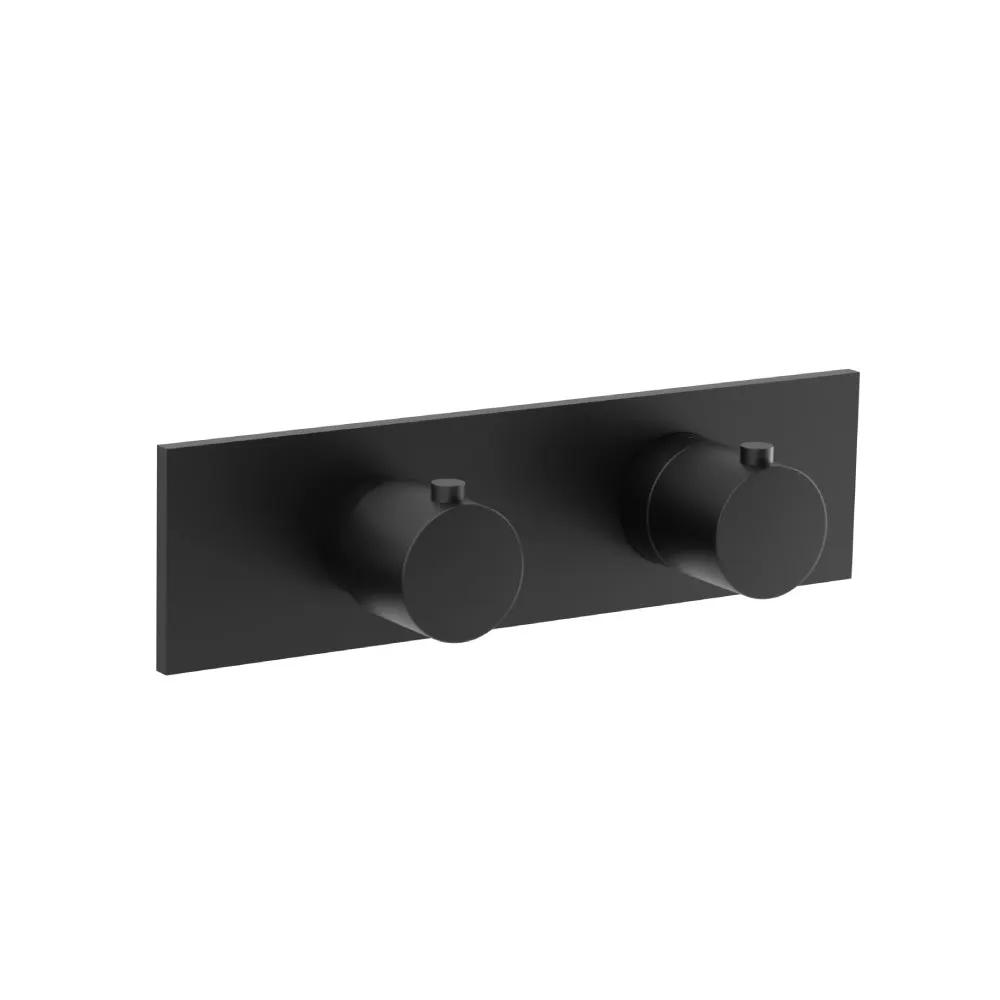

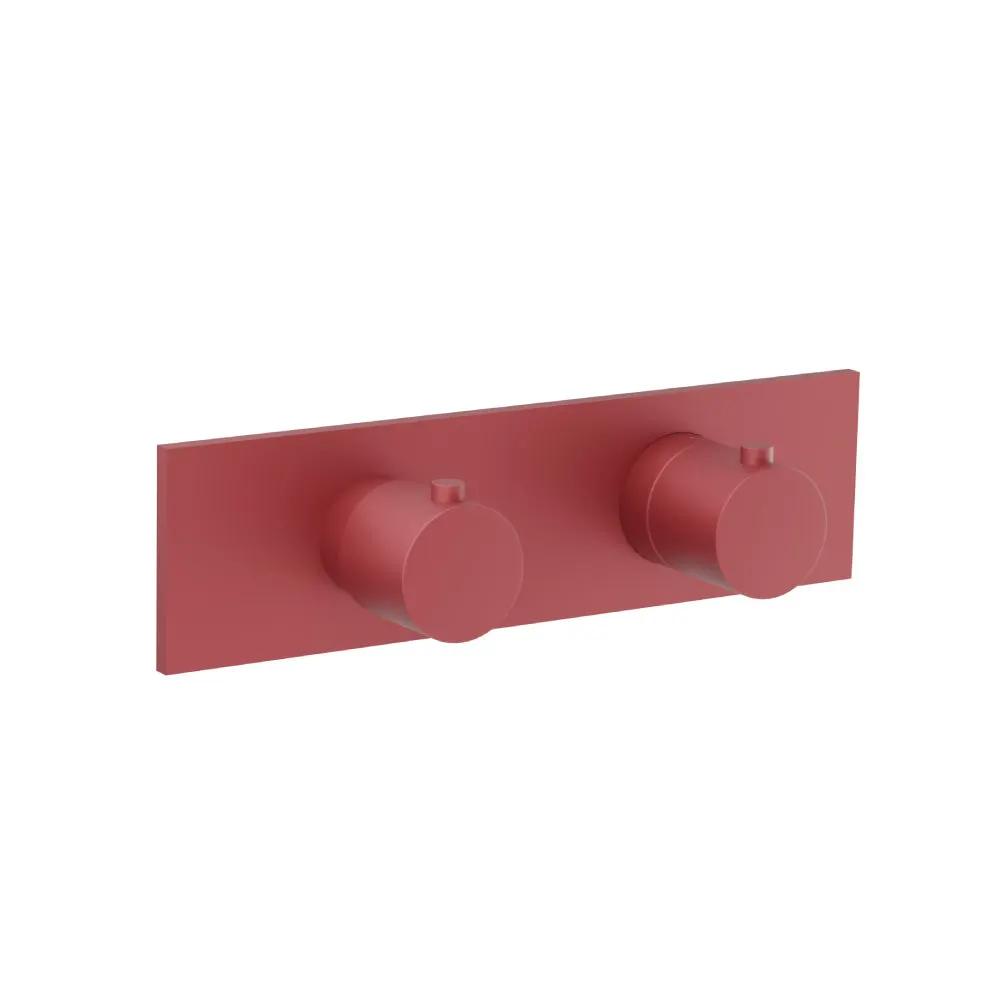

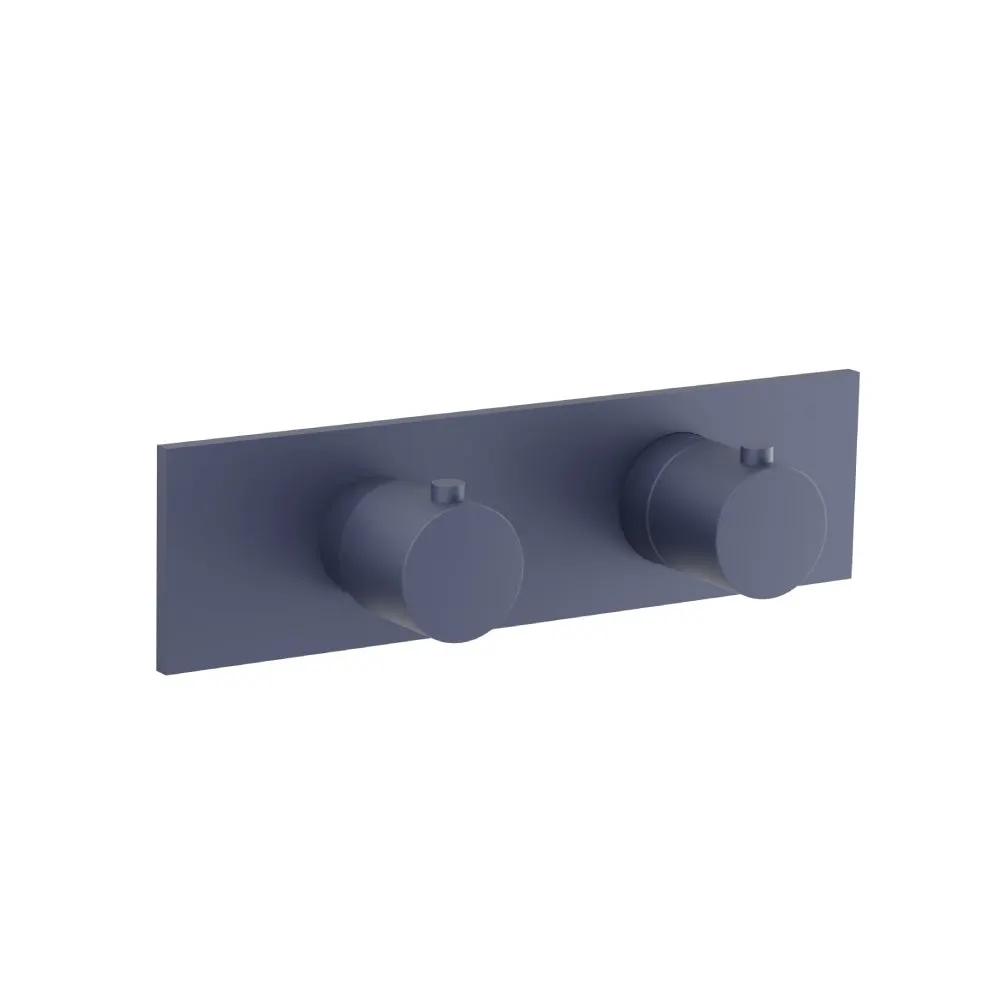

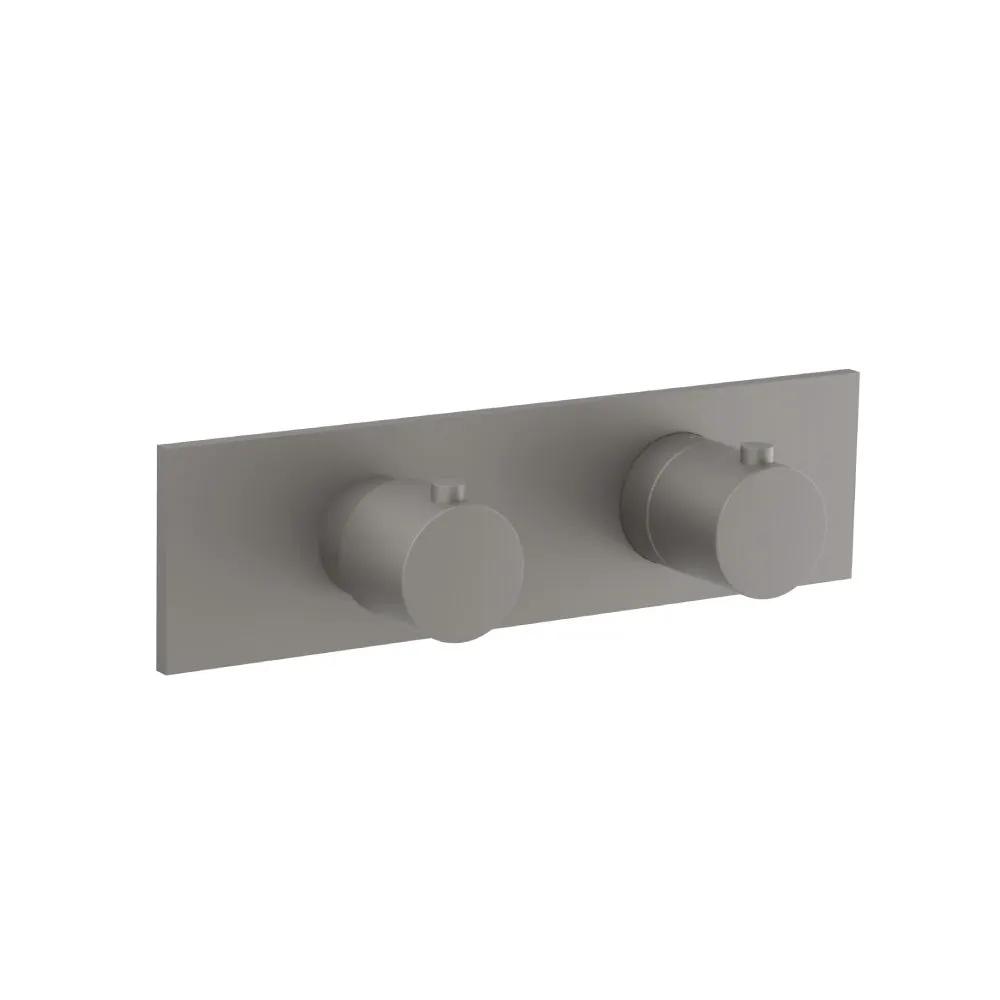

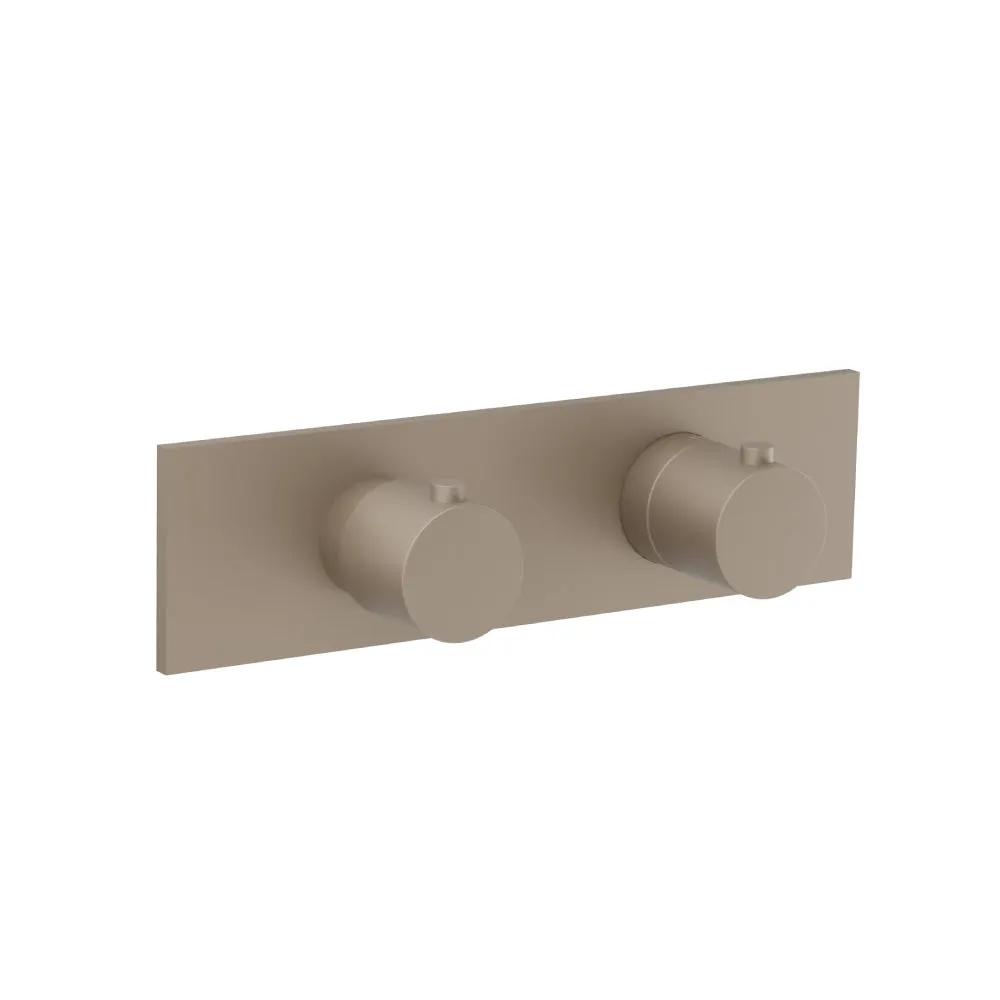

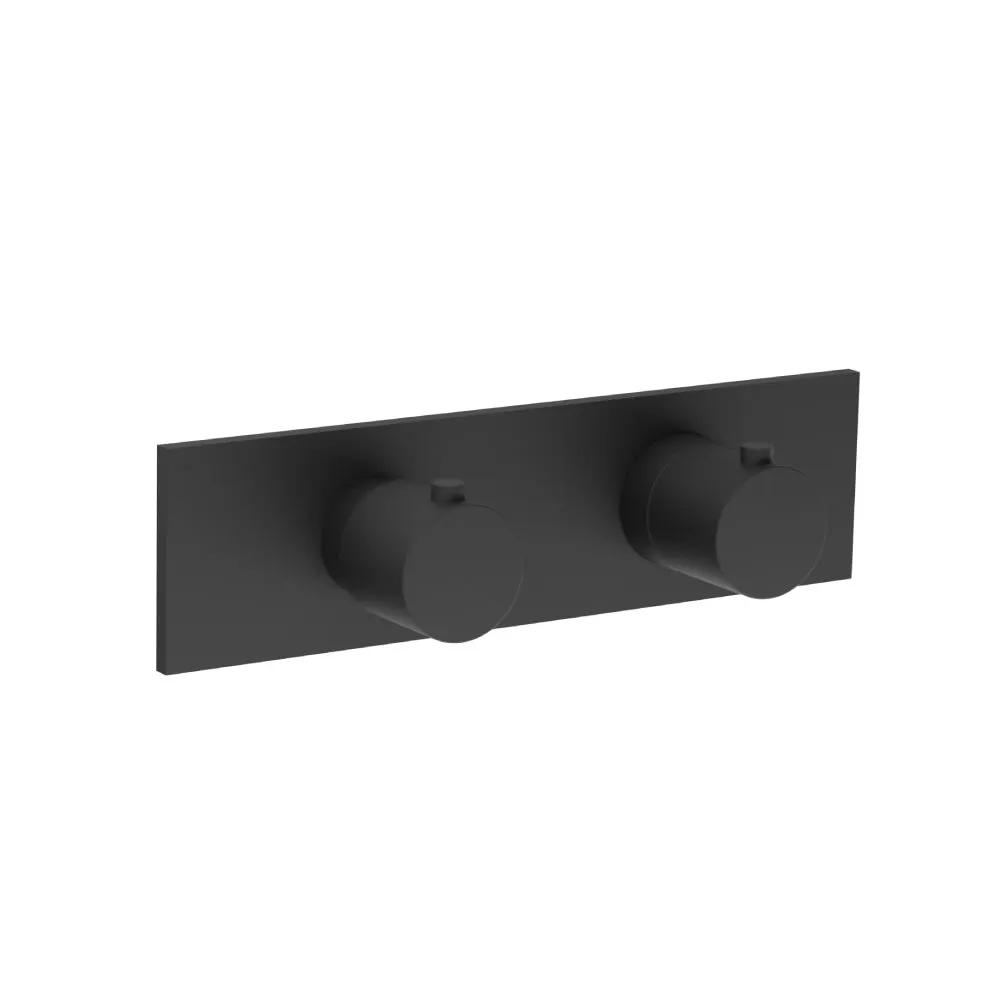

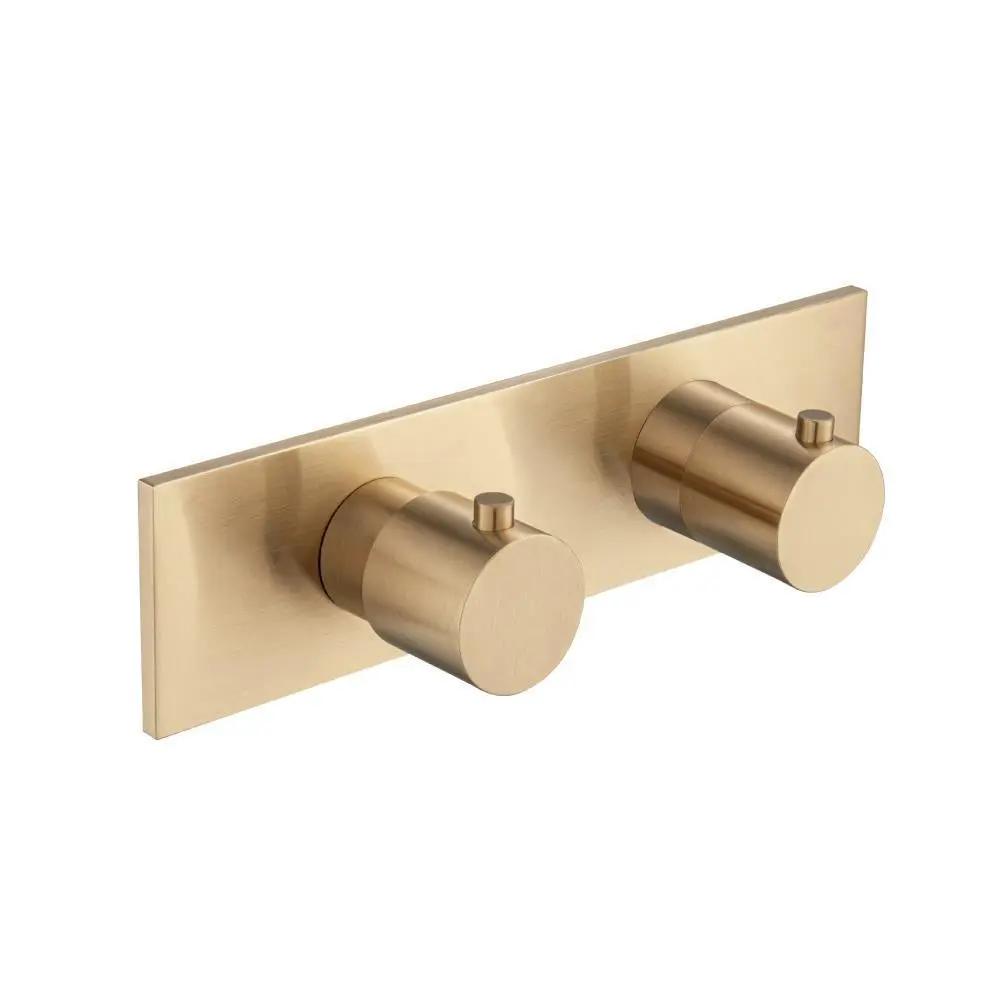

Flusso Serie 100 3/4" Horizontal Thermostatic Shower Valve and Trim - 1 Ouptut

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 100 3/4" Horizontal Thermostatic Shower Valve and Trim - 1 Output, a precision-engineered mixer that delivers reliable temperature control and quiet performance. This valve combines durable brass construction, anti-scald protection, and flexible horizontal or vertical installation for a clean, luxury shower experience. Ideal for modern baths seeking precise water delivery and lasting value from Flusso.

Flusso designs premium shower valves with a focus on precision engineering, durability, and timeless style. Renowned for reliable thermostatic control and safe anti-scald features, Flusso products deliver consistent water temperature and long-term performance, ensuring luxurious showers. As a manufacturer, Flusso emphasizes quality brass construction and clean installation aesthetics across commercial and residential applications.

Features and Specifications

• 3/4" NPT connections
• One water output
• The right handle sets the temperature
• The left handle controls water volume
• Horizontal or vertical installation
• SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
• HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports
• The left handle is used to turn water on and off and can control the volume of water from full flow to a trickle
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value
• With the help of this ring, the temperature of the water is regulated
• Covering this ring is the handle knob which has a push-button on the side
• To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction
• Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism
• The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly
• VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77" and 3.44" inches [Rough In Spec].
• Also, the value must be installed straight and not at an angle or upside down
• In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve
• CUT OUT DIMENSIONS – The cut out in wall should be 7.89" x 1.89" Inches which is properly covered by the trim plate
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs
• The trim plate is used to cover the wall
• Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles
• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2693 With Integral Service Stops
• Single Output Port
• Extensions Available - TVH.4101E

Equip your shower with the Flusso Serie 100 for precise control, durable brass construction, and elegant, modern trim that elevates any bathroom. Flusso's commitment to quality ensures reliable performance and a luxurious experience every day.
