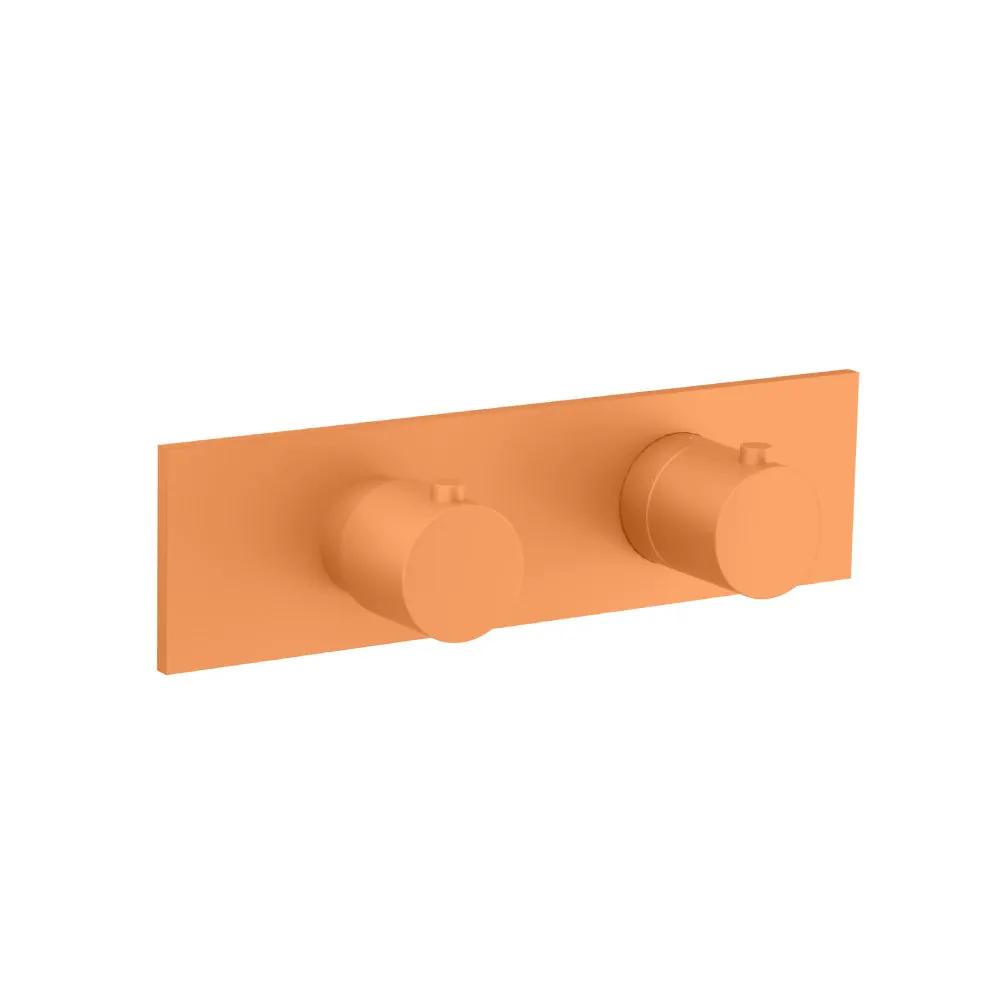

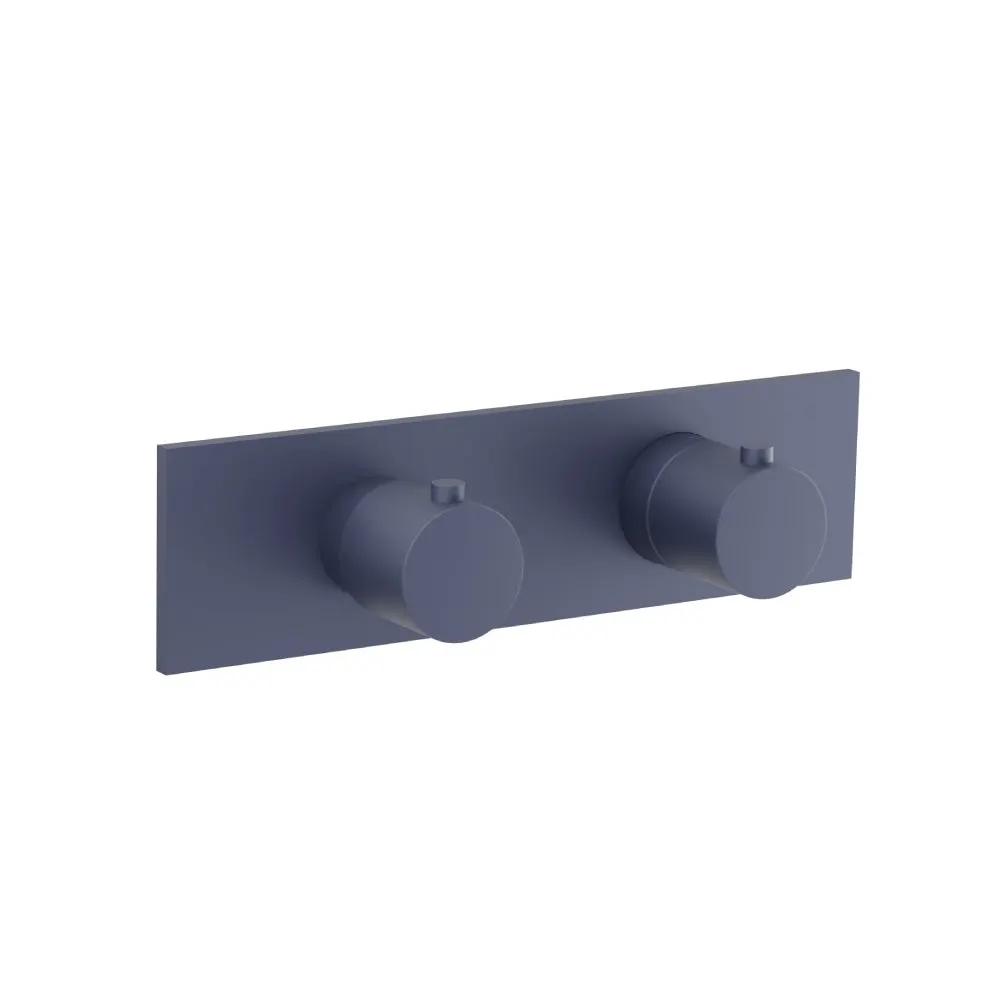

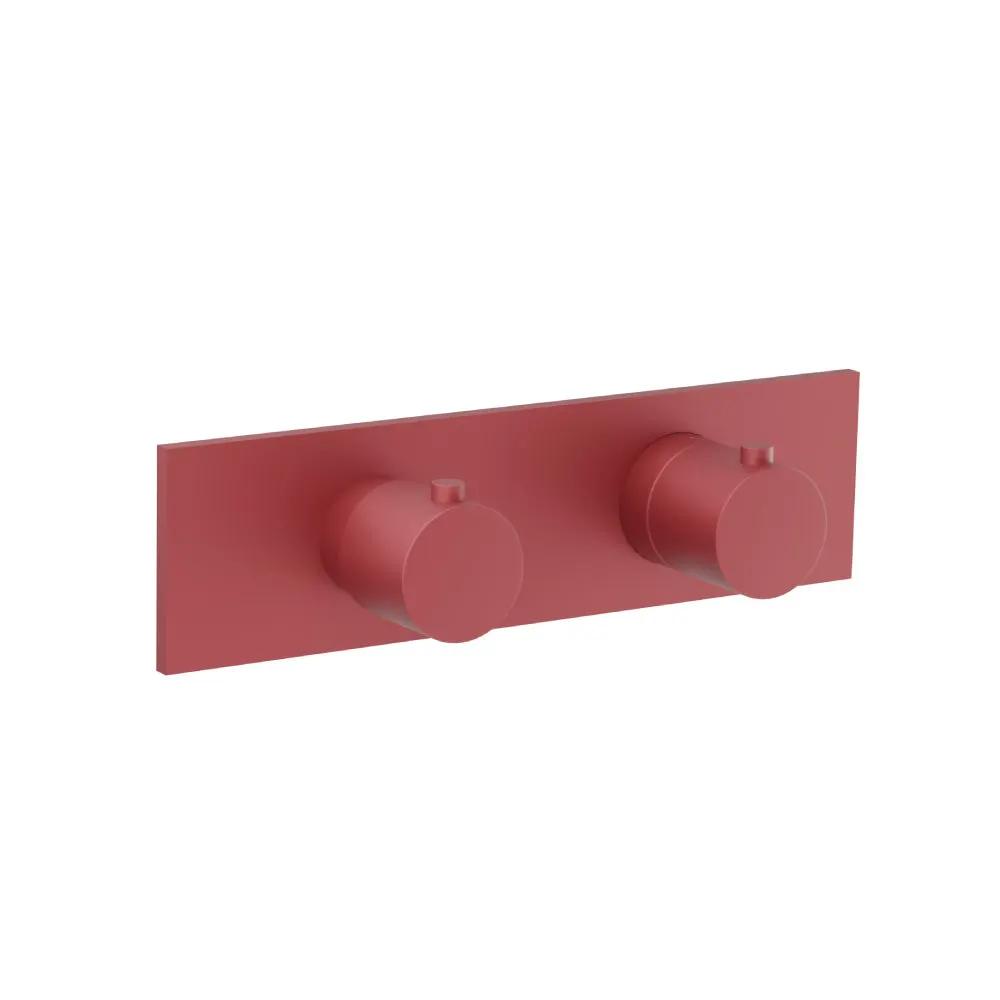

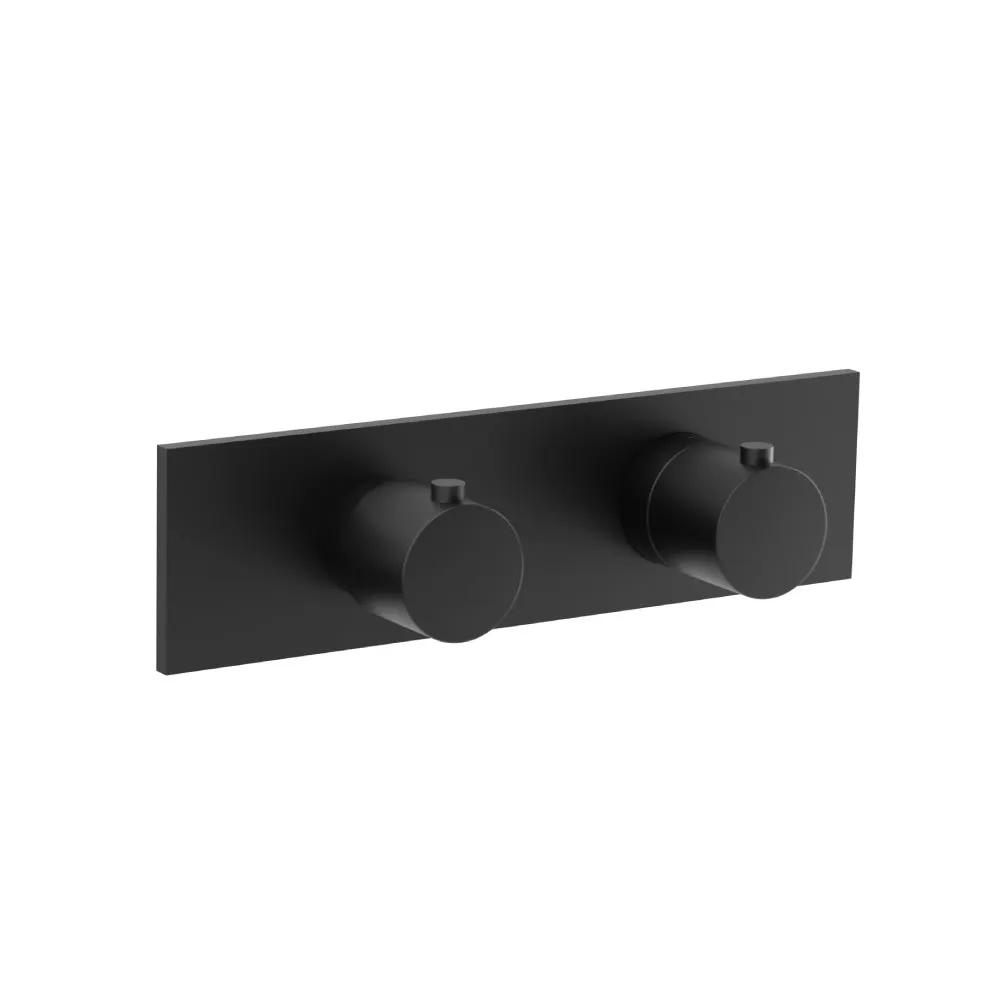

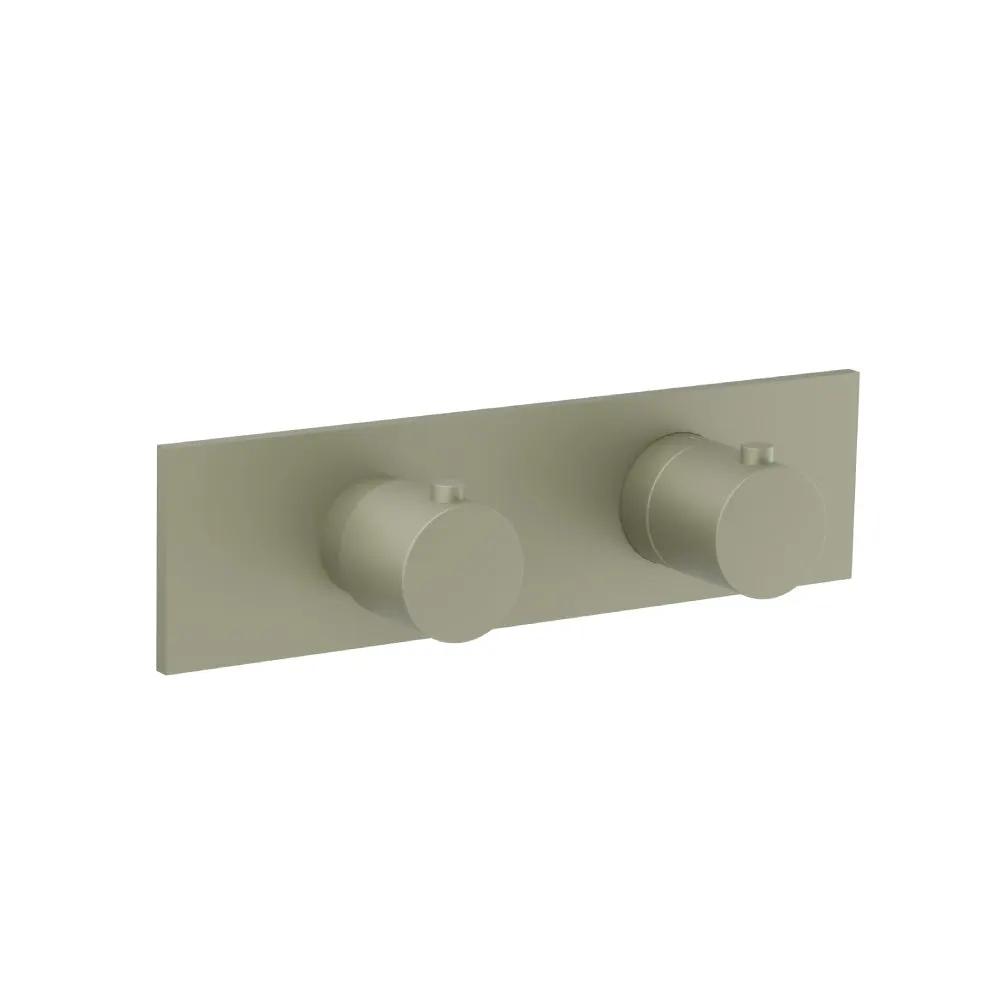

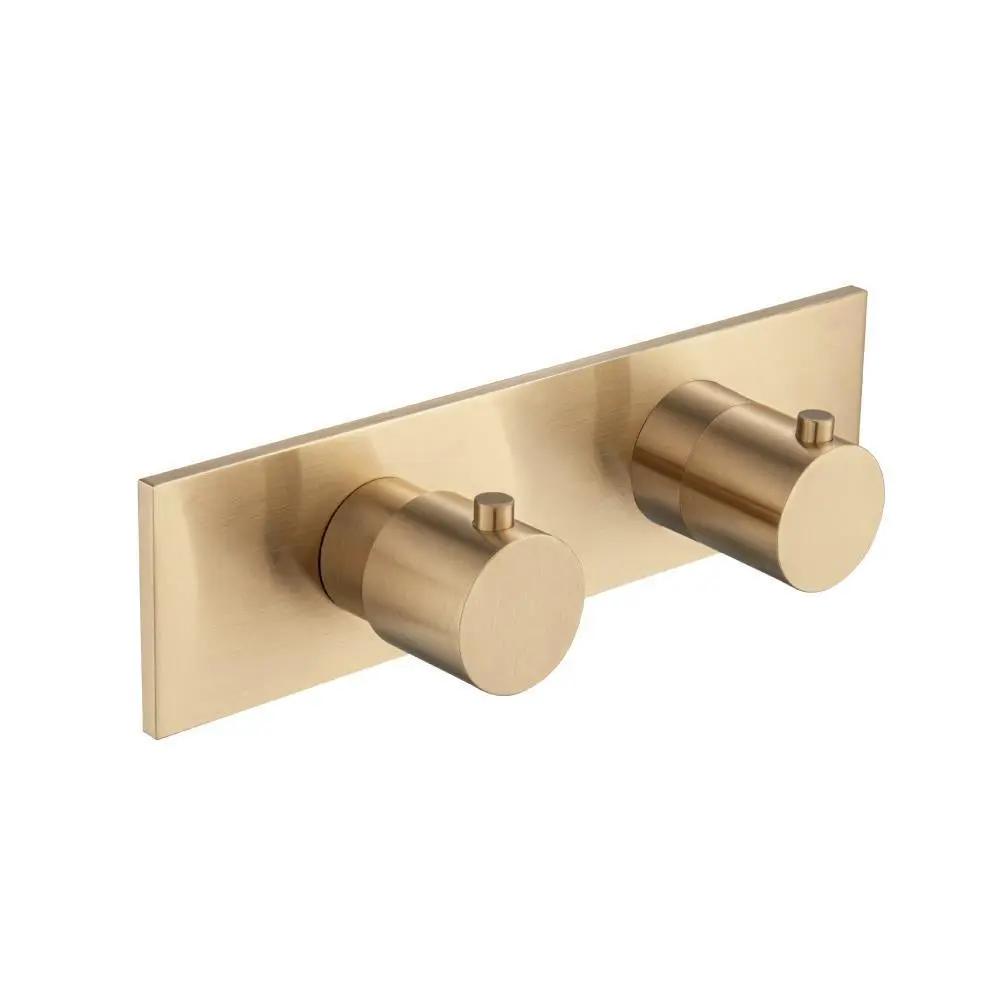

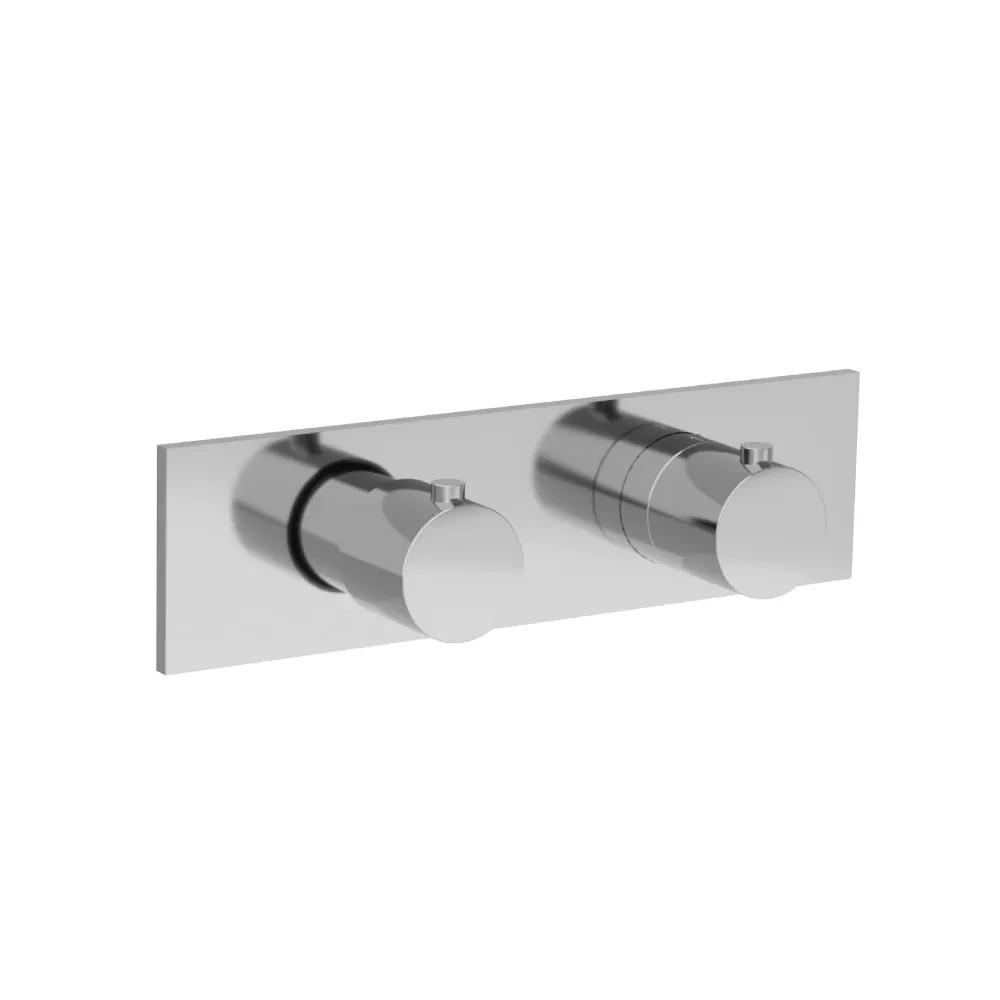

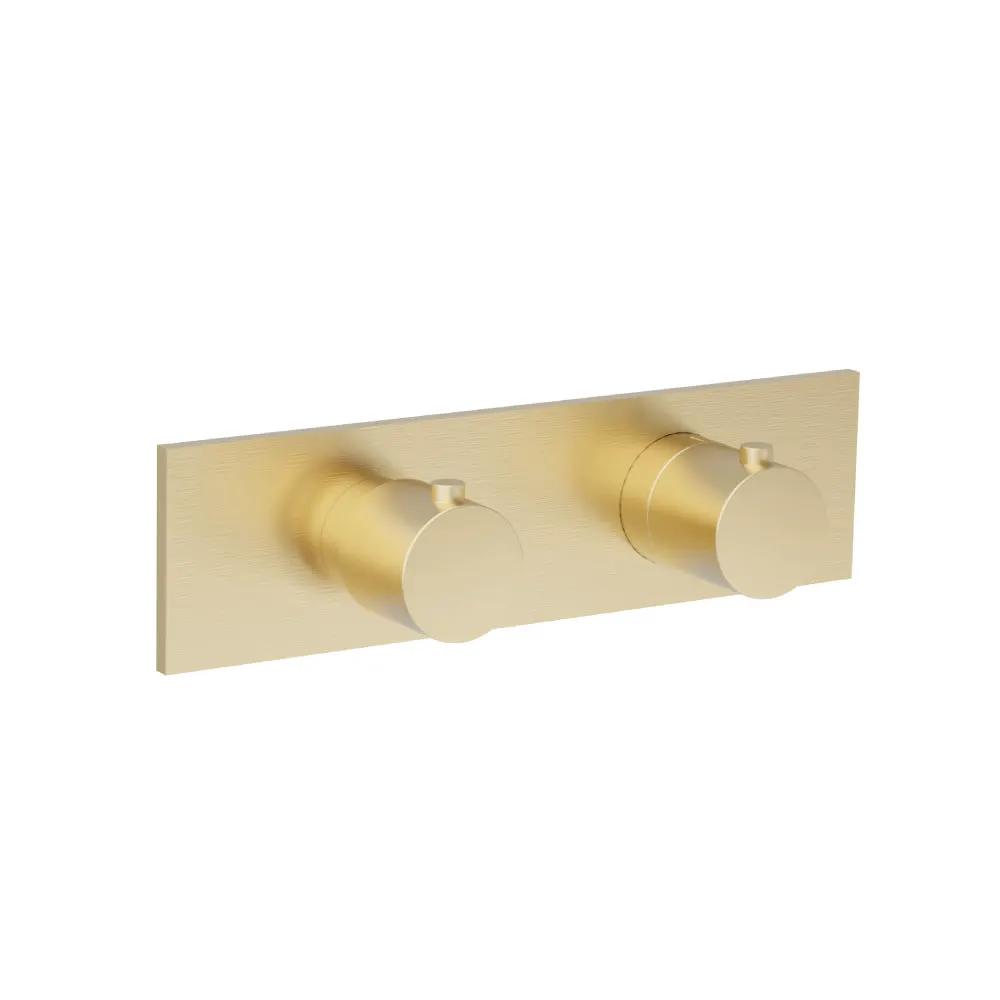

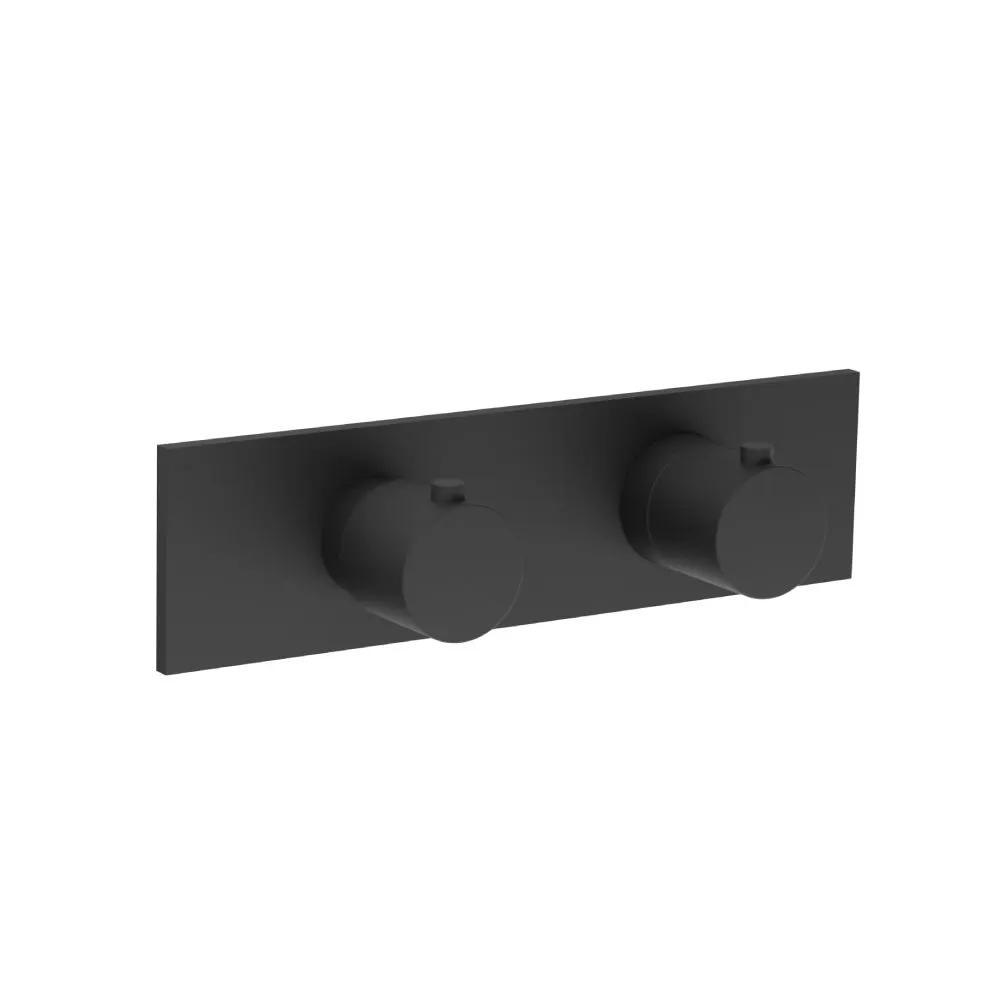

Flusso Serie 100 3/4" Horizontal Thermostatic Shower Valve and Trim - 3 Output

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 100 3/4" Horizontal Thermostatic Shower Valve and Trim - 3 Output, a precision-engineered mixing valve from Flusso designed for customizable multi-output showers. The Thermostatic TVH.2705F delivers precise temperature control, independent port selection, CAL-Green compliance, and durable solid brass construction for reliable performance and a luxury shower experience.

Flusso is renowned for precision engineering, durable materials, and CAL-Green compliant products that blend performance with style. Flusso's thermostatic valves deliver reliable temperature control in demanding showers, supported by solid brass construction, rigorous testing, and a focus on user safety and long-term value, making Flusso a trusted choice for luxury baths.

Features and Specifications

• 3/4" NPT connections
• 3 water outputs (ports) operable one at a time without shared port operation
• CAL-Green compliant
• Right handle sets the temperature
• Left handle controls water diversion between the 3 water output ports and is capable of controlling the volume of water from full flow to a trickle
• Horizontal or vertical installation
• Supply stops – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
• Anti-scald ring – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value
• To adjust the water temperature, press the push-button on the side of the handle and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism
• Anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly
• Valve installation - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77" and 3.44" inches [Rough In Spec]. Also, the valve must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
• Cut out dimensions – The cut out in wall should be 7.89" x 1.89" Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
• Trims – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Cartridge – The TVH.2705F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time.
• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2705F With Integral Service Stops
• Three Output Ports

Experience precise control, versatile installation, and CAL-Green compliant efficiency with the Flusso Serie 100. Flusso delivers luxury performance through durable construction and reliable thermostatic tech—a standout choice for discerning bath spaces.
