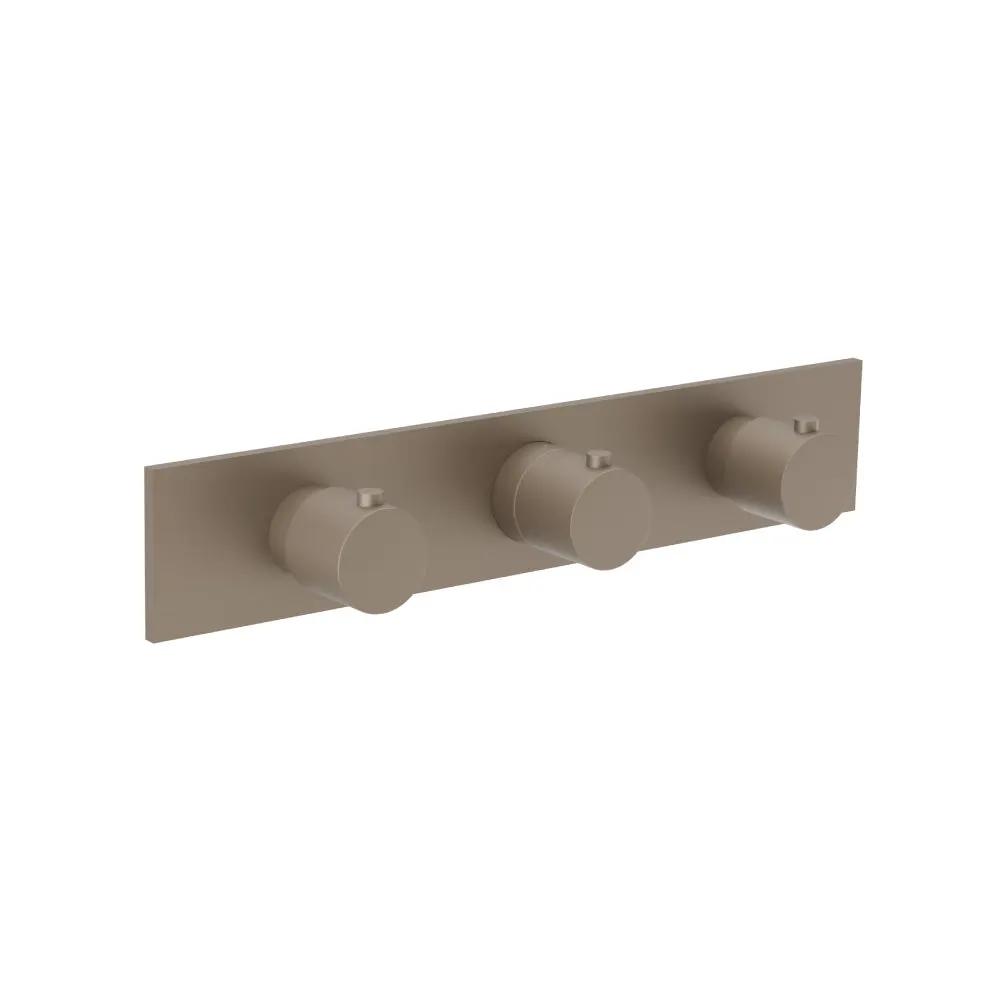

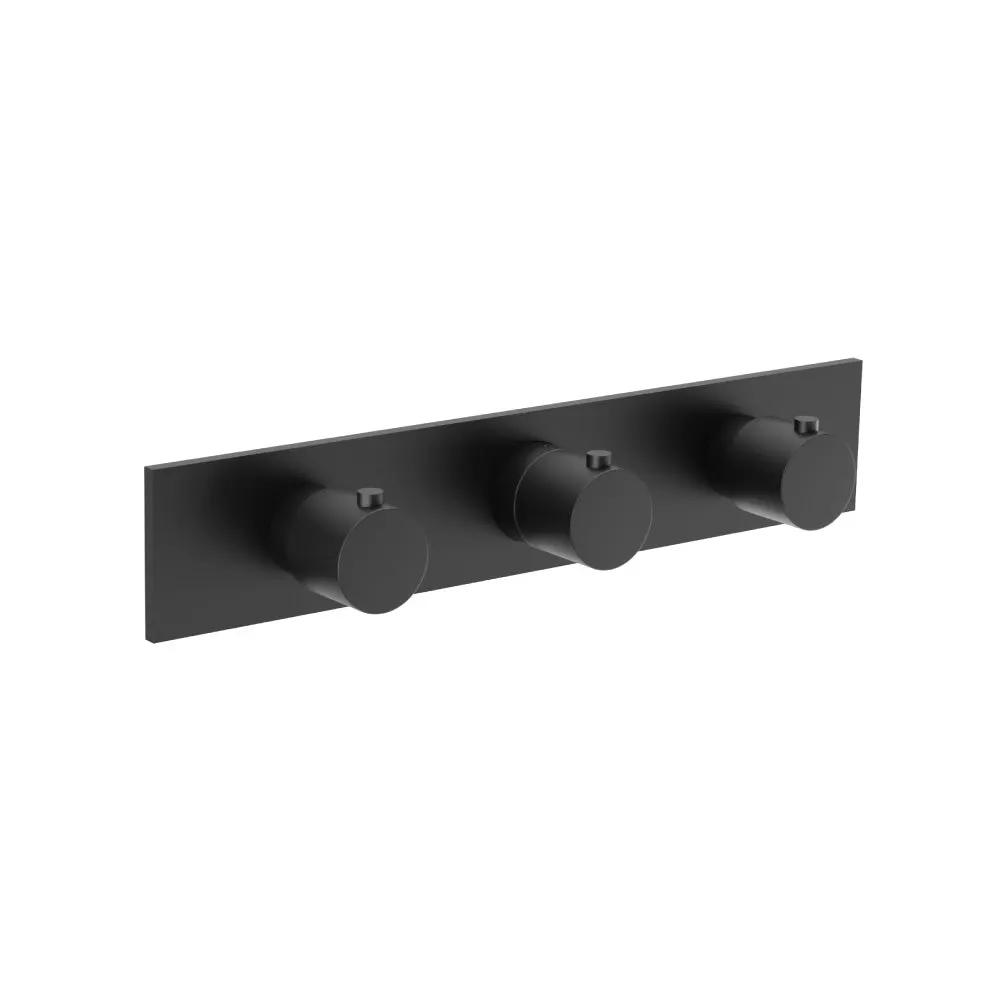

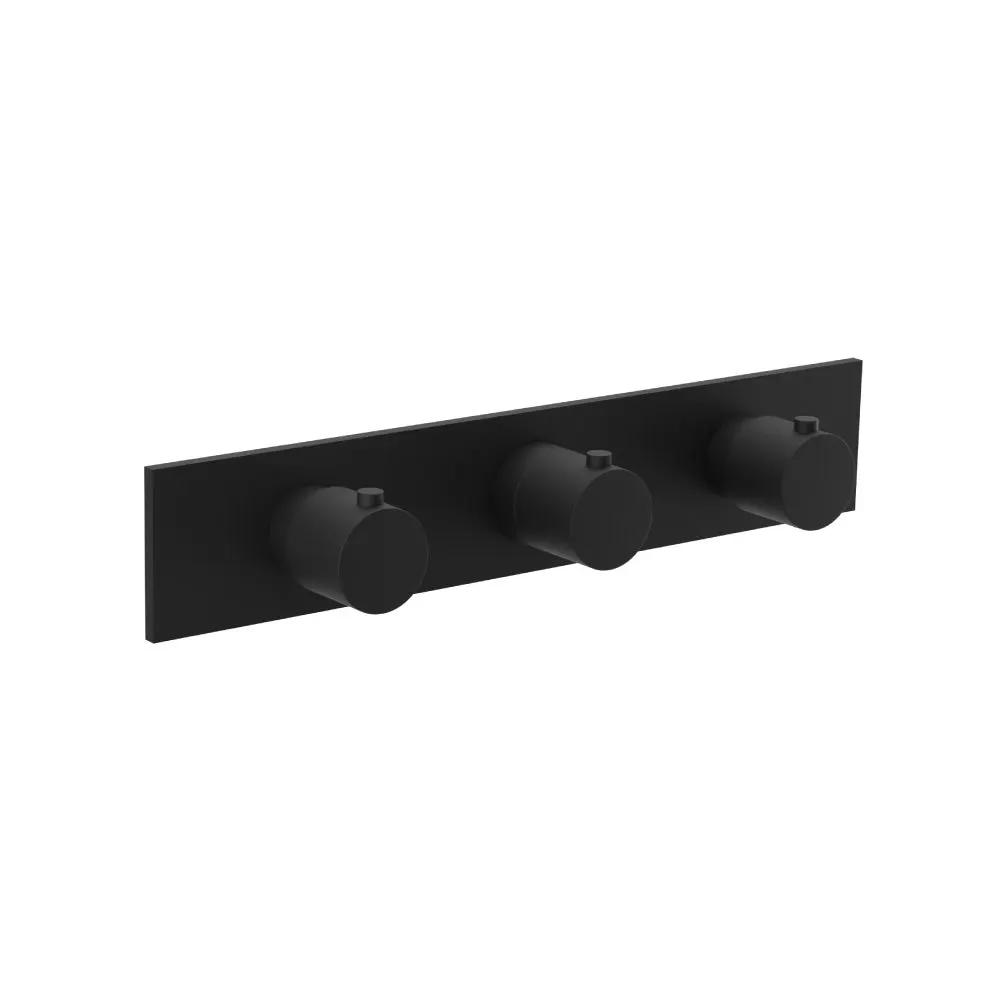

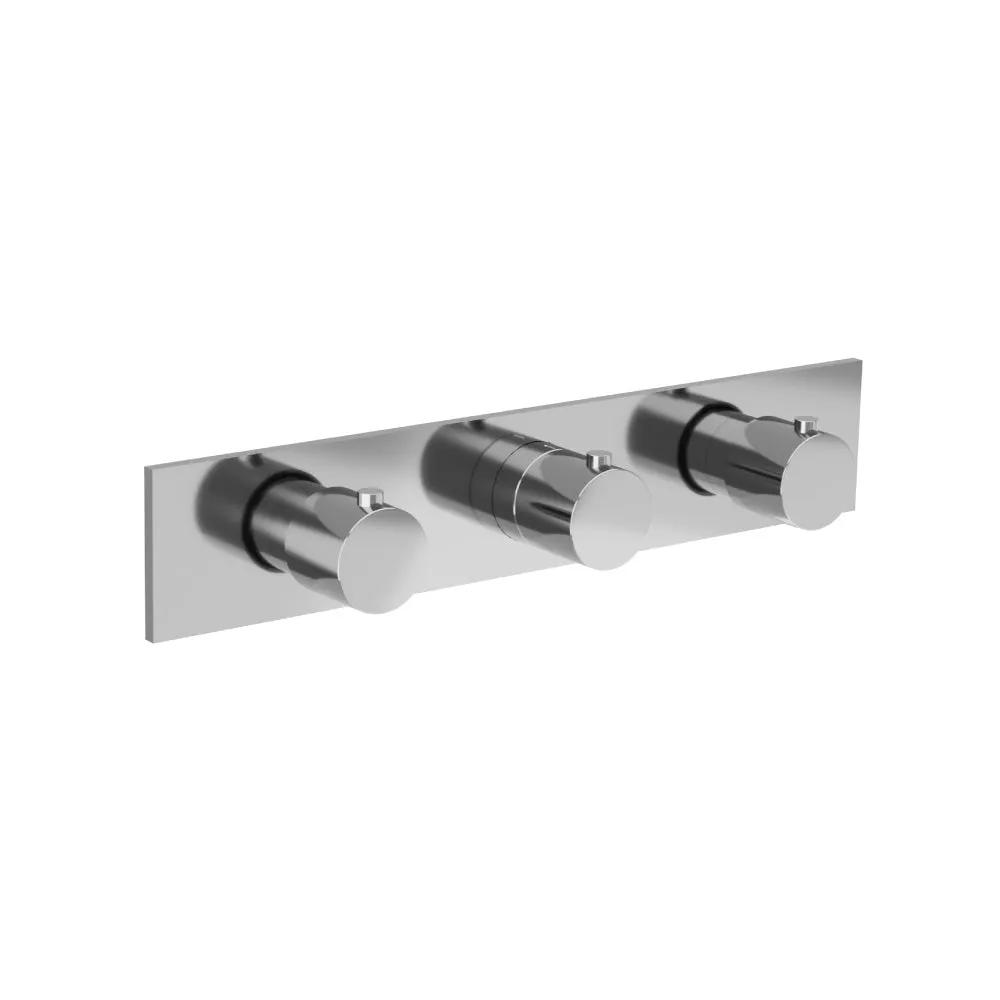

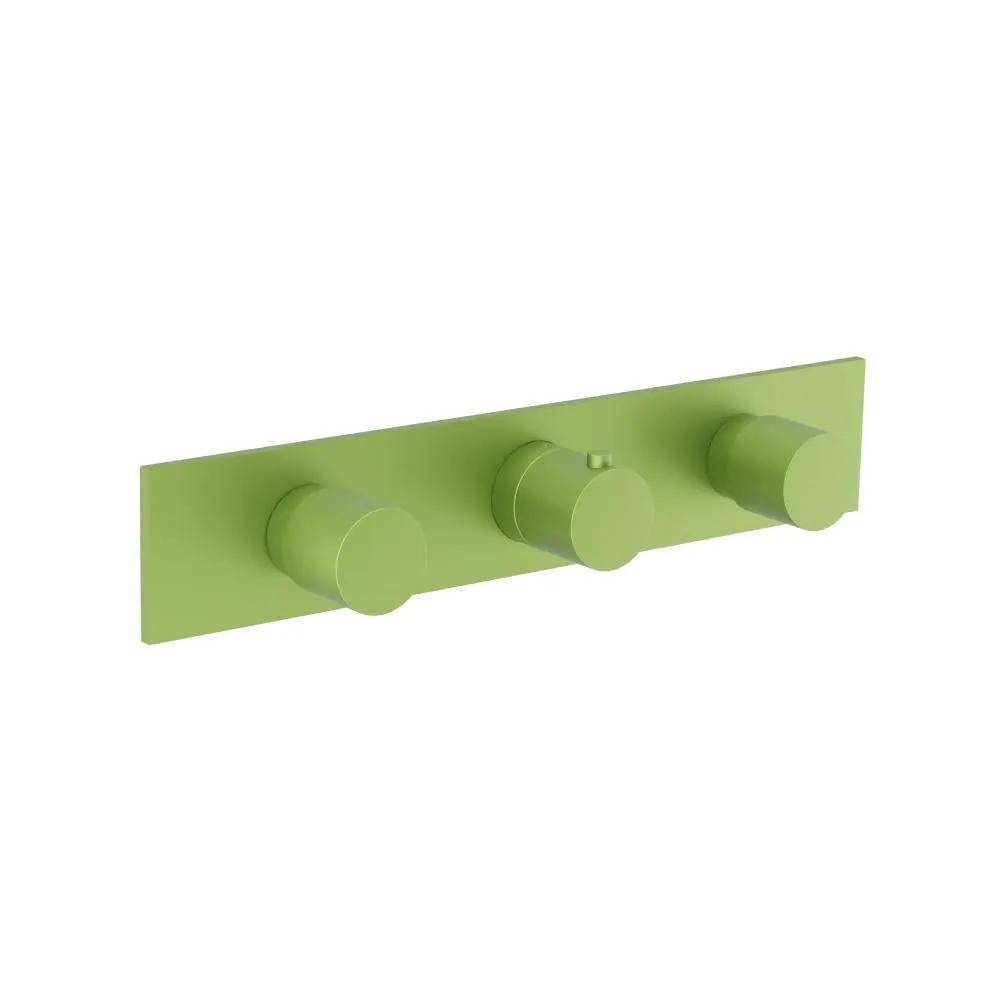

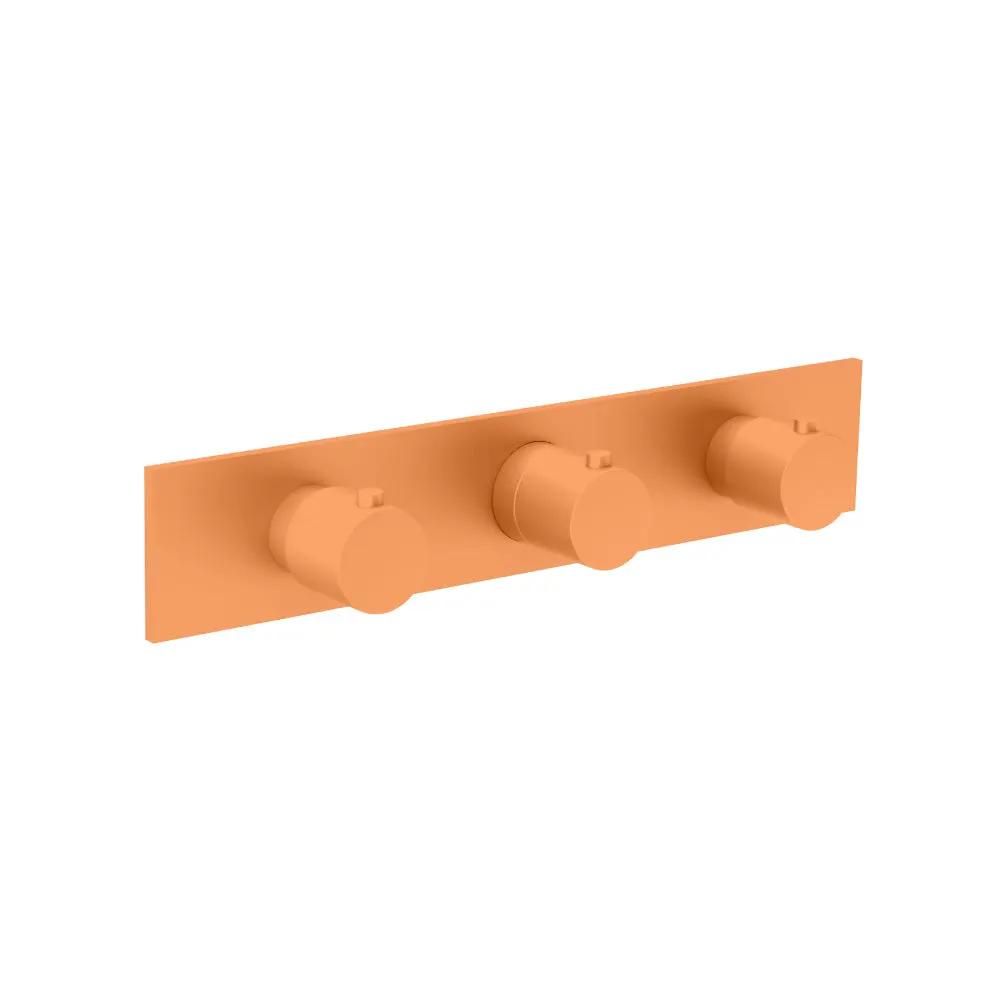

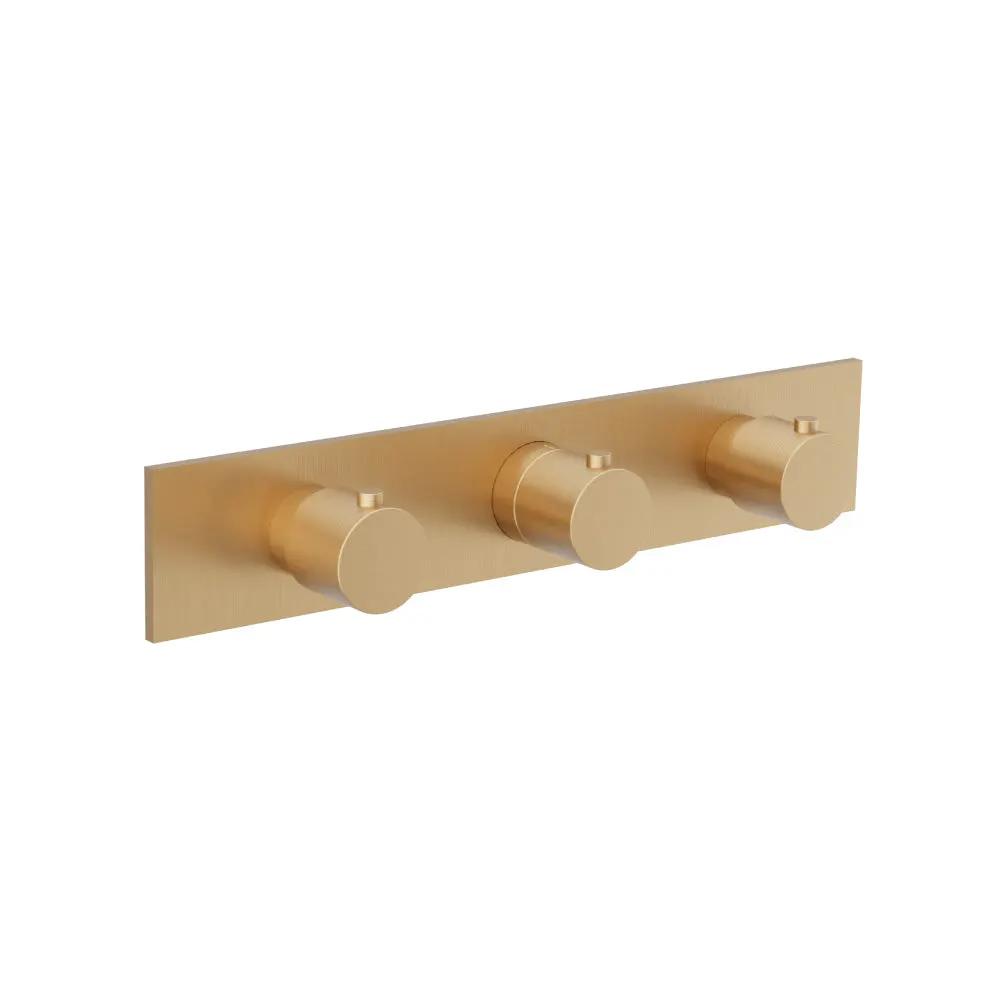

Flusso Serie 100 3/4" Horizontal Thermostatic Valve with 2 Volume Controls and Trim

Focal Point Hardware is an authorized Flusso retailer!

Experience precise comfort with the Flusso Serie 100 3/4" Horizontal Thermostatic Valve with 2 Volume Controls and Trim, engineered for tub and shower installations. Flusso's TVH.2715 delivers independent dual-port control, allowing simultaneous or sequential flow, while a thermostatic middle handle maintains a stable temperature. The integrated trim completes a clean, modern installation for luxury baths.

Flusso is renowned for precision-engineered shower valves and luxury bathroom solutions, combining robust brass construction with reliable thermostatic performance. Flusso products emphasize durability, smooth operation, and water-saving efficiency, backed by meticulous quality standards and comprehensive service stops. The Serie 100 line exemplifies their commitment to safer, more comfortable, spa-like showers.

Features and Specifications

• TVH.2715 thermostatic valve features 3/4” NPT connections
• 2 water outputs [ports] which are operable simultaneously, i.e both at the same time, or one at a time
• Middle handle sets the temperature
• Left handle controls output port 1
• Right handle controls output port 2
• Each port has full volume control capability
• SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
• HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
• VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
• CUT OUT DIMENSIONS – The cut out in wall should be 2.08 X 12.48 Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Solid Brass Valve & Trim Includes Thermostatic Valve - TVH.2715 With Integral Service Stops
• Shared 2 Port Water Flow
• Use in Tub & Shower Applications

Designed for tub and shower setups, the Flusso Serie 100 delivers precise temperature control, independent port volume, and a premium brass build that reflects Flusso’s commitment to luxury, reliability, and enduring performance.
