Product details
Focal Point Hardware is an authorized Flusso retailer!

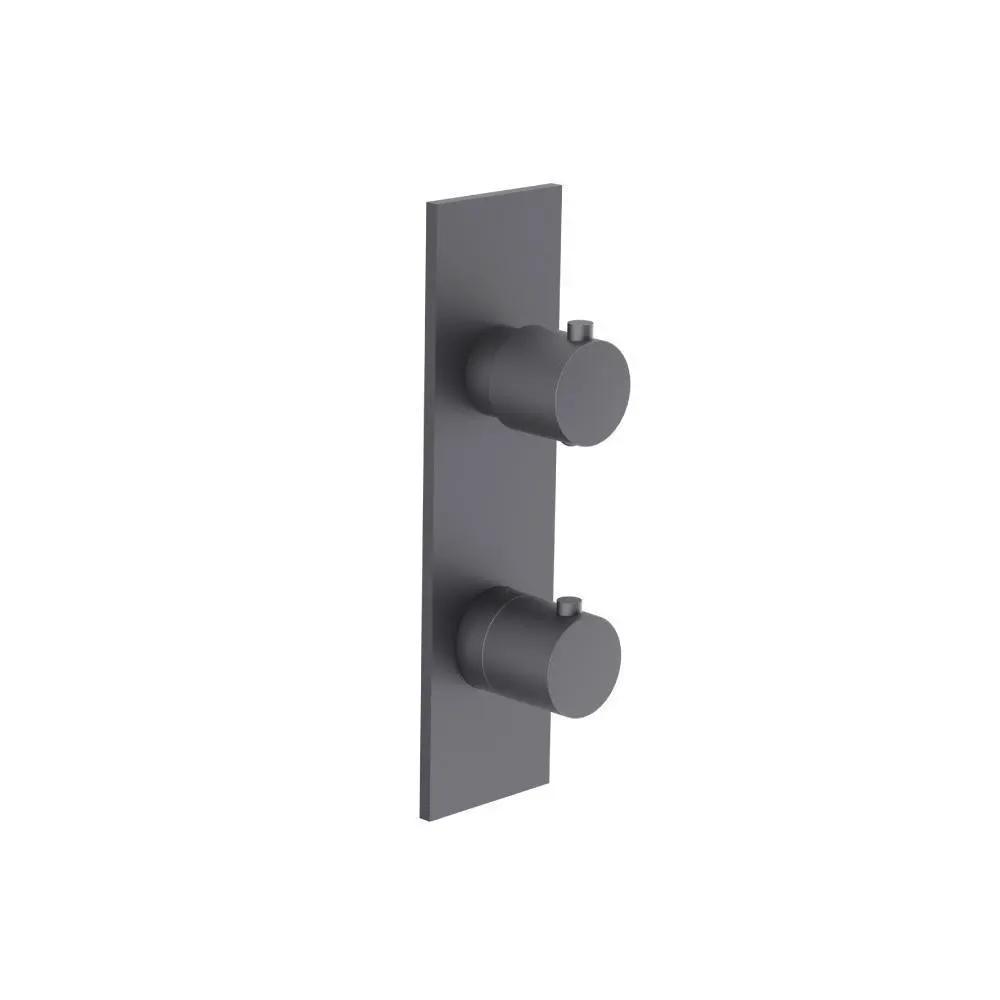

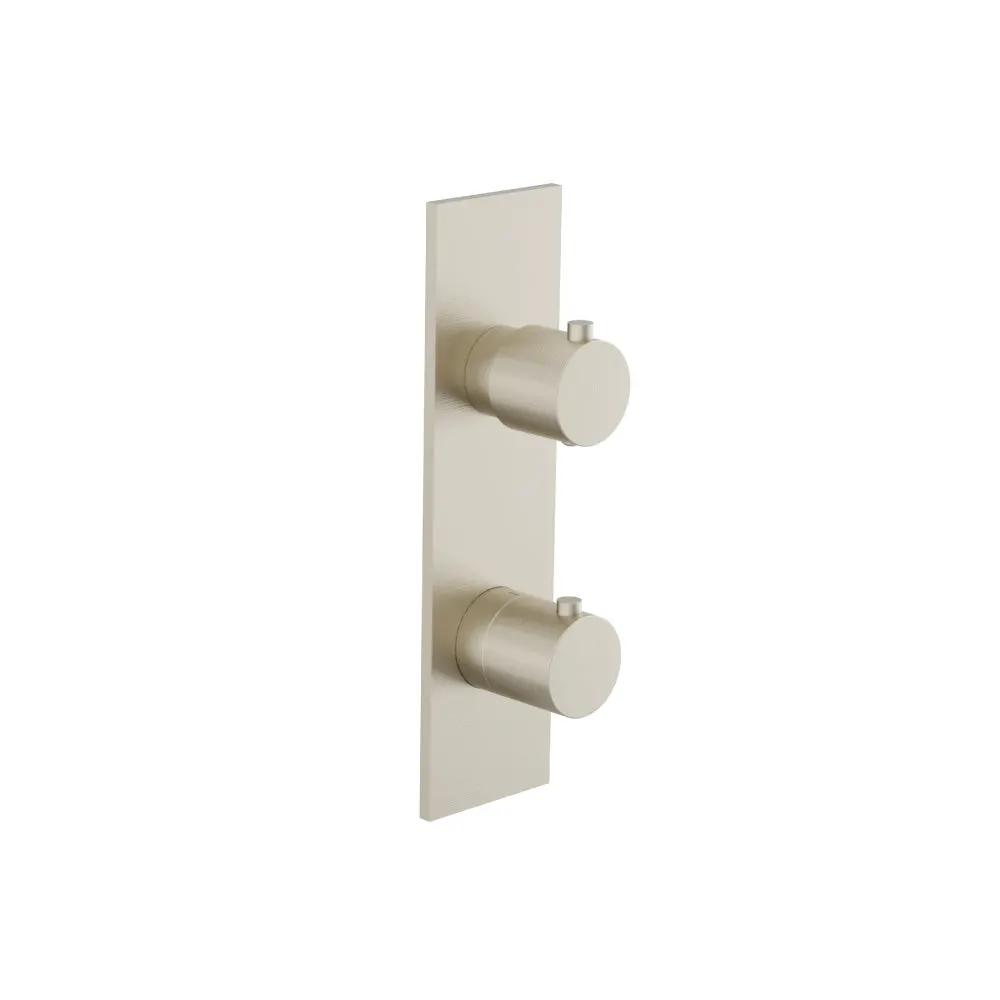

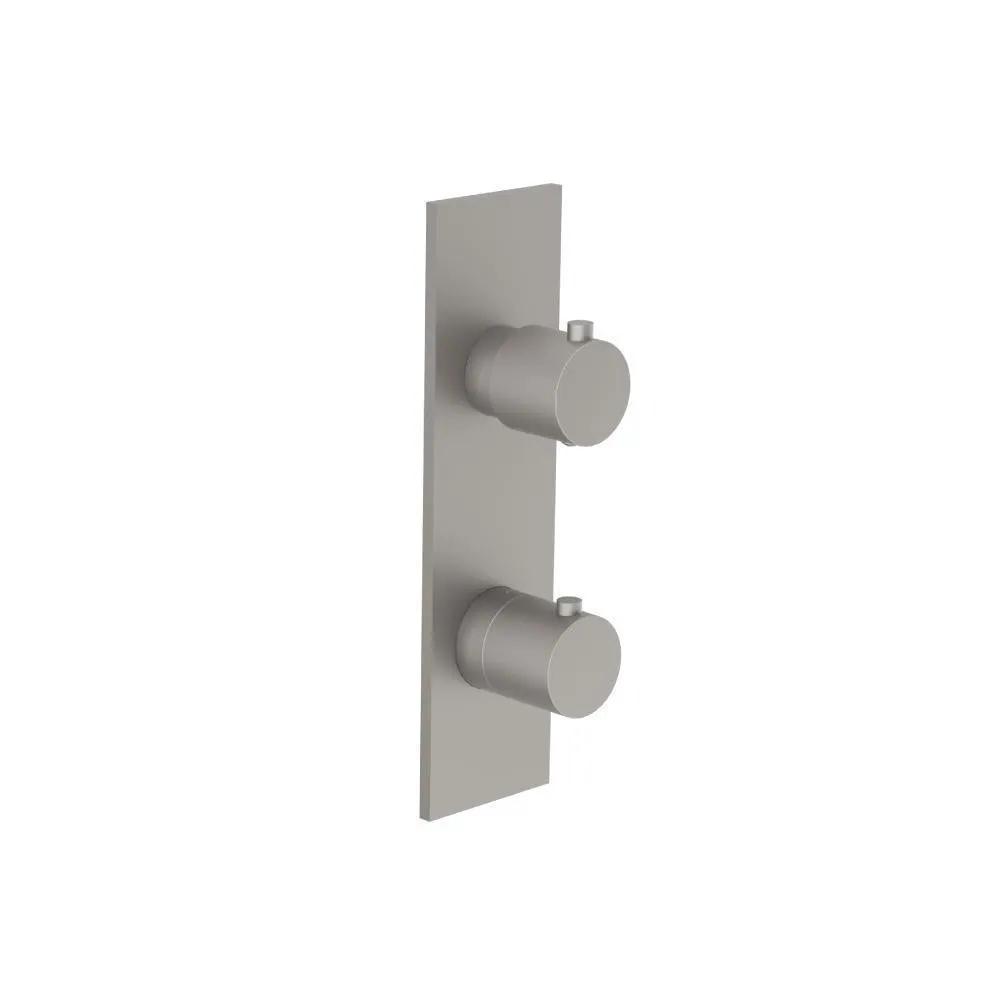

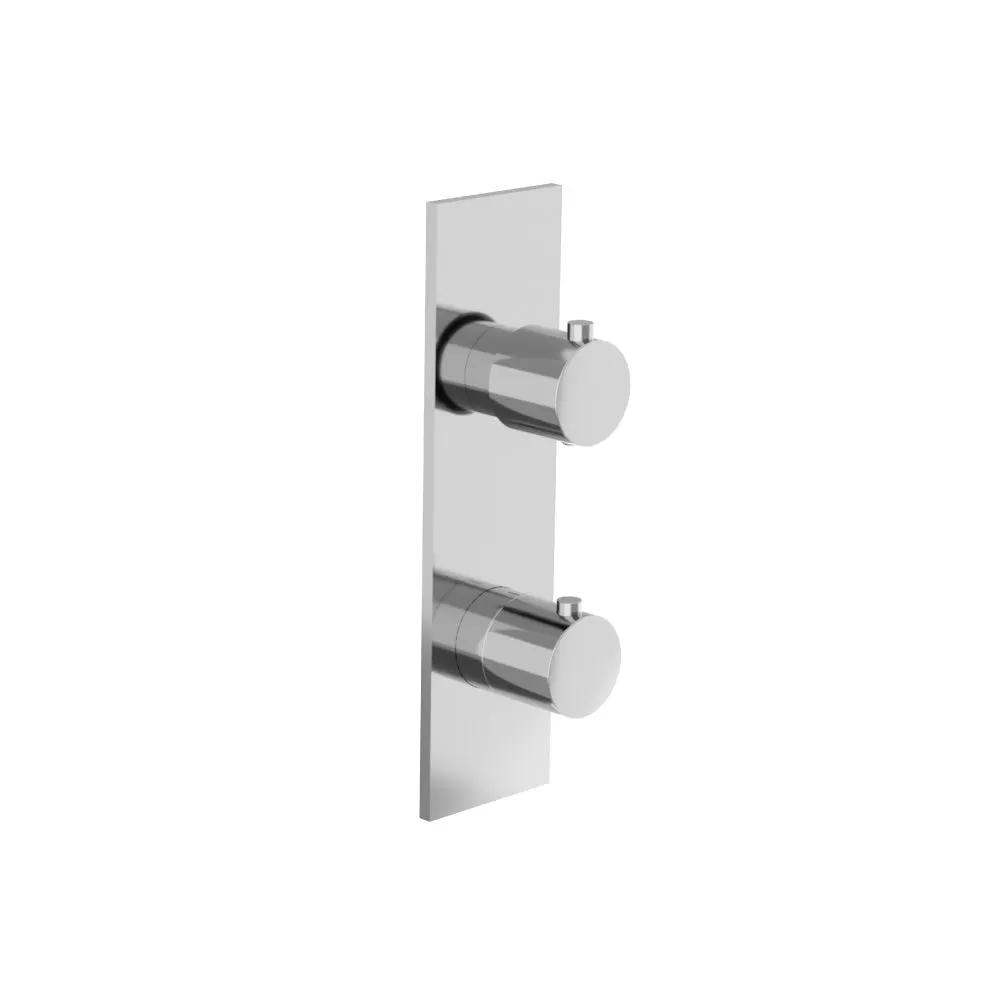

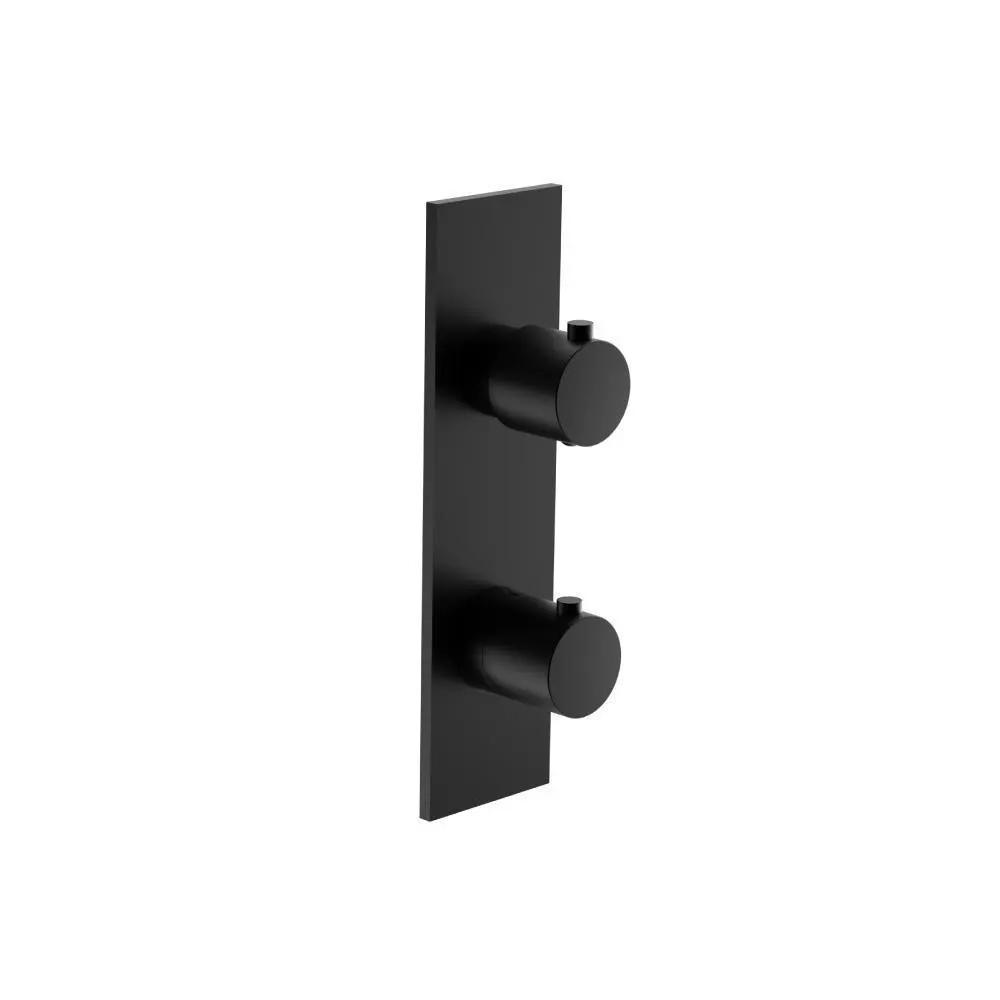

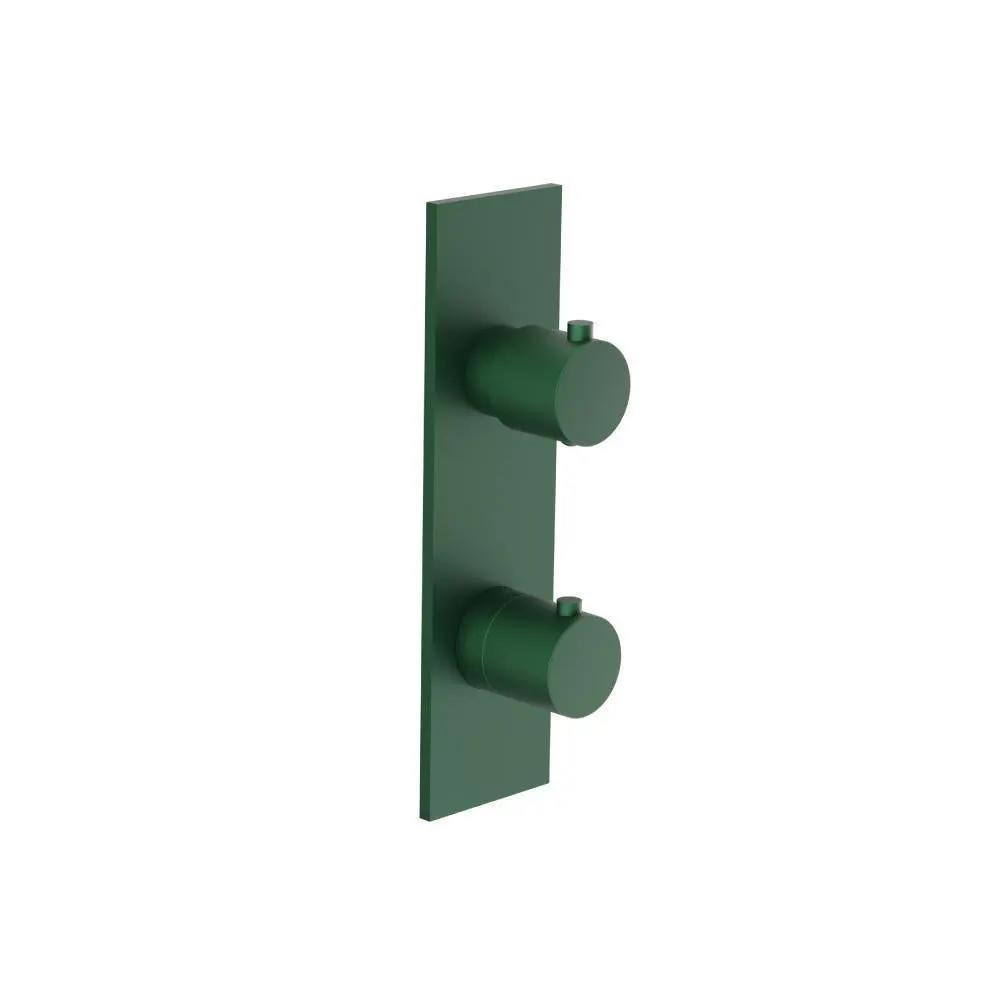

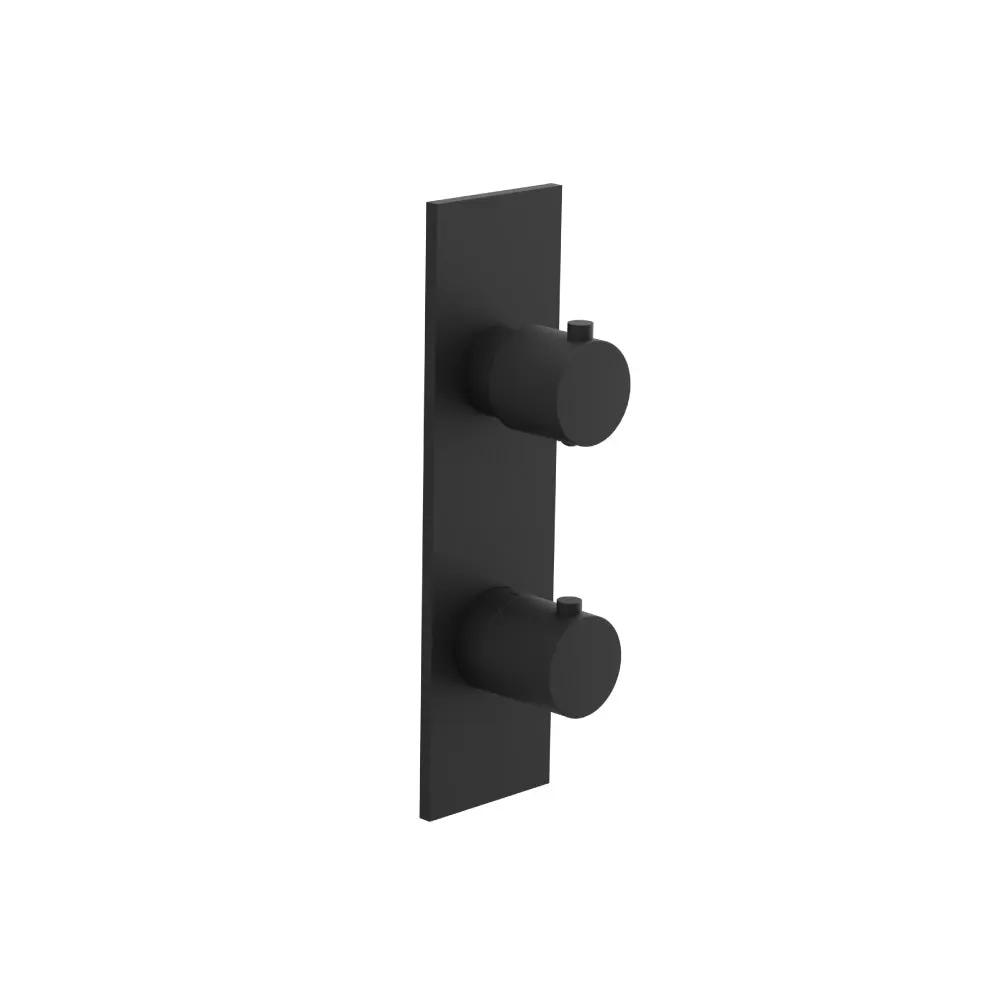

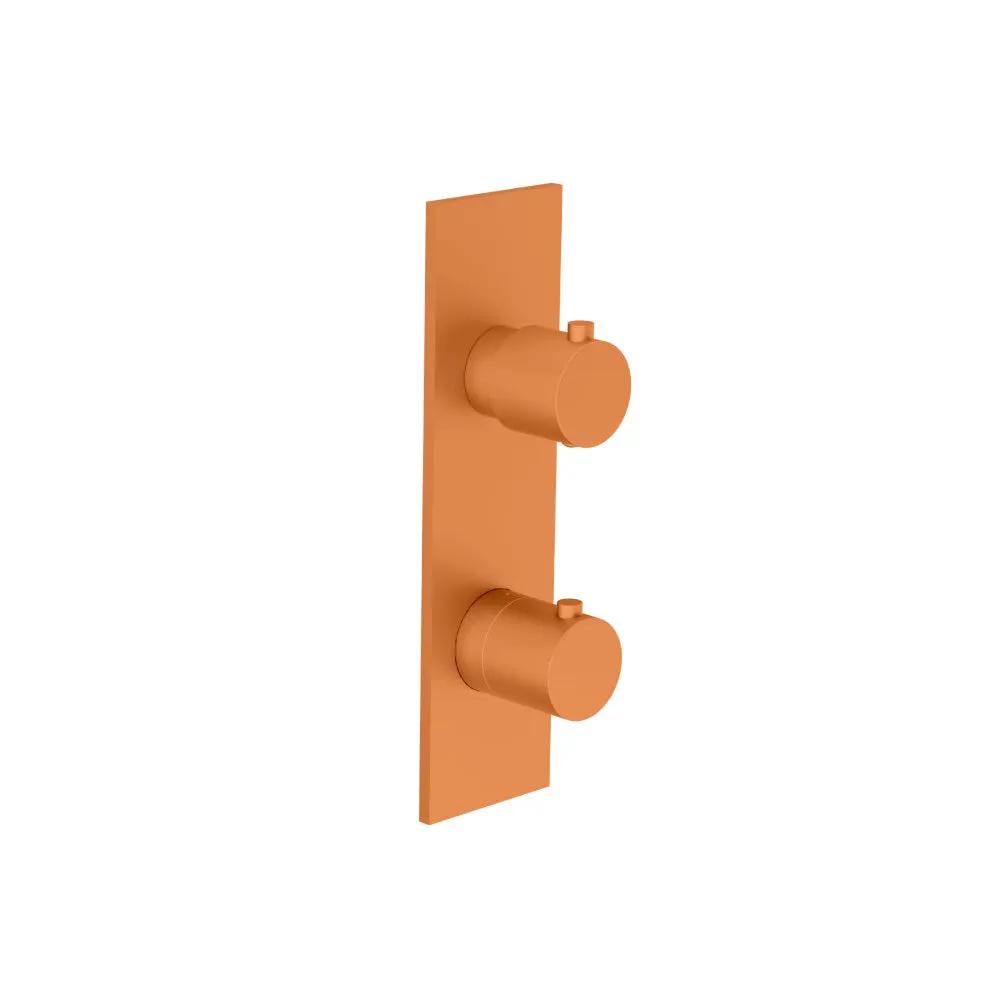

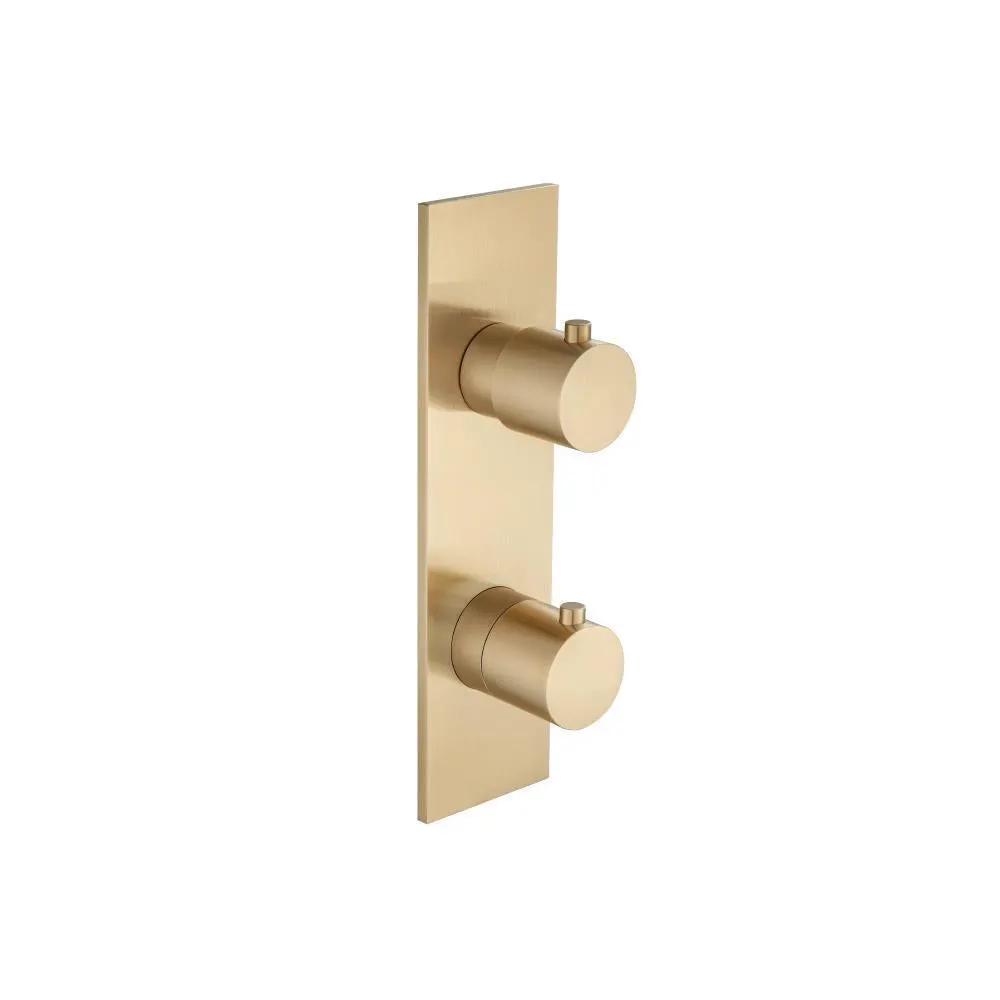

Discover the Flusso Serie 100 3/4" Thermostatic Shower Valve and Trim - 2-Output for precise water control. Flusso's thermostatic valve delivers accurate temperatures with anti-scald protection, two independently regulated outputs, CAL-Green compliance, and flexible horizontal or vertical installation for luxury showers using 3/4" NPT connections. The right handle sets temperature while the left handle diverts flow between ports.
Flusso is renowned for precision engineering and premium bathroom fittings, delivering reliable thermostatic control, solid brass construction, and CAL-Green compliant products. Flusso fixtures emphasize durability, smooth operation, and luxurious finish options, making them a trusted choice for designers and homeowners who demand consistent temperatures, quiet performance, and lasting value. The brand's commitment to safety and upscale aesthetics aligns with modern showers.
Features and Specifications
- 3/4" NPT connections
- 2 water outputs ports operable one at a time without shared port operation
- CAL-Green compliant
- The right handle sets the temperature
- The left handle controls water diversion between the 2 water output ports
- Each port has full volume control capability
- Horizontal or vertical installation
- Supply stops: two safety stops at each water inlet to prevent water flow in case of installation and repairs
- Bottom handle controls the temperature of water flowing through the outlet ports
- The top handle diverts water between each output port and is capable of controlling the volume of water from full flow to a trickle
- Anti-scald ring: Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- Valve installation - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- Cut out dimensions – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- Trims – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Cartridge – The TVH.2717F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2717F
Experience luxurious control with Flusso Serie 100 3/4" Thermostatic Shower Valve and Trim - 2-Output. With dual outputs, precise thermostatic regulation, and durable brass construction, Flusso delivers dependable performance and upscale bathroom aesthetics that stand the test of time.
