Product details
Focal Point Hardware is an authorized Flusso retailer!

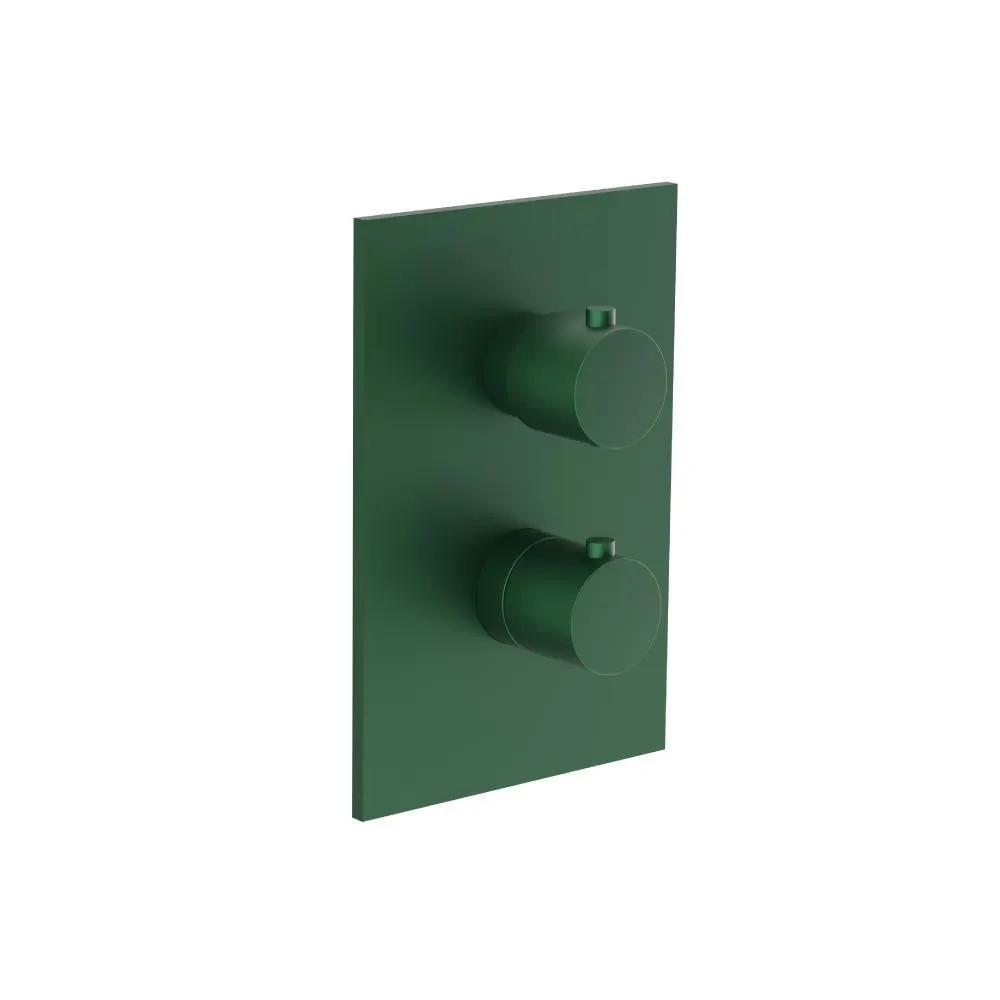

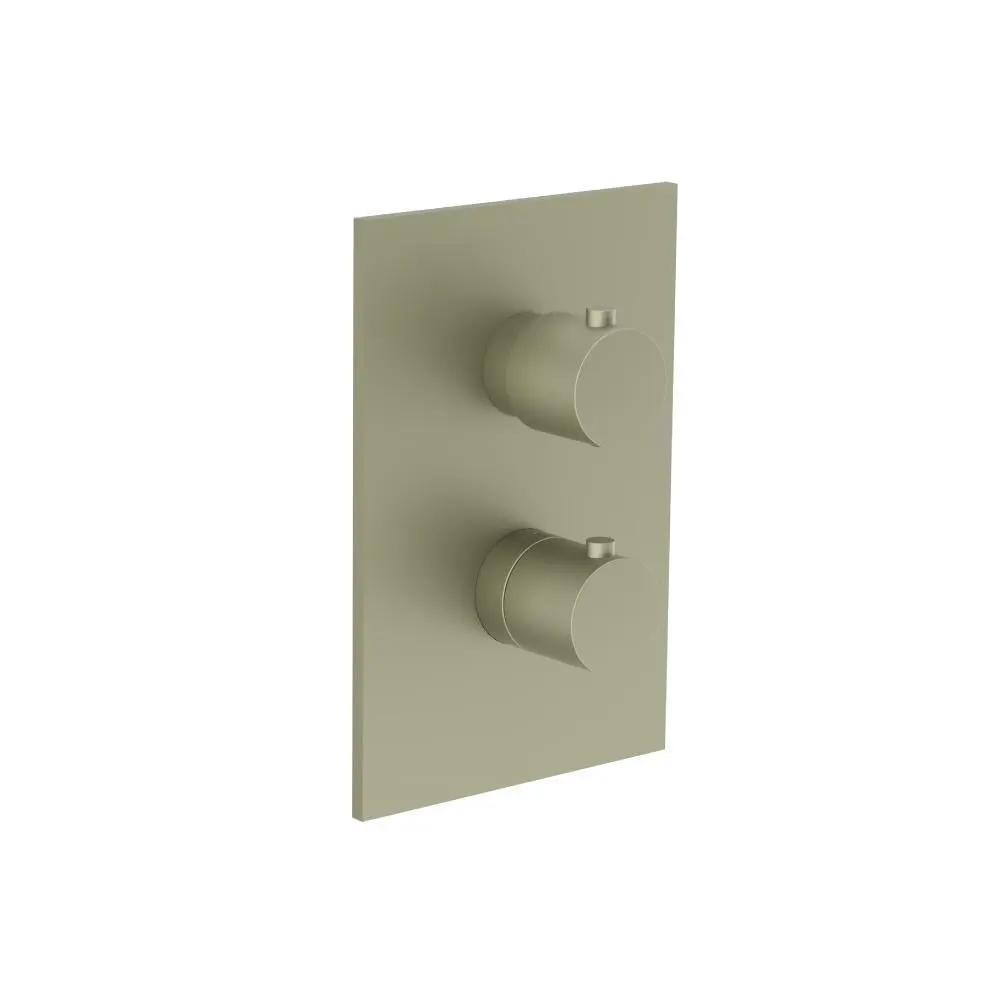

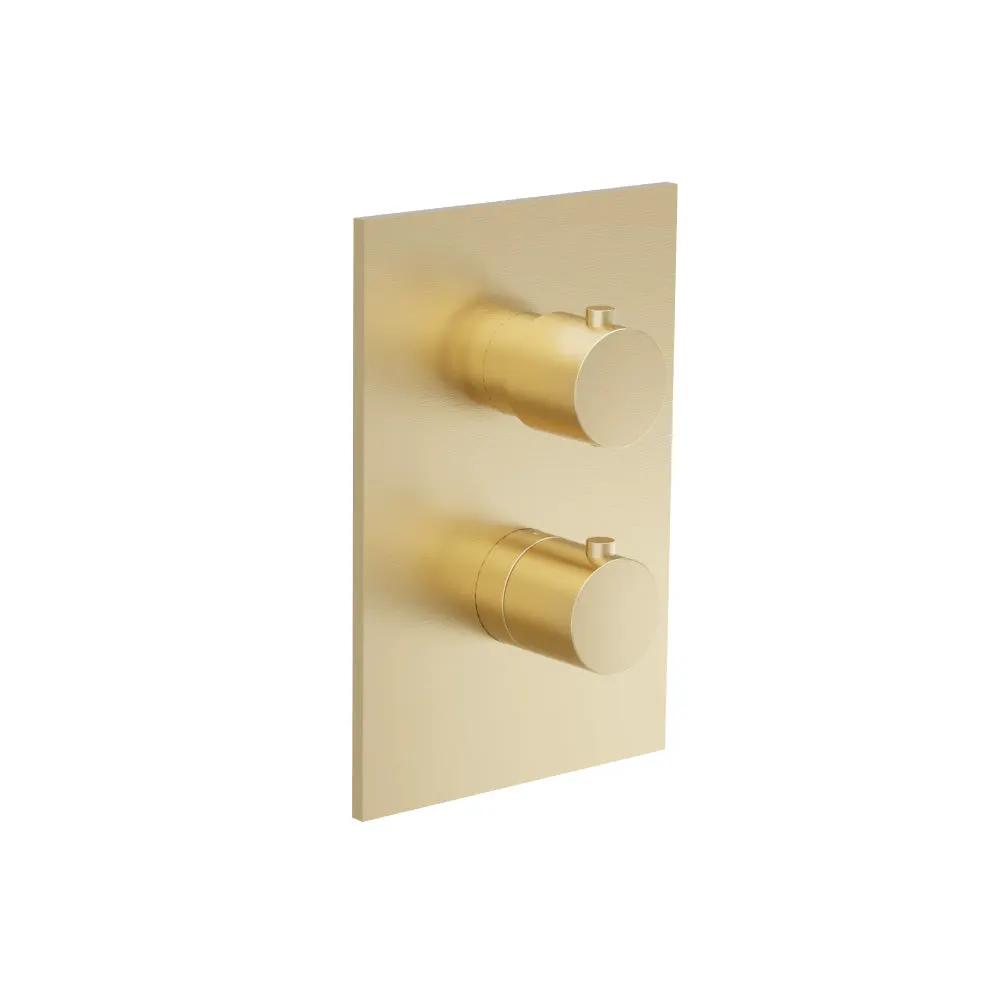

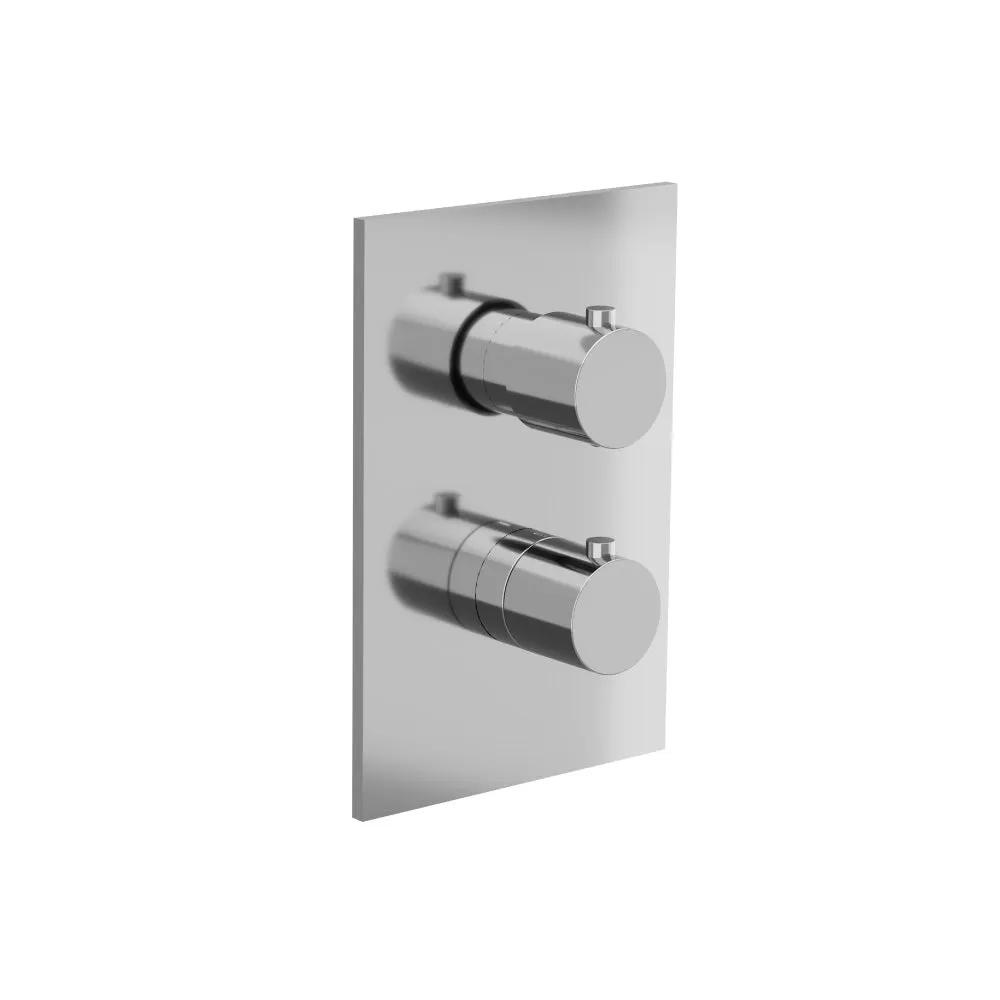

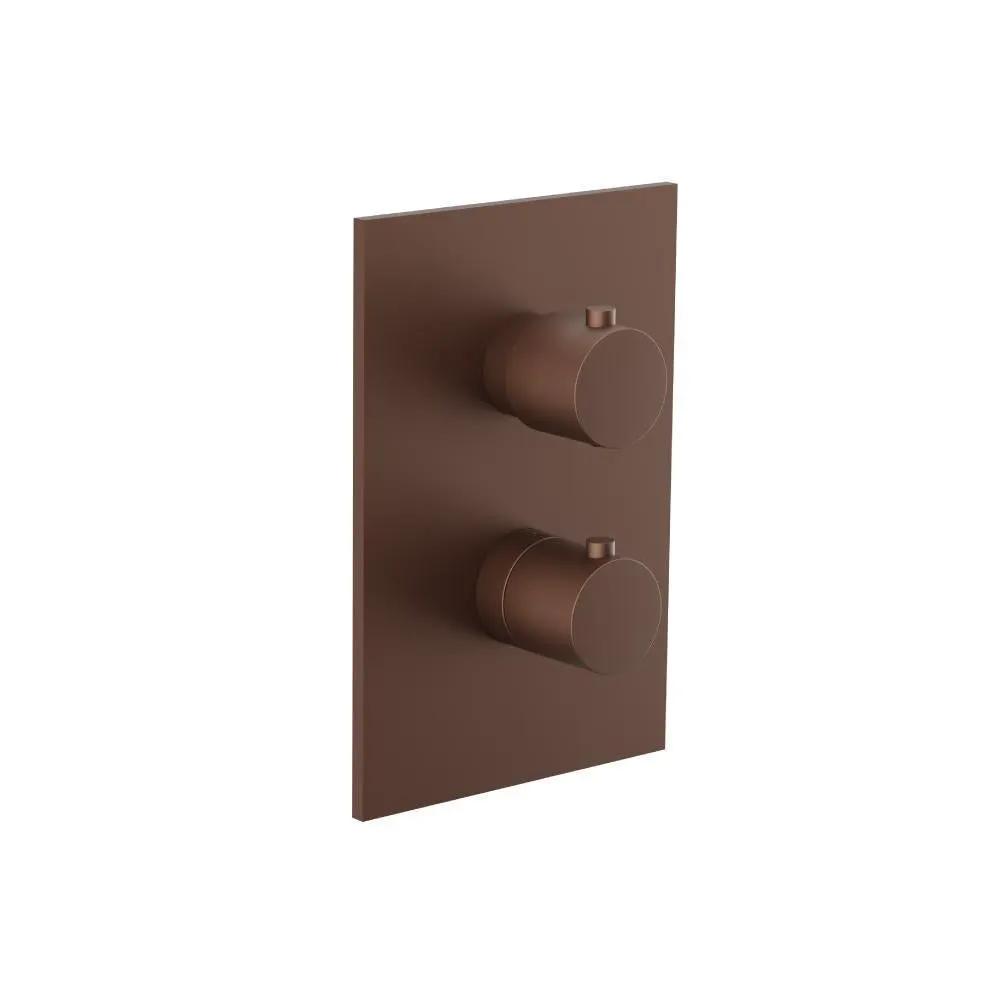

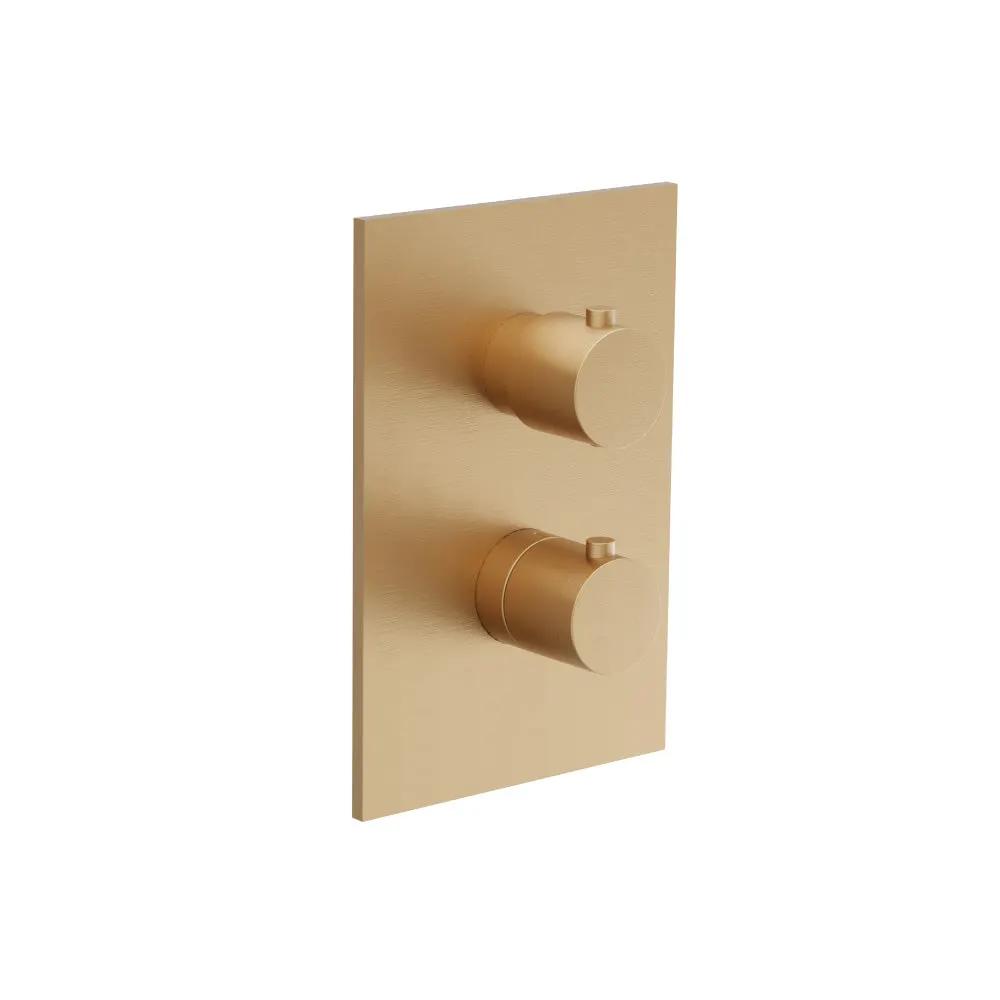

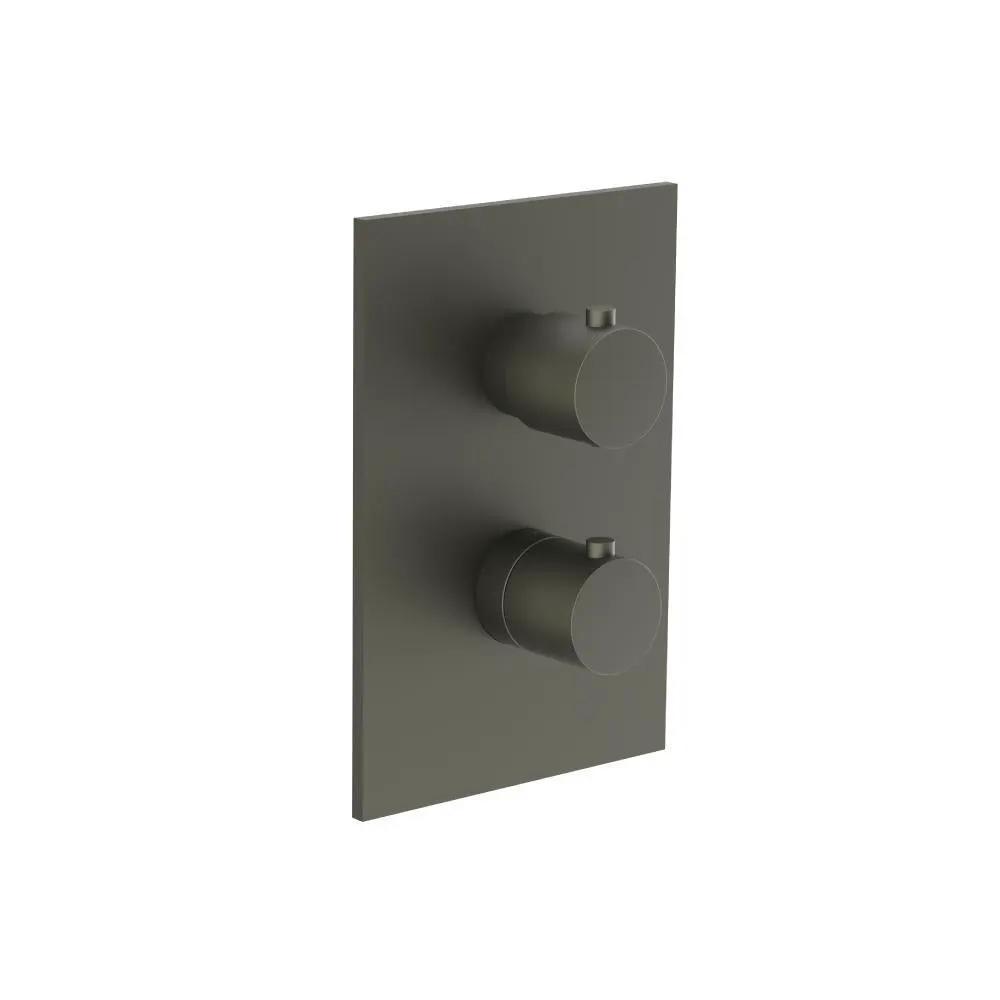

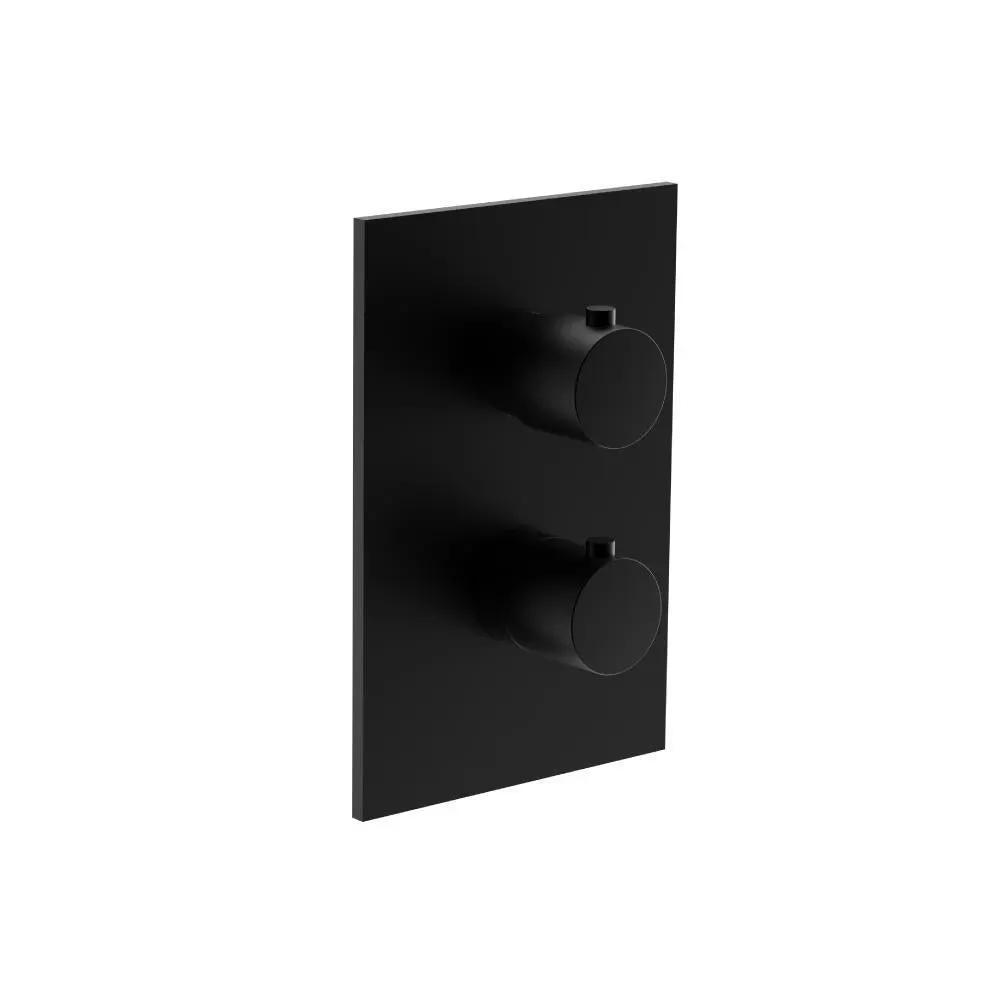

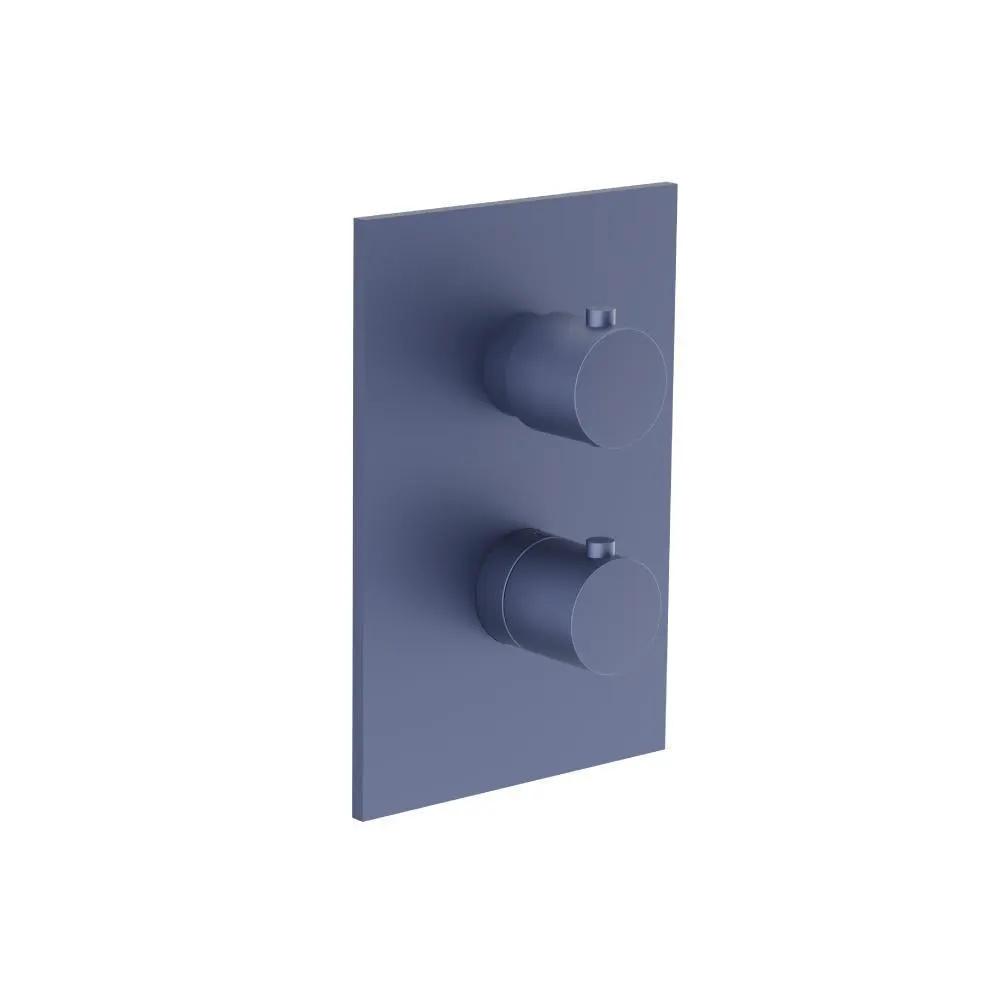

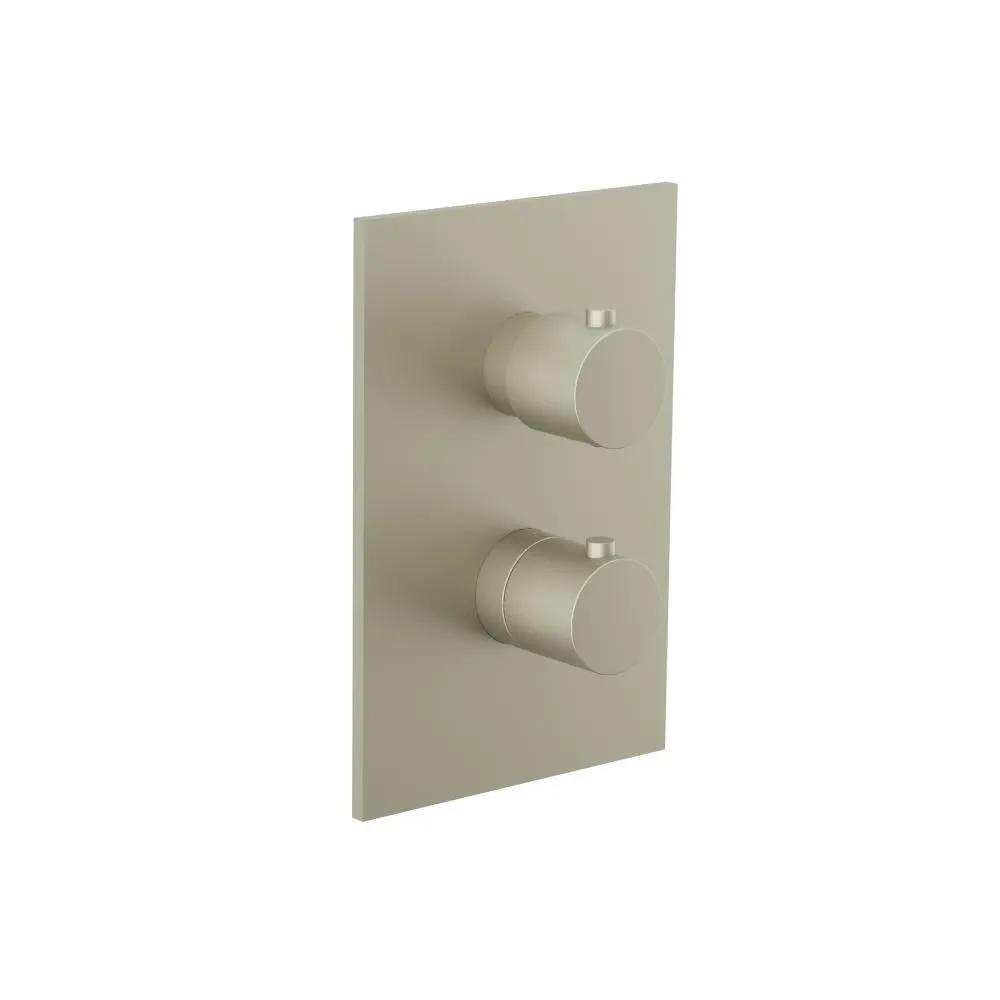

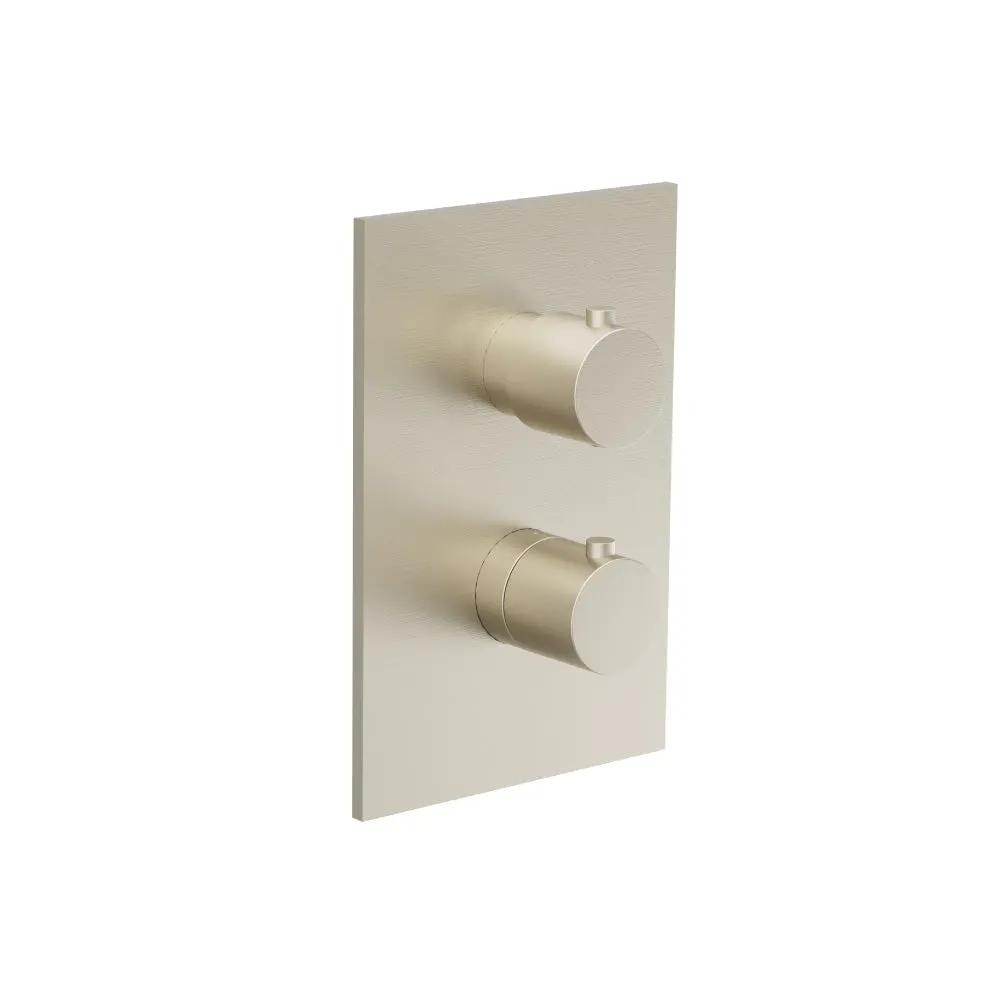

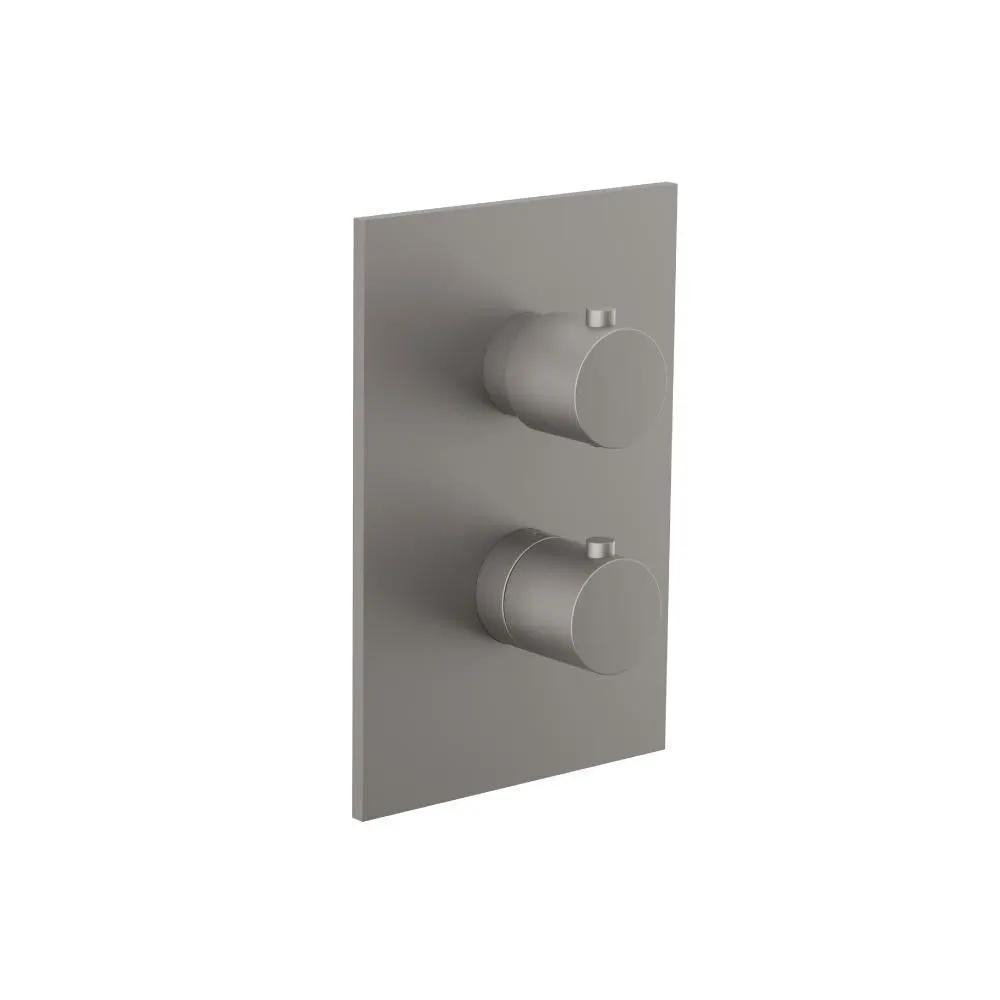

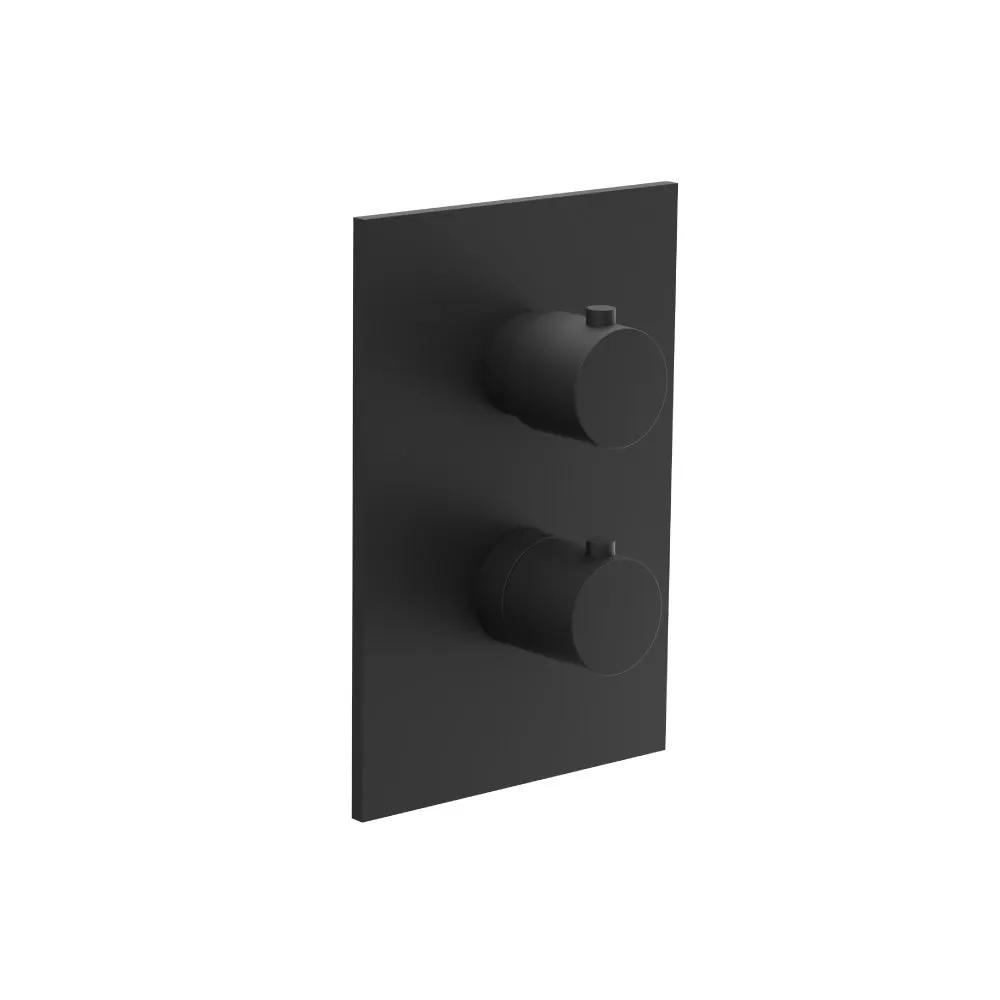

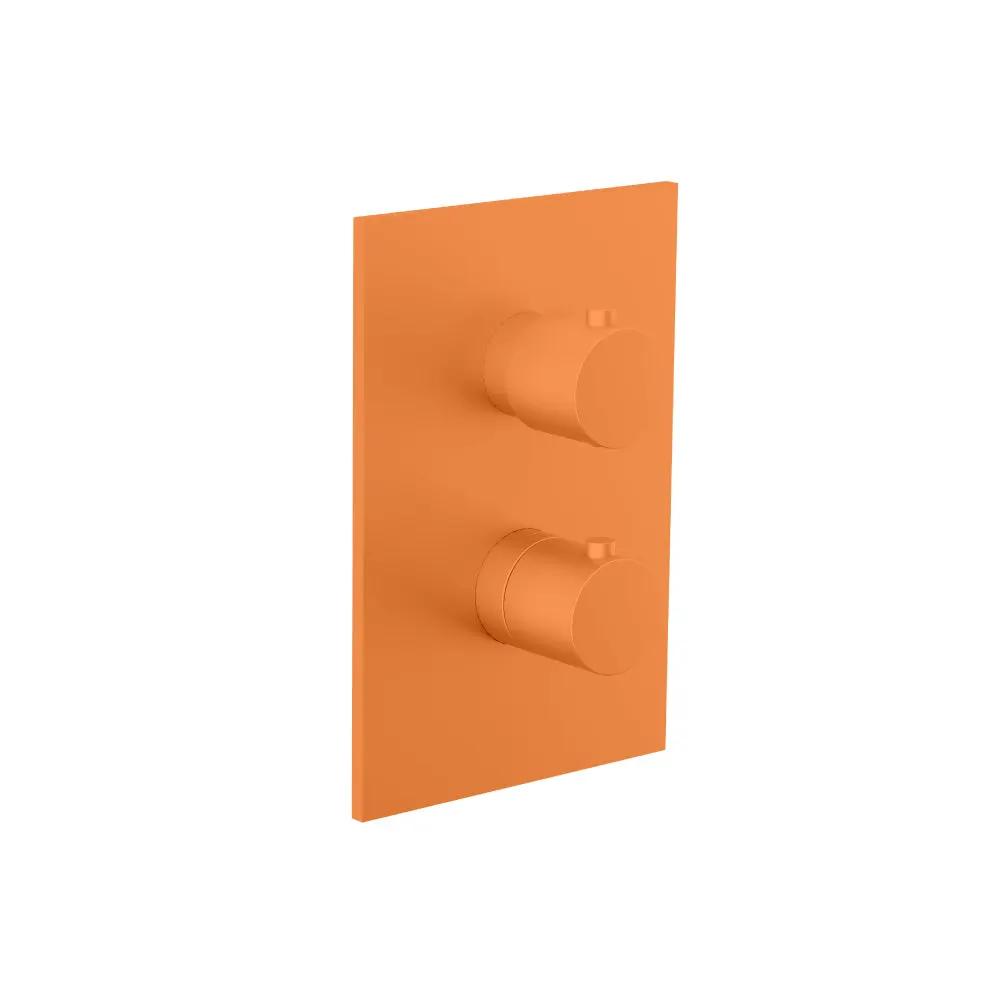

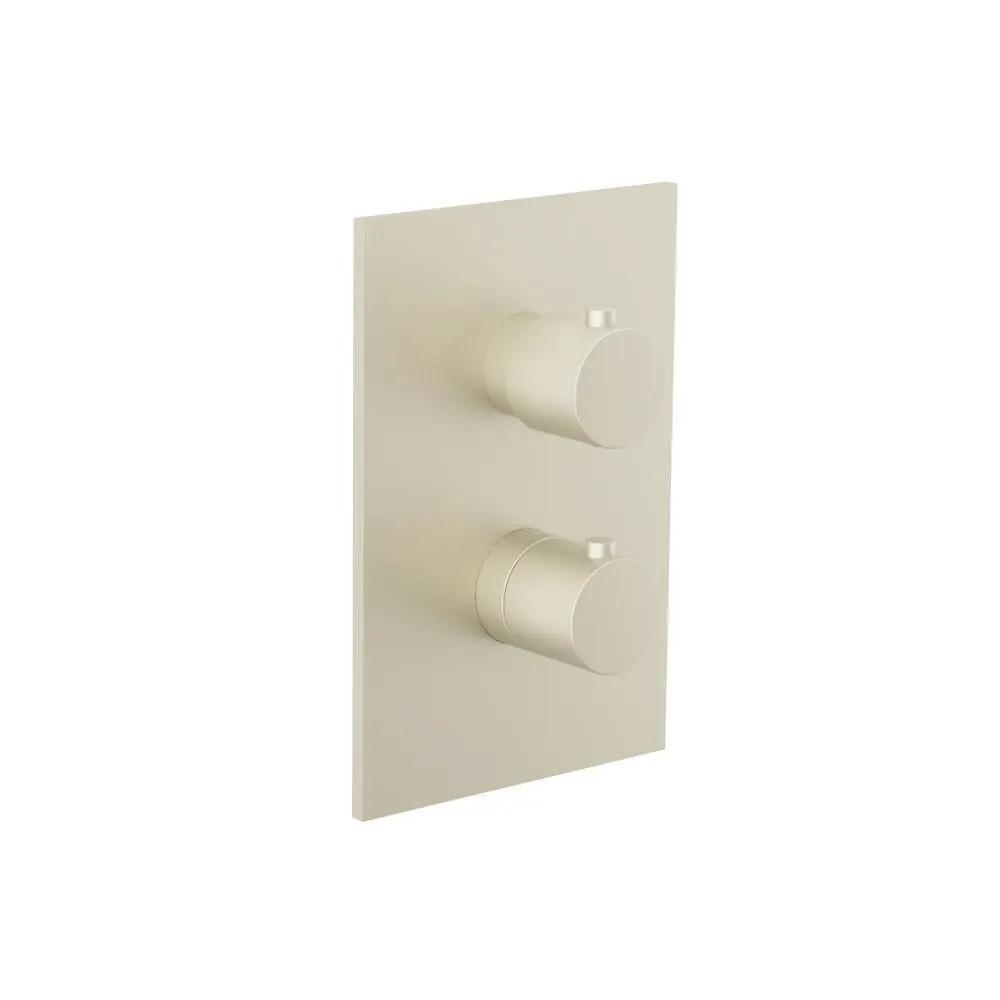

Experience precise climate control with the Flusso Serie 100 3/4" Thermostatic Shower Valve and Trim - 1 Output. This valve delivers reliable temperature stability and smooth water delivery for a luxurious shower, combining elegant brass construction with Flusso’s renowned engineering, craftsmanship, and lasting performance that elevate any bathroom into a spa-like retreat.
Flusso is a premium bathroom fixtures brand celebrated for innovative thermostatic technology, solid brass construction, and dependable performance. Known for precise temperature control, durable valve systems, and thoughtfully designed trims, Flusso blends luxury with reliability to deliver bathroom experiences that stand the test of time. The brand's attention to fit, finish, and enduring quality earns trust in high-end showers.
Features and Specifications
- 3/4" NPT connections
- 1 output port
- Bottom handle sets the temperature
- Top handle controls the water volume from full flow to a trickle
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The push-button on the side of the handle knob must be pressed to adjust temperature and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec].
- Also, the valve must be installed straight and not at an angle or upside down.
- EXTENSIONS AVAILABLE - Extension kits are available for elongating both handles of the valve if the tile is thicker or installation depth is too deep (TVH.4101E**).
- CUT OUT DIMENSIONS – The cut out in wall should be 6.49 x 4.44 Inches which are properly covered by the trim plate.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4101 With Integral Service Stops
- Single Output Port
- Extensions Available - TVH.4101E**
Choose the Flusso TVH.4101 setup for dependable luxury that combines precise thermostatic control with a refined, durable finish, backed by Flusso's reputation for quality and reliability in premium showers, including a 1-output valve, anti-scald protection, and elegant trim.
