Product details
Focal Point Hardware is an authorized Flusso retailer!

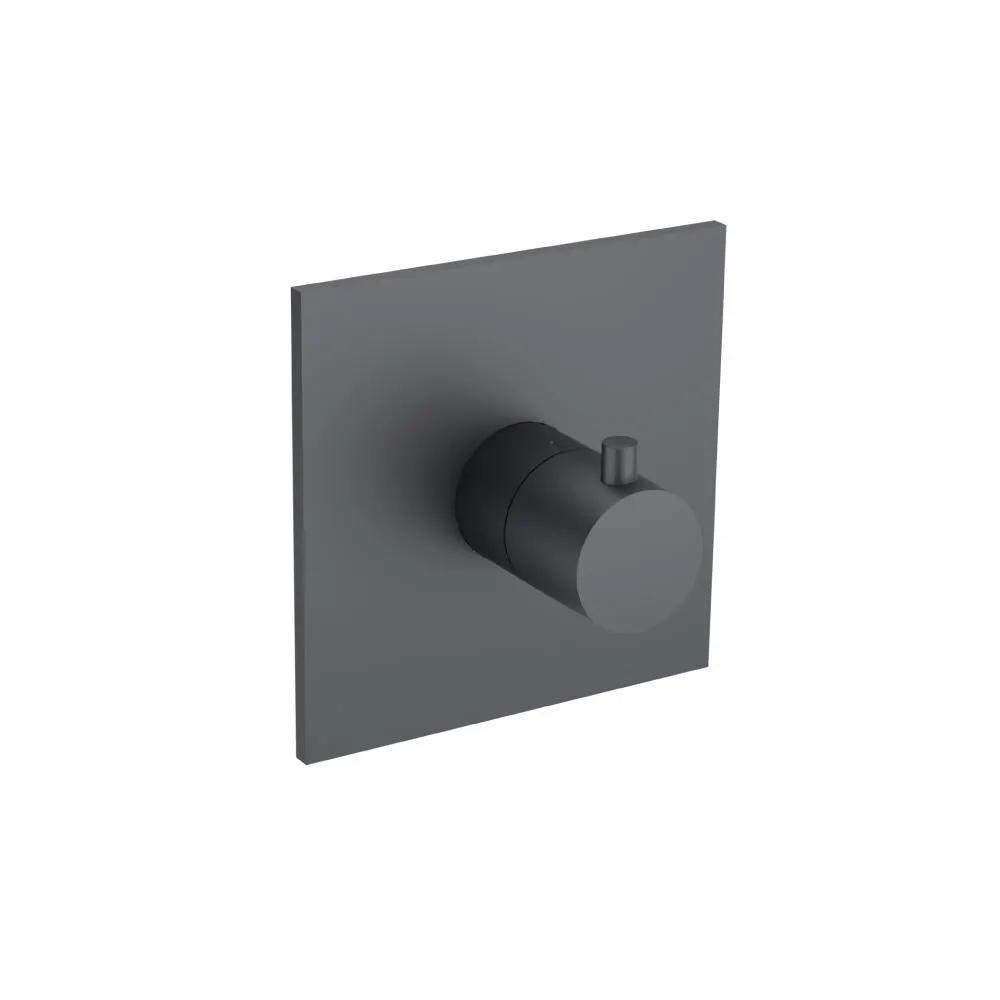

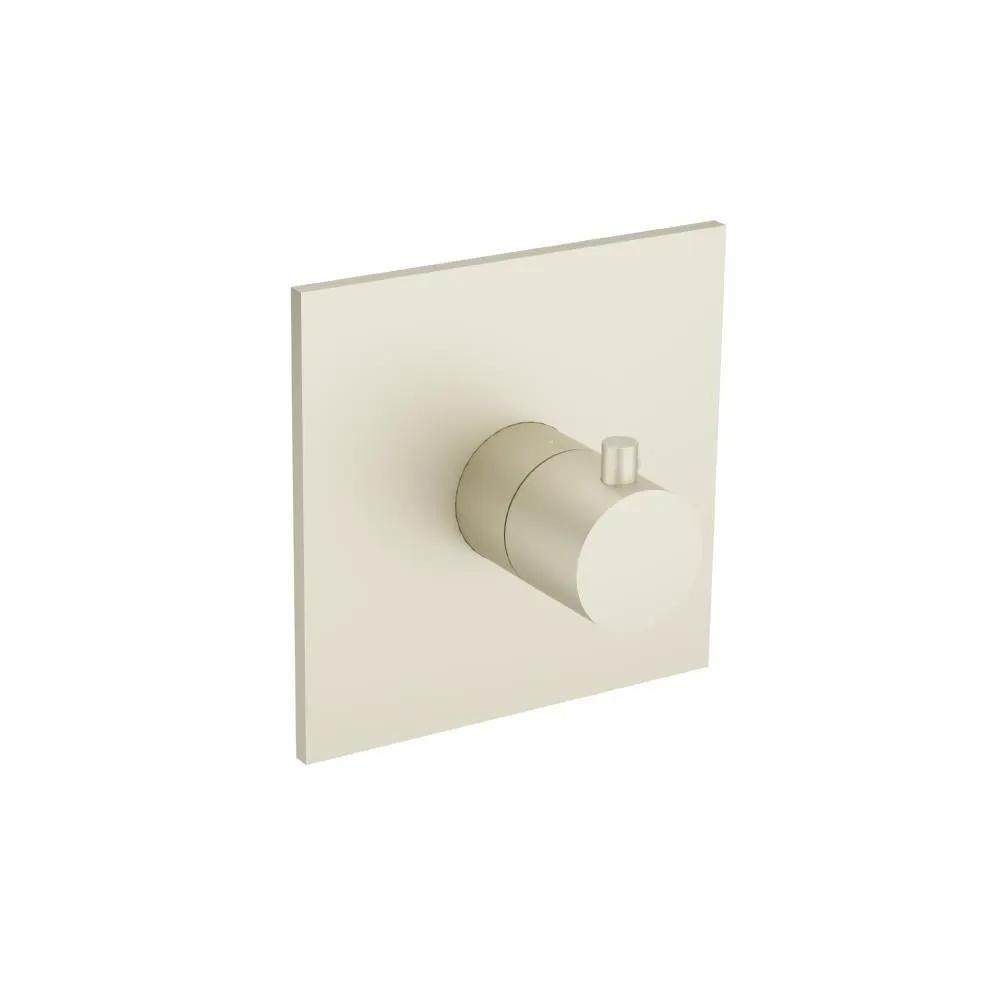

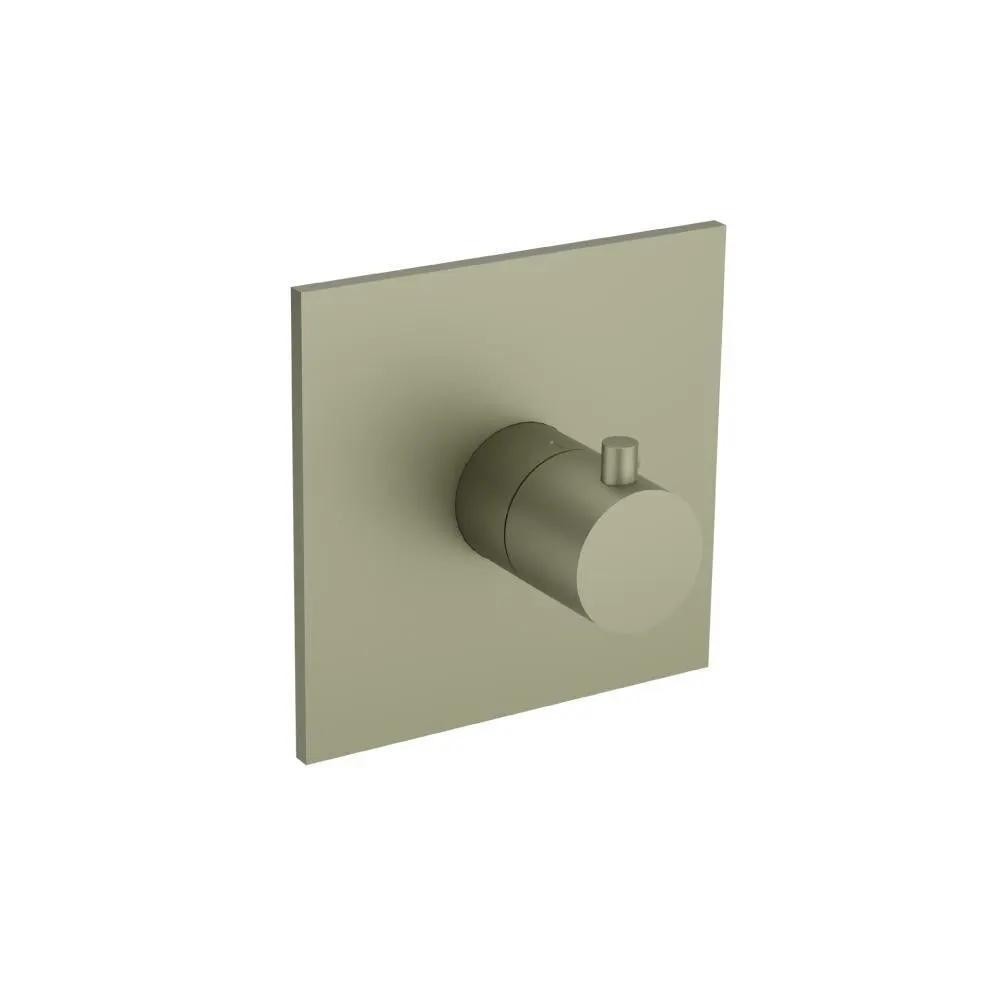

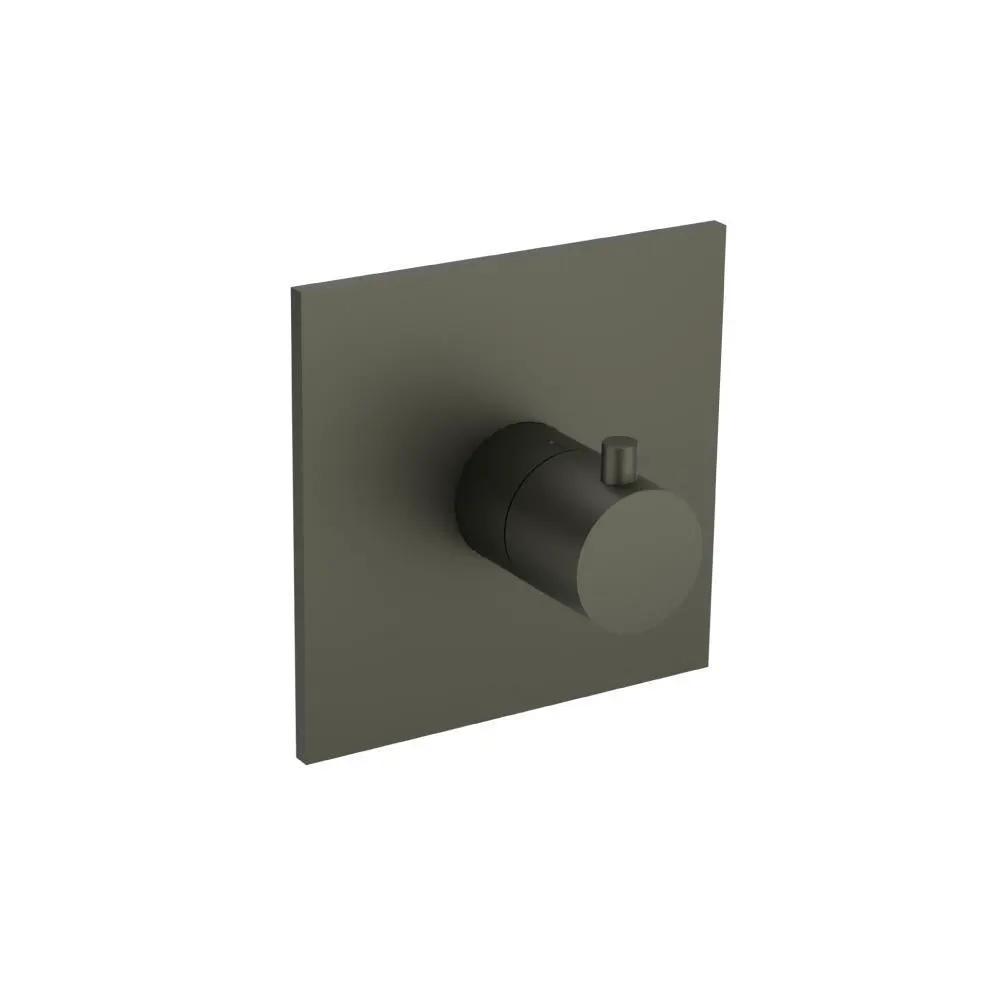

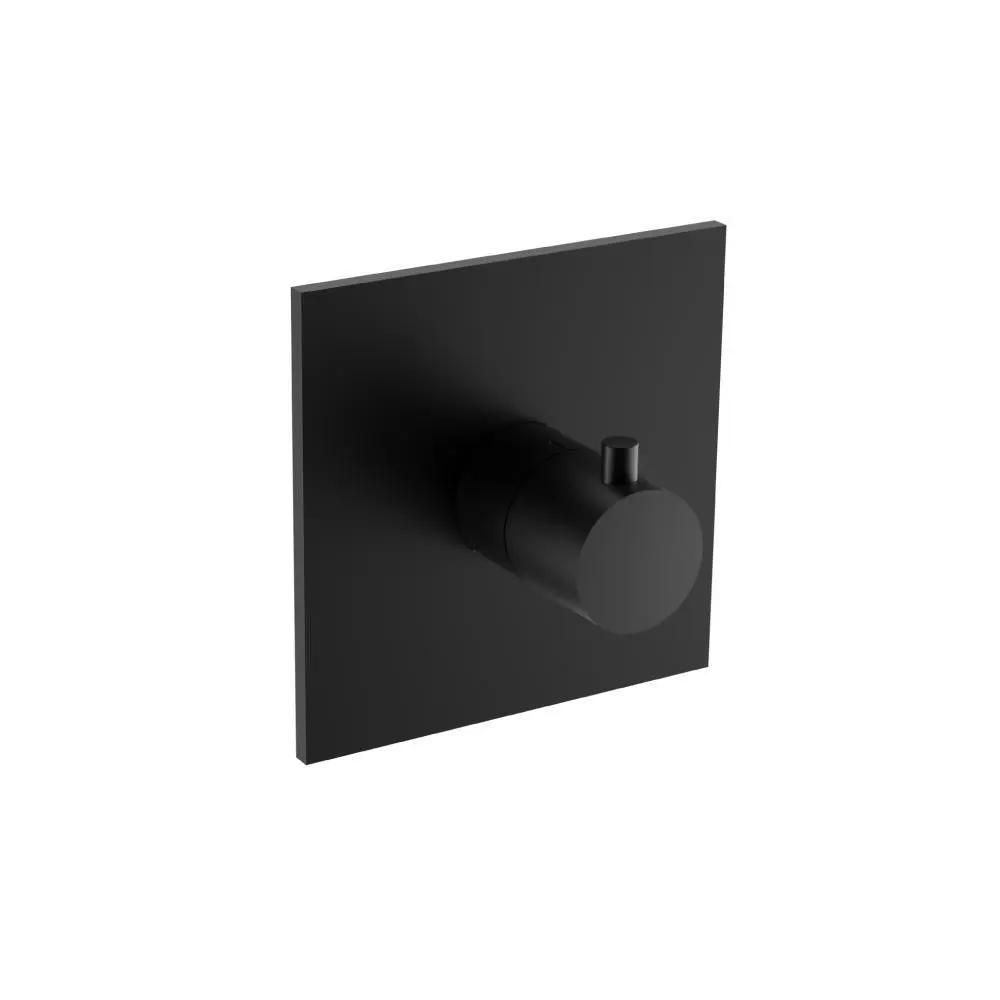

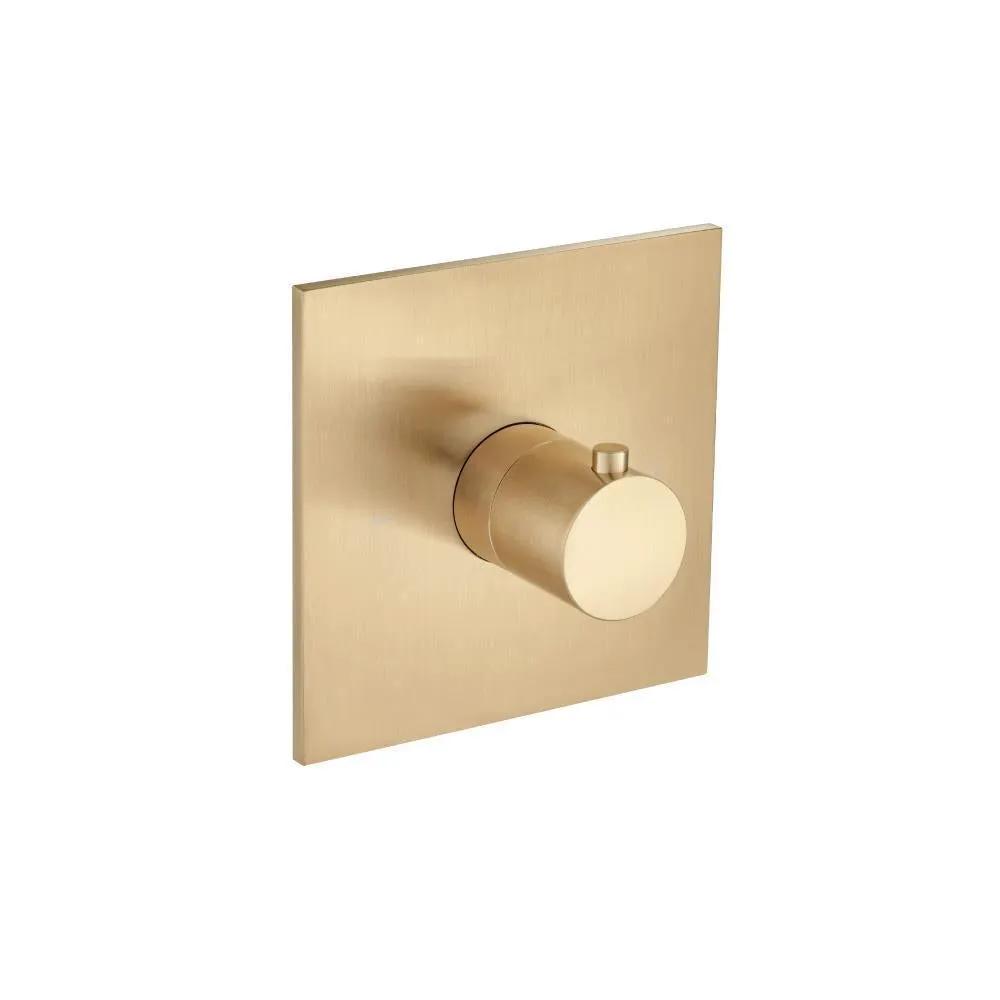

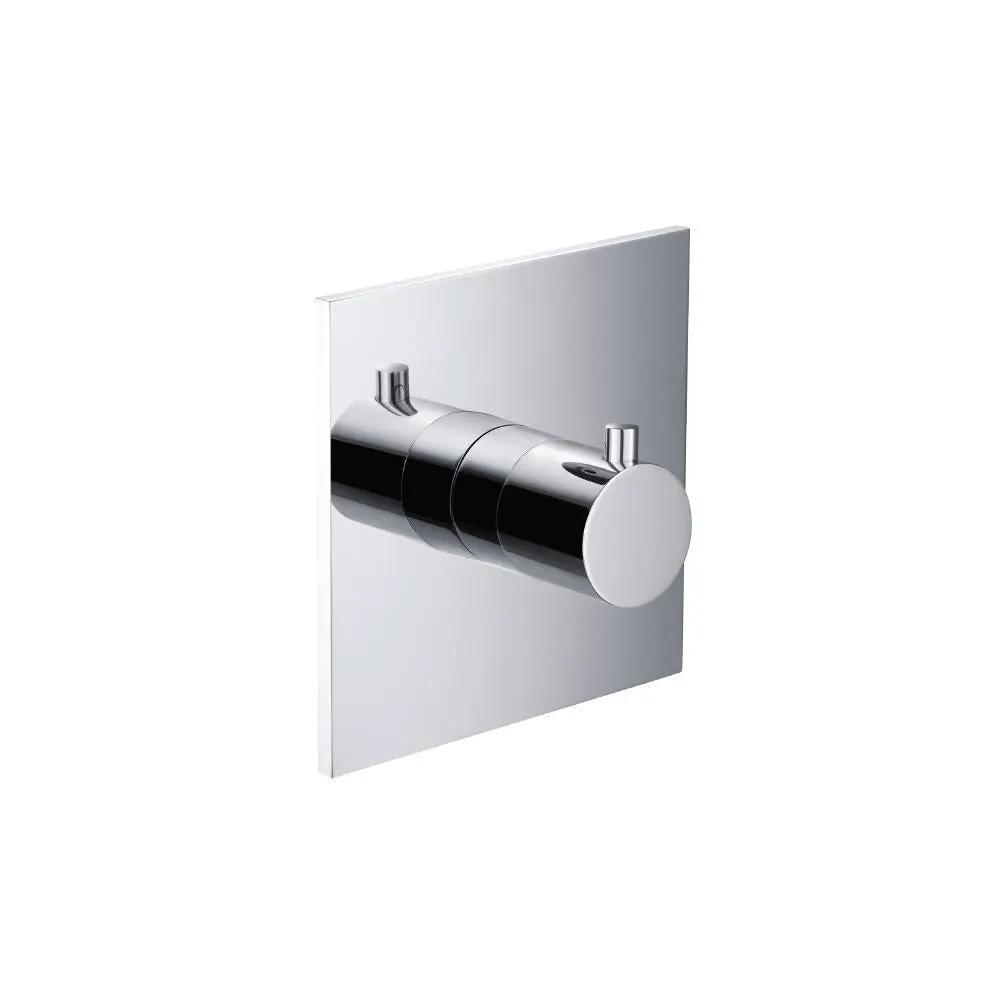

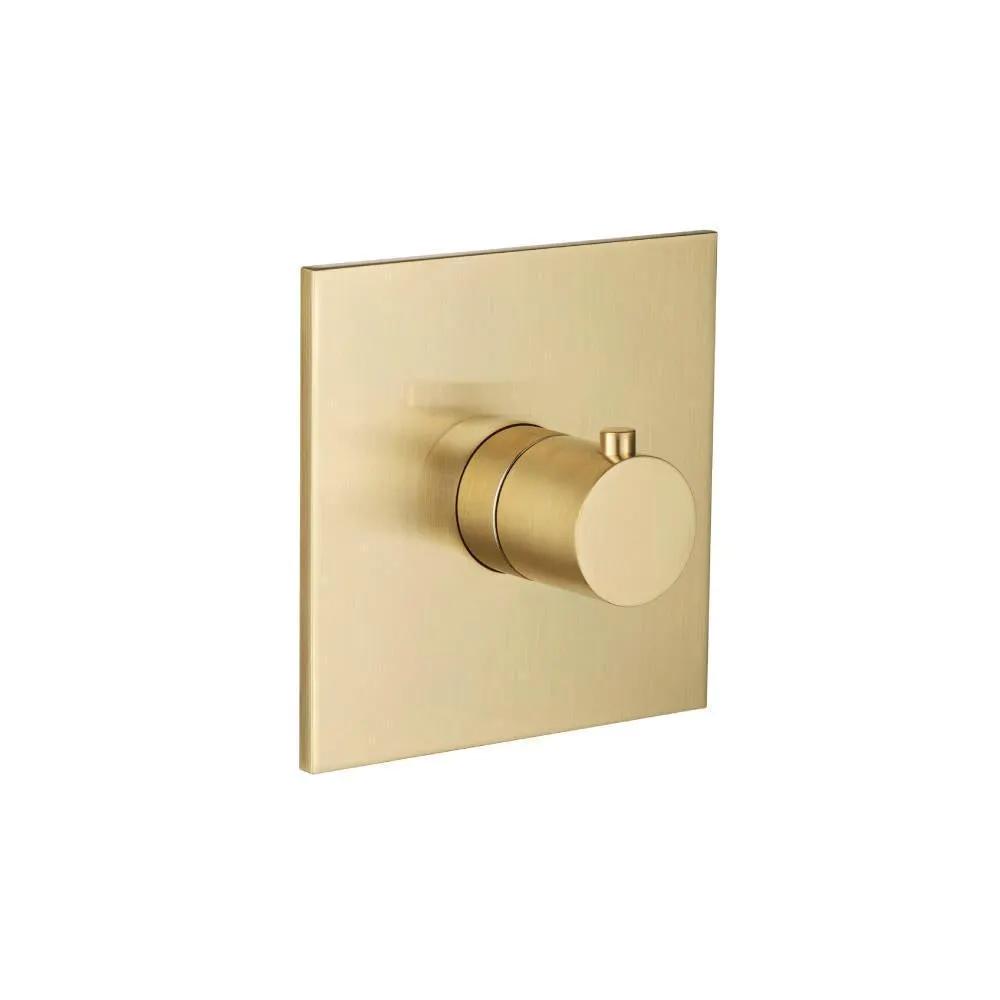

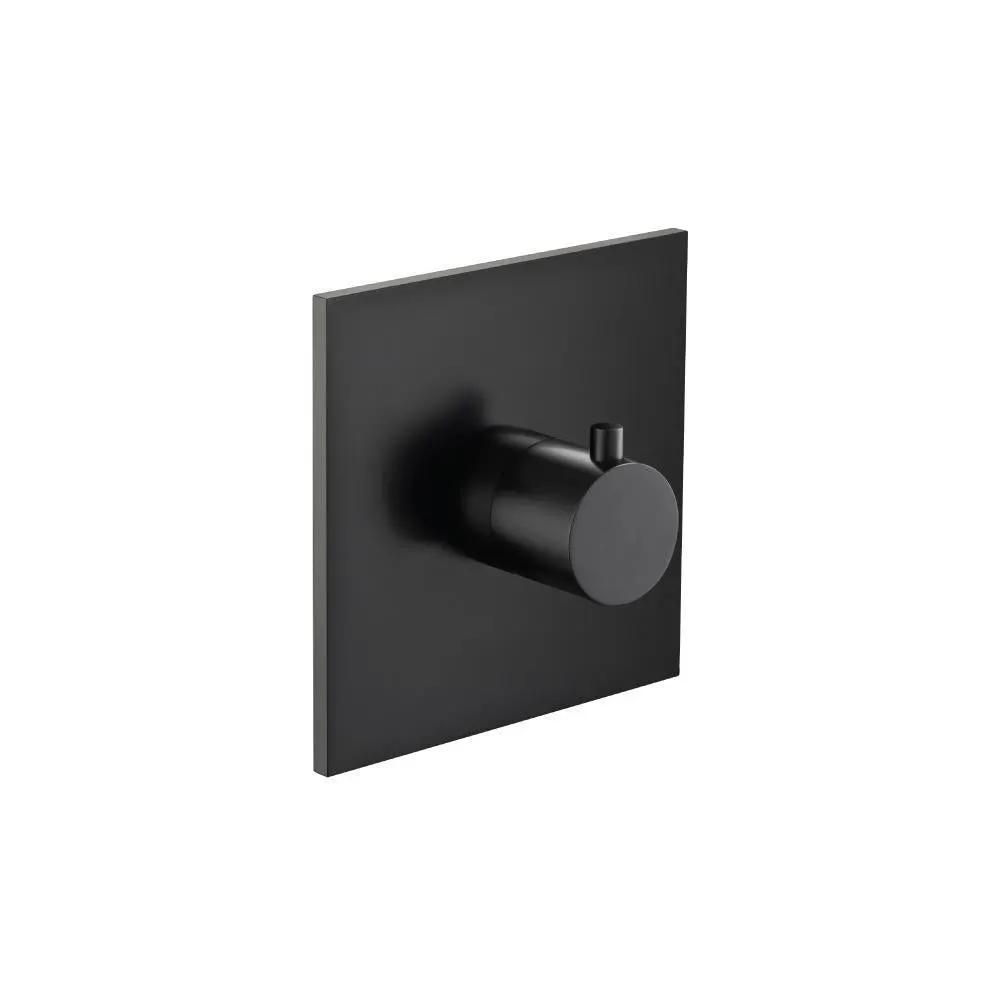

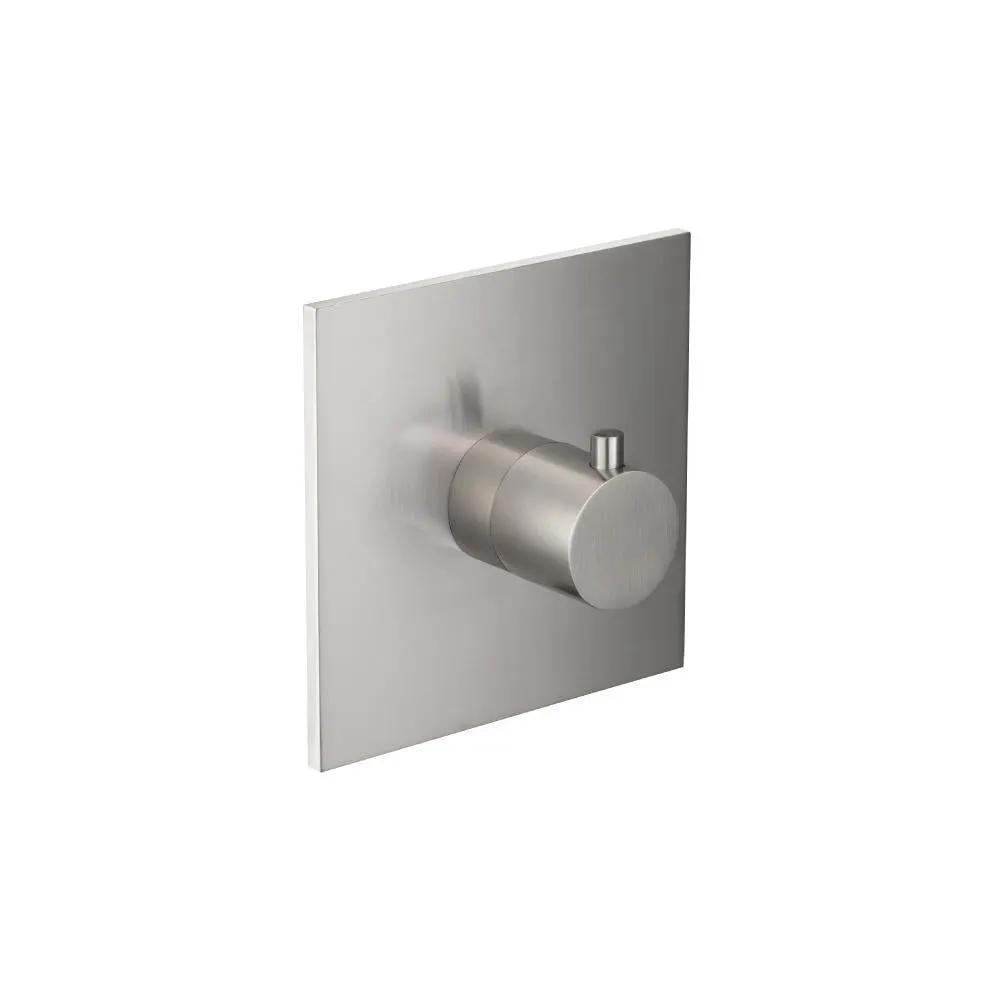

Experience precise showering control with the Flusso Serie 100 3/4" Thermostatic Valve with Trim. The TVH.4201 is a ¾” Thermostatic valve with NPT female connections. It has two inlets with integral stop kits and single output. The valve has a flow rate of 13.0 GPM @ 60 PSI. Designed for elegant, vertical installation and compatibility with trims and extensions for thicker walls, this solid brass valve blends luxury performance with reliable temperature regulation.
Flusso is renowned for premium valve technology and meticulous craftsmanship, delivering durable, precision-engineered fixtures that combine timeless design with reliable performance. The Serie 100 line emphasizes safe thermostatic control, seamless trim integration, and long-term reliability, making Flusso a trusted choice for high-end showers and luxurious bathroom environments across modern and traditional spaces.
Features and Specifications
- The TVH.4201 is a ¾” Thermostatic valve with NPT female connections.
- It has two inlets with integral stop kits and single output.
- The valve has a flow rate of 13.0 GPM @ 60 PSI.
- TVH.4201 does not have water turn off capability and thus must be used with a volume control or diverter valve.
- Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- Handle Operation - The handle is used to control temperature of water flowing through the outlet; this handle does not control the volume of water flowing through the valve.
- As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77” and 3.44”.
- Also, the valve must be installed vertical and not at an angle.
- Extensions available for thicker tile or deeper walls; the length of extensions for TVH.4201 valve is 1.40”.
- Extension kits comprise thermostatic handle extension, which can be ordered separately in chrome, brushed nickel, or other special finishes.
- Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate.
- Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle.
- Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Valve & Trim Includes Thermostatic Valve - TVH.4201 3/4" NPT Female Connections Extensions Available - TVH.E185**
Experience precise, safe, and luxurious shower control with Flusso TVH.4201 valve system, backed by Flusso's reputation for quality craftsmanship and durable performance in premium bathroom fixtures.
