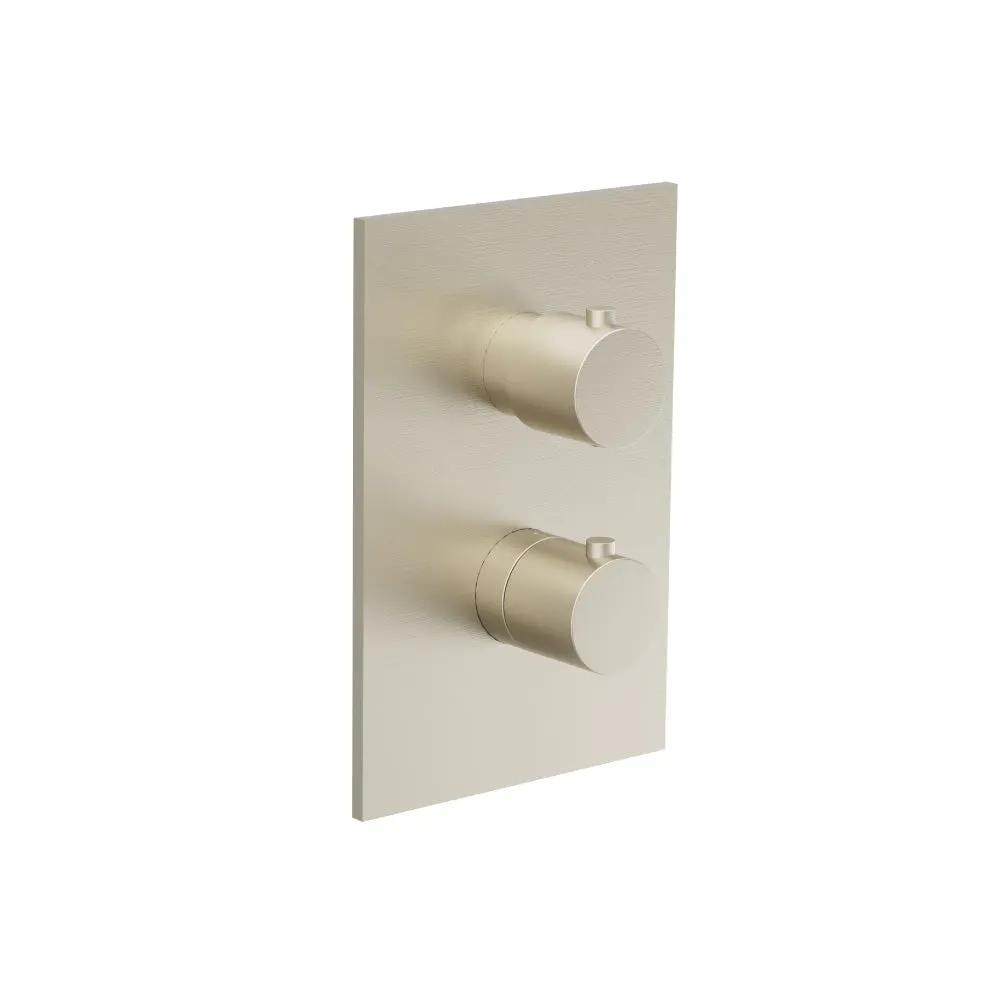

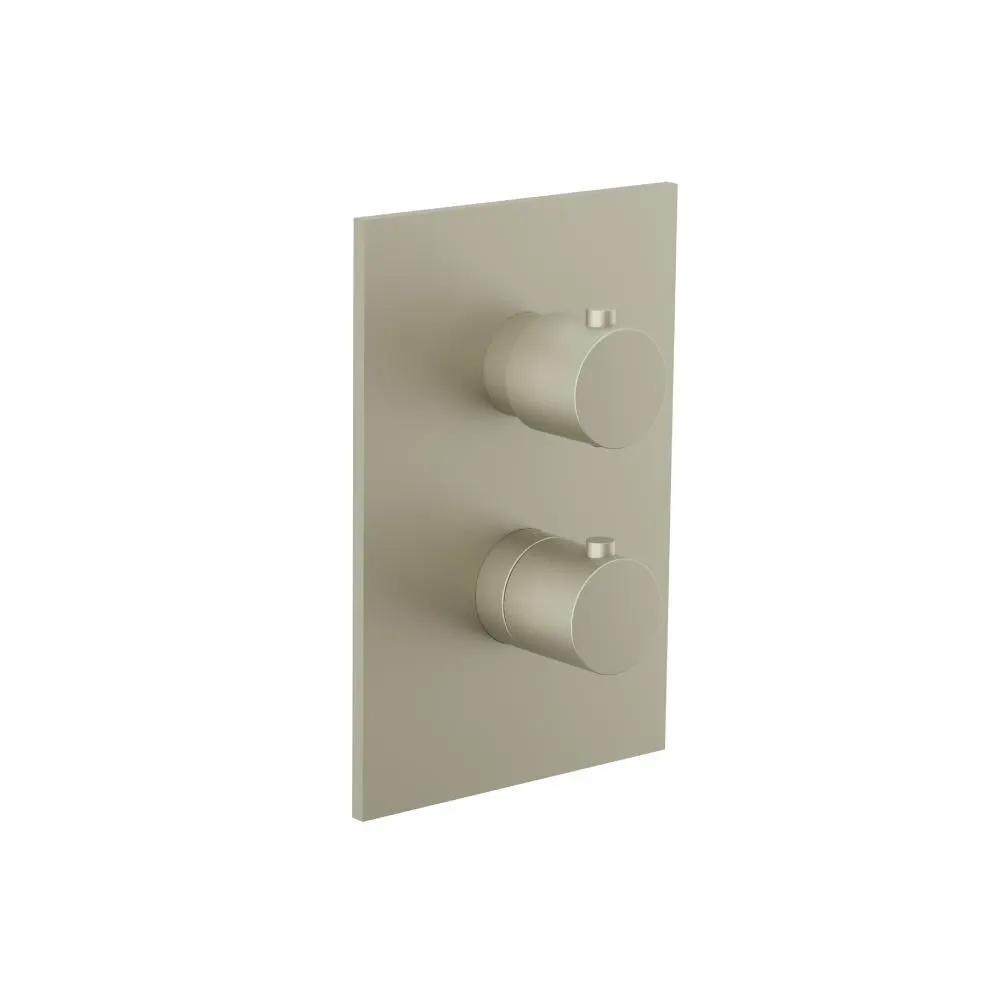

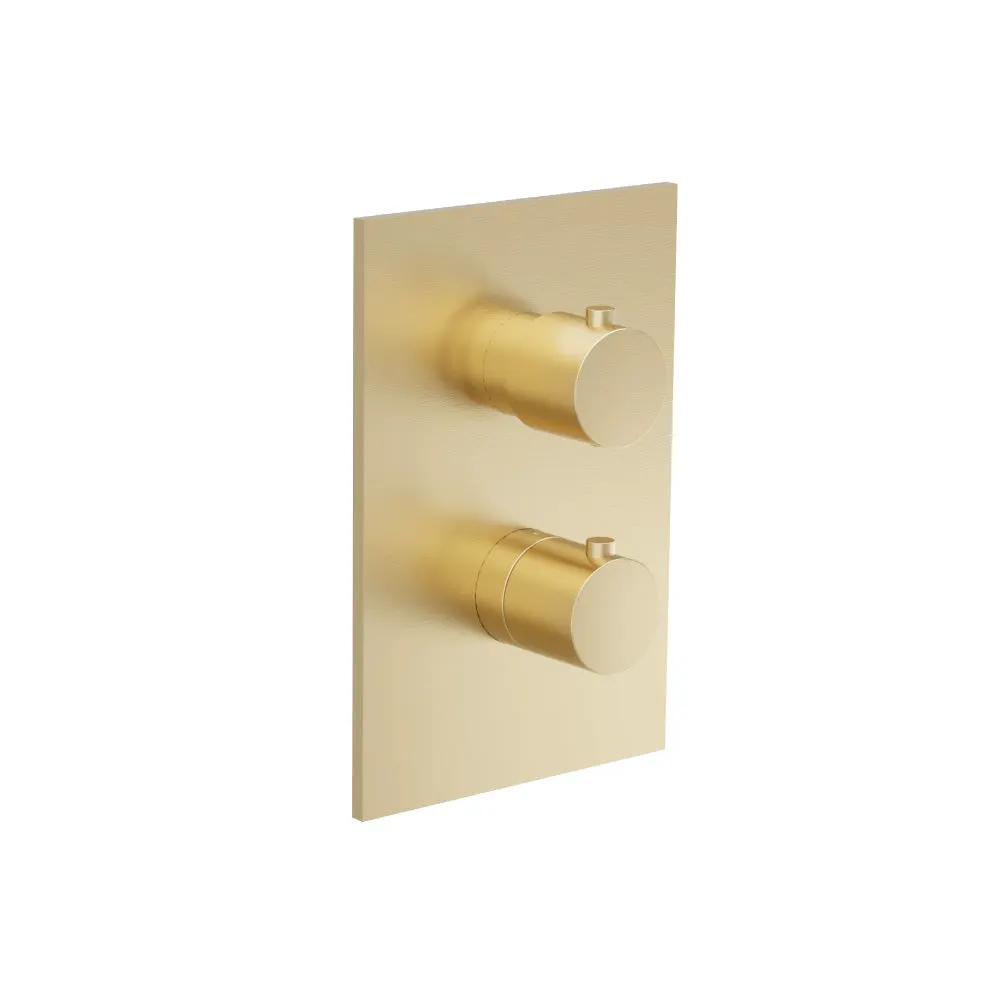

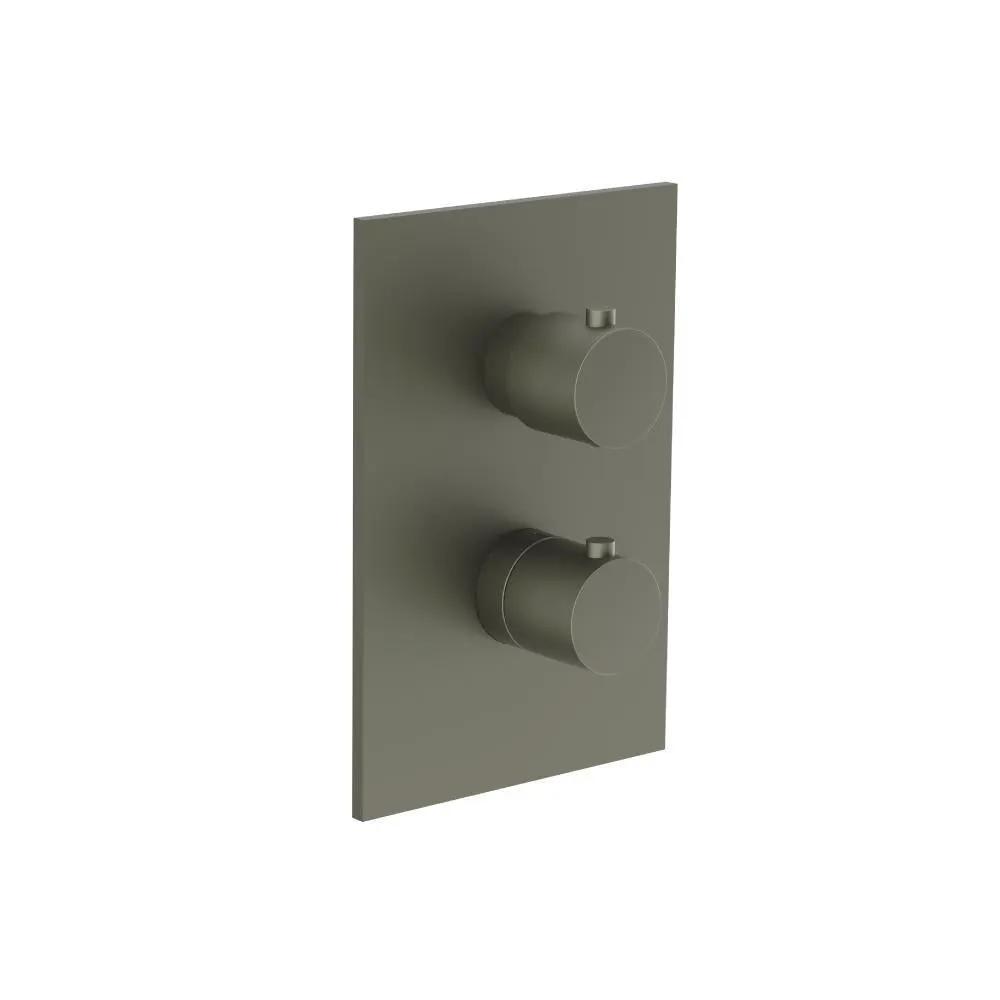

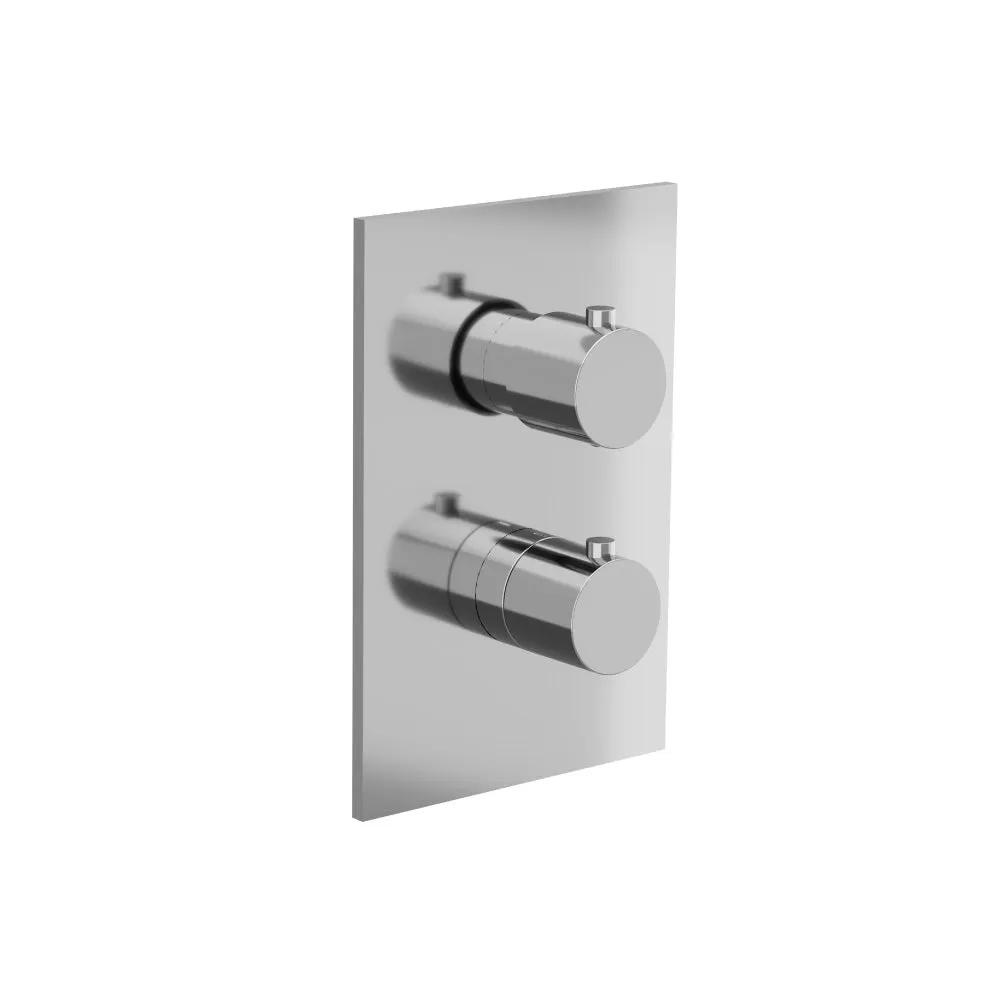

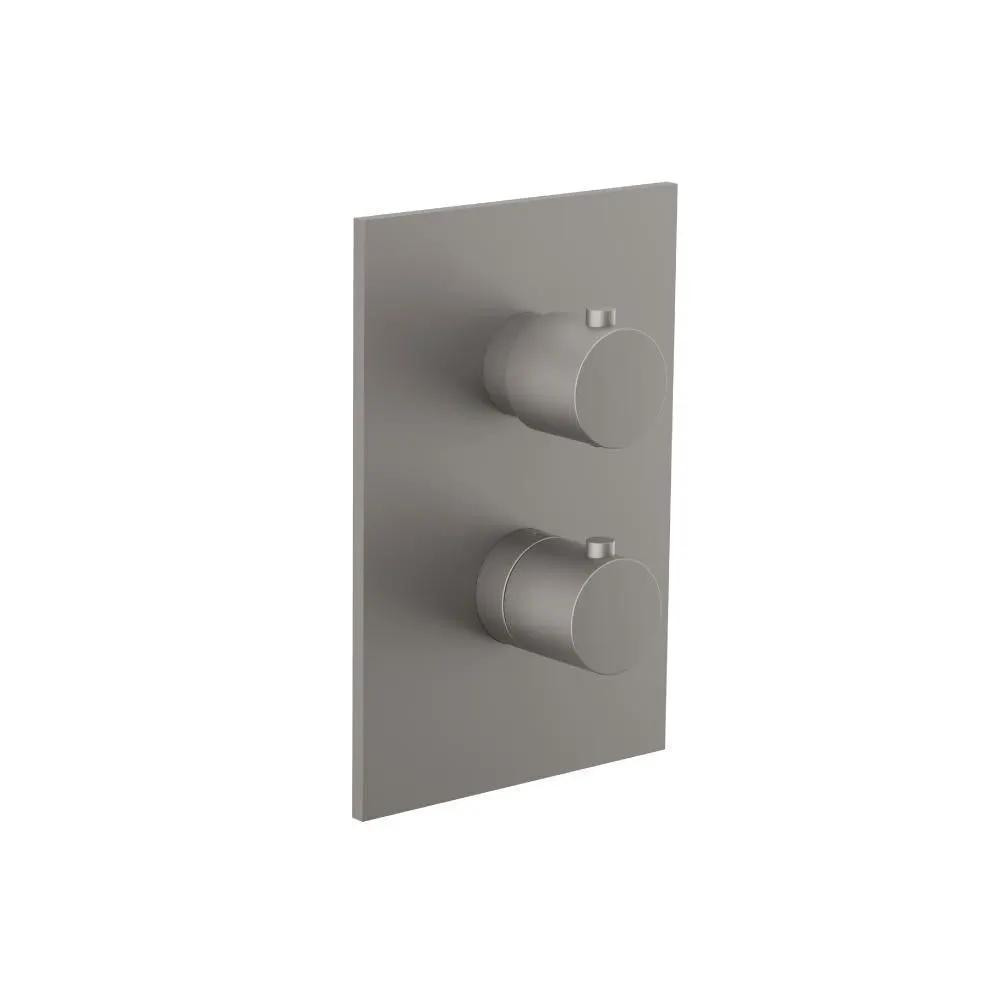

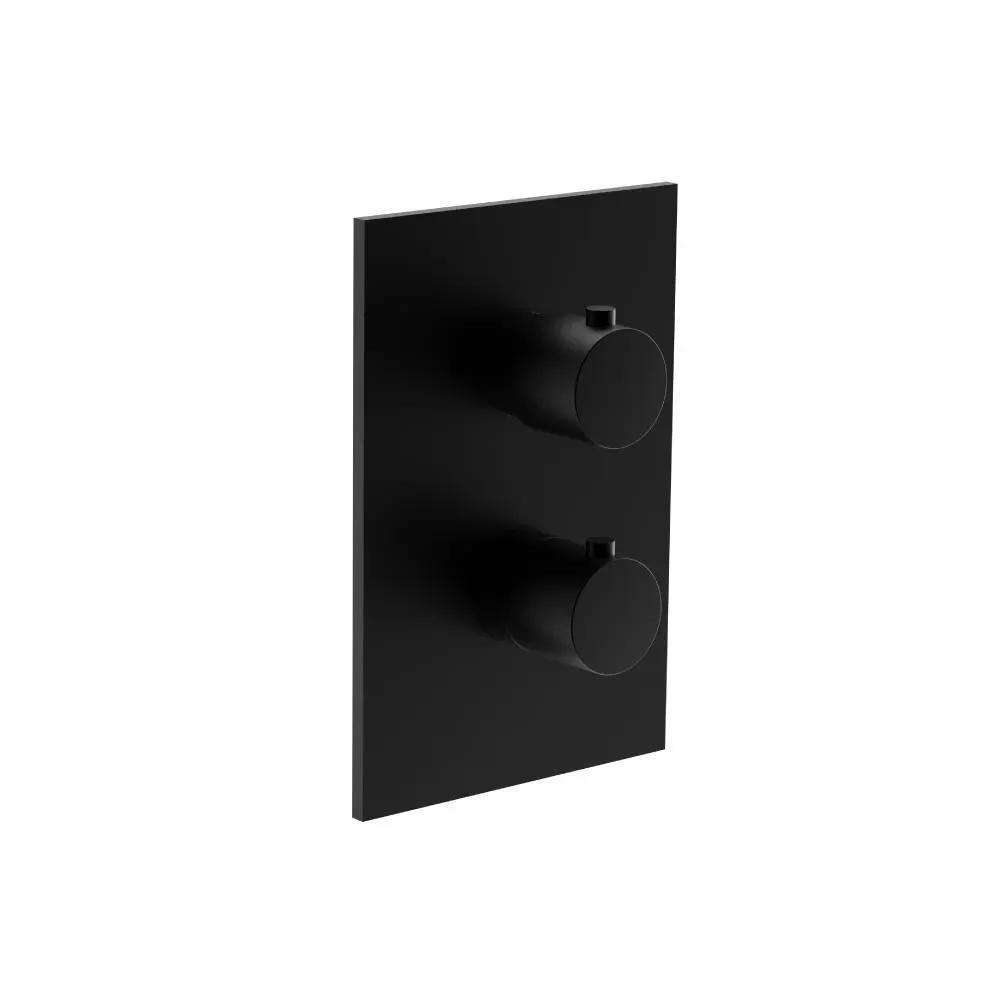

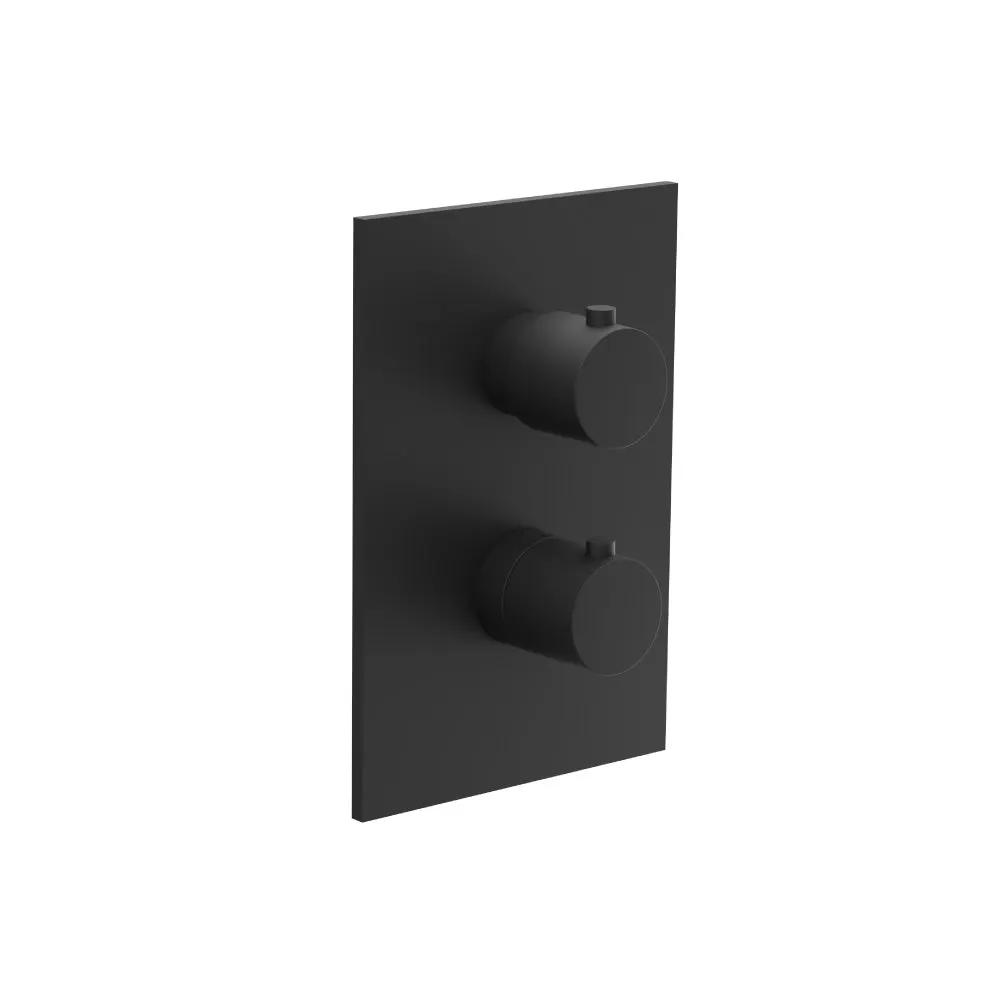

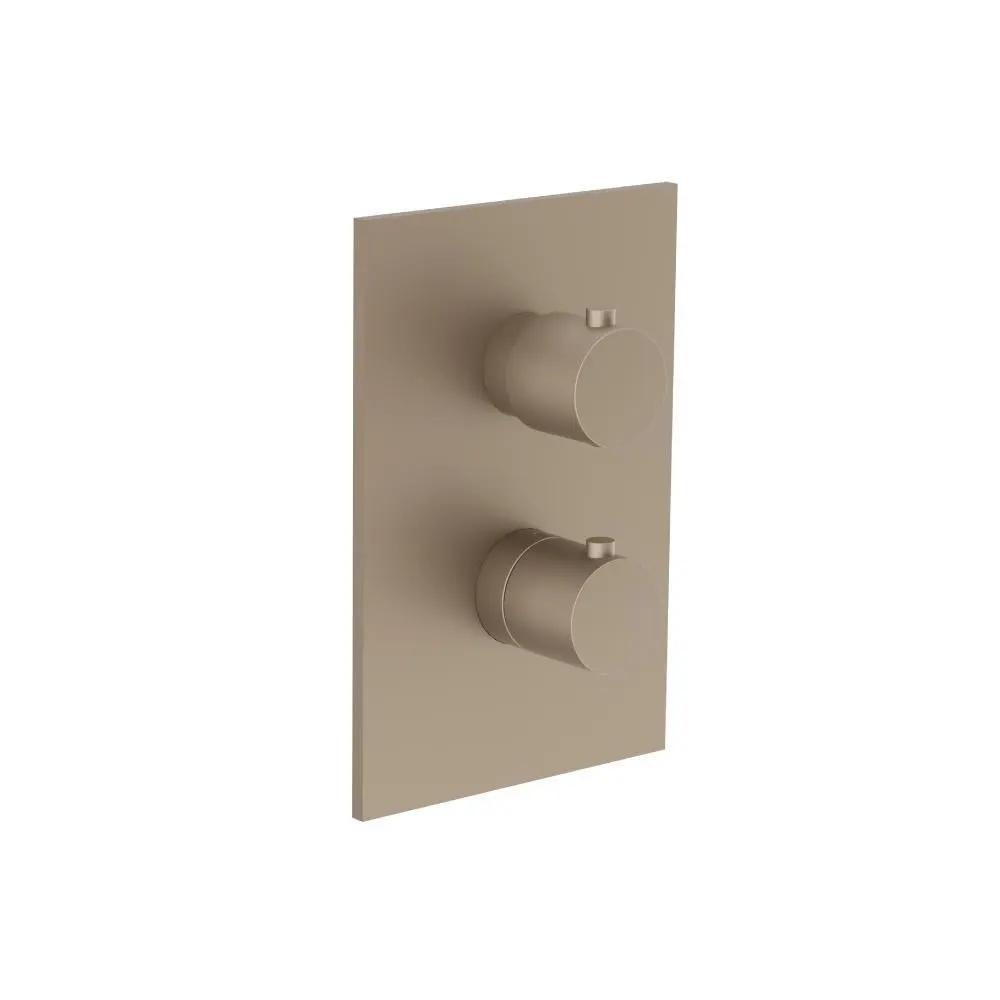

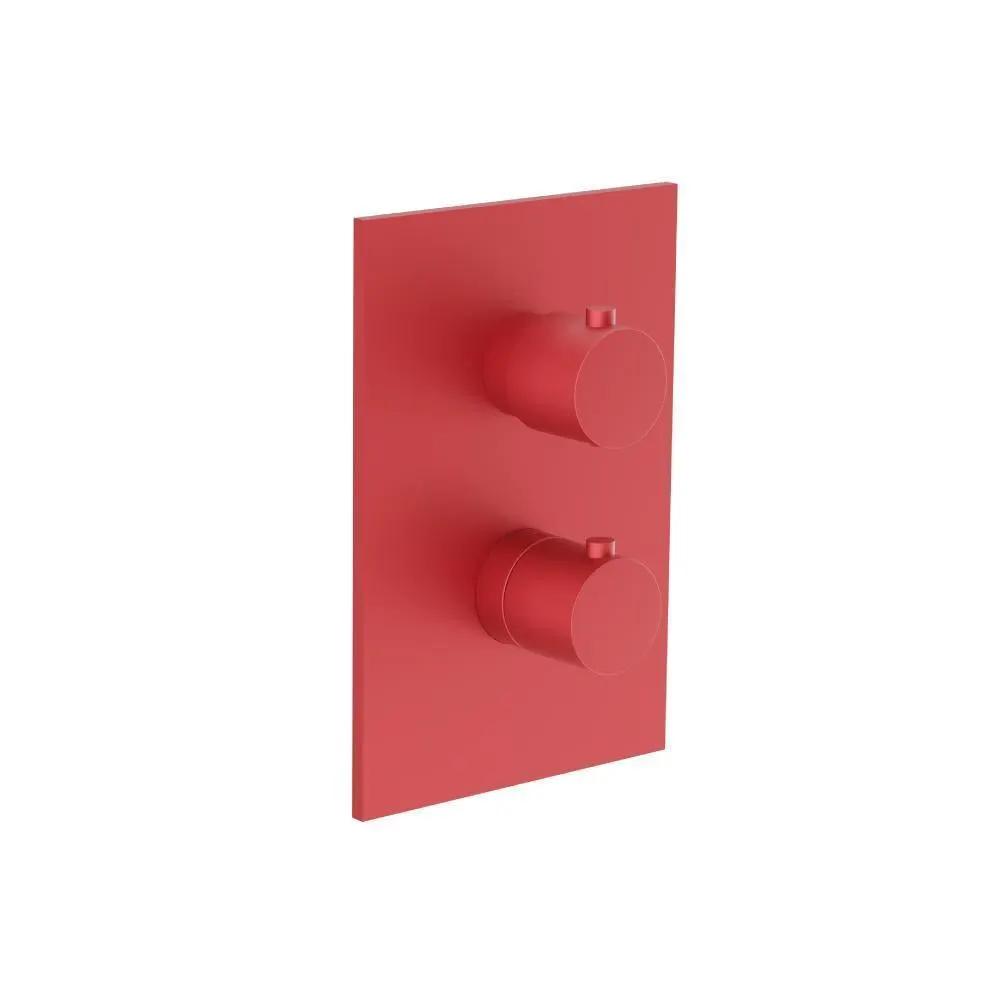

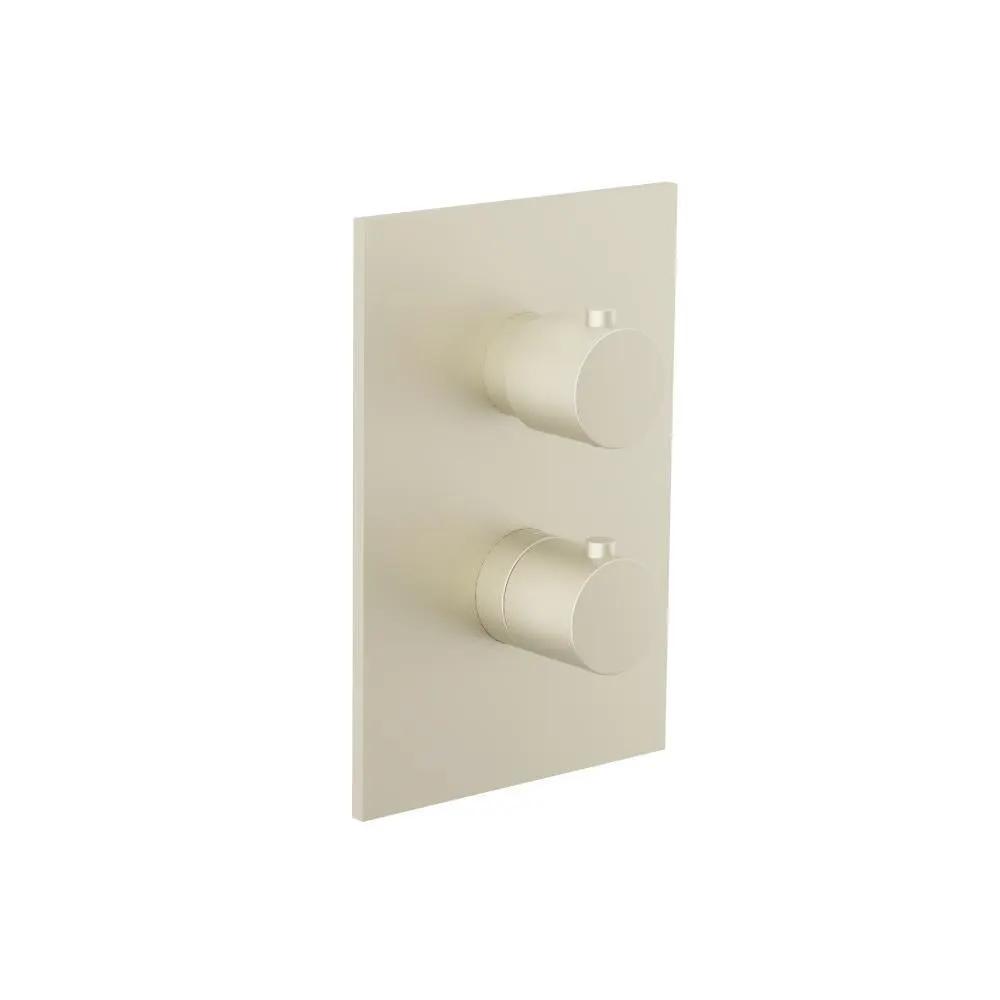

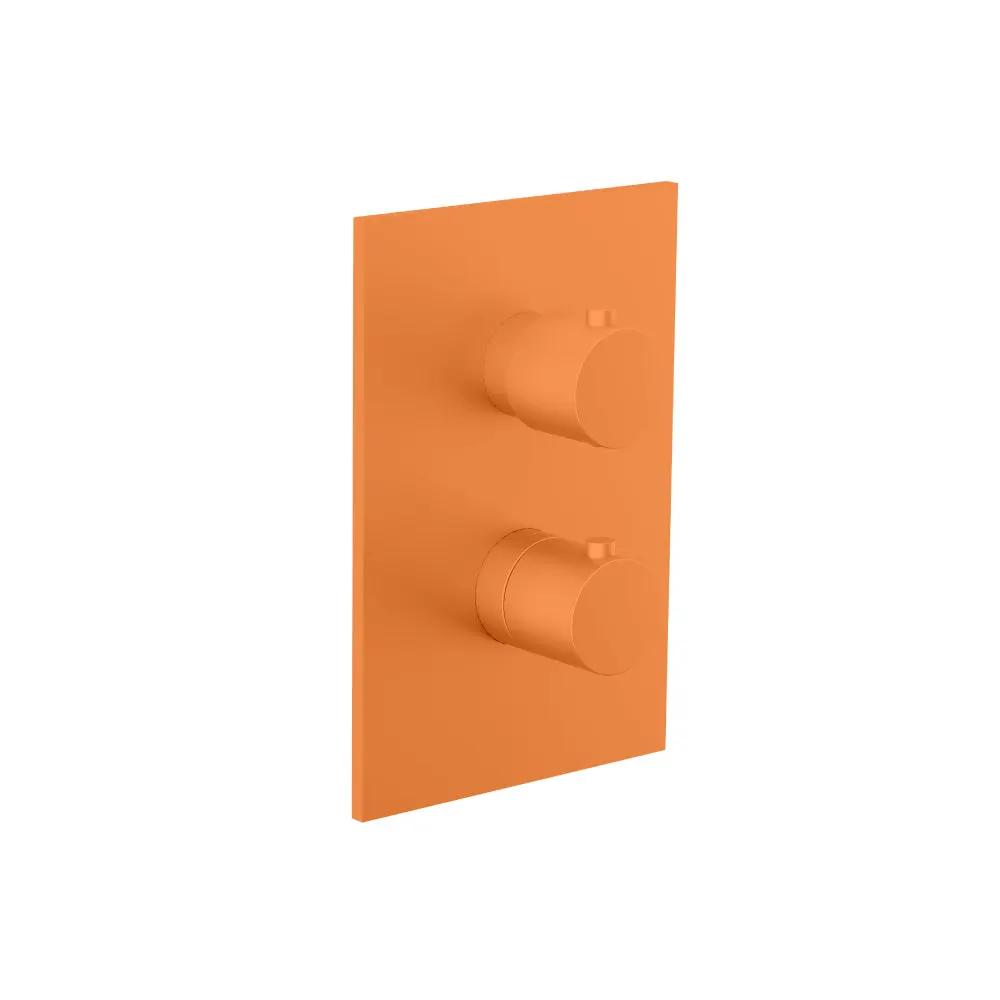

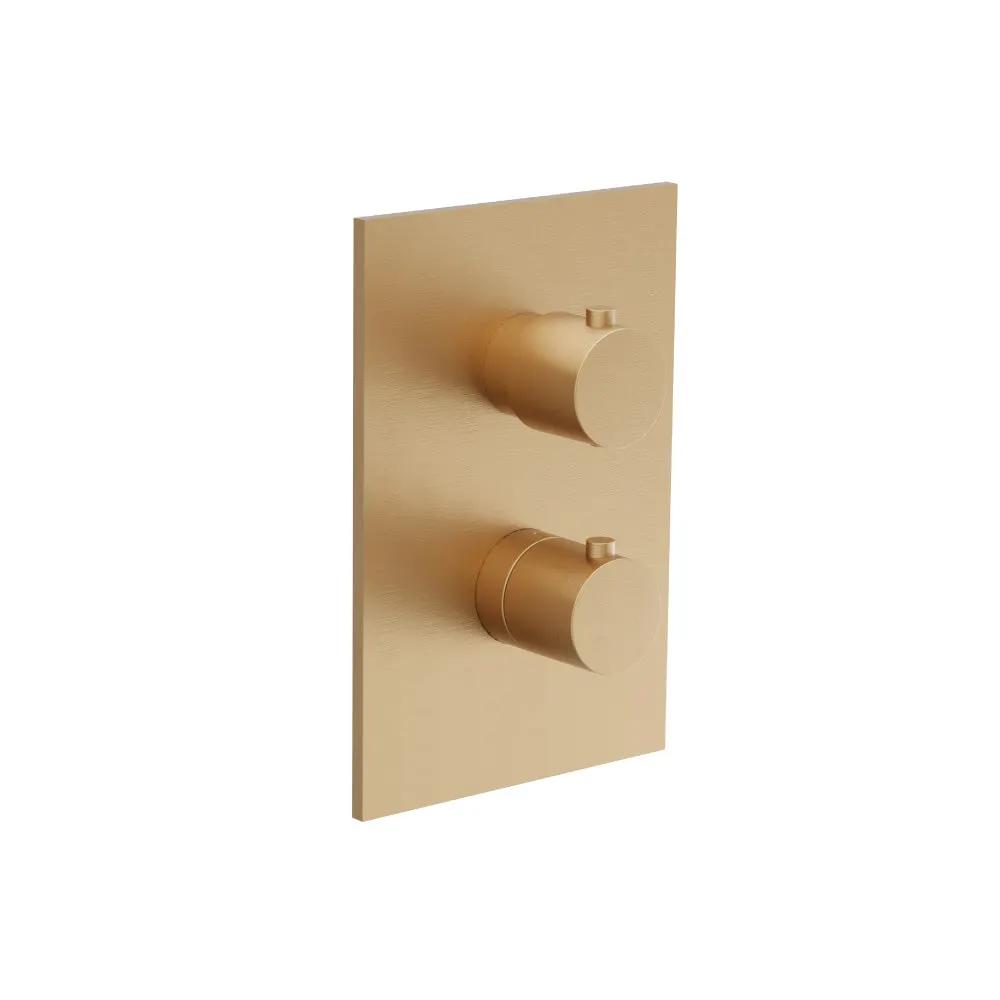

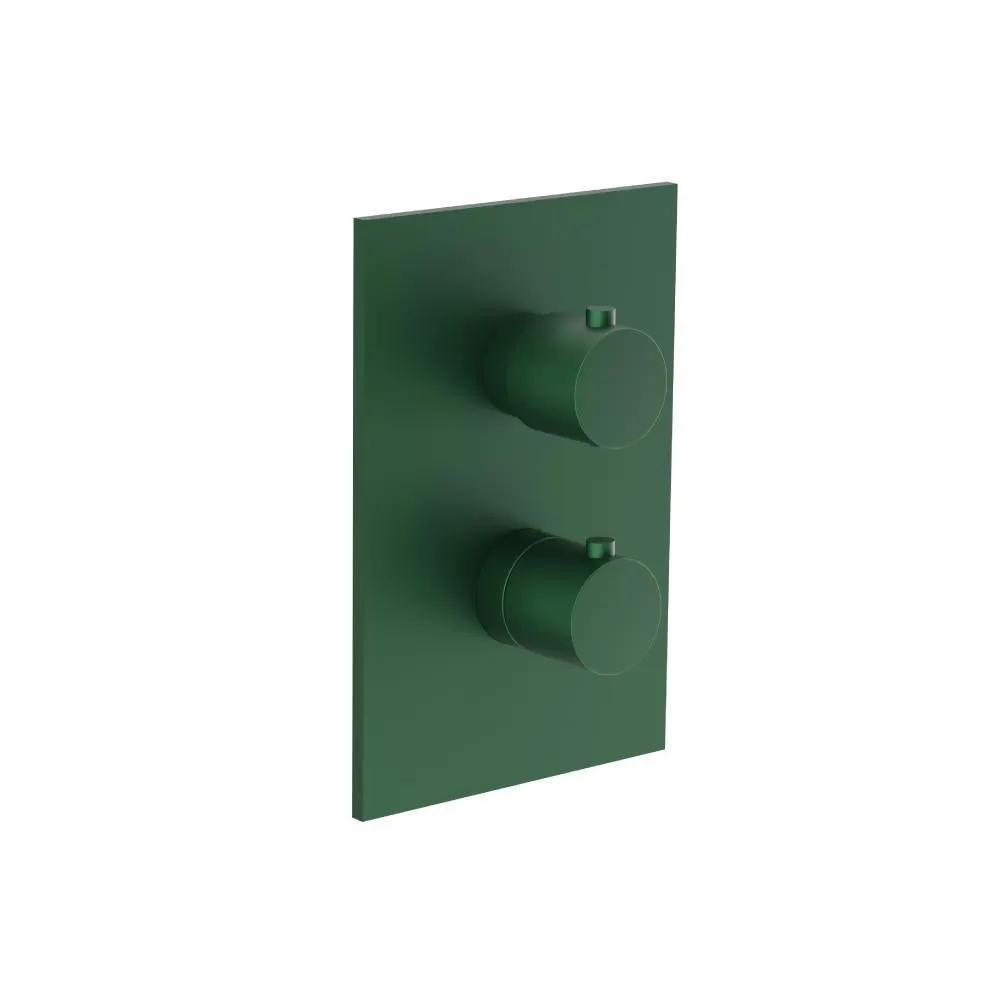

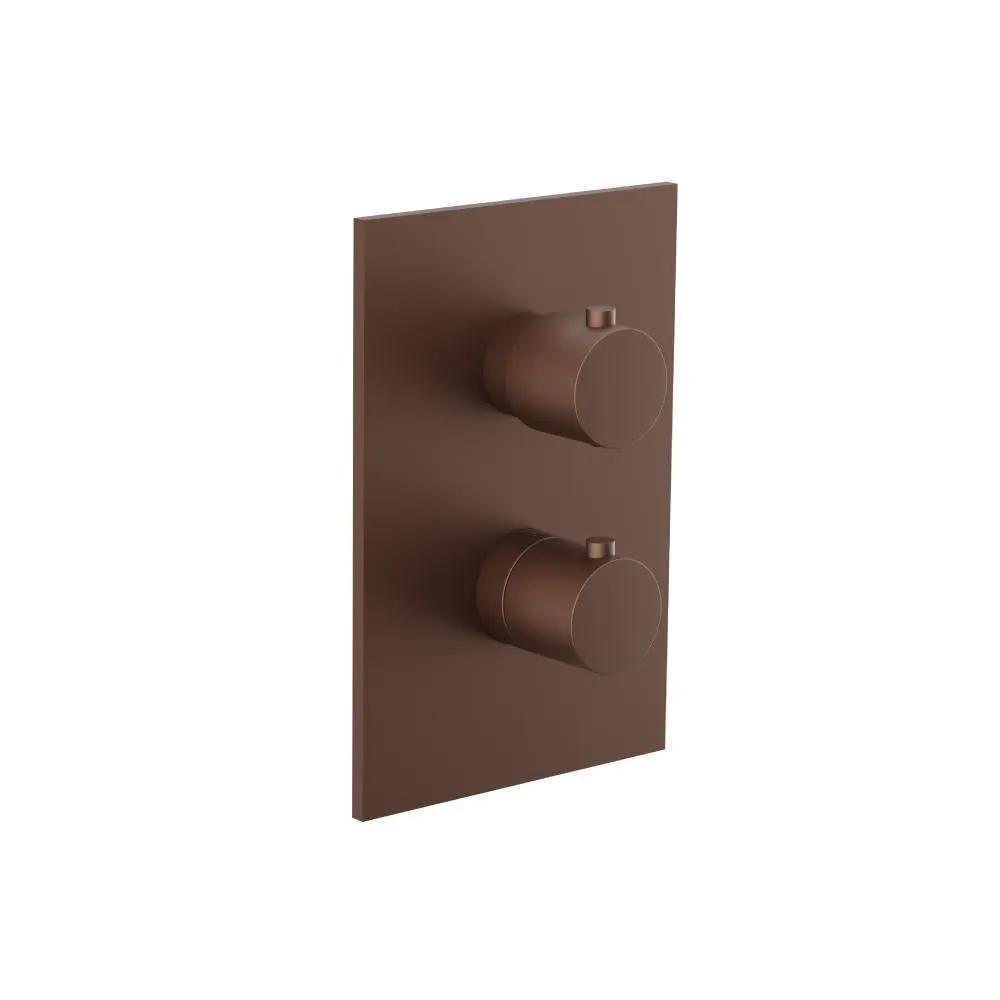

Flusso Serie 100 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs
Product details
Focal Point Hardware is an authorized Flusso retailer!
Flusso's TVH.4301F 3/4" thermostatic valve and trim delivers precise climate control for showers with a robust 3-output design, CAL-Green compliant. The Flusso Serie 100 valve combines reliable thermostatic performance with elegant trim, featuring a 3-way diverter and easy temperature and flow adjustment. This model pairs well with modern baths seeking luxury and efficiency.
Flusso is renowned for precision thermostatic control, durable brass construction, and CAL-Green compliance. The TVH.4301F valve embodies reliability, safety, and easy installation with anti-scald features and flexible cartridge options. With trusted performance in demanding showers and compatibility with multiple trim styles, Flusso stands for luxury, durability, and precise control.
Features and Specifications
- 3/4" female NPT connections
- 3 water output ports
- CAL-Green compliant
- Solid brass construction
- TVH.4301F thermostatic valve
- 3 Output Ports
- Extensions Available - TVH.4101E
- Default cartridge Model #15100 non-shared cartridge
- Shared port cartridge Model #15200 can activate 2 out of 3 ports at the same time
- Supply Stops: two safety stops at each water inlet
- Bottom handle controls the temperature of water flowing through the outlet
- Top handle controls the volume of water from full flow to trickle as the handle is turned from OFF to ON
- Cut Out Dimensions: 6.49 X 4.44 Inches
- Rough In Spec: distance from back of valve to finished tile between 2.77" and 3.44" inches
- Install straight and not angled or upside down
- Anti-scald temperature stop ring over the temperature control knob
- Ring must be fitted tightly over the valve (tapping with rubber mallet might be required)
- Trims comprise a well finished cover plate and handle knobs
- Over the temperature control knob is an anti-scald temperature stop ring; to adjust temperature, press the side button and move the handle
- Without pressing the button, the handle cannot rotate to full HOT
- Trims shapes vary from square to circular depending on the shower model
Experience Flusso luxury with the TVH.4301F 3-output thermostatic valve, delivering precise heat and controlled flow for a spa-like shower. Flusso's enduring quality and CAL-Green compliance ensure dependable performance and lasting value.
