Product details
Focal Point Hardware is an authorized Flusso retailer!

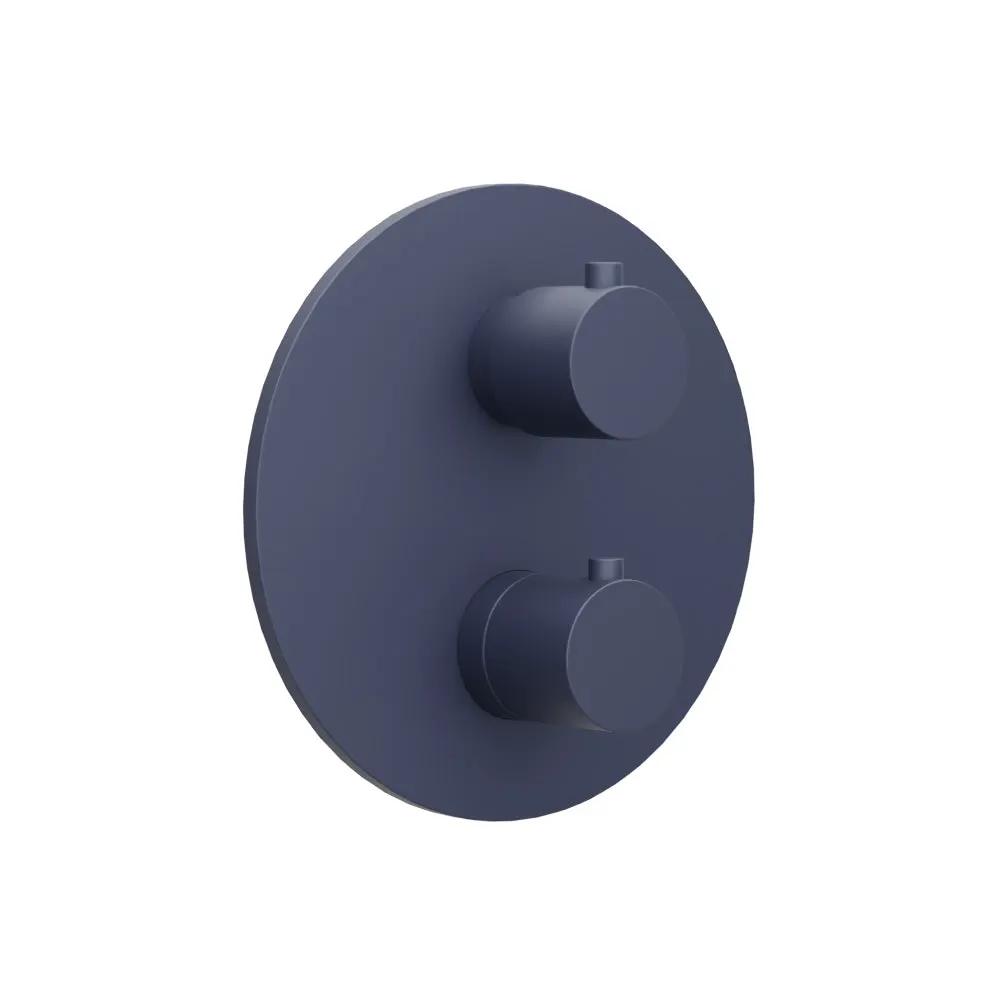

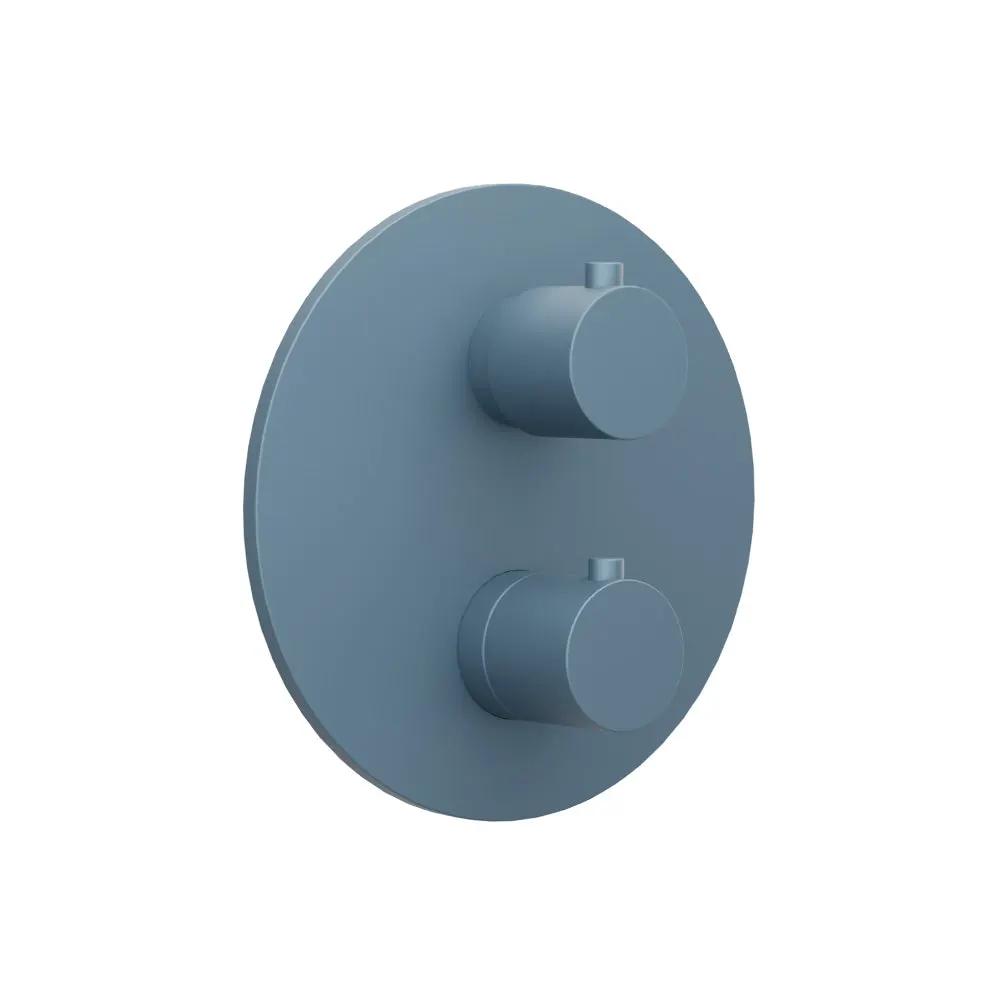

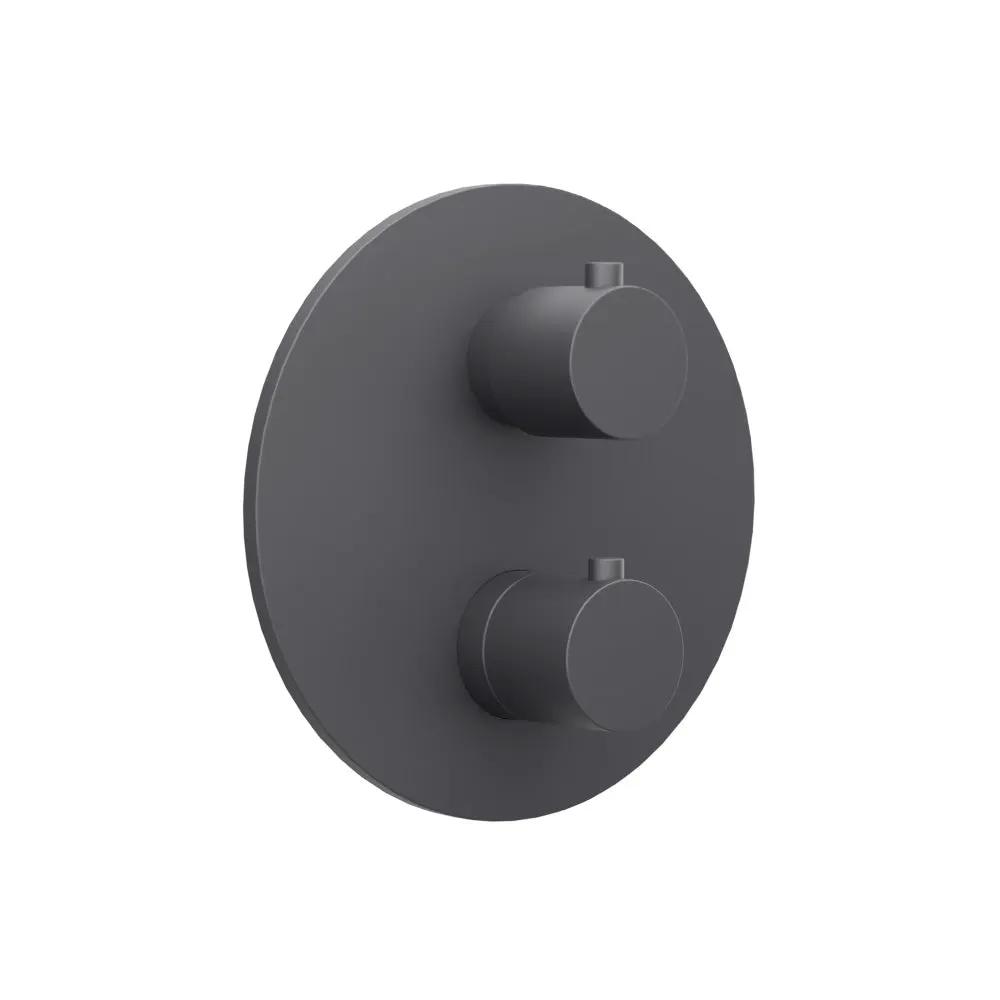

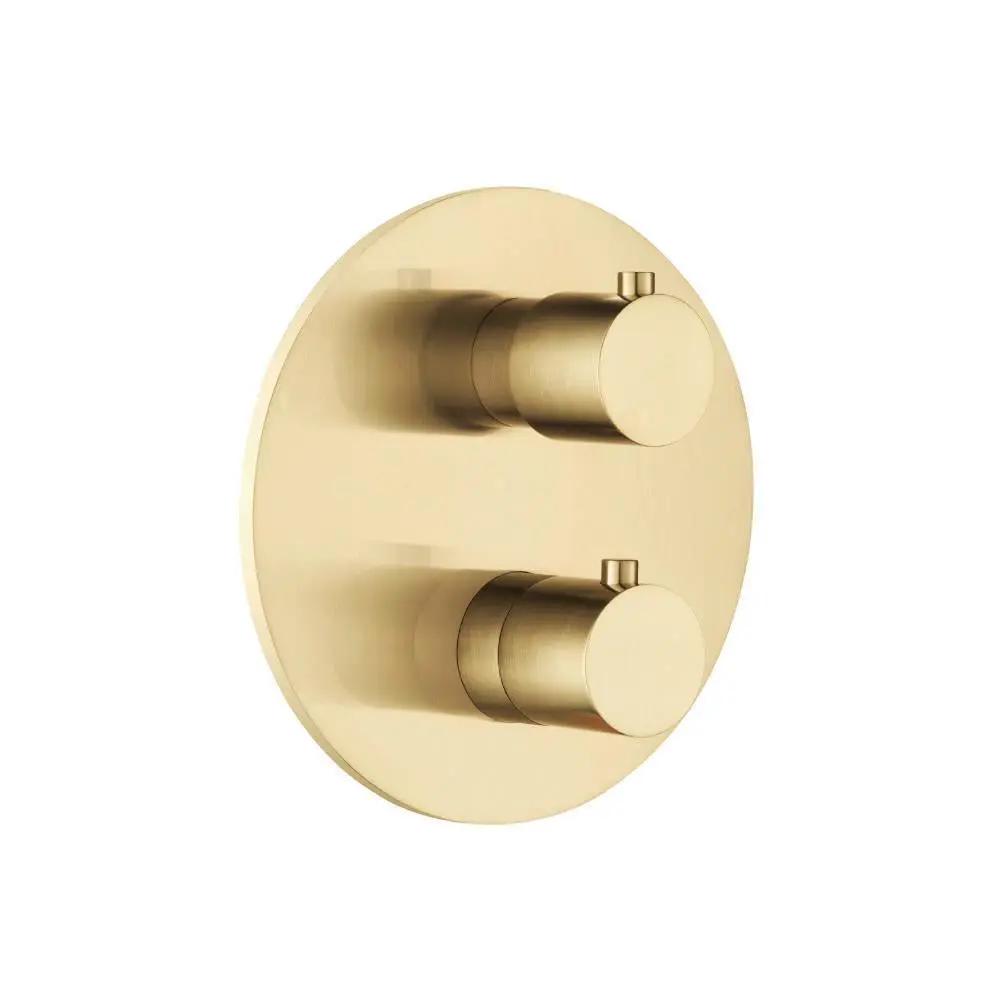

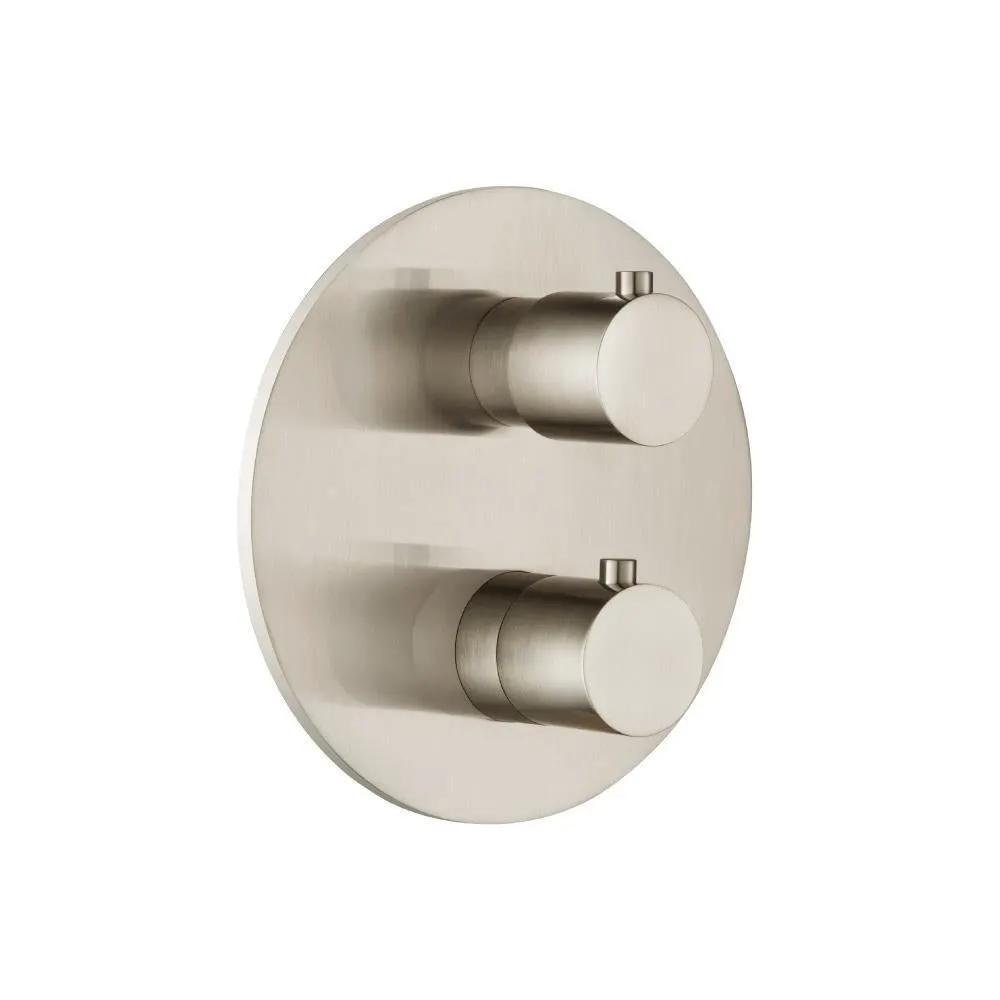

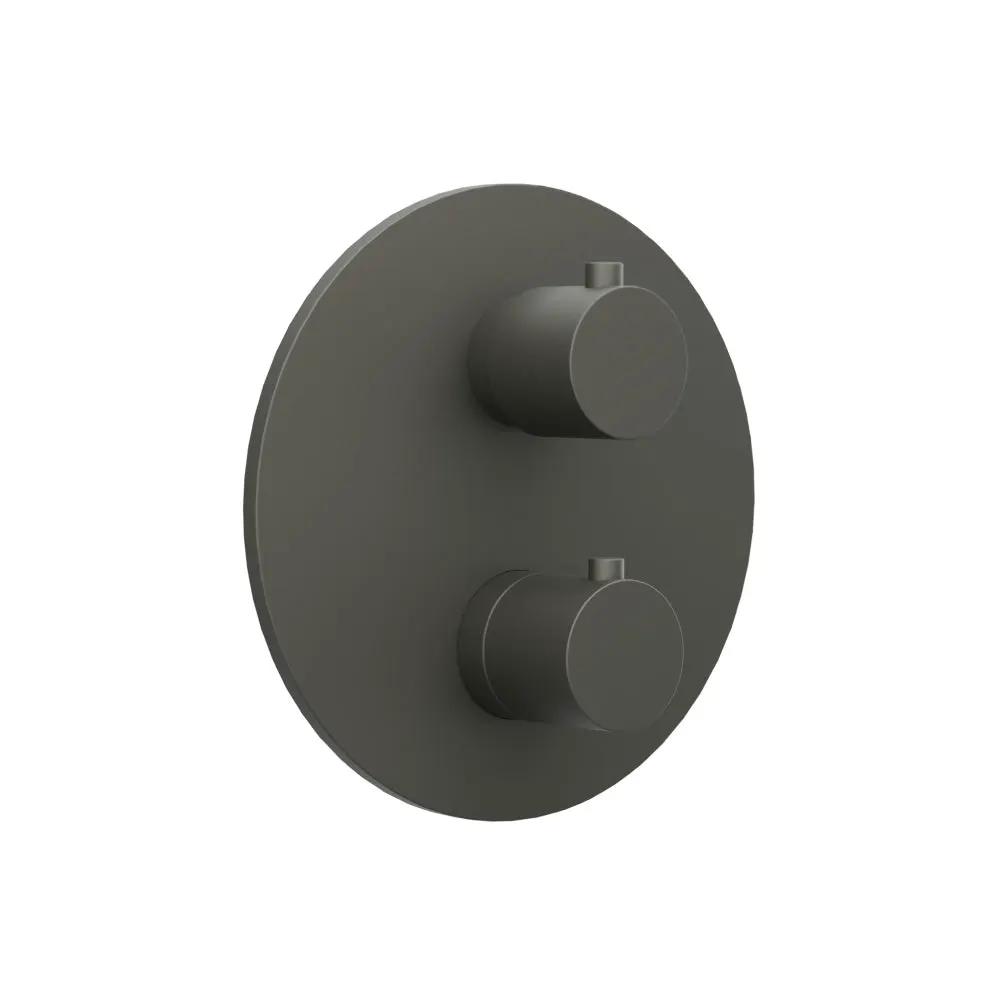

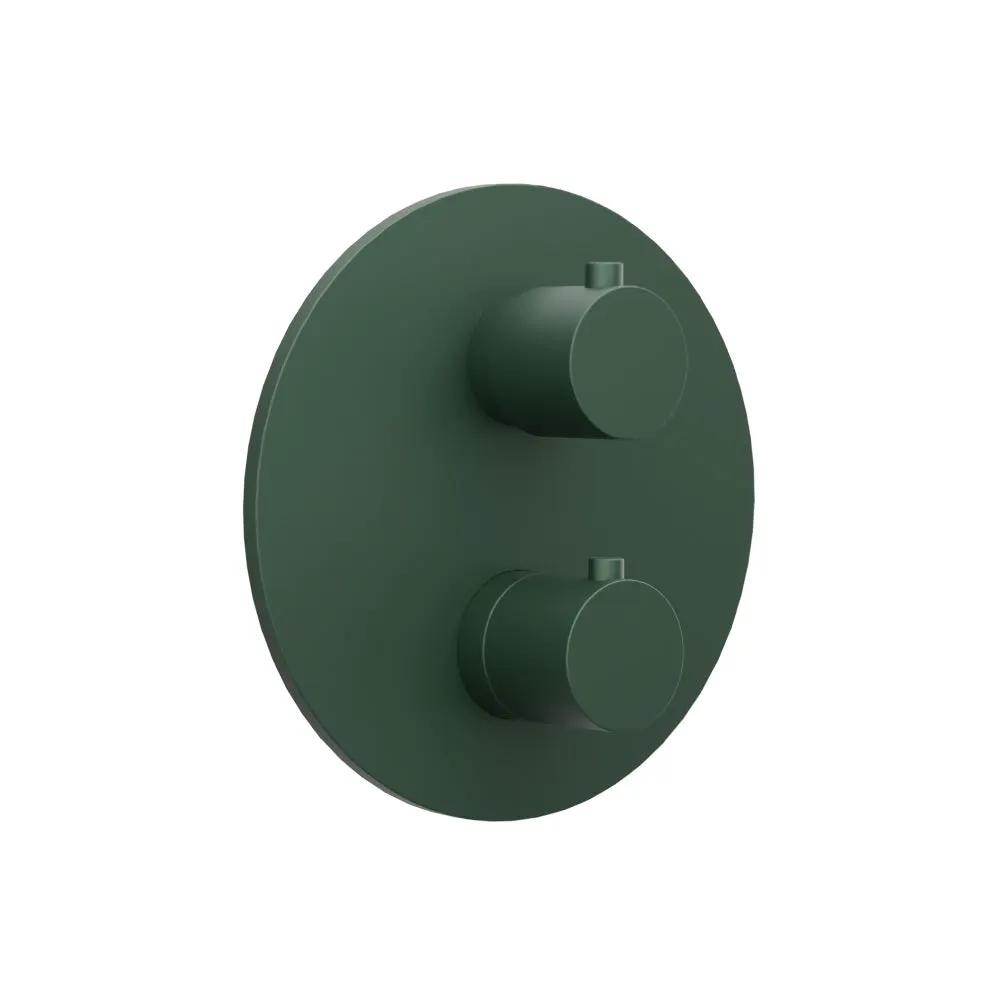

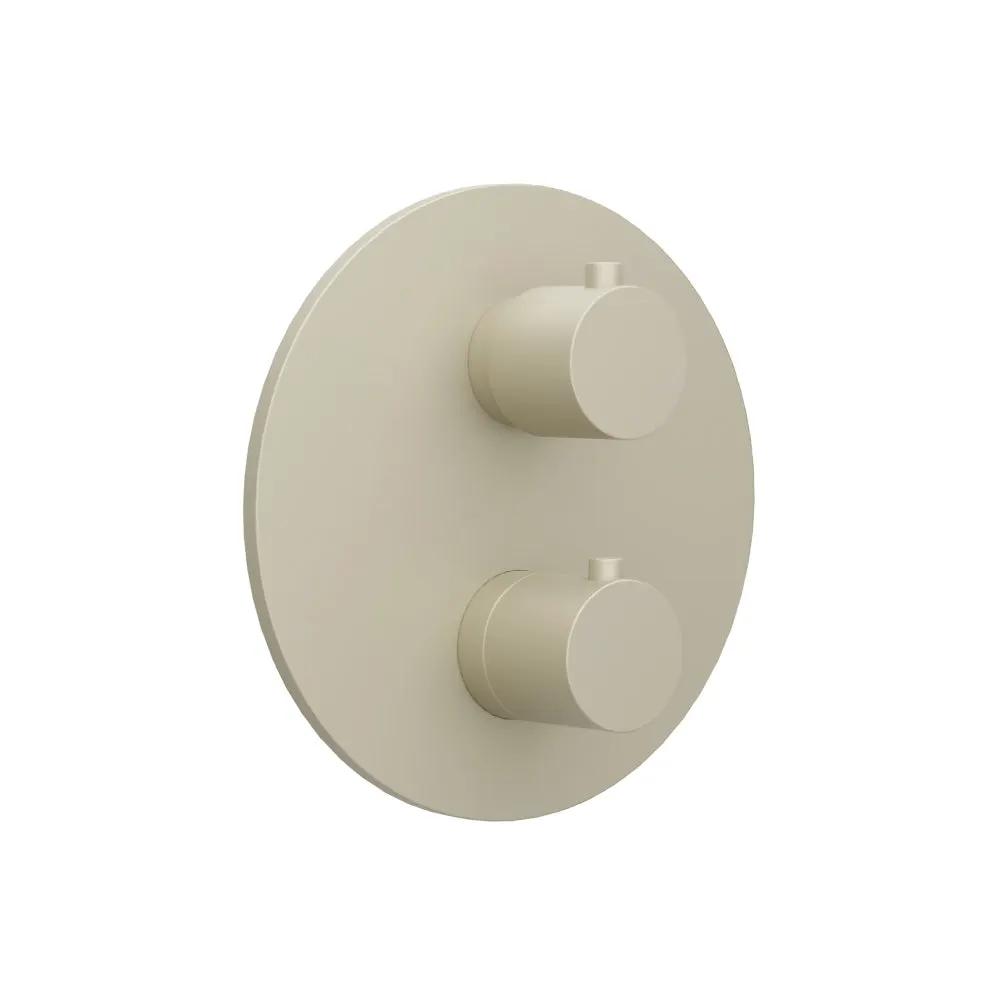

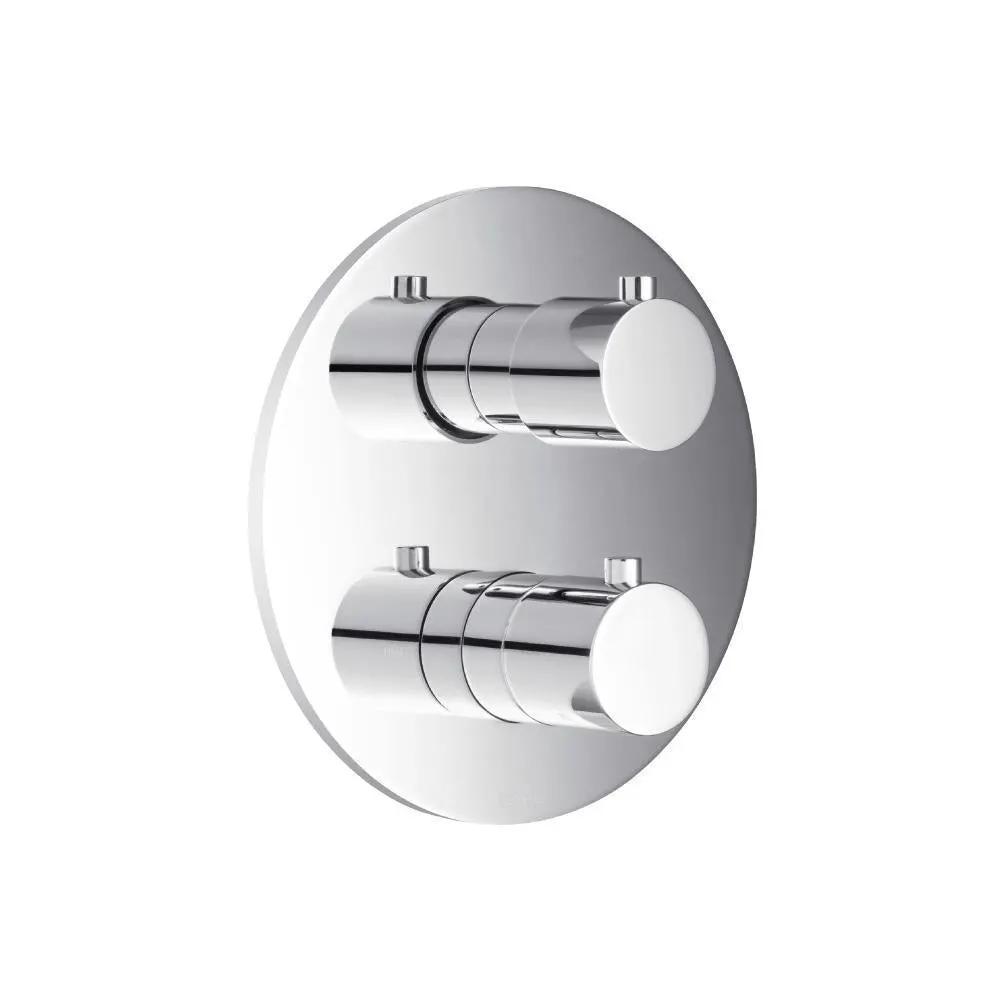

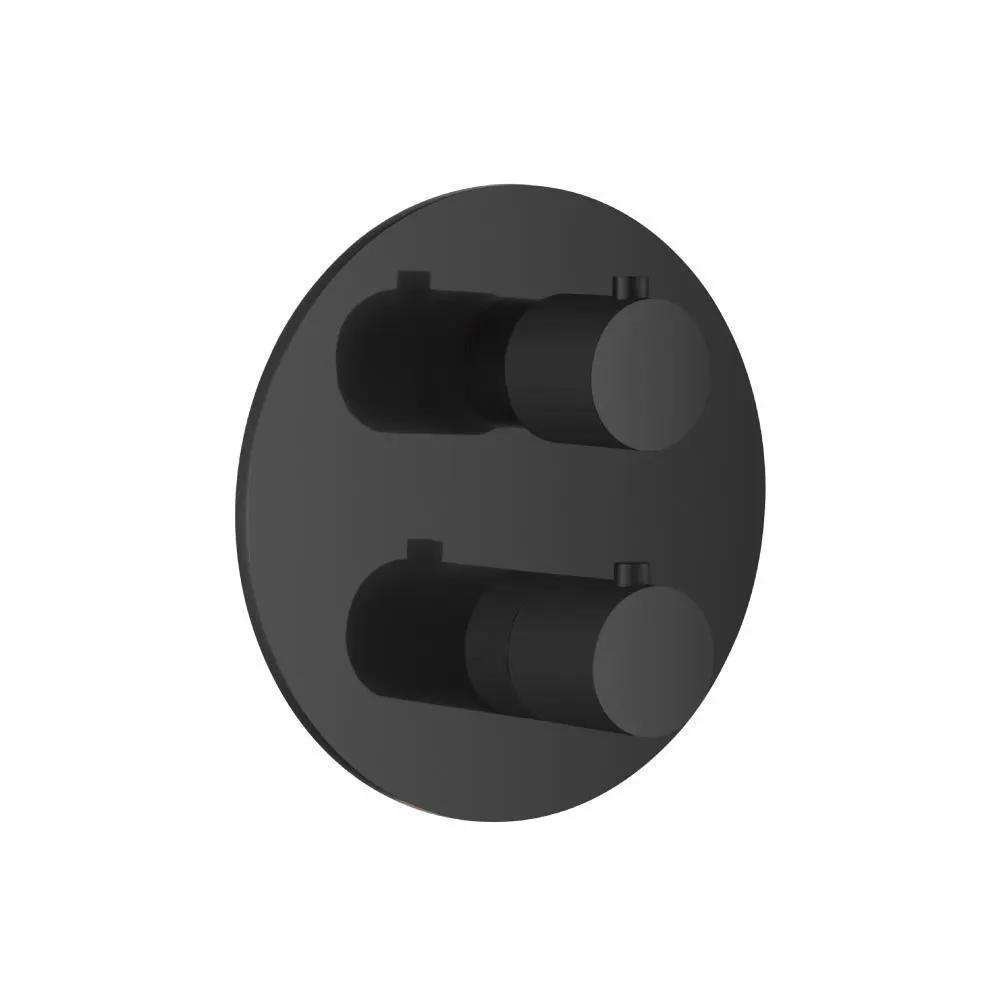

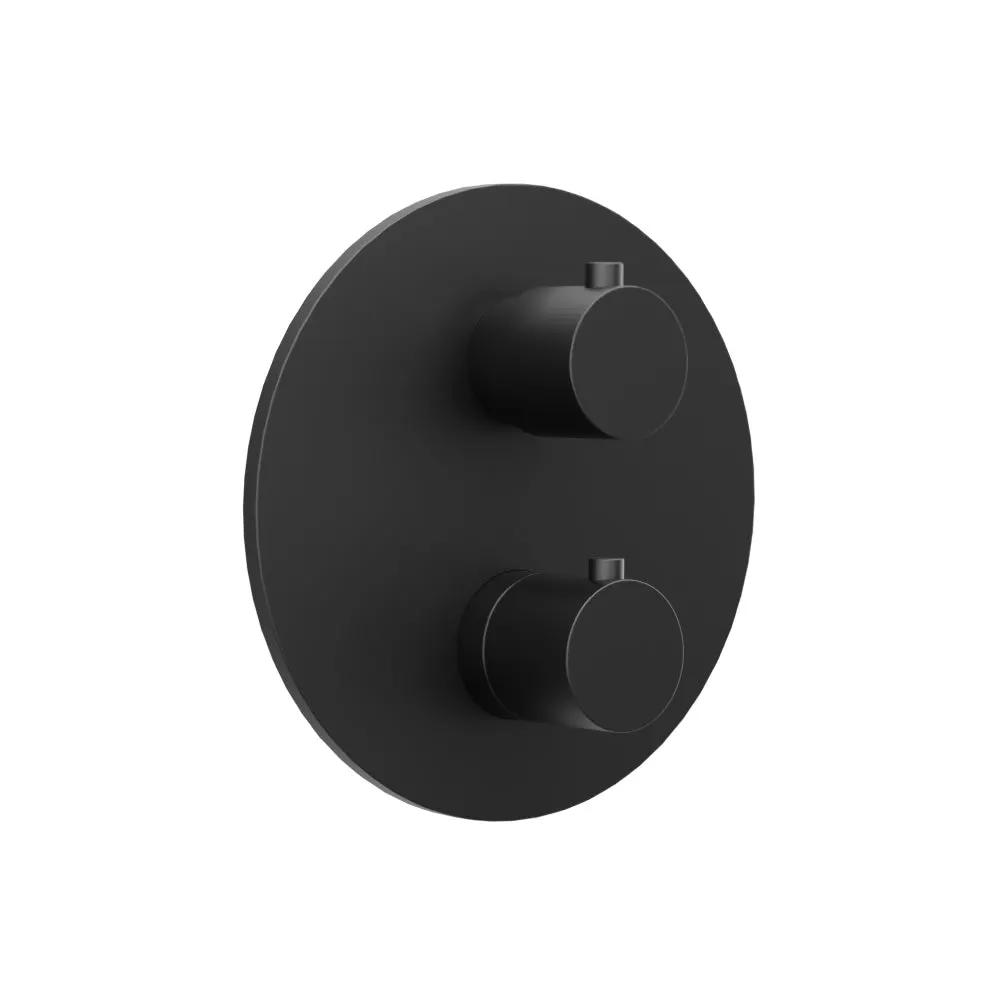

Flusso Serie 100 3/4" Thermostatic Valve and Trim - 3 Output delivers precise, safe shower control with three independent outputs via 3/4" female NPT connections and CAL-Green compliance. The bottom handle sets temperature while the top handle adjusts flow across all ports, with two safety stops and extension options for a flawless installation. Flusso quality meets luxury bathroom expectations.
Flusso is renowned for precision-engineered bathroom valves that combine dependable thermostatic performance with refined design. The Flusso Serie 100 line emphasizes reliability, long service life, and consistent temperature control, backed by CAL-Green compliance and industry standards. Flusso's commitment to quality ensures durable construction and exceptional user experience in every valve and trim.
Features and Specifications
- 3/4" female NPT connections
- 3 water output ports.
- CAL-Green Compliance.
- The bottom handle sets the temperature and the top handle diverts water flow between the Three output ports.
- Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs.
- Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet.
- The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position.
- As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec].
- Also, the value must be installed straight and not at an angle or upside down.
- In case, the tile is thicker, or valve is installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.
- Trims - The trims comprise of a well finished cover plate and handle knobs.
- Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
- With the help of this ring, temperature of the water is regulated.
- Covering this ring is the temperature handle knob which has a push button on the side.
- To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction.
- Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Cartridge – The TVH.4301F valve can be used with two cartridges.
- The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge.
- A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time.
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4301F
- Extensions Available - TVH.4101E**
Flusso delivers reliable, luxury-grade bathroom control, and the Serie 100 3/4" Thermostatic Valve and Trim - 3 Output exemplifies that standard with precise temperature management, three outputs, and CAL-Green compliance for a dependable, premium shower experience.
