Product details
Focal Point Hardware is an authorized Flusso retailer!

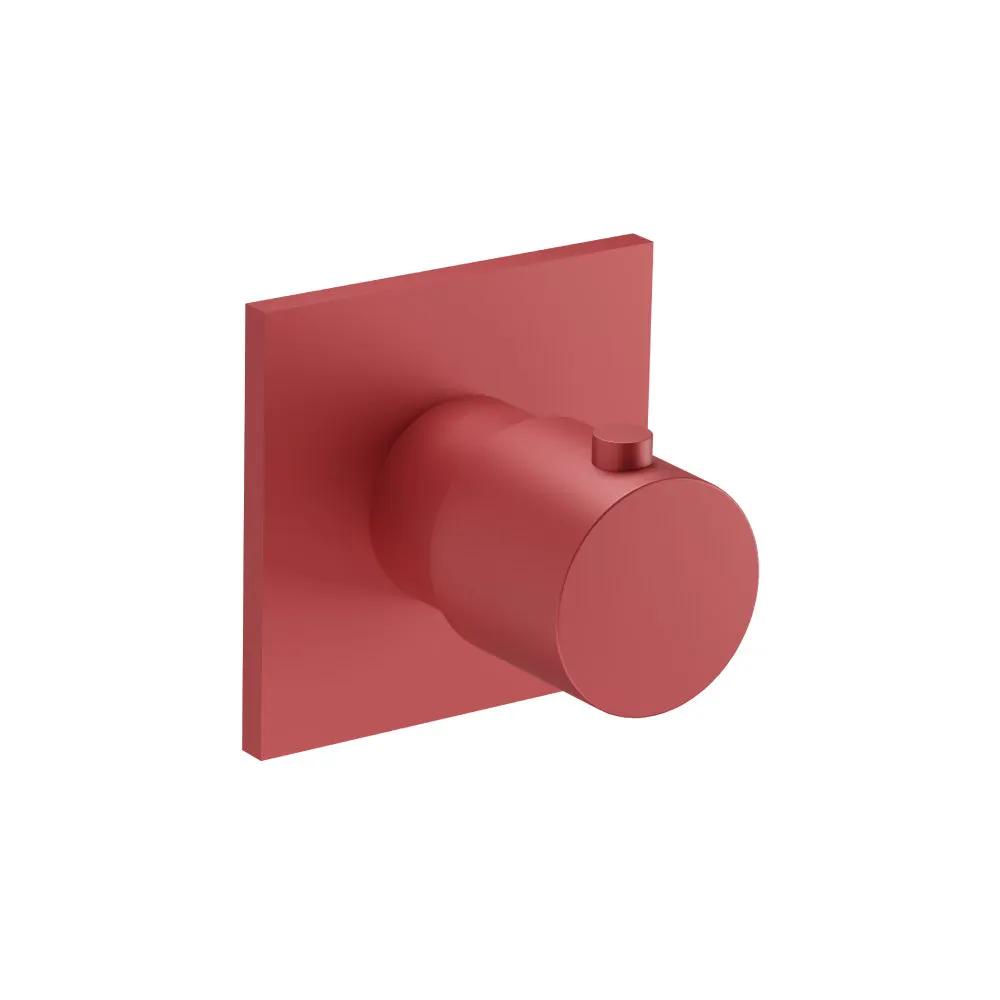

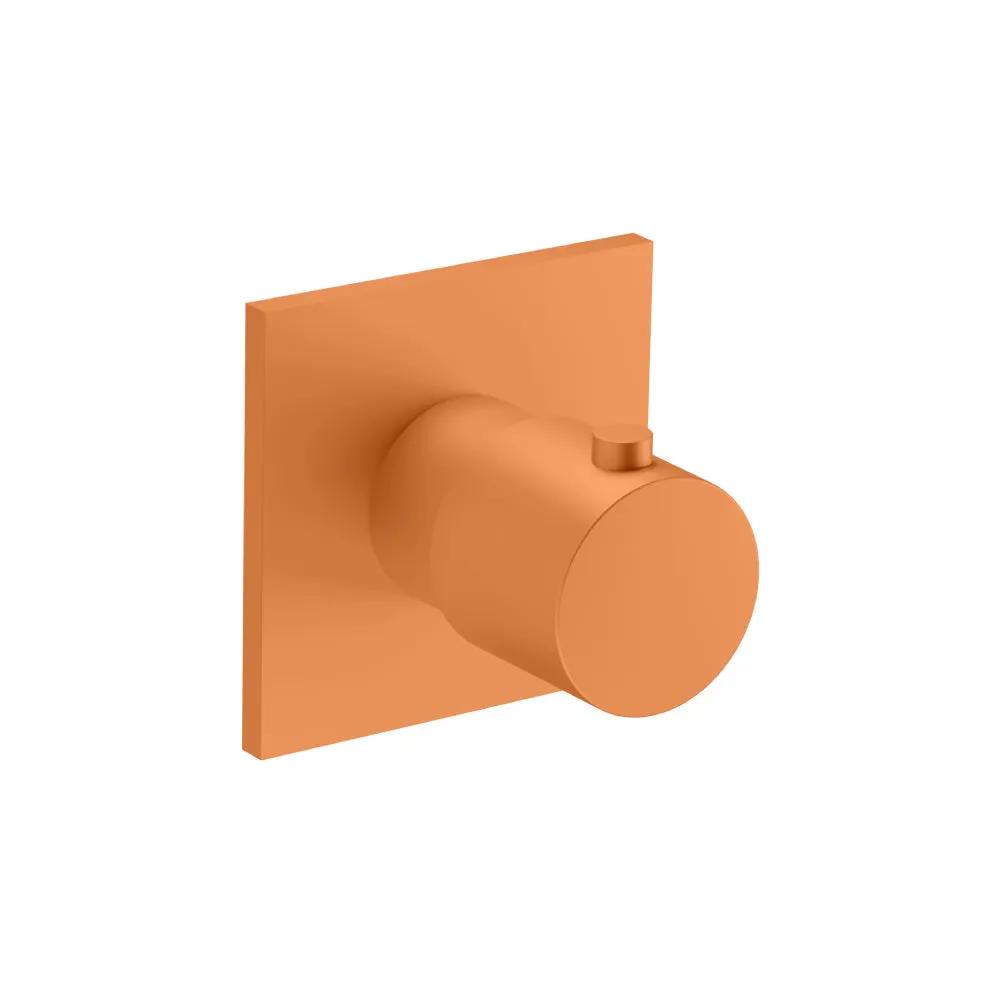

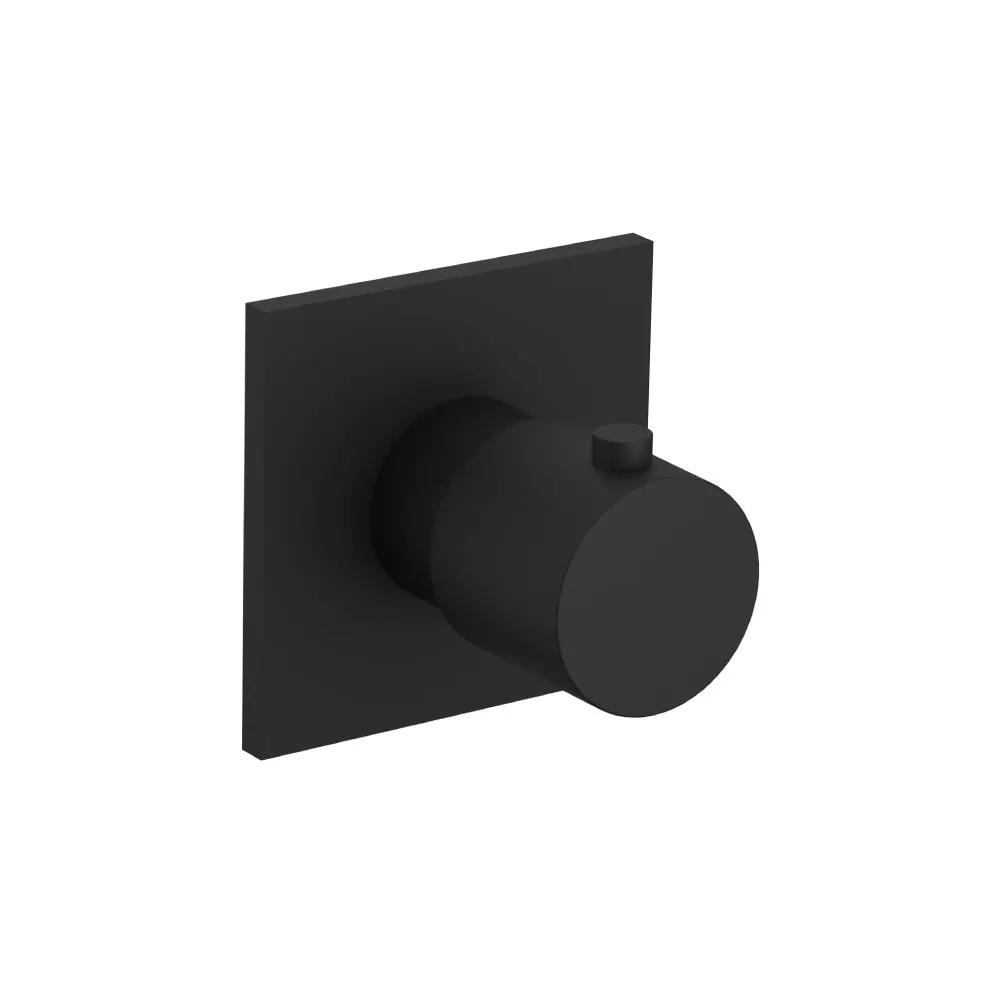

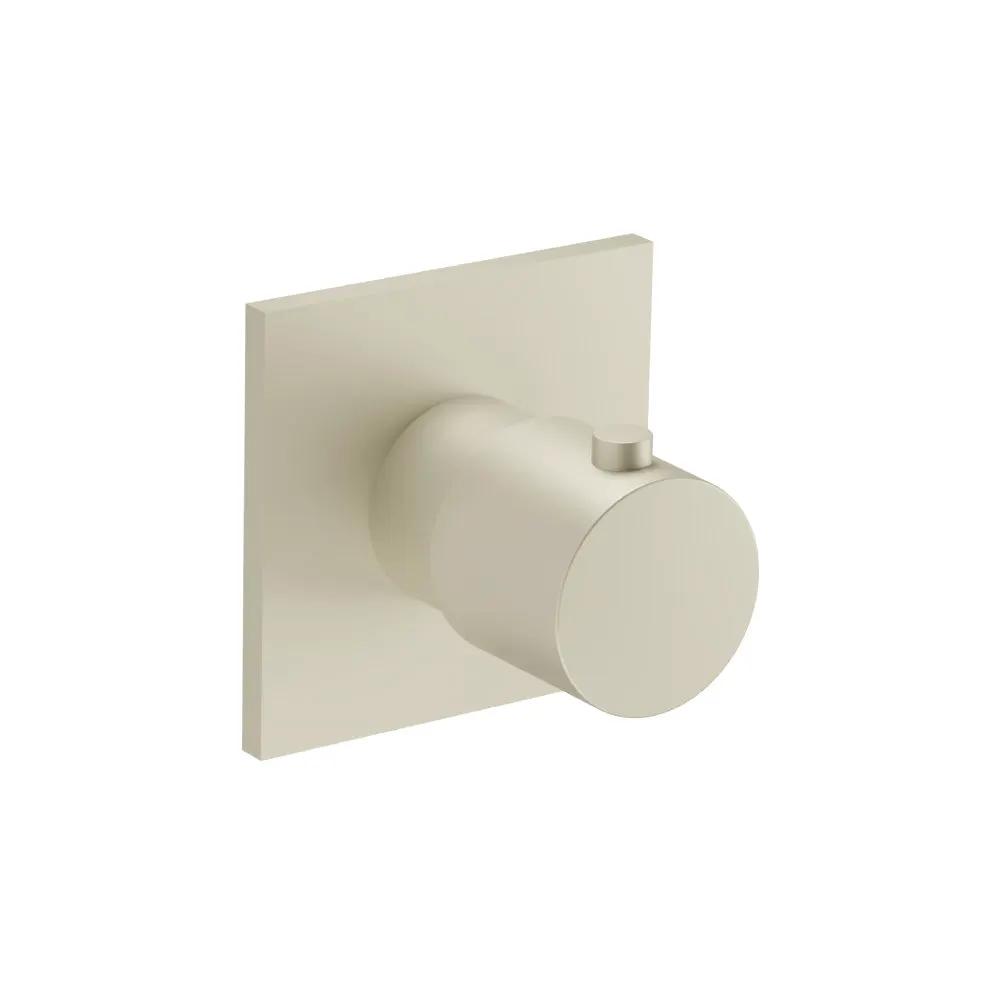

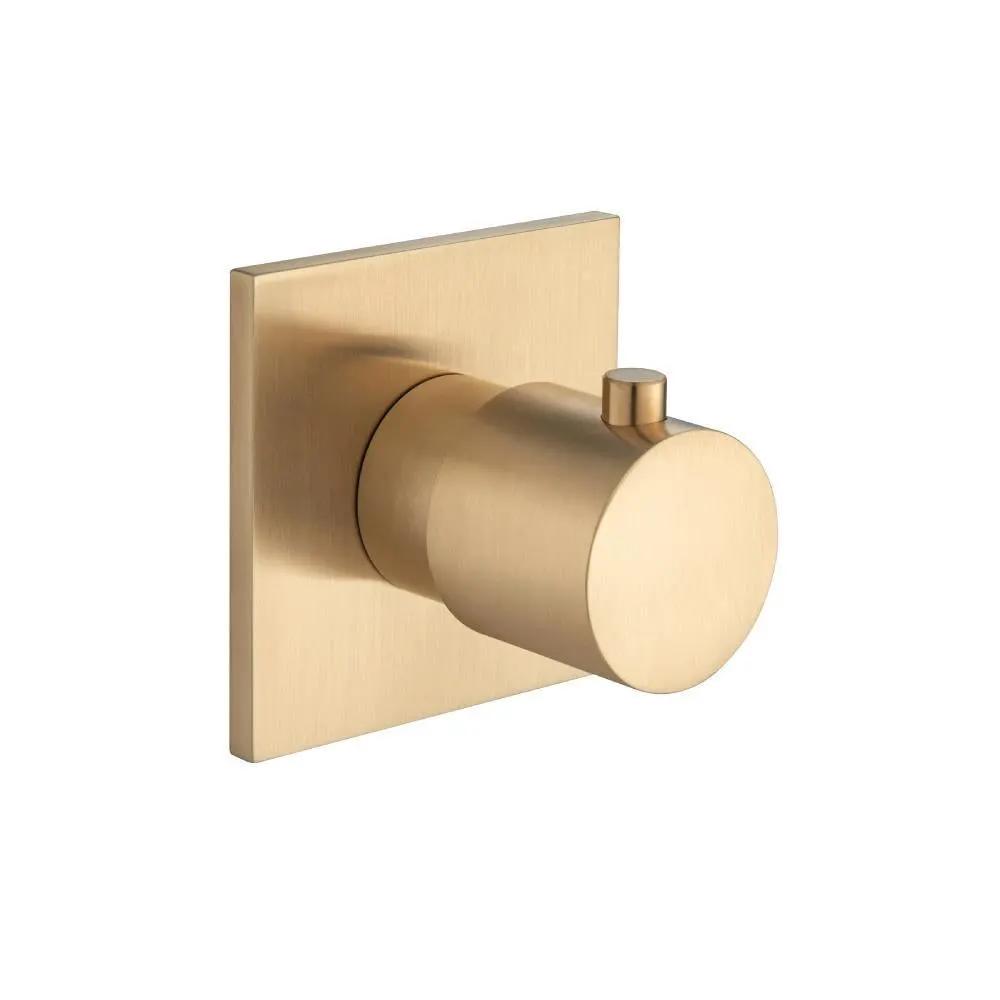

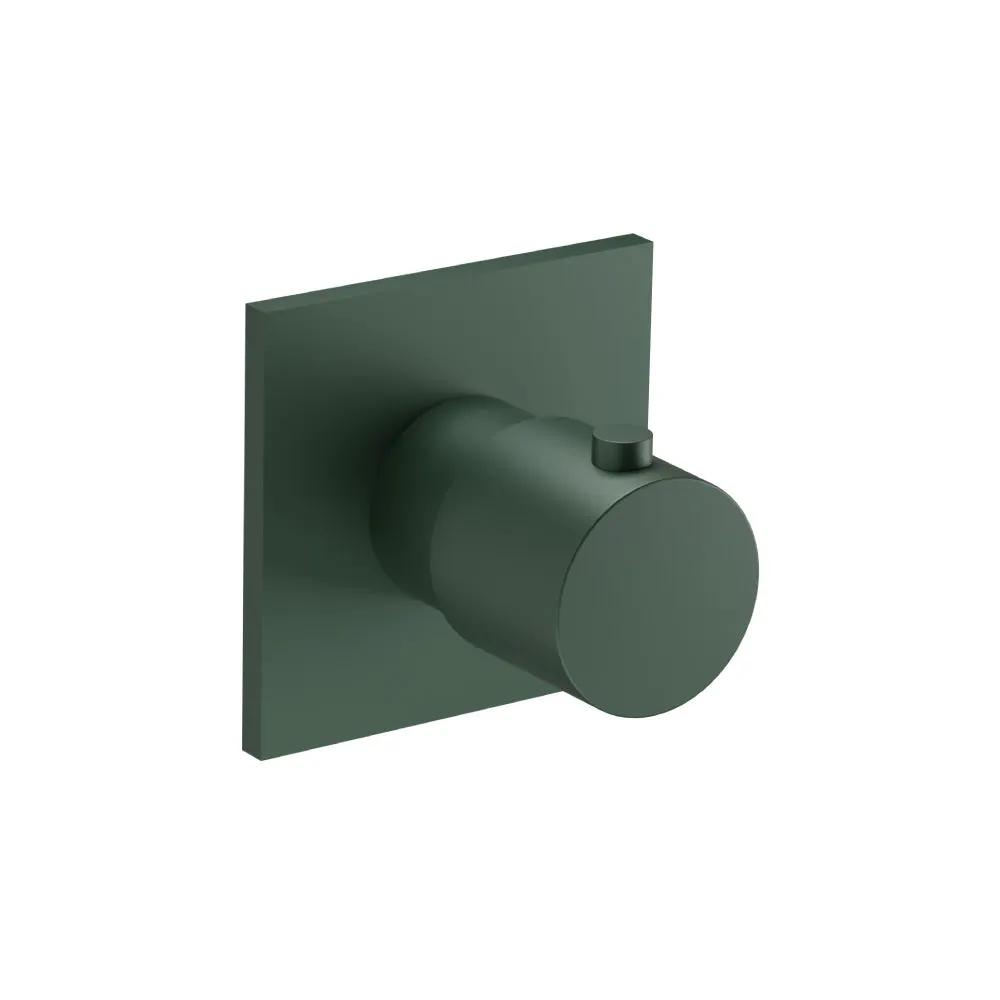

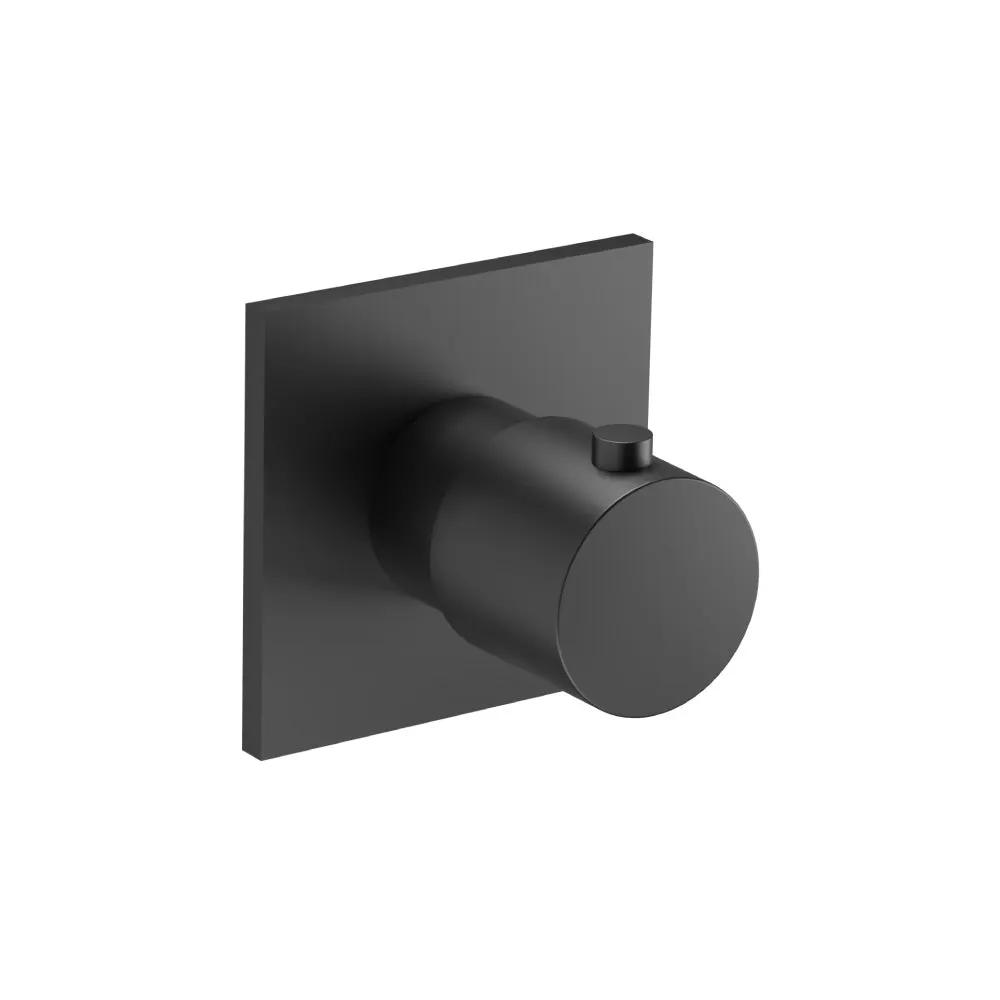

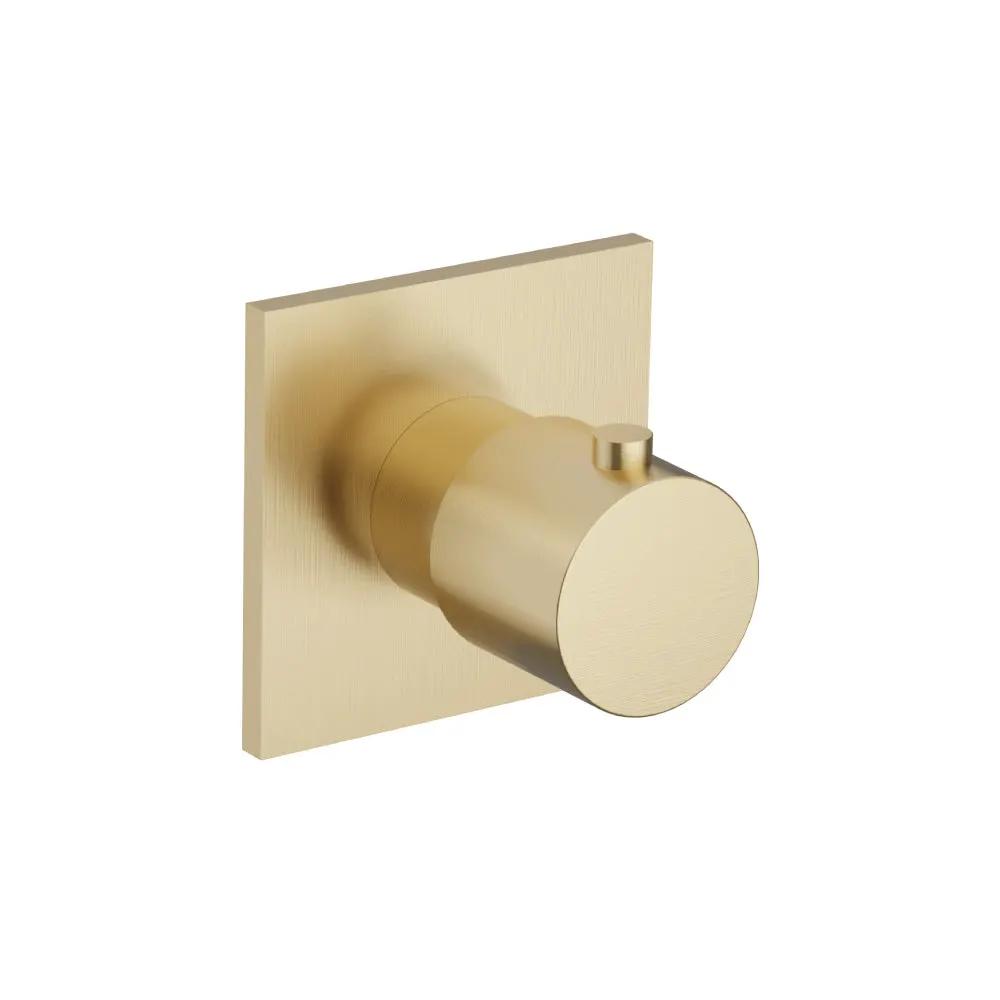

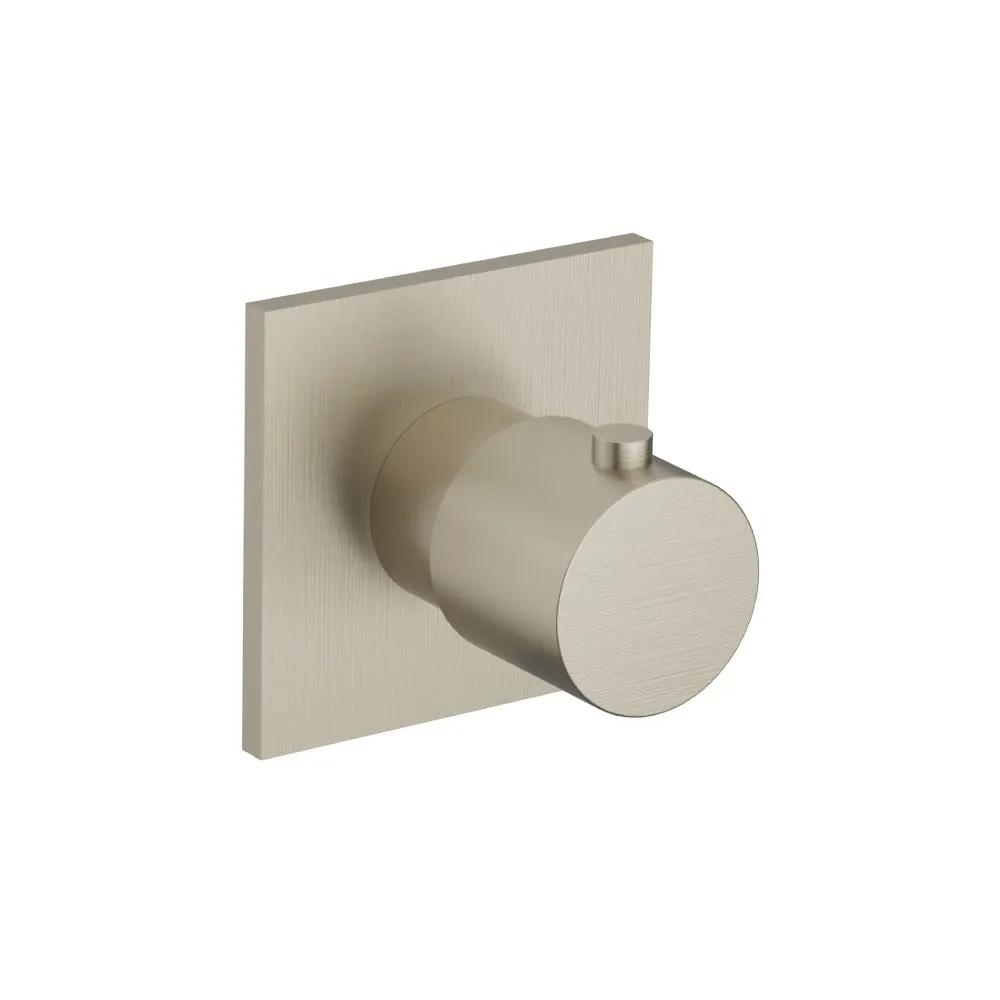

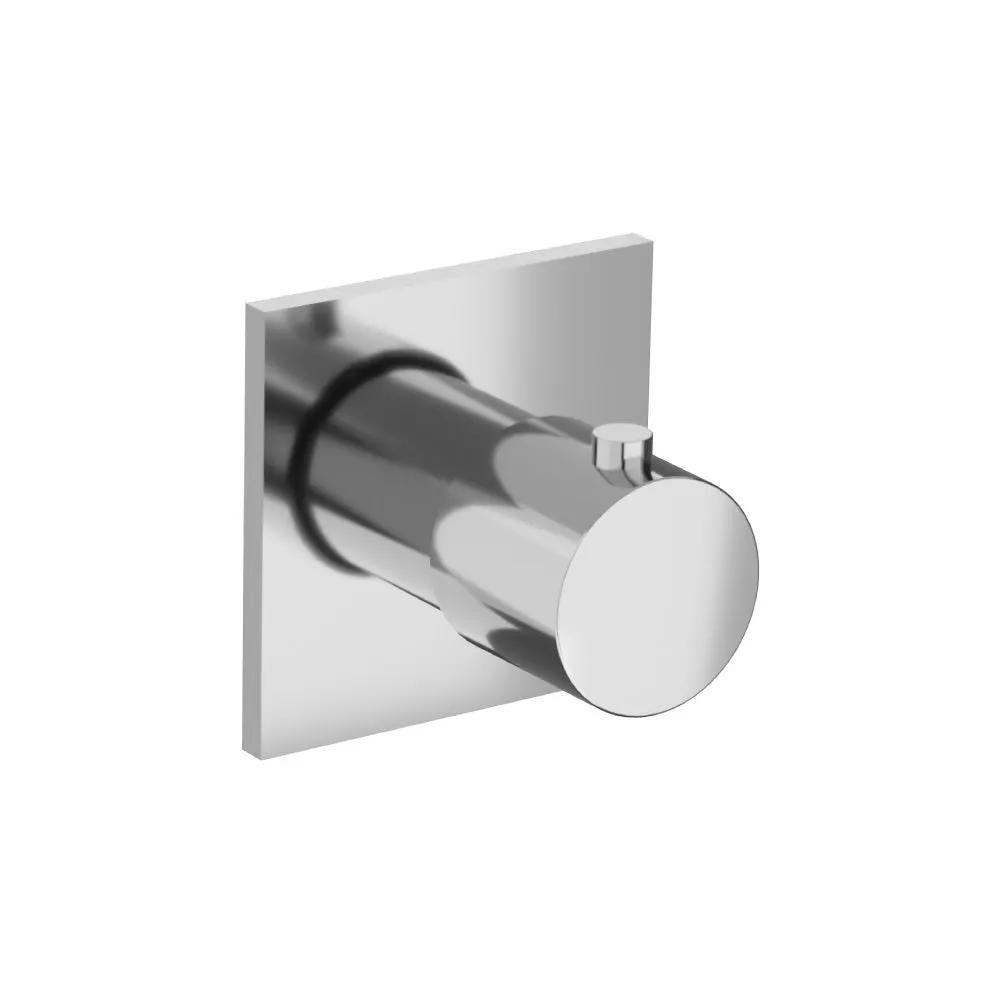

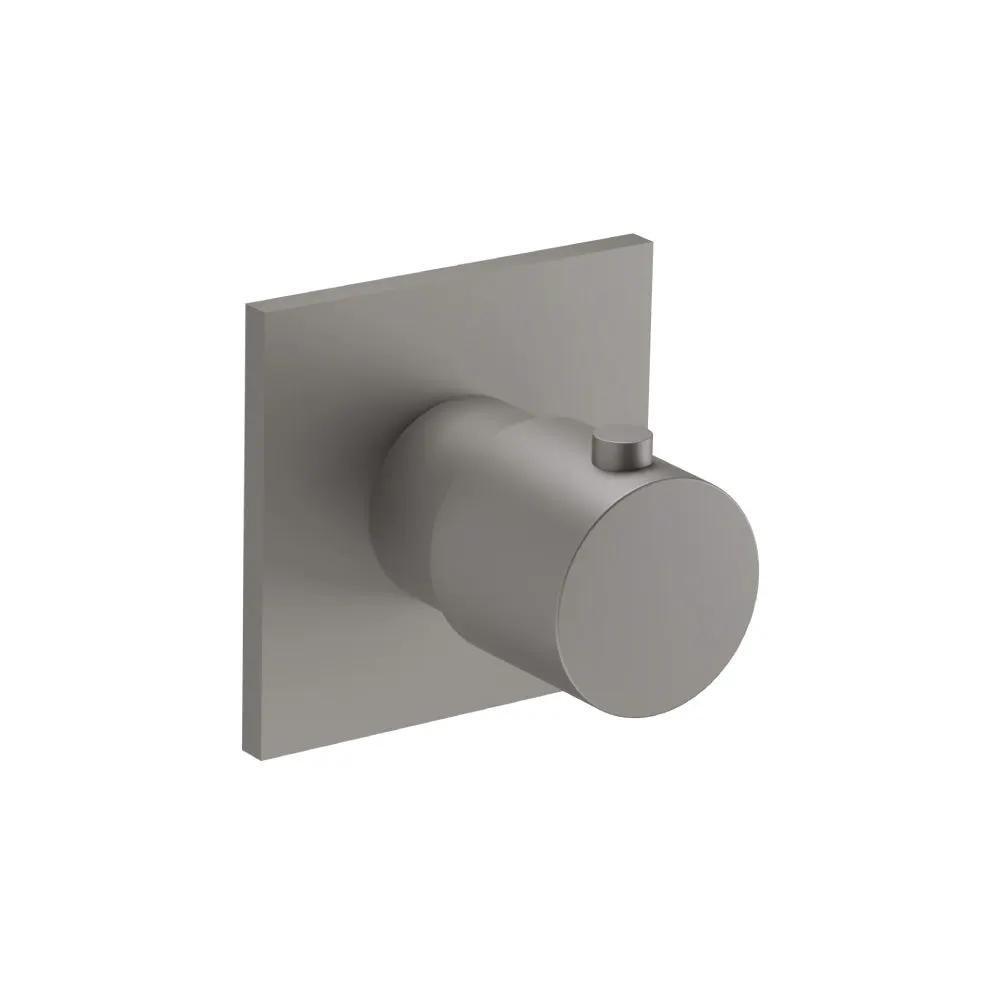

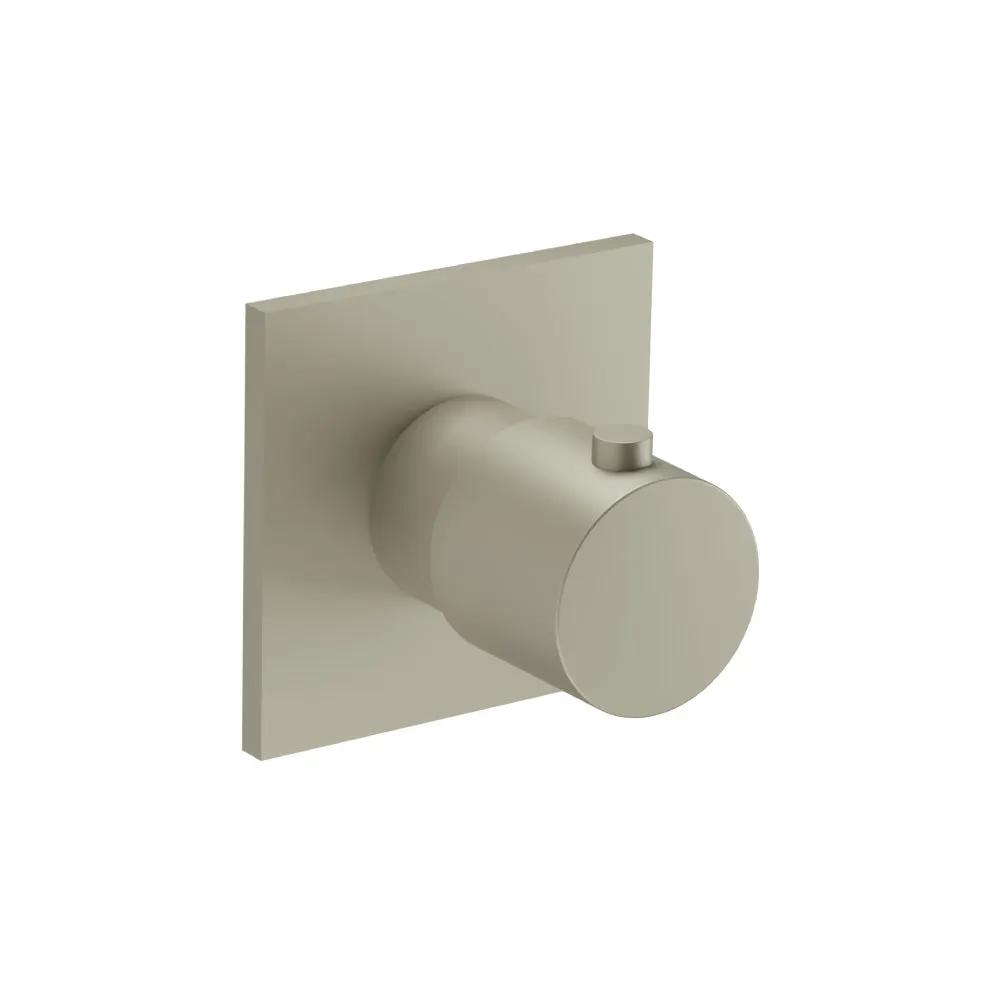

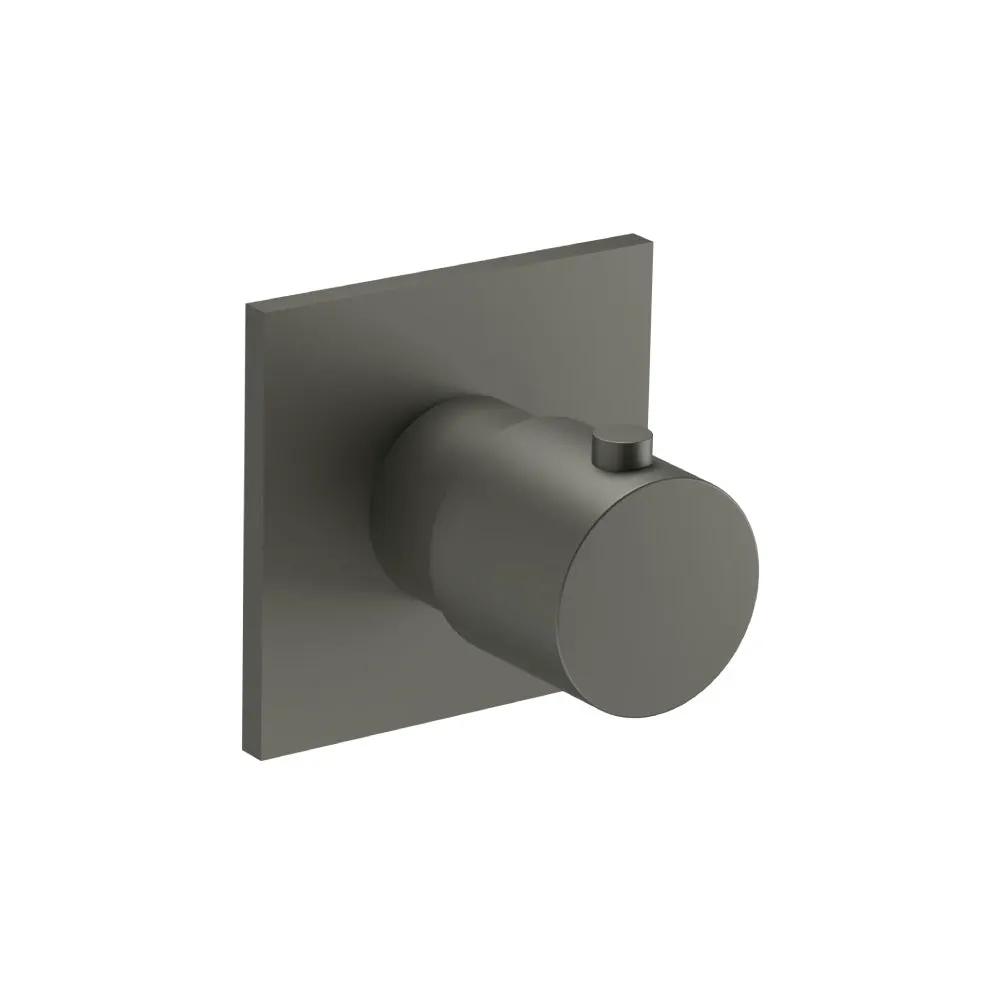

Discover the Flusso Serie 100 3/4" Volume Control and Trim, a precision shower valve from Flusso that puts control in your hands. This compact, brass construction valve delivers reliable, obstruction-free water flow from a gentle trickle to full-volume output, while the corresponding trim plates ensure a clean, finished look for luxury showers.
Flusso is renowned for premium, purpose-built shower valves crafted in solid brass with precise flow control and durable finishes. The Flusso Serie 100 line combines meticulous engineering, dependable performance, easy serviceability, and a clean, contemporary aesthetic, delivering longevity, reliability, and luxury for modern bathrooms and high-end remodels that meet demanding residential and commercial projects.
Features and Specifications
- The TVH.4511 is a 3/4" NPT female connection volume control valve with single output.
- Handle Operation – The handle is used to control volume of water flowing through the valve. It can be used to set the water to a trickle all the way to full volume flow. This valve does not provide any temperature regulation.
- Valve Installation – As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77? and 3.44?. Also, the valve must be installed vertical and not at an angle. In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4511 valve is 1.40? inches).
- Cut Out Dimensions – The cut out in wall should be 1.65? X 1.65? inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- Trims – The trims comprise of well finished trim plate and volume control handle knob. The trim plate is used to cover the wall and has markings for ON/OFF for water flow. Any *4511 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Includes Valve - TVH.4511
- Extensions Available - TVH.E137**
Experience the renowned Flusso quality in the Serie 100 3/4" Volume Control and Trim, delivering precise water control with enduring brass construction and refined finishes that epitomize luxury and reliability.
