Product details
Focal Point Hardware is an authorized Flusso retailer!

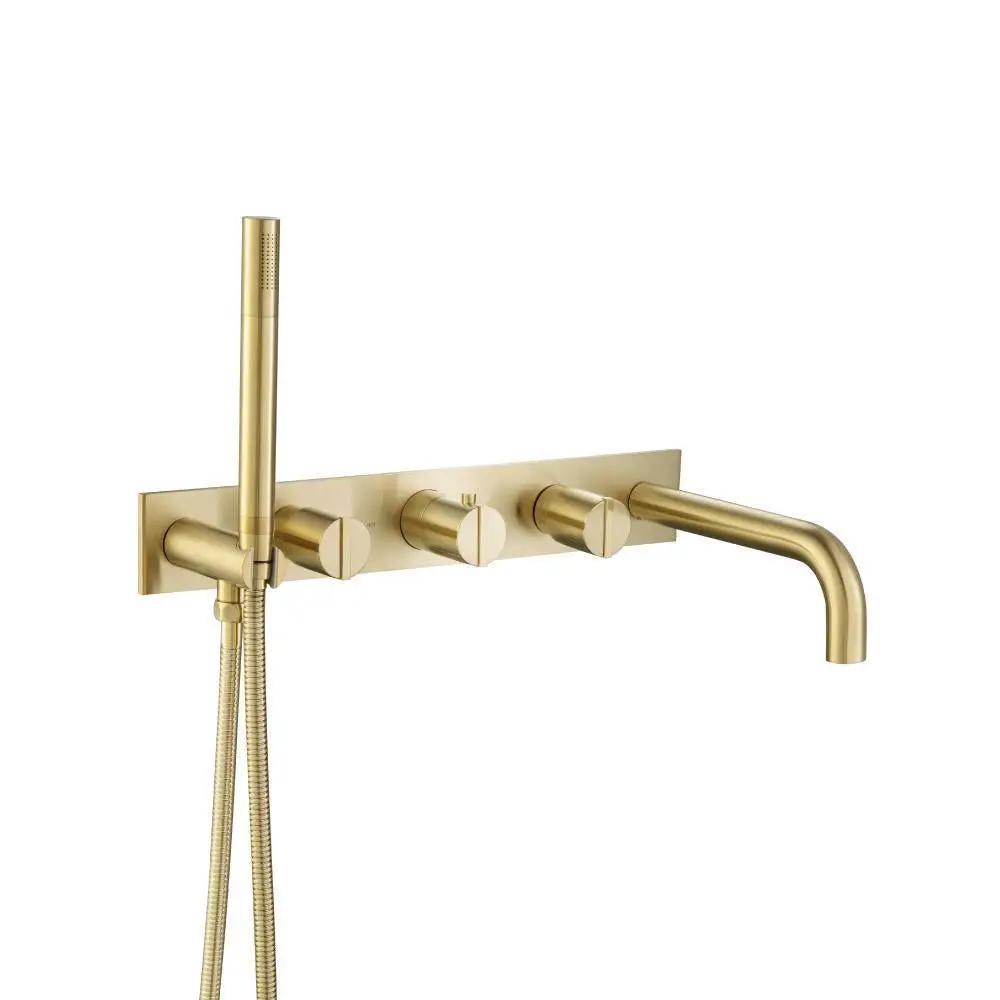

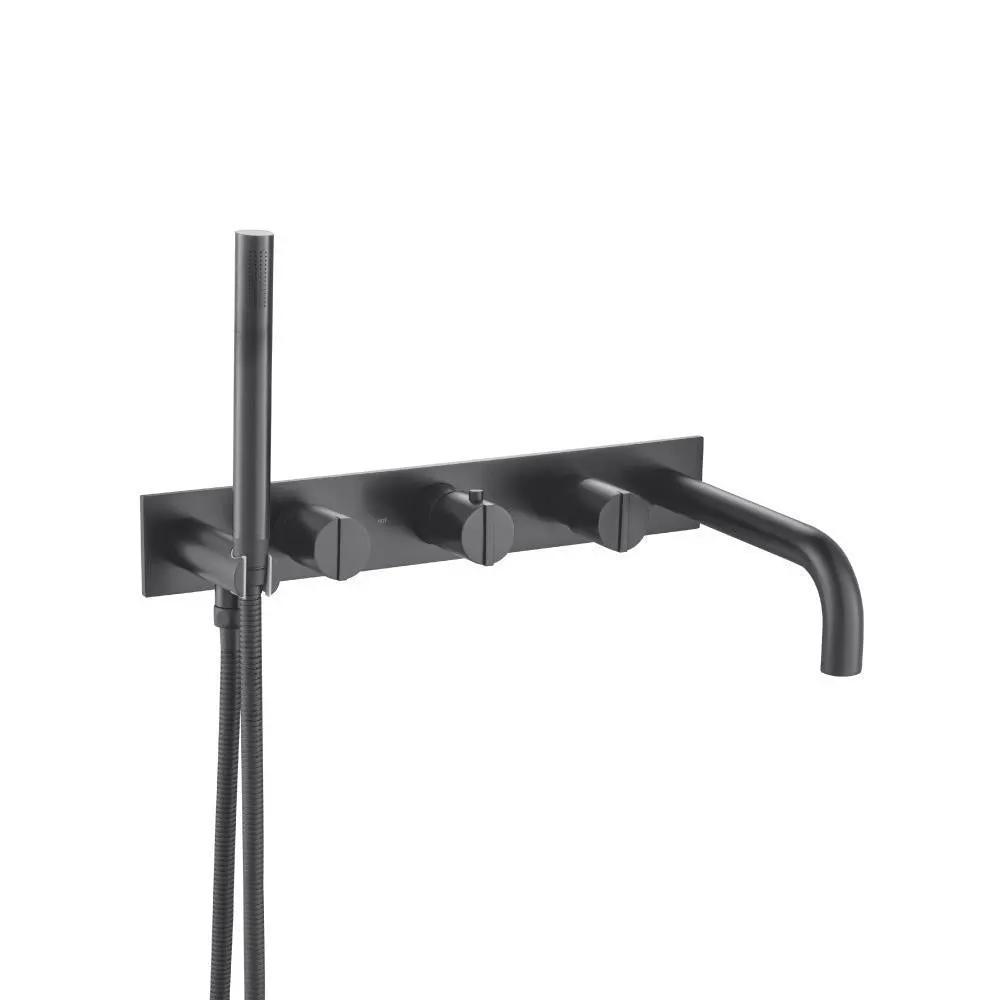

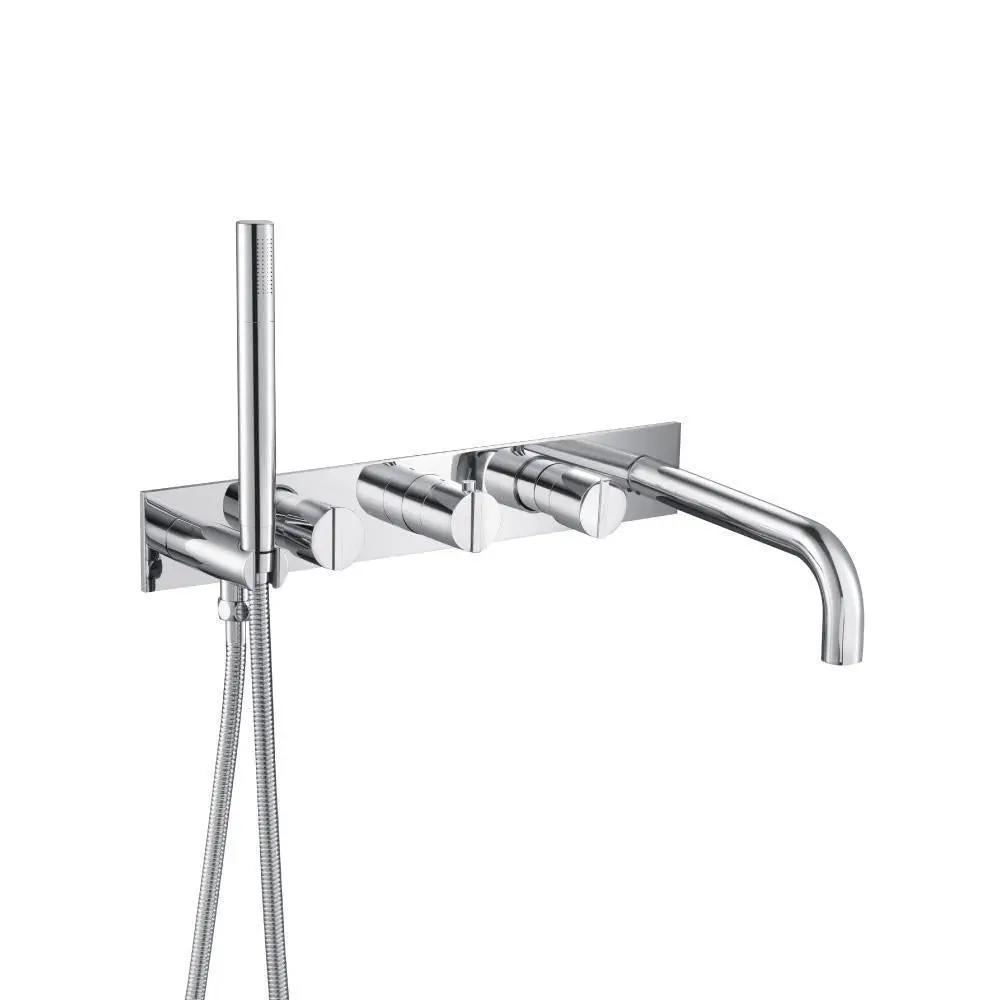

Experience premium water control with the Flusso Serie 145 Wall Mount Tub Filler with Hand Shower. This dual-output thermostatic system blends precise temperature management with independent flow control on each outlet, delivering a spa-like experience for tub and shower routines. Flusso Serie 145 combines elegant design, reliable performance, and easy installation to elevate any bath.
Flusso is renowned for luxury bathroom fixtures that fuse precision engineering with timeless design. Known for durable solid brass construction, reliable thermostatic control, and meticulous manufacturing, Flusso delivers consistent warmth, safety, and spa-like reliability in every faucet and filler. With a commitment to performance and refined aesthetics, Flusso earns trust in high-end baths.
Features and Specifications
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2691
- 2 Output Ports
- Hand Shower Flow Rate Limited to 1.8 GPM
- Hand Shower & Tub Spout positions can be swapped
- TVH.2691 Thermostatic valve features ¾” NPT female connections with 2 water outputs (one for tub spout and one for handheld)
- Both water outputs are operable simultaneously, or one at a time
- Middle handle sets the temperature
- Left handle controls output port 1; Right handle controls output port 2
- Each port has full volume control capability
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow during installation and repairs
- HANDLE OPERATION – Middle handle controls temperature; Left and Right handles control volume for port 1 and port 2 respectively
- ANTI-SCALD RING – Anti-scald temperature stop ring over the temperature control knob; push-button on the side to adjust temperature; ring must be fitted tightly over the valve
- VALVE INSTALLATION - Requires 2.77” to 3.44” rough-in distance from back of valve to finished tile; install straight, not angled or upside down; extension kits available for deeper walls
- CUT OUT DIMENSIONS – Wall cut out should be 16.41” x 1.85” and covered by trim plate
- TRIMS – Trims include a well-finished cover plate and handle knobs; shapes vary from square to circular depending on shower model
Flusso's meticulous craftsmanship ensures durable, precise control and enduring luxury in the Flusso Serie 145 Wall Mount Tub Filler with Hand Shower, delivering reliability, safety, and refined performance in every bath.
