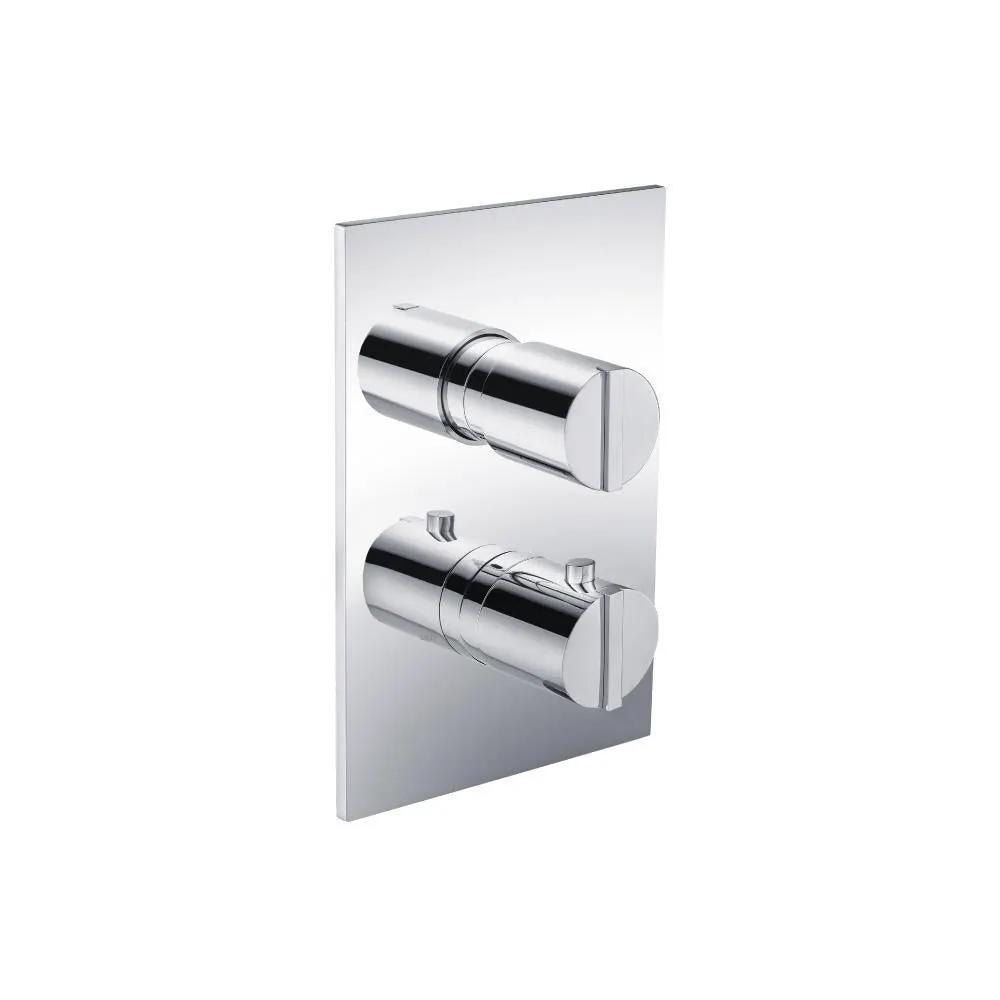

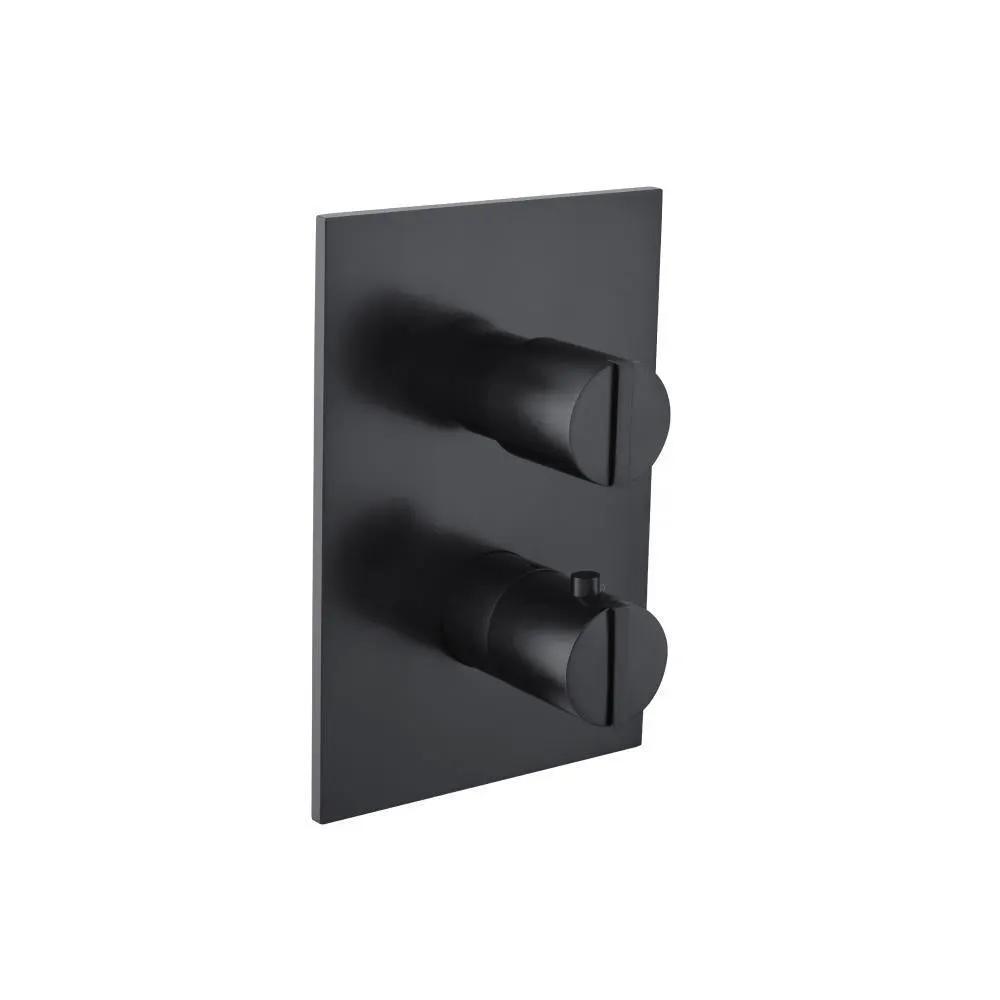

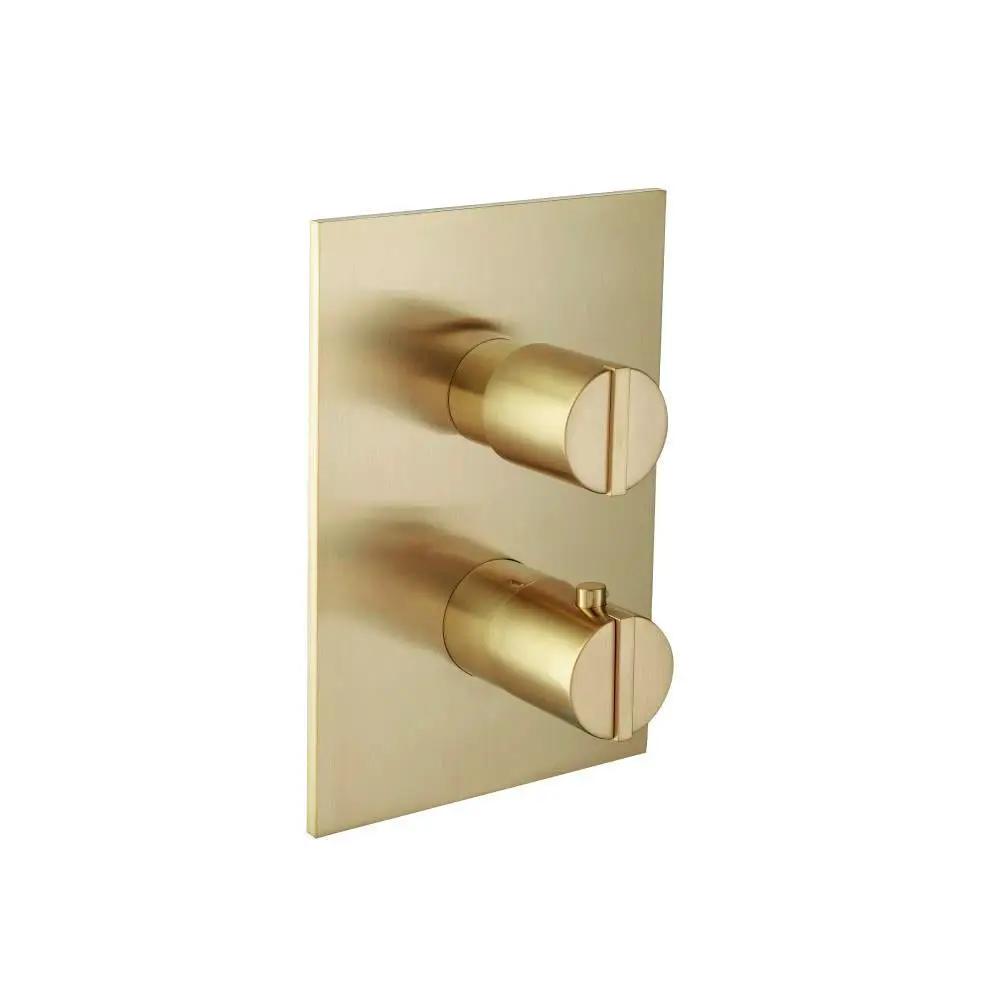

Flusso Serie 145 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs

Focal Point Hardware is an authorized Flusso retailer!

Flusso's premium craftsmanship meets the Flusso Serie 145 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs, delivering precise temperature control and versatile water routing. This CAL-Green compliant, solid-brass valve provides reliable performance and a refined shower experience with durability you can trust for years of luxury.

Features and Specifications

• 3/4" female NPT connections
• 3 water output ports
• CAL-Green Compliant
• Bottom handle sets the temperature
• Top handle controls water volume from full flow to trickle (OFF to ON)
• Two safety stops at each water inlet to halt flow during installation or repairs
• Rough-In Spec: 2.77"–3.44" from back of valve to finished tile
• Cut Out Dimensions: 6.49" x 4.44"
• Trims include a well-finished cover plate and handle knobs with an anti-scald temperature stop ring
• Anti-scald temperature stop ring must be fitted tightly over the valve for proper function
• Push-button side release to adjust temperature; rotation to full HOT requires pressing
• Cartridge options: Default Model #15100 (3 output non-shared CAL-Green compliant); optional Model #15200 shared port cartridge activates 2 of 3 ports
• Cartridge compatibility: TVH.4301F valve uses two cartridges
• Solid brass construction
• Includes TVH.4301F thermostatic valve
• Extensions available: TVH.4101E

Experience Flusso craftsmanship with the TVH.4301F valve and trim, delivering precise thermostatic control, 3-output versatility, and CAL-Green compliance. Flusso is renowned for quality, reliability, and luxury in modern baths.
