Product details
Focal Point Hardware is an authorized [Brand] retailer!

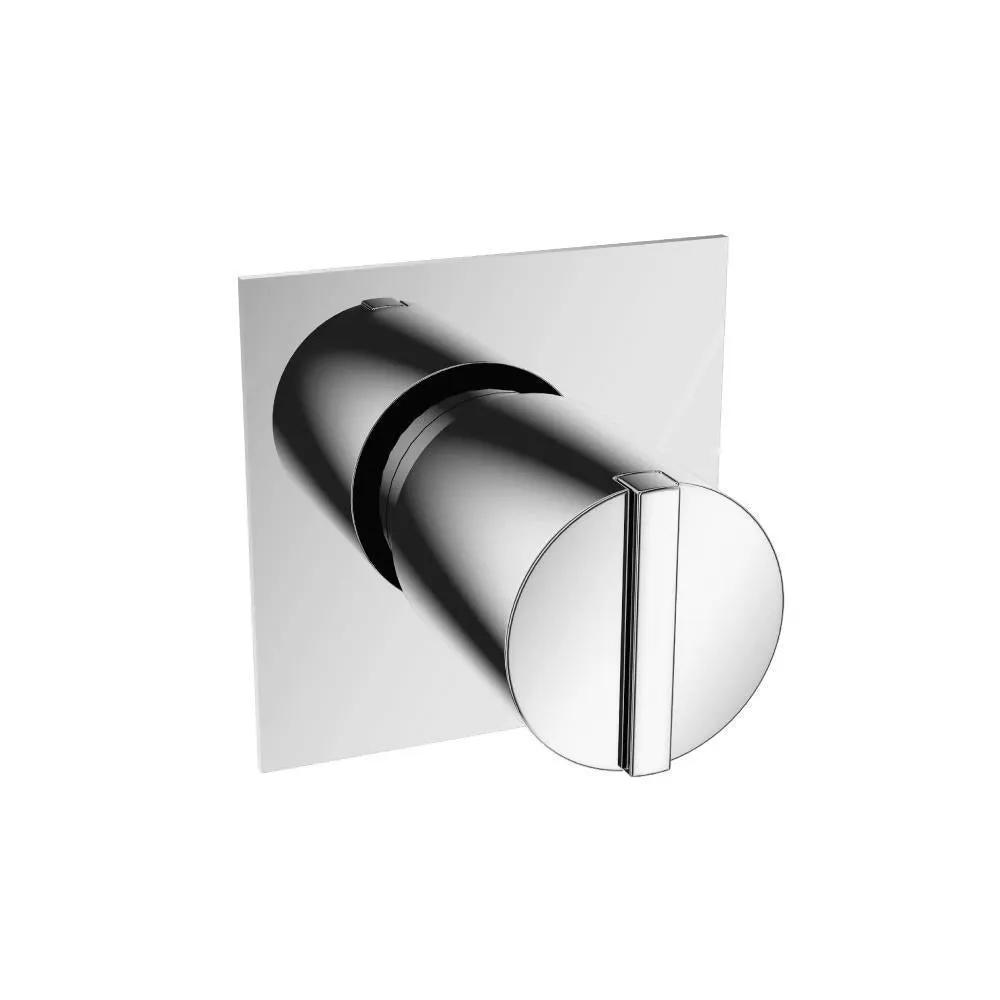

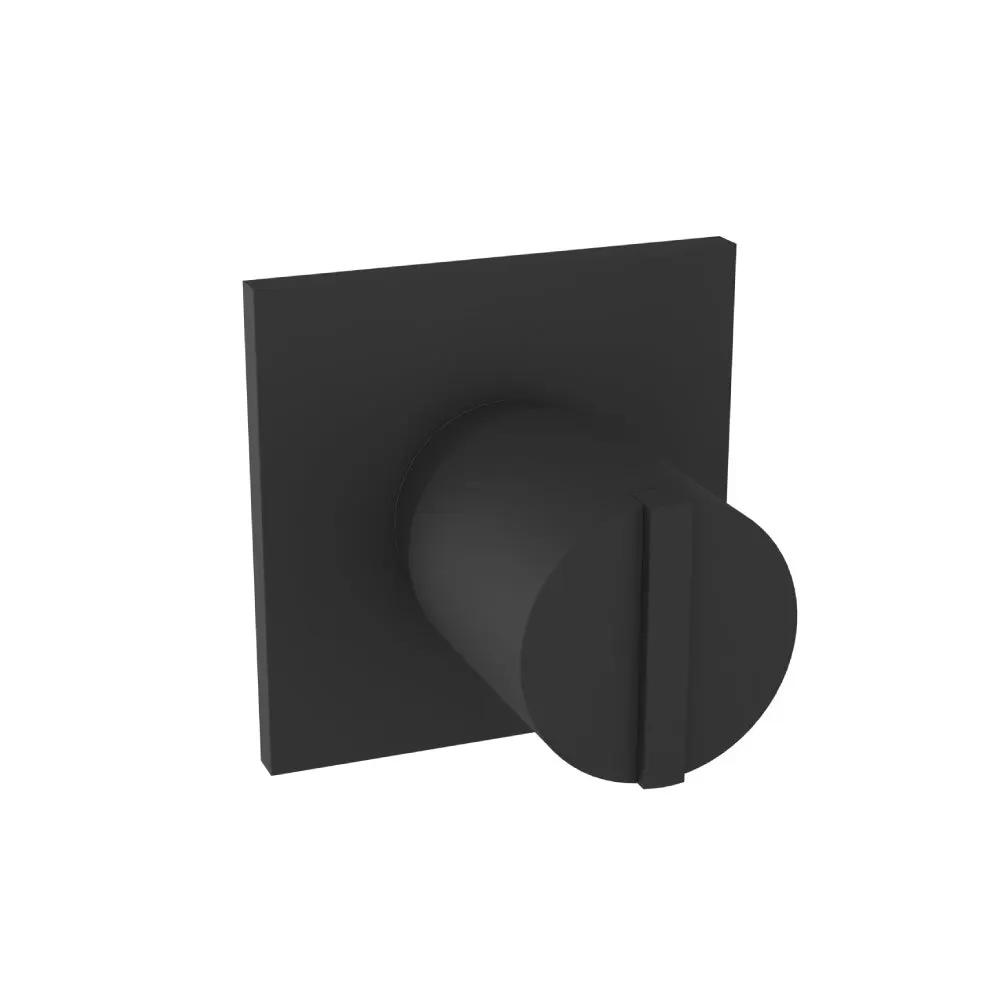

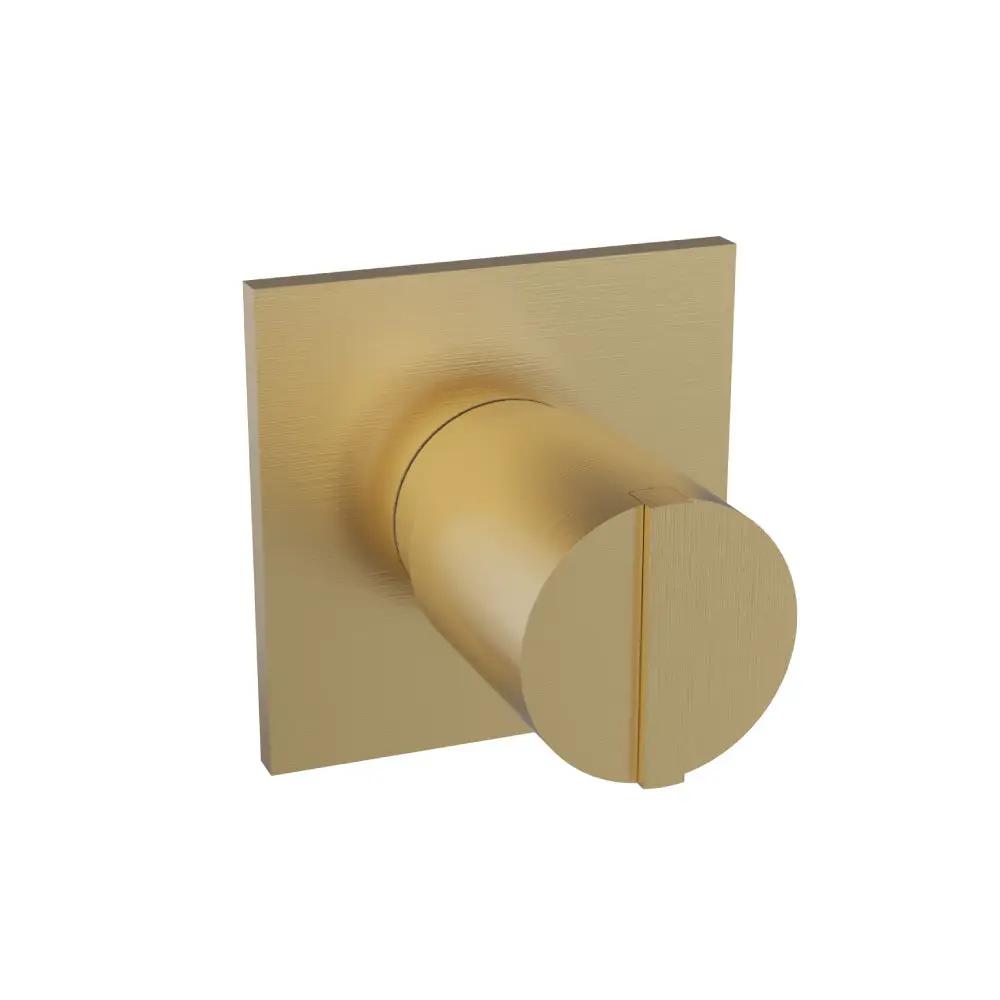

Experience premium water control with the Flusso Serie 145 3-Way Diverter Shower Valve and Trim (TVH.4371). This 3-output diverter combines volume control with precise outlet switching, delivering 8.0 GPM at 60 PSI. Solid brass construction, compatible trims, and a sleek trim plate unite upscale performance with reliable, spa-like versatility for modern showers.
Flusso is renowned for precision-engineered shower systems that combine durability with refined design. The manufacturer emphasizes robust solid brass construction, dependable performance, and easy installation. With Flusso, homeowners gain long-lasting reliability and luxury-grade aesthetics that elevate daily routines while maintaining compatibility with a wide range of trims and fittings. Flusso's engineering ethos centers on water efficiency without sacrificing flow.
Features and Specifications
- TVH.4371 is a 3-Way [3-output] diverter valve with shared outputs and has integrated volume control functionality
- The valve has a flow rate of 8.0 GPM @ 60 PSI
- Handle Operation – The handle is used to control the volume and also water diversion through the 3 outlets
- The positions of the valve which activate each output port are as follows:
- Position 0 - No water flow
- Position 1 - Output 1 Active
- Position 2 - Output 2 Active
- Position 3 - Output 2 And Output 3 Active on Valve Position
- Position 4 - Output 3 Active on Valve
- As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77 Inches and 3.44 Inches
- Also, the valve must be installed vertical and not at an angle
- In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4371 valve is 1.40 inches)
- Cut Out Dimensions – The cut out in wall should be 1.65 X 1.65 inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall
- Trims – The trims comprise of well finished trim plate and handle knobs. The trim plate is used to cover the wall and comes with a volume control handles. Any *4511 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles
- Solid Brass Construction
- Diverts water between 3 outlets
- Includes Integrated off position
- Extensions Available - TVH.E137**
- Includes Valve TVH.4371
The Flusso Serie 145 3-Way Diverter Shower Valve and Trim delivers versatile, reliable performance with elegant brass construction, precise flow, and customizable trims for a luxurious shower experience.
