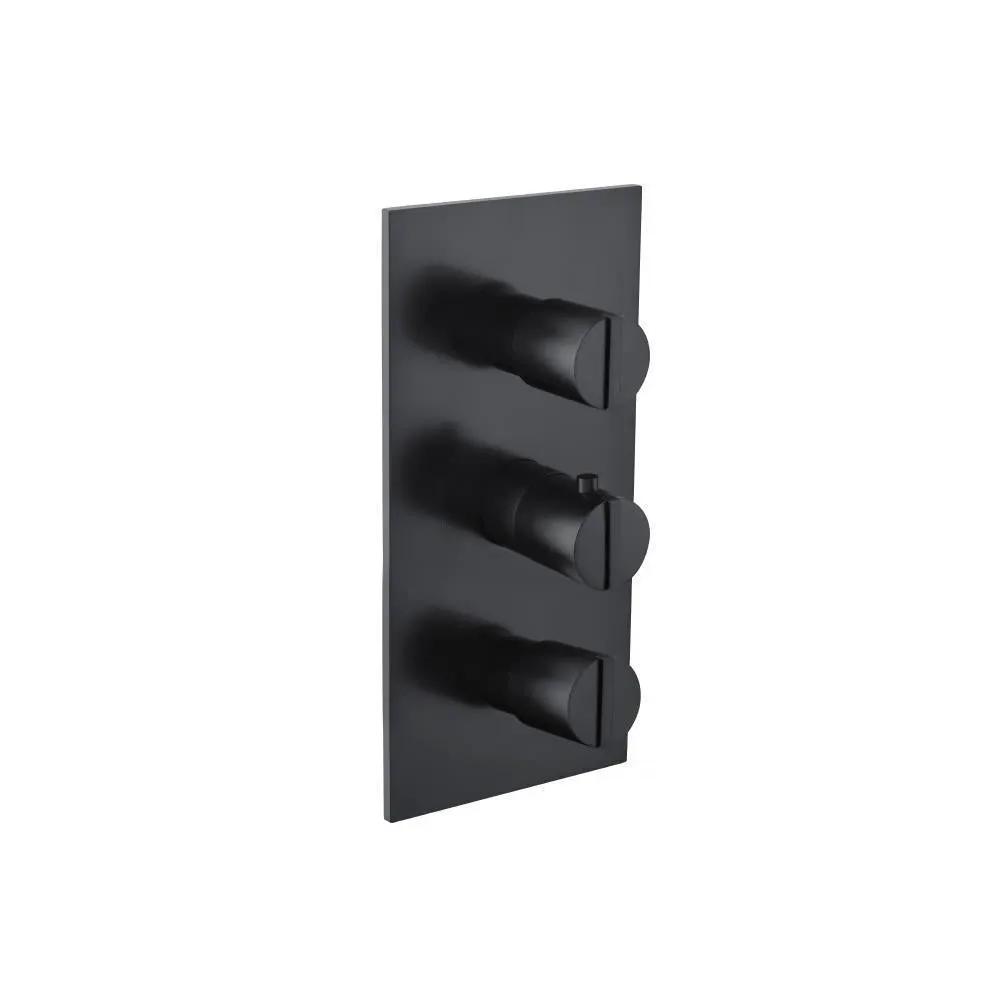

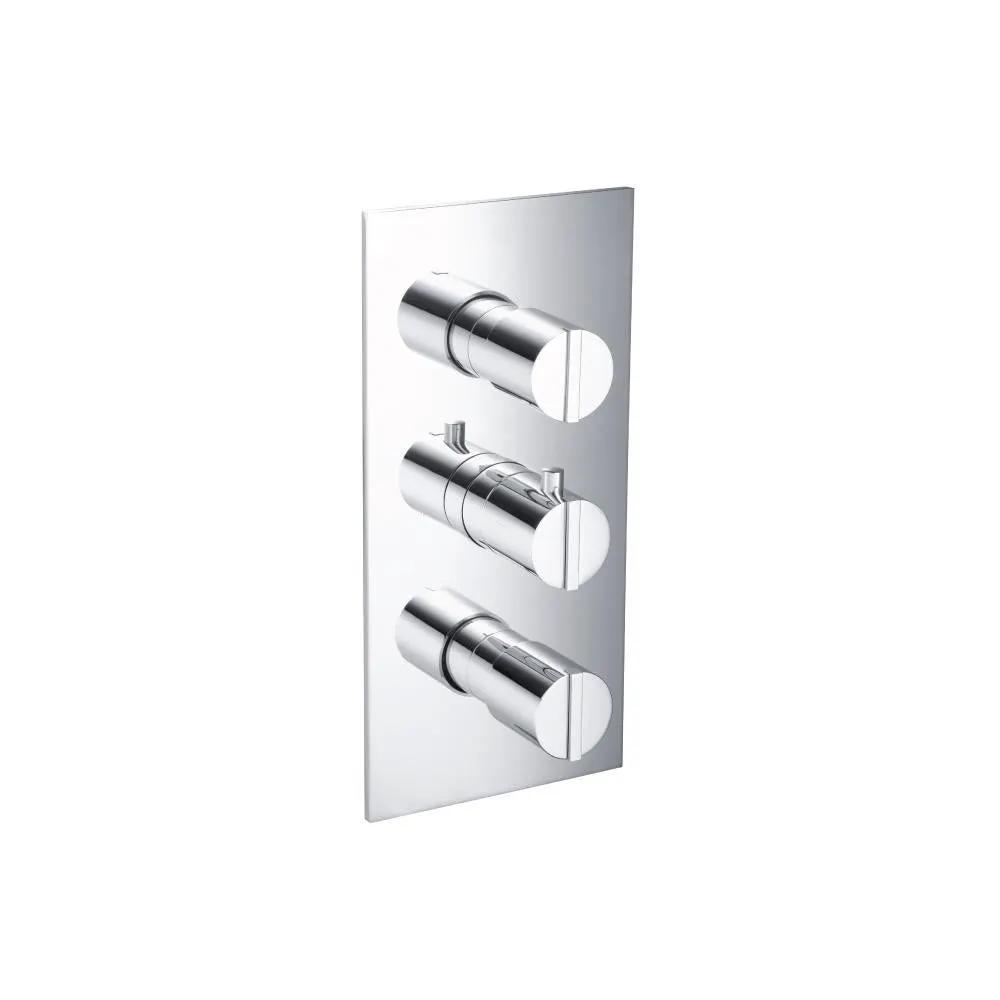

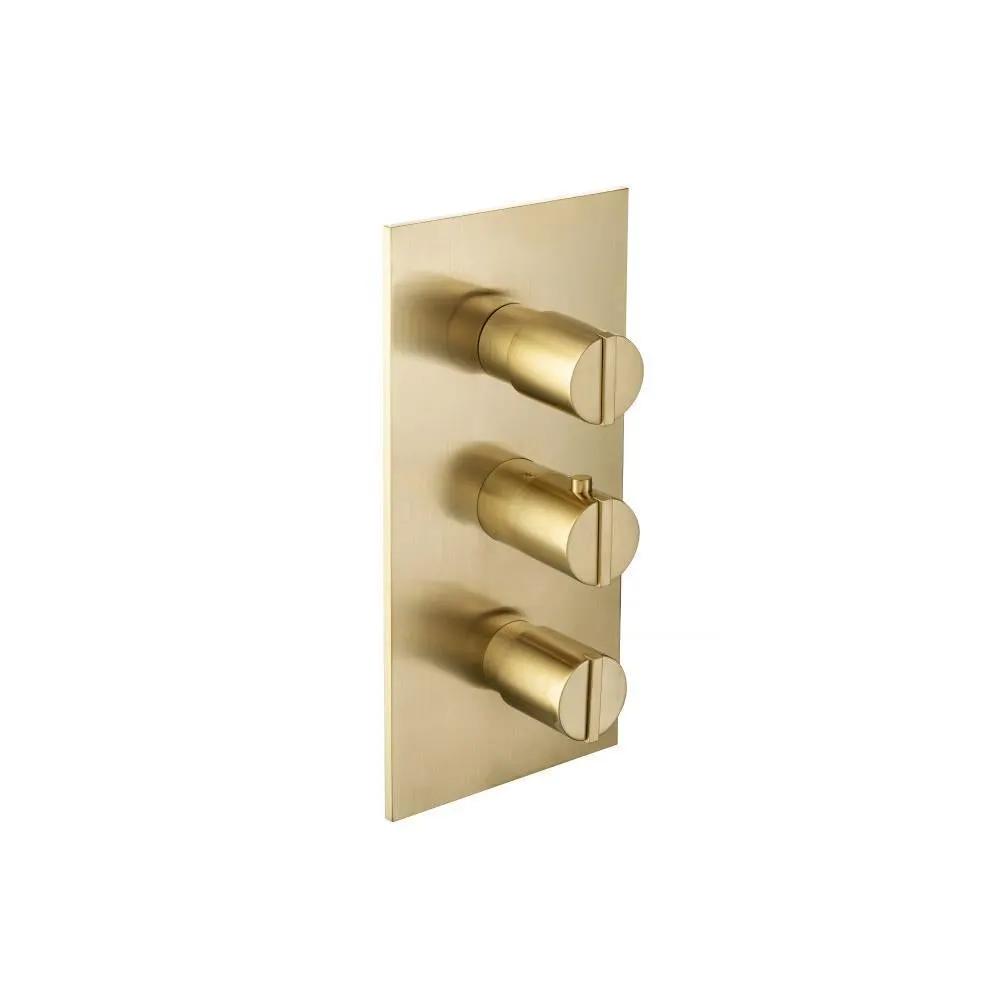

Discover the Flusso Serie 145 Trim for Thermostatic Valve, a precise, luxury upgrade from Flusso that pairs advanced thermostatic control with distinct flow adjustments. The middle handle manages outlet temperature, while the top and bottom handles regulate multi-port water flow. This solid Brass trim is valve-only; valve not included, with optional TVH.4401E extensions and a precise 8.81 x 4.44 in wall cut-out.
Flusso is renowned for precision-engineered bathroom fixtures that fuse performance with refined design. With durable brass components and reliable thermostatic technology, Flusso products deliver consistent temperature control and long-lasting luxury. The Flusso Serie 145 Trim for Thermostatic Valve exemplifies the brand’s commitment to safety, durability, and elegant, timeless hardware for modern showers.
Features and Specifications
- Middle handle controls the temperature of water flowing through the outlet.
- The top handle can control the volume of water from full flow to a trickle for various output ports.
- The bottom handle can control the volume of water from full flow to a trickle for the various output ports.
- Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.
- Trims - The trims comprise of a well finished cover plate and handle knobs constructed in solid Brass.
- Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
- With the help of this ring, temperature of the water is regulated.
- Covering this ring is the temperature handle knob which has a push button on the side.
- To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction.
- Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Valve Not Included - Trim Only
- Extensions Available - TVH.4401E**
Upgrade with confidence: Flusso’s trusted craftsmanship and the Flusso Serie 145 Trim for Thermostatic Valve deliver precise temperature and flow control, backed by Flusso's legacy of durability and luxury in contemporary showers.
