Product details
Focal Point Hardware is an authorized Flusso retailer!

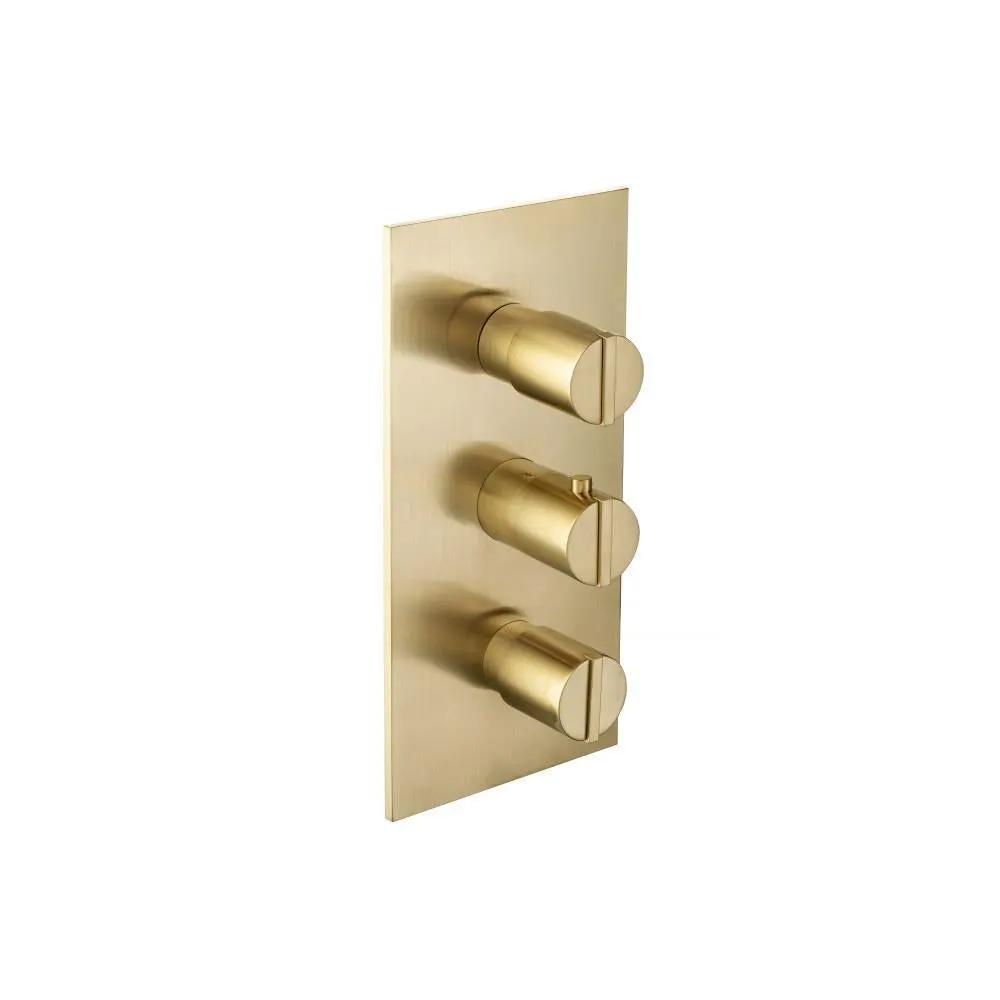

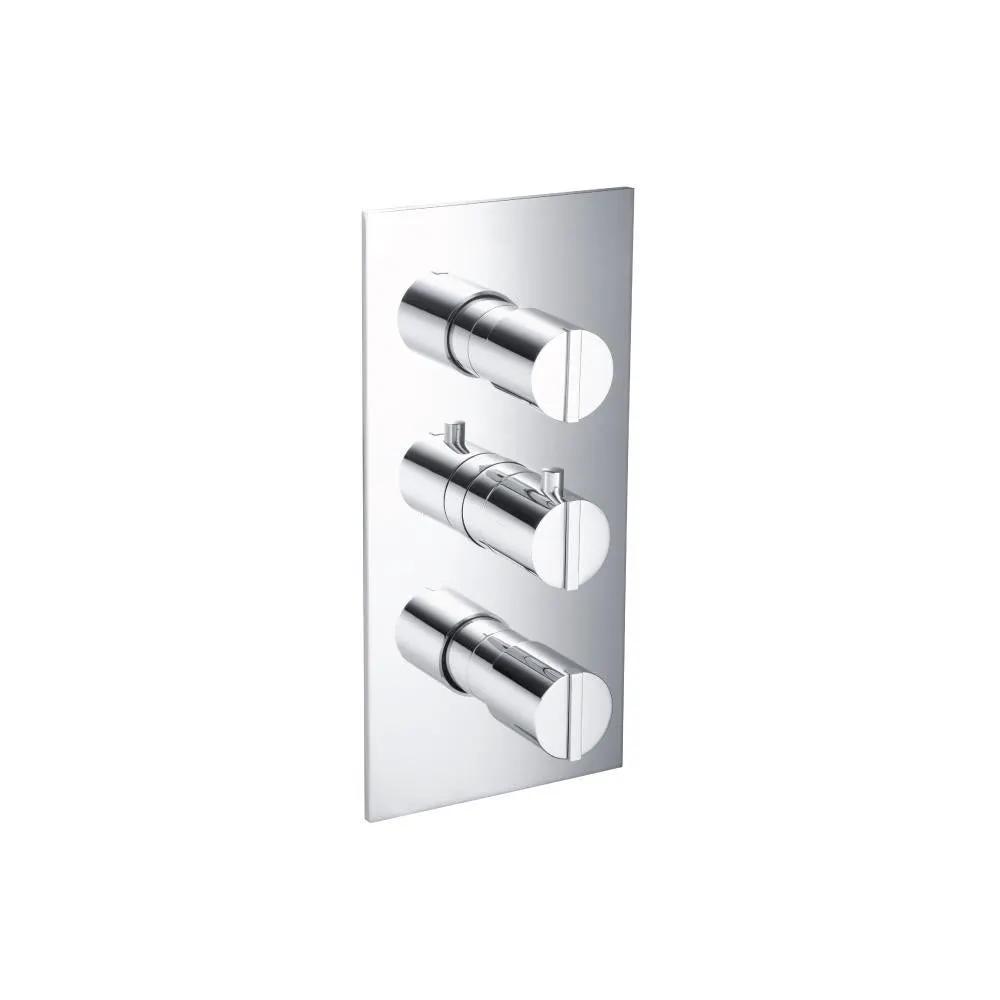

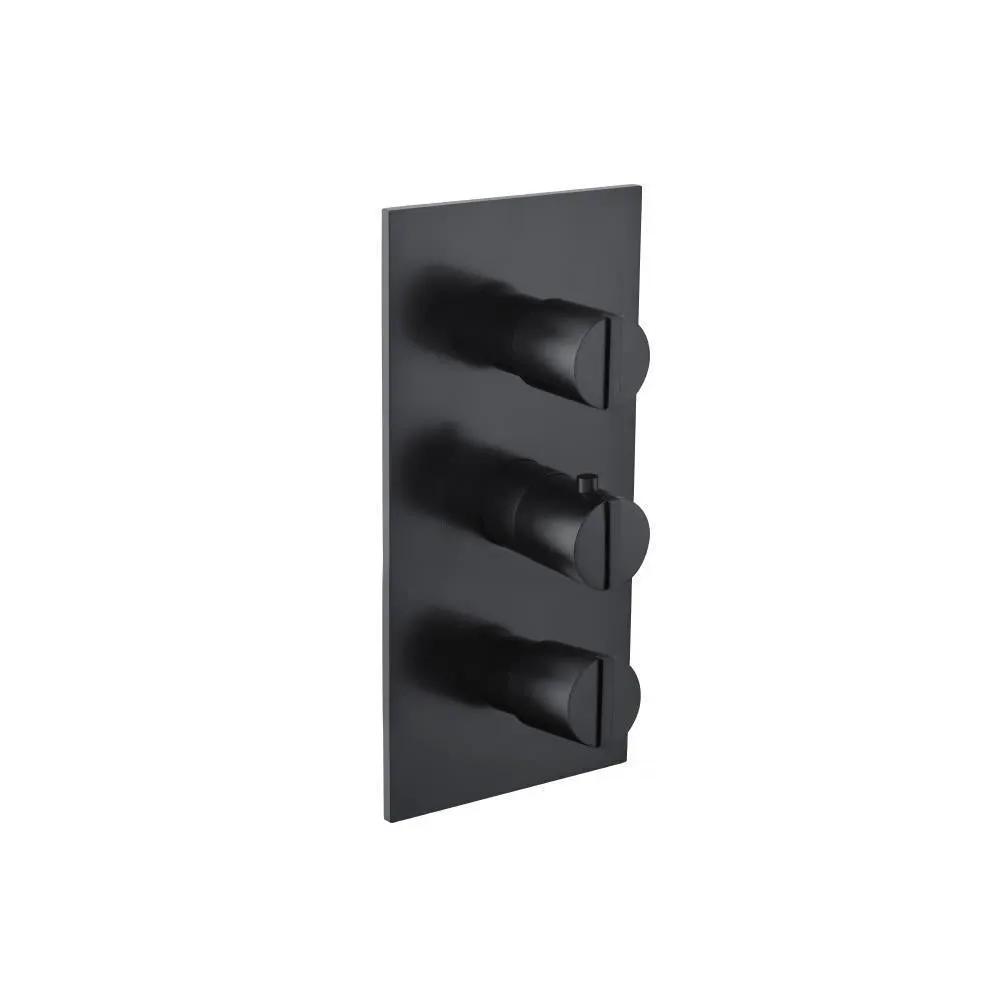

Discover the Flusso Serie 145 3/4" Thermostatic Valve with Trim - 3 Output, a premium shower valve system that delivers precise temperature control and versatile water output. Built by Flusso, renowned for durable brass engineering, reliable thermostatic performance, and luxury finishes, this 3-output valve blends with modern showers while ensuring comfort and safety with anti-scald features.
Flusso is renowned for precision-engineered, solid brass fixtures that blend durability with refined design. With a focus on reliable thermostatic control, corrosion resistance, and luxury finishes, Flusso products deliver safe, comfortable showers and lasting performance. The brand is committed to quality, innovative valve technology, and meticulous craftsmanship that withstands daily use.
Features and Specifications
- 3/4" NPT connections
- 3 water outputs (ports); two outputs can be operable simultaneously, i.e. both at the same time, or one at a time
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- HANDLE OPERATION – The middle handle sets the temperature. The top handle controls output port 1 and 2 and the bottom handle controls output port 3
- Each port has full volume control capability and can be activated at the same time
- Output ports 1 and 2 cannot operate simultaneously. Output ports 1 & 3 can operate simultaneously and also Output ports 2 & 3 can operate simultaneously
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 8.81 X 4.44 Inches which is properly covered by the trim plate.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4501
- 3 Output Ports
- Extensions Available - TVH.4401E**
Upgrade your shower with the Flusso Serie 145 3/4" Thermostatic Valve with Trim - 3 Output for precise temperature control, versatile water distribution, and a premium brass finish, backed by Flusso's commitment to quality, reliability, and luxury.
