Focal Point Hardware is an authorized Flusso retailer!

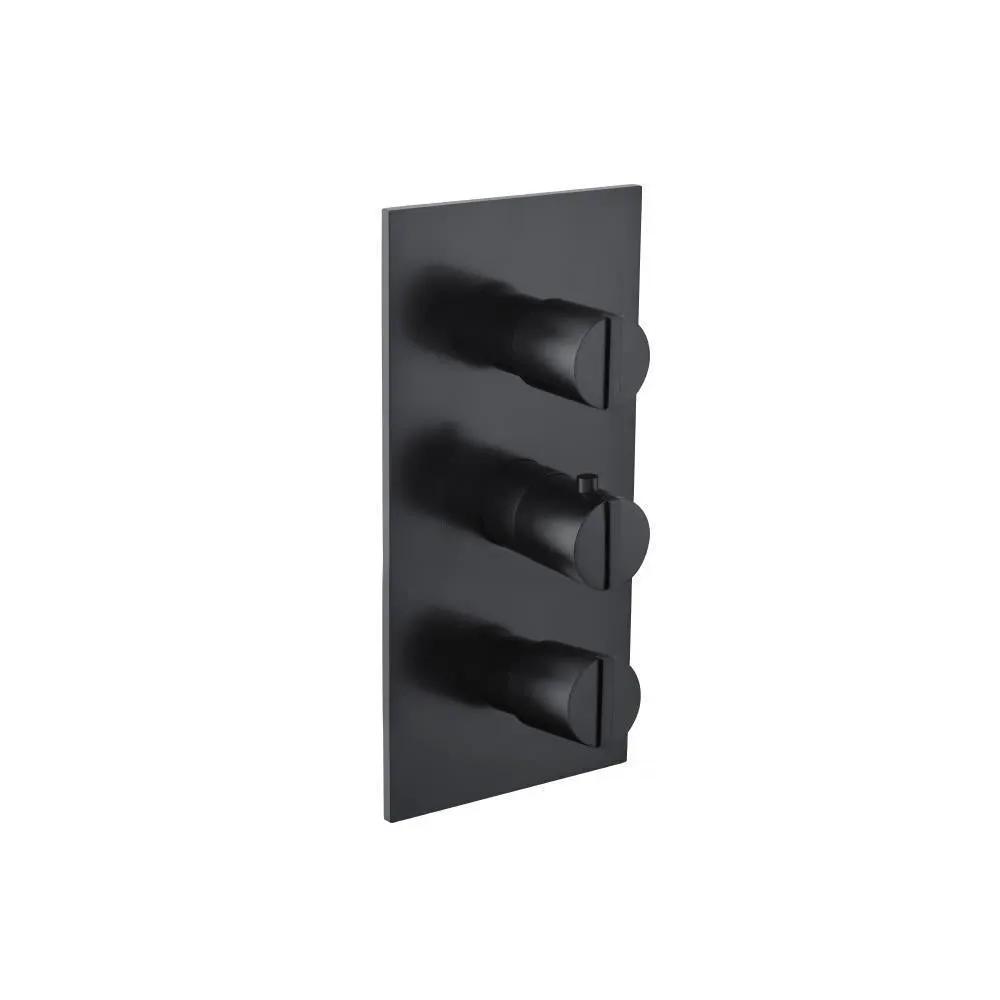

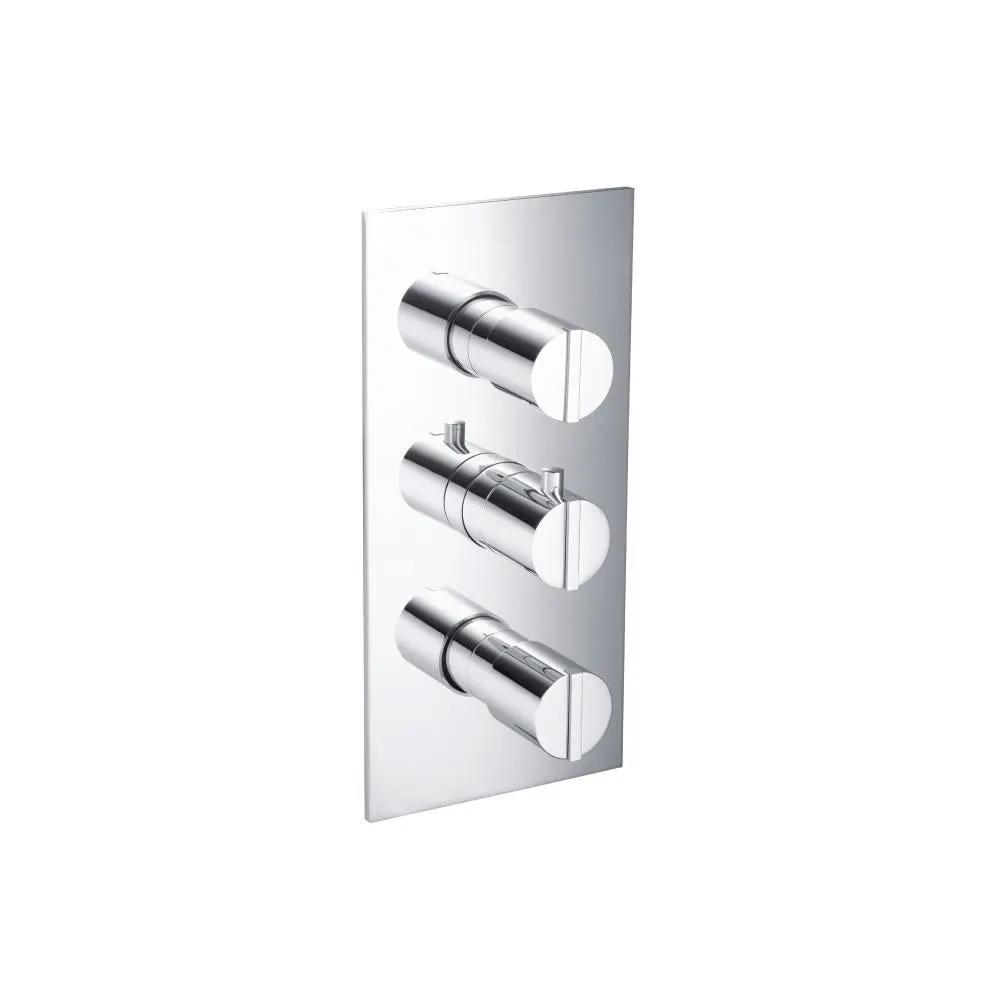

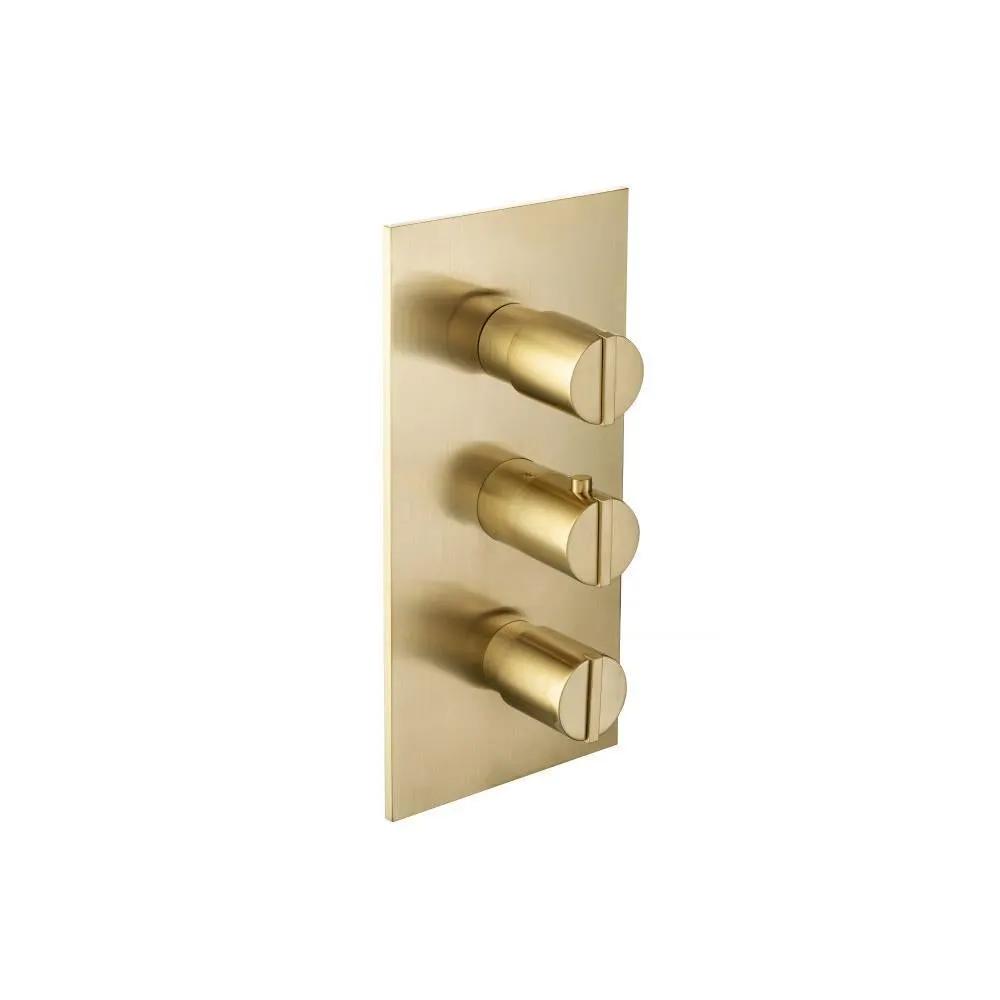

Introducing the Flusso Serie 145 3/4" Thermostatic Valve and Trim - 4 Output, a premium solution for precise shower control and customizable water distribution. Flusso Serie 145 combines dependable thermostatic performance with four independently controlled outputs, anti-scald safety, and solid brass construction, delivering luxury, reliability, and efficient comfort for high-end showers. The system's robust design supports versatile configurations with lasting durability.
Flusso is renowned for precise thermostatic valves and durable brass trims, delivering dependable temperature control and luxurious finishes. The brand's commitment to safety, high-quality materials, and thoughtful installation solutions makes Flusso a trusted choice for premium showers and spa environments, backed by a legacy of performance and long-term reliability across projects worldwide.
Features and Specifications
- 3/4" NPT connections
- 4 water outputs [ports], two of which are operable simultaneously, i.e. both at the same time, or one at a time
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- HANDLE OPERATION – The middle handle sets the temperature. The top handle controls output port 1 and 2 and the bottom handle controls output port 3 and 4. Each port has full volume control capability and can be activated at the same time. Output ports 1 and 2 cannot operate simultaneously. Output ports 3 and 4 cannot operate simultaneously.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the valve must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 8.81 X 4.44 Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Includes Thermostatic Valve - TVH.4801
- Shared 4 Port Water Flow Extensions Available - TVH.4401E**
Elevate your shower with the Flusso Serie 145 3/4" Thermostatic Valve and Trim - 4 Output, marrying precise control, four independently adjustable outputs, and lasting brass craftsmanship from Flusso. A luxury-grade solution built for durability and consistent comfort.
