Product details
Focal Point Hardware is an authorized Flusso retailer!

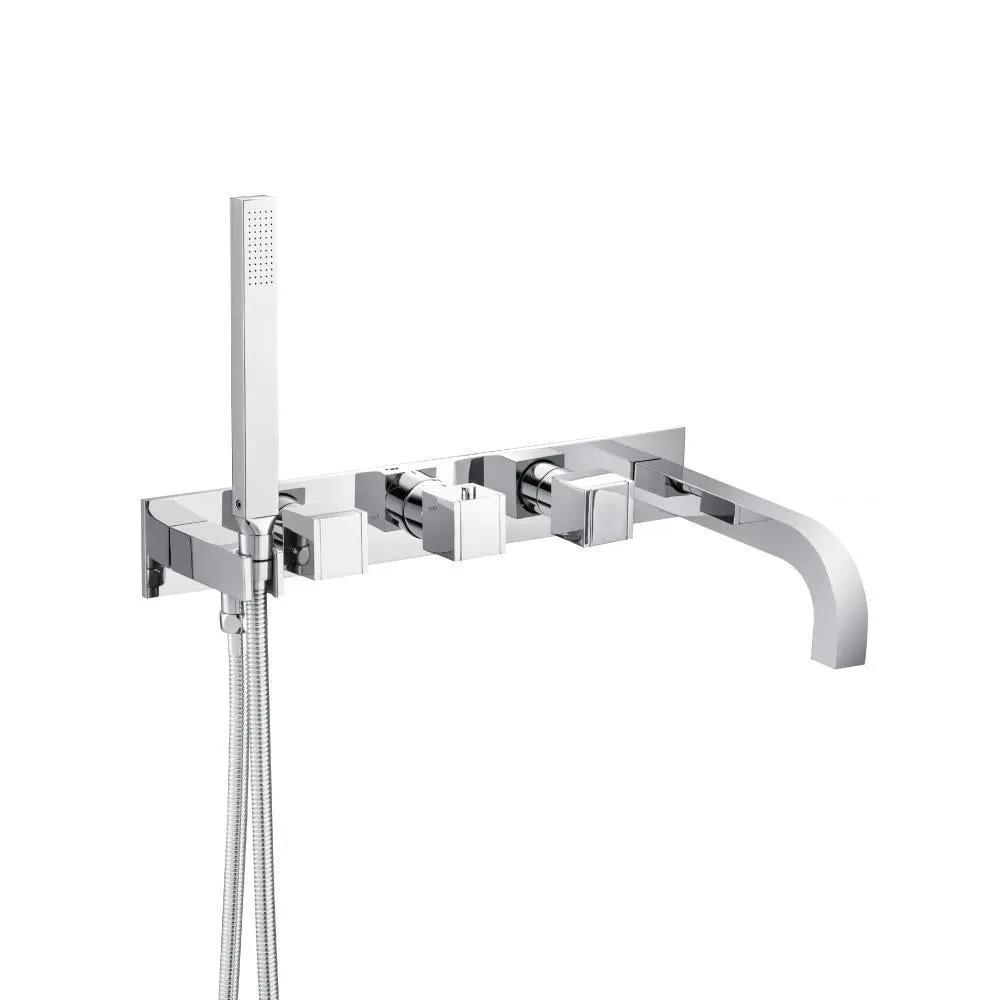

Experience Flusso Serie 150 Wall Mount Tub Filler with Hand Shower - Chrome, a precise thermostatic valve system delivering reliable water control. Featuring two independent outputs for tub spout and handheld shower, both adjustable and operable simultaneously or separately. The sleek chrome finish complements any bath while ensuring accurate temperature management and easy daily use with durable brass construction.
Flusso is renowned for high-precision bathroom fixtures that fuse Italian-inspired design with robust engineering. As a trusted manufacturer, Flusso prioritizes reliability, brass construction, and advanced valve technology, delivering precise temperature control and long-lasting performance. The Serie 150 line exemplifies their commitment to luxury, durability, and consistent water flow in modern baths.
Features and Specifications
- Solid Brass Construction Includes Thermostatic Valve - TVH.2691
- 2 Output Ports
- Hand Shower Flow Rate Limited to 1.8 GPM
- Hand Shower & Tub Spout positions can be swapped
- TVH.2691 thermostatic valve features ¾” NPT female connections and has 2 water outputs [ports] (one for the tub spout and one for the handheld). Both water outputs are operable simultaneously, i.e both at the same time, or one at a time.
- The middle handle sets the temperature. The left handle controls output port 1 and the right handle controls output port 2. Each port has full volume control capability.
- The installation of the spout and handheld shower outlets are interchangeable.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in the wall should be 16.41” X 1.85” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Upgrade your bath with the Flusso Serie 150, a thermostatic wall mount tub filler with hand shower that combines precise control, durable brass construction, and luxury design. Flusso stands for quality, reliability, and refined bathroom aesthetics.
