Product details
Focal Point Hardware is an authorized Flusso retailer!

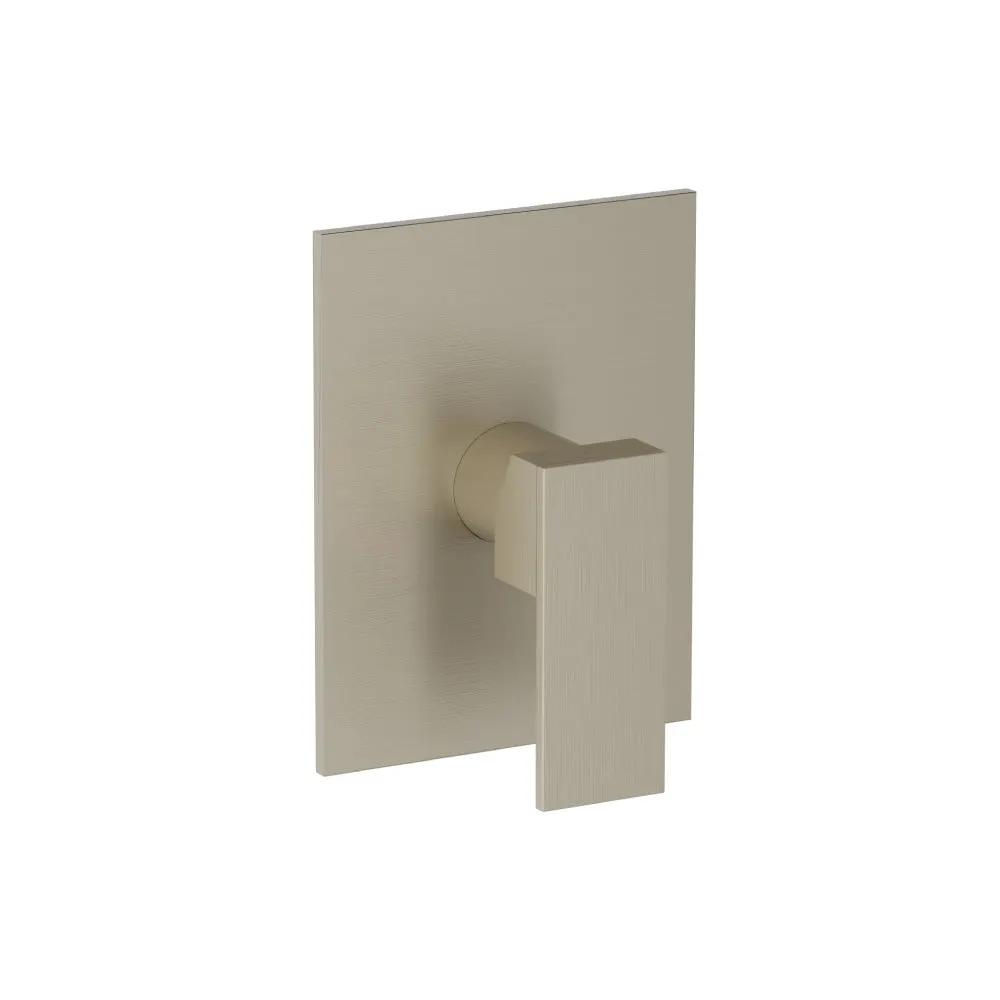

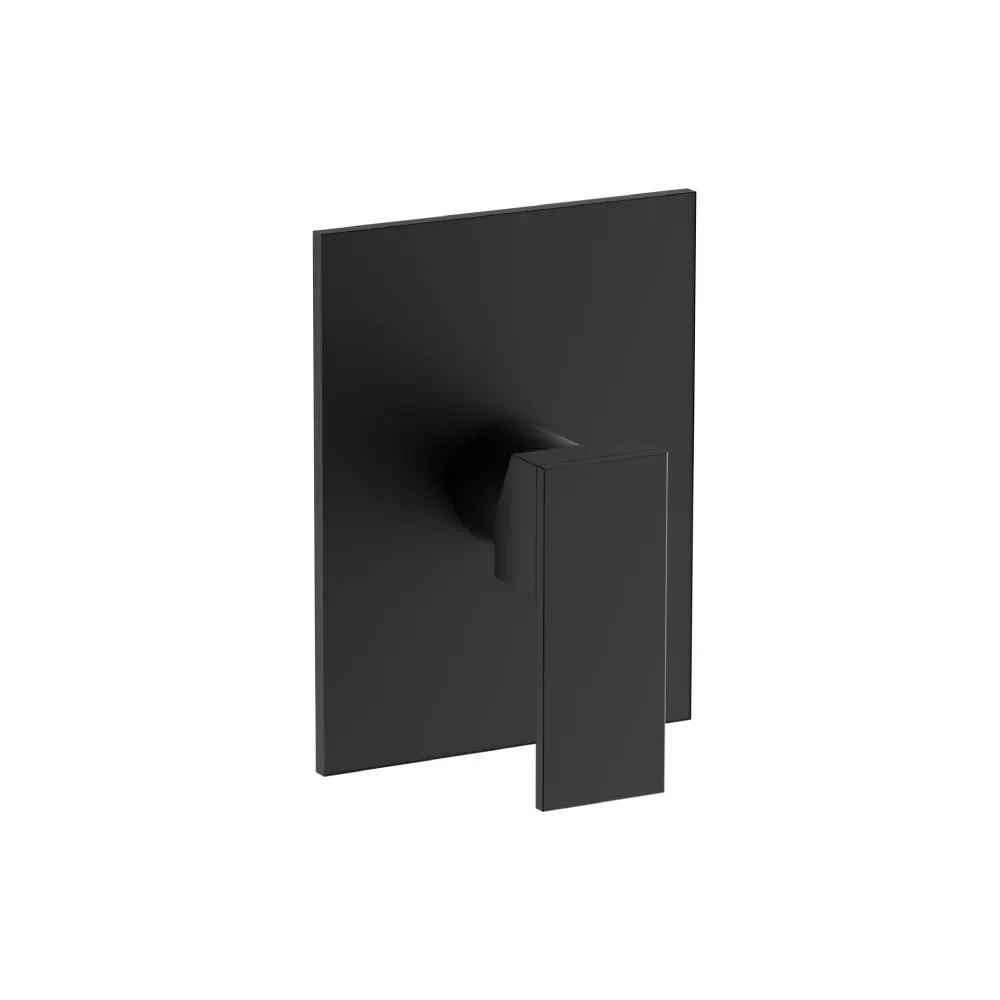

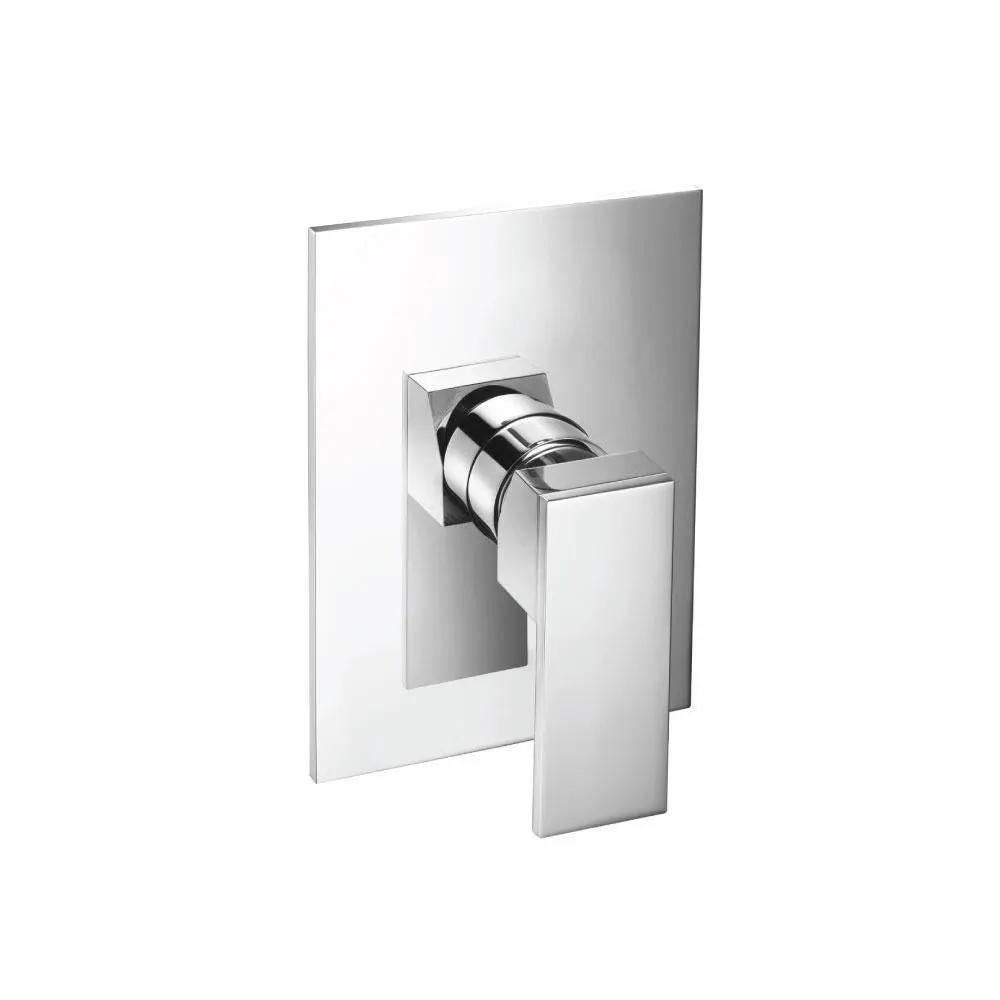

Discover the Flusso Serie 160 Shower Trim with Pressure Balance Valve, a precise blend of modern design and reliable performance. This trim kit coordinates seamlessly with Flusso PBV1005AS valves to deliver consistent temperature control and smooth flow at up to 5.5 GPM @ 60 PSI. Built to endure with solid brass construction and universal trim compatibility for diverse showers.
Flusso is renowned for precision-engineered, durable bathroom hardware that combines timeless aesthetics with reliable performance. The Serie 160 line reflects Flusso's commitment to innovation, with pressure-balanced valves, smooth handle operation, and brass craftsmanship that withstands moisture and daily use while delivering consistent water temperature control. Flusso's engineering ethos emphasizes installation simplicity and lasting reliability.
Features and Specifications
- PBV1005AS – Pressure Balance shower valve has a ½” NPT male connection.
- It is single control valve with two inputs for hot/cold water and one output.
- The bottom output comes capped and can be used with a diverting tub-spout.
- The valve has a flow rate of 5.5 GPM @ 60 PSI.
- Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- Handle Operation - The volume and temperature of water is controlled by the single handle. Lift the handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water.
- Cut Out Dimensions - The cut out in wall should be 4.60” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- Trims - The trim set for PBV1005AS consists of a trim plate and handle knob. The trim plate has markings for HOT/COLD. An extension kit can be ordered separately in case the handles need to be extended for proper fit.
- Any trim ending in *2200 or *2201 can be used with this valve.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction
- Includes Pressure Balance Valve = PBV1005AS
- Lift Handle to control Volume.
- Turn left for Hot.
- Right for Cold.
- Extension Available - PBV.2100E**
Upgrade your shower with the Flusso Serie 160 Shower Trim with Pressure Balance Valve for reliable temperature control and refined luxury. Flusso's proven quality and the PBV1005AS valve deliver enduring performance and a premium shower experience.
