Product details
Focal Point Hardware is an authorized Flusso retailer!

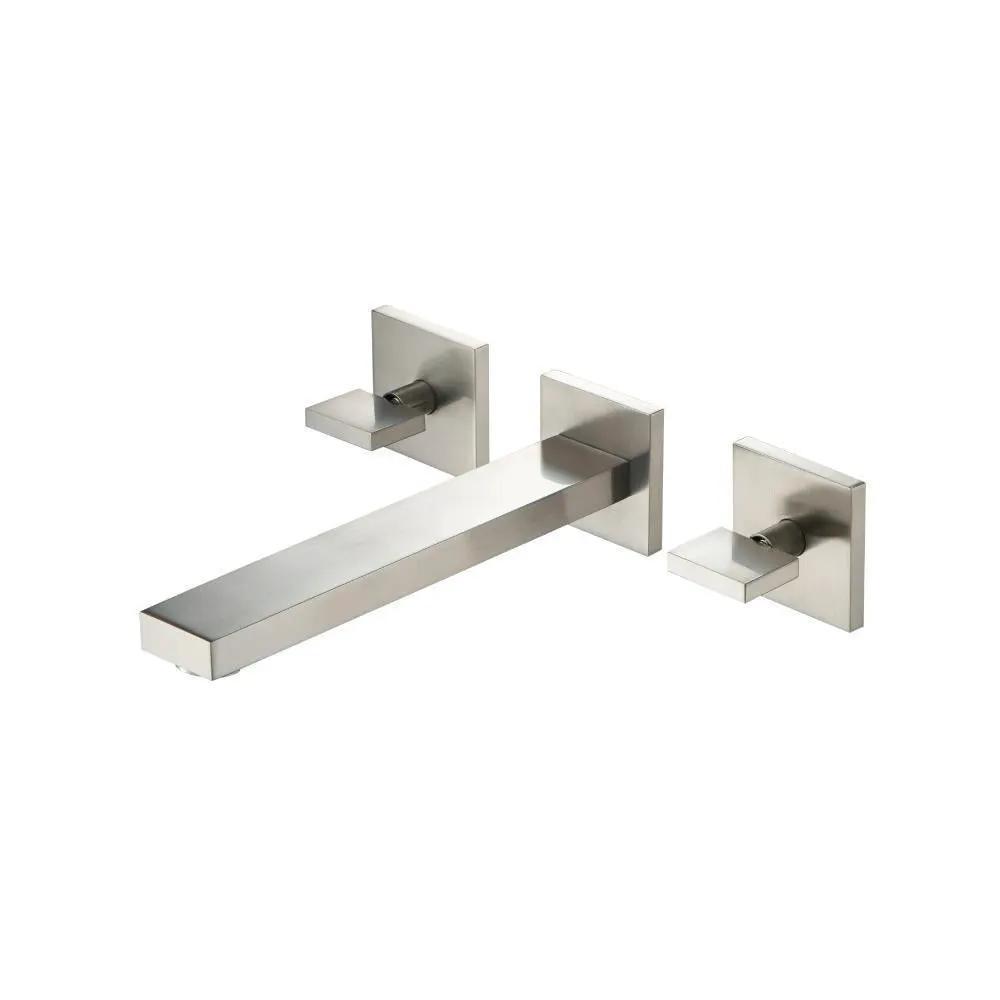

Experience the Flusso Serie 160 Two Handle Wall Mounted Tub Filler, a premium fixture that blends precise temperature control with modern brass craftsmanship. The 1/2” NPT valve and trim deliver a single, smoothly mixed output from separate hot and cold handles, elevating bath design while delivering reliable performance, luxury aesthetics, and lasting value from Flusso.
Flusso is renowned for precision engineering, durable solid brass construction, and luxury bathroom fixtures that stand the test of time. As a brand, Flusso combines meticulous craftsmanship with thoughtful engineering, delivering dependable performance, elegant finishes, and streamlined installation experiences that elevate homes. Renowned for reliability and timeless design worldwide, trusted globally.
Features and Specifications
- 1/2” NPT connection valve and trim combo with two volume control handles separately for hot and cold water with single mixed output.
- Handle Operation – The volume and temperature of the water are controlled by the two handles, HOT and COLD.
- Valve Installation – As the valve [Part # WLM.1900] is installed, care should be taken to maintain a proper distance from the back of the valve to the surface of the finished tile which should be between 2.39” and 3.09”. Also, the valve must be installed horizontally and not at an angle.
- In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure the proper setting of the trim.
- Extension kits can be ordered separately in Chrome, Brushed Nickel, or other special finishes.
- Cut Out Dimensions – The cut out in wall should be 3 holes, 1.3 inches in diameter which will properly be covered by the trim plates. This will ensure that the trim plate will cover the cut out hole in the wall.
- Trims – The trims comprise of well-finished handle knobs, handle trims, cartridge covers, and spout. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction
- Includes Rough In Valve - WLM.1900
- Separate Hot And Cold Handles
- Extension Available - Part # 160.1900E**
Flusso Serie 160 Two Handle Wall Mounted Tub Filler delivers precise mixing, luxury brass construction, and dependable performance—perfect for sophisticated baths where design meets reliable, easy-to-use temperature and flow control.
