Product details
Focal Point Hardware is an authorized Flusso retailer!

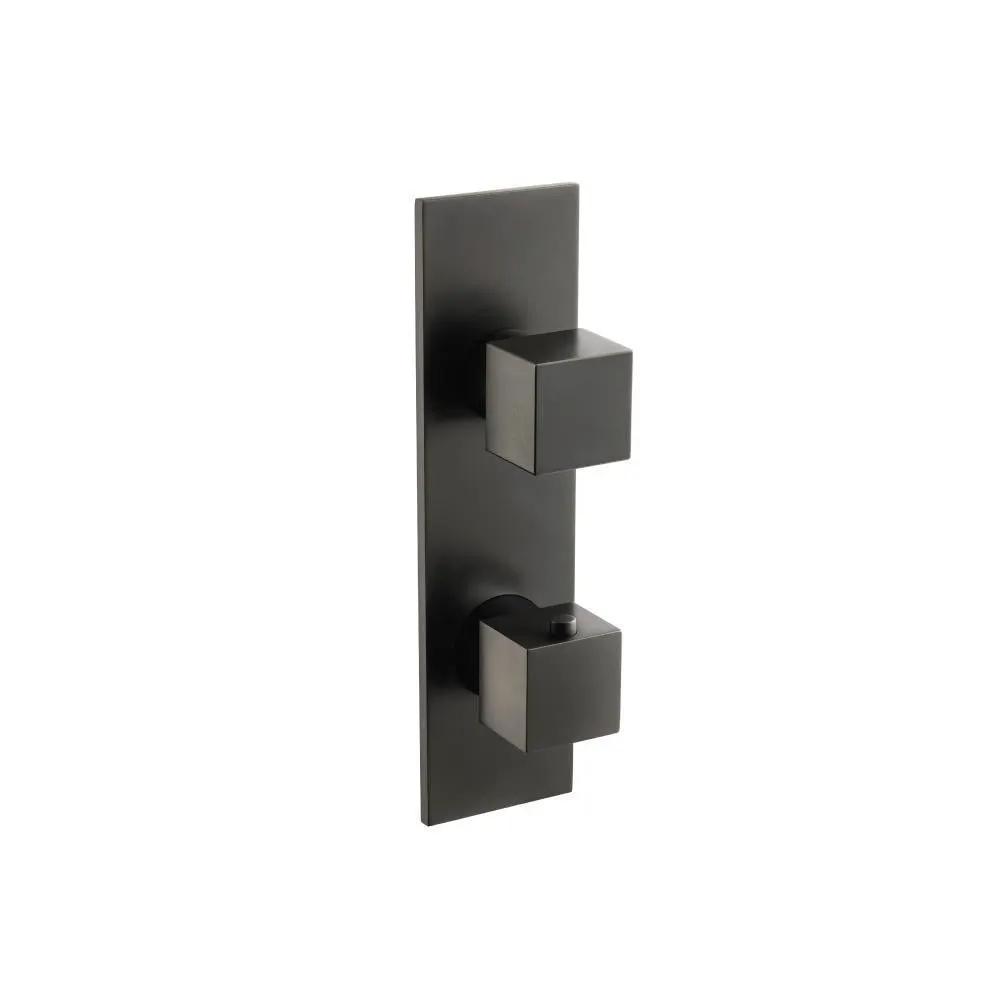

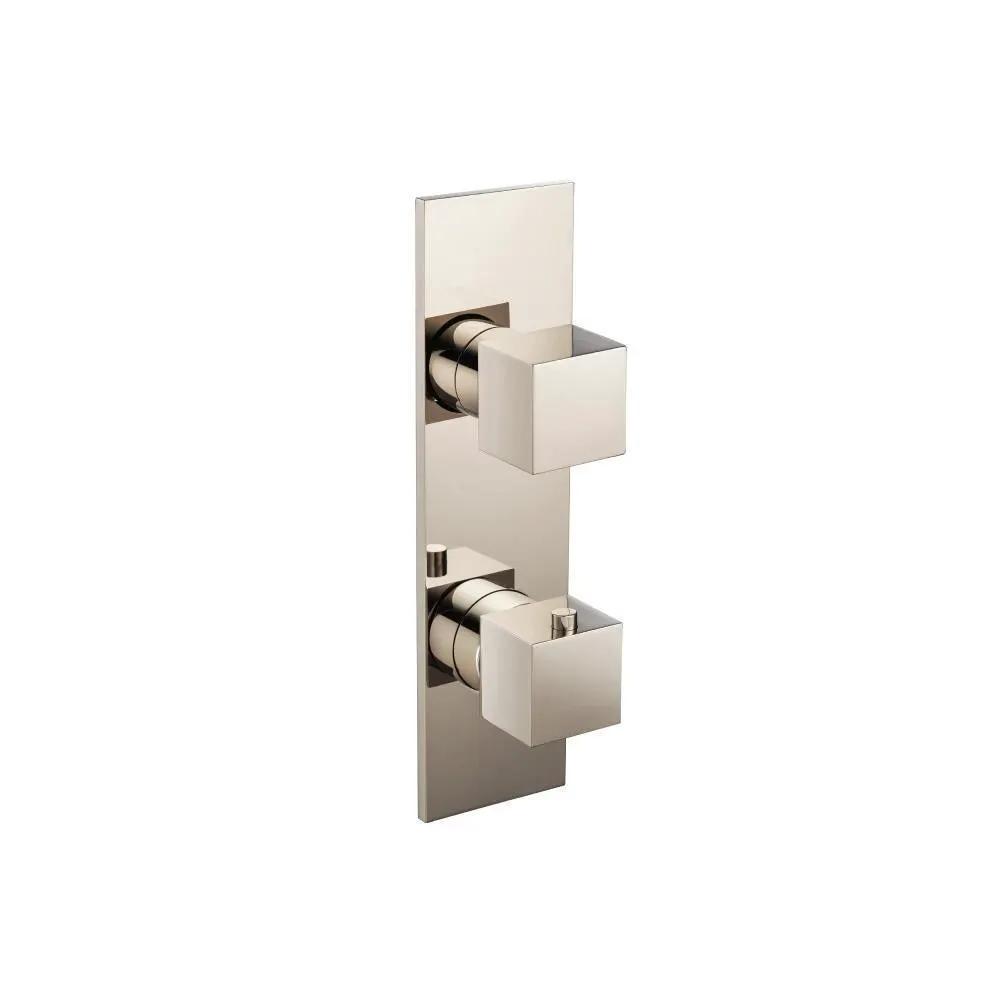

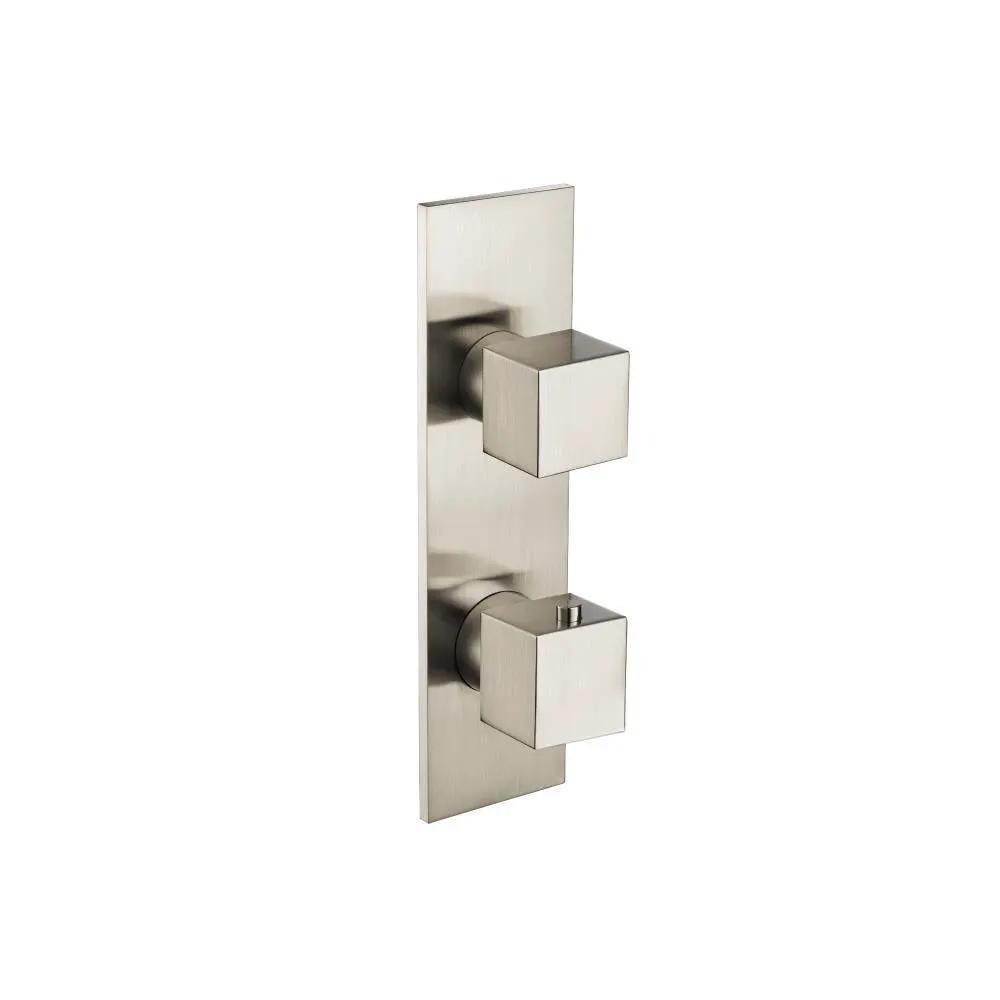

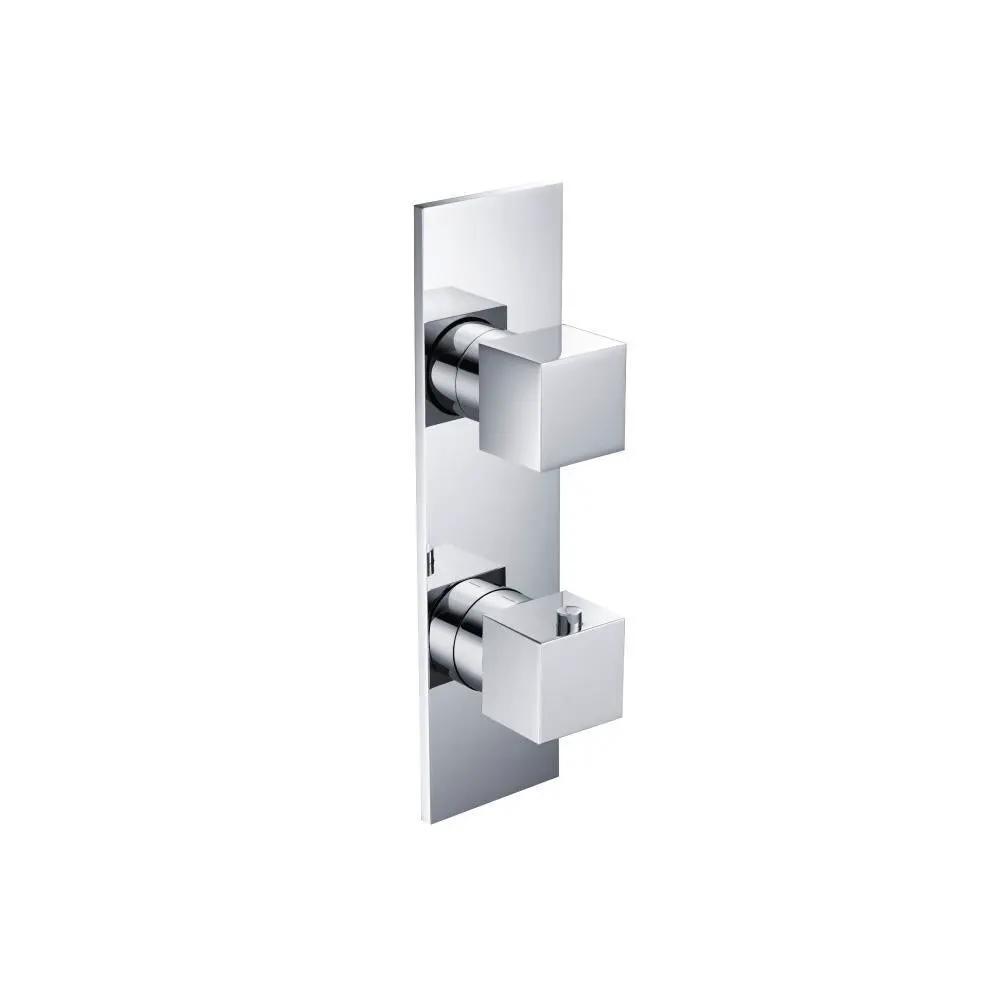

Discover the Flusso Serie 160 3/4" Thermostatic Shower Valve and Trim - 2-Output, a premium solution for precise, safe shower control. Flusso's thermostatic valve delivers consistent temperature with CAL-Green efficiency, while the dual-output design lets you route water to two outlets independently. Designed for easy horizontal or vertical installation, this valve pair offers reliable performance, refined finish, and luxurious bath experience from Flusso.
Flusso is a renowned designer of premium bathroom valves and trims, known for precise thermostatic control, durable solid brass construction, and reliable, quiet operation. The Flusso Serie 160 line combines modern engineering with timeless aesthetics, delivering safe, comfortable showers and long-lasting performance that elevate any upscale bathroom project. For discerning homeowners and luxury installations, Flusso stands behind its craftsmanship.
Features and Specifications
- The 2740 series of Flusso products uses the TVH.2717F Thermostatic valve which features 3/4" NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation.
- CAL-Green compliant design.
- Right handle sets the temperature; left handle diverts water between the 2 output ports; each port has full volume control capability.
- Horizontal or vertical installation – The TVH.2717F can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The bottom handle is used to control the temperature of water flowing through the outlet ports. The top handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald mechanism requires pressing a side push-button to rotate to HOT; the ring must be fitted tightly over the valve.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77" and 3.44" inches [Rough In Spec]. Also, the valve must be installed straight and not at an angle or upside down. In case the tile is thicker or the valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89" x 1.89" Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- CARTRIDGE – The TVH.2717F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
- Solid Brass Construction Includes Thermostatic Valve - TVH.2717F
Elevate your shower experience with Flusso's precision engineering and luxurious finishes, backed by Flusso's reputation for quality and reliability in the bathroom hardware market today.
