Product details
Focal Point Hardware is an authorized Flusso retailer!

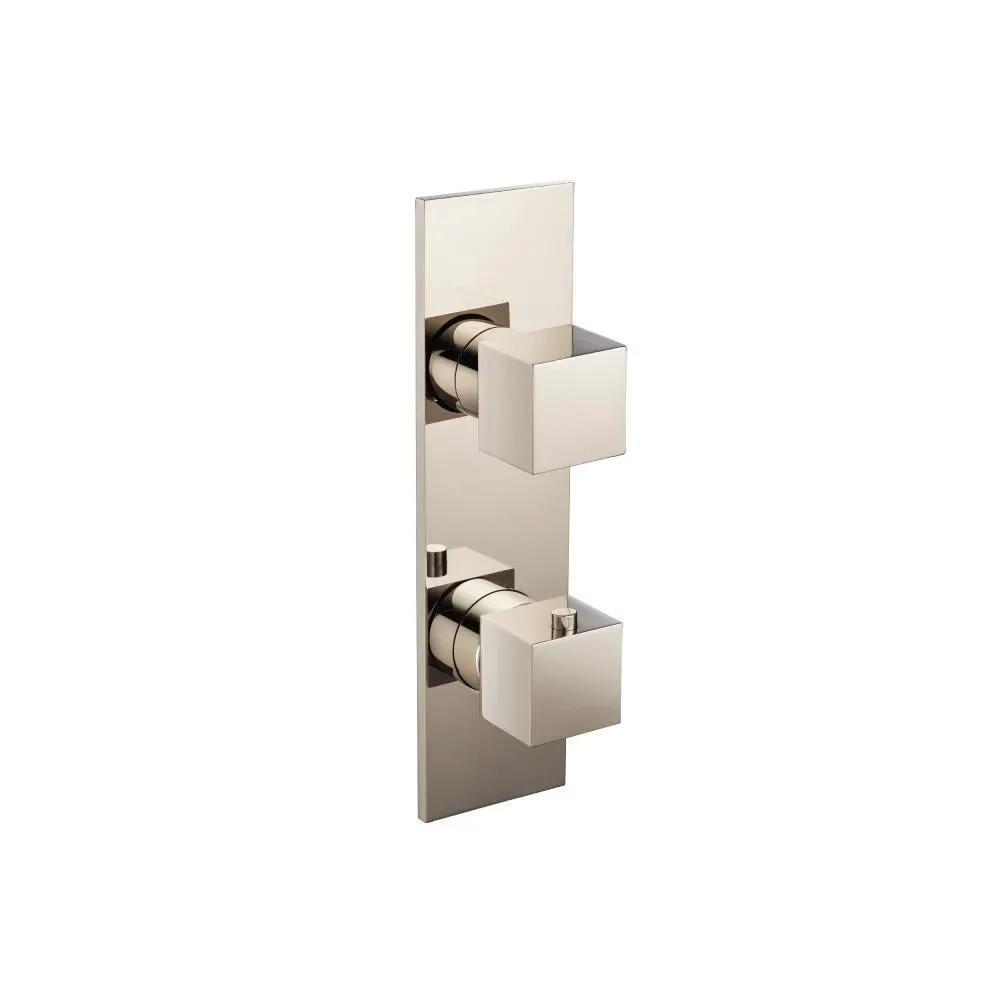

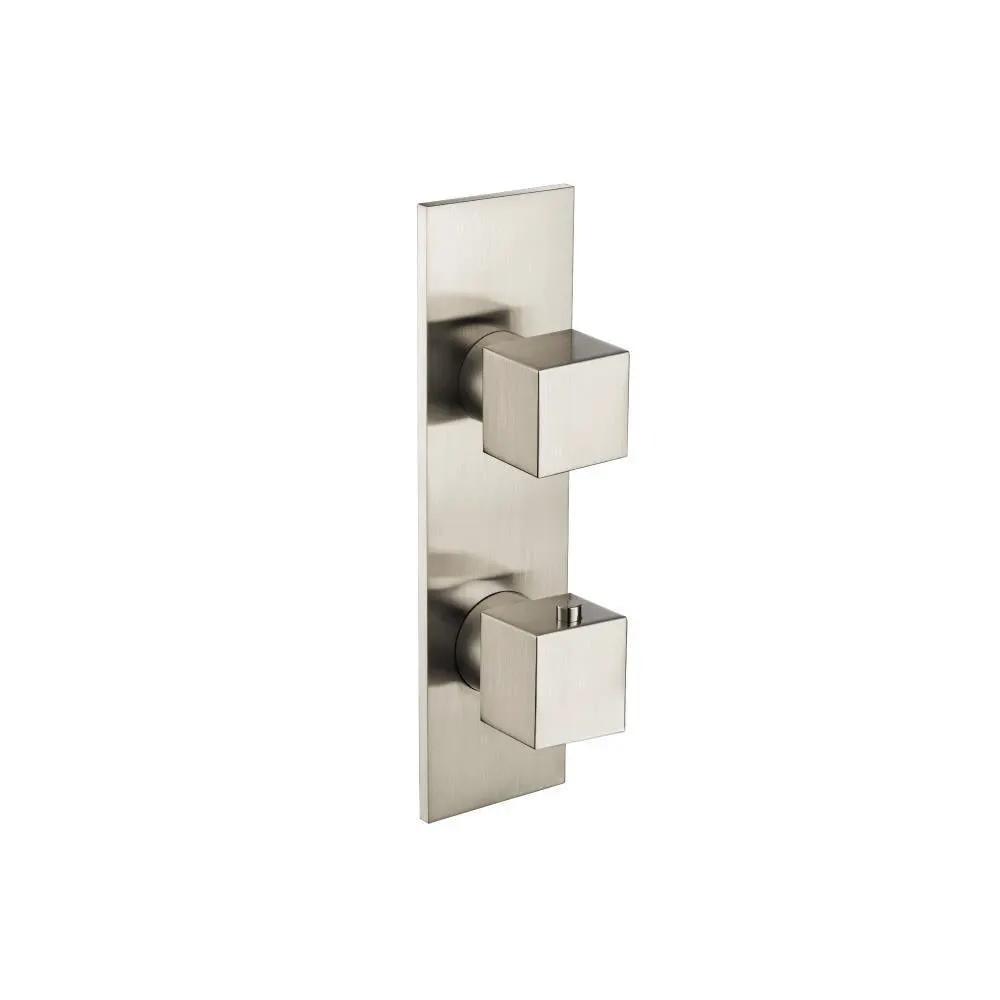

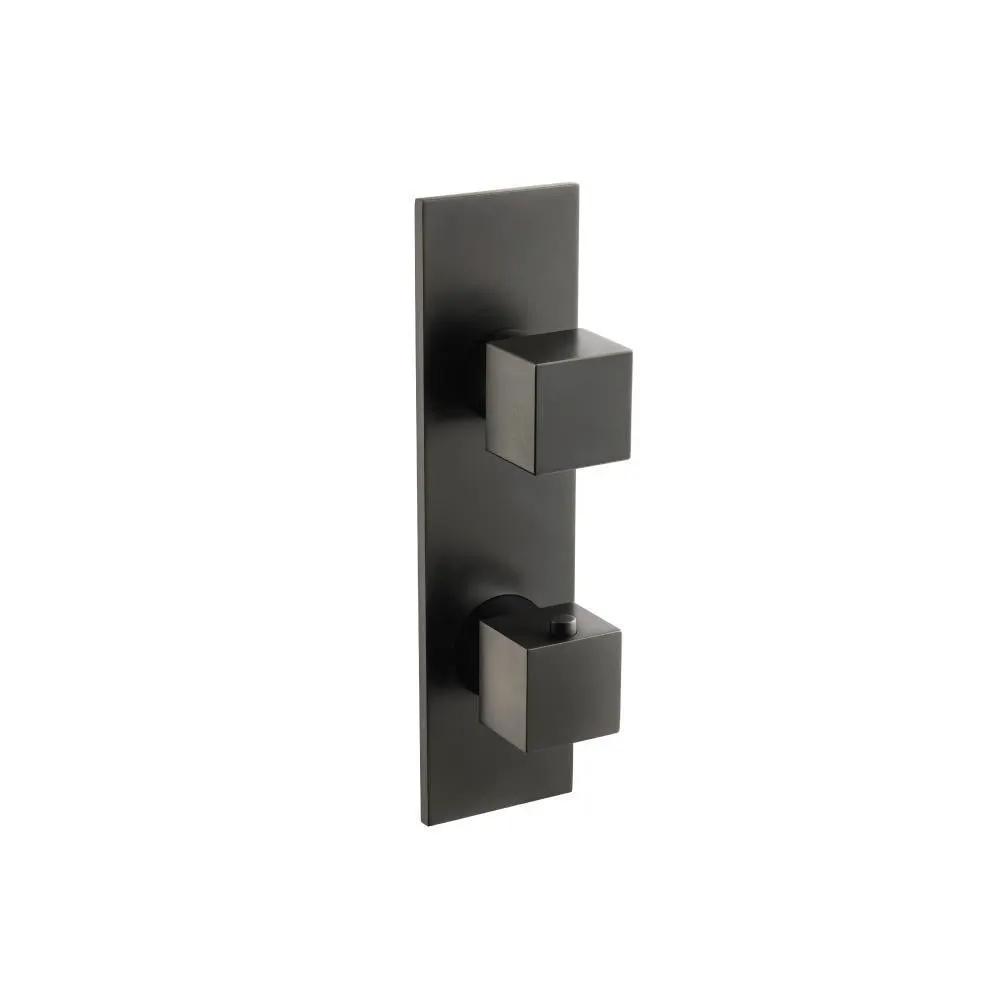

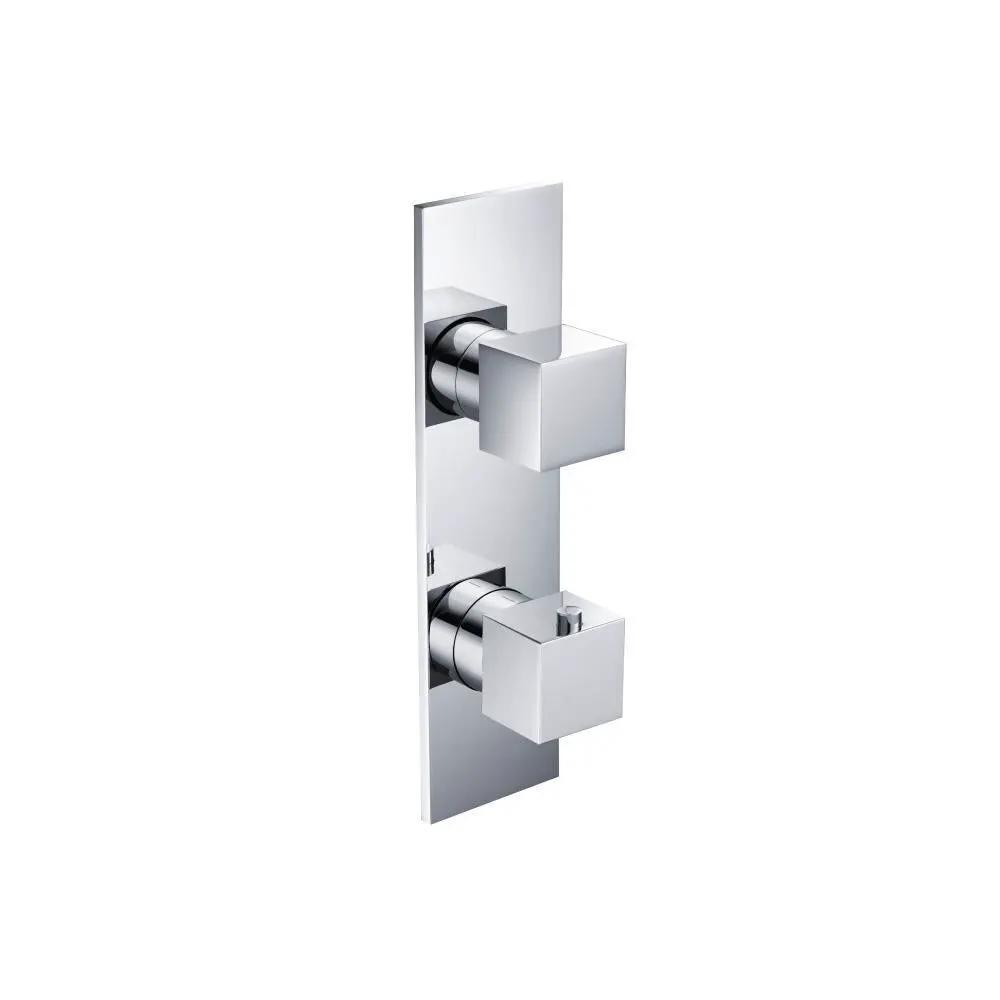

Introducing the Flusso Serie 160 3/4" Thermostatic Shower Valve and Trim - 3-Output, a precision-engineered solution from Flusso that delivers independent, safe water delivery across three outlets. The CAL-Green compliant system combines a thermostatic valve with a refined trim, offering precise temperature control and versatile output selection for luxurious, reliable showers.
Flusso, renowned for luxury bathroom hardware, designs reliable, precise, and stylish valves and trim. The brand emphasizes durability, CAL-Green compliance, and easy installation. Flusso products are built with solid brass construction and thoughtful safety features, delivering long-lasting performance and a refined aesthetic for contemporary showers that inspire confidence in both everyday use and premium bathroom design.
Features and Specifications
- 2780 Series of products from Flusso uses the TVH.2705F Thermostatic valve which features 3/4? NPT connections and has 3 water outputs [ports] which are operable one at a time without shared port operation.
- This product meets CAL-Green compliance criteria.
- The bottom handle sets the temperature.
- The top handle controls water diversion between the 3 water output ports.
- Each port has full volume control capability.
- HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2705F can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- CARTRIDGE – The TVH.2705F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time.
- Solid Brass Construction Includes Thermostatic Valve - TVH.2705F With Int
As a reliable, luxury-grade solution, the Flusso Serie 160 3/4" Thermostatic Shower Valve and Trim delivers precise temperature control, three independent outlets, and enduring brass construction—backed by Flusso's commitment to quality and CAL-Green compliant performance.
