Product details
Focal Point Hardware is an authorized Flusso retailer!

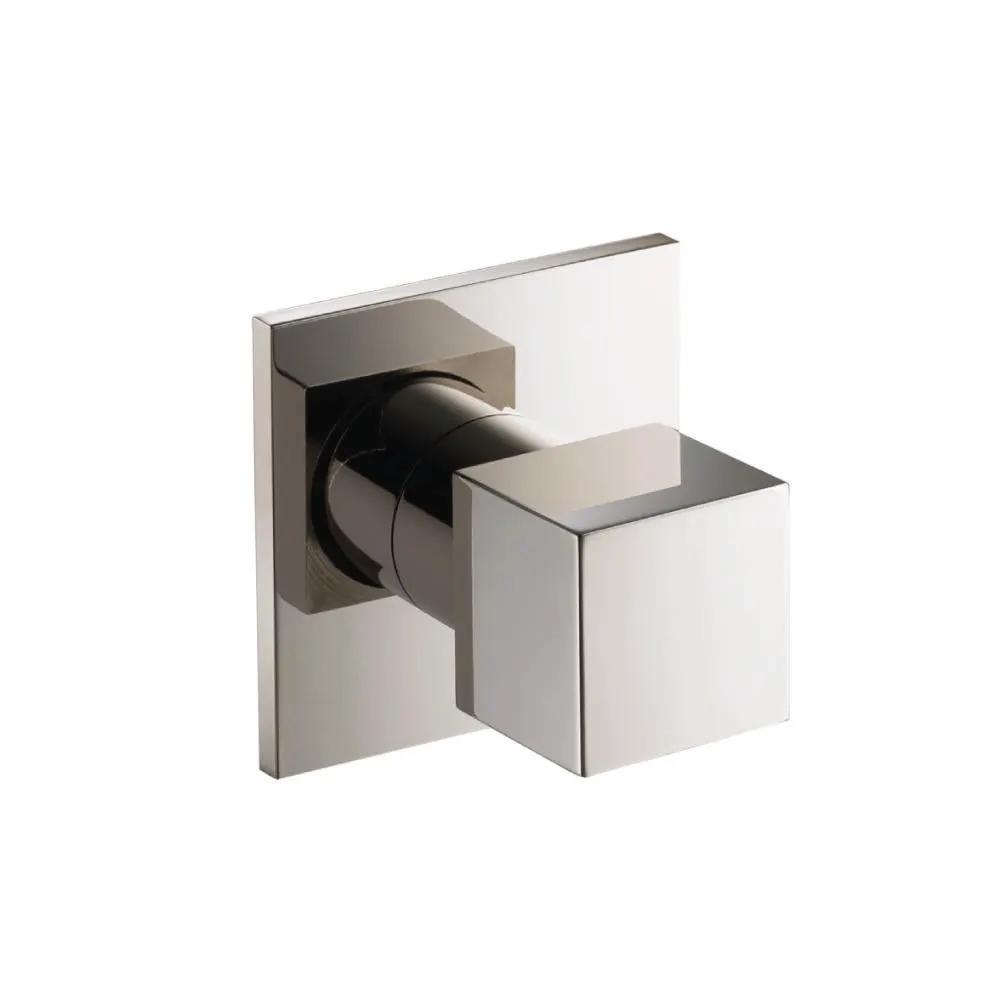

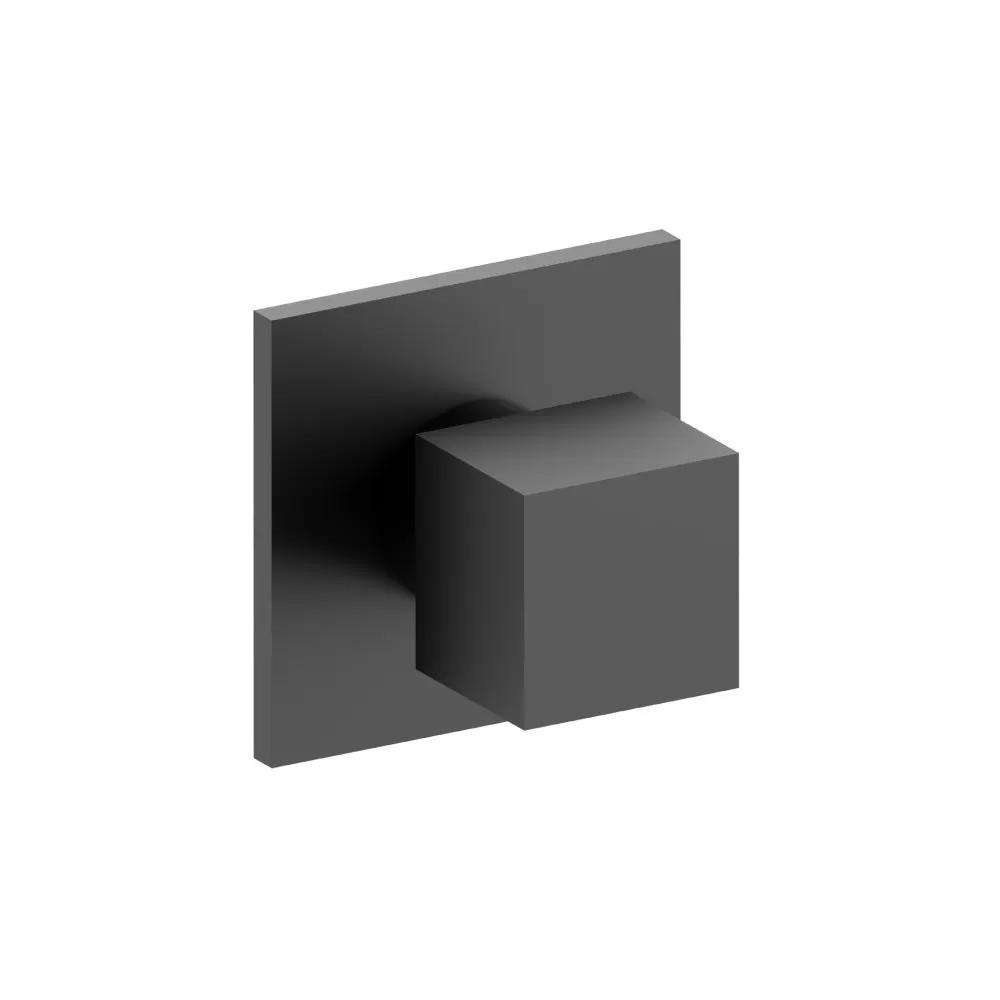

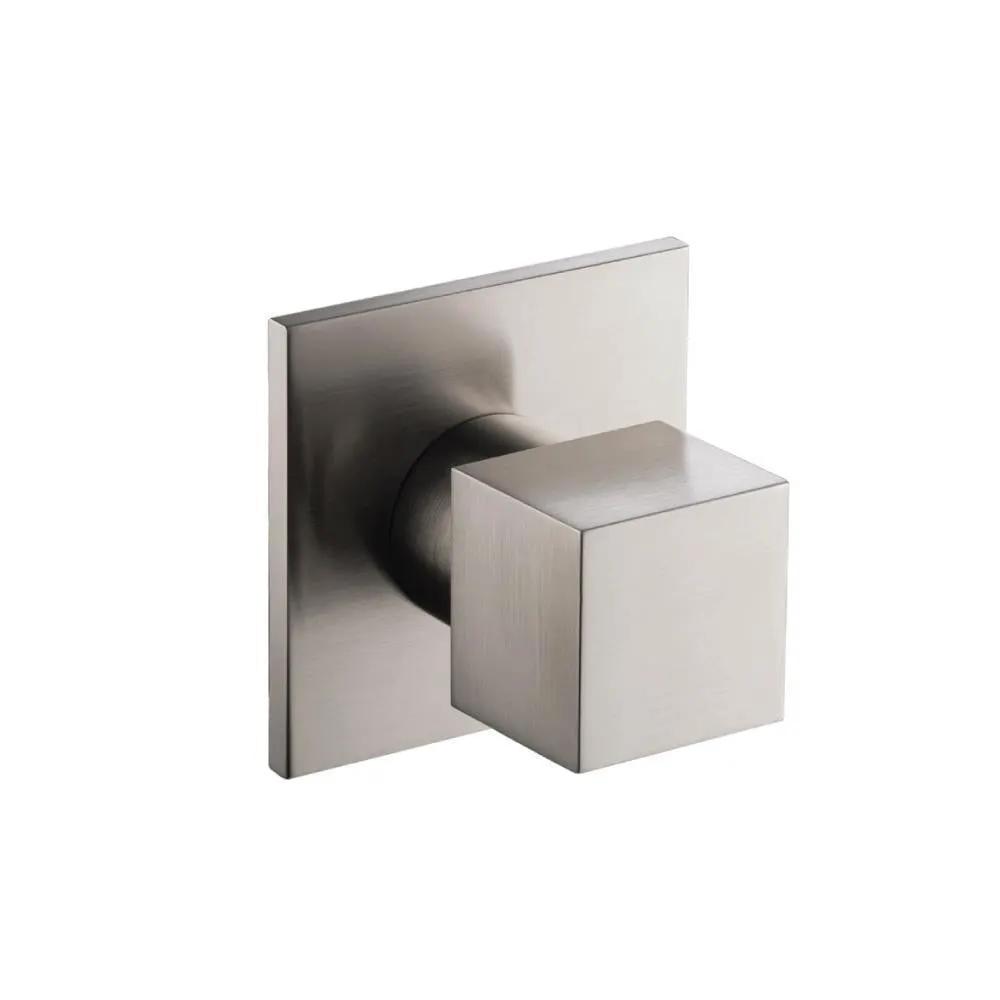

Enhance your shower with the Flusso Serie 160 3/4" Volume Control and Trim, a precision valve that delivers consistent water flow from trickle to full volume. The TVH.4511 features a 3/4" NPT female connection and a single output, engineered with solid brass construction for durability, smooth handling, and lasting performance in modern bathrooms.
Flusso is renowned for luxury shower solutions that blend precision engineering with timeless design. As a trusted manufacturer, Flusso delivers durable brass valves, reliable flow control, and thoughtful installation details that simplify remodeling projects. With a focus on performance, longevity, and elegant finishes, Flusso products consistently satisfy discerning homeowners and professional installers alike.
Features and Specifications
- TVH.4511 is a 3/4" NPT female connection volume control valve with single output.
- Handle Operation – The handle is used to control volume of water flowing through the valve. It can be used to set the water to a trickle all the way to full volume flow. This valve does not provide any temperature regulation.
- Valve Installation – As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77? and 3.44?. Also, the valve must be installed vertical and not at an angle.
- In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4511 valve is 1.40? inches).
- Cut Out Dimensions – The cut out in wall should be 1.65? X 1.65? inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.

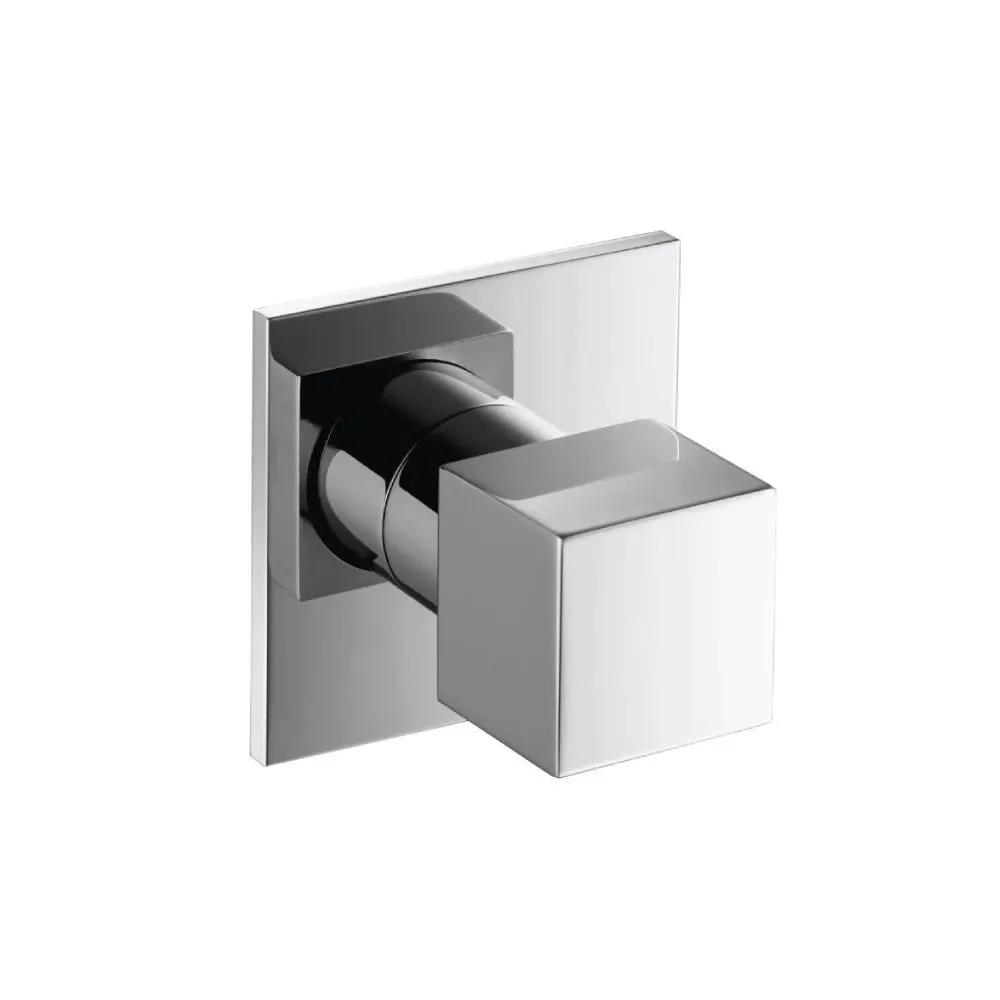

- Trims – The trims comprise of well finished trim plate and volume control handle knob. The trim plate is used to cover the wall and has markings for ON/OFF for water flow. Any *4511 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Includes Valve - TVH.4511
- Extensions Available - TVH.E137**
Engineered by Flusso and backed by Focal Point's trusted service, this Serie 160 valve and trim delivers precise, luxurious control and reliable performance for modern showers.
