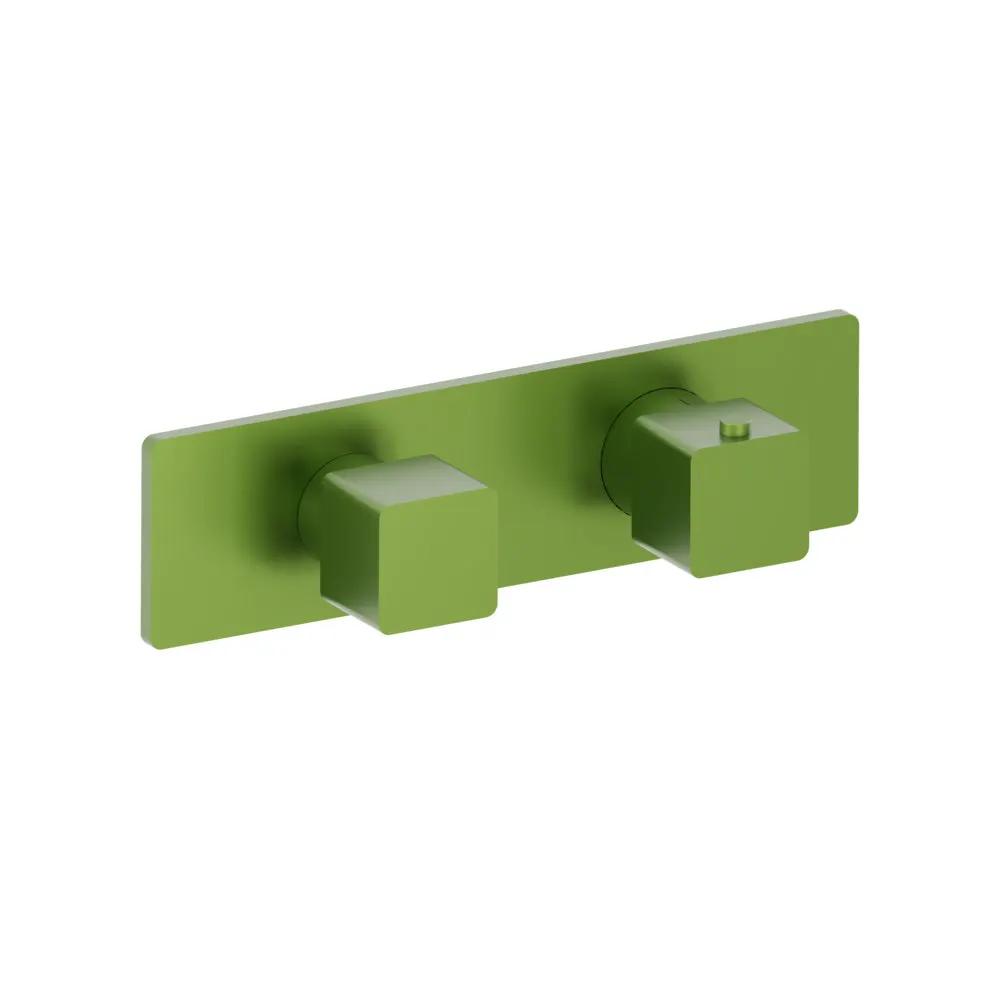

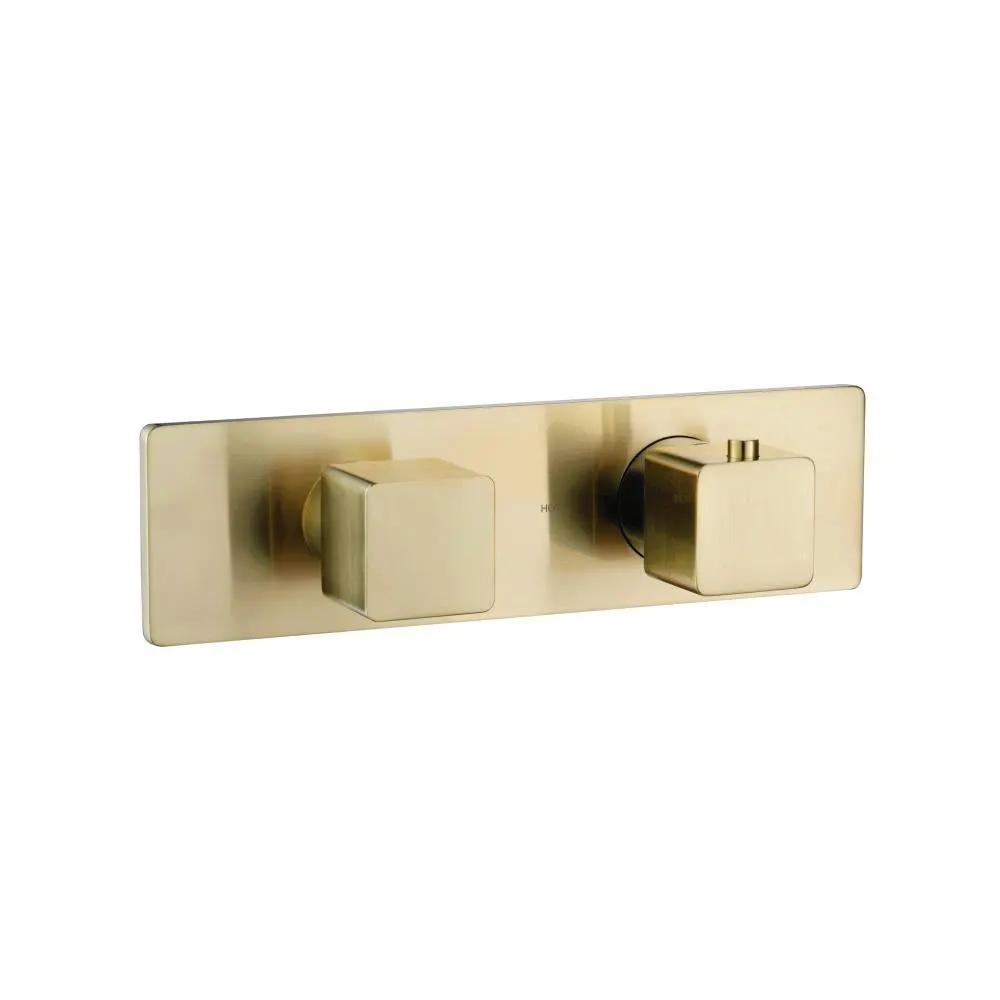

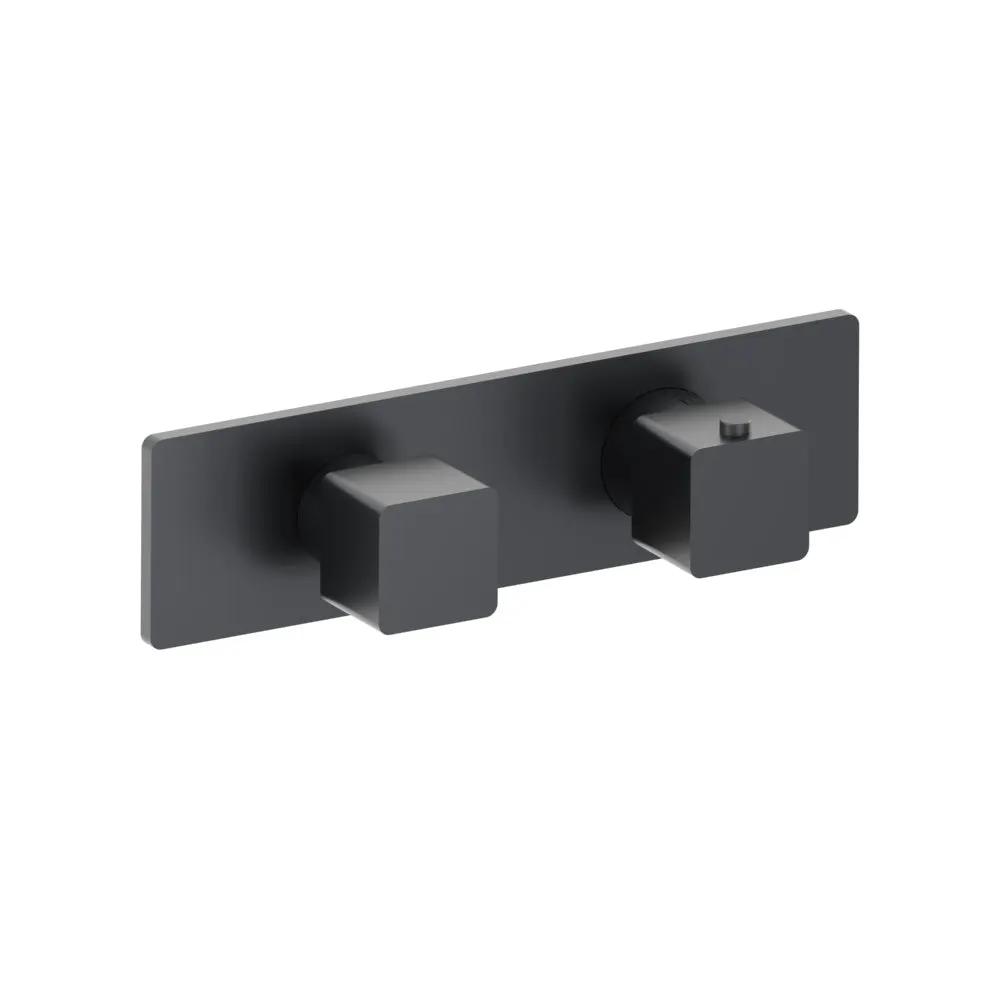

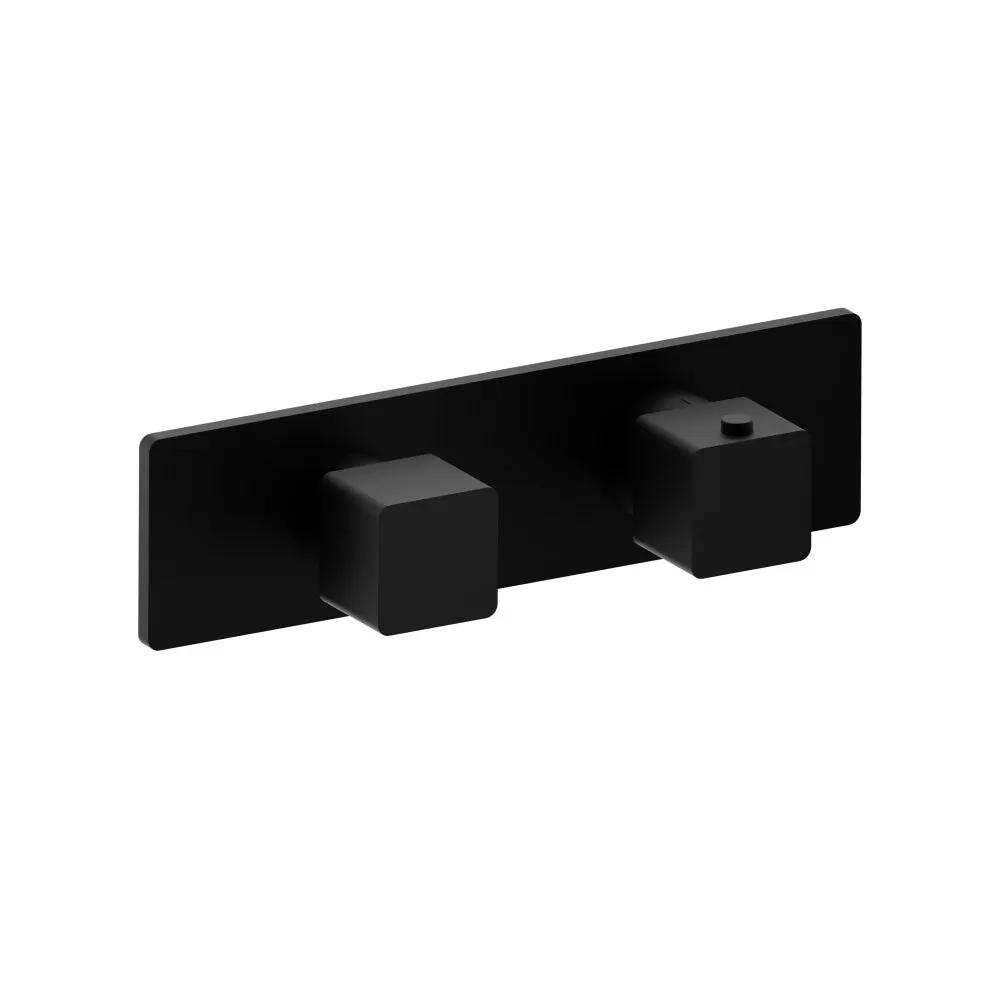

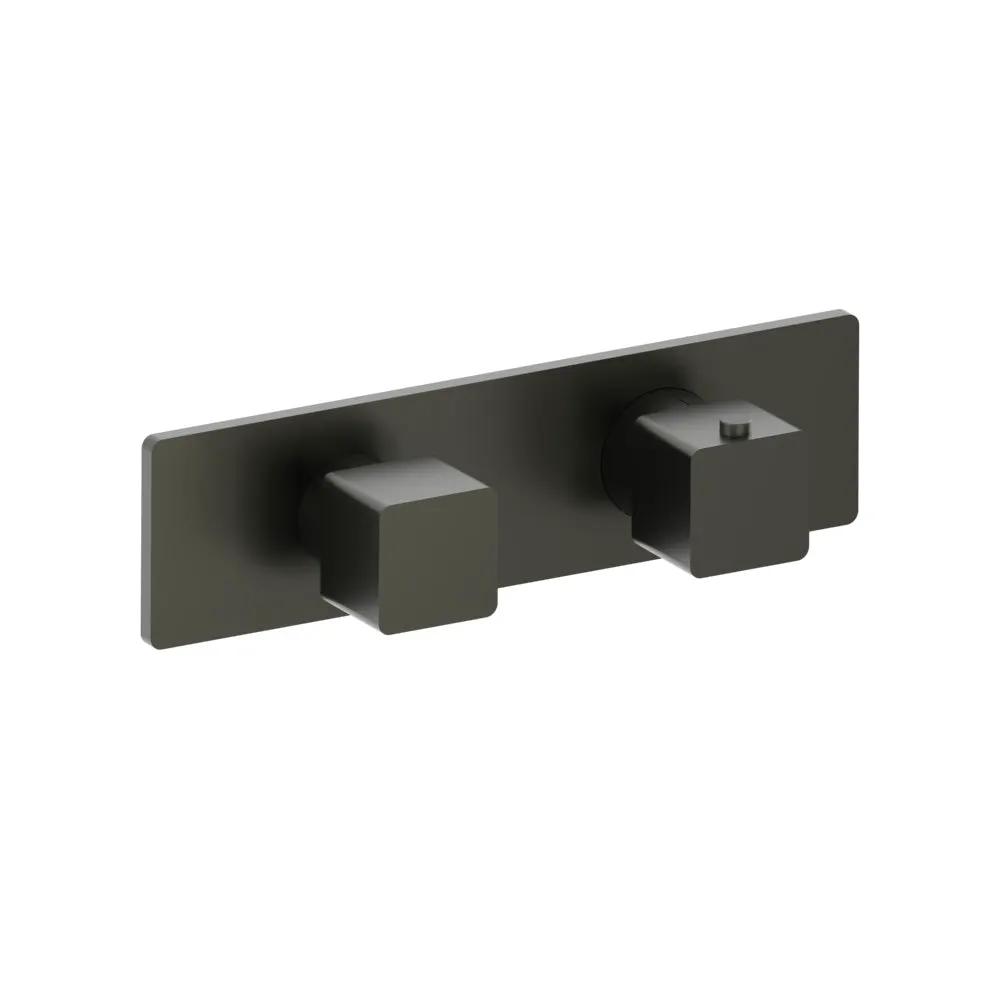

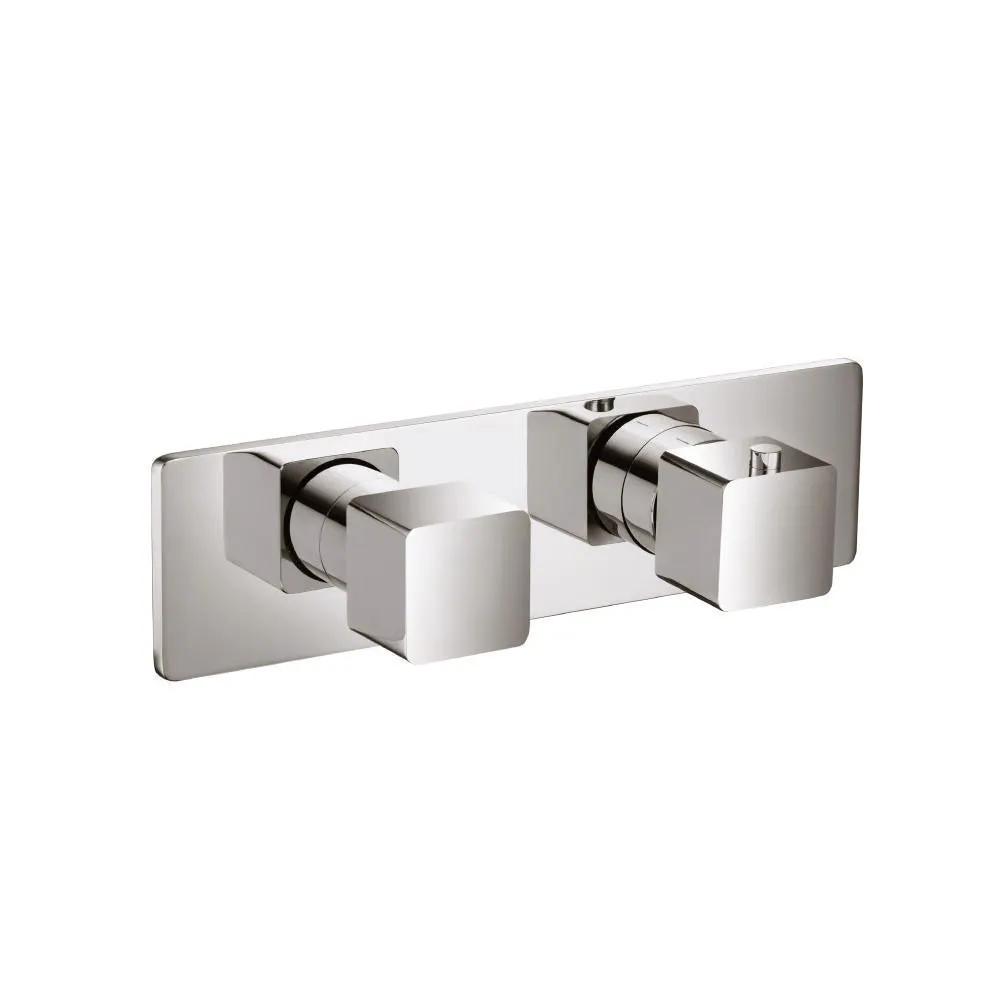

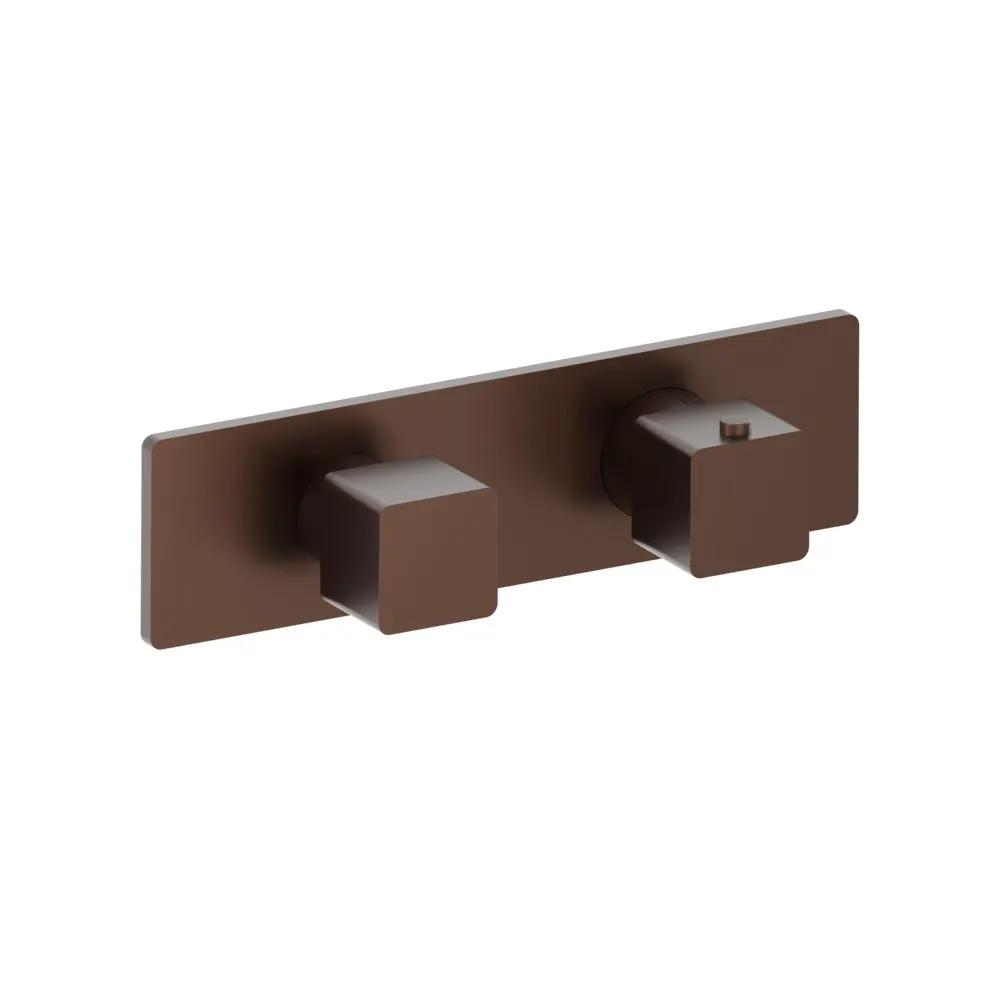

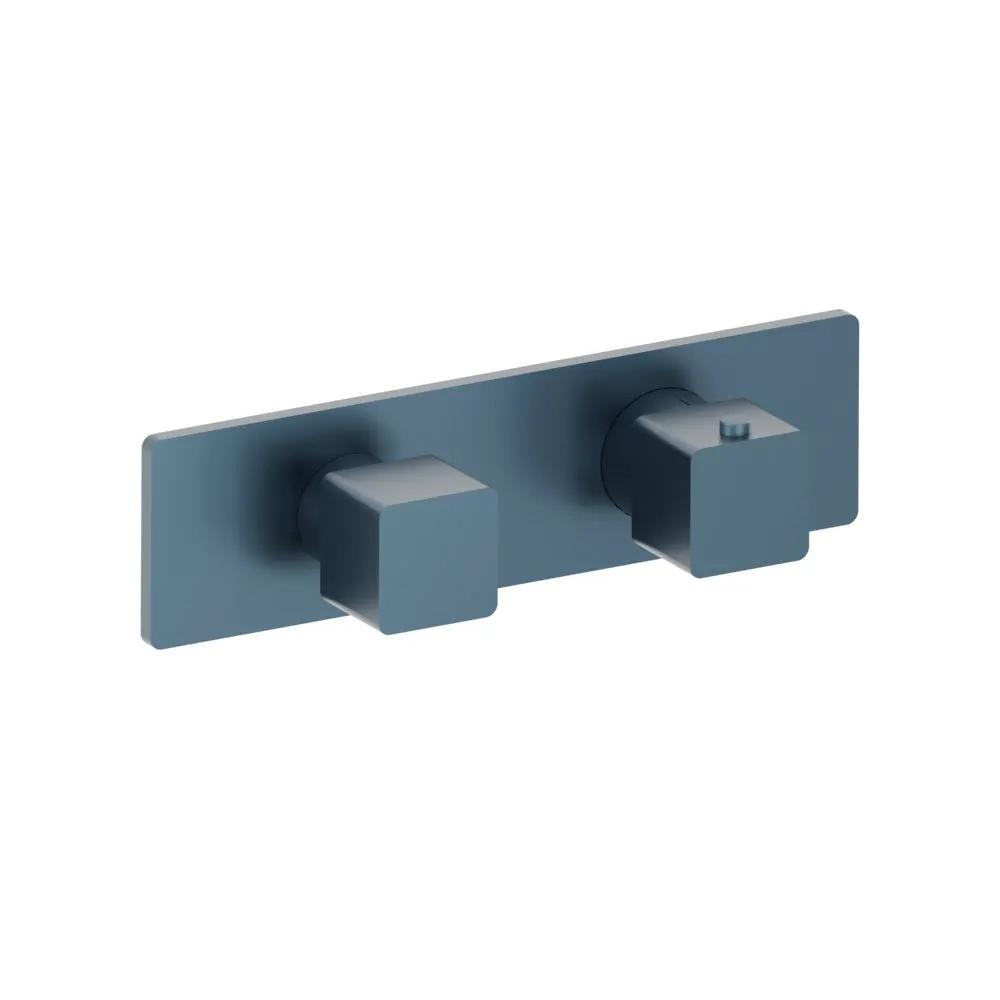

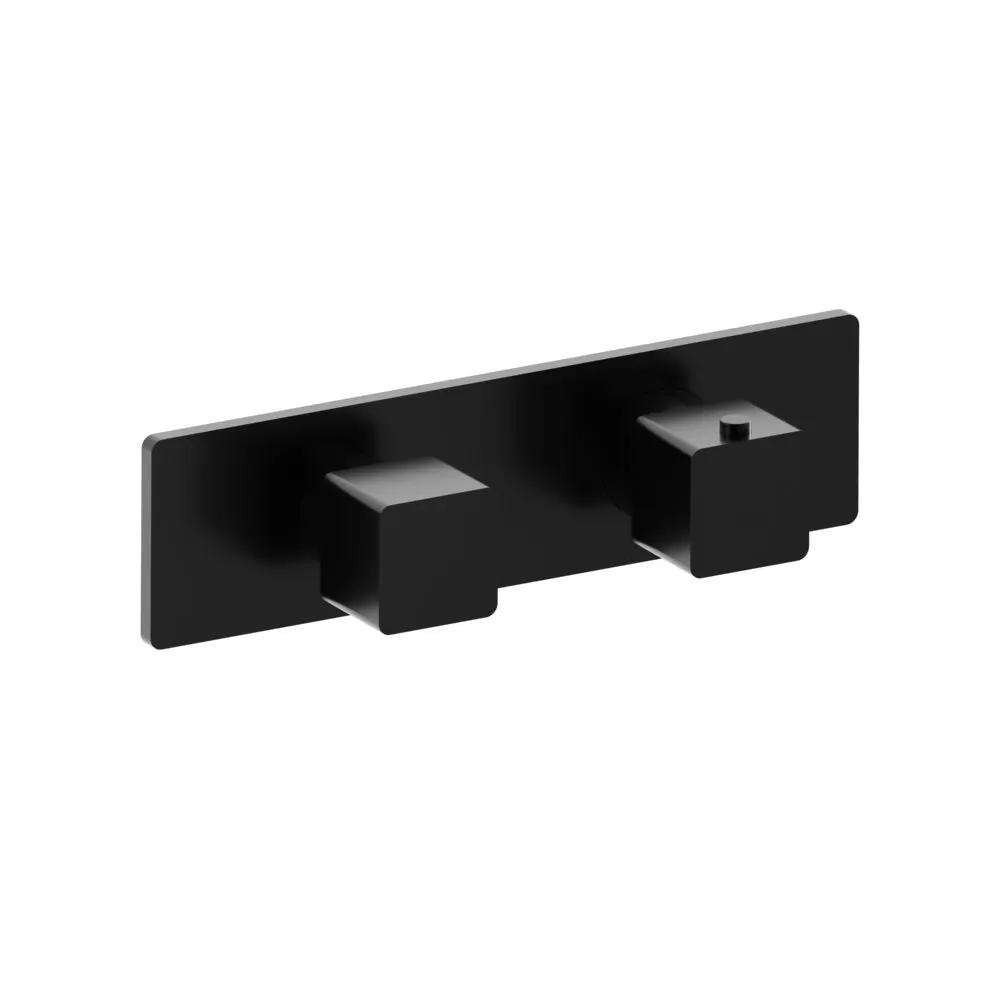

Flusso Serie 196 3/4" Horizontal Thermostatic Shower Valve and Trim - 2 Output

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 196 3/4" Horizontal Thermostatic Shower Valve and Trim - 2 Output, a precision solution for modern showers. With dual 2-output ports, independent temperature control, CAL-Green compliant performance, and flexible horizontal or vertical installation, this valve delivers reliable thermostatic safety, precise flow, and elegant trim plates that elevate any luxury bathroom.

Flusso is renowned for precision-engineered bathroom fixtures that blend performance with refined design. As a trusted manufacturer, Flusso delivers durable brass construction, reliable thermostatic controls, CAL-Green compliance, and thoughtful installation features that simplify remodeling projects while ensuring long-lasting luxury, consistent temperature regulation, and minimal maintenance for discerning homeowners in everyday use.

Features and Specifications

• 3/4" NPT connections
• 2 water outputs [ports] which are operable one at a time without shared port operation
• CAL-Green compliant
• Right handle sets the temperature
• Left handle controls water diversion between the 2 water output ports and is capable of controlling the volume of water from full flow to a trickle
• Horizontal or vertical installation
• SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
• HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is capable of controlling the volume of water from full flow to a trickle
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
• VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
• CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• CARTRIDGE – The TVH.2717F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
• Solid Brass Construction Includes Thermostatic Valve - TVH.2717F With Integral Service Stops

Engineered by Flusso for precise, safe shower performance, the TVH.2717F valve with sleek Serie 196 trim delivers dependable comfort, luxury aesthetics, and CAL-Green efficiency—backed by Flusso's reputation for durable brass construction and thoughtful engineering.
