Product details
Focal Point Hardware is an authorized Flusso retailer!

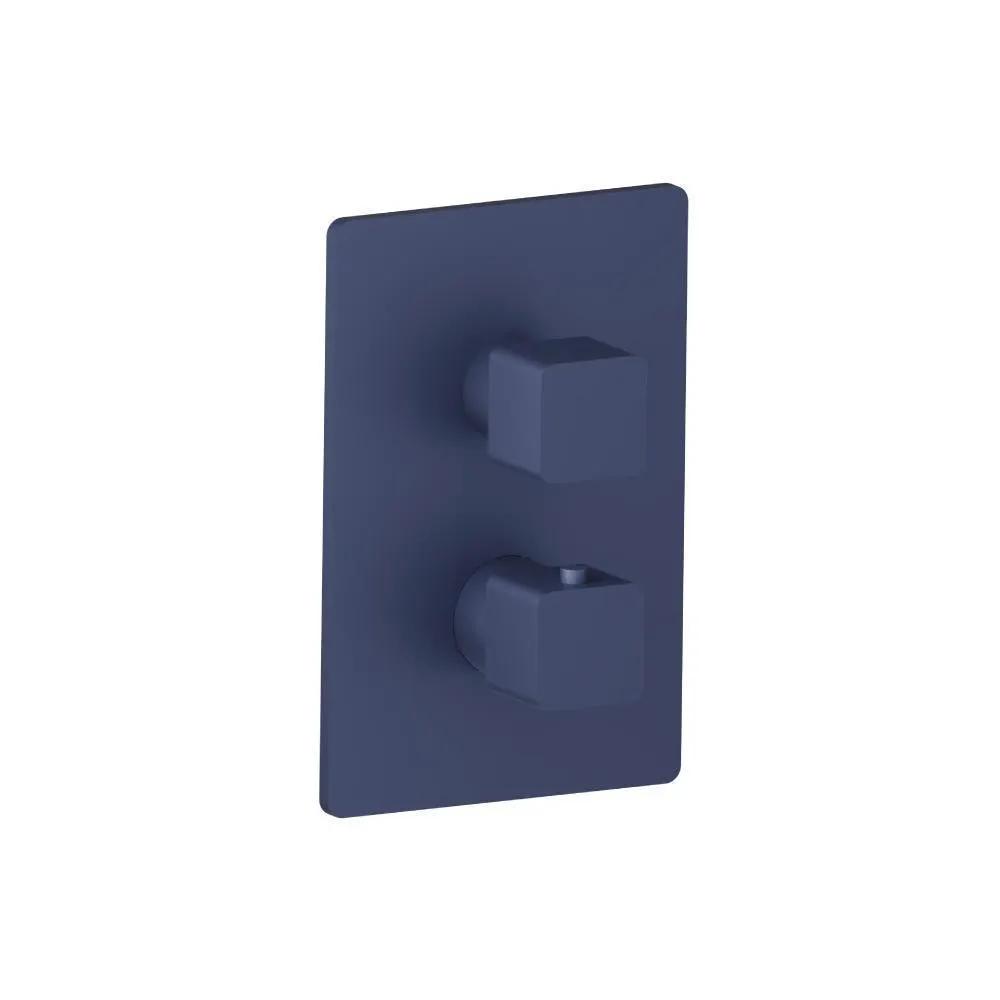

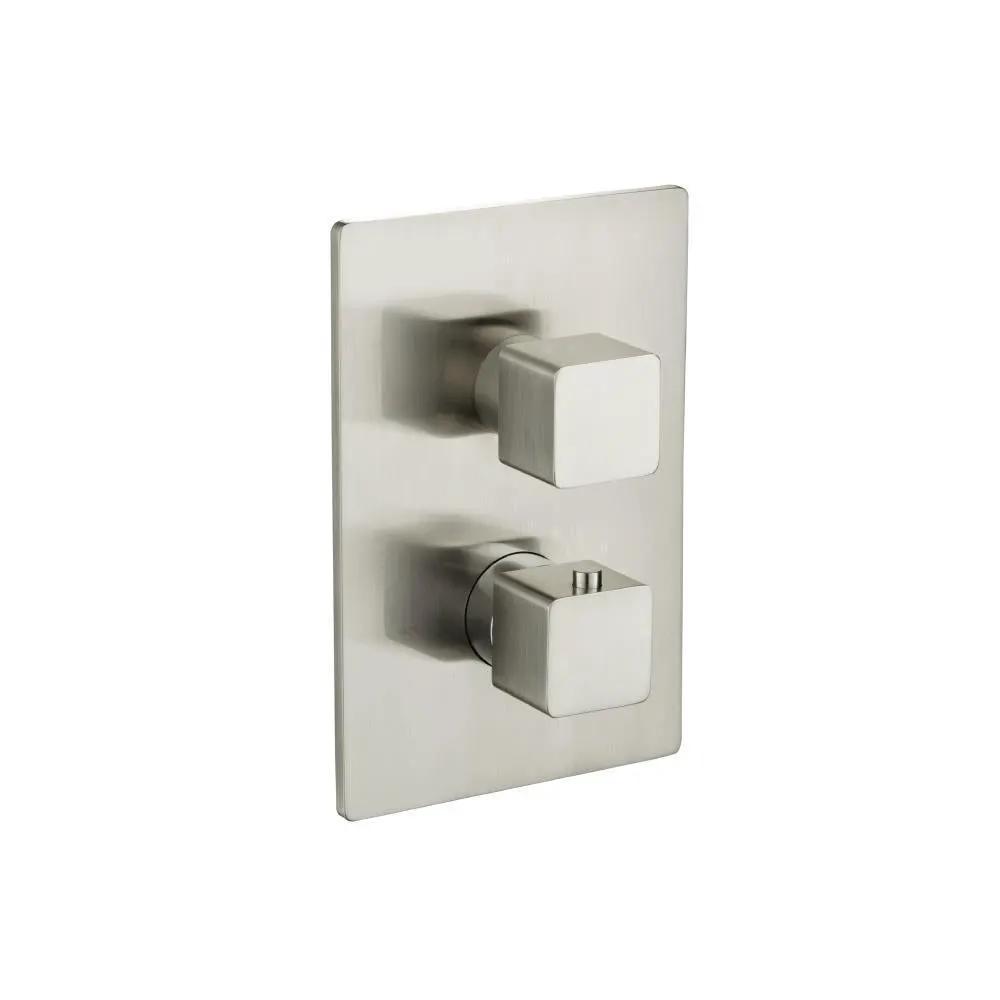

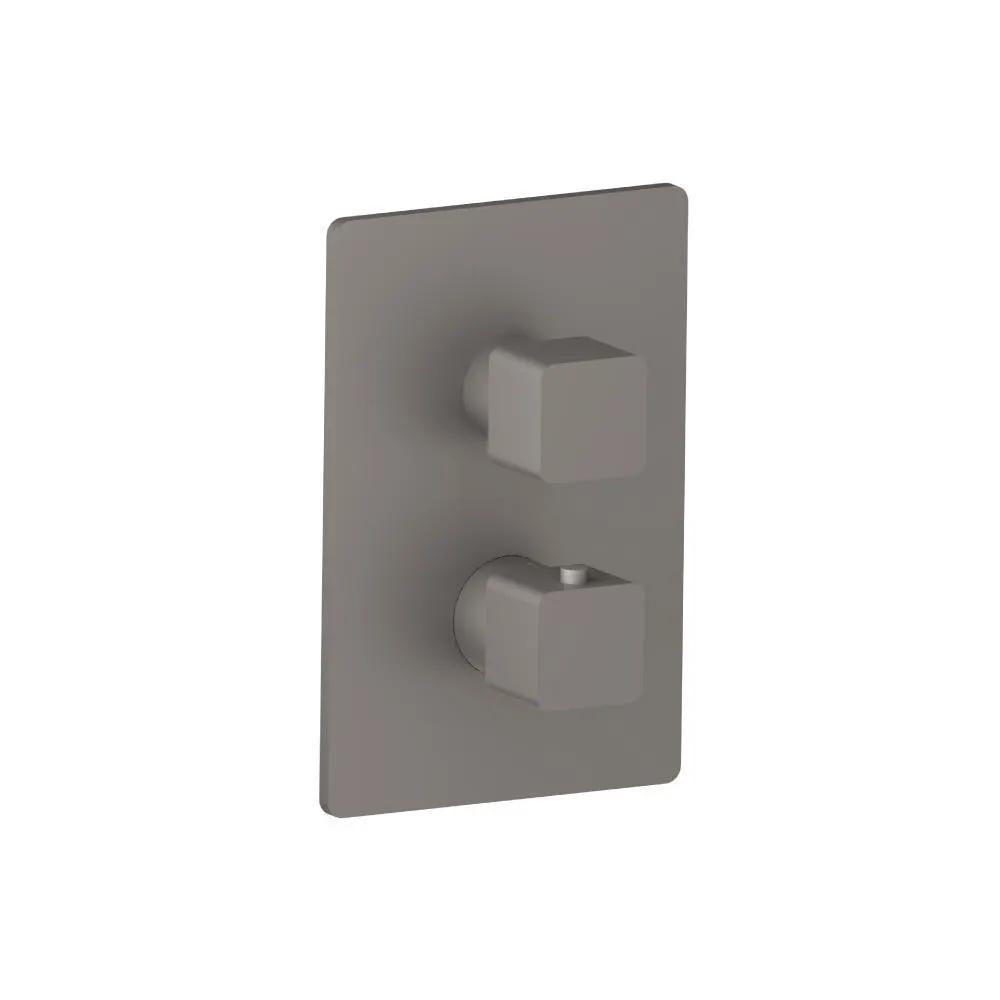

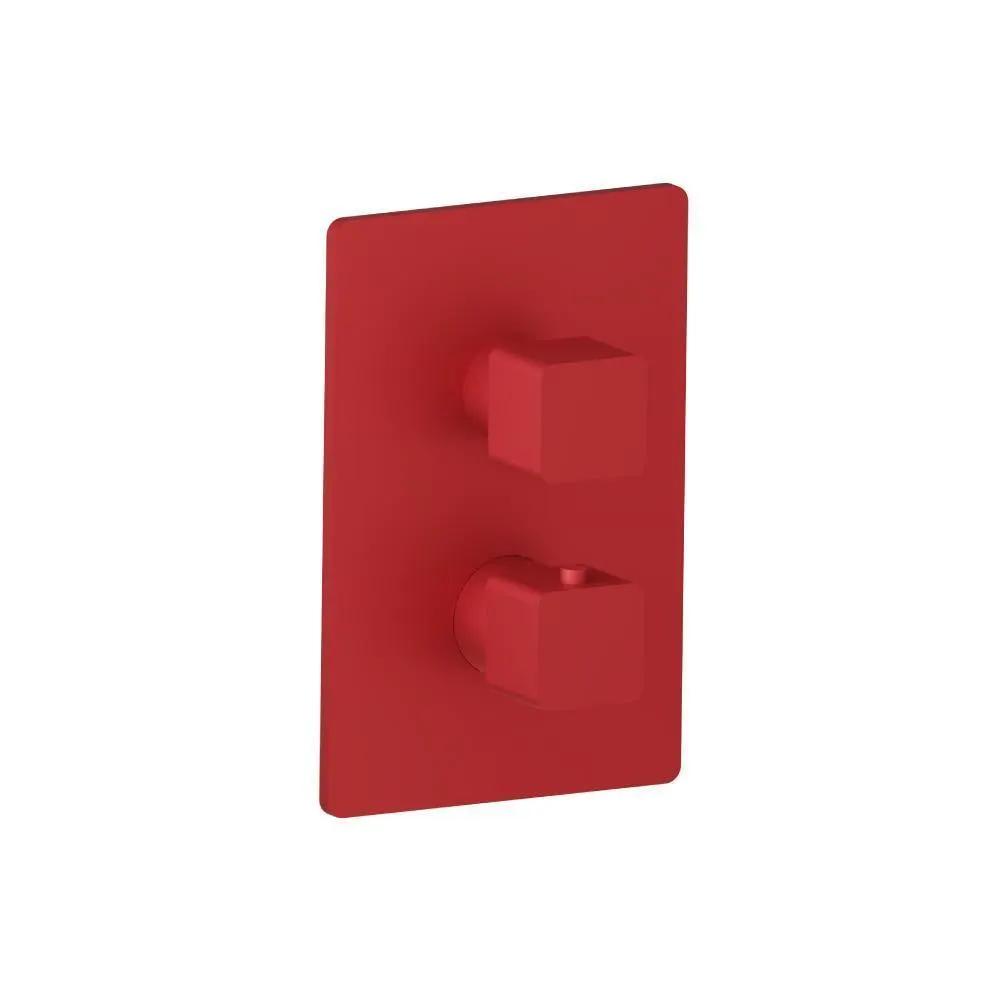

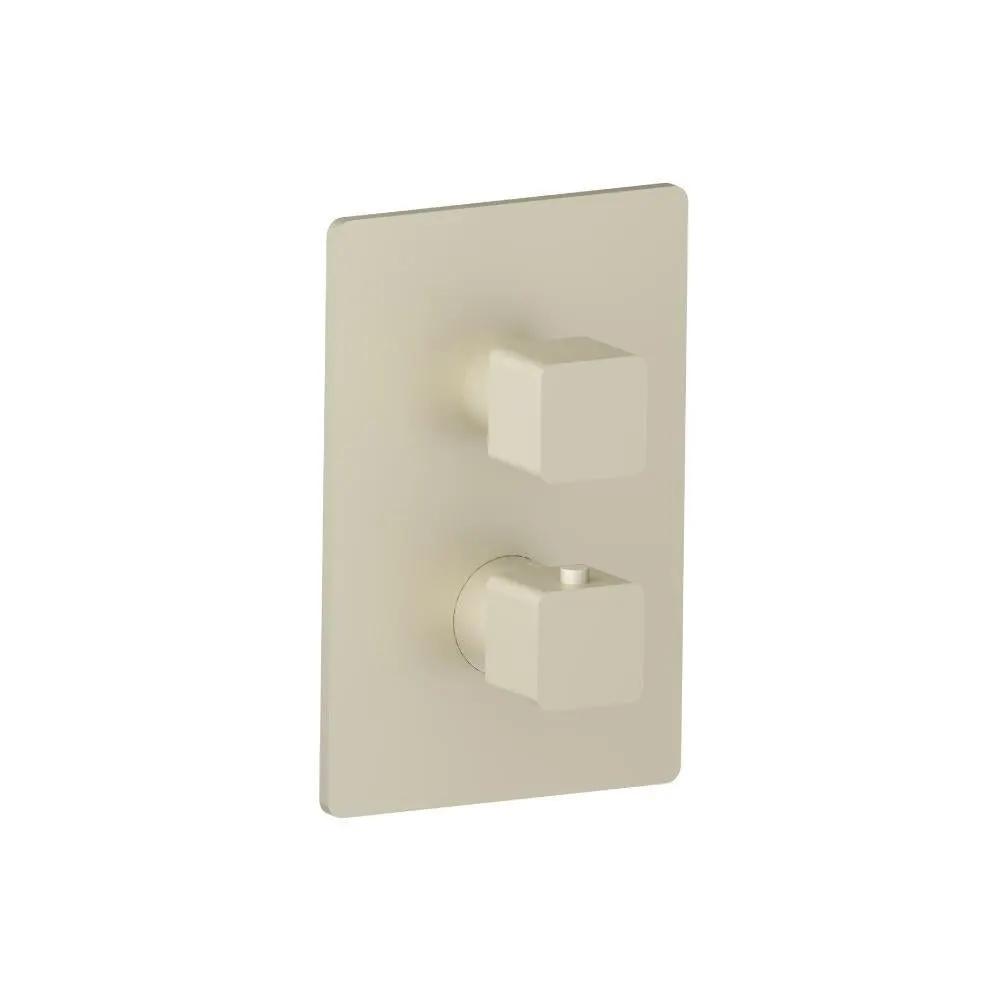

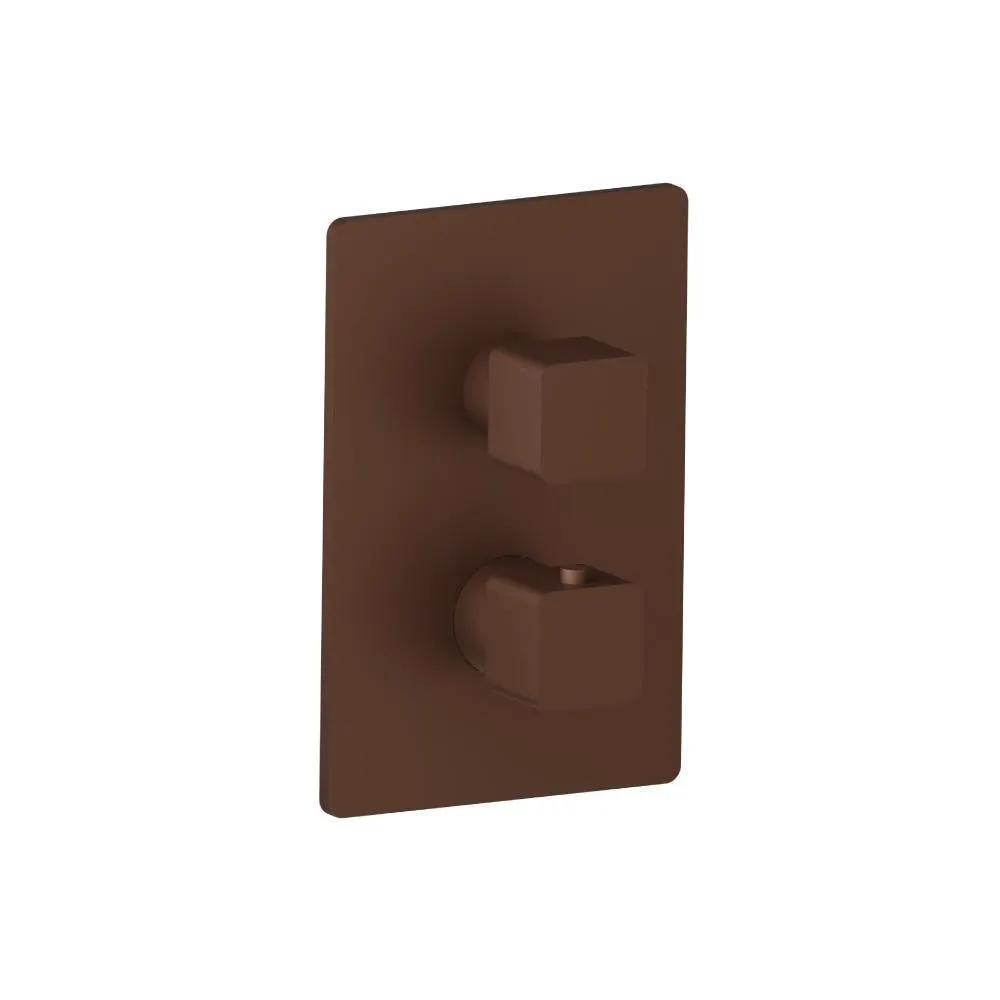

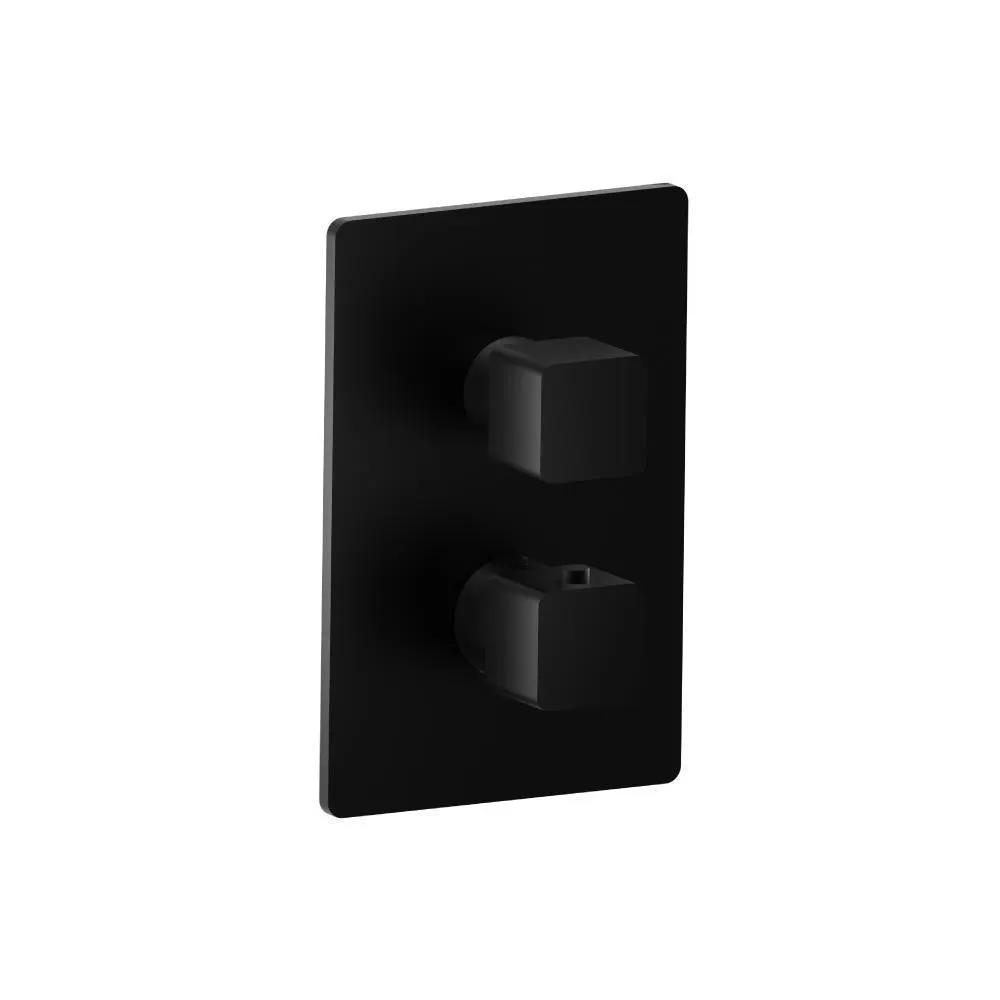

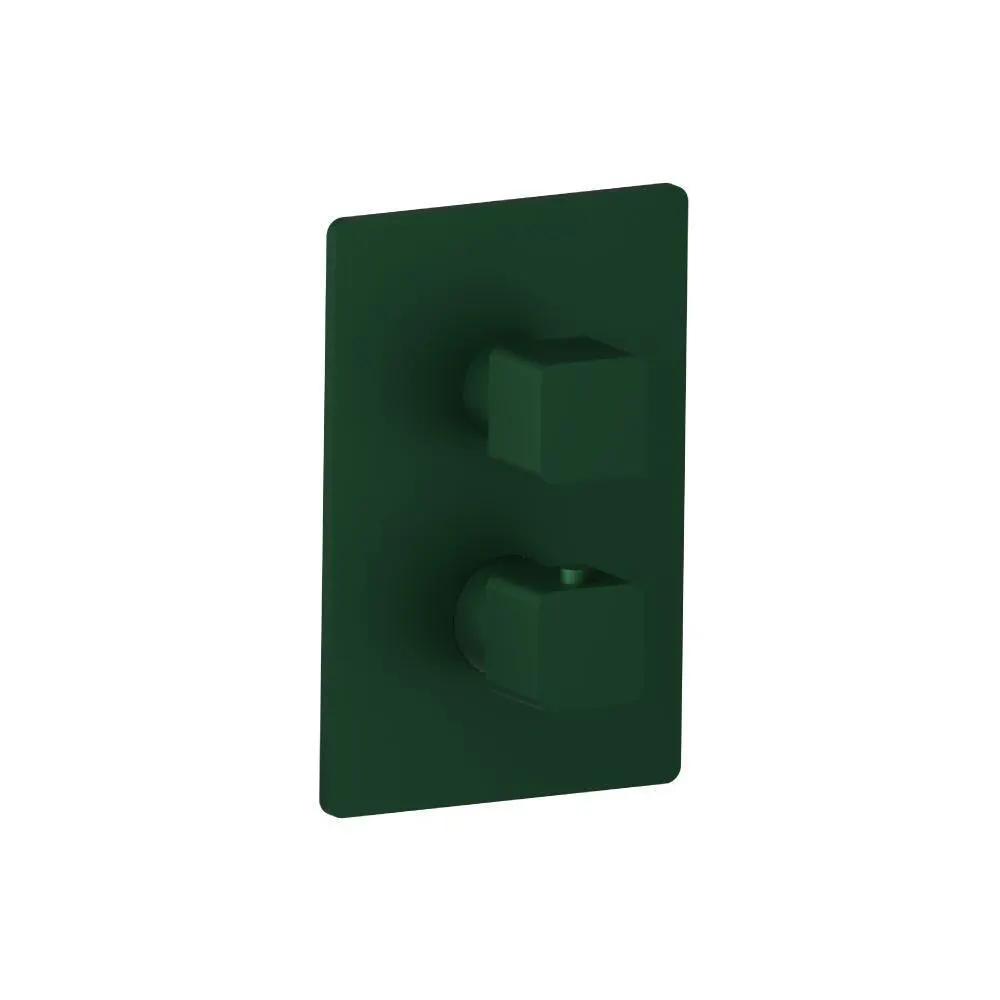

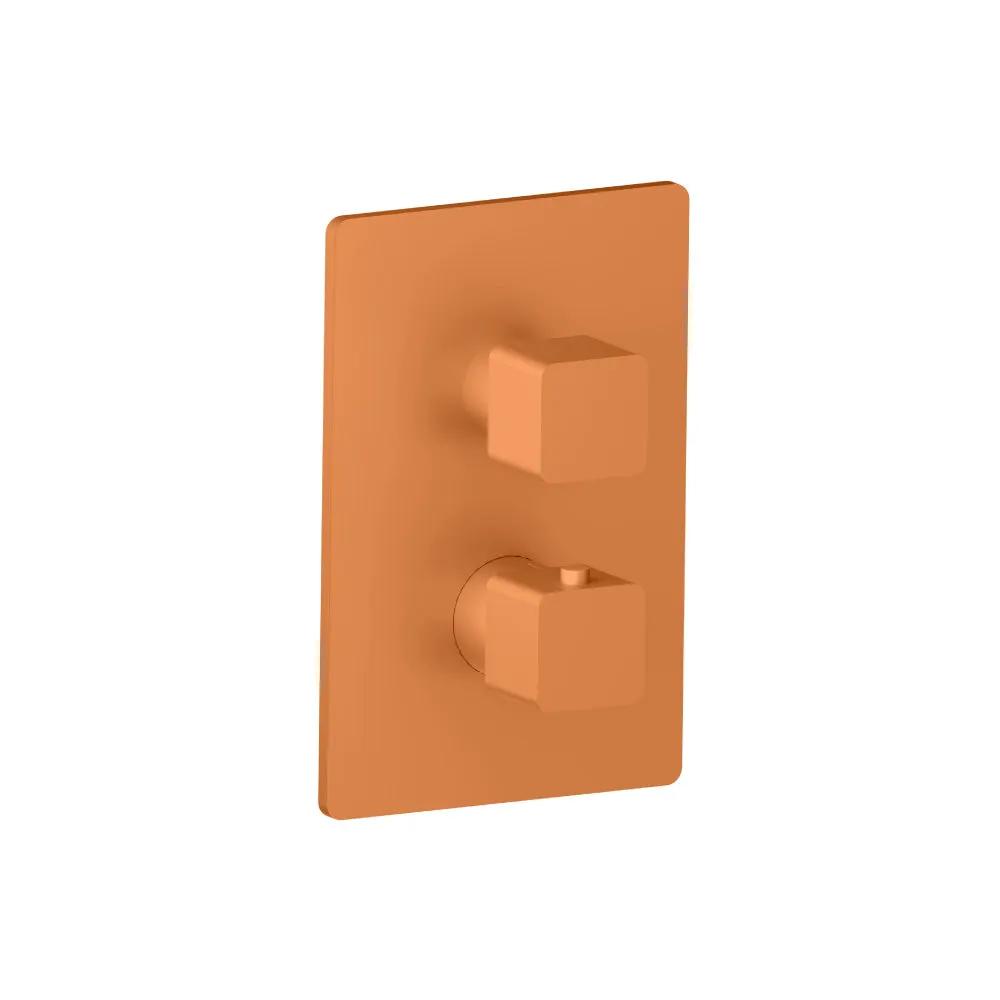

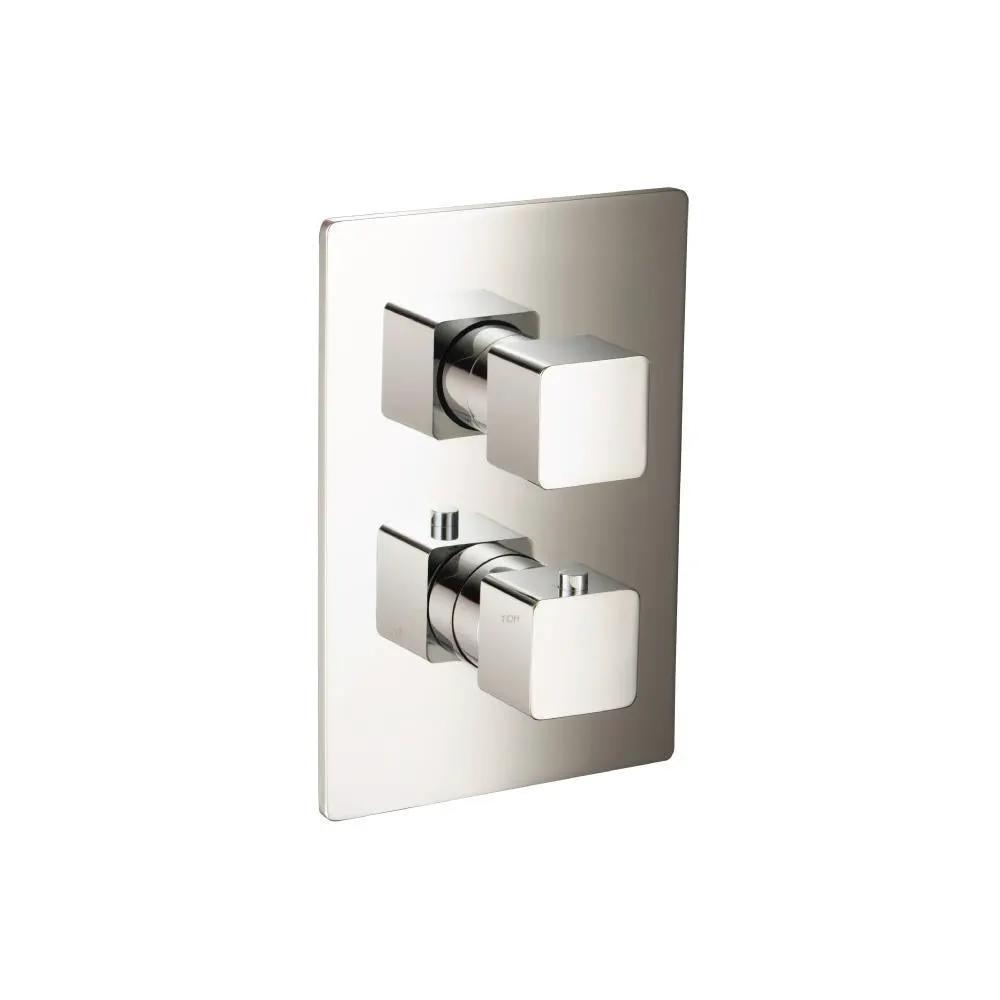

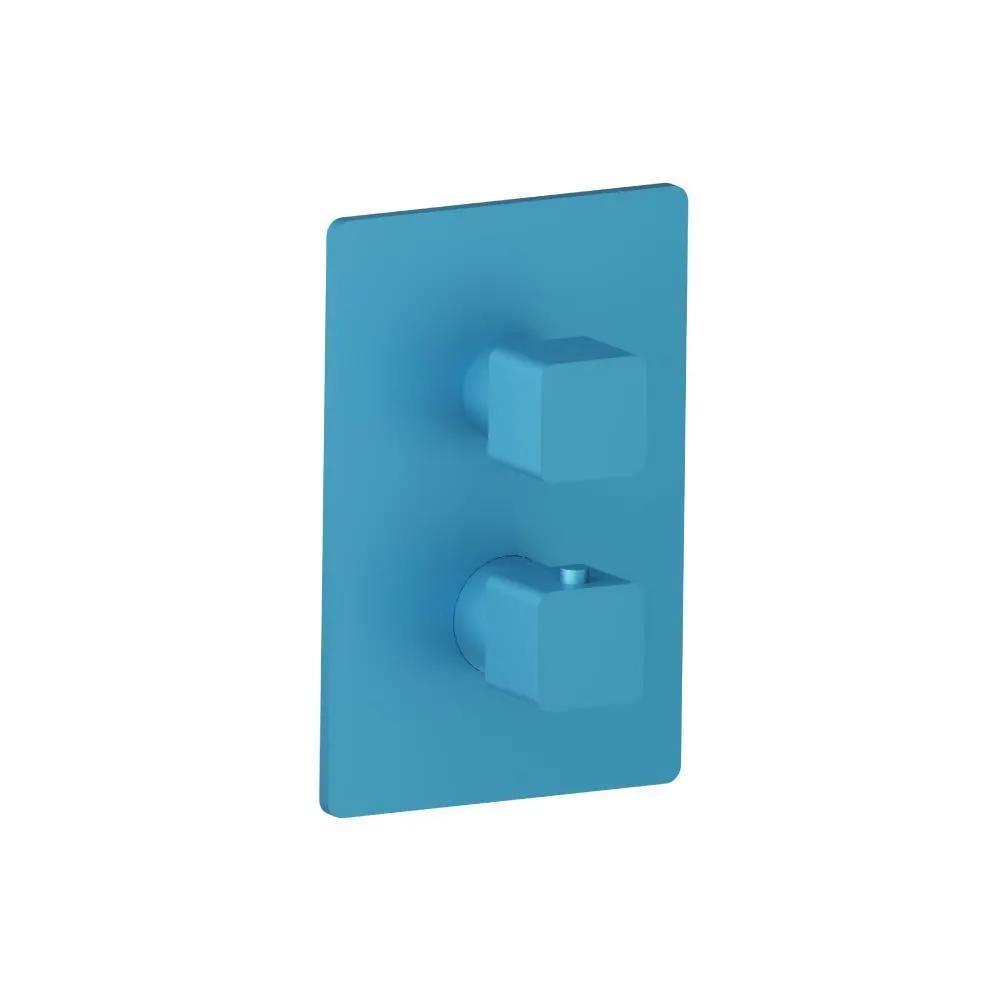

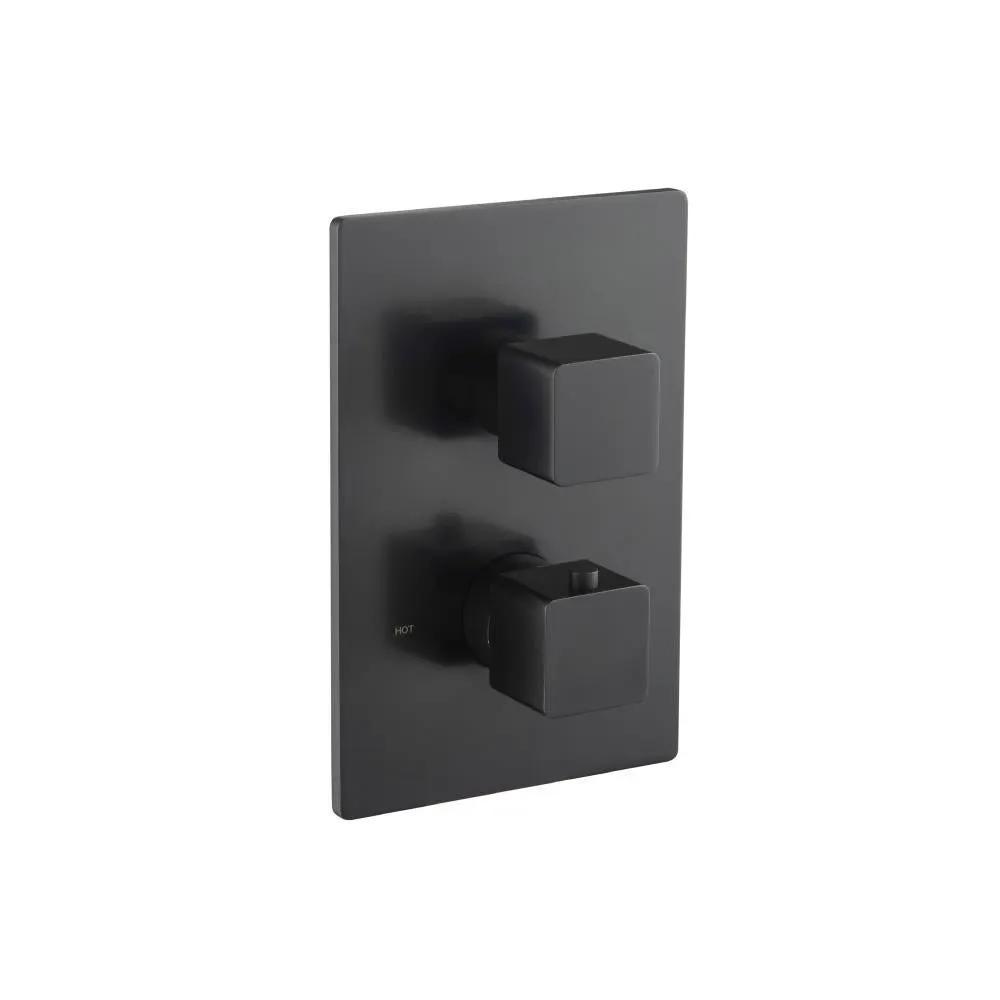

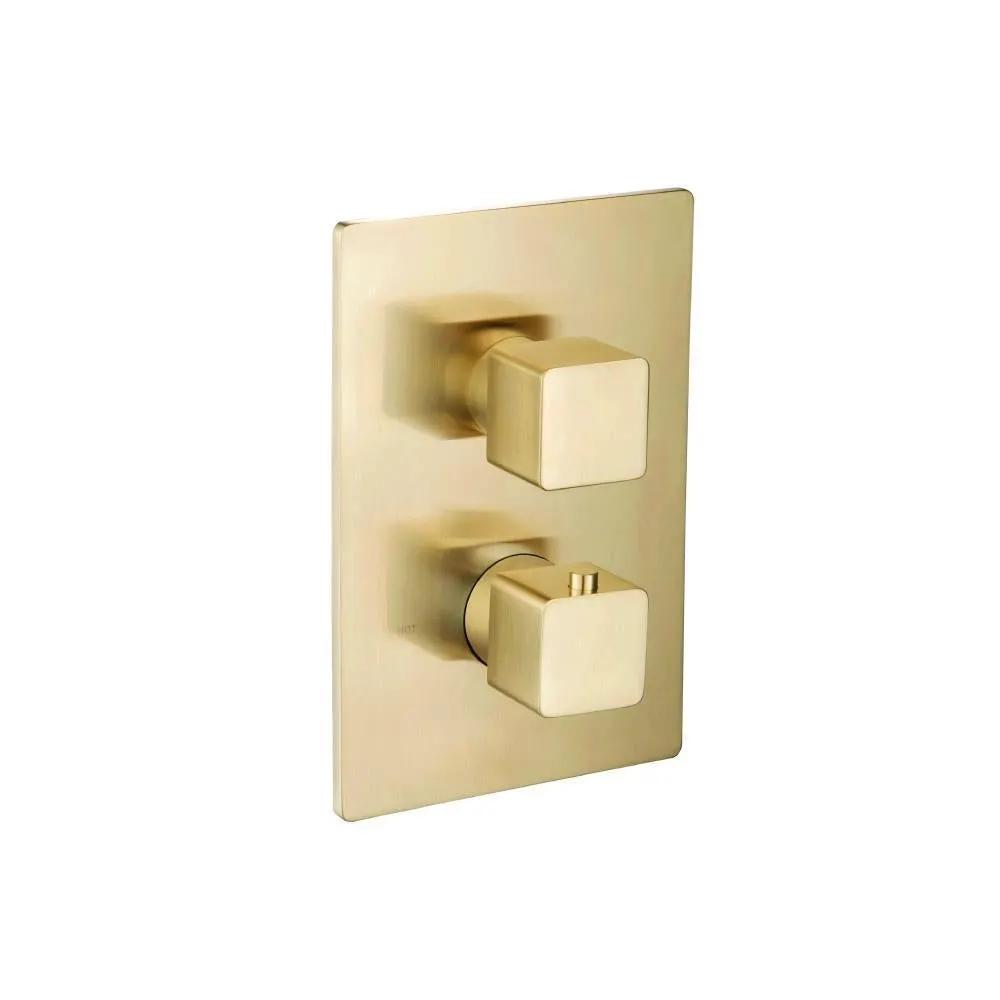

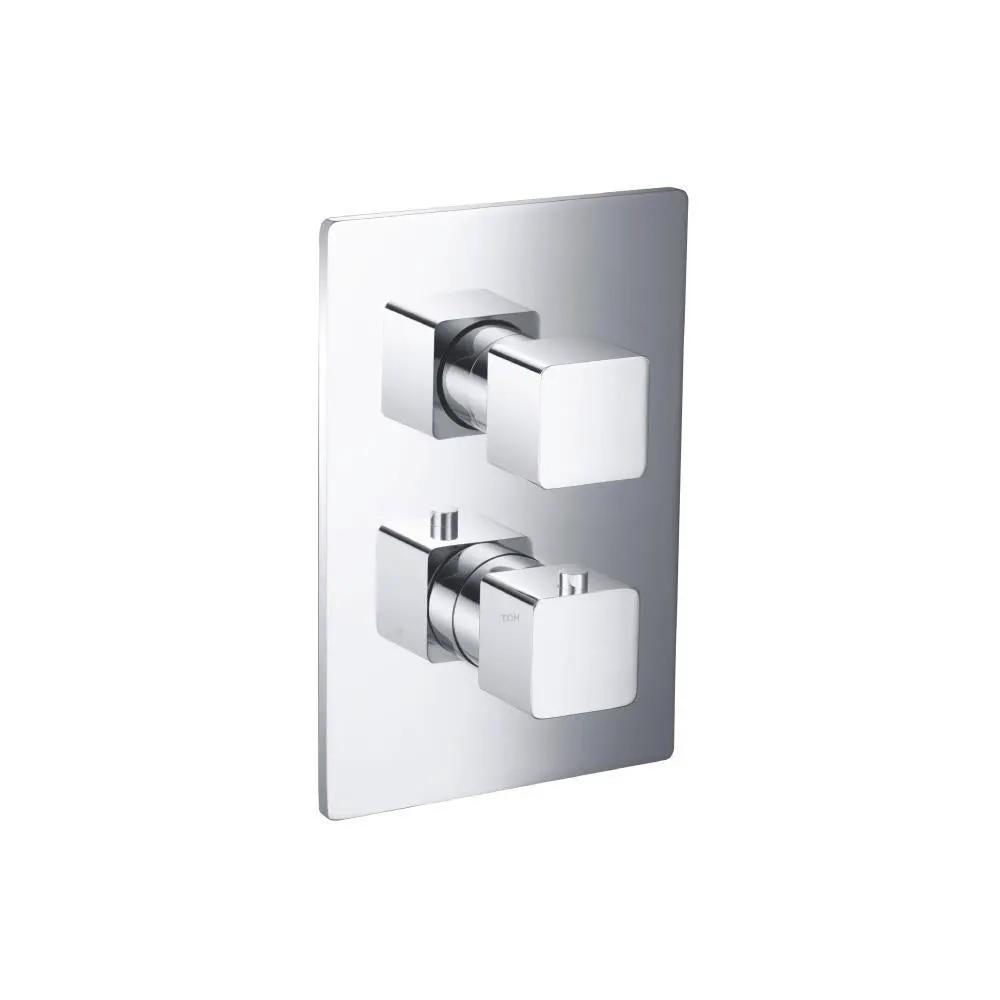

Experience precise control and luxurious reliability with the Flusso Serie 196 3/4" Thermostatic Shower Valve and Trim - 1 Output. This thermostatic valve delivers accurate temperature balance, stable flow, and consistent warm showers, combining Flusso's renowned engineering with solid brass construction, a clean trim plate, and a single output port for streamlined installation and long-lasting performance.
Flusso is known for precision-engineered temperature control, durable brass fixtures, and luxury bathroom hardware that blends performance with refined design. The brand's thermostatic innovations emphasize safety, reliability, and easy service, making Flusso a trusted choice for installers and homeowners seeking enduring quality and consistent flow in contemporary showers worldwide today.
Features and Specifications
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4101 With Integral Service Stops
- Single Output Port
- Extensions Available - TVH.4101E**
- 3/4" NPT connections
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly. The handle knob has a push-button on the side.
- VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 6.49 x 4.44 Inches which are properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Experience durable luxury with Flusso Serie 196 3/4" Thermostatic Shower Valve and Trim - 1 Output, delivering precise temperature control and reliable performance, backed by Flusso's commitment to quality, reliability, and luxury.
