Product details
Focal Point Hardware is an authorized Flusso retailer!

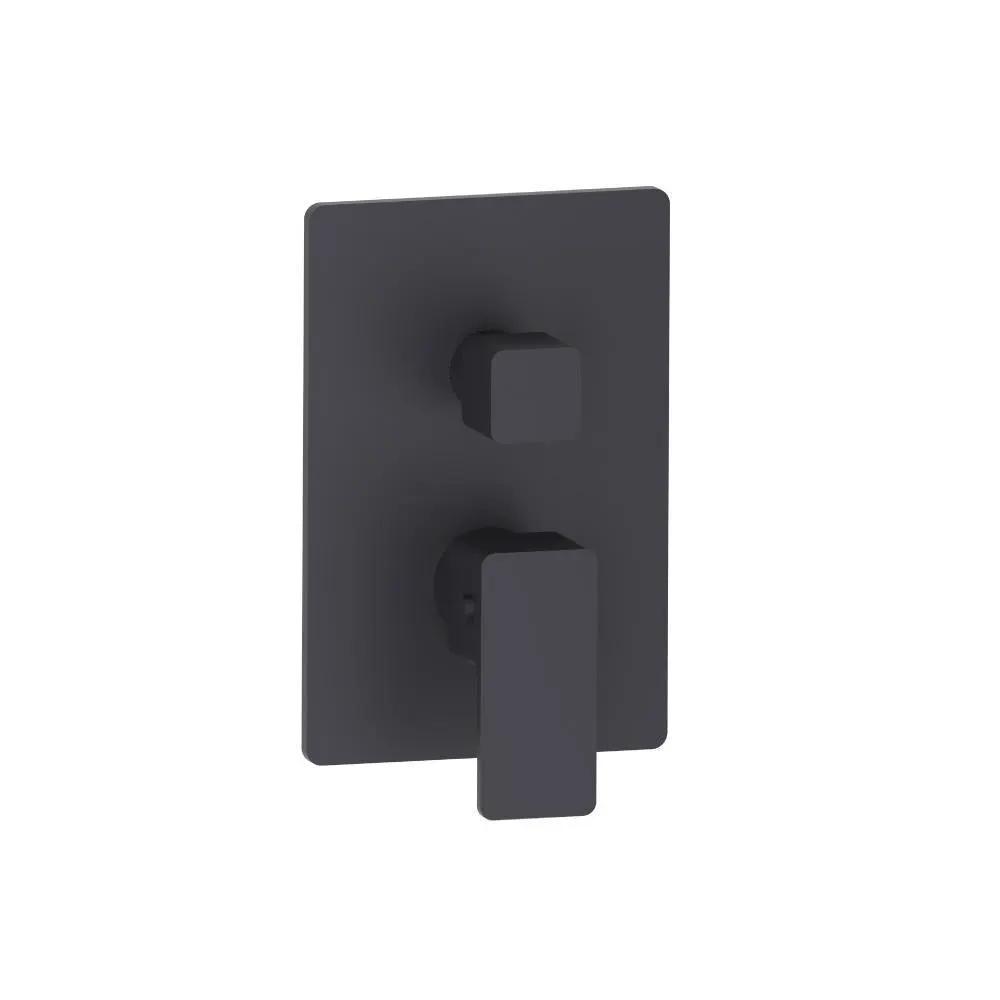

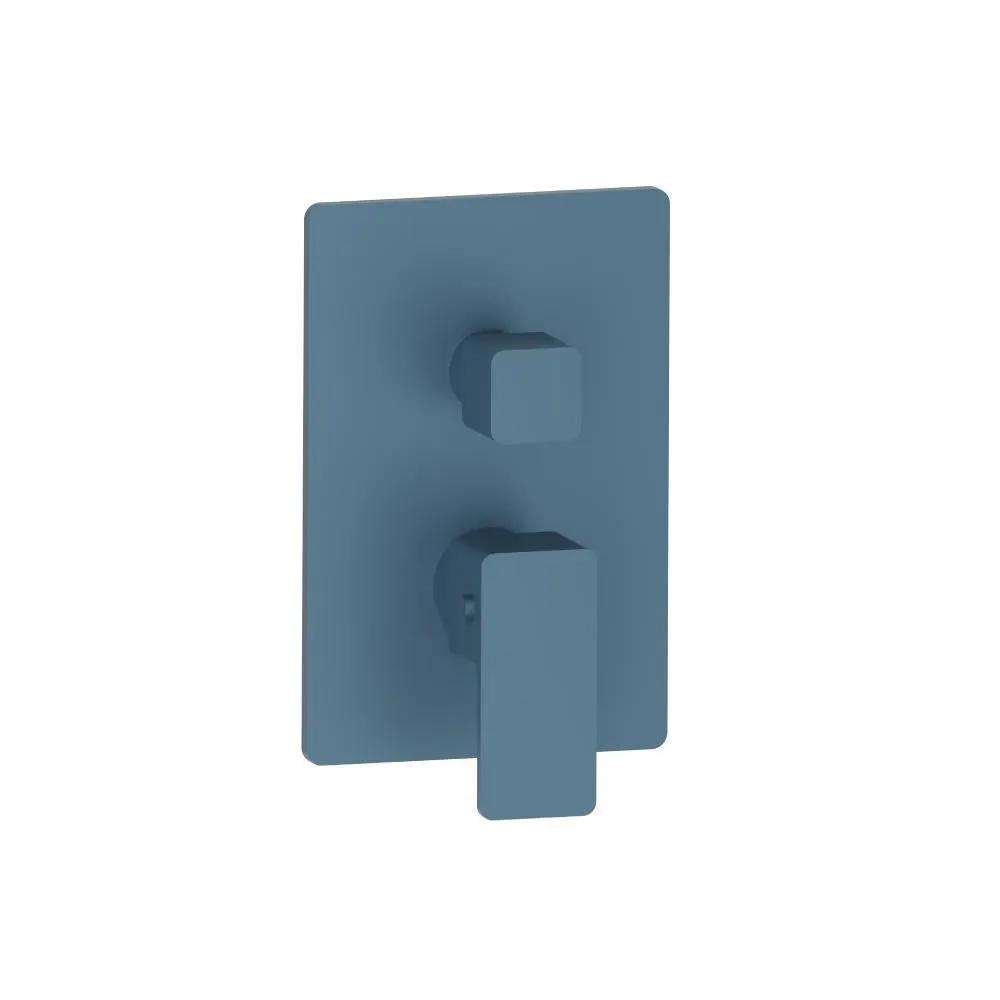

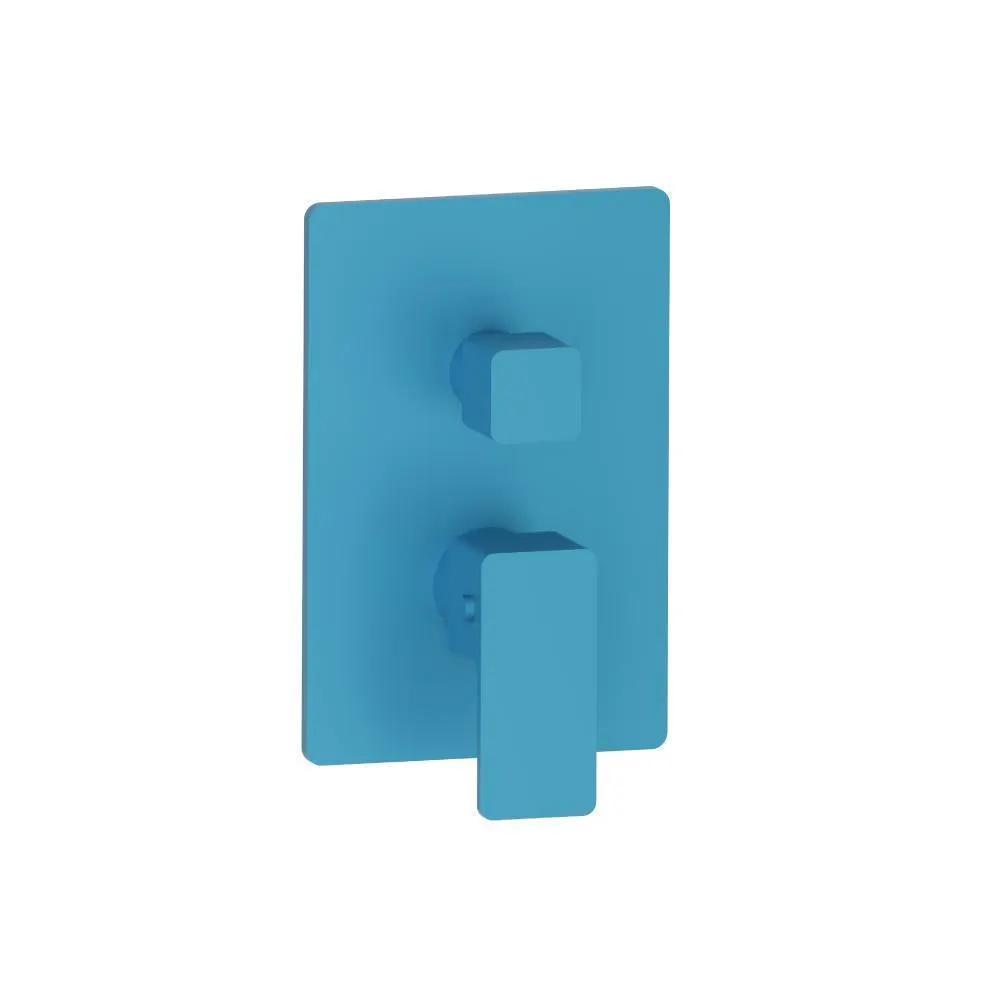

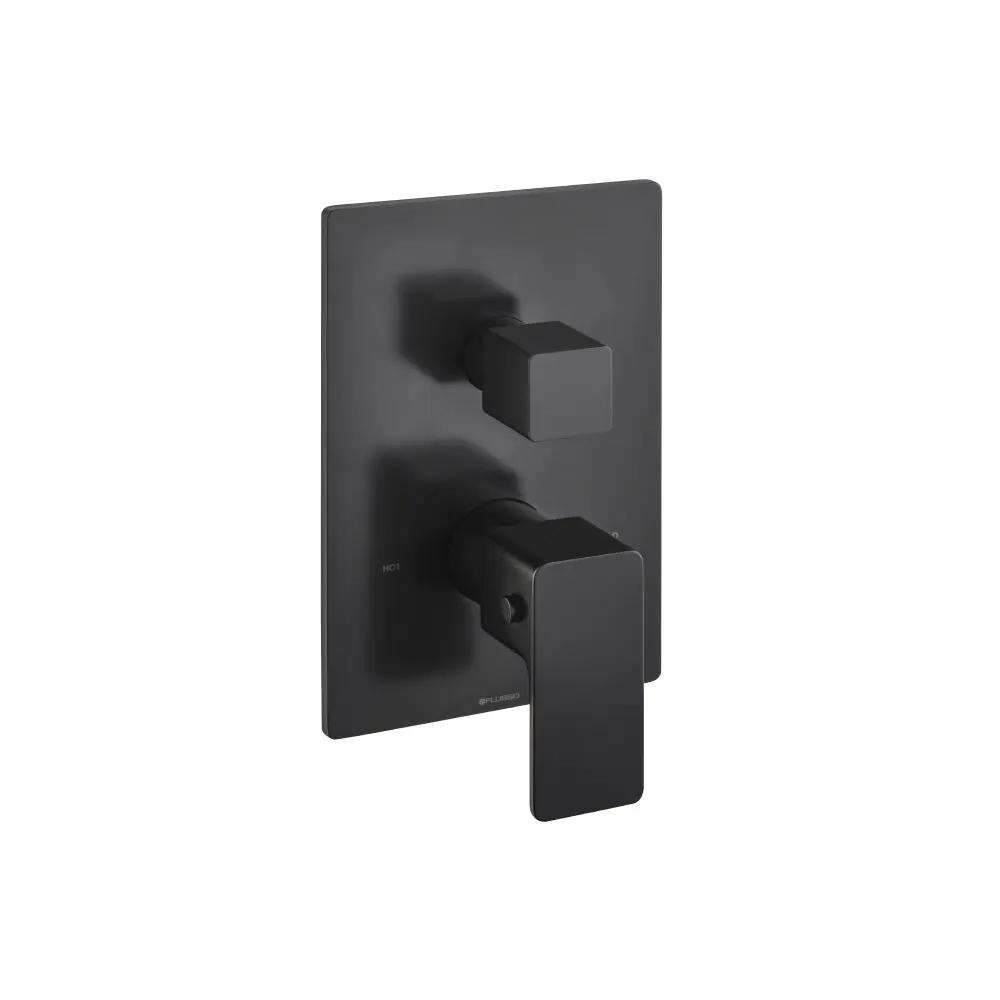

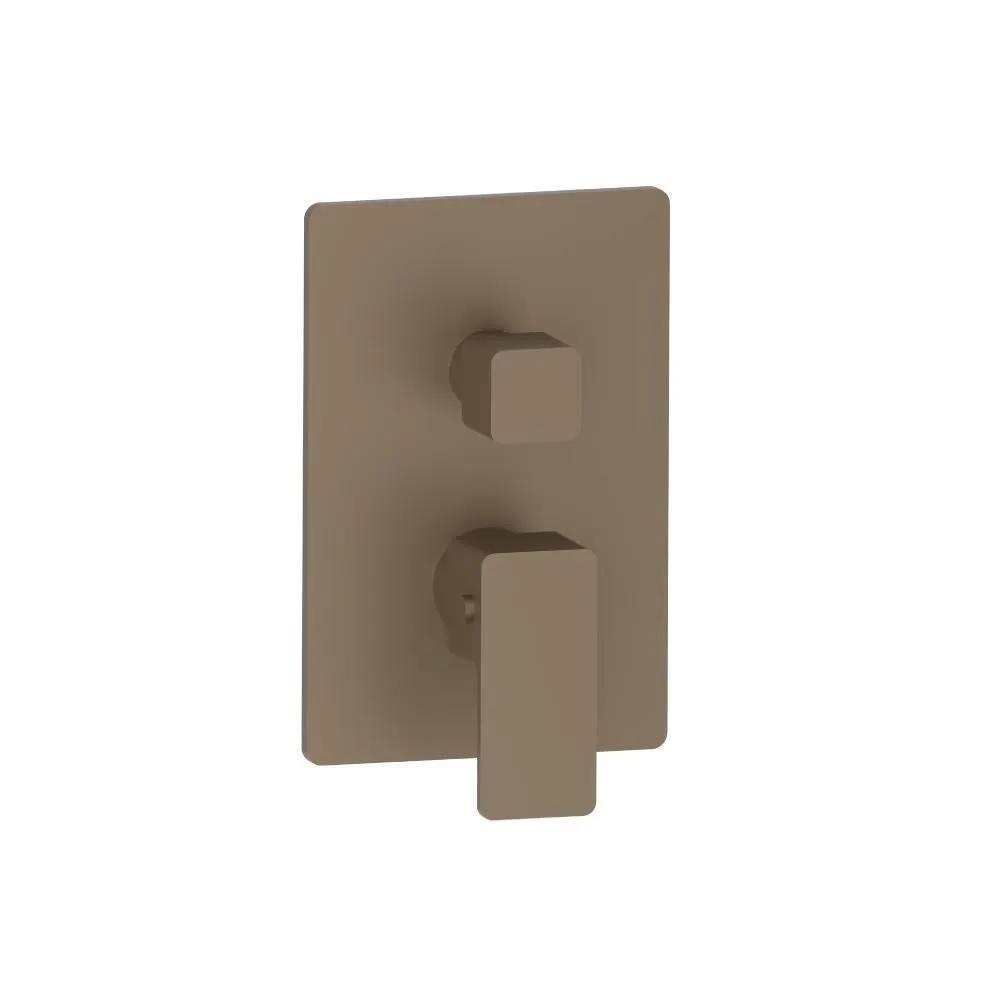

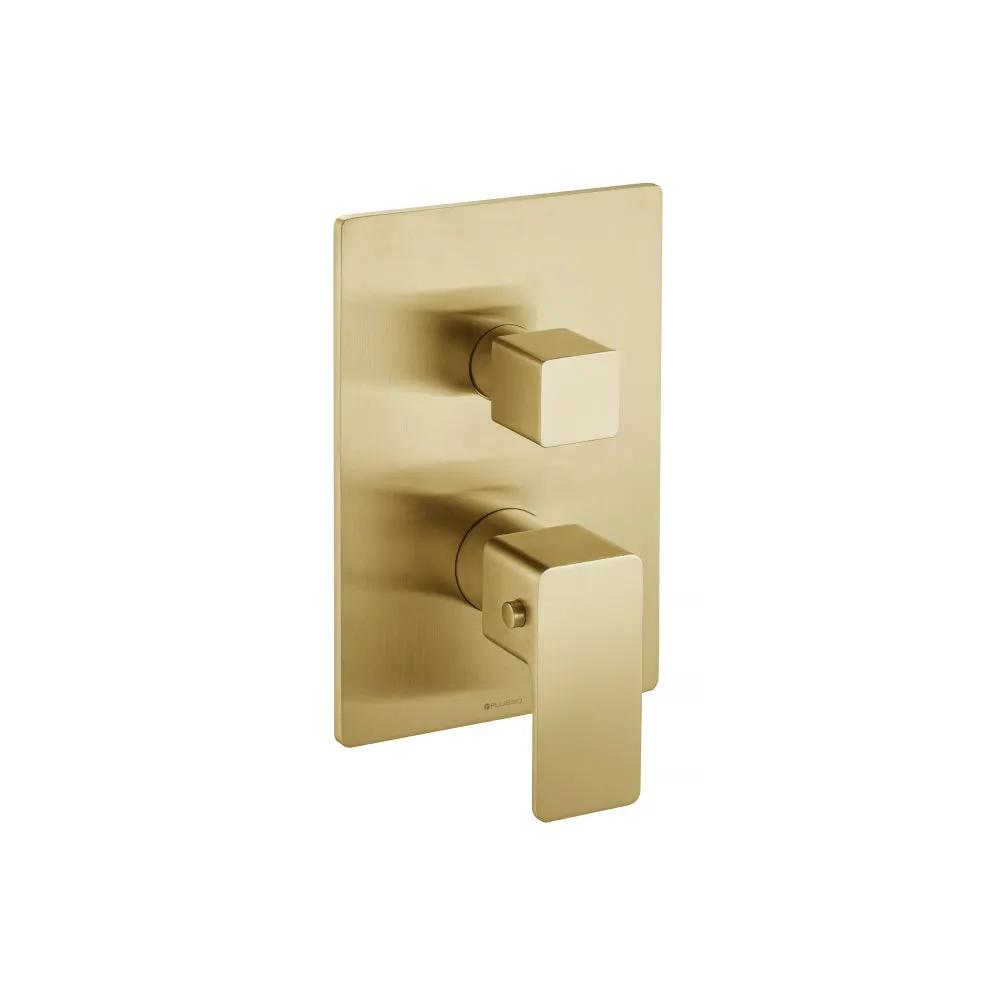

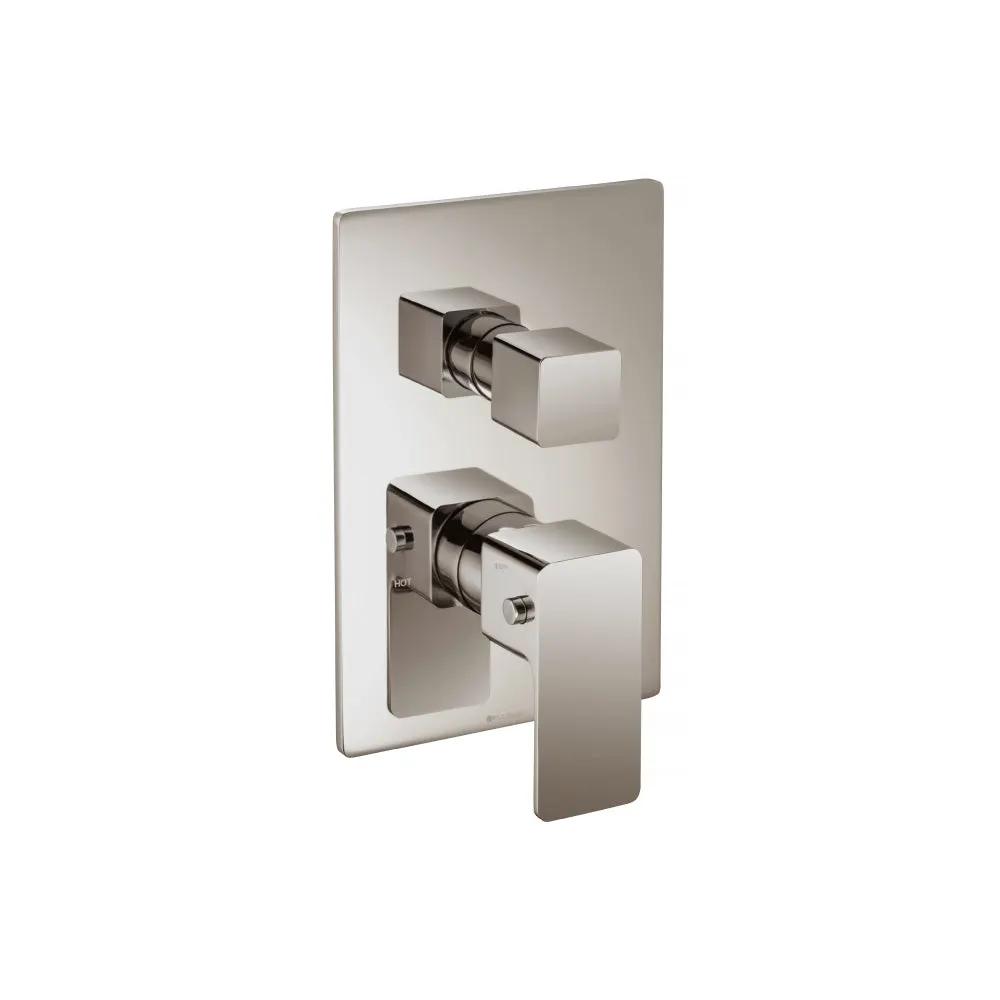

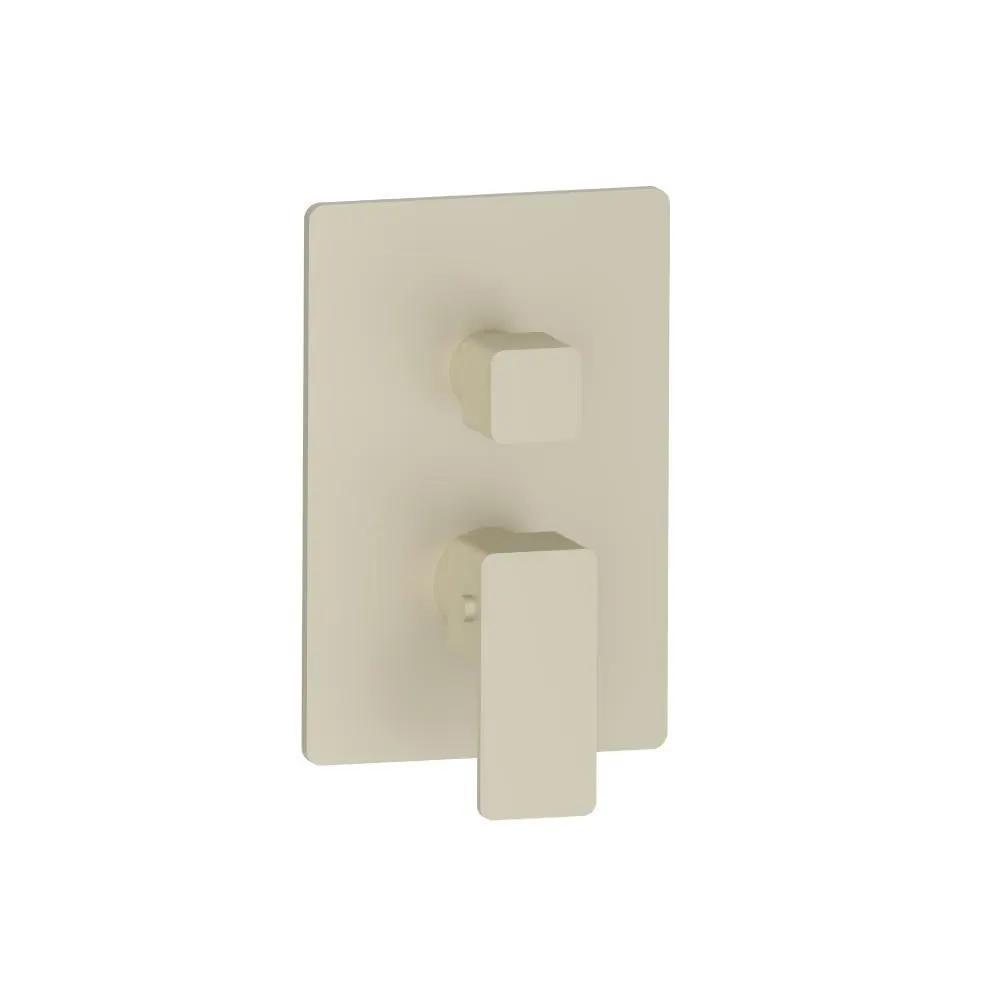

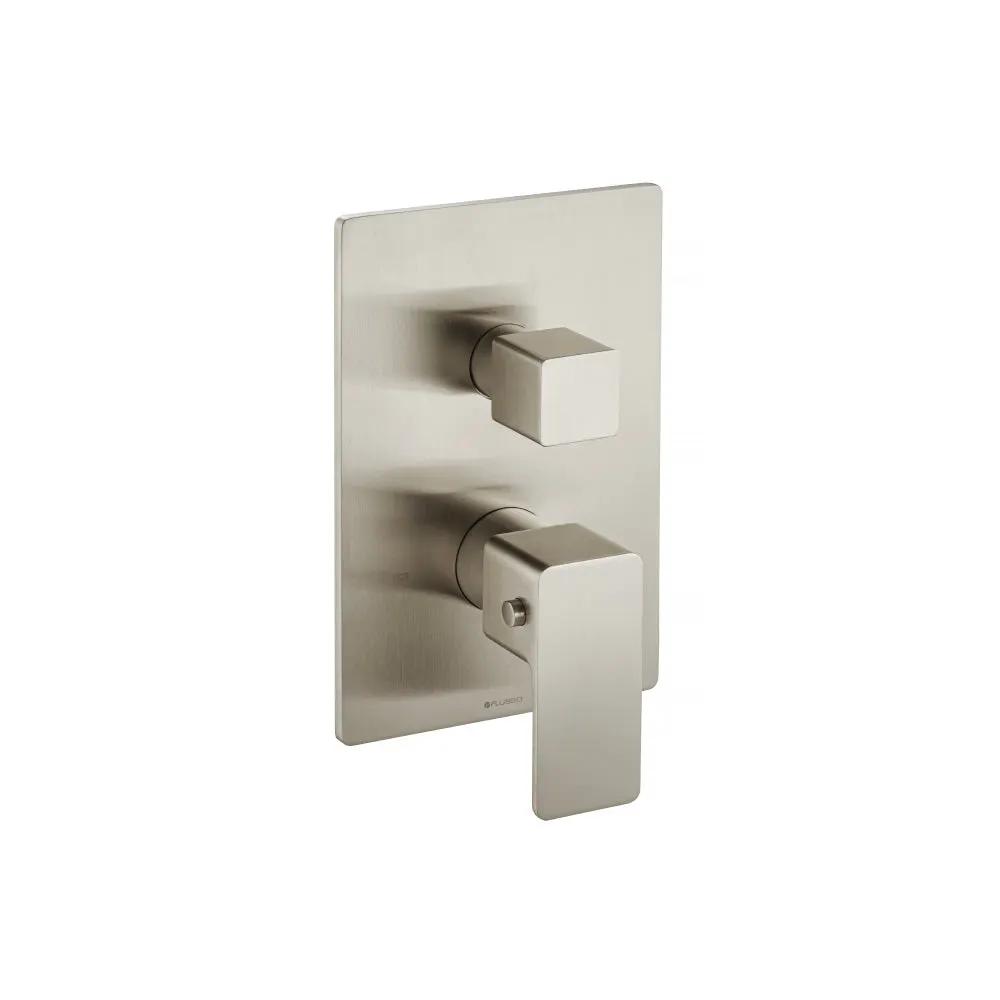

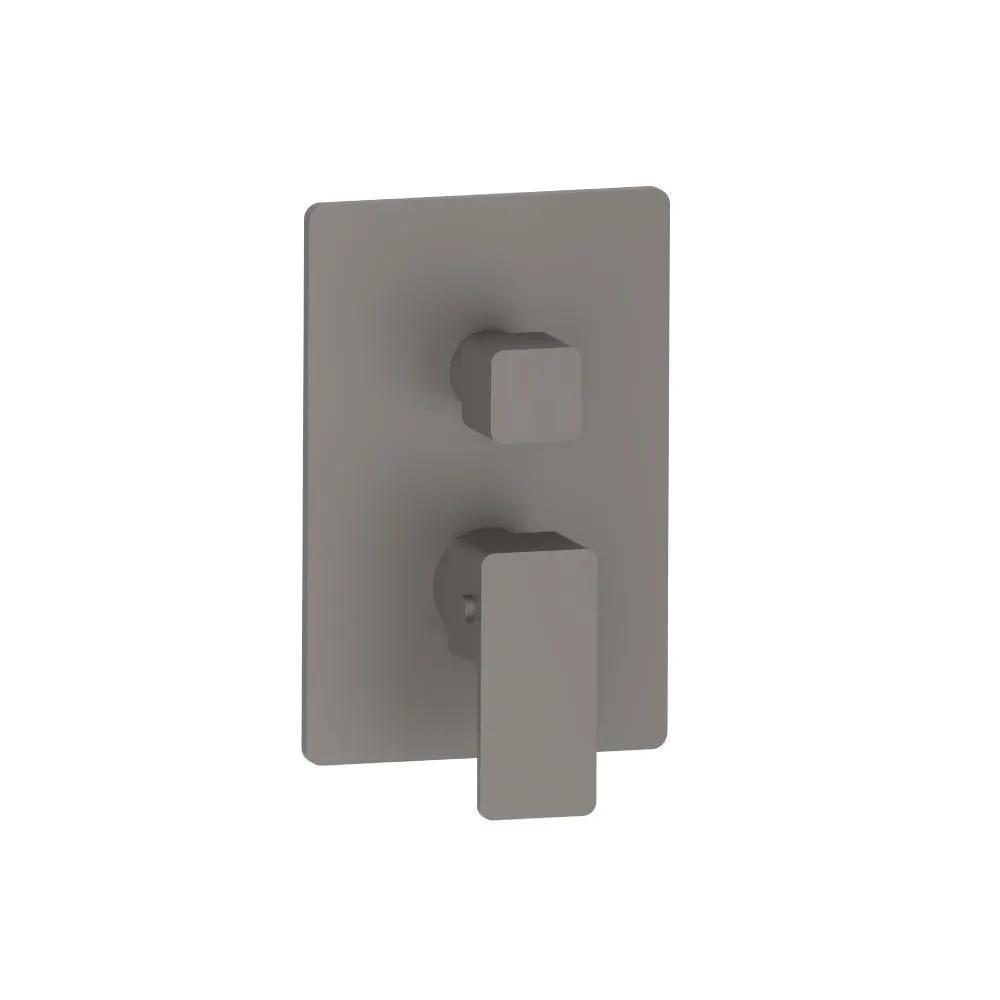

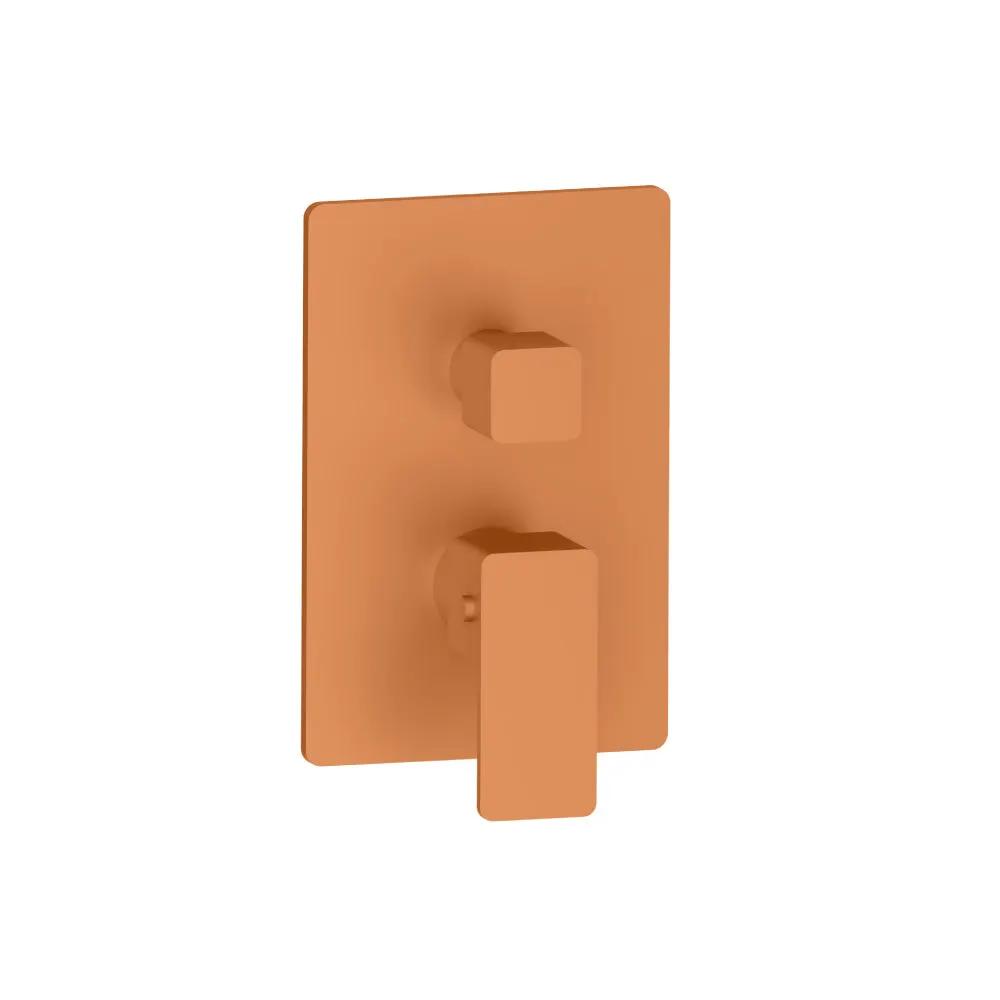

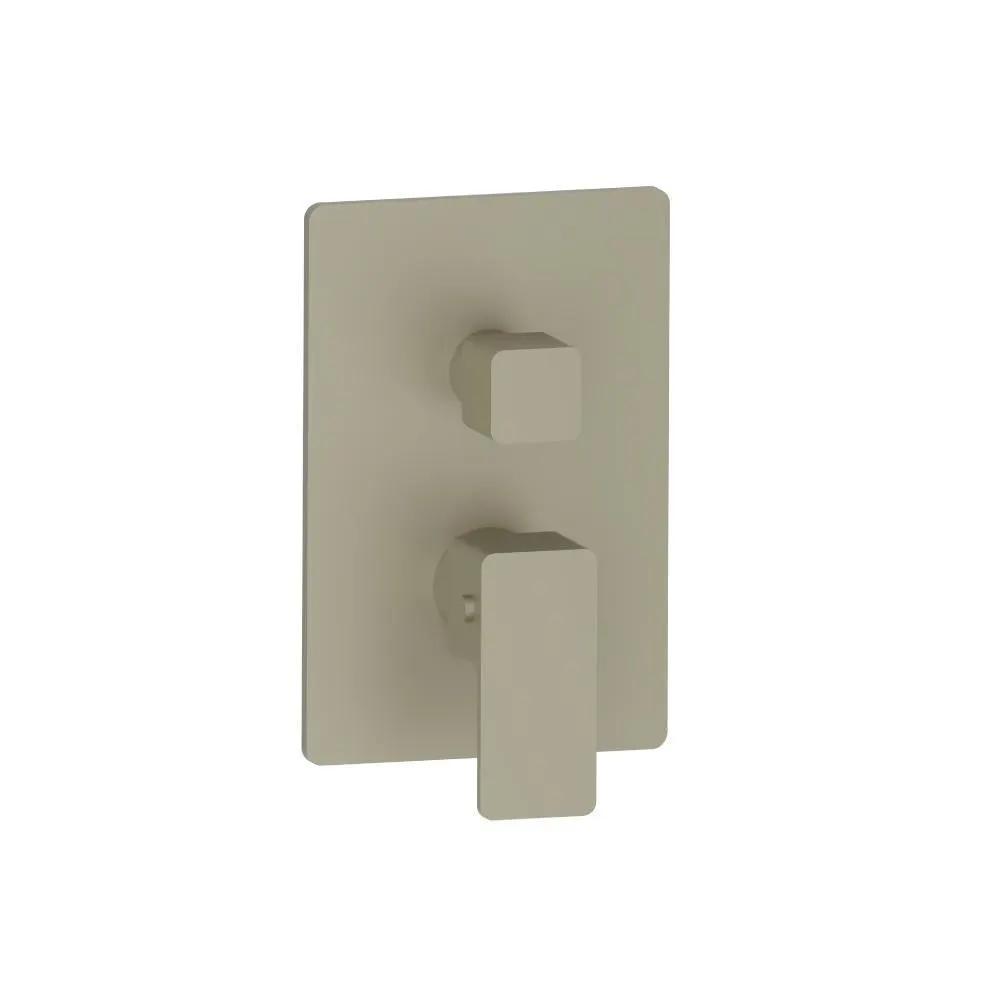

Experience precise temperature control and reliable performance with the Flusso Serie 196 3/4" Thermostatic Shower Valve with Trim - 1 Output. Flusso's precision-engineered thermostatic valve delivers consistent water temperature and seamless flow, while the trim plate provides a clean, modern aesthetic. Ideal for luxury showers, it combines safety features with effortless operation.
Flusso is renowned for premium bathroom hardware engineered for reliability, precision, and durability. With solid brass construction and meticulous craftsmanship, Flusso products emphasize long-lasting performance, smooth temperature control, and modern aesthetics that elevate upscale showers and baths. This commitment to quality makes Flusso a trusted choice for discerning homeowners and designers alike.
Features and Specifications
- 3/4" NPT connections
- 1 water output
- 2 settings or positions on the top handle: Position 1 - Output 1 Active; Position 2 - OFF - No Water Flow
- Bottom handle sets the temperature
- There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- The volume of water is controlled by top most handle
- The top handle is capable of controlling the volume of water from a trickle to full flow
- Rough In Spec: distance from back of valve to finished tile should be between 2.77” and 3.44”
- The valve must be installed straight and not at an angle or upside down
- If tile is thicker or valve installed in wall is too deep, extension kits are available and can be used for elongating both handles of the valve
- Cut Out Dimensions - 6.49 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut out hole in the wall
- Trims - The trims comprise of a well finished cover plate and handle knobs
- The trim plate is used to cover the wall and has markings for ON/OFF and HOT/COLD
- Over the temperature control knob, is an anti-scald temperature stop ring
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4101
- With Integral Service Stops
- Single Output
- Extensions Available - TVH.4101E**
Enjoy a refined shower experience with dependable performance and elegant Flusso craftsmanship, backed by a brand known for quality, reliability, and luxury. The Serie 196 valve delivers precision engineering with durable materials for lasting comfort and style.
