Product details
Focal Point Hardware is an authorized Flusso retailer!

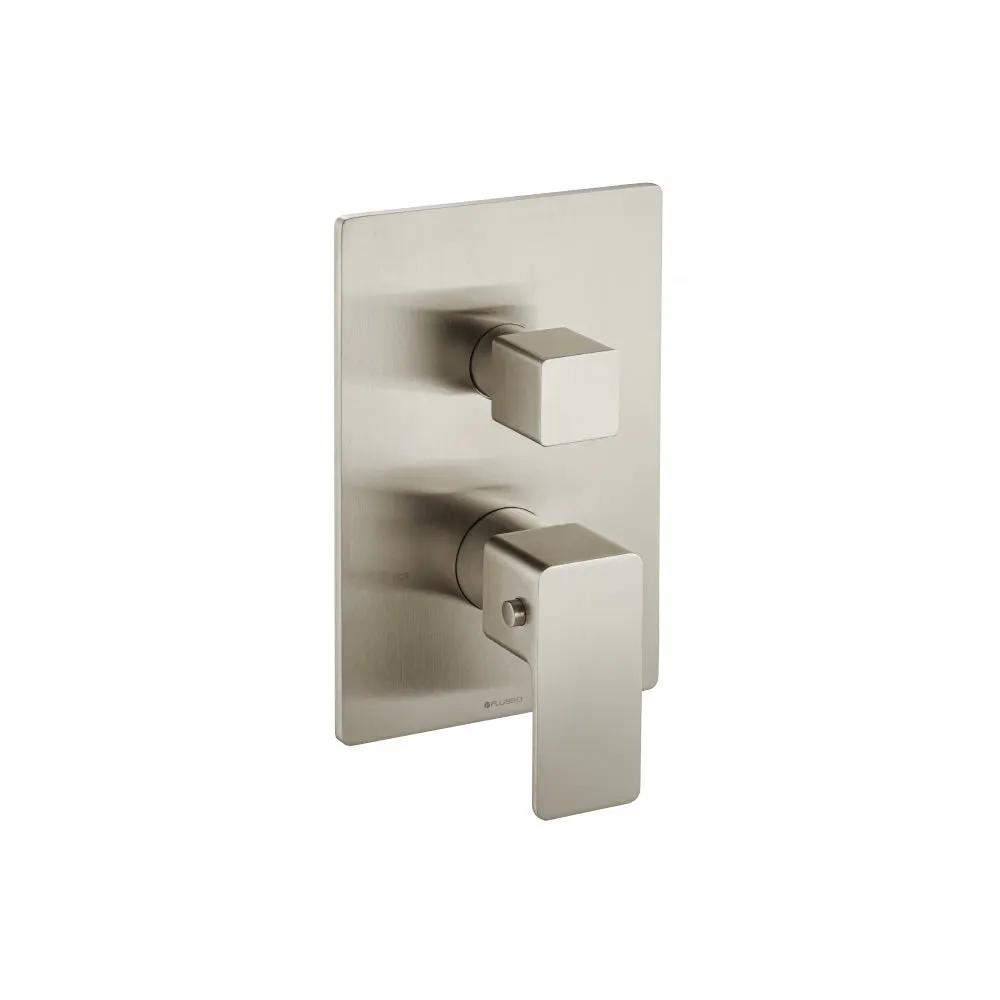

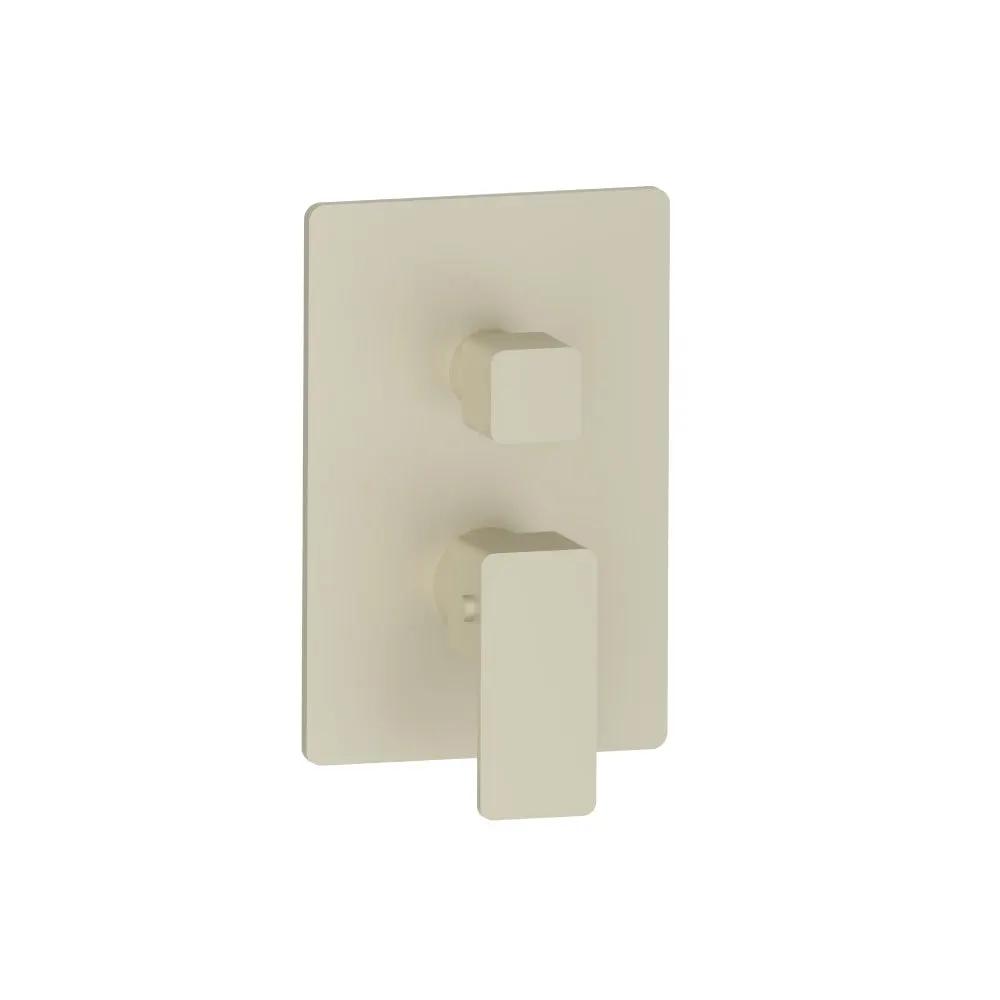

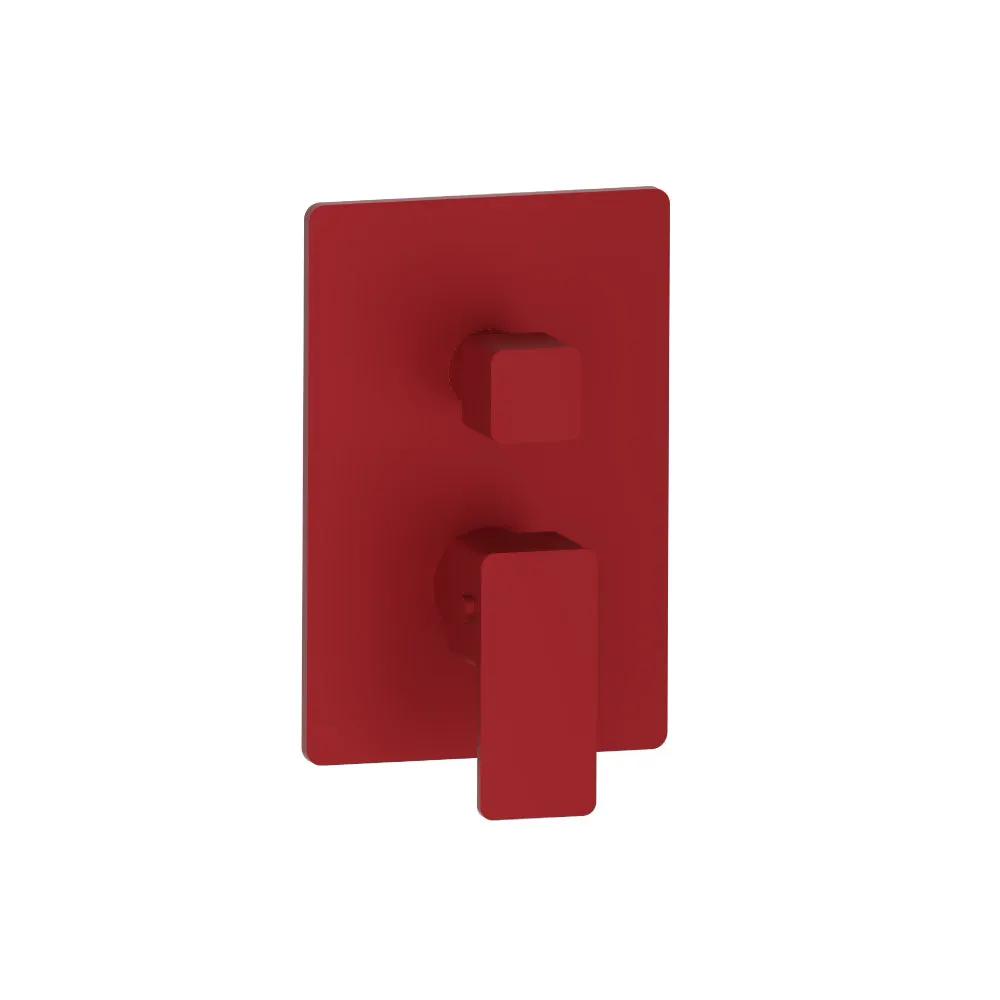

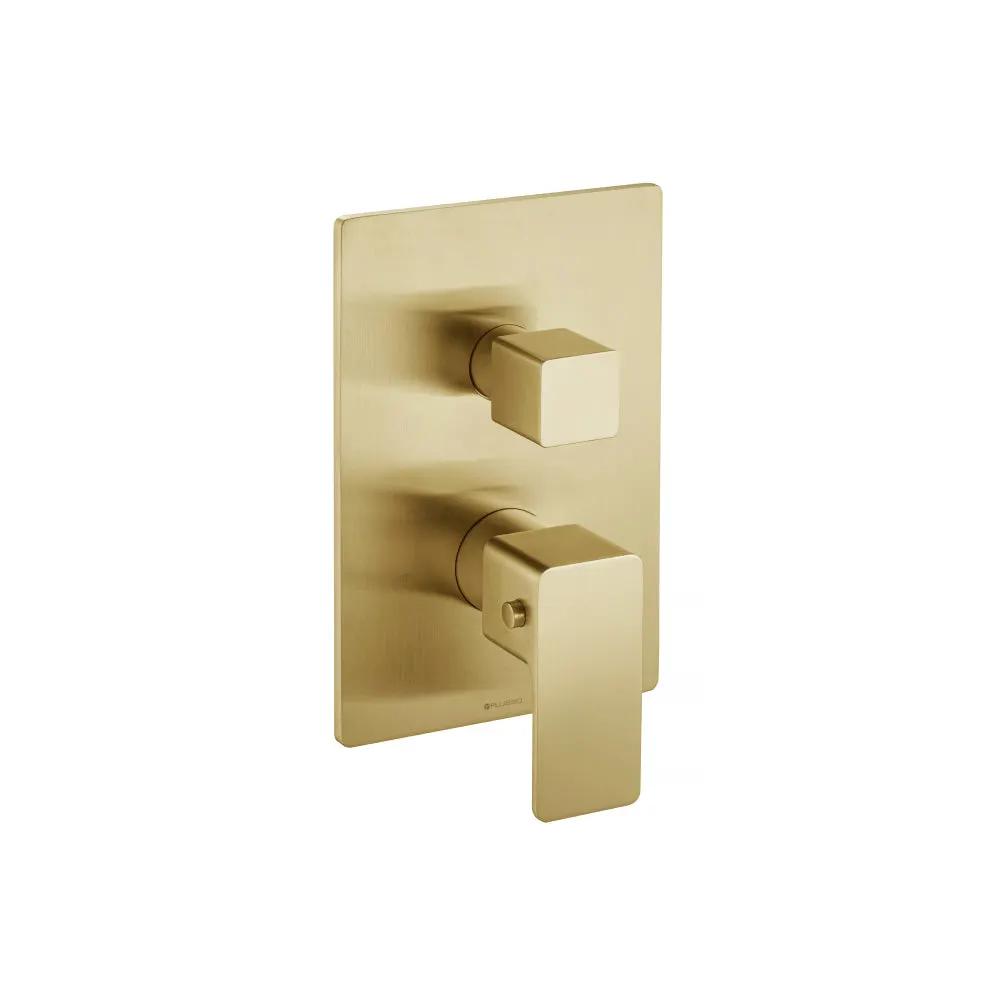

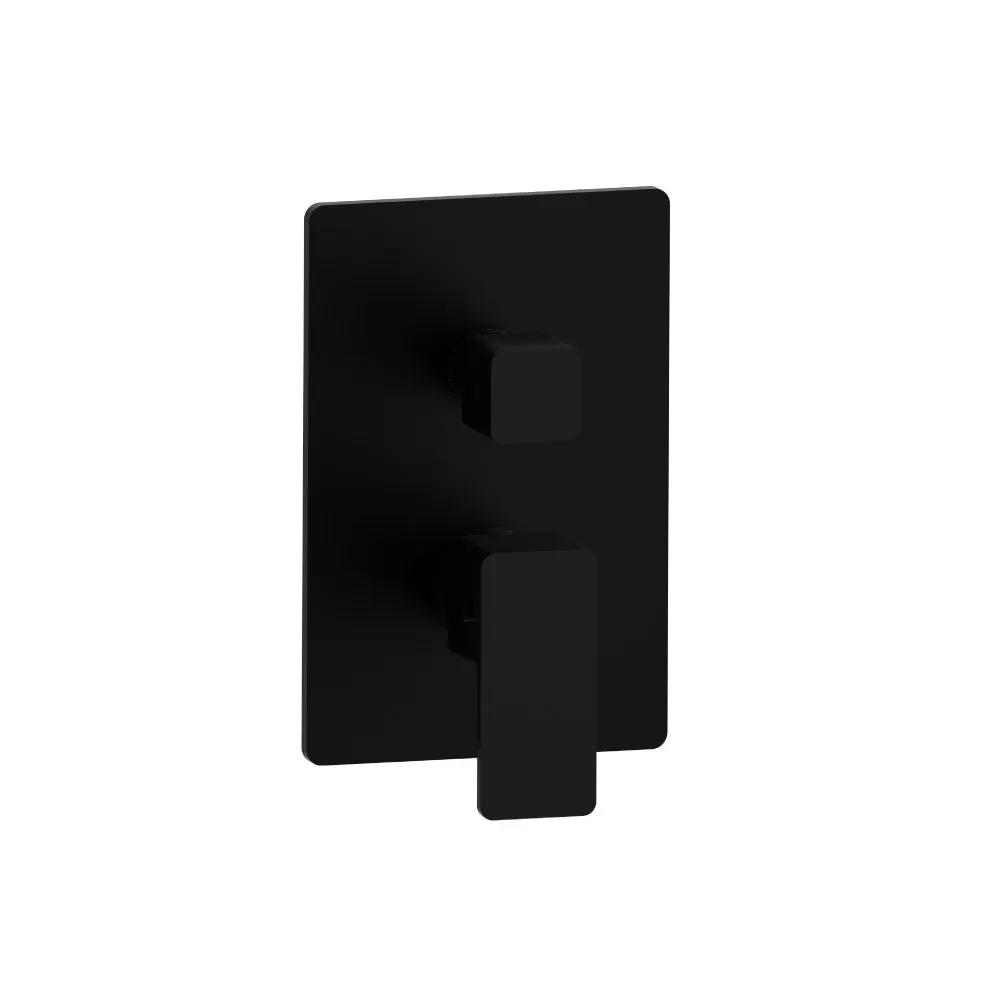

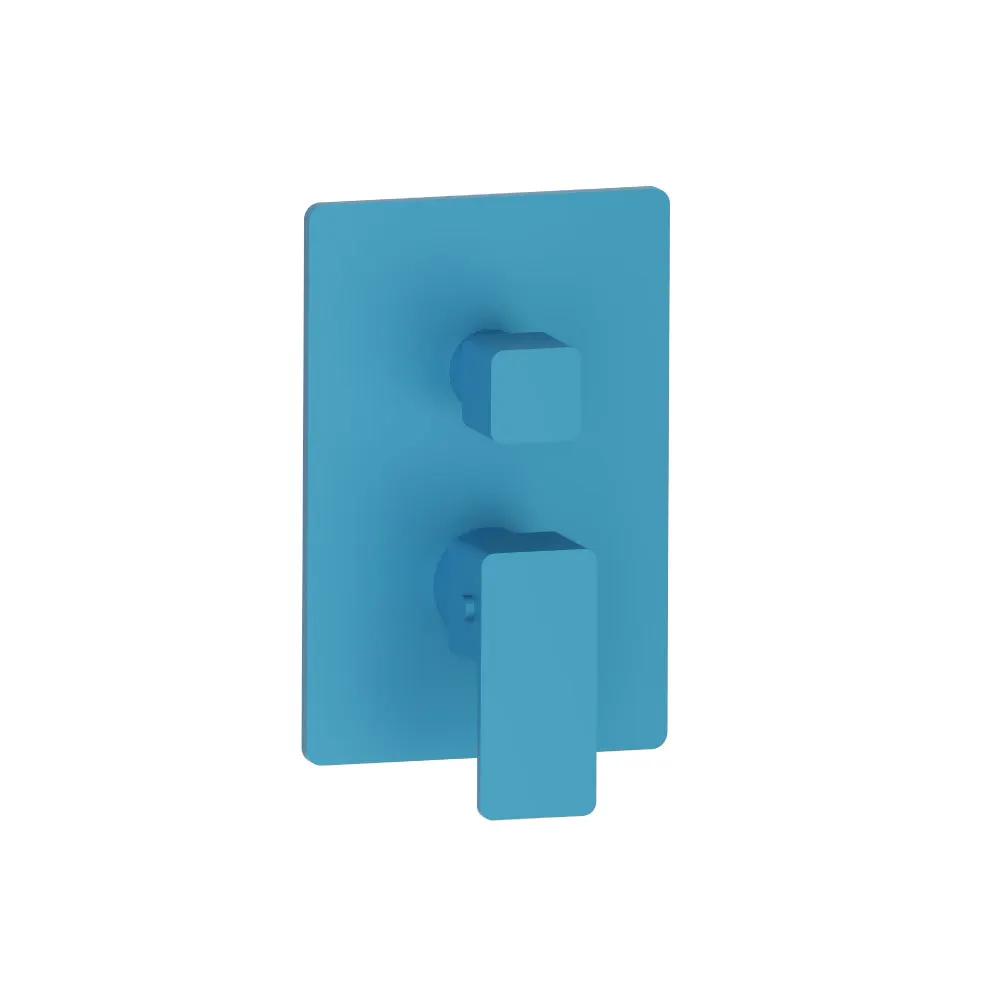

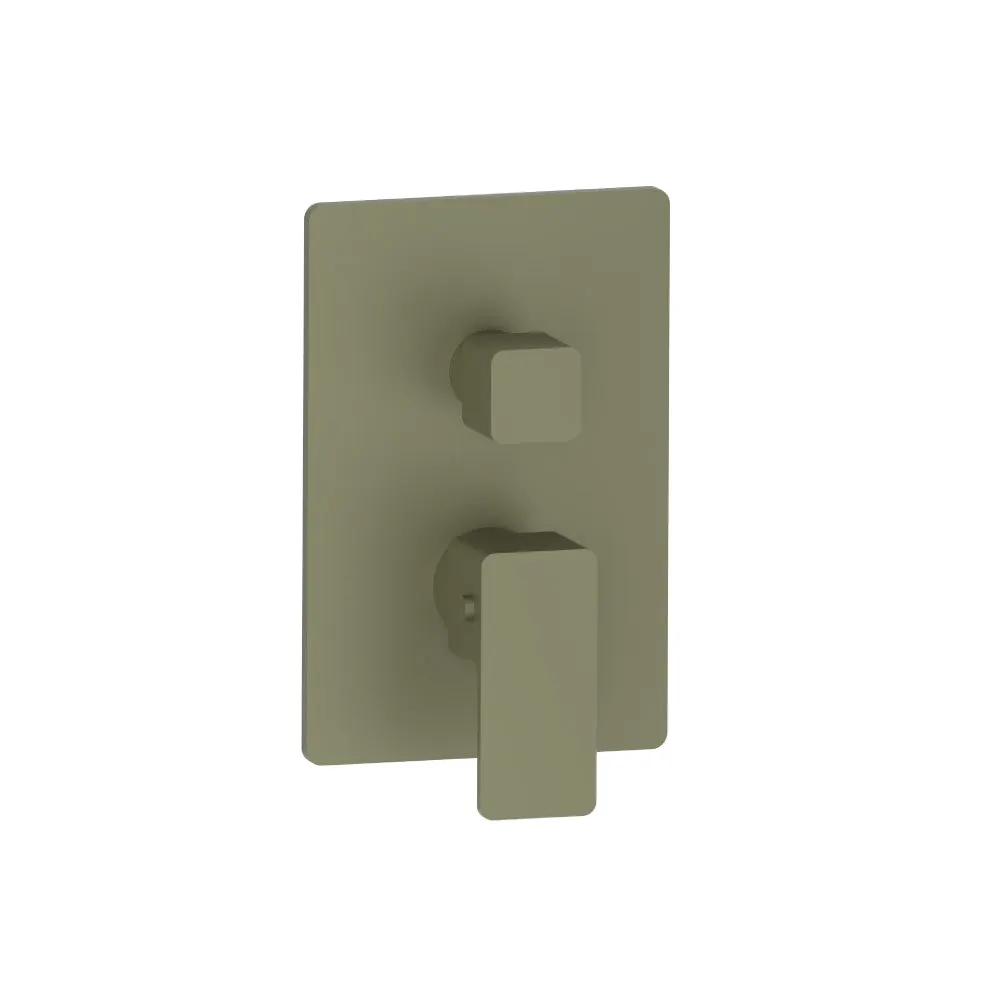

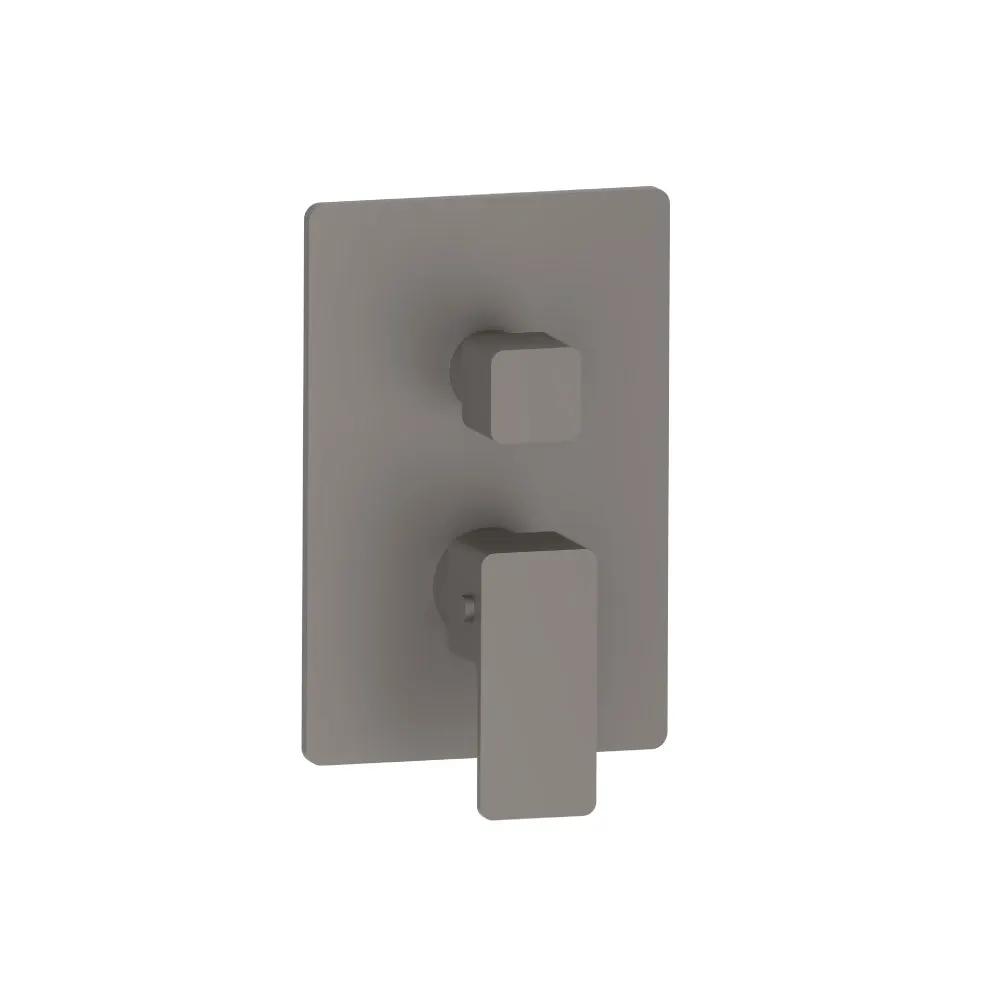

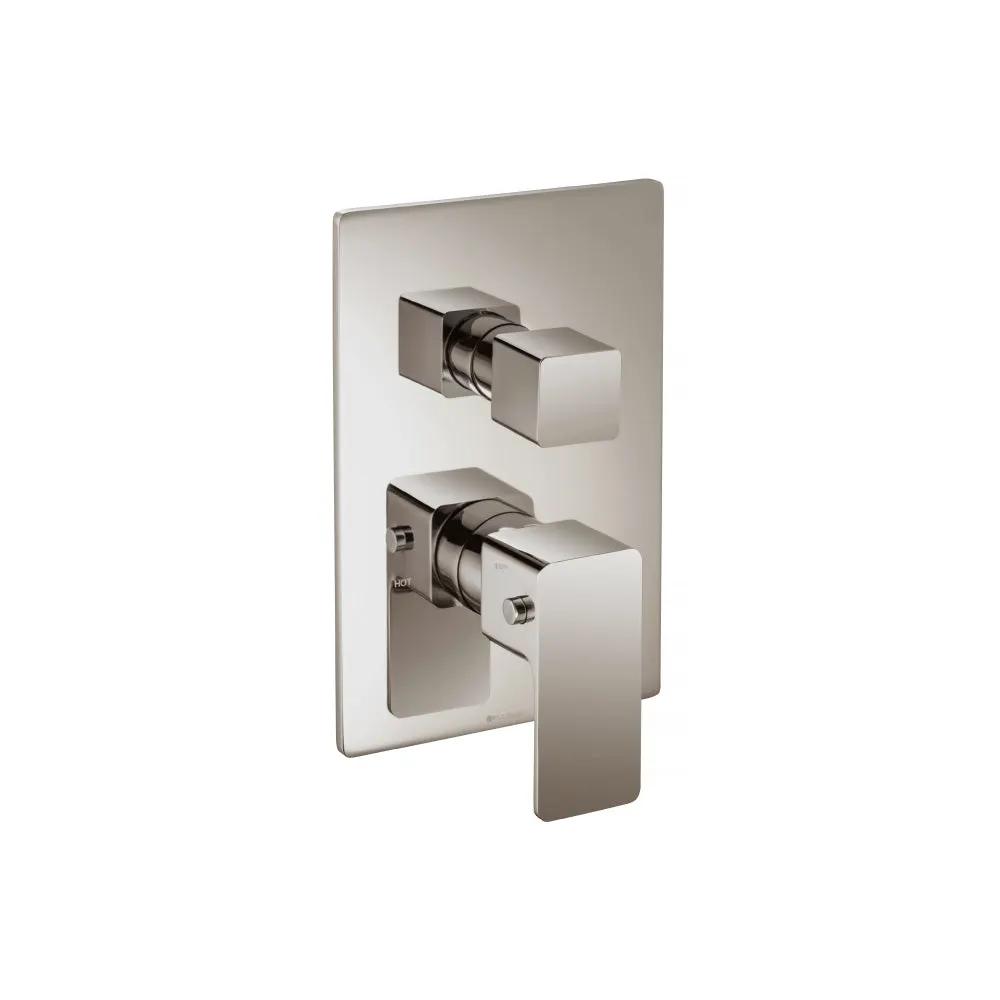

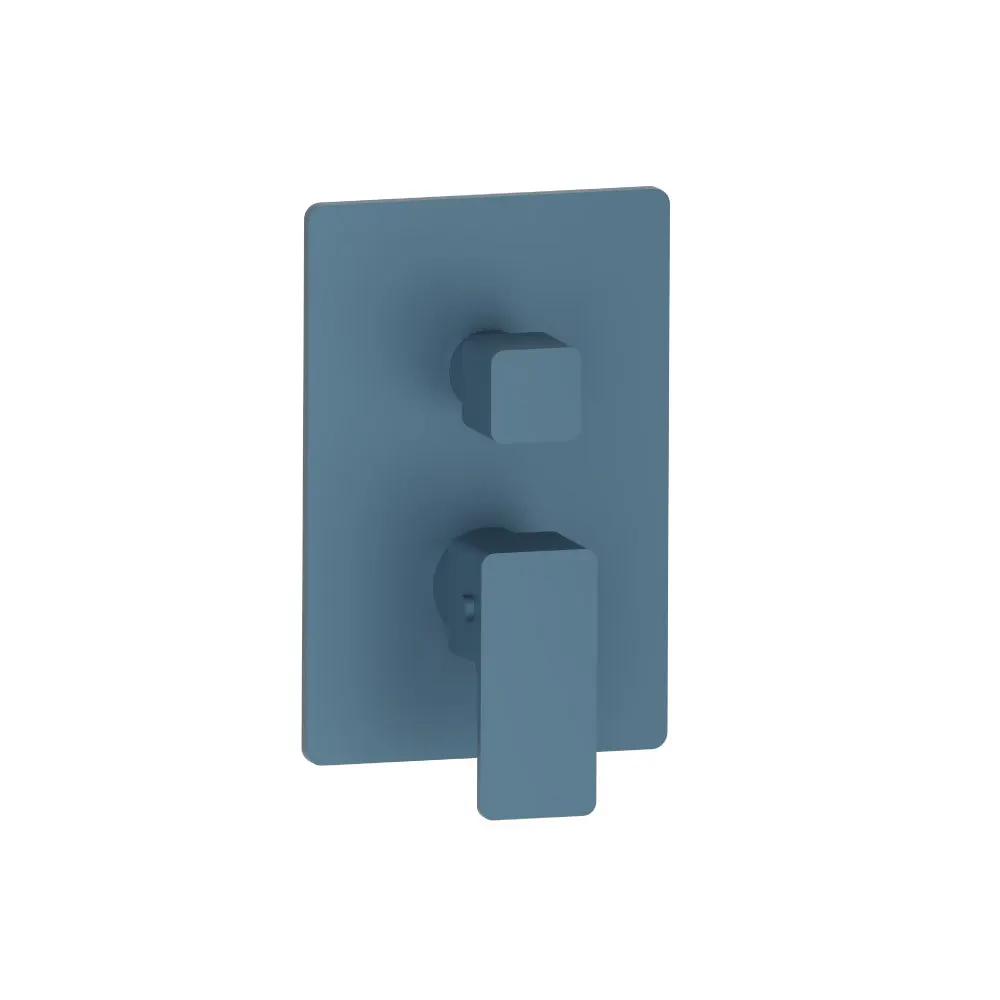

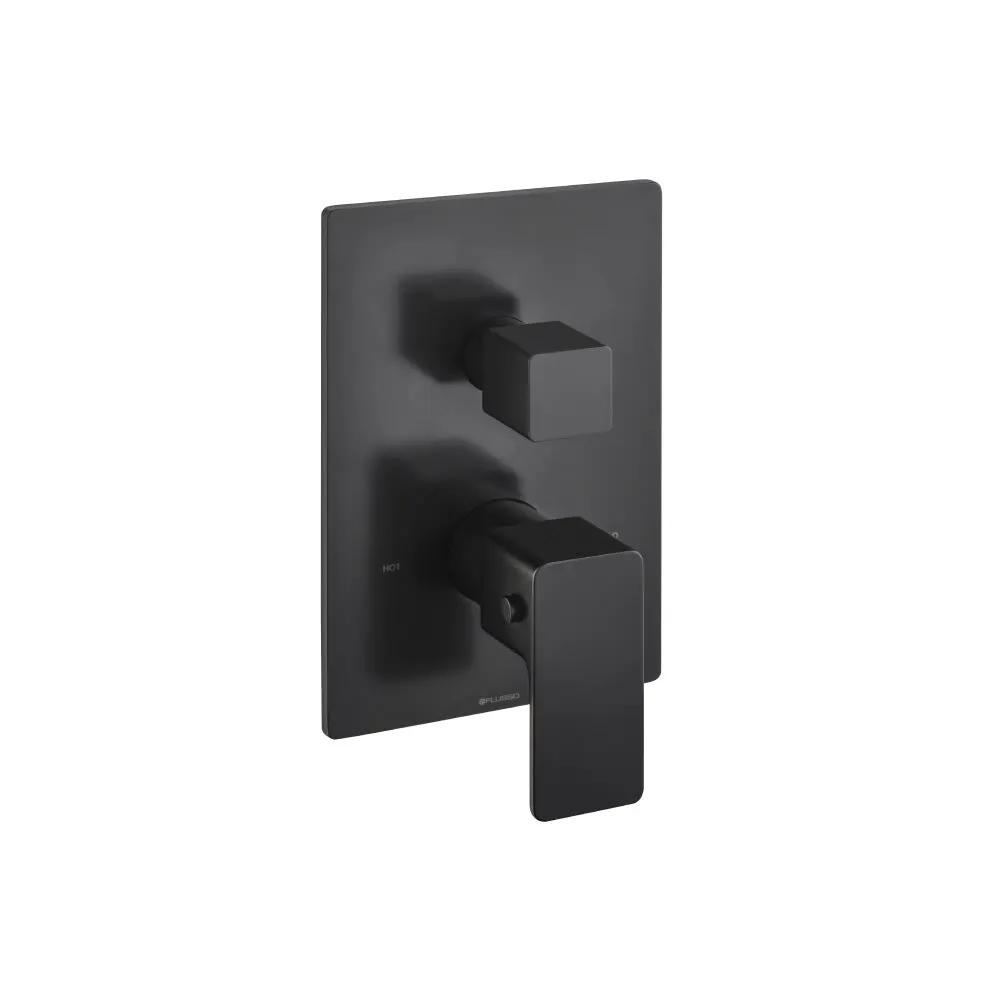

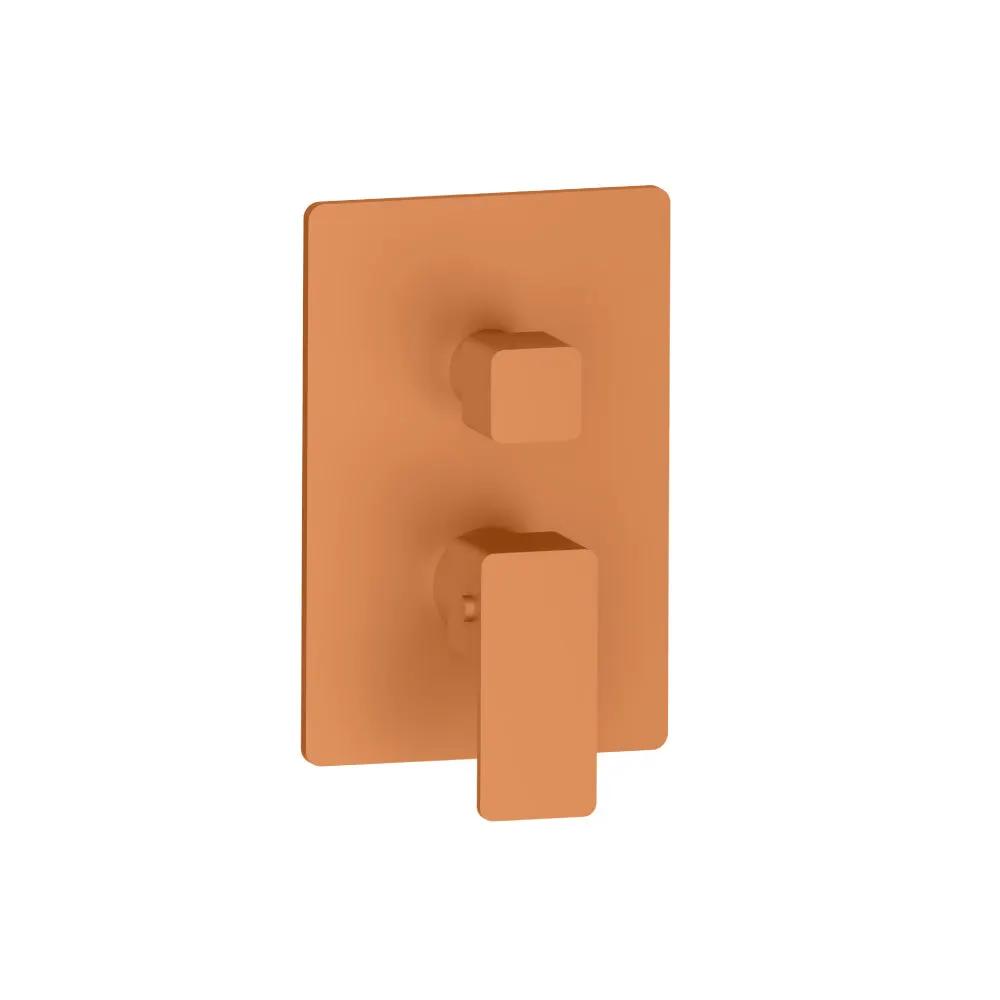

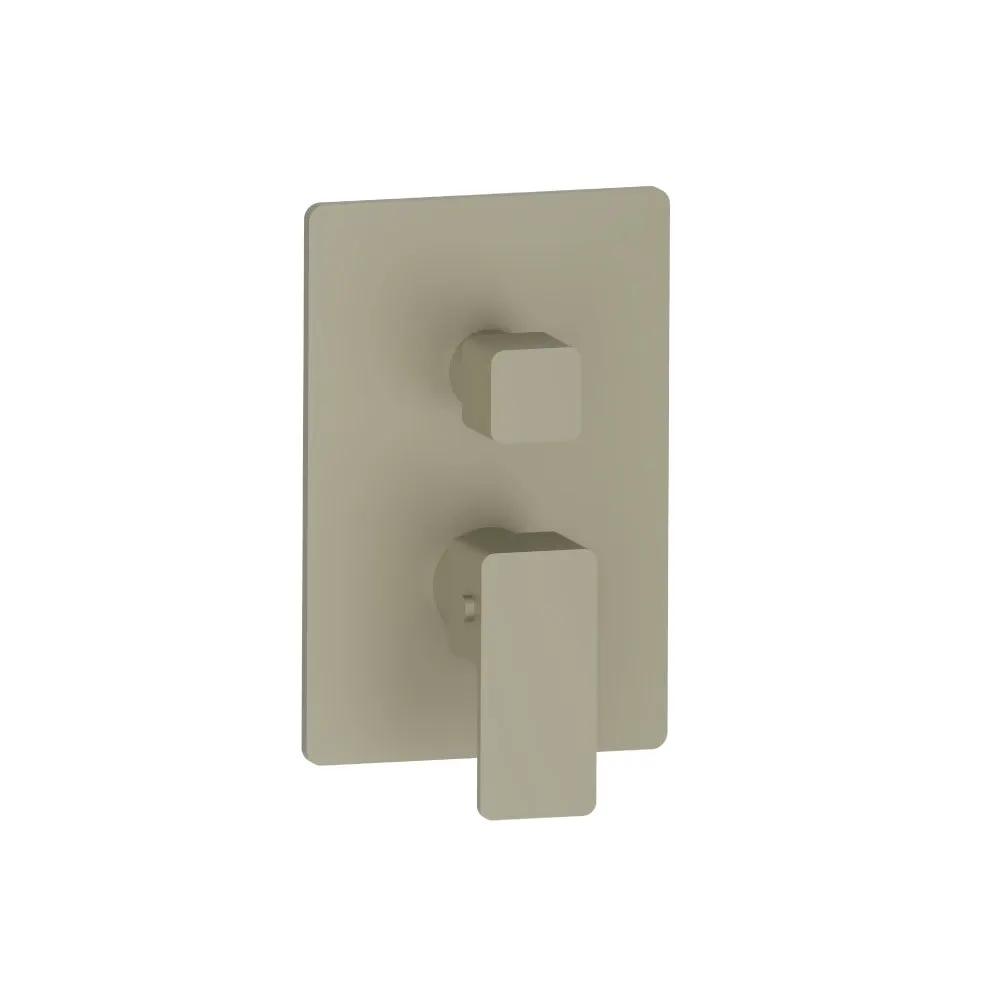

Discover the Flusso Serie 196 3/4" Thermostatic Valve with Trim - 3 Output, a precision three-port shower valve delivering consistent temperature control and flexible water routing. With CAL-Green compliance, dual cartridge compatibility, and a robust solid-brass construction, this valve blends luxury performance with reliable, easy-to-install operation for modern showers in both renovation and new build settings.
Flusso is renowned for durable, precision-engineered bathroom fixtures that emphasize safety and long-term reliability. As a leading manufacturer in high-end solutions, Flusso combines commercial-grade brass, advanced thermostatic technology, and meticulous craftsmanship to deliver consistent temperature control, water efficiency, and premium finishes that elevate any shower installation. CAL-Green compliant and easy to maintain, Flusso earns professional trust.
Features and Specifications
- 3/4" female NPT connections
- 3 water output ports
- CAL-Green Compliance
- Bottom handle sets the temperature
- Top handle diverts water flow between the Three output ports
- Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs
- Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet
- The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position
- Rough-In Spec - The distance from back of valve to finished tile should be between 2.77” and 3.44”
- Extensions Available - TVH.4101E
- Cut Out Dimensions - 6.49 X 4.44 Inches
- Trims - The trims comprise of a well finished cover plate and handle knobs
- Anti-scald temperature stop ring - An anti-scald safety feature over the temperature control knob
- With the help of this ring, temperature of the water is regulated
- To adjust the water temperature, press the side button and move the handle to hot or cold direction
- Without pressing it, the user will not be able to rotate the handle to the full HOT – anti-scald prevention mechanism
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping with a rubber mallet might be required) for proper function
- Trim shapes vary by shower model; trims can be square or circular
- Cartridge – The TVH.4301F valve can be used with two cartridges
- Default cartridge: Model # 15100 cartridge (3 output non-shared CAL-Green compliant)
- Shared port operation cartridge: Model # 15200, can activate 2 out of 3 ports at the same time
- Solid Brass Construction Includes Thermostatic Valve - TVH.4301F With Integral Service Stops 3 Output Ports
Engineered for precise, safe shower performance, the Flusso TVH.4301F valve with trim delivers dependable temperature control, flexible port operation, and lasting luxury — backed by Flusso’s reputation for quality, reliability, and enduring style.
