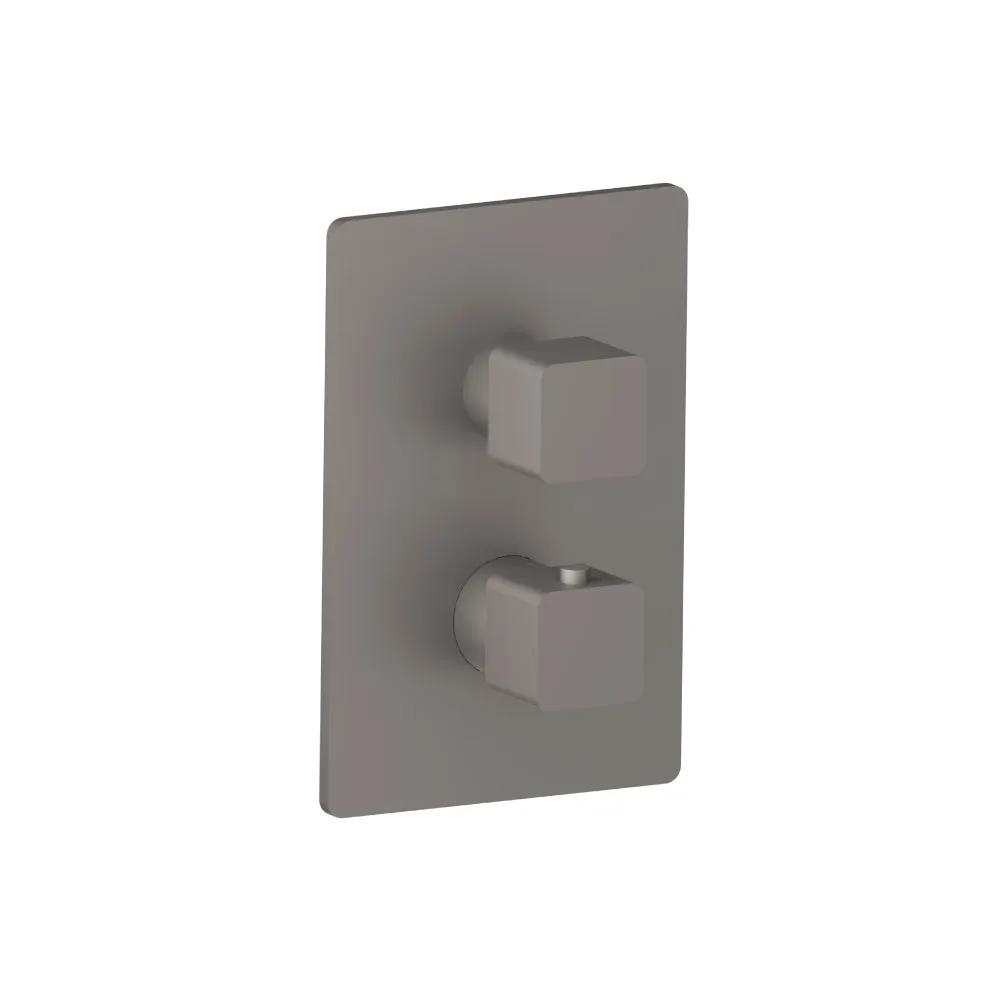

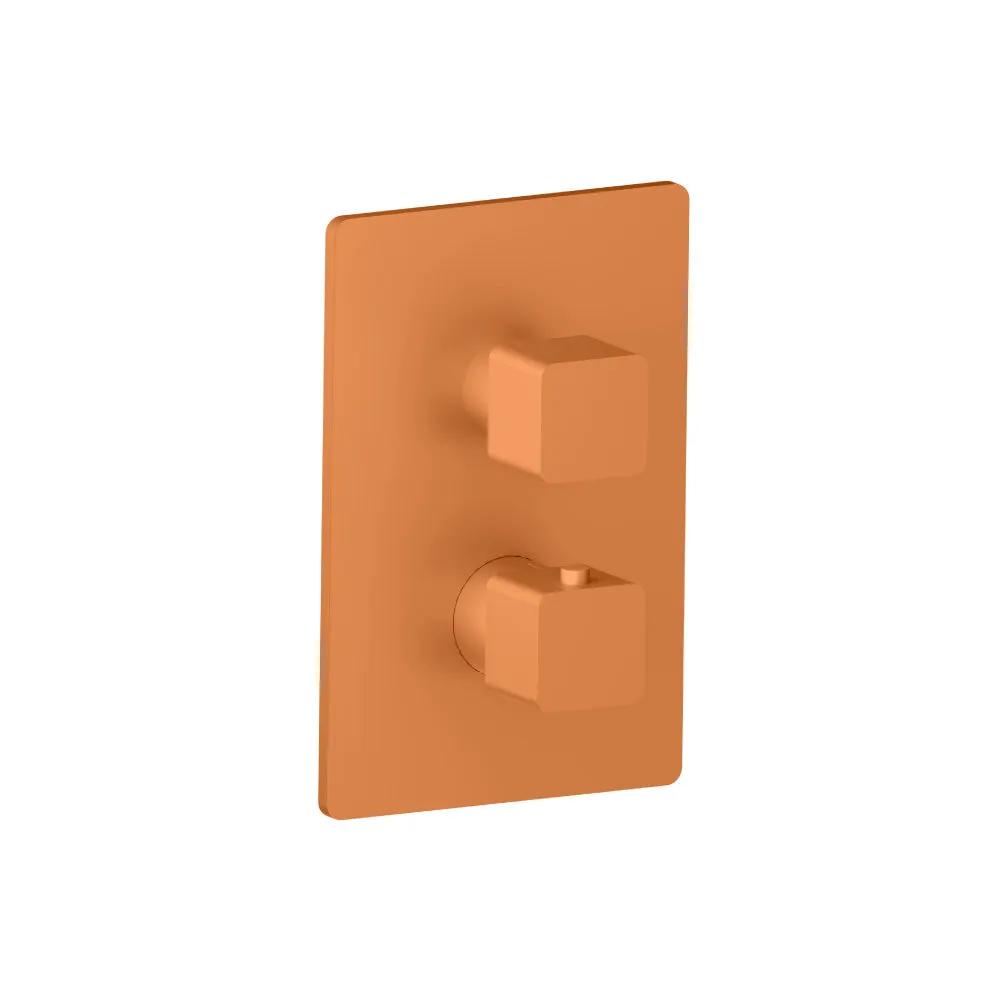

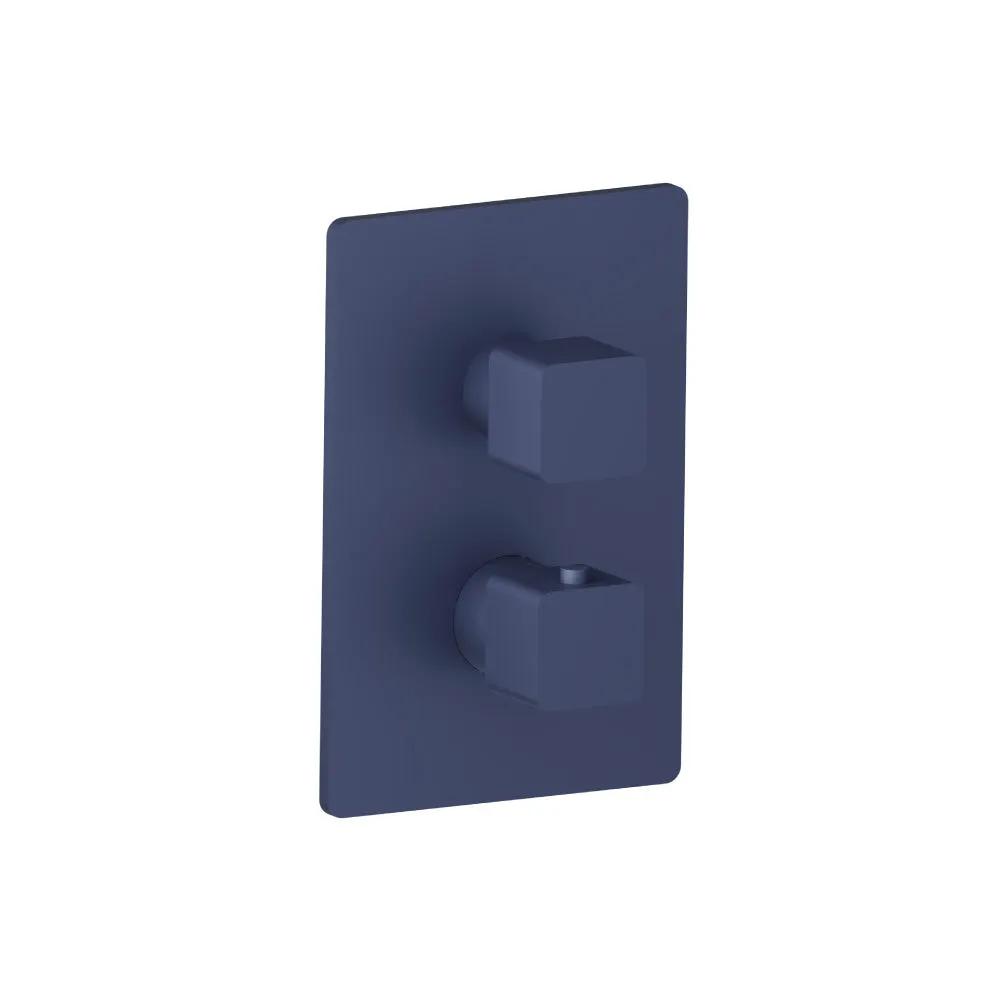

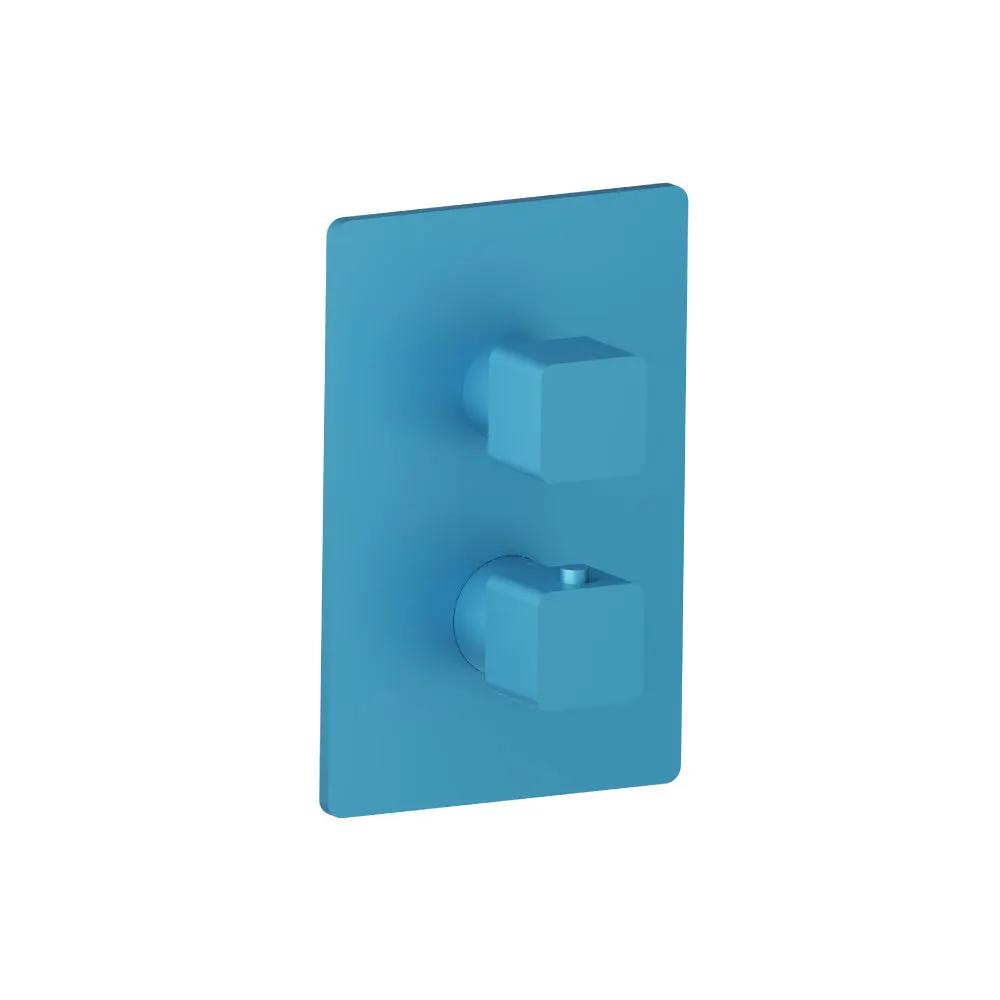

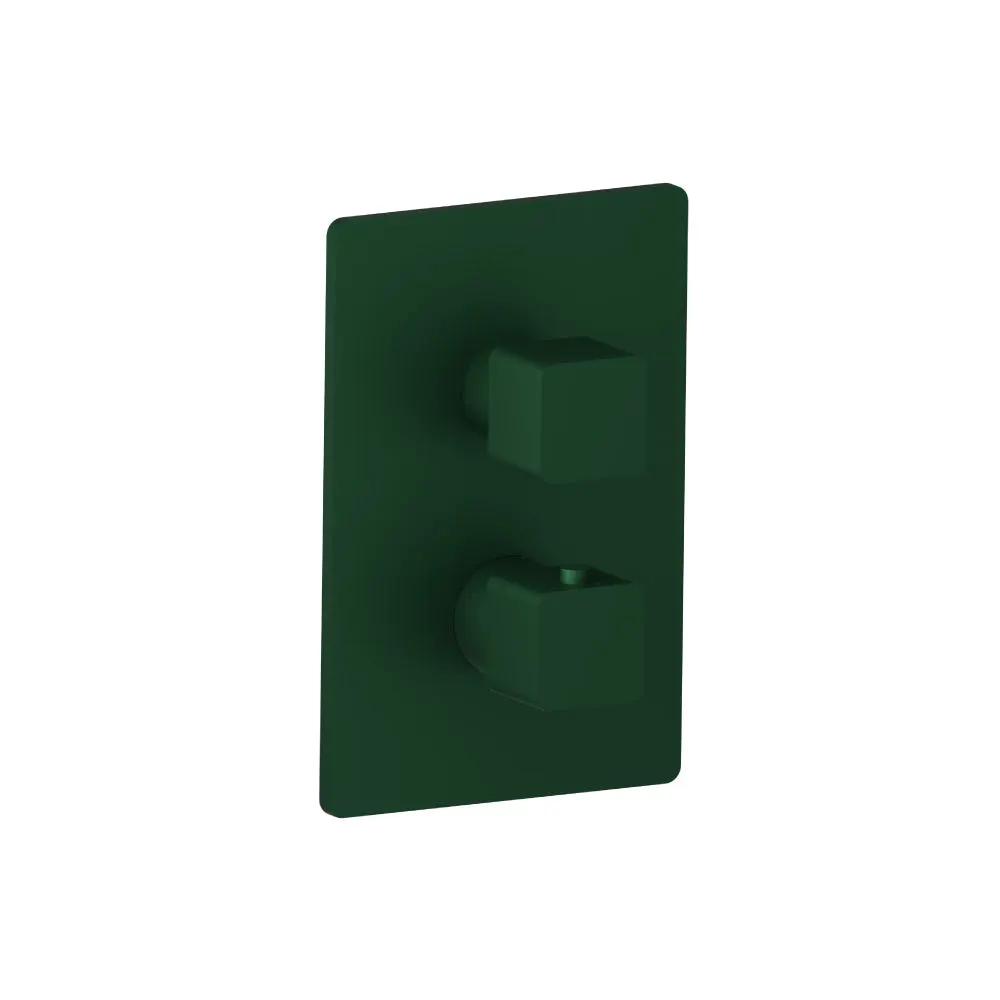

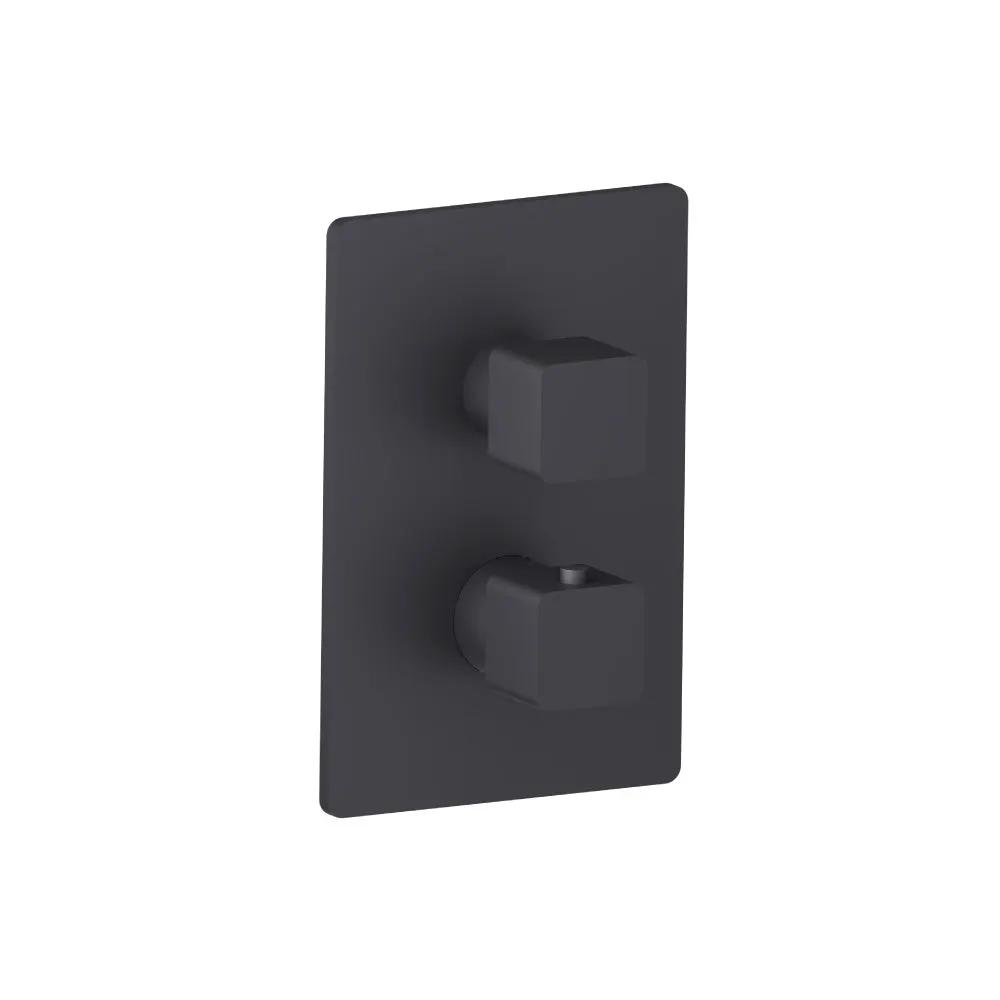

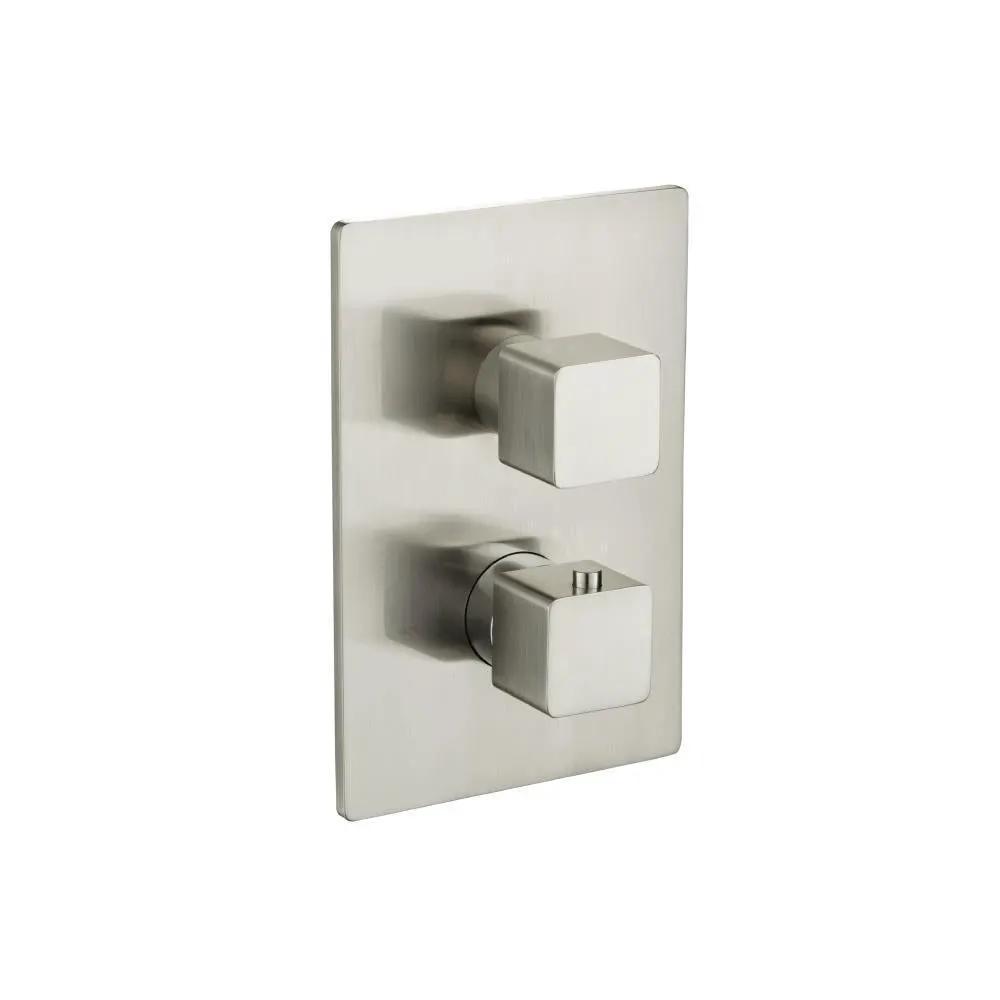

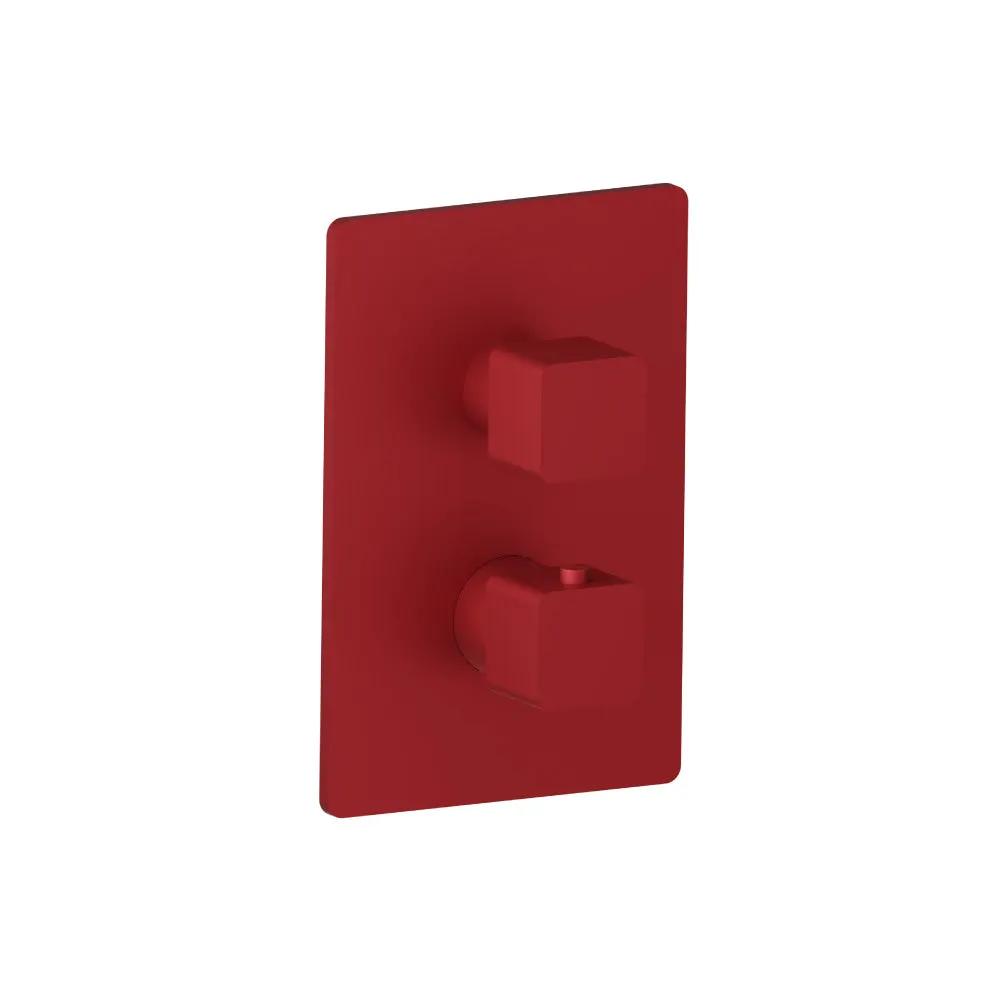

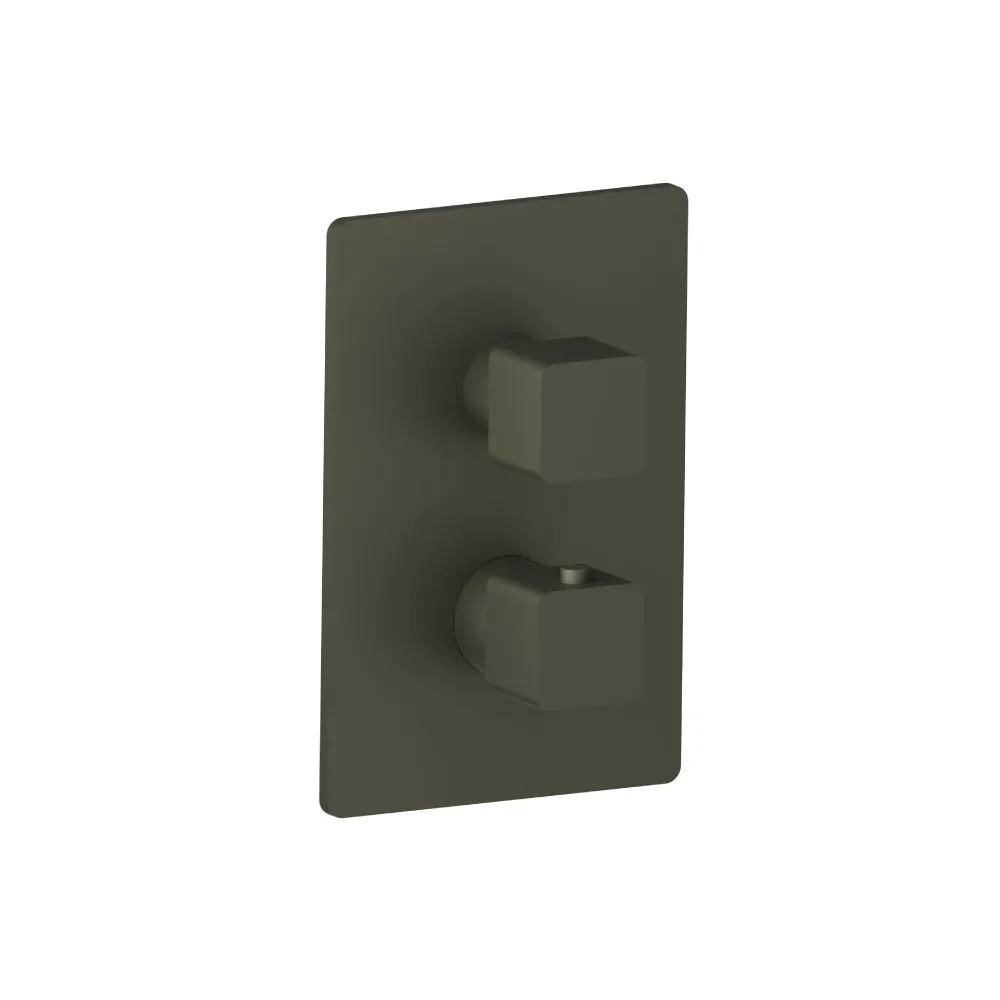

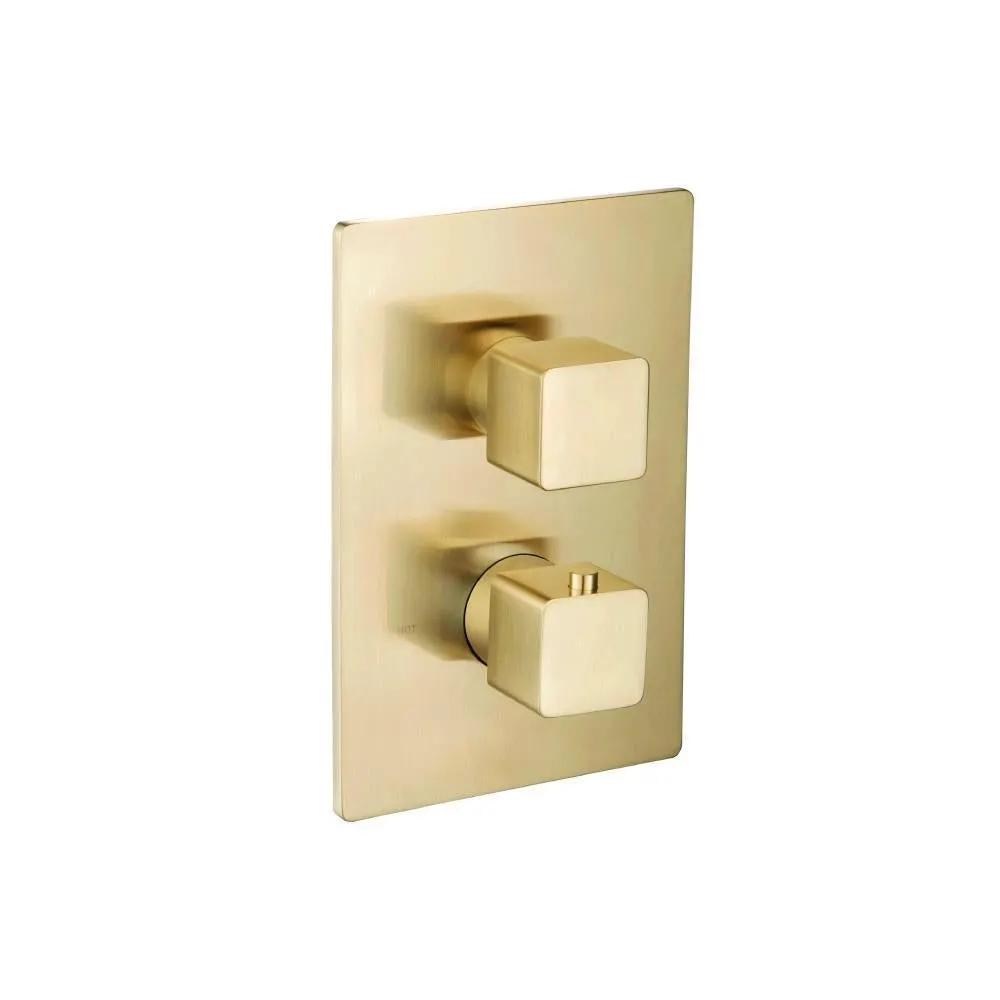

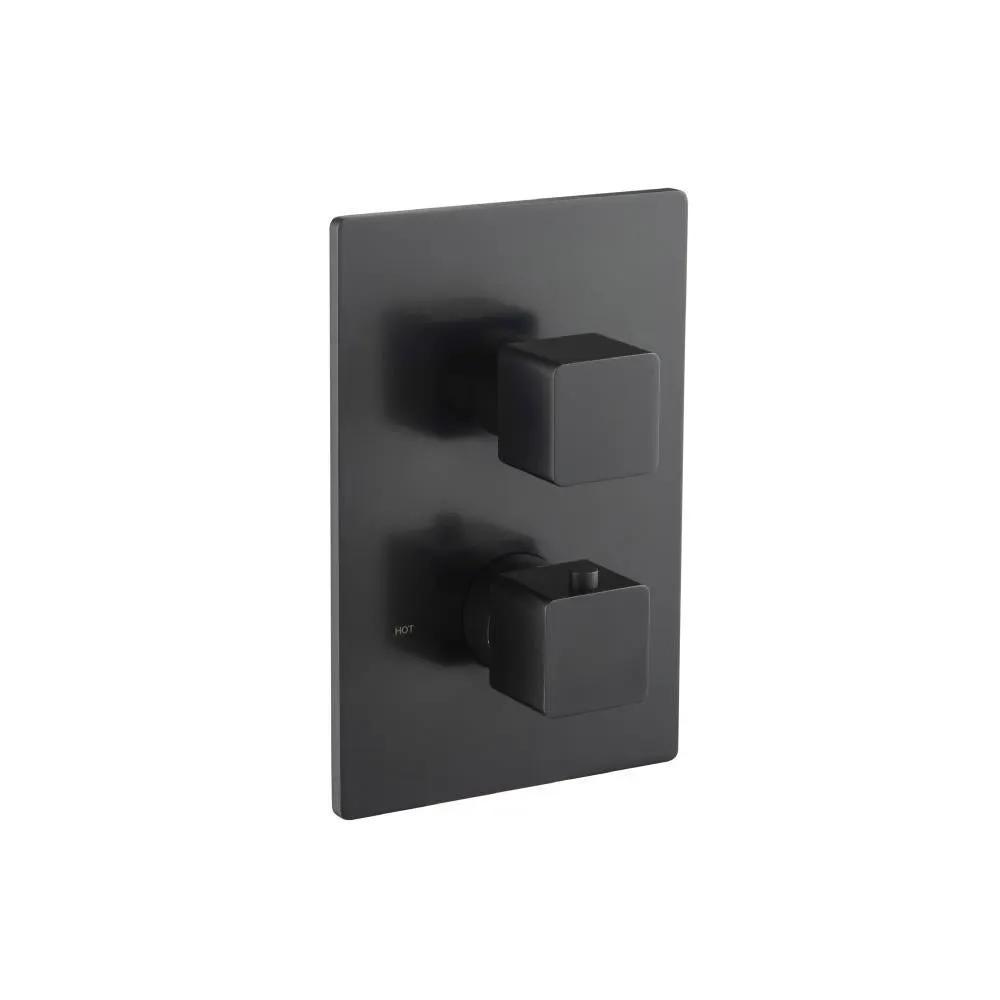

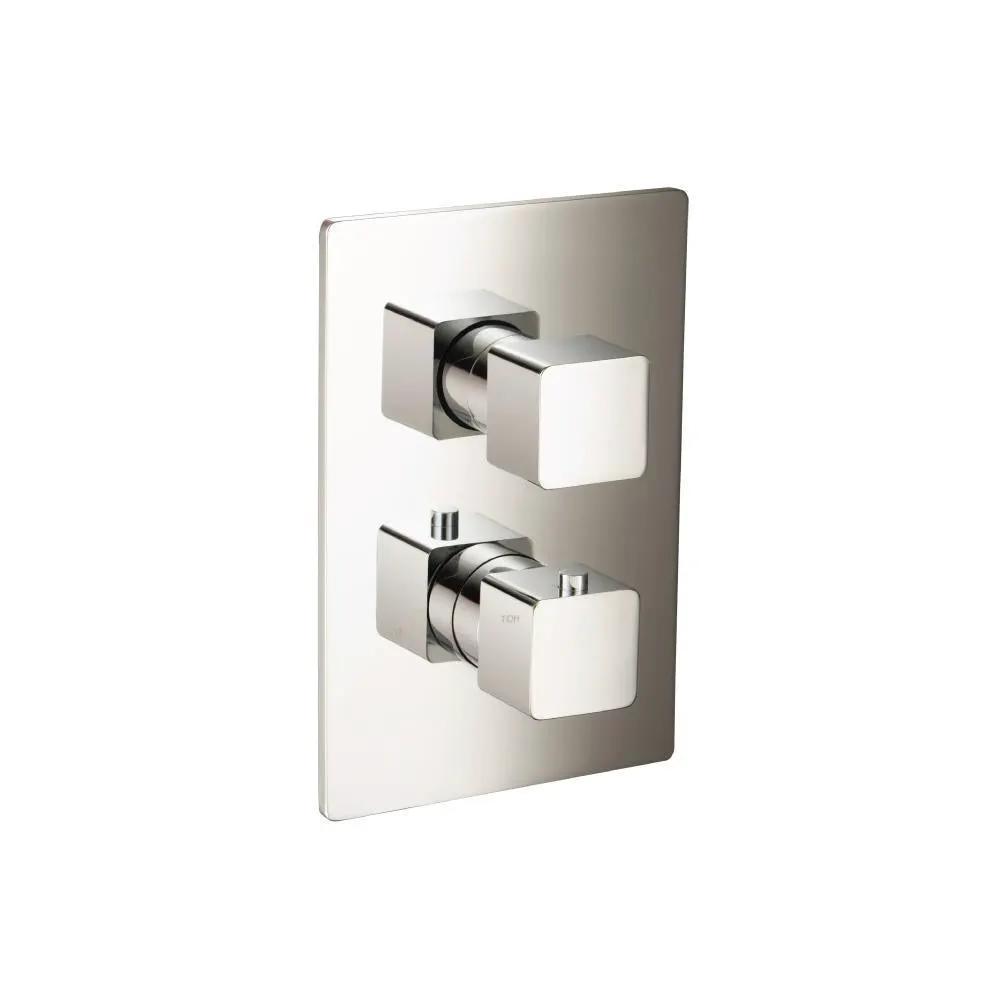

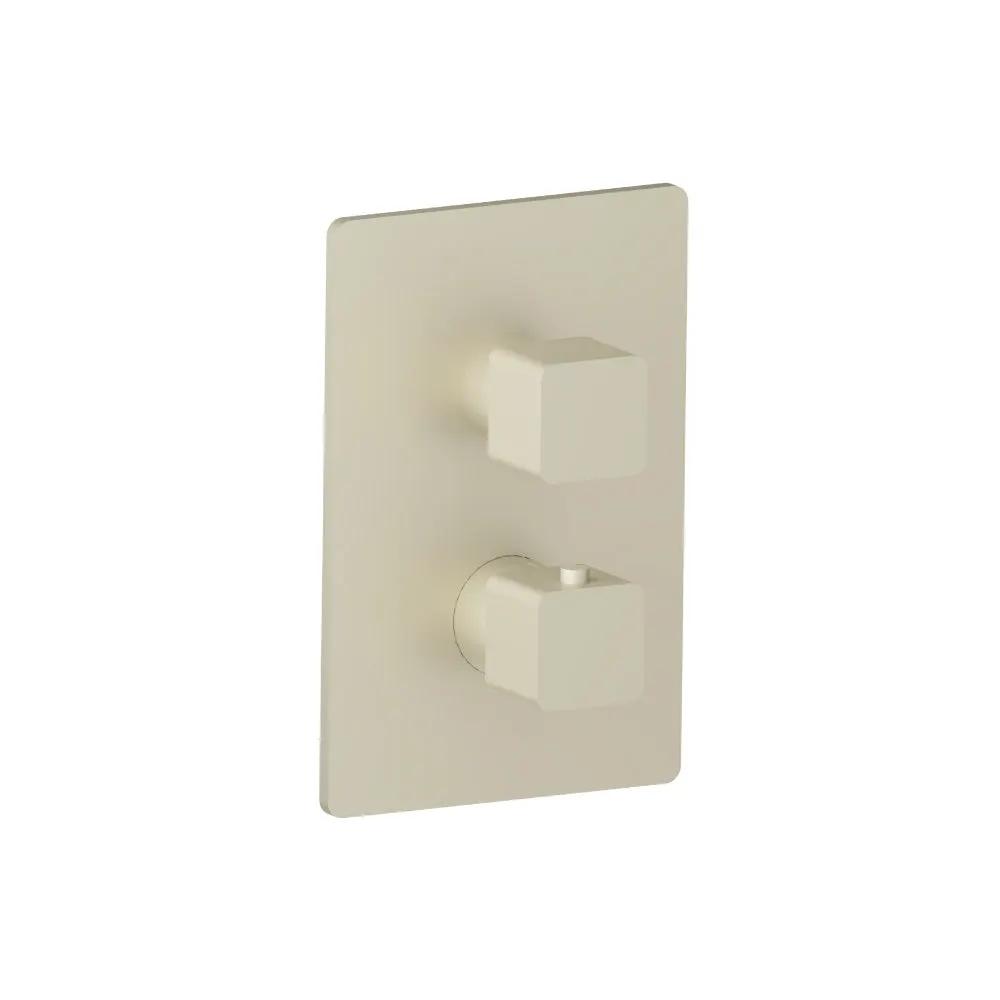

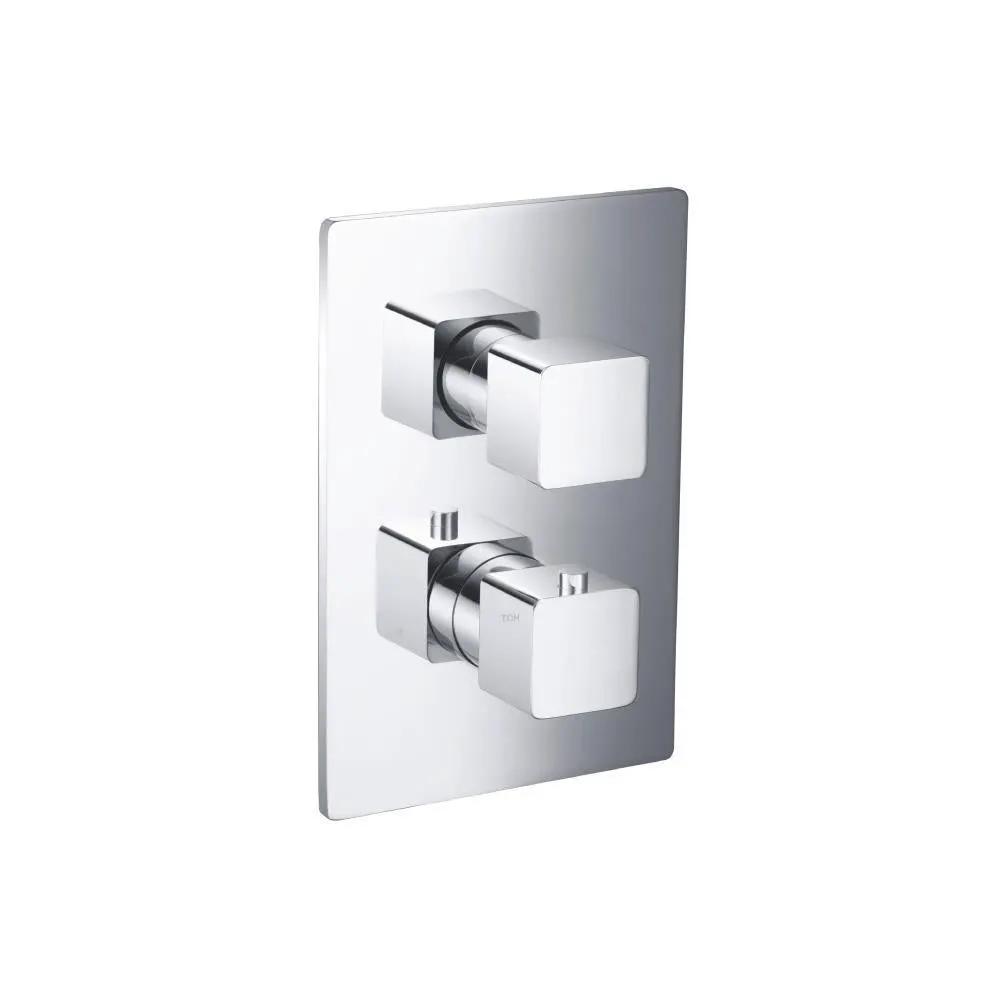

Flusso Serie 196 3/4 " Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output
Product details
Focal Point Hardware is an authorized Flusso retailer!
Experience precise comfort with the Flusso Serie 196 3/4" Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output. This CAL-Green compliant, solid brass thermostatic valve delivers dependable temperature control at the handle, while the top dial diverts flow between two outputs for flexible shower configurations. Compatible with two cartridge options (Model 15109 non-shared, or Model 15103 shared port) for tailored performance, proudly from Flusso.
Flusso is renowned for premium shower valves and trim systems built for reliability and precise temperature control. Known for solid brass construction, CAL-Green compliance, and thoughtful safety features, Flusso delivers enduring performance and luxury design across contemporary bathrooms, ensuring consistent operation, ease of installation, and long-term value for discerning homeowners.
Features and Specifications
- TVH.4420F thermostatic valve with 3/4" female NPT connections and 2 output ports
- 2 water output ports
- CAL-Green Compliant
- Bottom handle sets the temperature
- Top handle diverts water flow between two output ports
- Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs
- Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position
- Rough-In Spec - The distance from the back of the valve to the finished tile should be between 2.77" and 3.44" inches
- Install straight and not at an angle or upside down
- Extensions Available - TVH.4101E**
- Cut Out Dimensions - 6.49" X 4.44"
- Trims - The trims comprise a well finished cover plate and handle knobs
- Anti-scald temperature stop ring is mounted over the temperature control knob to regulate water temperature
- To adjust water temperature, press the side button and move the handle toward hot or cold; without pressing, the handle cannot reach full HOT
- Anti-scald stop ring must be fitted tightly over the valve for proper function
- Cartridge options - Model #15109 (default, 2 output non-shared CAL-Green compliant) or Model #15103 (shared port)
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4420F
- Valve includes Integral Service Stops
Elevate your shower experience with the Flusso Serie 196 3/4" Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output, combining precise control, dual-output convenience, and Flusso’s legacy of luxury, reliability, and CAL-Green compliance.
