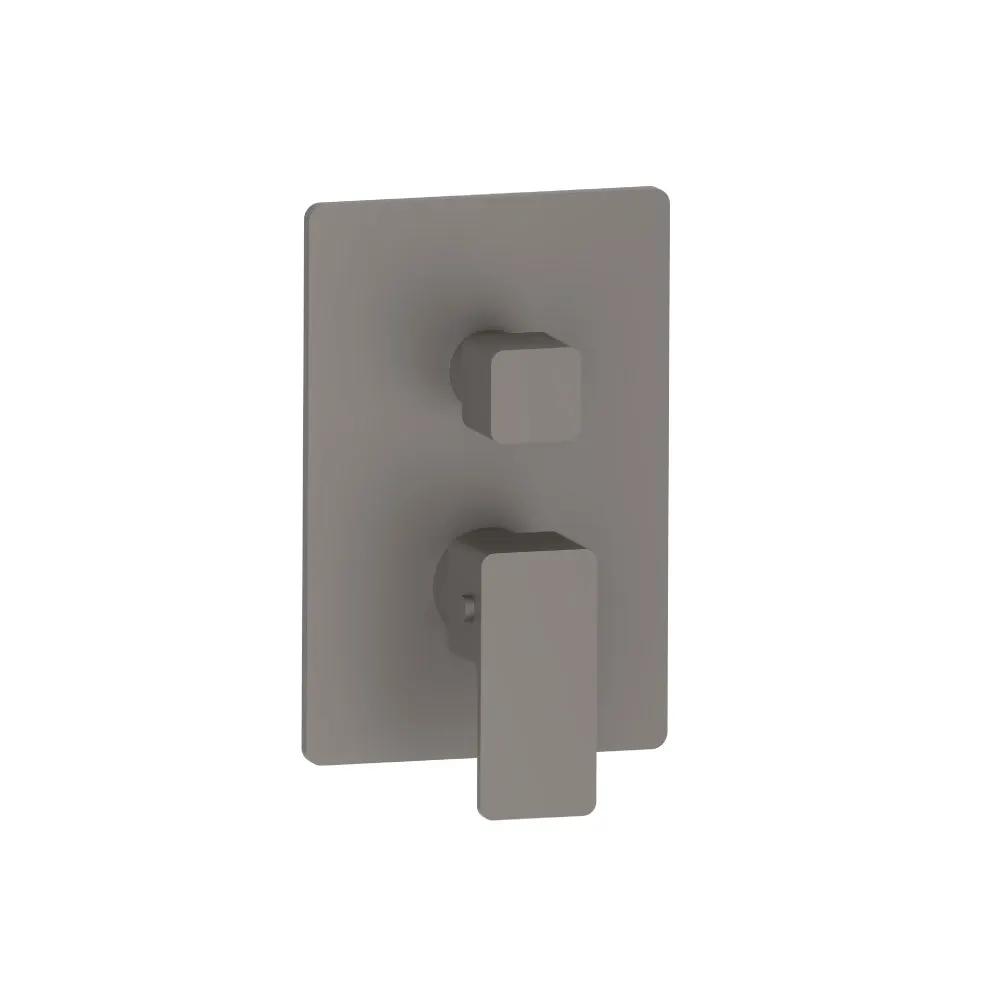

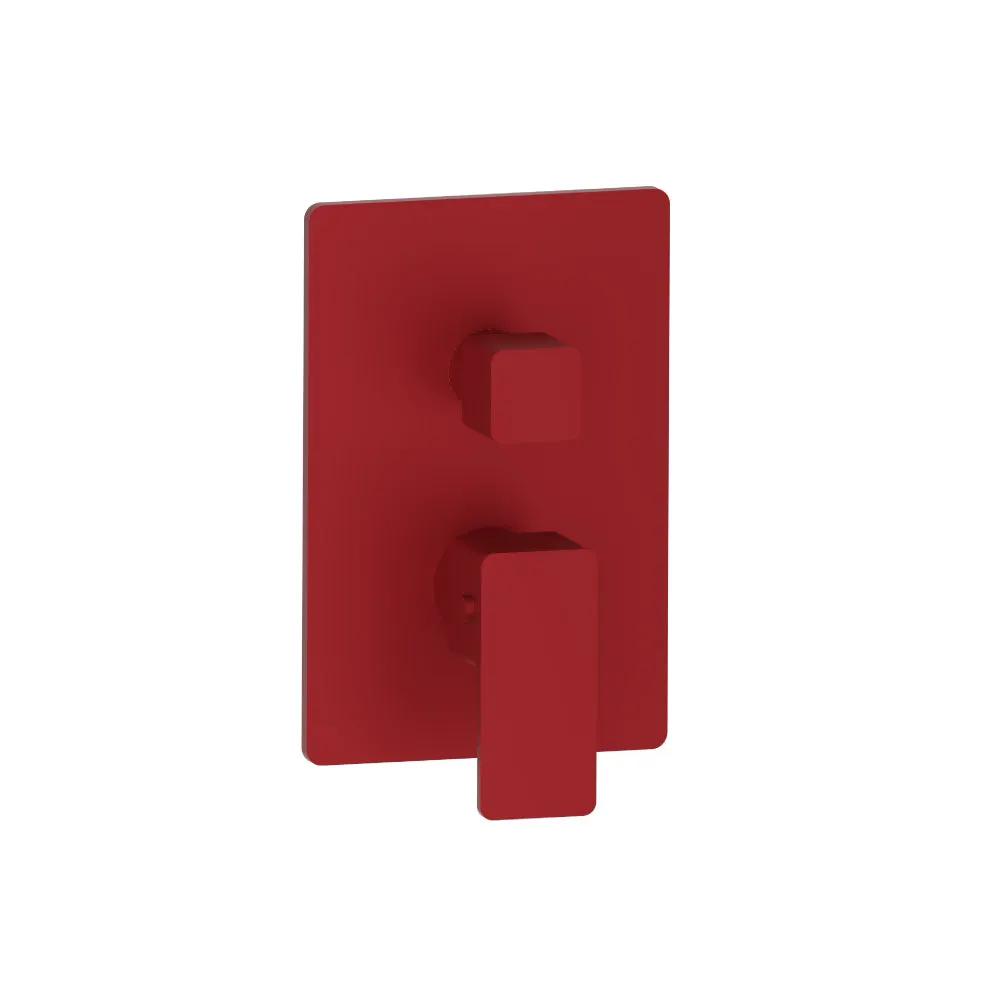

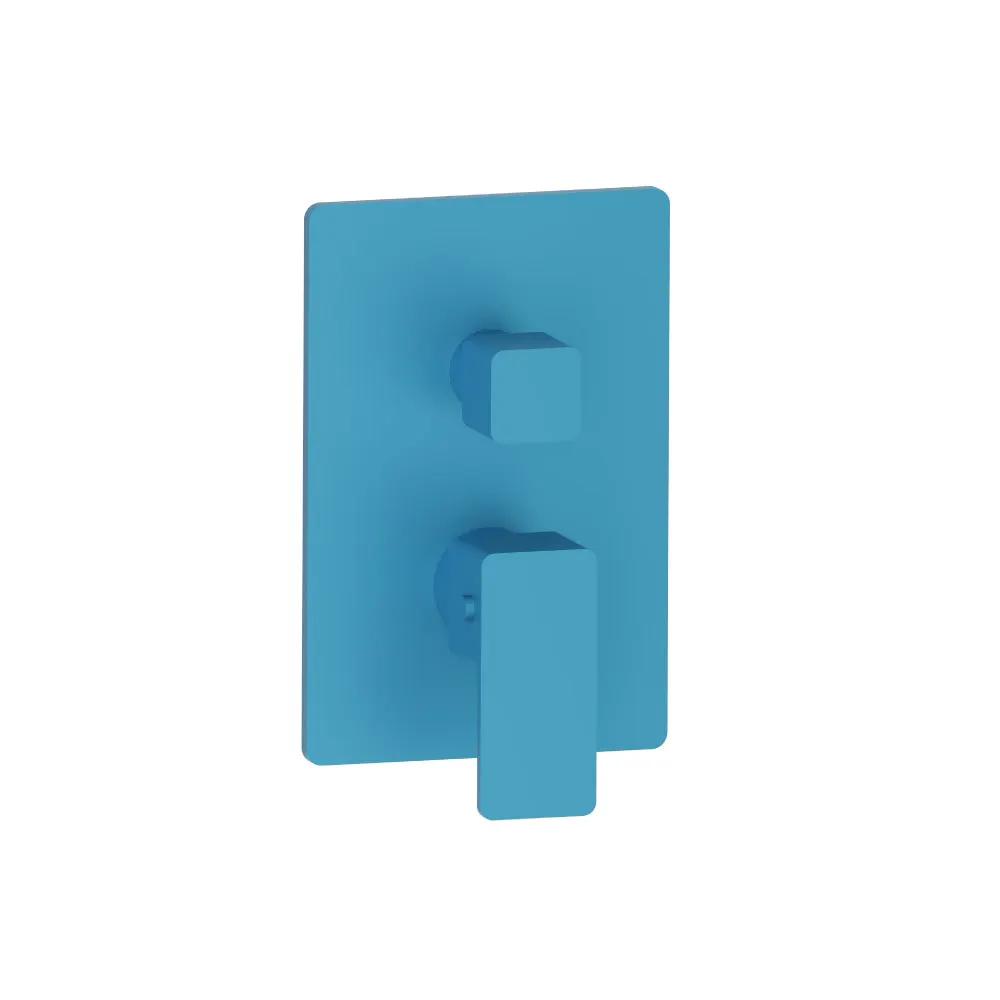

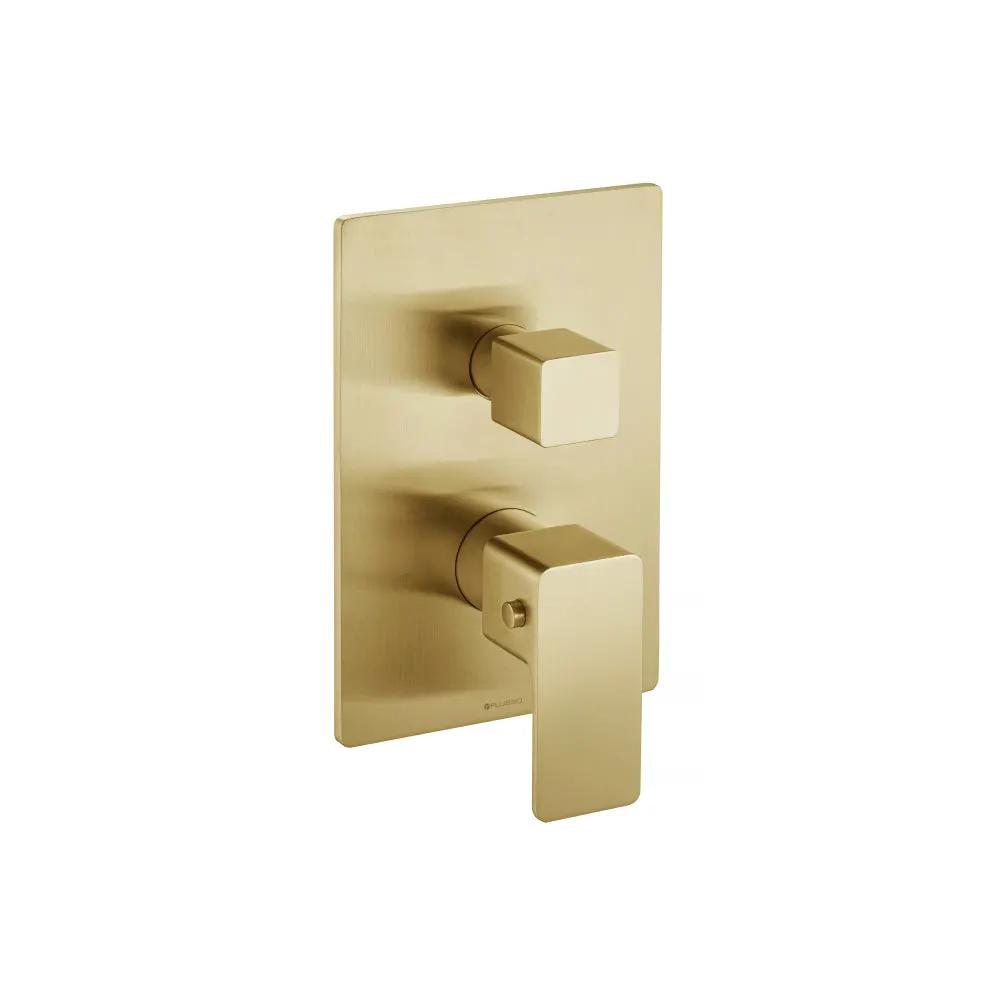

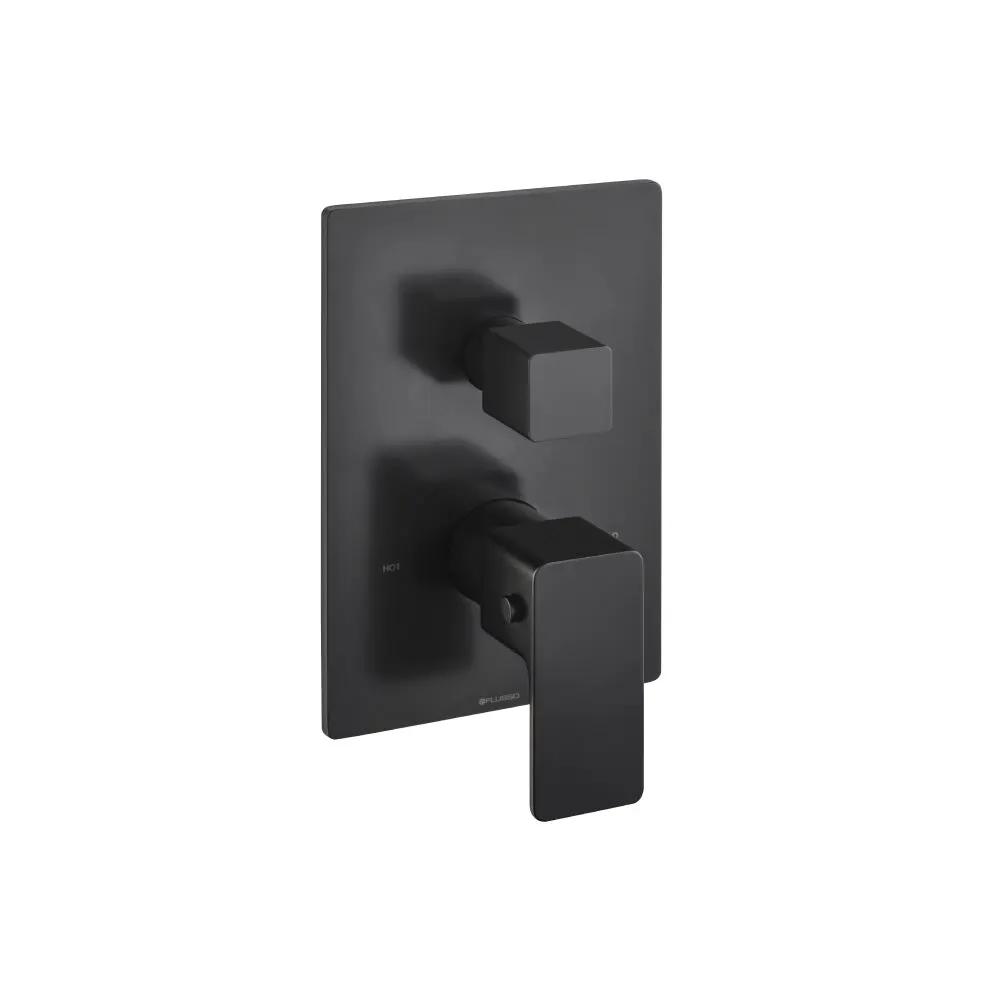

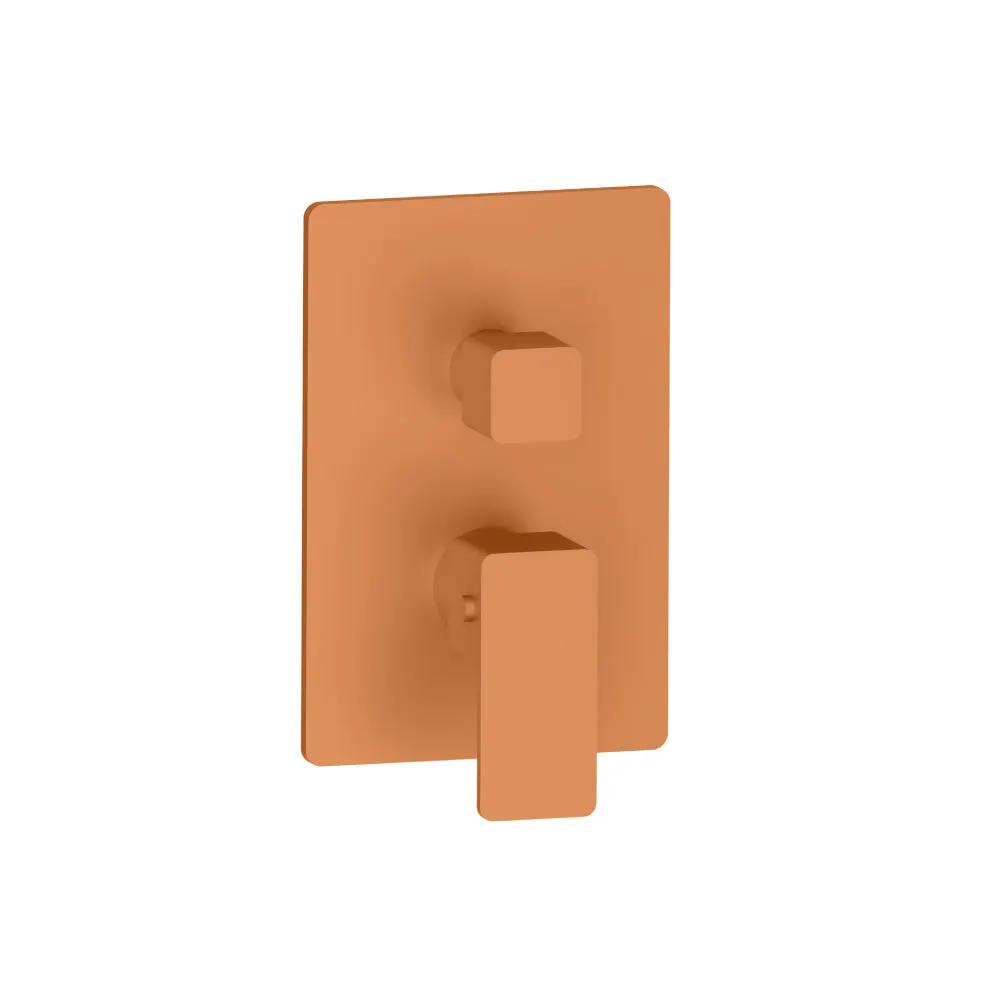

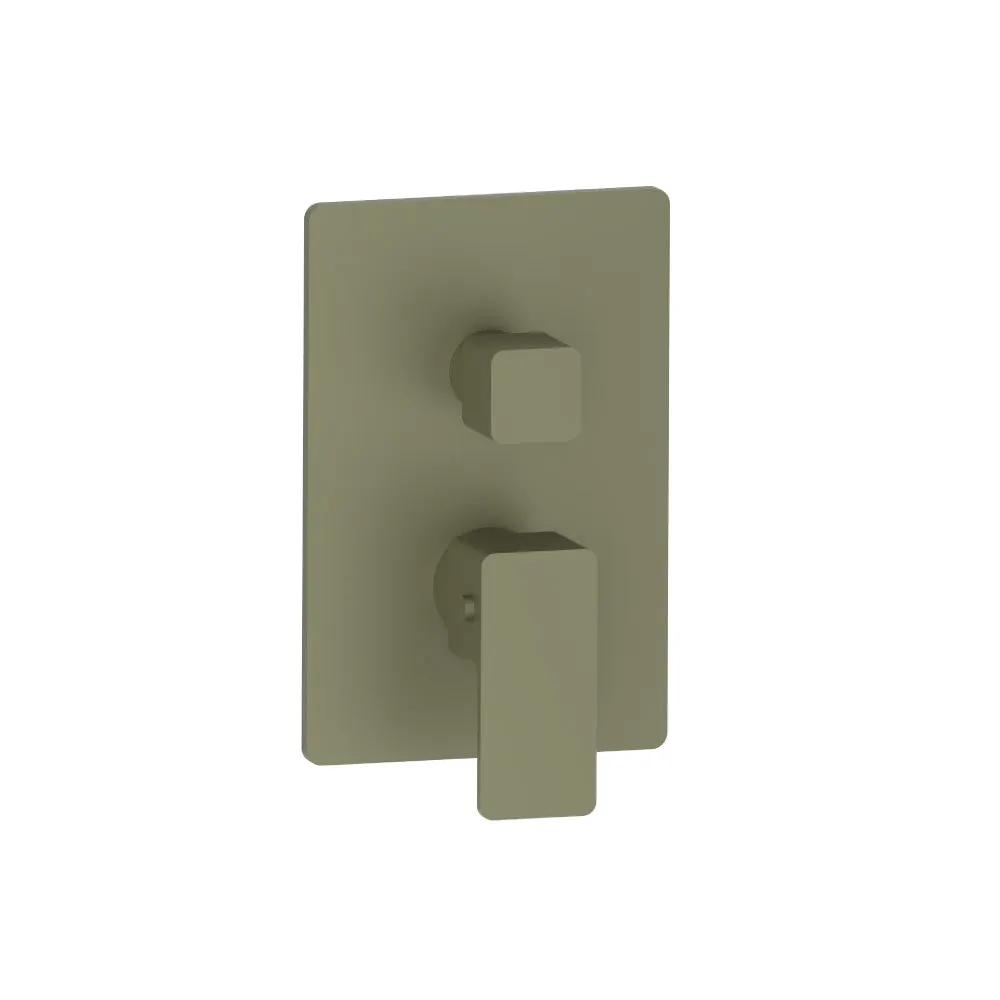

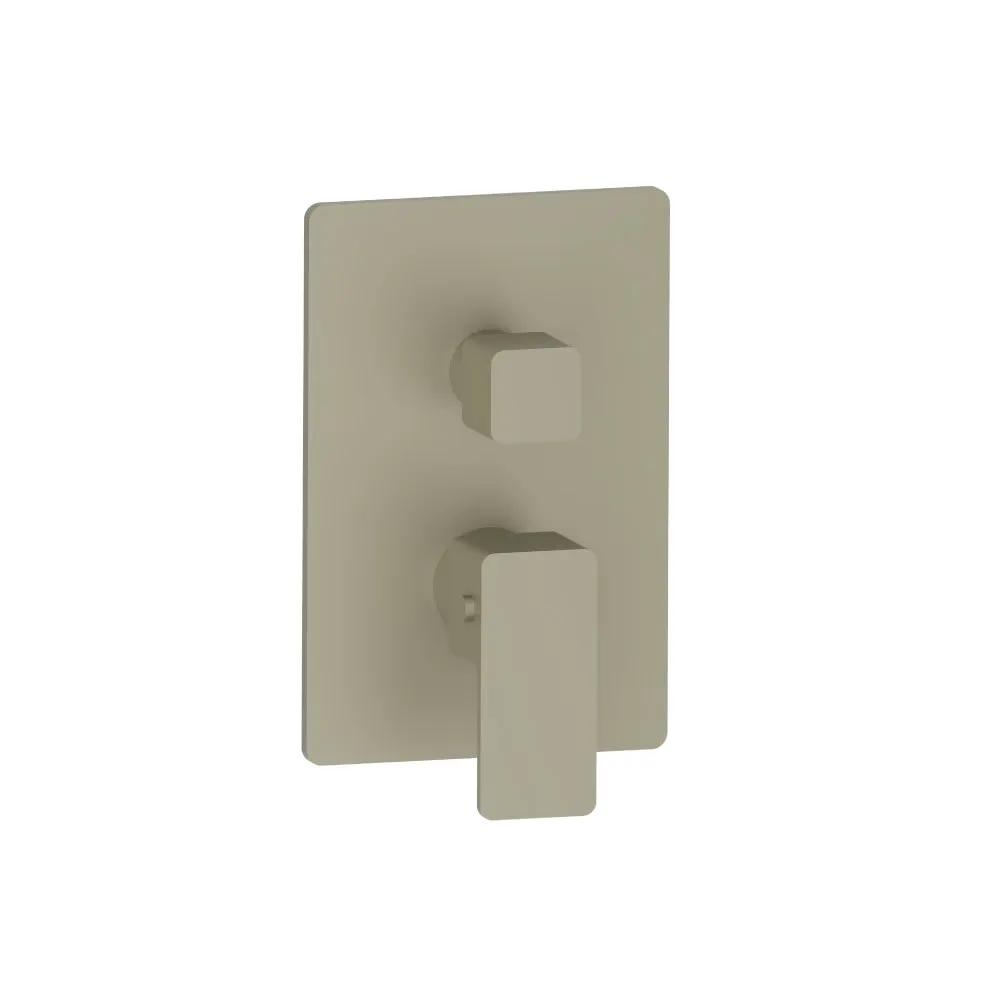

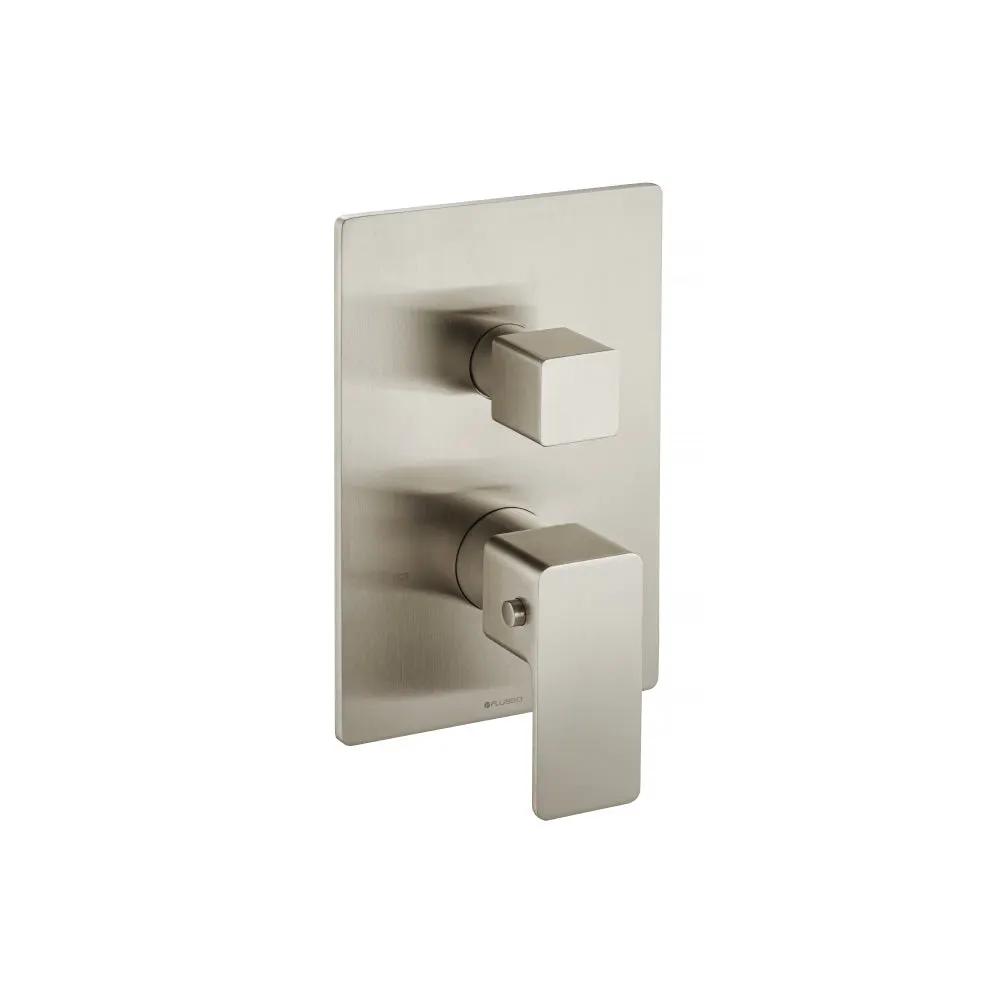

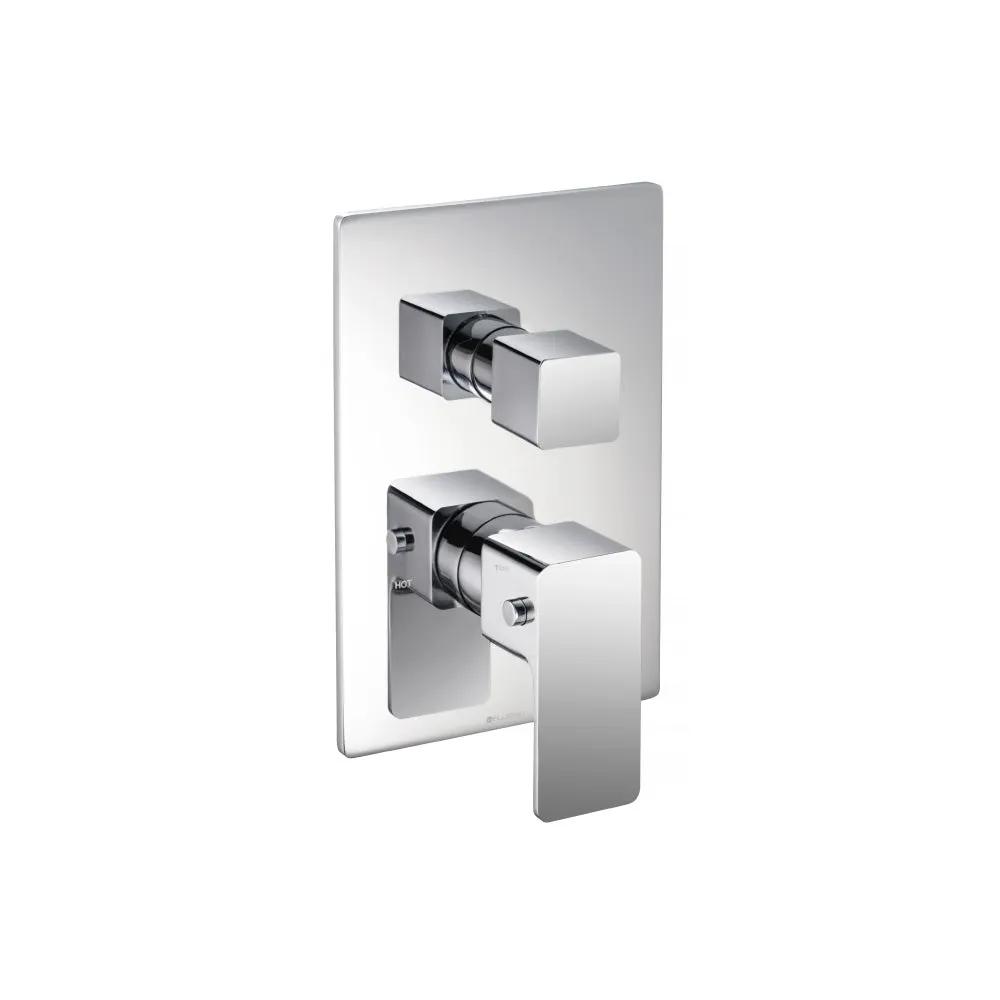

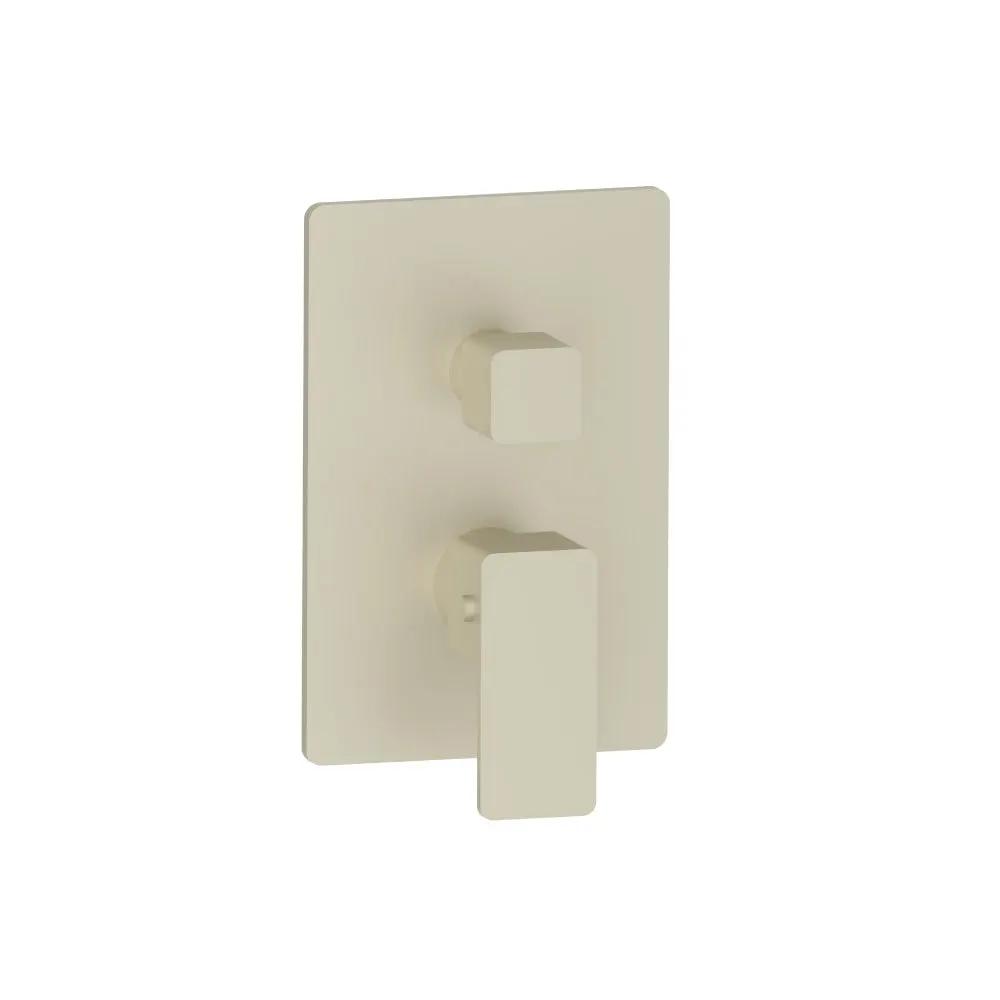

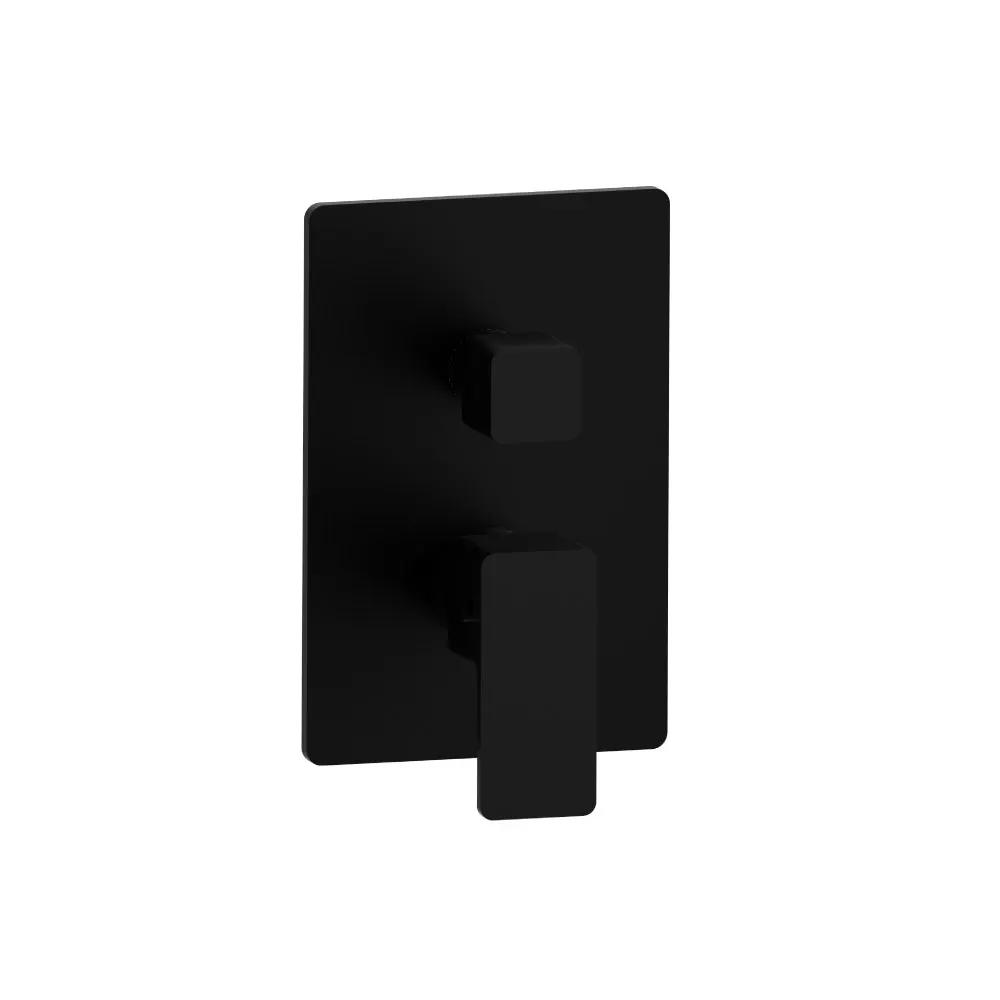

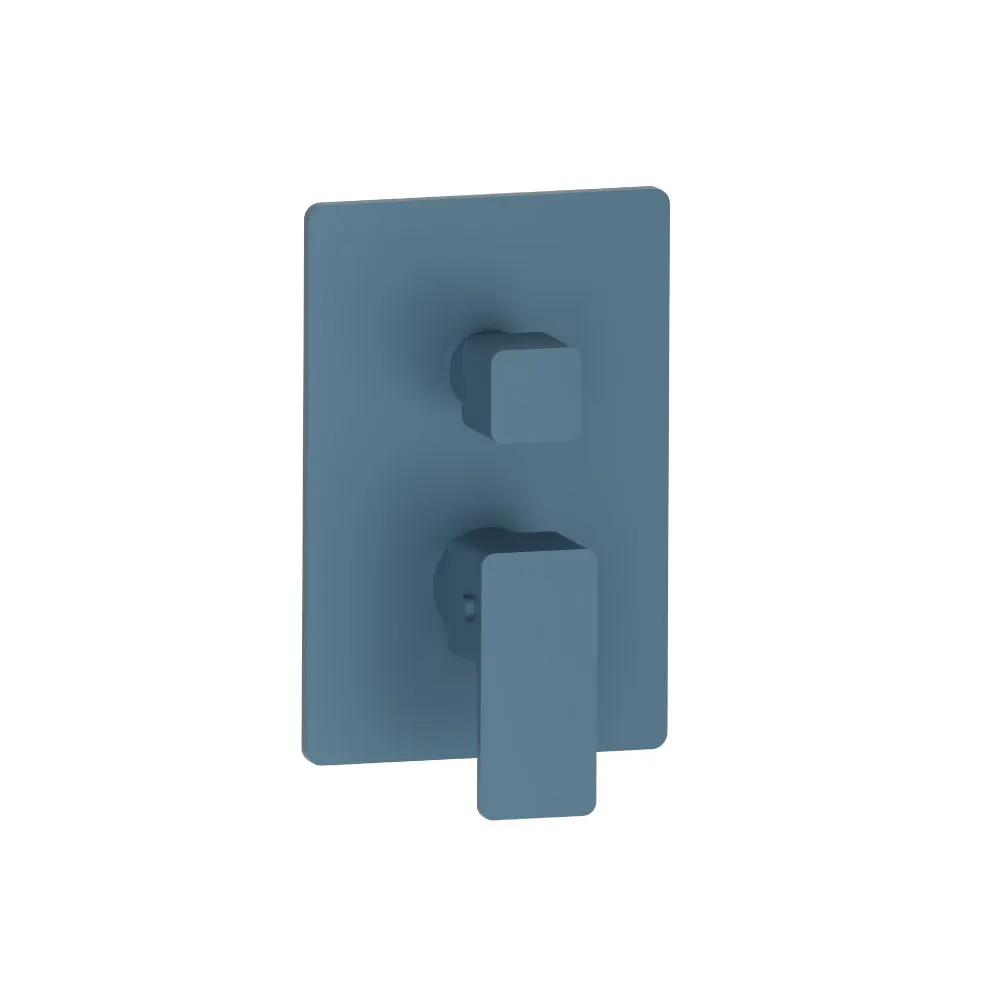

Flusso Serie 196 3/4 " Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output
Product details
Focal Point Hardware is an authorized Flusso retailer!
Experience precision engineering with the Flusso Serie 196 3/4" Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output. This CAL-Green compliant valve delivers reliable temperature control, dual output management, and seamless integration with your shower system, combining luxurious craftsmanship with modern efficiency for a spa-like bathroom experience and lasting performance.
Flusso is renowned for premium bathroom fixtures that fuse precise thermostatic technology with enduring brass construction. The brand emphasizes reliability, elegant design, and CAL-Green efficiency, delivering durable, long-lasting performance across residential and commercial settings. Flusso's commitment to safety, quality control, and thoughtful installation details helps professionals and homeowners achieve consistent, comfortable showers.
Features and Specifications
- 3/4" female NPT connections
- 2 water output ports
- CAL-Green Compliance
- Bottom handle sets the temperature
- Top handle diverts water flow between the two output ports
- Supply Stops: There are two safety stops at each water inlet to stop water flow in case of installation and repairs
- Handle Operation: The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position
- Rough In Spec: The distance from the back of the valve to the finished tile should be between 2.77" and 3.44" (Rough In Spec)
- Install straight and not at an angle or upside down
- Extensions available: TVH.4101E
- Cut Out Dimensions: 6.49 X 4.44 Inches
- Trims: The trims comprise a well finished cover plate and handle knobs
- Anti-scald temperature stop ring: Over the temperature control knob, a safety feature to regulate water temperature
- With the anti-scald stop ring, the temperature handle knob has a push button on the side to adjust hot or cold
- Button must be pressed to rotate to full HOT position – as an anti-scald prevention mechanism
- Anti-scald ring must be fitted tightly over the valve (tapping with a rubber mallet might be required)
- Cartridge: The TVH.4420F valve can be used with two cartridges. The default cartridge is Model # 15109 (2 output non-shared CAL-Green compliant). A shared port operation cartridge Model # 15103 can also be used to activate 2 ports at the same time
- Cartridge options: Model # 15103 (shared port) and Model # 15109 (default 2-output non-shared)
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4420F
- Includes Integral Service Stops
