Product details
Focal Point Hardware is an authorized Flusso retailer!

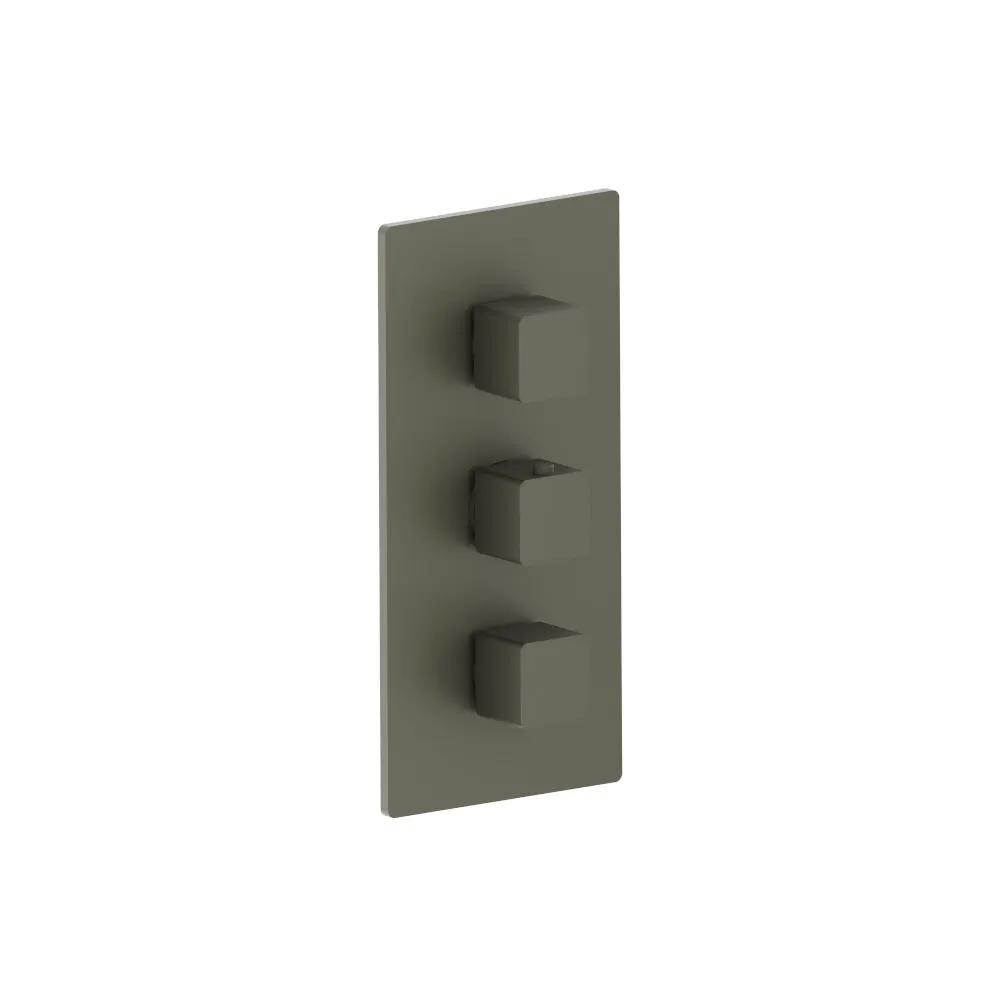

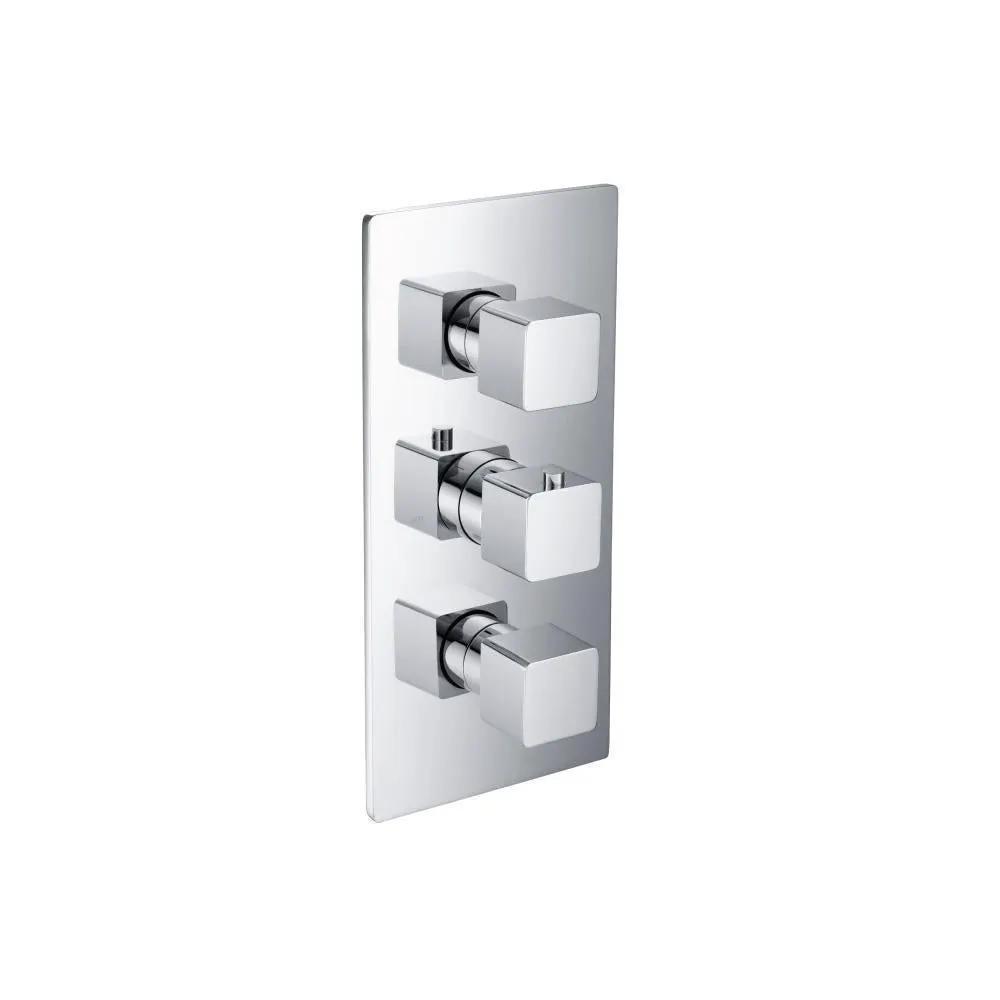

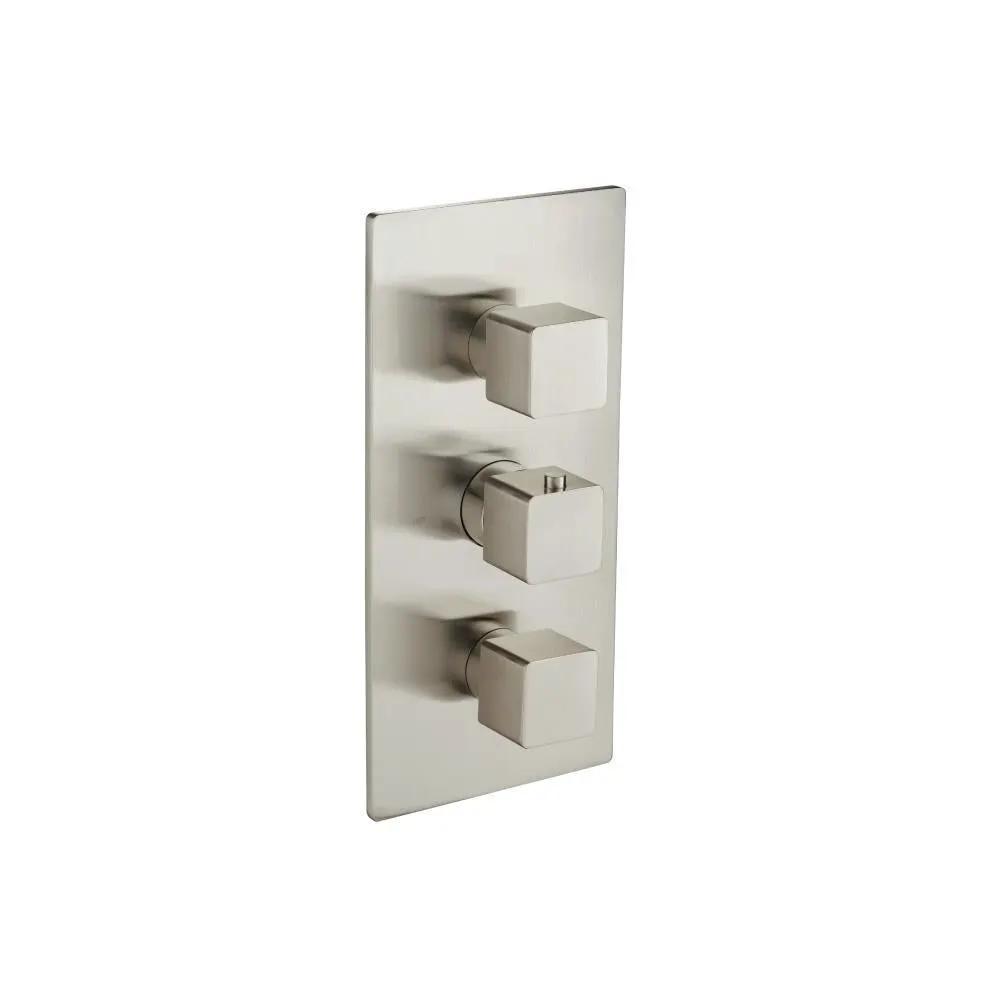

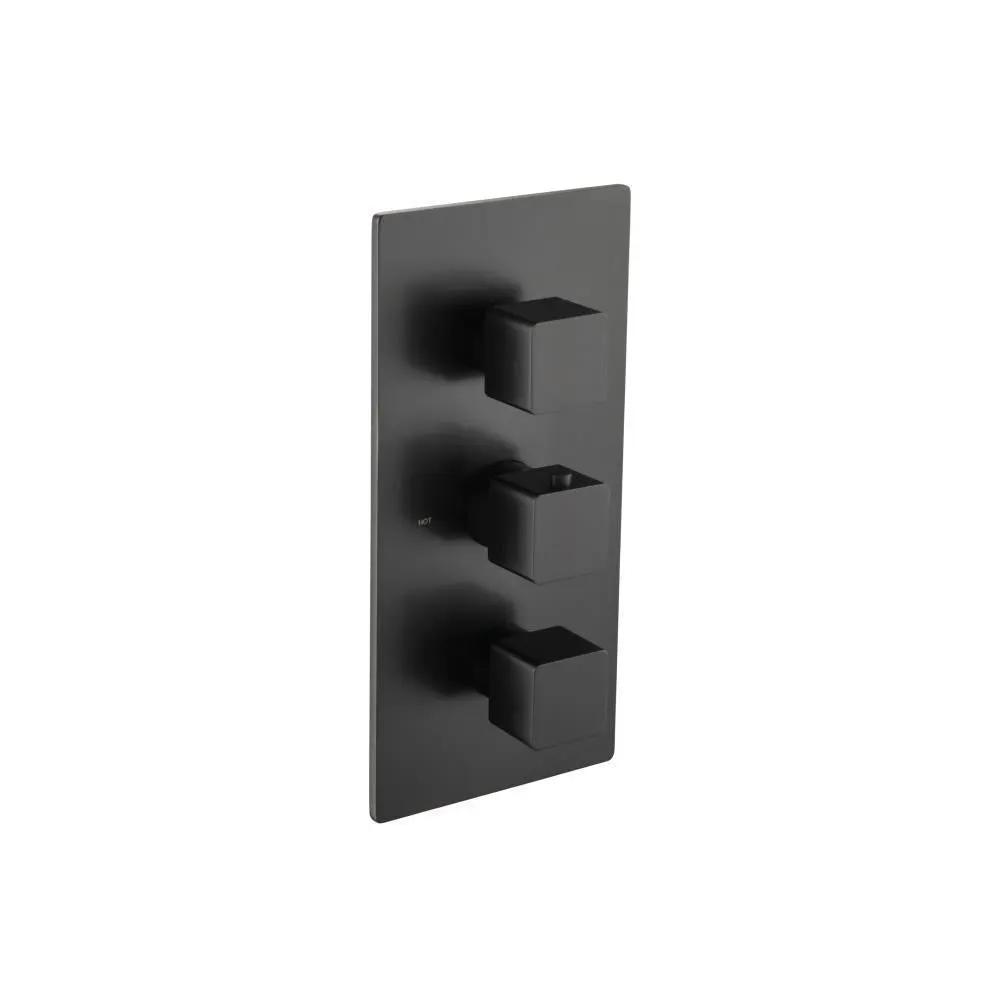

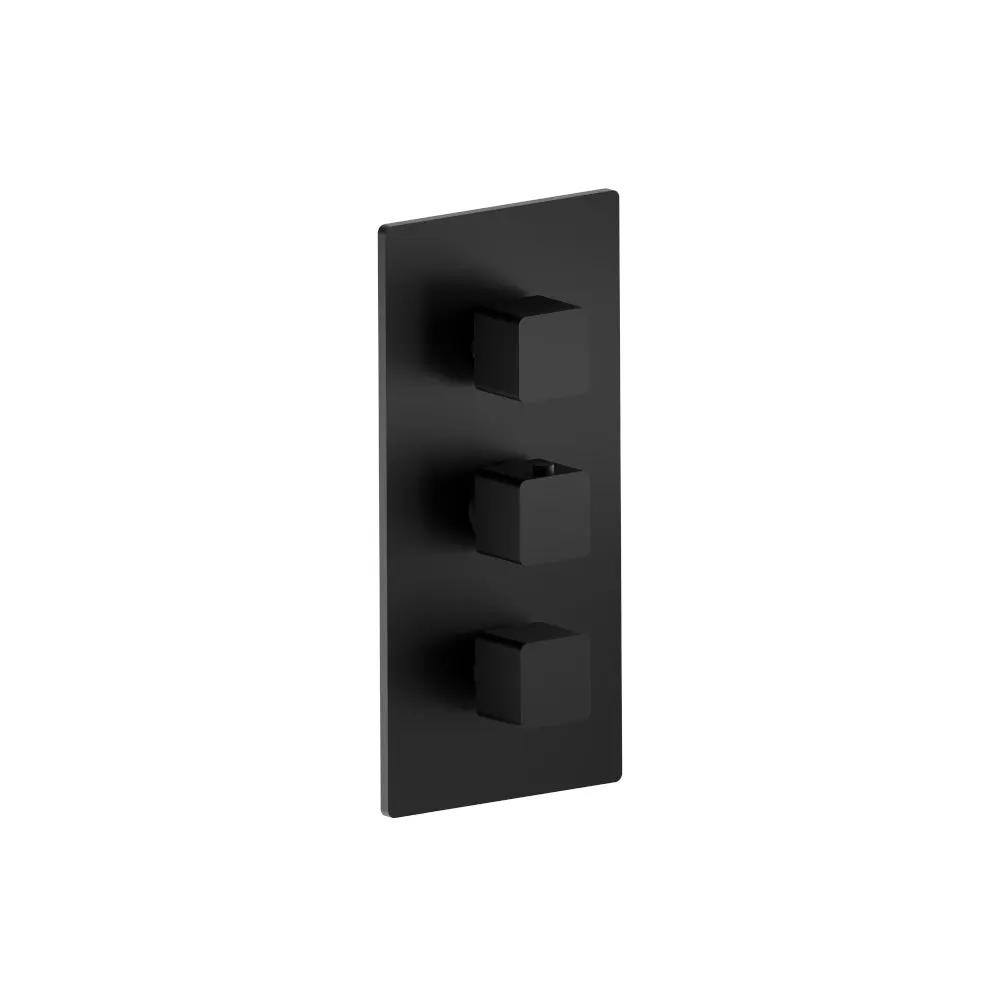

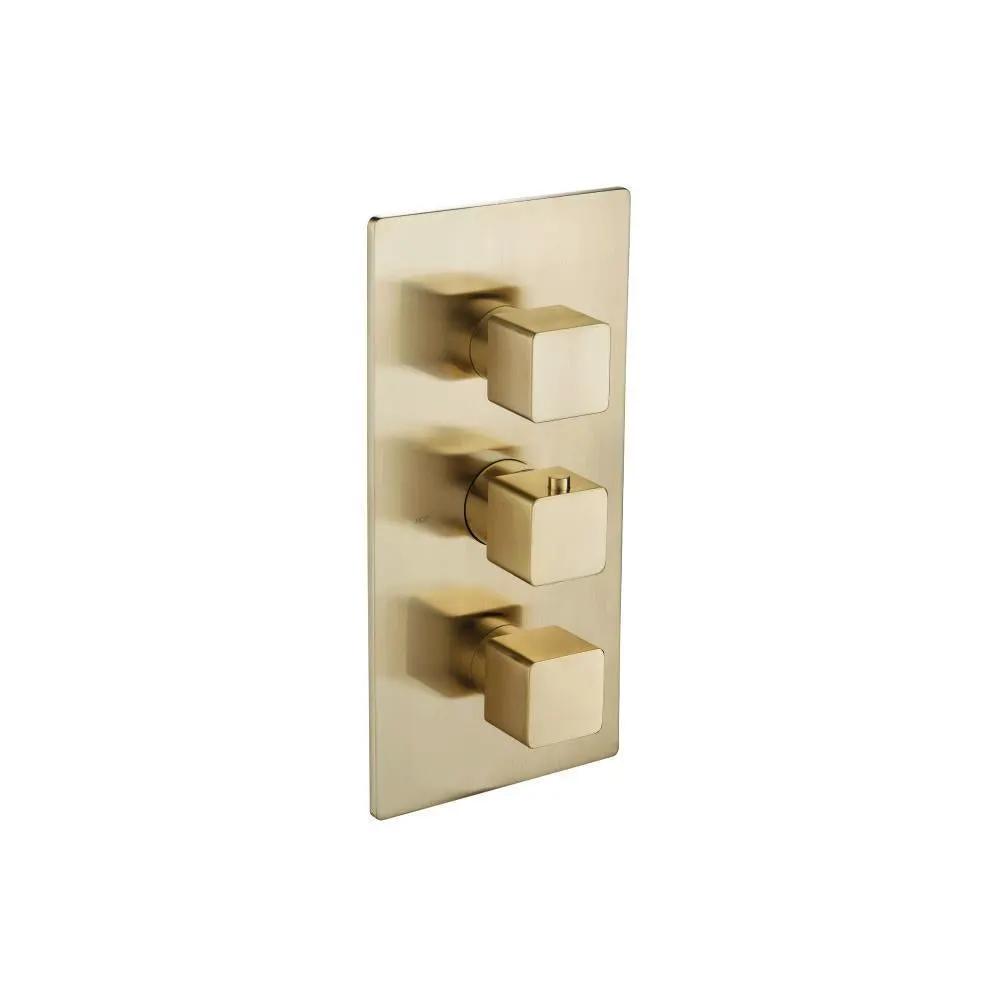

Discover the Flusso Serie 196 3/4" Thermostatic Valve with Trim - 3 Output, a precision thermostatic valve that delivers reliable temperature control and flexible water delivery with three outputs. From Flusso, renowned for durable brass construction and accurate flow management, this trim-ready system elevates shower customization while safeguarding against sudden temperature changes.
Flusso is a respected name in luxury shower technology, known for precision thermostatic valves, robust brass construction, and dependable performance. As a manufacturer, Flusso emphasizes safety features like anti-scald stops and easy-to-use trim systems that blend seamlessly with contemporary bathrooms. This heritage ensures reliable comfort and enduring value in every valve installation.
Features and Specifications
- The TVH.4501 Thermostatic valve features 3/4" NPT connections and has 3 water outputs [ports], two of which are operable simultaneously, i.e. both at the same time, or one at a time.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The middle handle sets the temperature. The top handle controls output port 1 and 2 and the bottom handle controls output port 3. Each port has full volume control capability and can be activated at the same time. Output ports 1 and 2 cannot operate simultaneously. Output ports 1 & 3 can operate simultaneously and also Output ports 2 & 3 can operate simultaneously.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 8.81 X 4.44 Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.

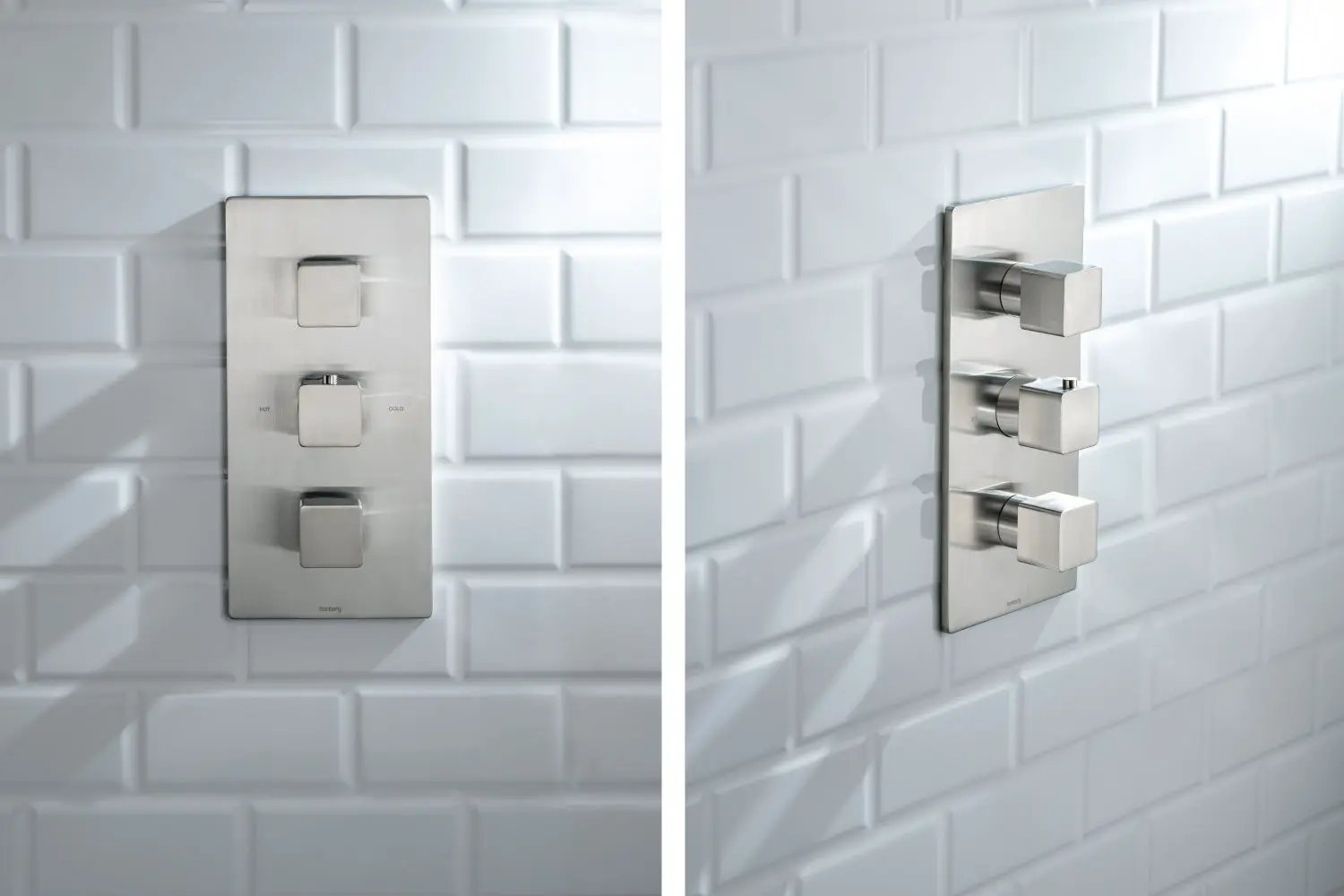

- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Includes Thermostatic Valve - TVH.4501 3 Output Ports Extensions Available - TVH.4401E**
Flusso Serie 196 3/4" Thermostatic Valve with Trim - 3 Output delivers precise, multi-port temperature control with luxury brass hardware, backed by Flusso's reputation for quality and reliability in premium showers.
