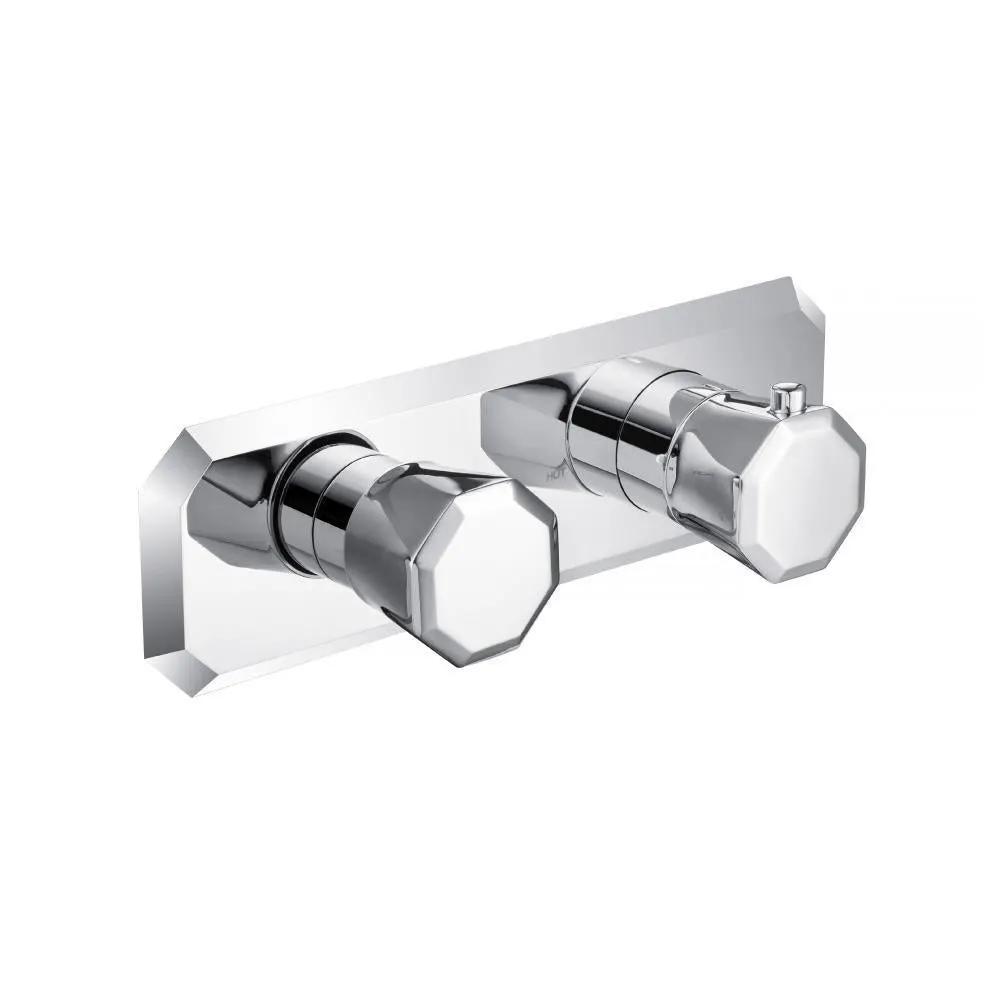

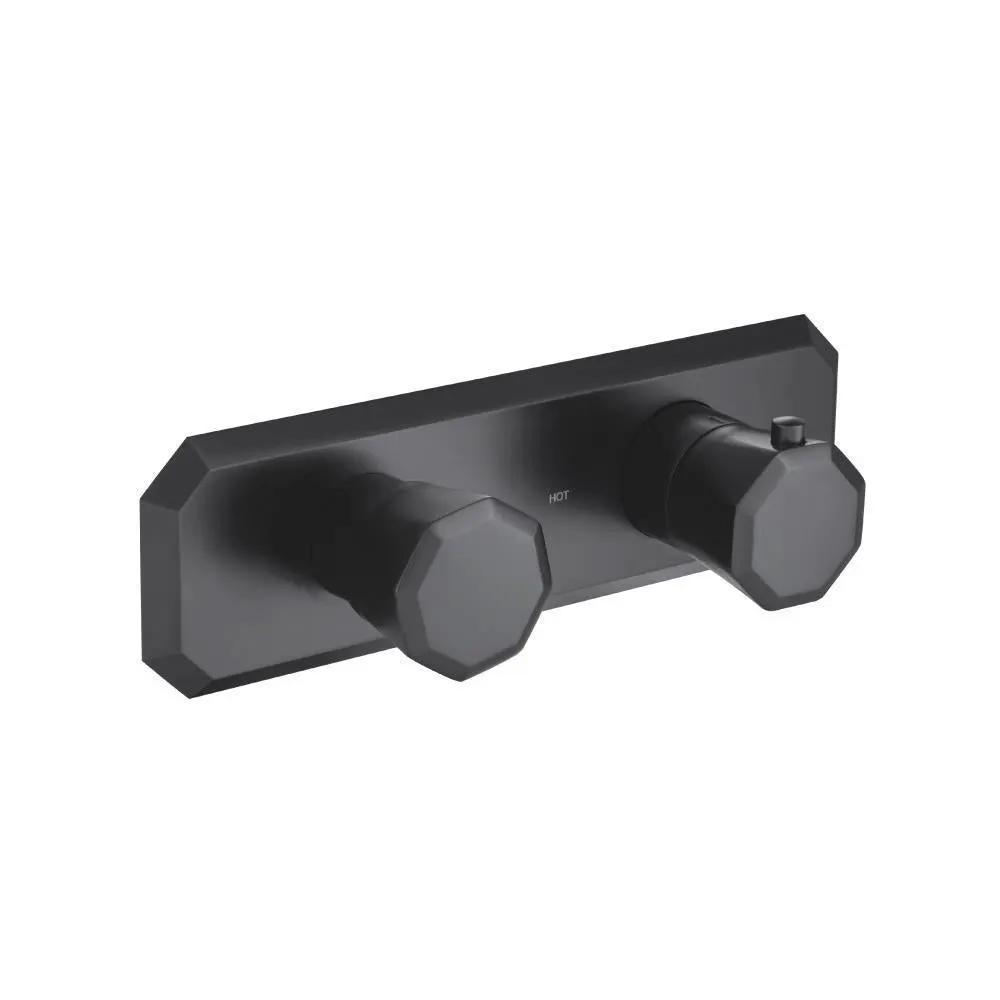

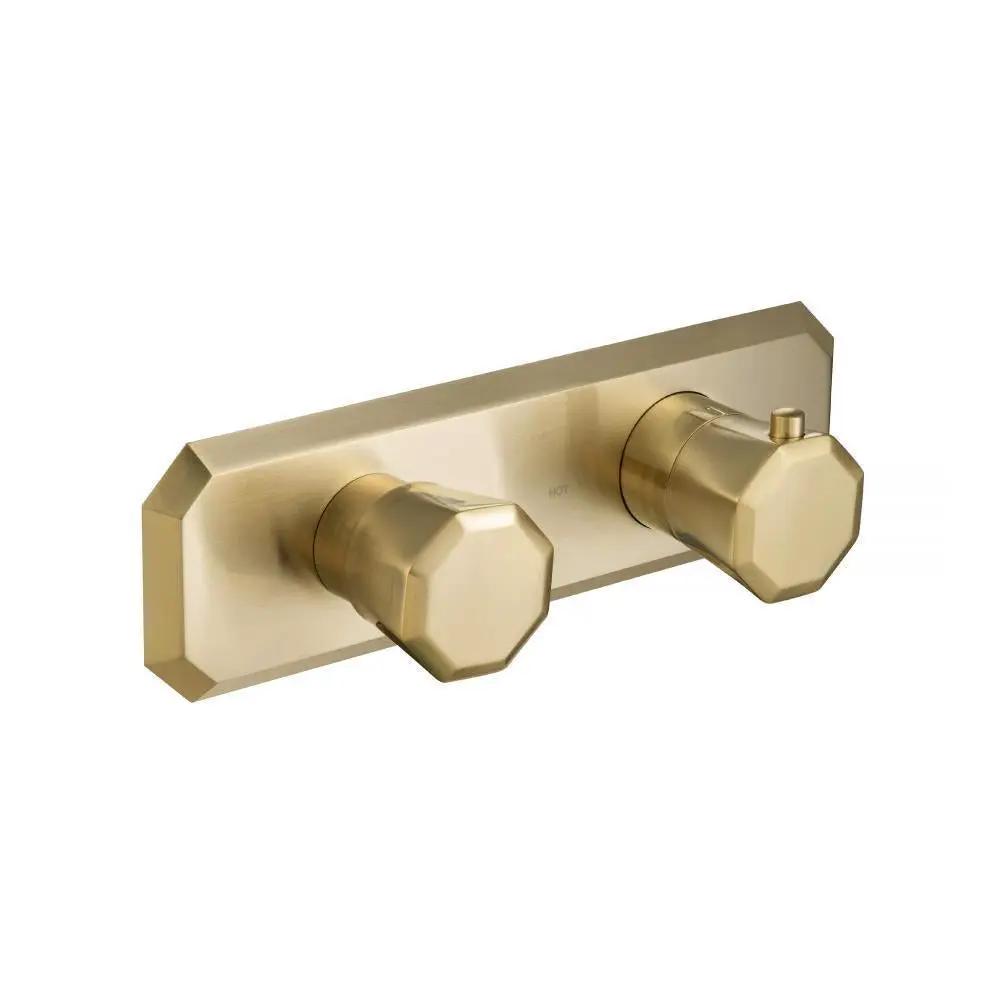

Flusso Serie 230 3/4" Horizontal Thermostatic Shower Valve and Trim - 2 Output
Product details
Focal Point Hardware is an authorized Flusso retailer!
Experience precise climate control with the Flusso Serie 230 3/4" Horizontal Thermostatic Shower Valve and Trim - 2 Output, a premium solution from Flusso that delivers safe, private-temperature water with independent, fully adjustable outputs. The two distinct ports offer versatile installation options and CAL-Green efficiency, ensuring luxurious baths without waste. Flusso reliability meets modern bathroom design expectations.
Flusso is renowned for precision-engineered, water-saving fixtures that blend luxury with reliability. Known for durable brass construction, CAL-Green compliance, and thoughtful thermostatic technology, Flusso delivers consistent temperature control and long-lasting performance for demanding residential and commercial installations. Trusted by installers for ease of installation, wide spare parts availability, and an emphasis on safety and sustainability.
Features and Specifications
- TVH.2717F thermostatic valve with 3/4" NPT connections and two water output ports operable one at a time (non-shared port operation).
- CAL-Green compliant cartridge options: default Model #15109, a CAL-Green compliant 2-output non-shared cartridge; Model #15103 for shared port operation to activate two ports simultaneously.
- Right handle sets the water temperature; left handle diverts water between the two output ports and controls flow from full to trickle.
- Horizontal or vertical installation capability.
- Two safety stops at each water inlet to prevent water flow during installation or repairs.
- Anti-scald ring over the temperature control knob; press the side button to rotate toward hot, and ensure the ring is fitted tightly for proper function.
- Valve installation requires back-of-valve to finished tile distance between 2.77" and 3.44" (Rough-In Spec); install straight to avoid angle or depth issues.
- Cut-out in wall should be 7.89" x 1.89" inches, properly covered by the trim plate.
- Trims include a well-finished cover plate and handle knobs; trim plate covers the wall and varies in shape and size by model.
- Cartridge compatibility: two cartridges are supported; default Model #15109 for two outputs, or Model #15103 for shared port operation to activate both ports.
- Solid brass construction includes thermostatic valve TVH.2717F with integral service stops and two output ports.
Elevate your shower experience with Flusso Serie 230 3/4" Horizontal Thermostatic Shower Valve and Trim - 2 Output, offering precise temperature control, versatile porting, and CAL-Green efficiency backed by Flusso's reputation for luxury-grade reliability.
