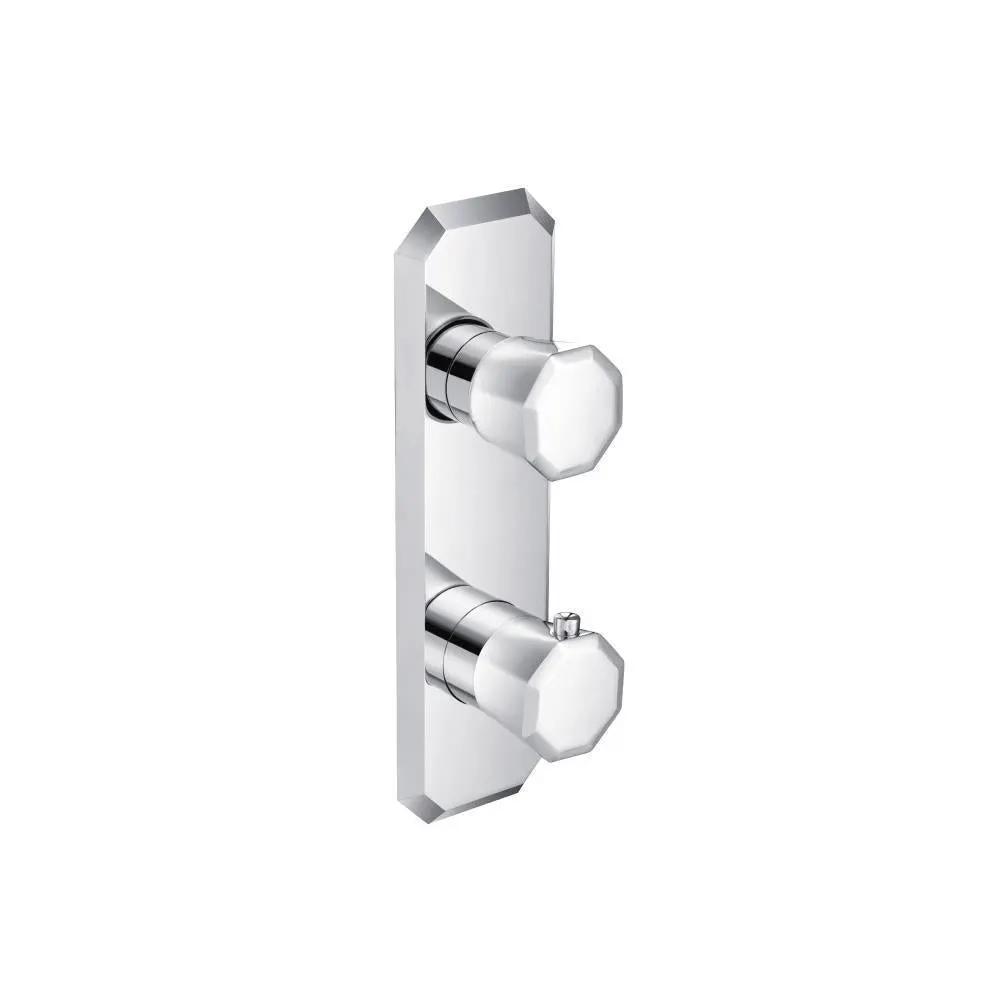

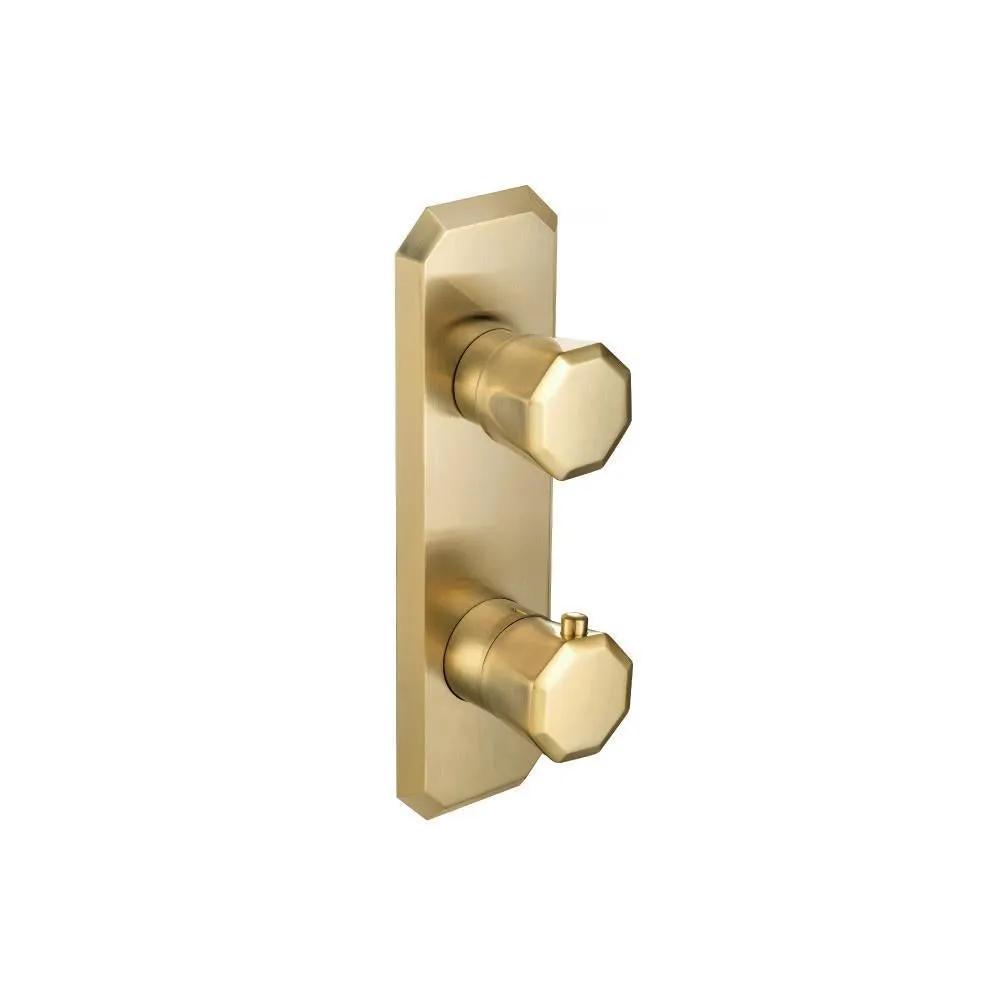

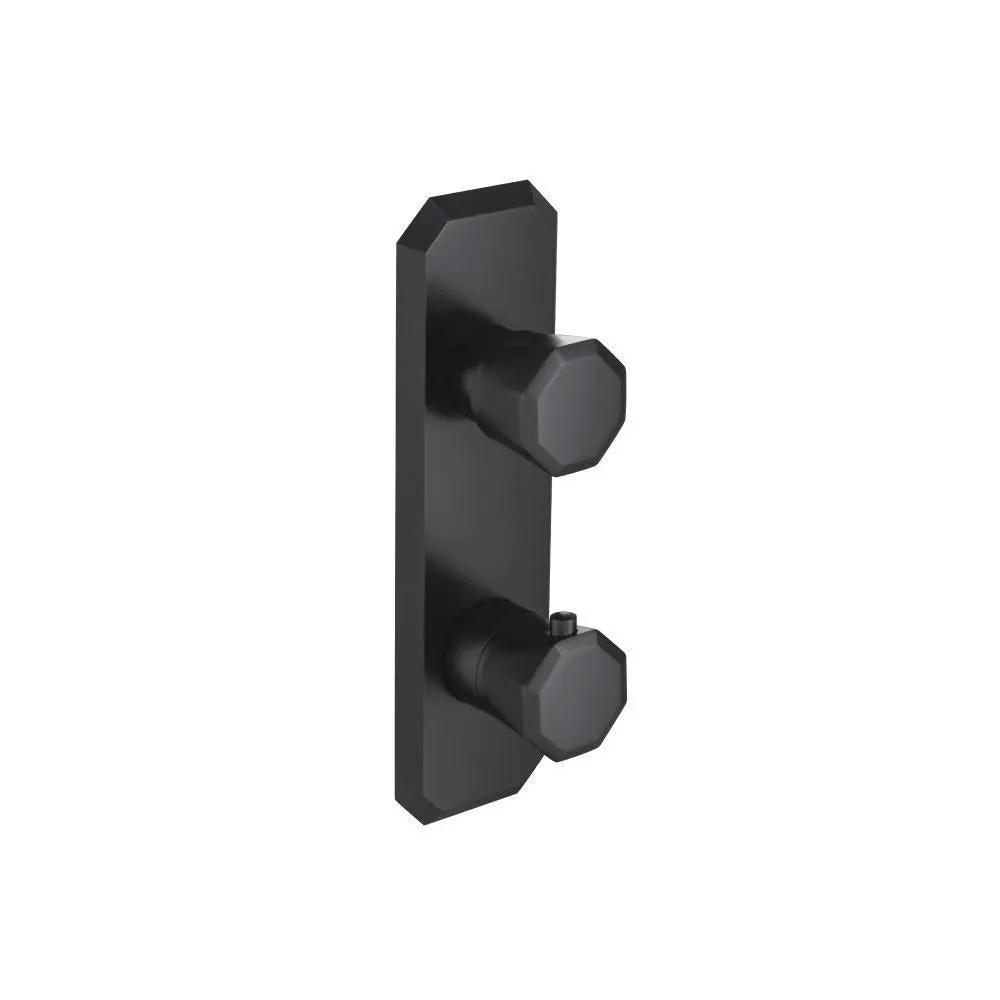

Flusso Serie 230 3/4" Horizontal Thermostatic Shower Valve and Trim - 1- Output
Product details
Focal Point Hardware is an authorized Flusso retailer!
Discover the Flusso Serie 230 3/4" Horizontal Thermostatic Shower Valve and Trim - 1- Output, engineered for precise temperature stability and smooth, luxurious water flow. The Flusso name guarantees reliability, premium brass construction, and thoughtful design, delivering safe, consistent showers that elevate daily routines and bathroom aesthetics. Versatile installation options and a refined finish make it a standout choice for modern baths.
Flusso is renowned for precision-engineered shower valves and premium trim systems, delivering reliable thermostatic control, durable brass construction, and refined craftsmanship. The Flusso Serie 230 3/4" Horizontal Thermostatic Shower Valve and Trim - 1- Output reflects this commitment with accurate temperature regulation, solid build, and stylish, unobtrusive integration for luxurious bathrooms.
Features and Specifications
- 2720 series of Flusso uses the TVH.2693 Thermostatic valve with 3/4" NPT connections and one water output.
- Horizontal or vertical installation – The TVH.2693 can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The right handle controls the temperature. The left handle turns water on/off and can control the volume from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring with a push-button on the side to adjust temperature; without pressing, the handle cannot rotate to full HOT position.
- VALVE INSTALLATION - Maintain a proper distance from the back of the valve to the finished tile between 2.77" and 3.44" inches [Rough In Spec]. The valve must be installed straight and not at an angle or upside down. Extension kits are available to elongate handles if needed for deeper walls.
- CUT OUT DIMENSIONS – The wall cut-out should be 7.89" x 1.89" inches and is properly covered by the trim plate.
- TRIMS – Trims comprise a well-finished cover plate and handle knobs; the trim plate covers the wall and shapes vary from square to circular depending on the shower model.
- Solid Brass Construction; Includes Thermostatic Valve - TVH.2693 with Integral Service Stops
- Single Output Port Extensions Available - TVH.4101E**
Experience reliable performance and precise temperature control with the Flusso Serie 230 3/4" Horizontal Thermostatic Shower Valve and Trim - 1- Output, a luxurious, durable choice backed by Flusso’s reputation for quality and refined bathroom design.
