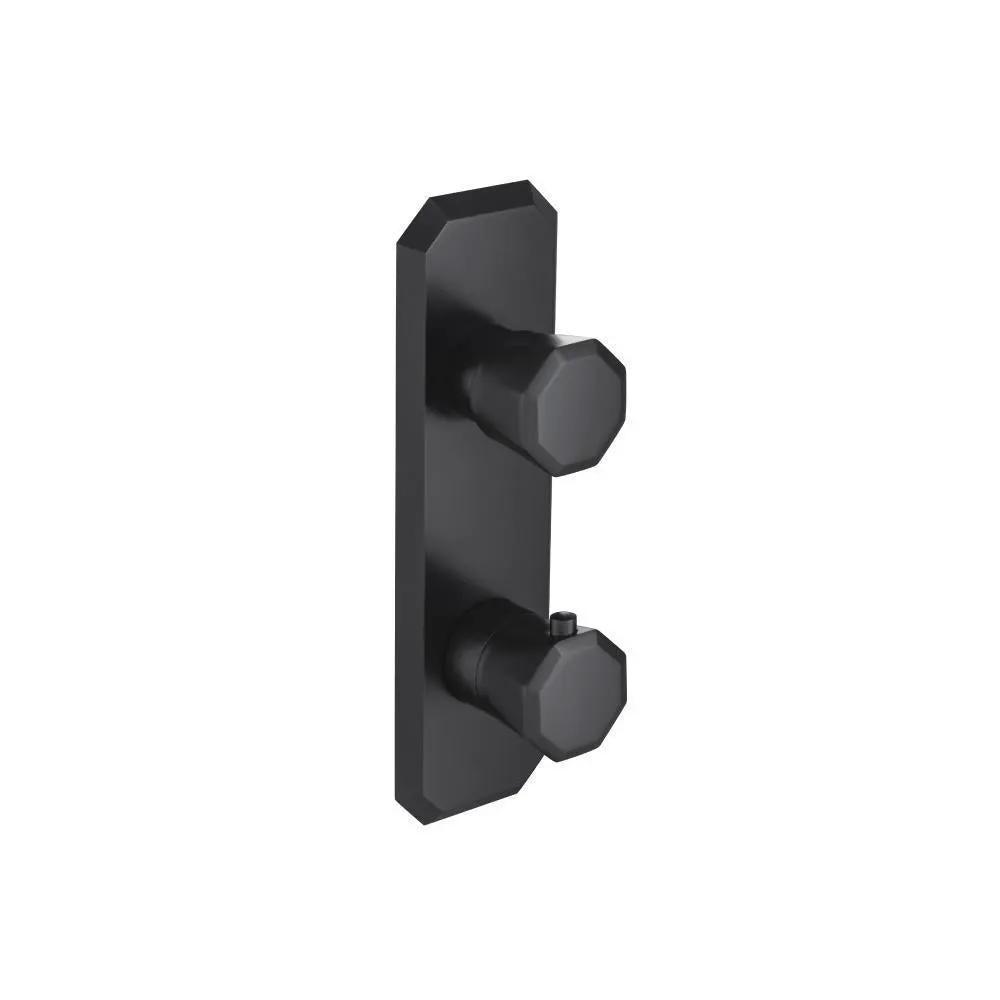

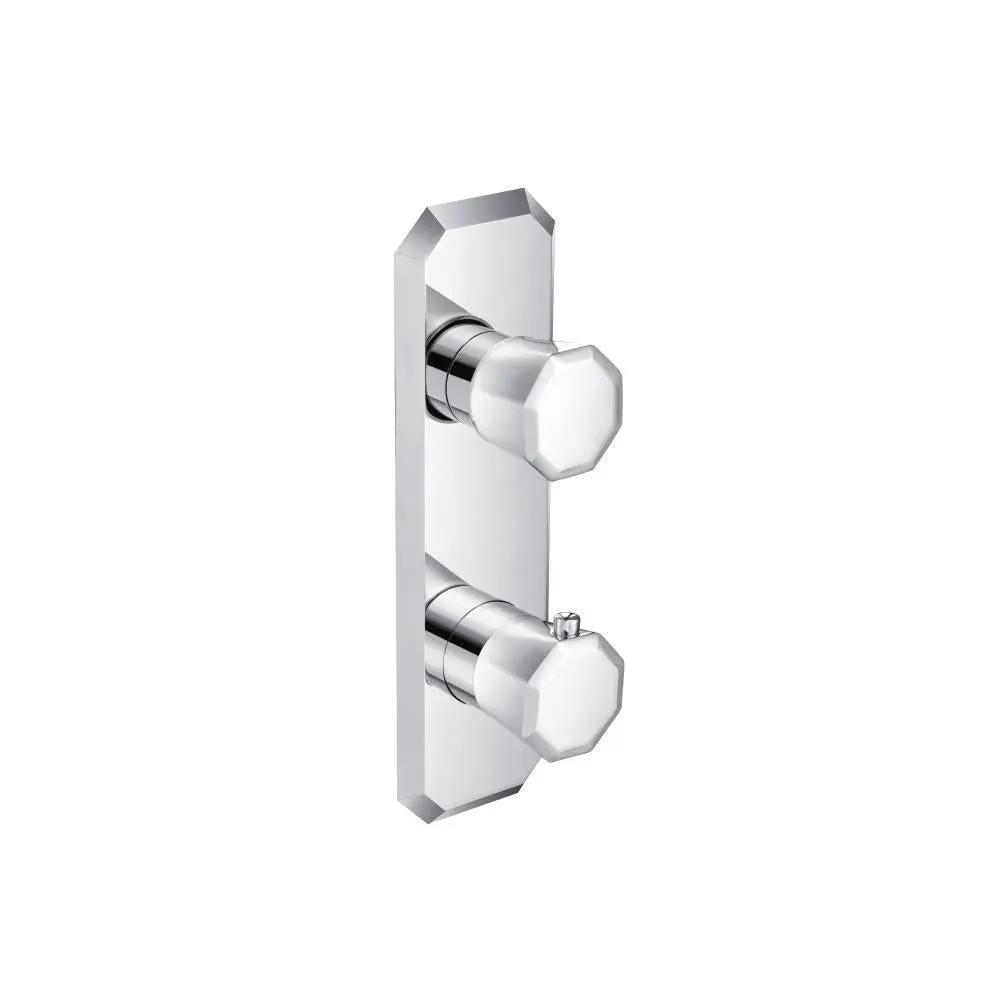

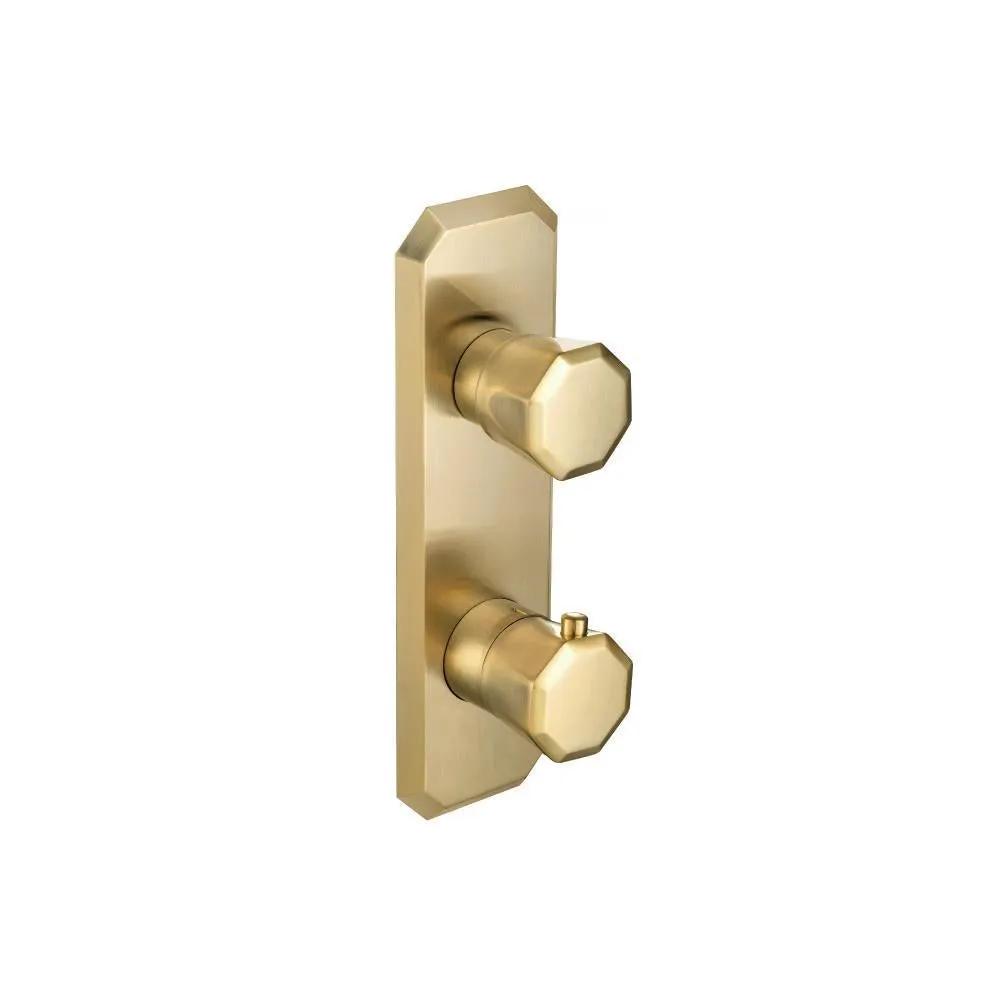

Discover the Flusso Serie 230 3/4" Thermostatic Shower Valve and Trim - 3-Output, a precision-engineered solution that delivers independent, full-flow water to each of three outputs with precise temperature control. The TVH.2705F thermostatic valve, CAL-Green compliant, supports horizontal or vertical installation and pairs with two cartridge options for versatile, reliable bath and shower performance.
Flusso is renowned for innovative thermostatic technology, durable brass construction, and elegant, user-friendly shower systems. The Flusso Serie 230 line emphasizes precise temperature control, safe anti-scald features, and reliable performance. With a commitment to CAL-Green standards, Flusso products deliver lasting value and luxurious operation for modern bathrooms. Trusted by installers and homeowners alike.
Features and Specifications
- TVH.2705F thermostatic valve with 3/4" NPT connections and 3 water output ports operable one at a time without shared port operation.
- CAL-Green compliant.
- Bottom handle sets the temperature.
- Top handle controls water diversion between the 3 output ports; each port has full volume control capability.
- Horizontal or vertical installation.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The right handle controls the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is capable of controlling the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77" and 3.44" inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89" x 1.89" Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- CARTRIDGE – The TVH.2705F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time.
- Solid Brass Construction Includes Thermostatic Valve - TVH.2705F.
Powered by Flusso’s precision engineering and premium brass construction, the Flusso Serie 230 3/4 inch thermostatic Shower Valve and Trim delivers reliable, luxurious water control with CAL-Green compliance and versatile 3-output operation.
