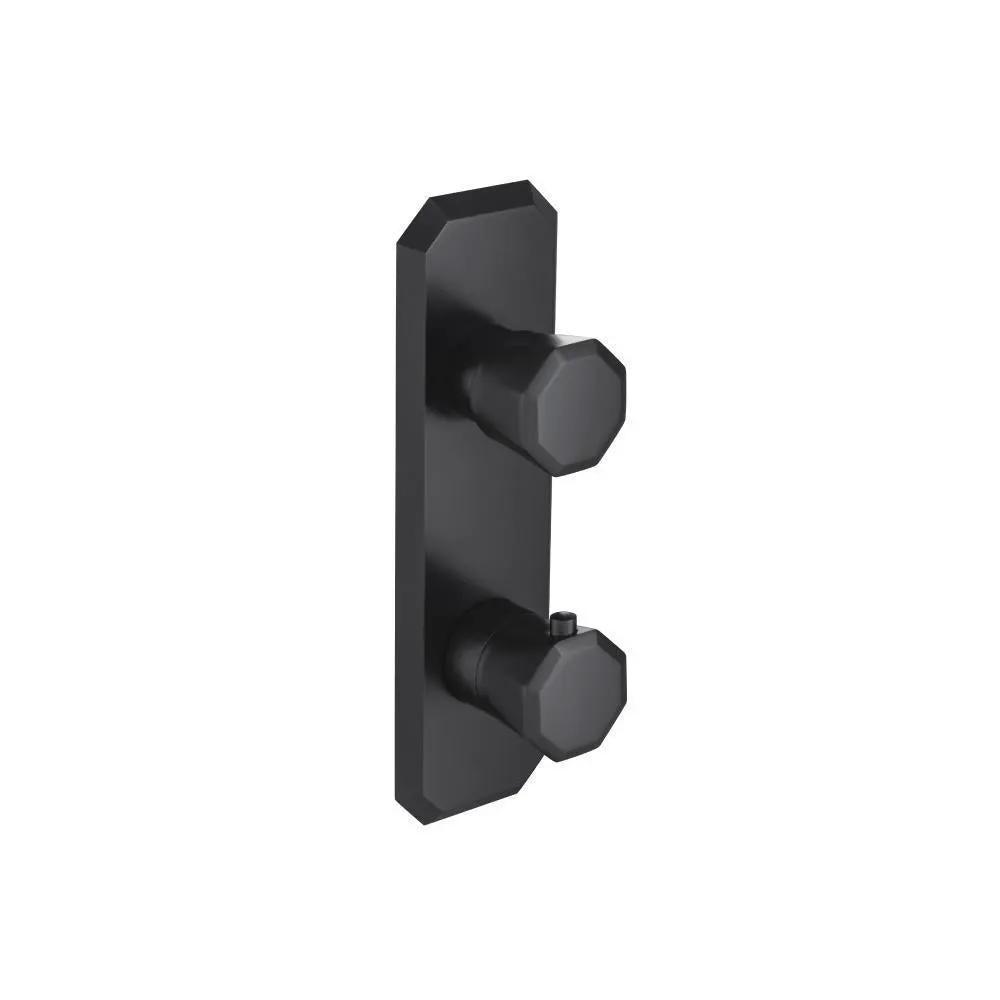

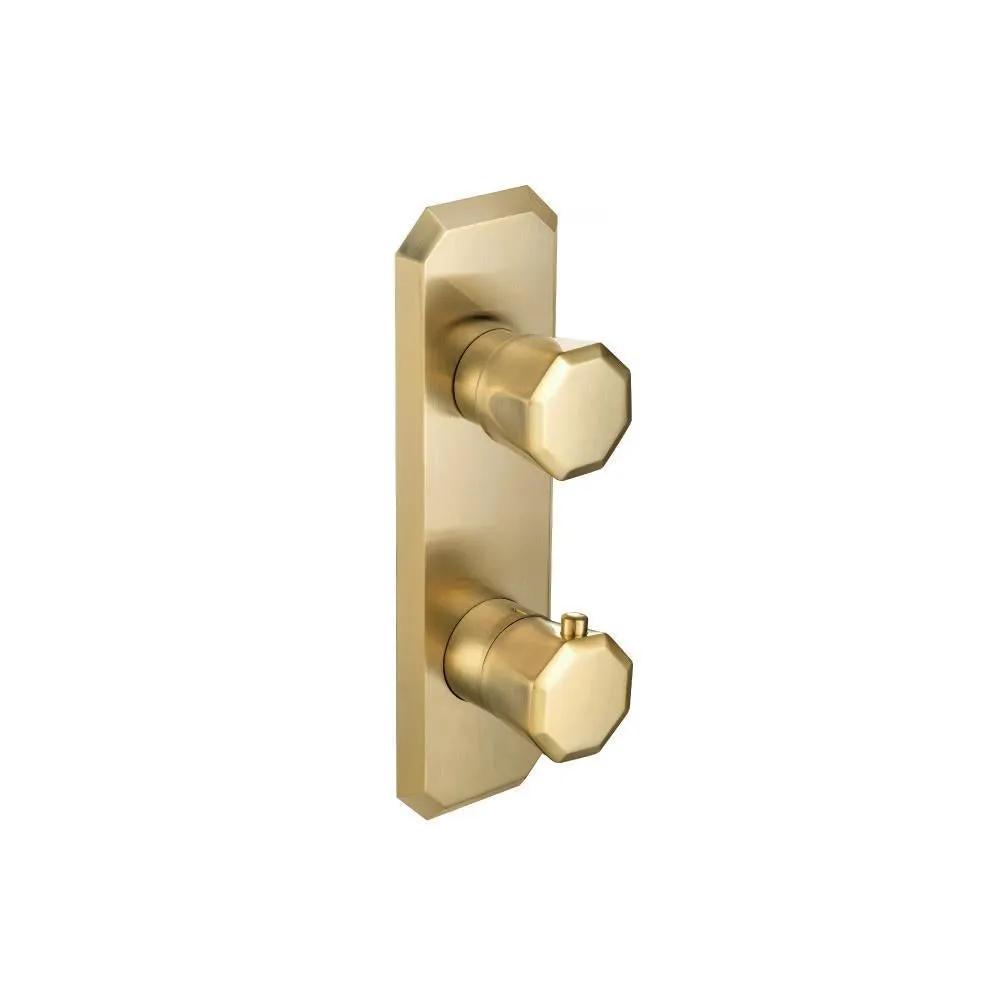

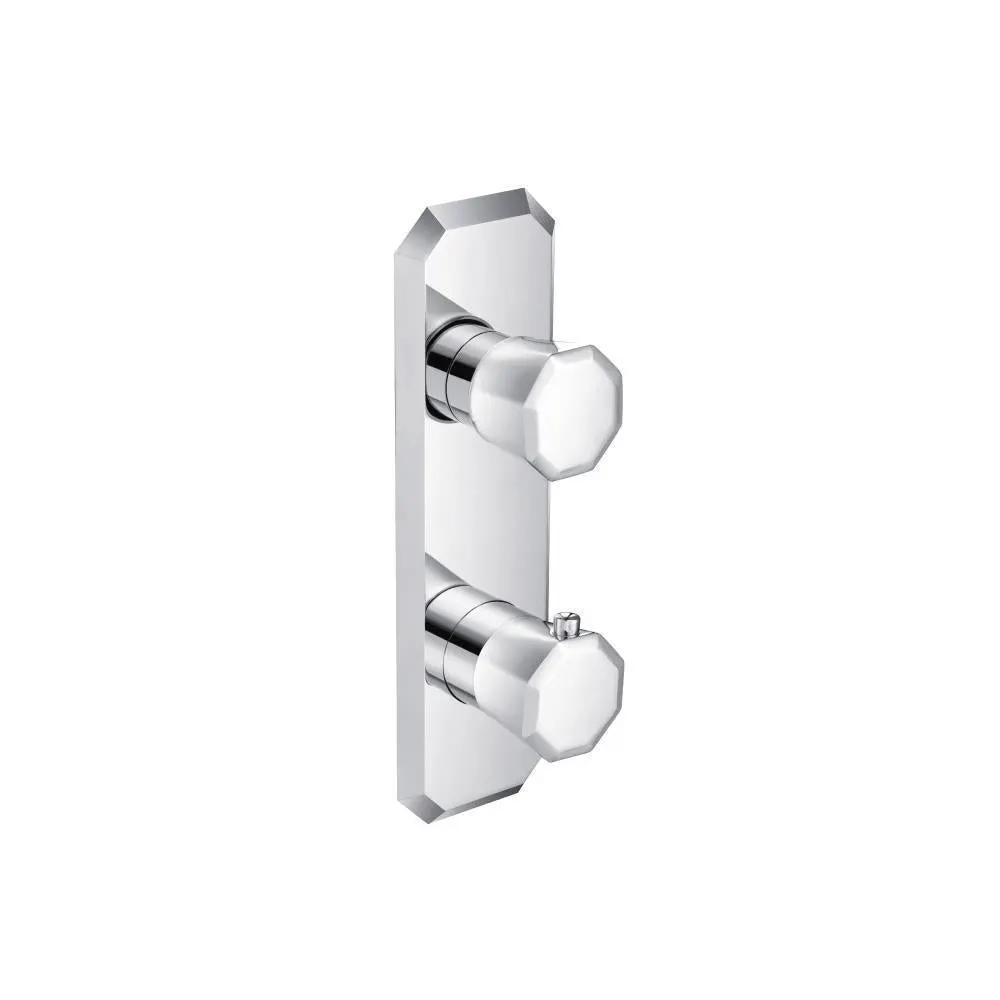

Flusso Serie 230 Trim for Thermostatic Valve delivers precise temperature control and anti-scald safety with a refined brass finish, elevating any shower setup. As a trusted Flusso product, it blends reliable performance with modern design, offering smooth water diversion and temperature adjustment for a luxurious, efficient experience, ideal for retrofit projects and new installs alike.
Flusso, renowned for precise thermostatic control and enduring brass craftsmanship, stands behind the Flusso Serie 230 Trim for Thermostatic Valve. The brand is celebrated for reliable anti-scald safety features, durable engineering, and luxury bathroom fixtures that combine performance with timeless design, ensuring lasting value and elevated shower experiences in every installation.
Features and Specifications
- Handle Operation - The bottom handle is used to set the temperature. The top handle is used for water diversion and volume control.
- Cut Out Dimensions - The cut out in wall should be 7.89 X 1.89 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.
- Trims - The trims comprise of a well finished cover plate and handle knobs constructed in solid Brass.
- Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated.
- Covering this ring is the temperature handle knob which has a push button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction
- For Use with TVH.2693, TVH.2717F, TVH.2705F Thermostatic Valves
- Valve Not Included - Trim Only
- Extensions Available - TVH.4101E**
Upgrade your shower with confidence—this trim delivers precise control, anti-scald safety, and enduring brass craftsmanship from Flusso, reinforcing the brand's reputation for quality and luxury in every detail.
