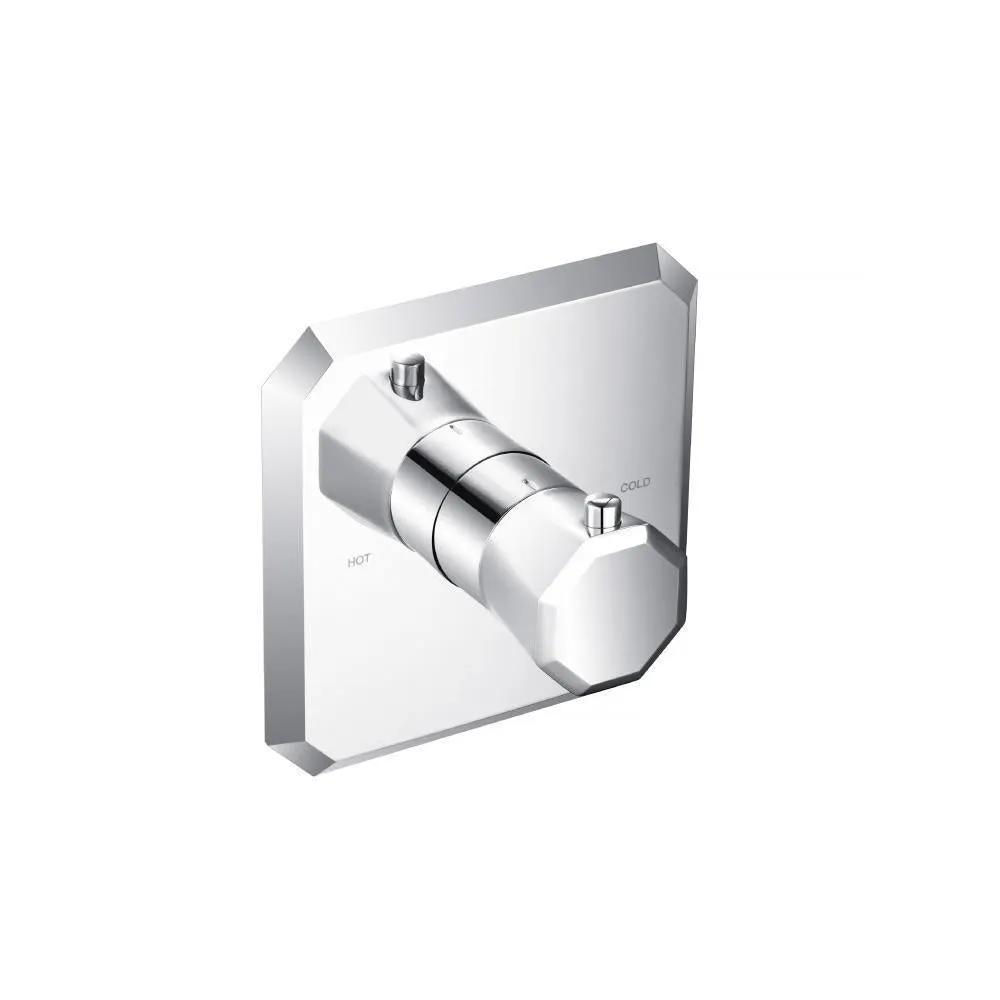

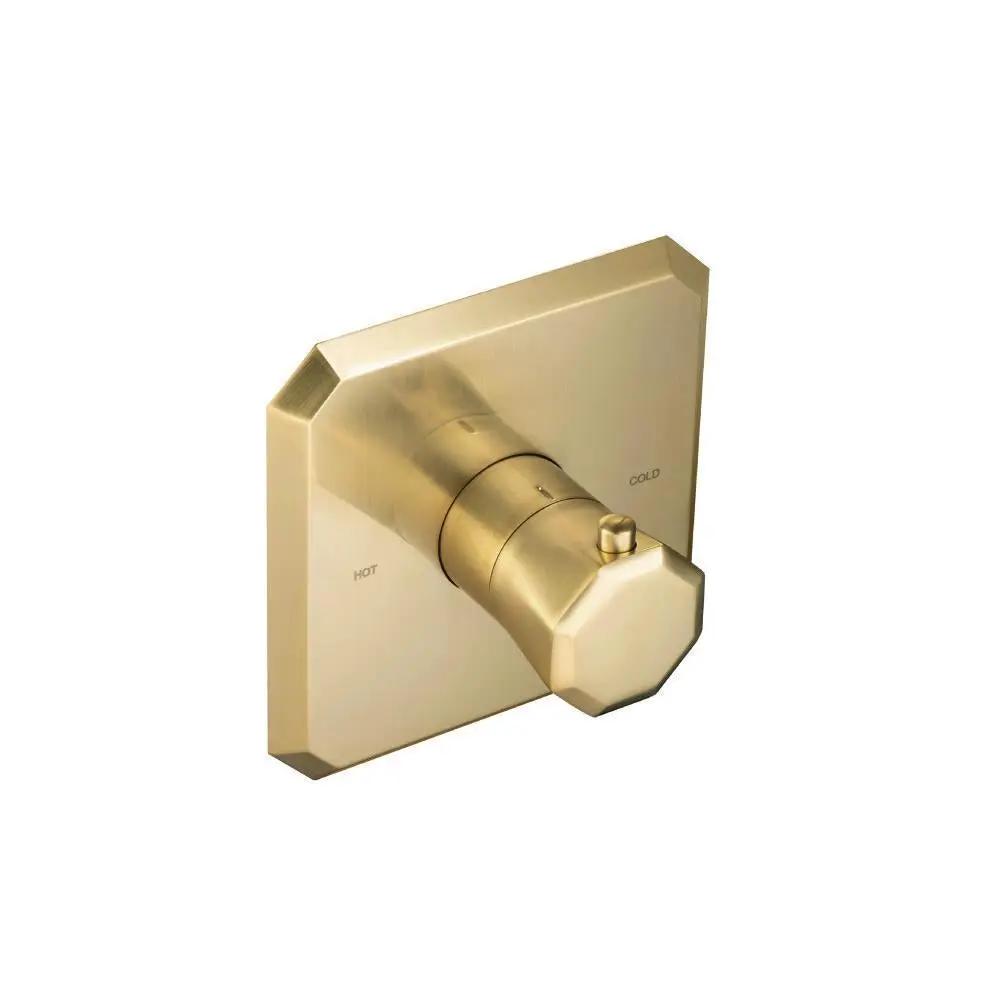

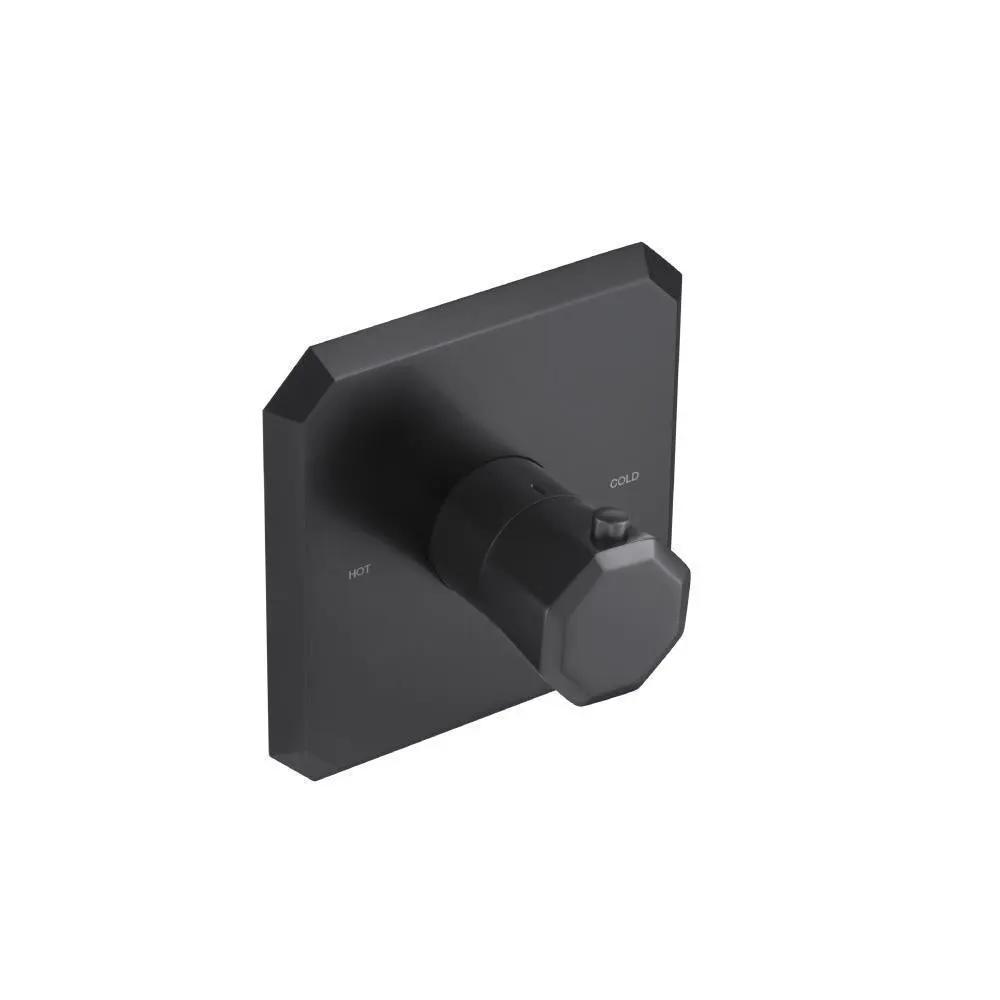

Flusso Serie 230 Trim for 3/4" Thermostatic Valve - Use with TVH.4201
Product details
Focal Point Hardware is an authorized Flusso retailer!
Discover the Flusso Serie 230 Trim for 3/4" Thermostatic Valve - Use with TVH.4201, a precision brass trim kit that delivers reliable temperature control and a sleek wall-mounted profile. The included anti-scald ring and push-button handle ensure safe, effortless adjustment, while the solid brass construction guarantees long-lasting luxury in any shower setting.
Flusso is renowned for premium thermostatic valve systems that combine precise temperature control with durable brass construction and stylish trims. Flusso products emphasize reliability, safety, and refined design, delivering consistent performance in modern showers. The brand's commitment to craftsmanship and customer support underpins every trim kit, ensuring long-term value and satisfaction.
Features and Specifications
- Flusso Serie 230 Trim for 3/4" Thermostatic Valve - Use with TVH.4201
- Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve.
- Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle.
- Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated.
- Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Valve & Trim Extension Available - TVH.E185**
Flusso Serie 230 Trim for 3/4" Thermostatic Valve - Use with TVH.4201 delivers a compact, robust solution for premium showers, with precise anti-scald protection and a brass finish. Trust Flusso's legacy of quality, reliability, and luxury in every installation.
