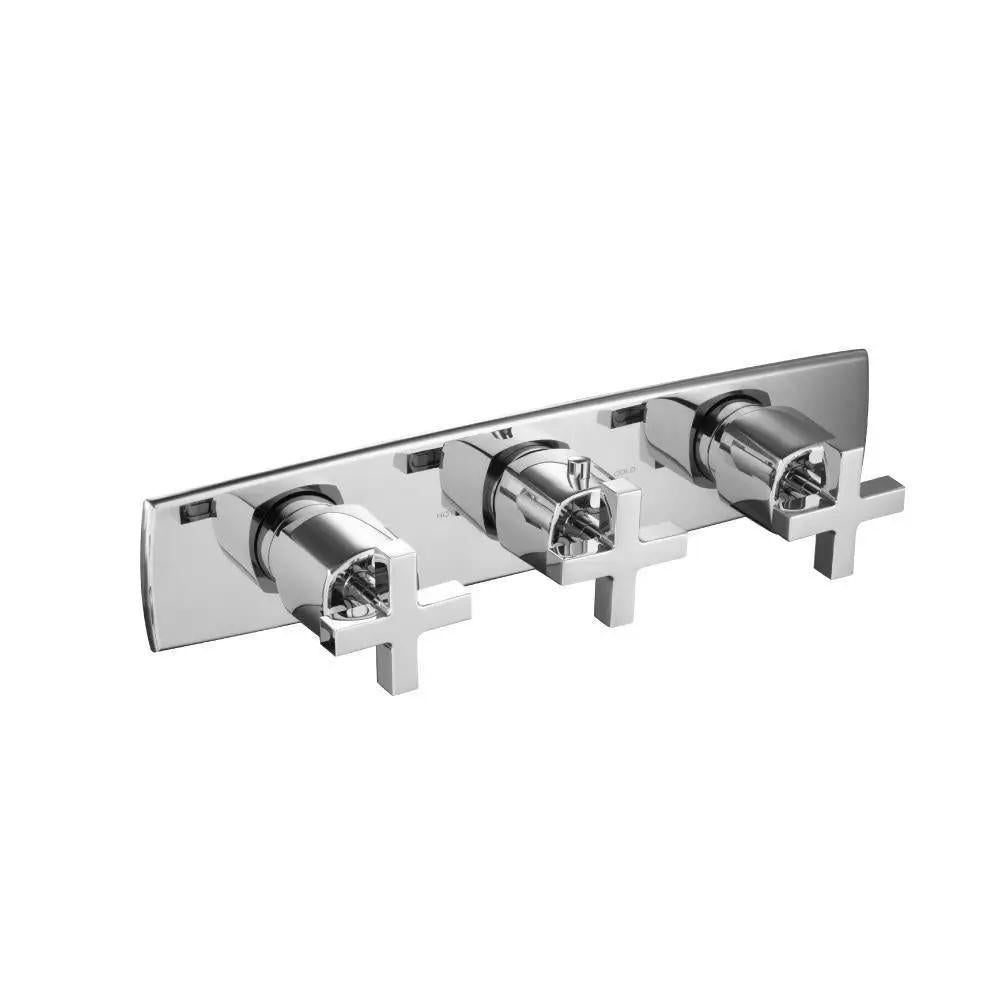

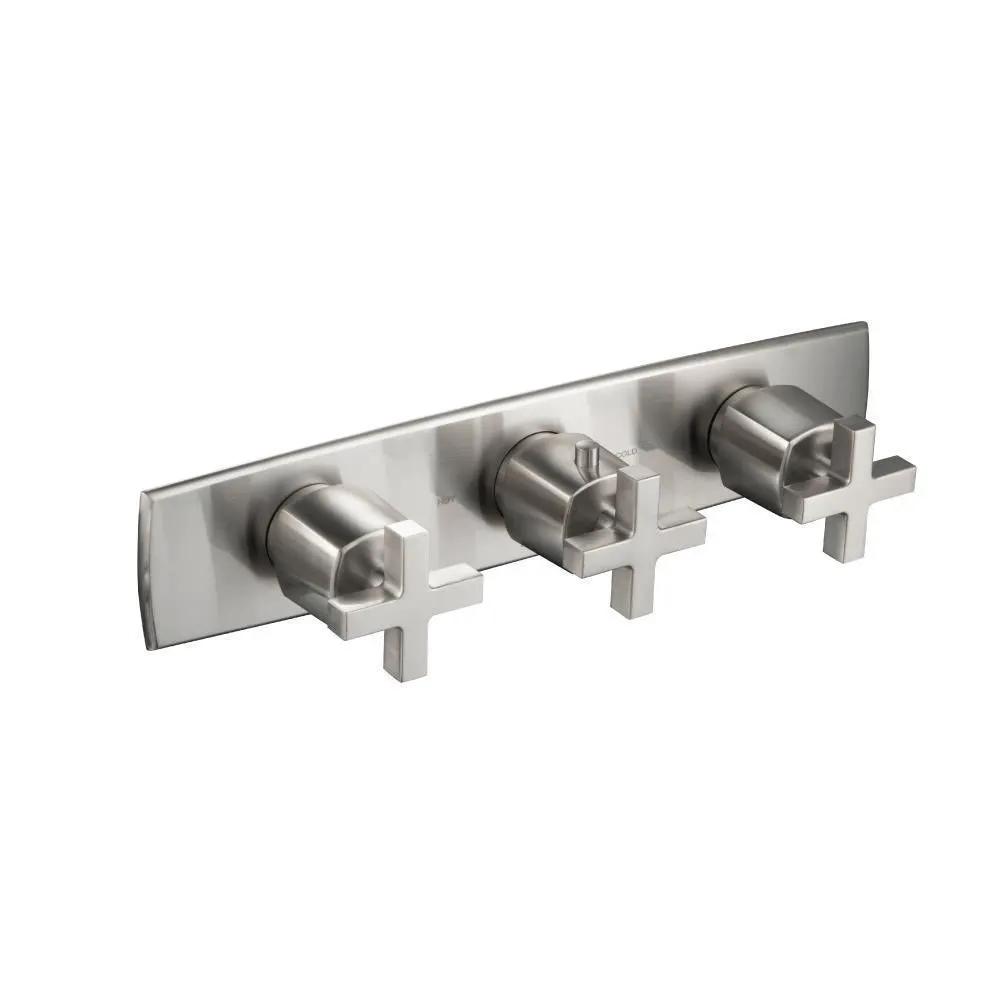

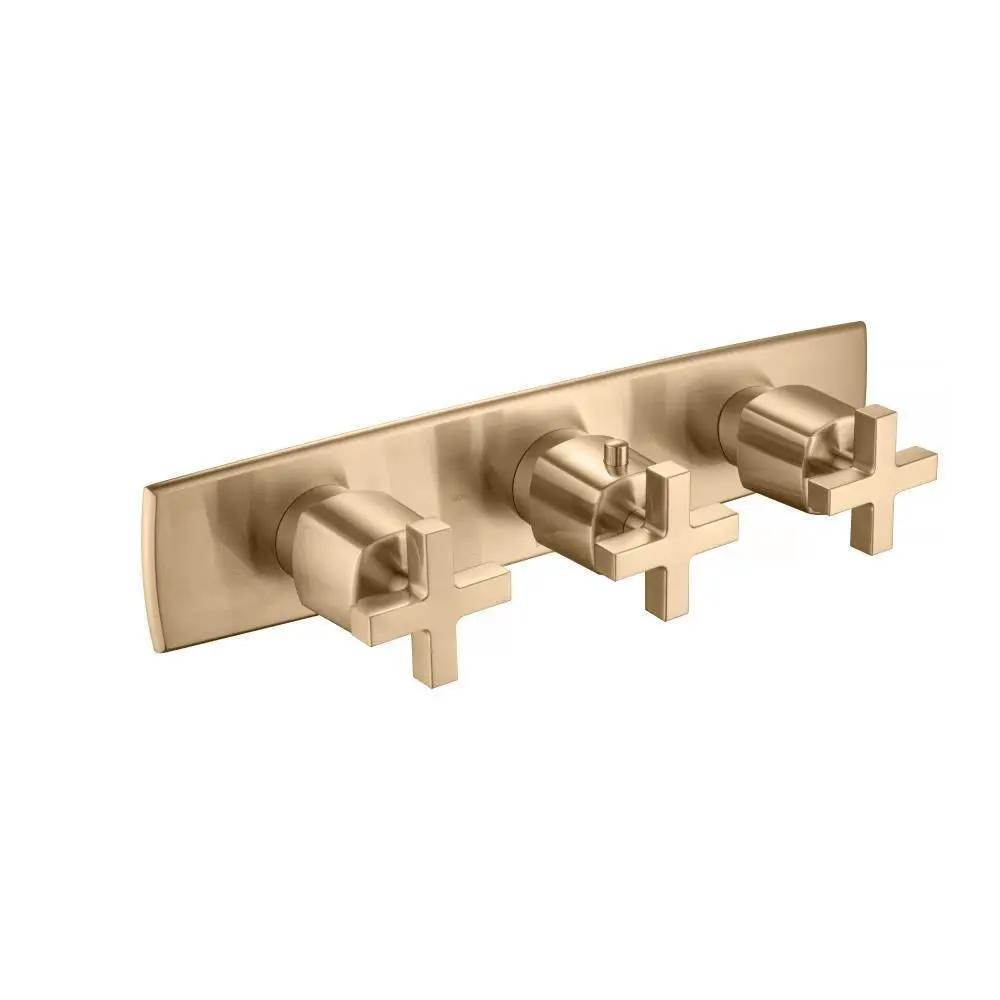

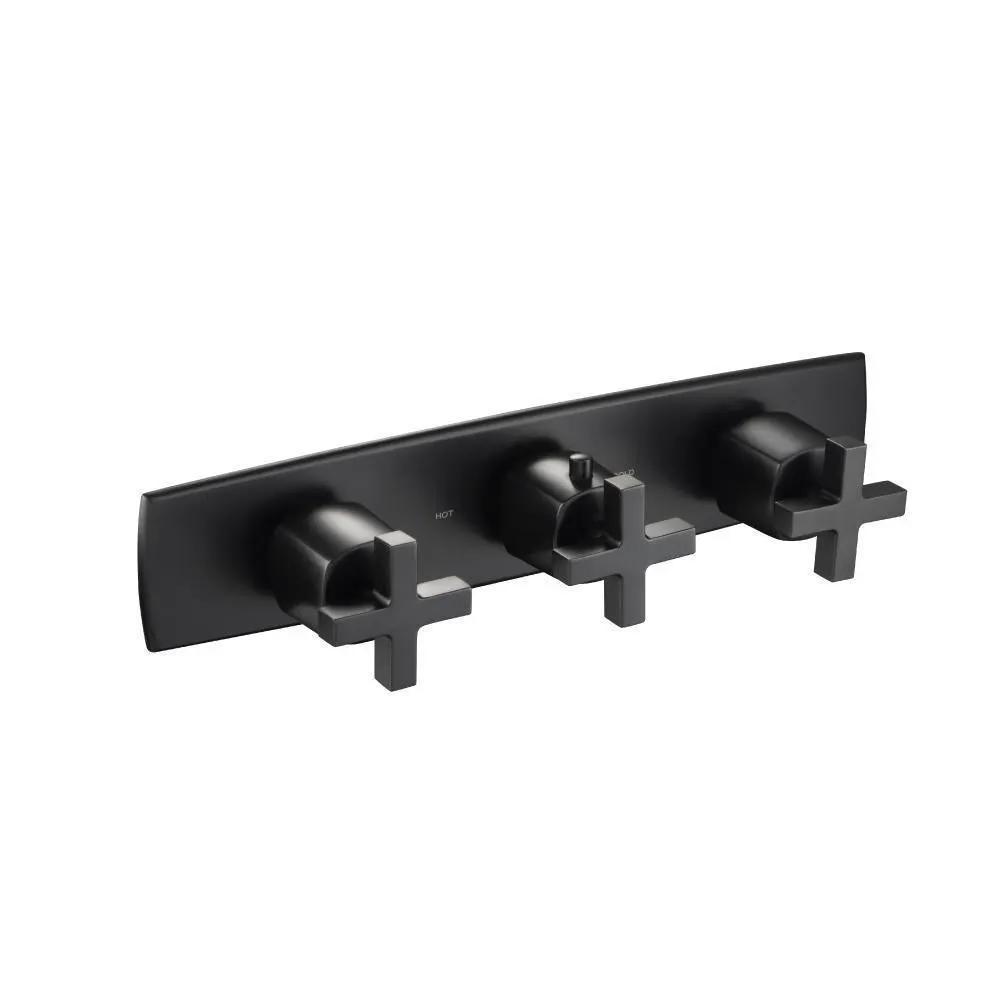

Flusso Serie 240 3/4" Horizontal Thermostatic Valve with 2 Volume Controls and Trim

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 240 3/4" Horizontal Thermostatic Valve with 2 Volume Controls and Trim from Flusso. This precision thermostatic valve delivers reliable anti-scald performance, independent port control, and precise temperature management for tub and shower installations. With dual outlets, 3/4" NPT connections, and a stylish brass trim, it harmonizes luxury, safety, and performance in one unit.

Flusso is renowned for high-precision thermostatic valves and premium bath components designed for reliable performance and lasting durability. The brand emphasizes safety features like anti-scald technology, robust construction, and easy installation, making Flusso a trusted choice for luxury shower systems, tub and shower compatibility, and modern bath renovations worldwide today.

Features and Specifications

• 3/4" NPT connections
• 2 water outputs [ports] which are operable simultaneously, i.e both at the same time, or one at a time.
• The middle handle sets the temperature.
• The left handle controls output port 1 and the right handle controls output port 2.
• Each port has full volume control capability.
• SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
• HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet.
• The left handle controls the volume of water from full flow to a trickle for the output port 1.
• The right handle controls the volume of water from full flow to a trickle for the output port 2.
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
• With the help of this ring, the temperature of the water is regulated.
• The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
• VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec].
• Also, the value must be installed straight and not at an angle or upside down.
• In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
• CUT OUT DIMENSIONS – The cut out in wall should be 2.08 X 12.48 Inches which is properly covered by the trim plate.
• This will ensure that the trim plate will cover the cut-out hole in the wall.
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs.
• The trim plate is used to cover the wall.
• Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Solid Brass Valve & Trim Includes Thermostatic Valve - TVH.2715 With Integral Service Stops
• Shared 2 Port Water Flow
• Use in Tub & Shower Applications

Engineered for flawless performance, the Flusso Serie 240 valve system combines precise temperature control, dual independent ports, and a refined brass trim, reinforcing Flusso's reputation for quality, reliability, and luxury in elegant bath installations.
