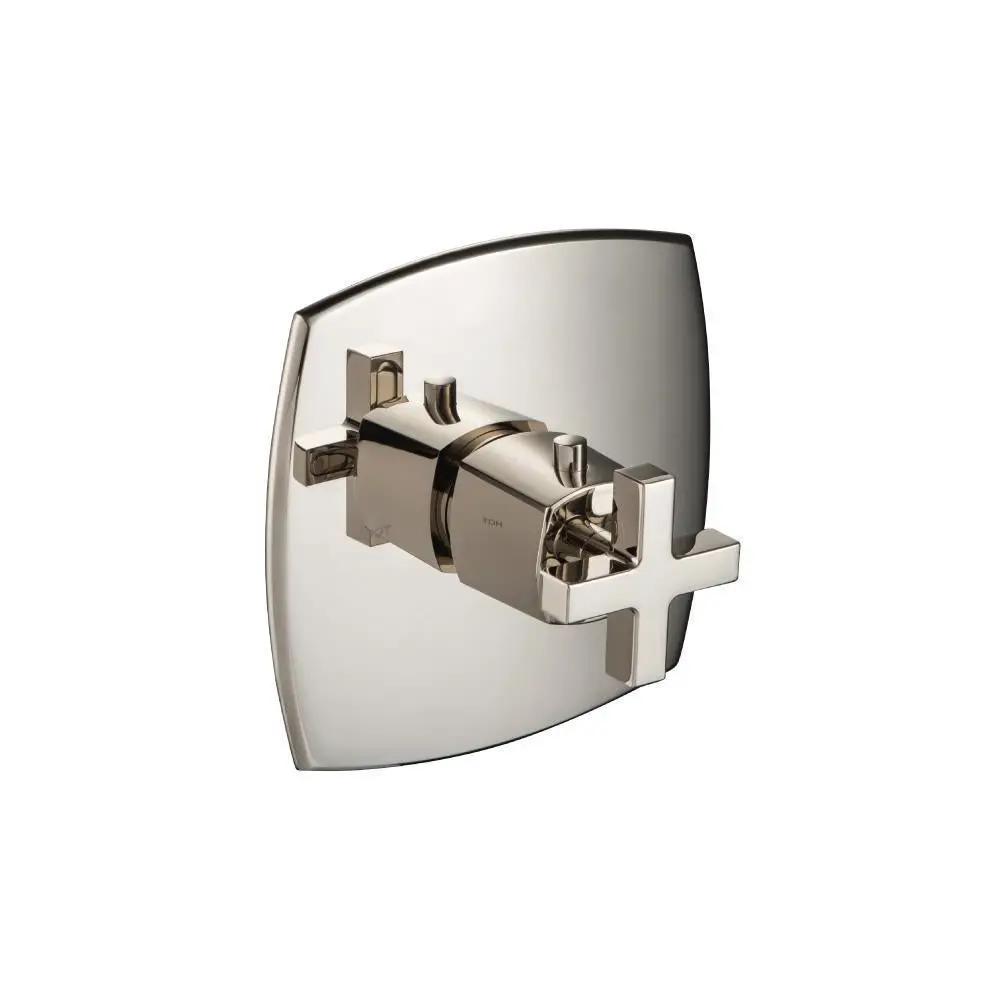

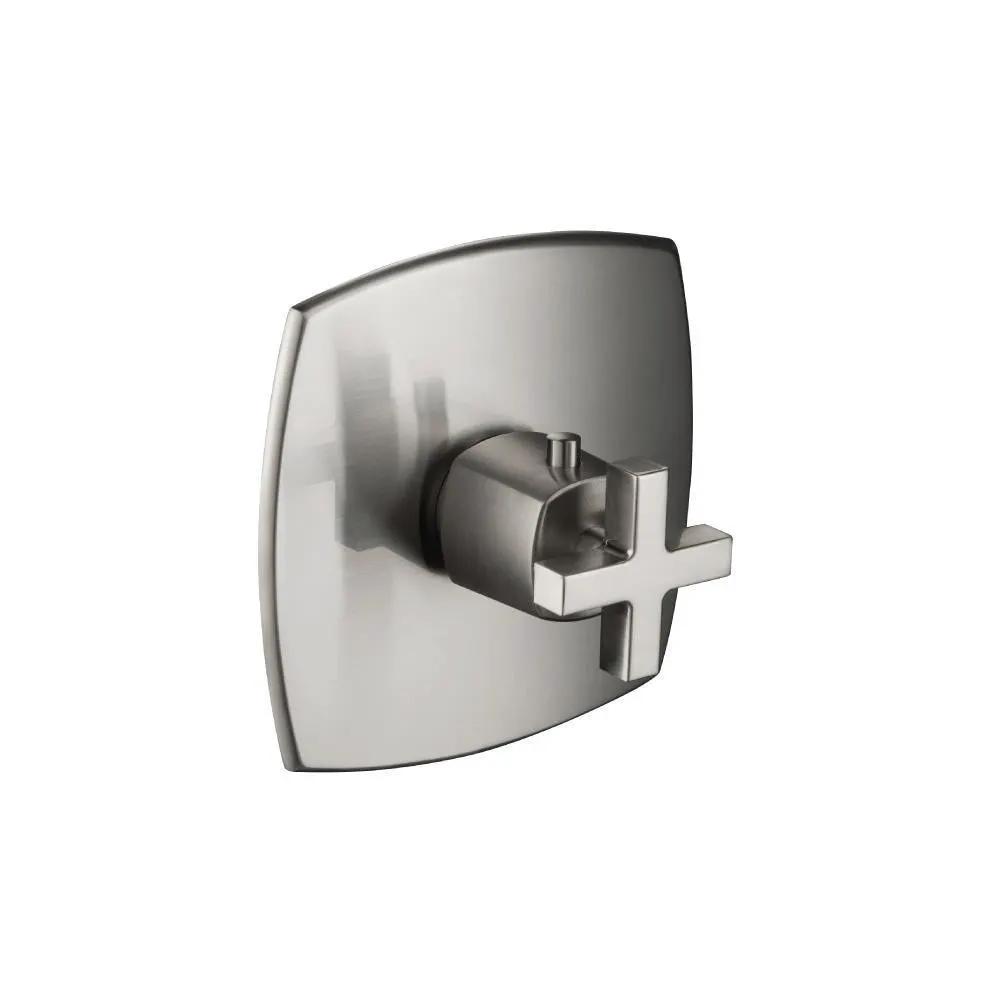

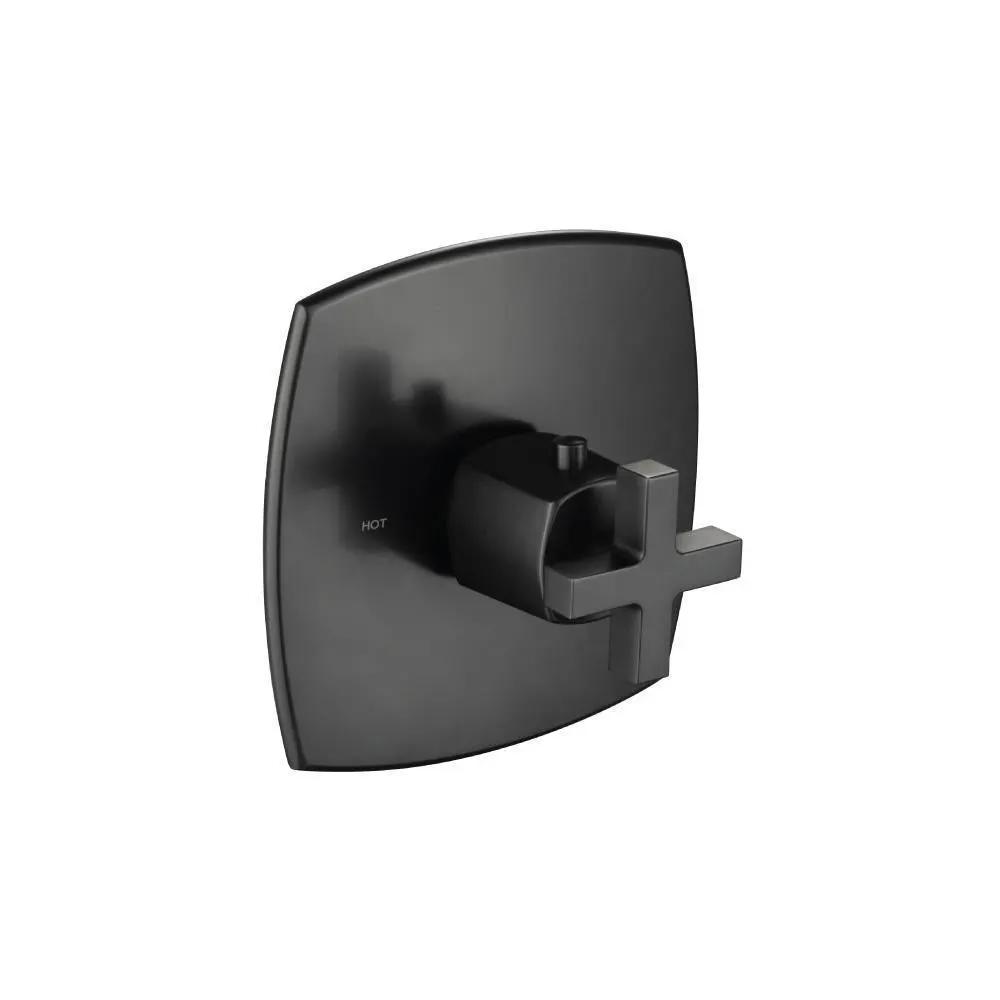

Flusso Serie 240 Trim for 3/4" Thermostatic Valve - Use with TVH.4201
Product details
Focal Point Hardware is an authorized Flusso retailer!
Flusso Serie 240 Trim for 3/4" Thermostatic Valve - Use with TVH.4201 delivers precise, anti-scald shower control with a solid brass valve and trim extension. The trim plate neatly covers wall cutouts, while the temperature stop ring ensures safe, regulated heat. This elegant kit combines reliable performance with a clean, modern finish for any shower.
Flusso is renowned for precise thermostatic valve systems and durable, solid-brass hardware, delivering reliable temperature control and longevity. The Flusso Serie 240 trim line reflects the brand's commitment to craftsmanship, compatibility with TVH.4201, and easy installation, providing a secure, stylish finish that stands up to daily bathroom use, and precision engineering.
Features and Specifications
- Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve.
- Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle.
- Anti-Scald Temperature Stop Ring - Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated.
- Push Button Safety - The handle knob has a push button on the side; to adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism.
- Installation Note - The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
- Shower Trim Variability - Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Valve & Trim Extension Available - TVH.E185**
Upgrade your shower with Flusso Serie 240 Trim for 3/4" Thermostatic Valve - Use with TVH.4201, pairing precise temp control with a luxurious brass finish and secure anti-scald safety, backed by Flusso's renowned quality.
