Product details
Focal Point Hardware is an authorized Flusso retailer!

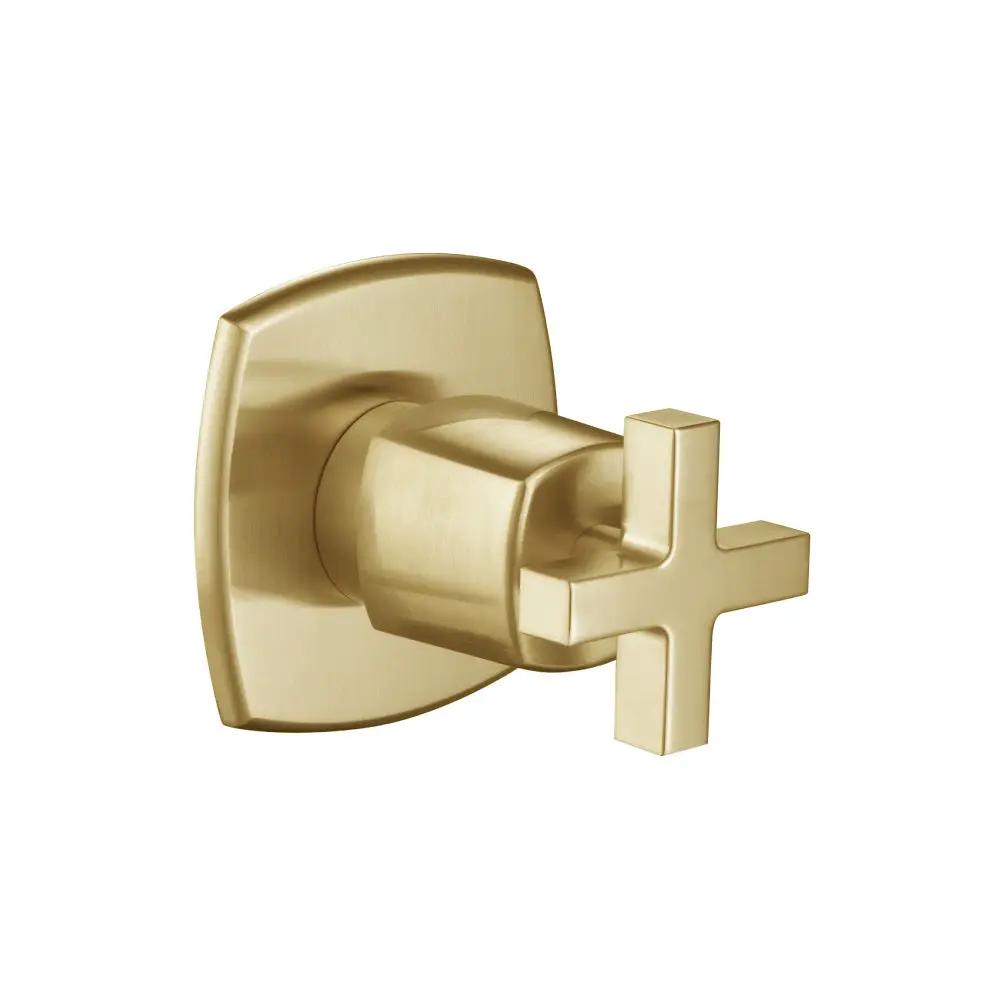

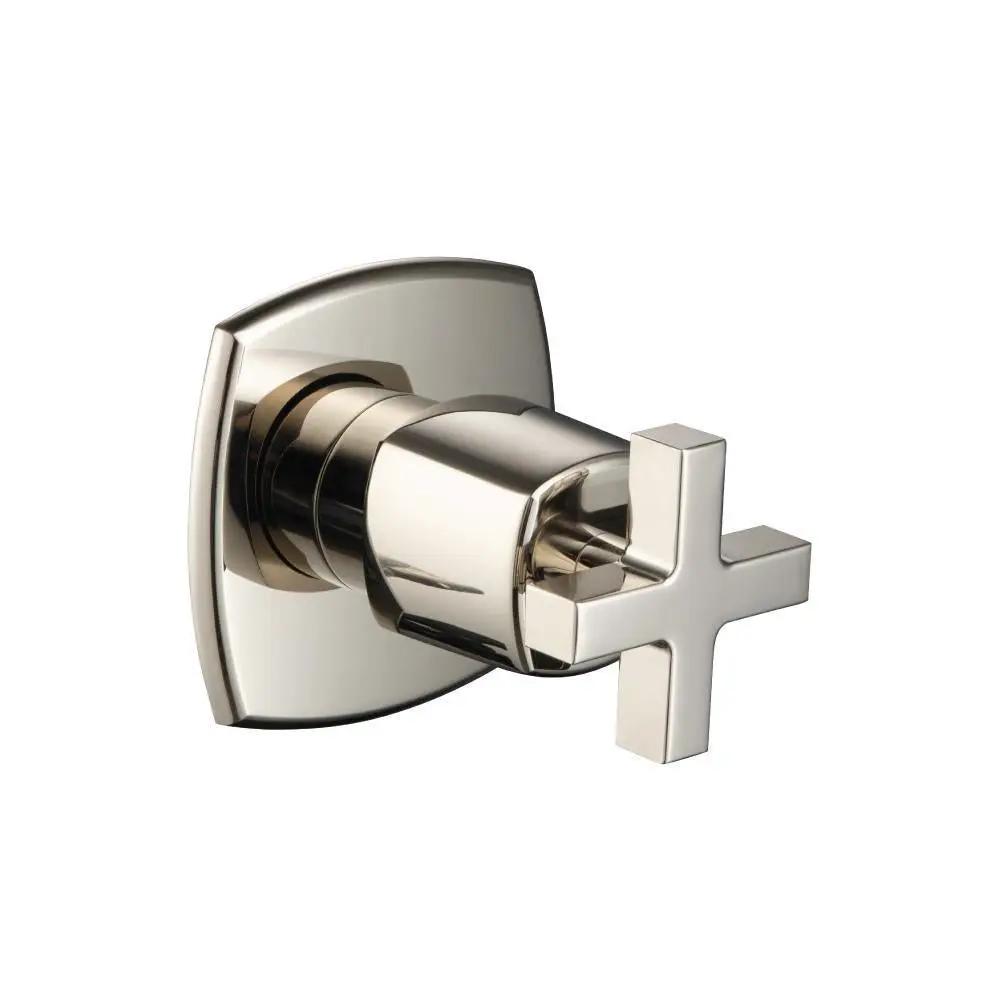

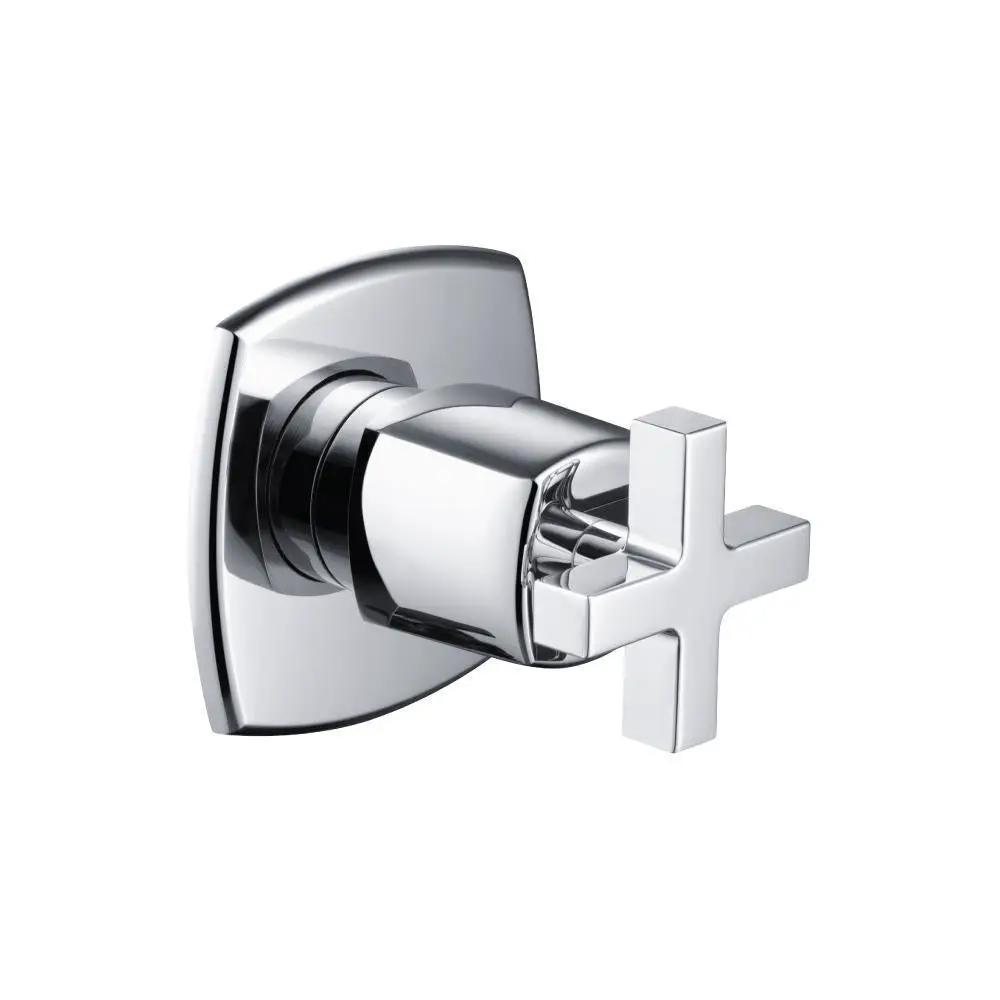

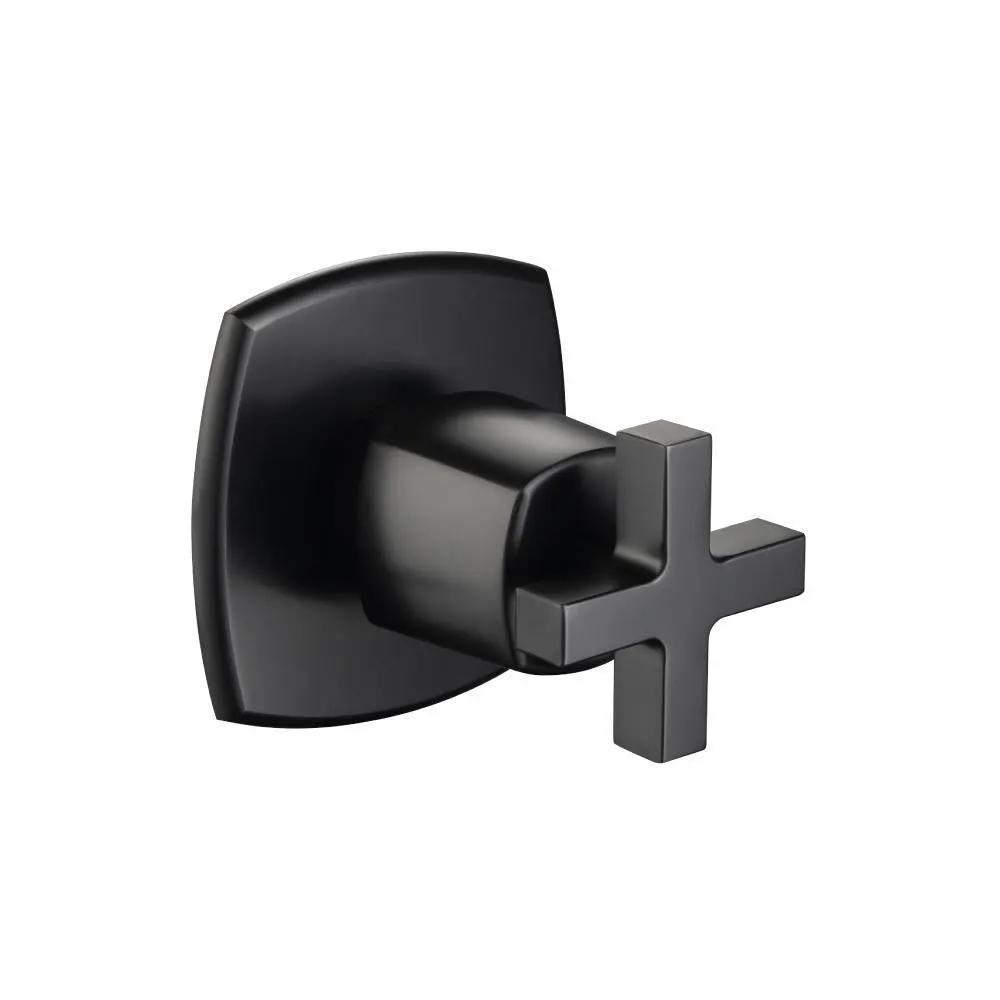

Discover the Flusso Serie 240 3-Way Diverter Shower Valve and Trim, a versatile triple-output solution that combines precise volume control with seamless water diversion. This 3-output valve delivers customizable showering experiences with reliable performance and stylish trim, highlighting Flusso's commitment to luxe, durable bathroom fixtures and easy installation. Ideal for remodels seeking spa-like luxury and precise water management.
Flusso is renowned for precision-built, luxury bathroom fixtures designed to deliver reliable performance and refined aesthetics. With rigorous engineering, solid brass construction, and thoughtful installation details, Flusso products emphasize durability and smooth operation, making the Flusso Serie 240 valve a trusted choice for discerning homeowners and professional installers alike today.
Features and Specifications
- TVH.4371 is a 3-Way [3-output] diverter valve with shared outputs and has integrated volume control functionality.
- Flow rate: 8.0 GPM @ 60 PSI.
- Handle Operation – The handle is used to control the volume and also water diversion through the 3 outlets.
- The positions of the valve which activate each output port are as follows: Position 0 - No water flow Position 1 - Output 1 Active Position 2 - Output 2 Active Position 3 - Output 2 And Output 3 Active on Valve Position 4 - Output 3 Active on Valve
- As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77 Inches and 3.44 Inches.
- Also, the valve must be installed vertical and not at an angle.
- In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4371 valve is 1.40 inches).
- Cut Out Dimensions – The cut out in wall should be 1.65 X 1.65 inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- Trims – The trims comprise of well finished trim plate and handle knobs. The trim plate is used to cover the wall and comes with a volume control handles. Any *4511 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Diverts water between 3 outlets.
- Includes Integrated off position
- Extensions Available - TVH.E137**
- Includes Valve TVH.4371
Designed for versatility and durability, the Flusso Serie 240 valve and trim delivers precise three-output control, dependable operation, and upscale aesthetics—backed by Flusso's reputation for luxury, reliability, and long-lasting bathroom fixtures.
