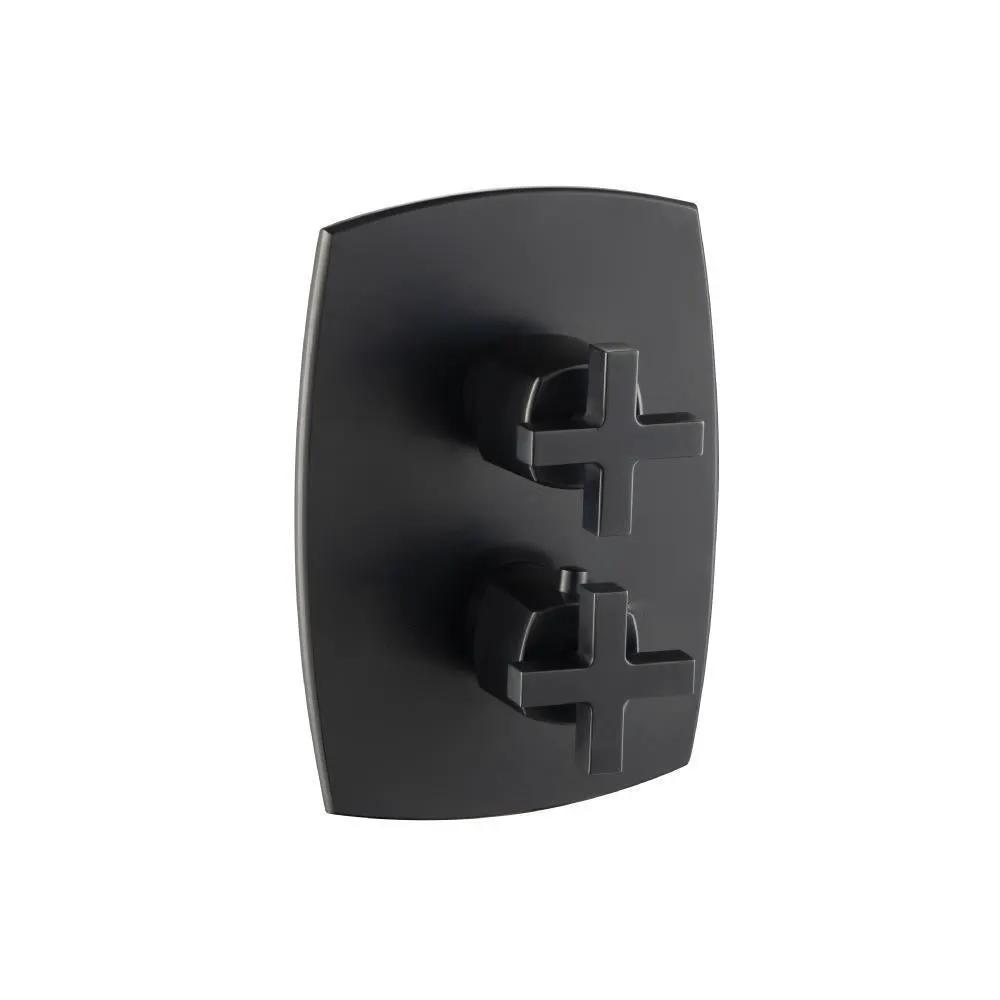

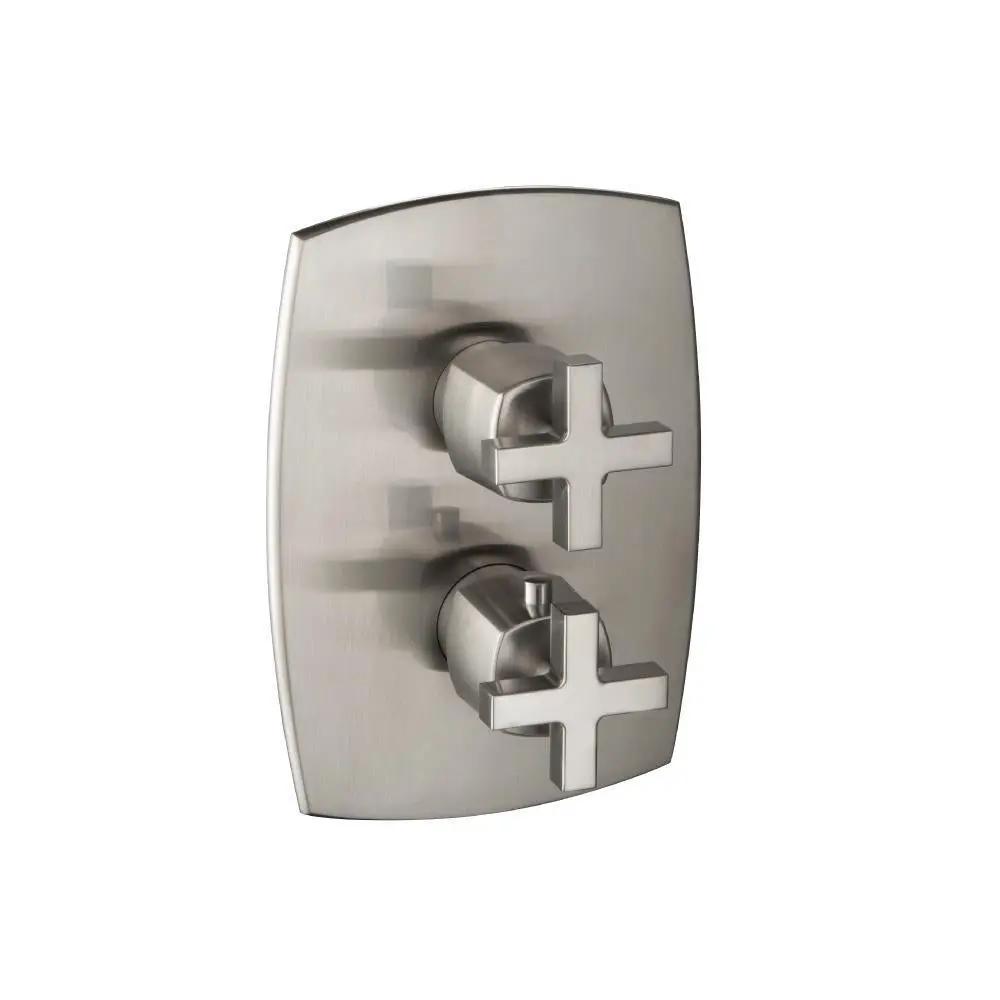

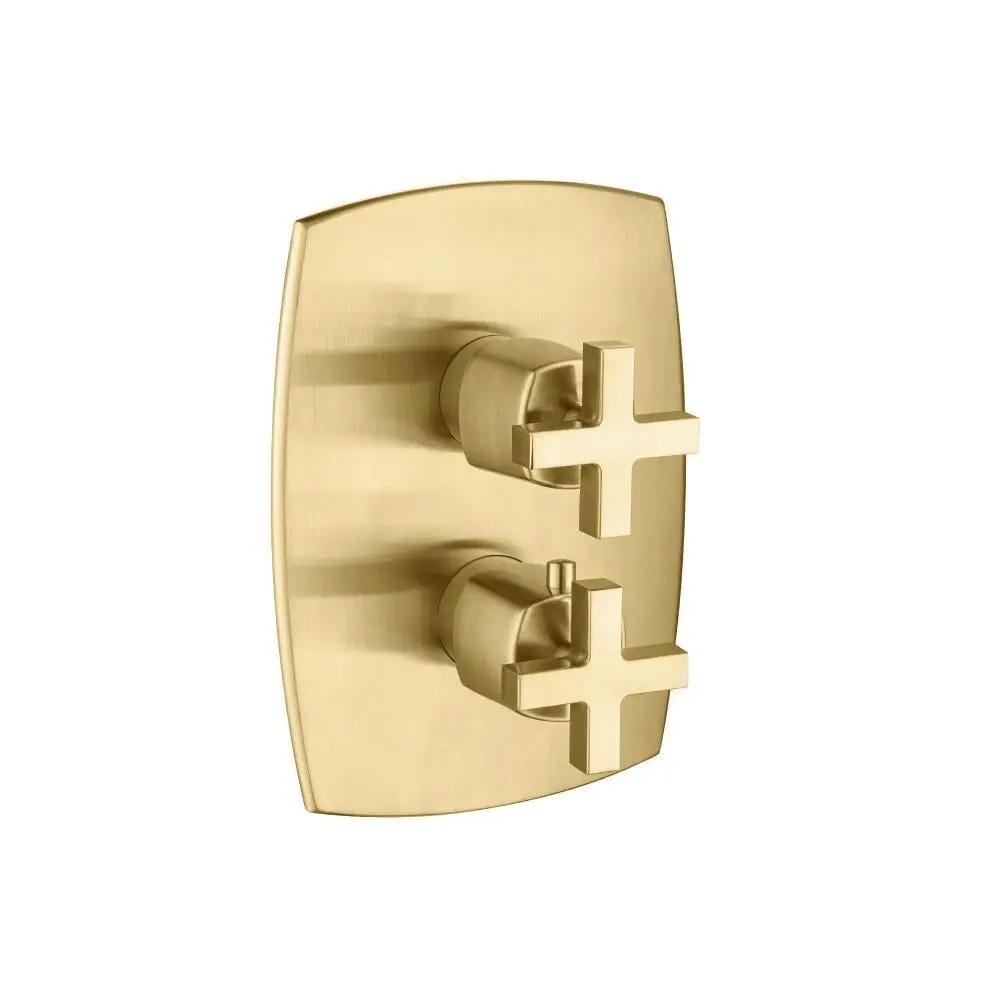

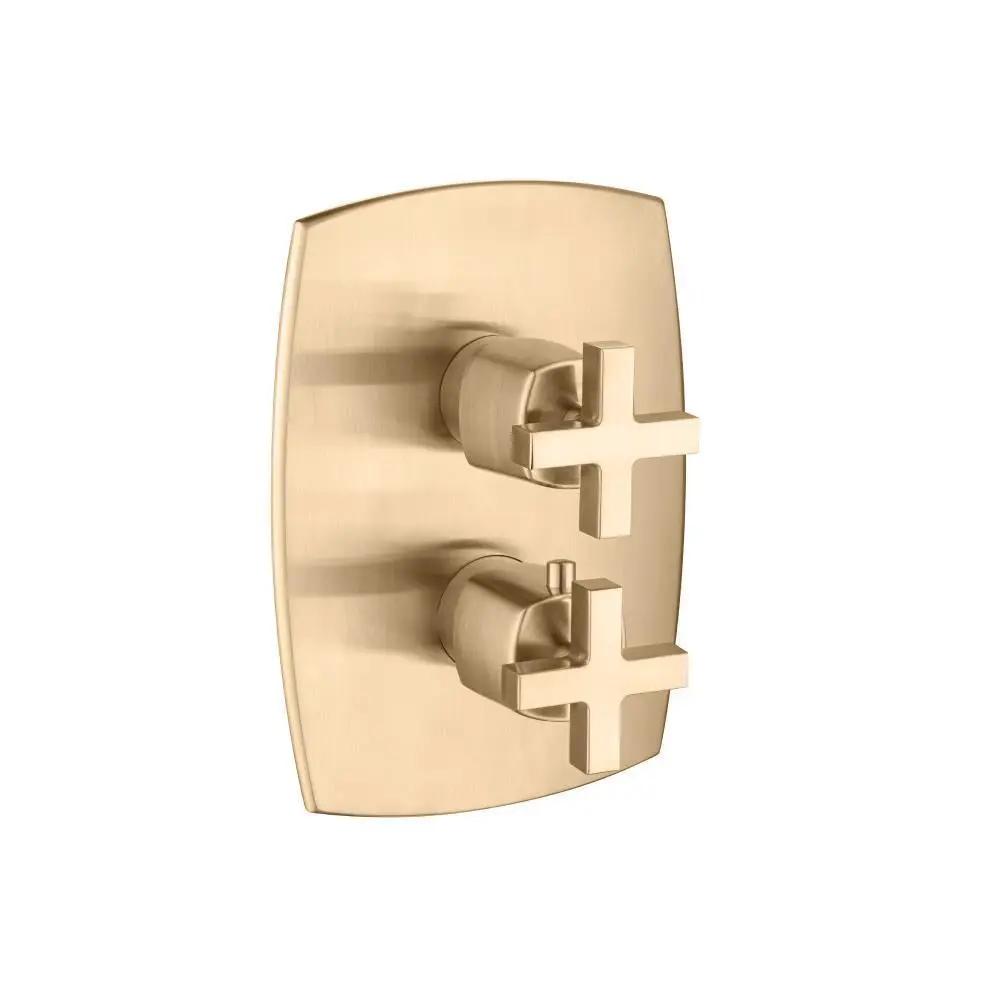

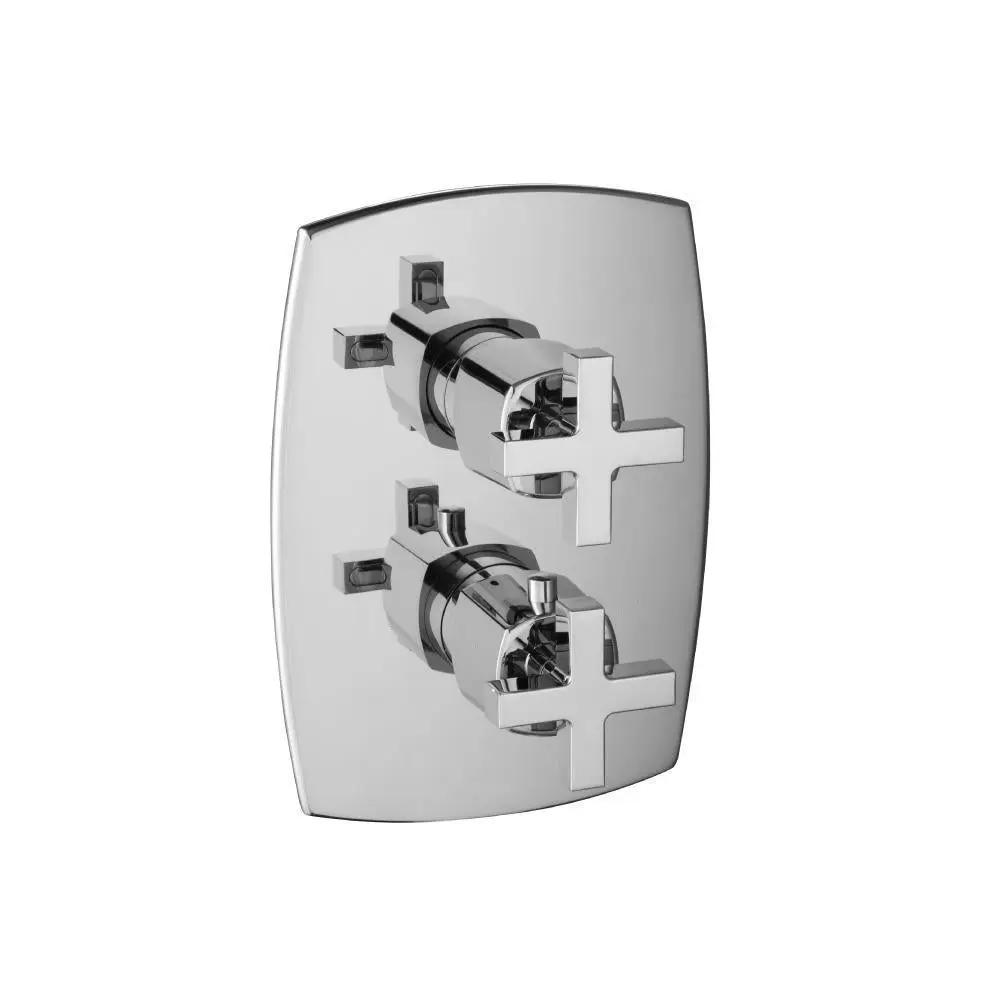

Flusso Serie 240 3/4 " Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output
Product details
Focal Point Hardware is an authorized Flusso retailer!
Discover the Flusso Serie 240 3/4" Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output, a premium installation that combines precise temperature control with versatile water routing. Flusso's thermostatic valve delivers CAL-Green compliant efficiency, two independent output ports, and durable brass construction, wrapped in a refined trim for a luxurious shower experience. This model pairs reliability with sleek design and performance.
As a pioneer in high-end bath engineering, Flusso wields decades of brass valve expertise to deliver precise thermostatic control, longevity, and reliable performance. Flusso products are designed for easy installation, CAL-Green compliance, and enduring elegance, making the Flusso Serie 240 a trusted choice for luxury showers and discerning homeowners worldwide today.
Features and Specifications
- 3/4" female NPT connections
- 2 water output ports
- CAL-Green Compliance
- Bottom handle controls temperature
- Top handle controls water flow volume from full to trickle as it turns from OFF to ON
- Integral service stops at each inlet (two safety stops)
- Anti-scald temperature stop ring over the temperature control knob
- Push button on the temperature knob to adjust water temperature
- Anti-scald stop ring must be fitted tightly over the valve (tapping with a rubber mallet might be required)
- Rough-in distance from finished wall to back of valve: 2.77" to 3.44" (Rough-In Spec)
- Wall cut-out dimensions: 6.49" x 4.44" (no more) to ensure trim plate coverage
- Trims include well-finished cover plate and handle knobs
- Cartridge options: Model #15109 (default, 2 output non-shared CAL-Green compliant)
- Optional cartridge: Model #15103 (shared port operation to activate 2 ports at the same time)
- Solid brass construction
- TVH.4420F valve includes integral service stops
- Extensions available: TVH.4101E
Upgrade to Flusso Serie 240 for precise, safe, and stylish shower control. Built by Flusso, this thermostatic valve and trim blends luxury with reliability, delivering CAL-Green efficiency and enduring performance for modern baths.
