Discover precise comfort with the Flusso Serie 250 3/4" Thermostatic Shower Valve and Trim - 1 Output. This robust unit combines a reliable thermostatic valve (TVH.4101) with a stylish, Solid Brass construction, delivering consistent water temperature and controlled flow. Dual safety stops and an anti-scald ring ensure safer, luxurious showers for discerning homeowners.
Flusso is renowned for precision engineering in luxury showering solutions, delivering reliable thermostatic control, durable brass construction, and easy, intuitive operation. With a focus on safety and performance, Flusso products blend thoughtful design with enduring value, making the Flusso Serie 250 a trusted choice for bath remodeling and high-end installations.
Features and Specifications
- Valve: TVH.4101 thermostatic valve with 3/4" NPT connections and 1 output port.
- Supply stops: Two safety stops at each water inlet to prevent water flow during installation and repairs; integral service stops.
- Handle operation: Bottom handle controls temperature; top handle controls water volume from full flow to a trickle.
- Anti-scald ring: An anti-scald temperature stop ring sits over the temperature control knob with a push-button on the side; must press to rotate to full hot.
- Install specifics: Rough-in distance from the back of the valve to the finished tile should be between 2.77 and 3.44 inches; cutout in wall should be 6.49 x 4.44 inches; valve must be installed straight and not at an angle or upside down.
- Extensions: If the tile is thicker or valve is installed too deep, extension kits are available to elongate both handles (TVH.4101E).

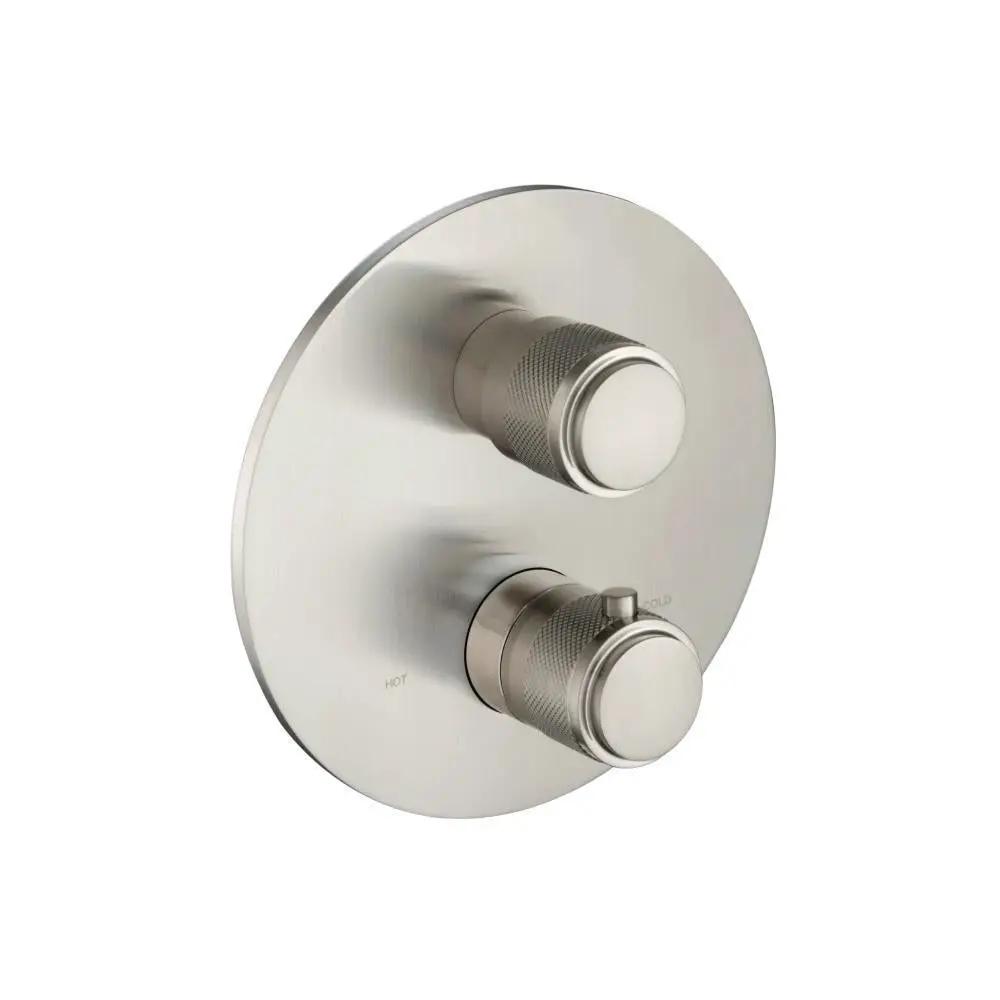

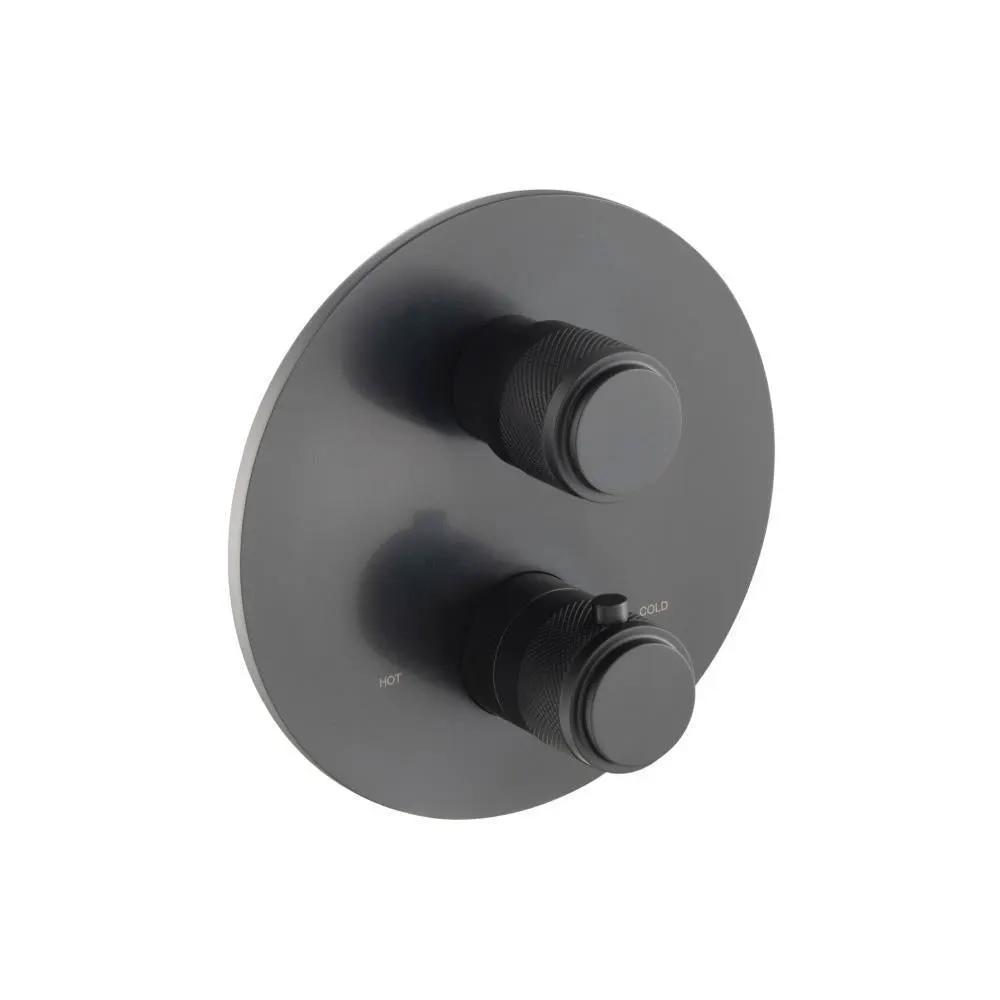

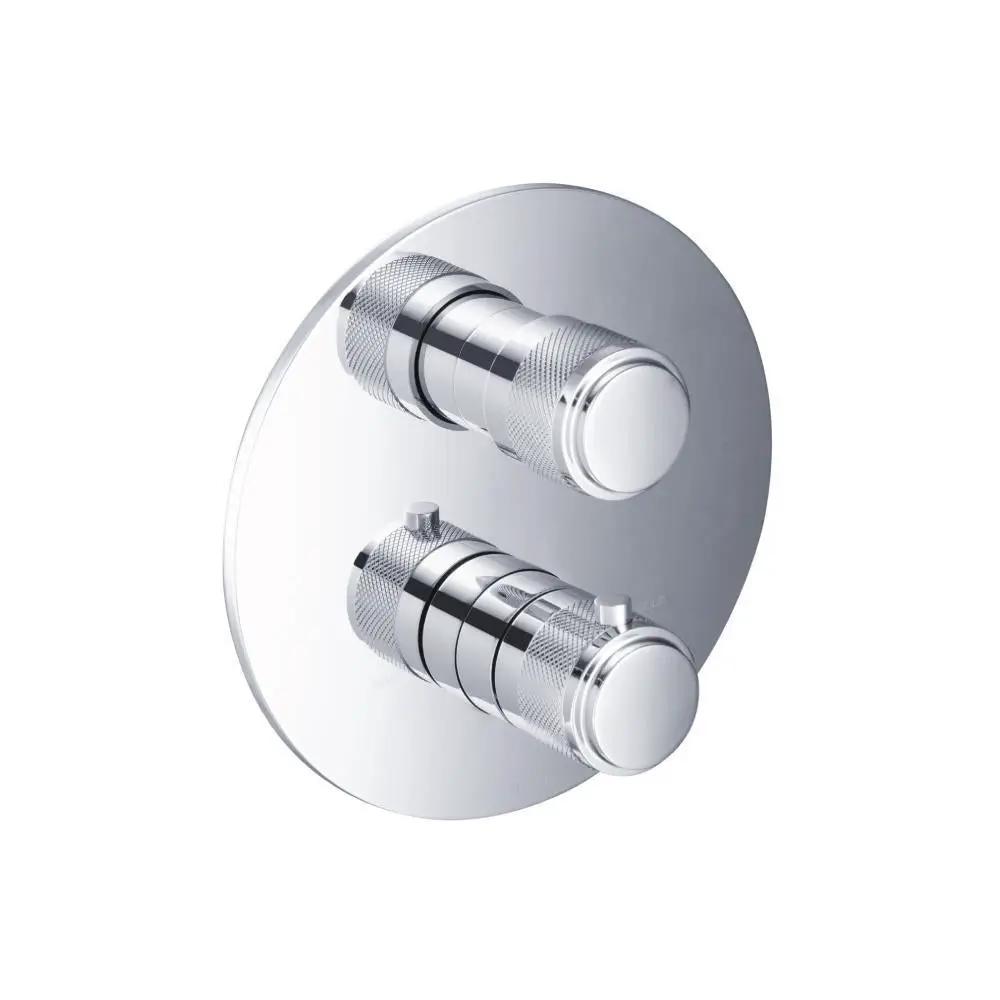

- Trims: Trims comprise a well-finished cover plate and handle knobs; the trim plate covers the wall; shapes vary from square to circular.
- Material: Solid brass construction.
Experience precise thermostatic control and lasting luxury with Flusso Serie 250. Built for reliability and elegant performance, this valve and trim pair exemplifies Flusso’s reputation for quality craftsmanship in premium bathroom fixtures.
