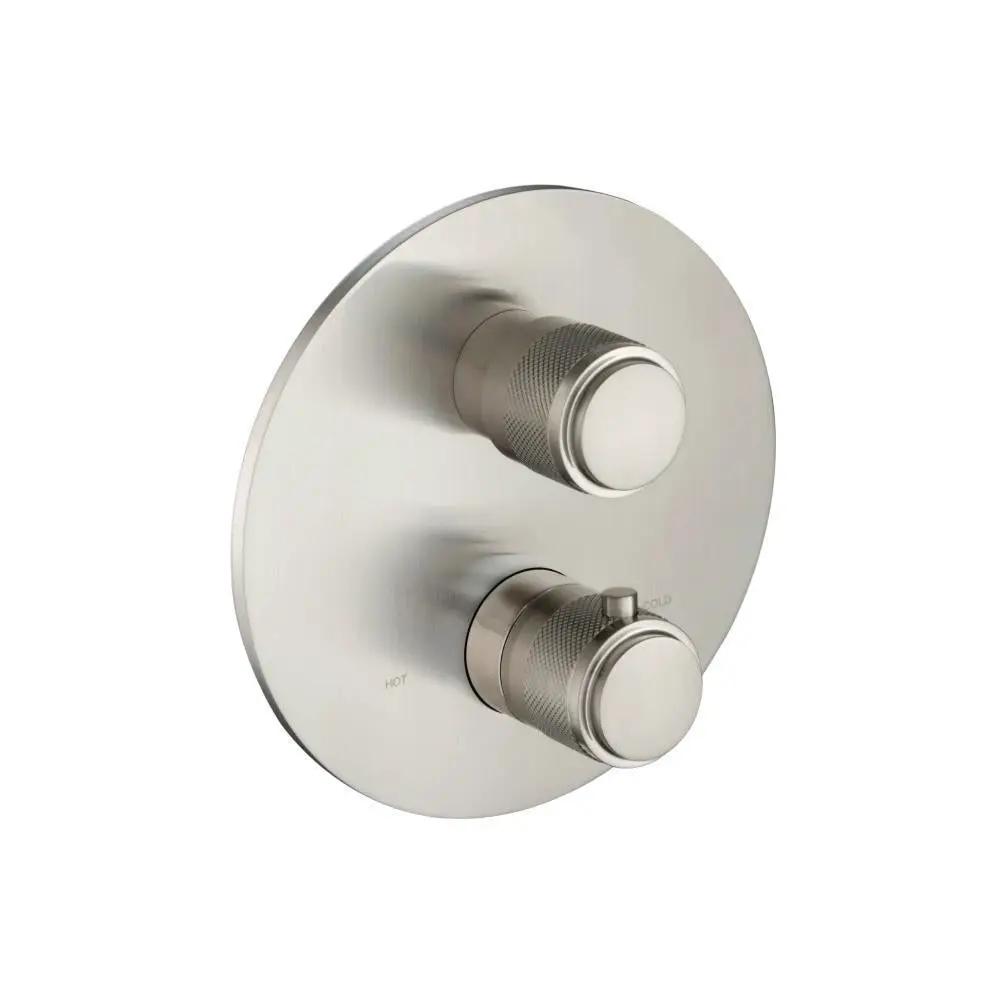

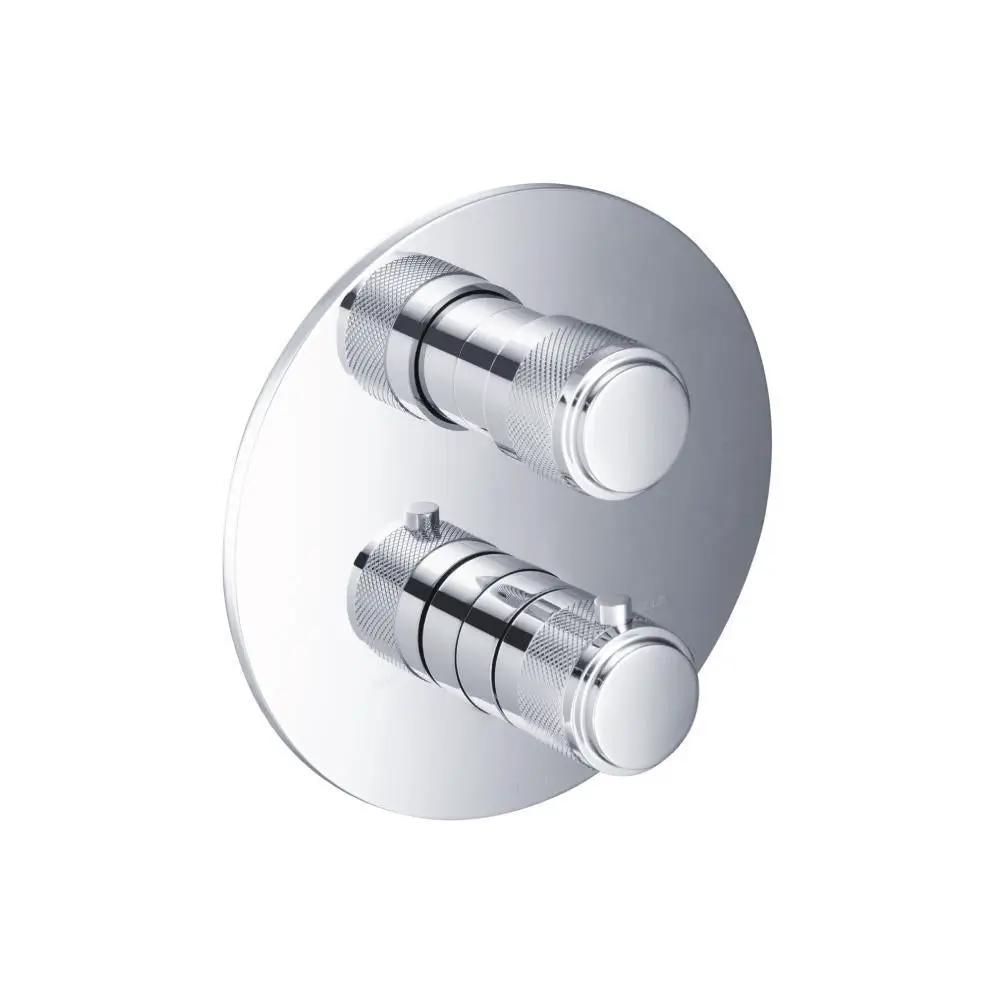

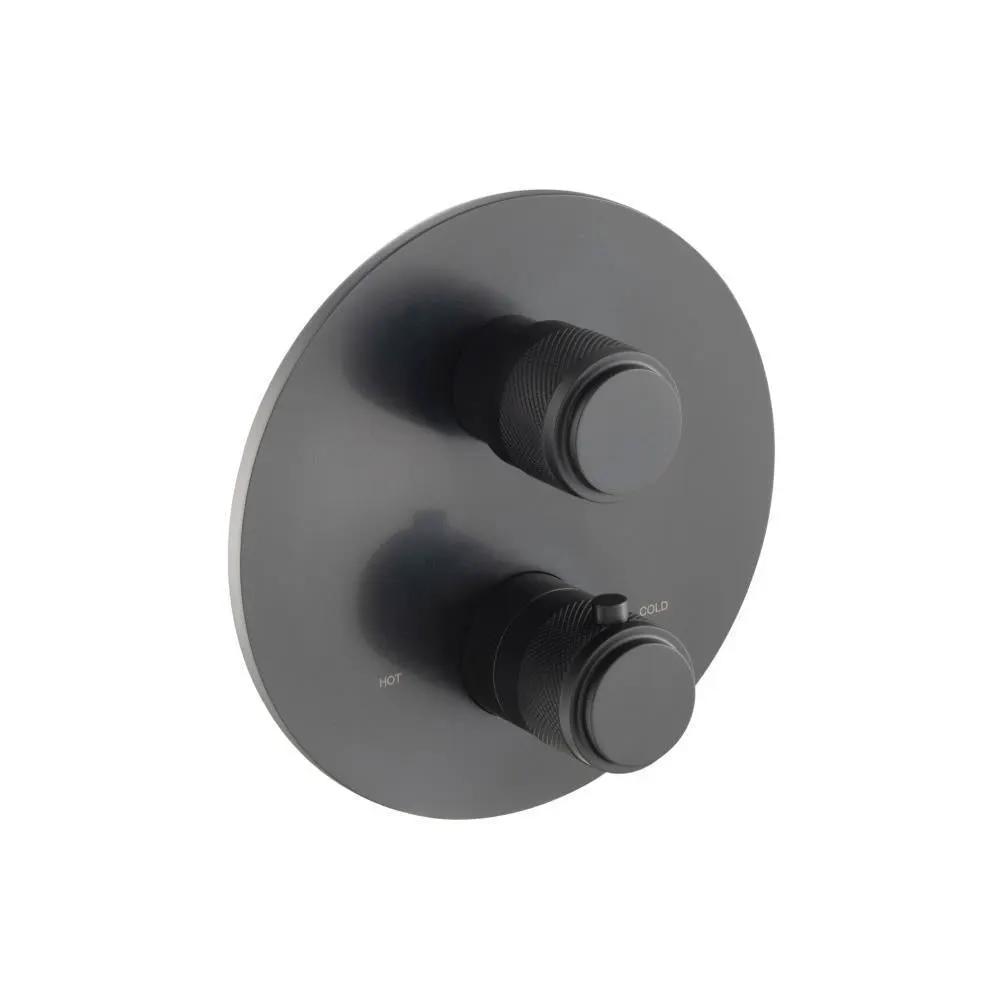

Flusso Serie 250 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs

Focal Point Hardware is an authorized Flusso retailer!

Explore the Flusso Serie 250 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs, a precision thermostatic valve by Flusso designed for three output ports with independent flow control and temperature stability. CAL-Green compliant, this valve delivers reliable luxury performance for modern showers. Suitable for upscale baths and custom shower installations, it pairs with compatible cartridges for versatile operation.

Flusso is renowned for premium plumbing fixtures that blend precise thermostatic technology with elegant design. As a leader in luxury shower systems, Flusso combines durable brass construction, CAL-Green compliance, and intuitive controls to deliver reliable performance, long-lasting value, and refined aesthetics in every installation. Customers trust Flusso for consistent temperature protection, freeze-resistant components, and quality craftsmanship backed by strong warranties.

Features and Specifications

• 3/4" female NPT connections and 3 water output ports.
• CAL-Green Compliance.
• TVH.4301F thermostatic valve with 3 output ports.
• Bottom handle sets the temperature; top handle diverts water flow between the Three output ports.
• Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs.
• Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position.
• As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve is installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
• Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.
• Trims - The trims comprise of a well finished cover plate and handle knobs. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the temperature handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Cartridge – The TVH.4301F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time.
• Solid Brass Construction Includes Thermostatic Valve - TVH.4301F 3 Output Ports Extensions Available - TVH.4101E**

Experience dependable luxury with Flusso's Serie 250 valve and trim, delivering precise temperature control and versatile three-port flow, backed by Flusso's commitment to quality, reliability, and CAL-Green compliant design.
