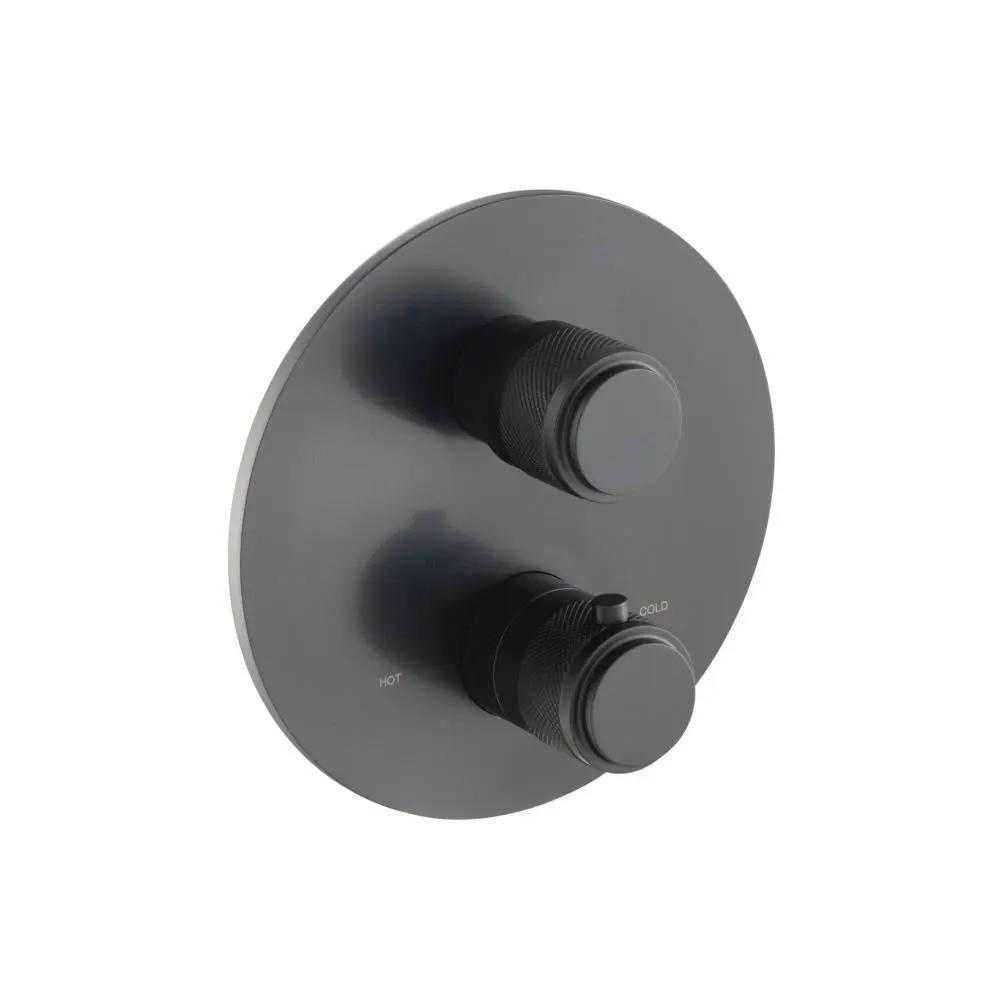

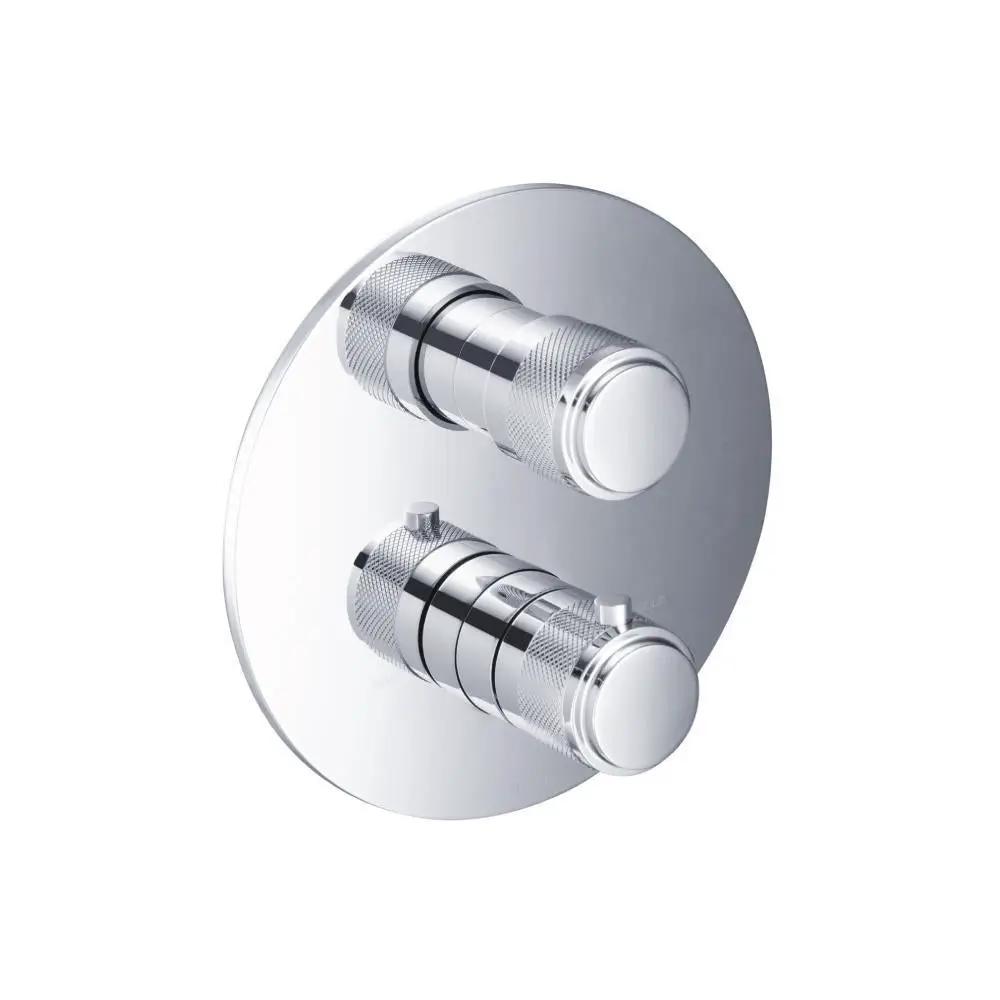

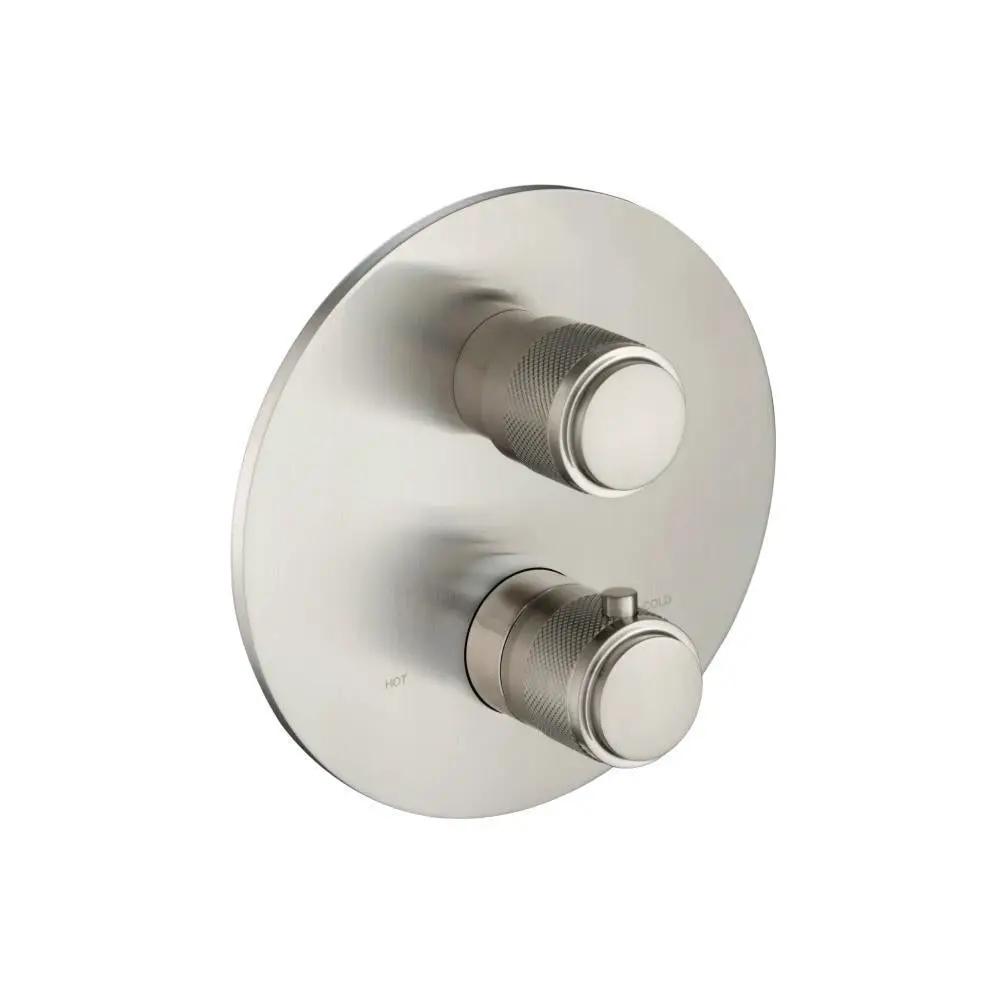

Flusso Serie 250 3/4 " Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output

Focal Point Hardware is an authorized Flusso retailer!

Explore the Flusso Serie 250 3/4" Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output for precise, safe shower control. This thermostat valve features 3/4" female NPT connections and two independent outlets, CAL-Green compliance, a bottom temperature control, and a top flow-diverting knob for seamless switching between outputs, delivering luxurious performance with efficient control.

Flusso is renowned for precision-engineered bath and shower valves that blend luxury with reliability. Known for solid brass construction, durable finishes, and CAL-Green compliant components, Flusso delivers dependable temperature control, smooth operation, and versatile trims designed for diverse shower configurations—ideal for discerning homeowners and premium bathroom projects. Today’s contractors rely on Flusso for consistent performance and stylish finishes.

Features and Specifications

• 3/4" female NPT connections
• 2 water output ports
• CAL-Green Compliant
• Bottom handle sets the temperature
• Top handle diverts water flow between the two output ports
• Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs.
• Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position.
• As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec].
• The value must be installed straight and not at an angle or upside down.
• Extensions Available - TVH.4101E**
• Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.
• Trims - The trims comprise of a well finished cover plate and handle knobs.
• Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
• With the help of this ring, temperature of the water is regulated.
• Covering this ring is the temperature handle knob which has a push button on the side.
• To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction.
• Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism.
• The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
• Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Cartridge – The TVH.4420F valve can be used with two cartridges.
• The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge.
• A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4420F
• Valve Includes Integral Service Stops
• 2 Output Ports
• Extensions Available - TVH.4101E**

With dual outputs, a 2-way diverter, and anti-scald safety features, the Flusso Serie 250 offers reliable temperature control and luxurious detail, backed by Flusso’s reputation for quality, durability, and CAL-Green fidelity.
