Product details
Focal Point Hardware is an authorized Flusso retailer!

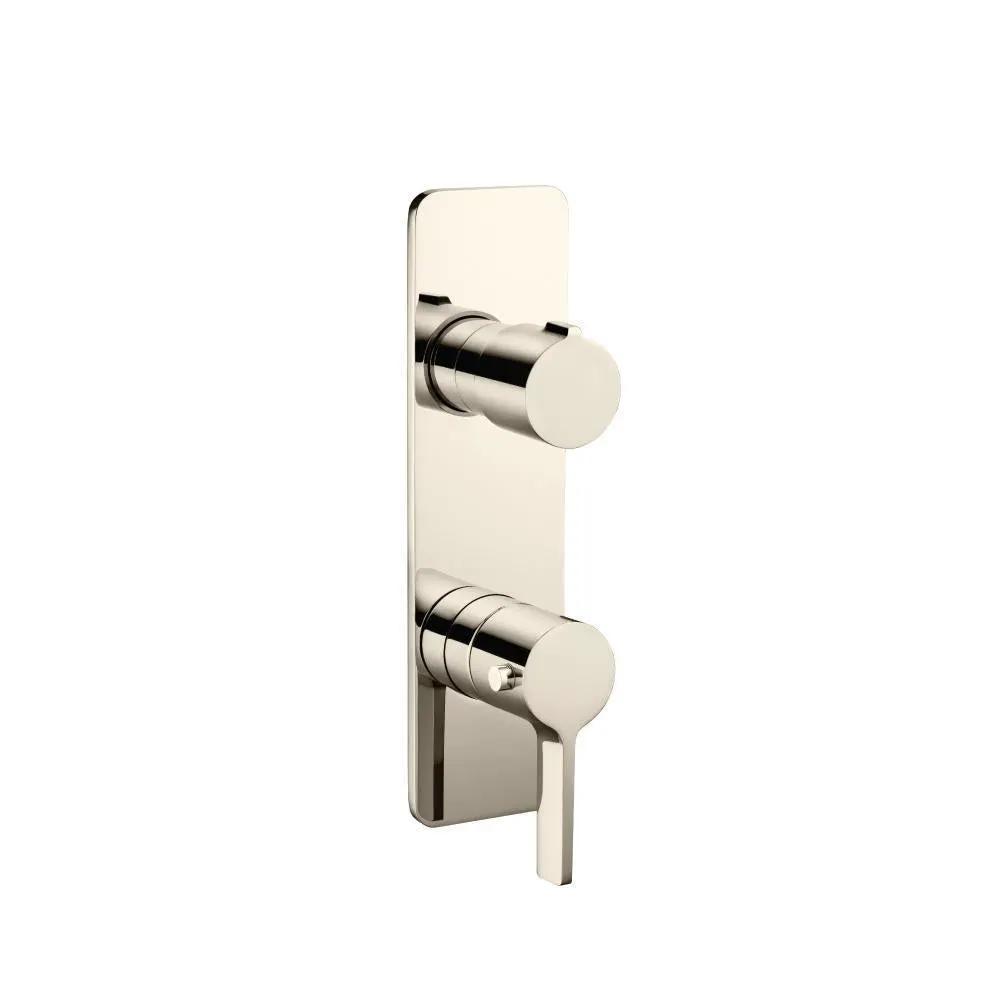

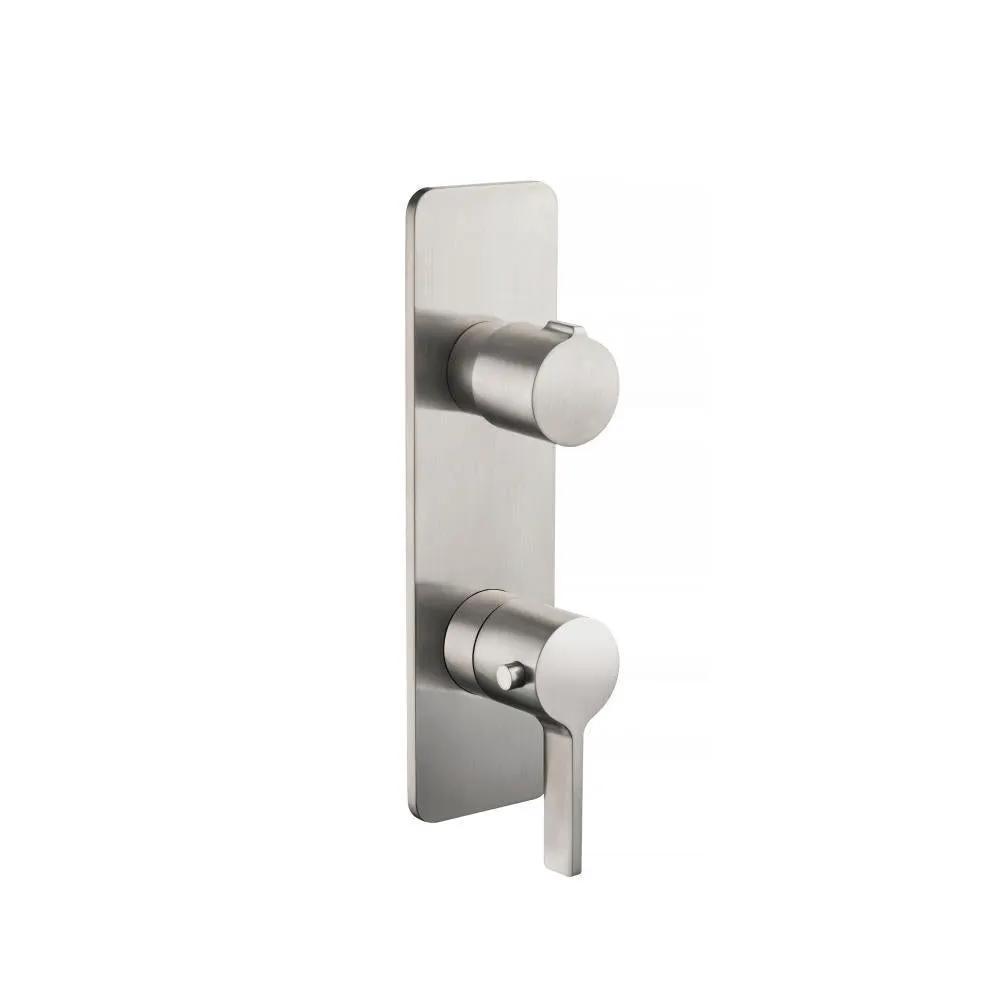

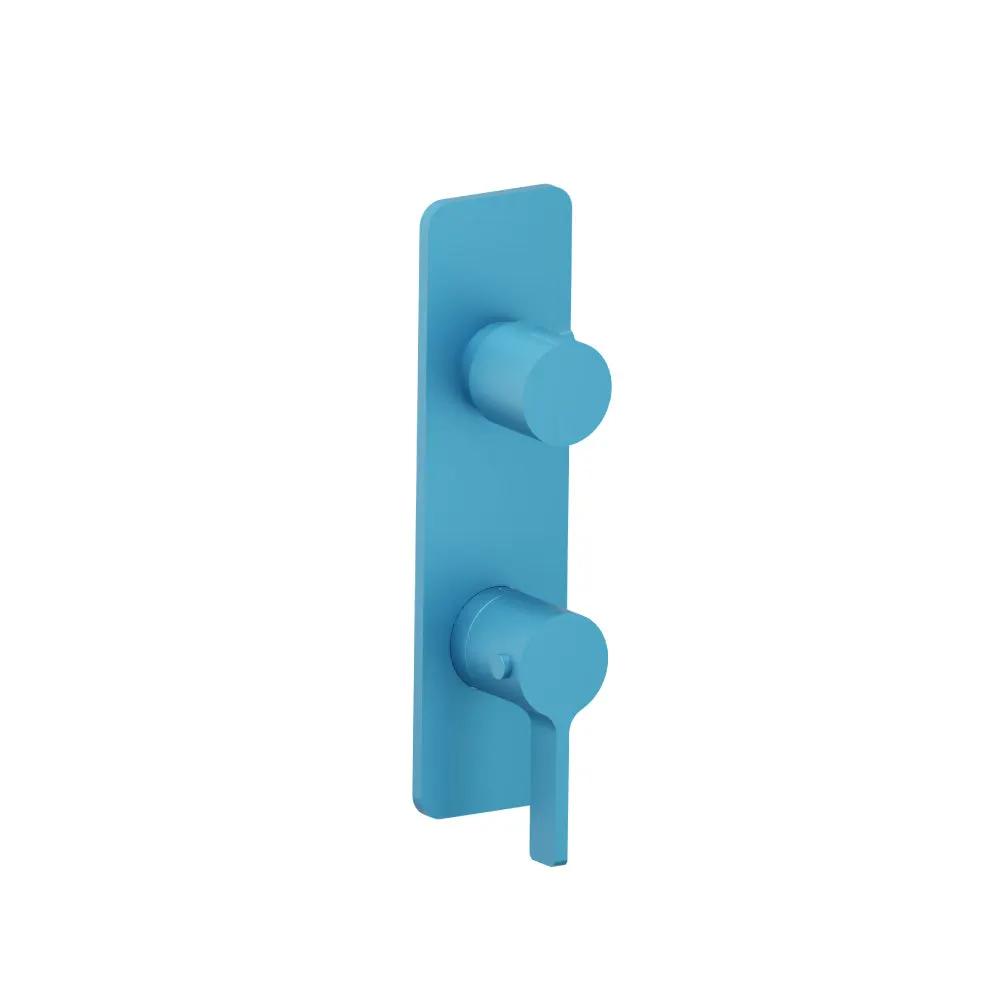

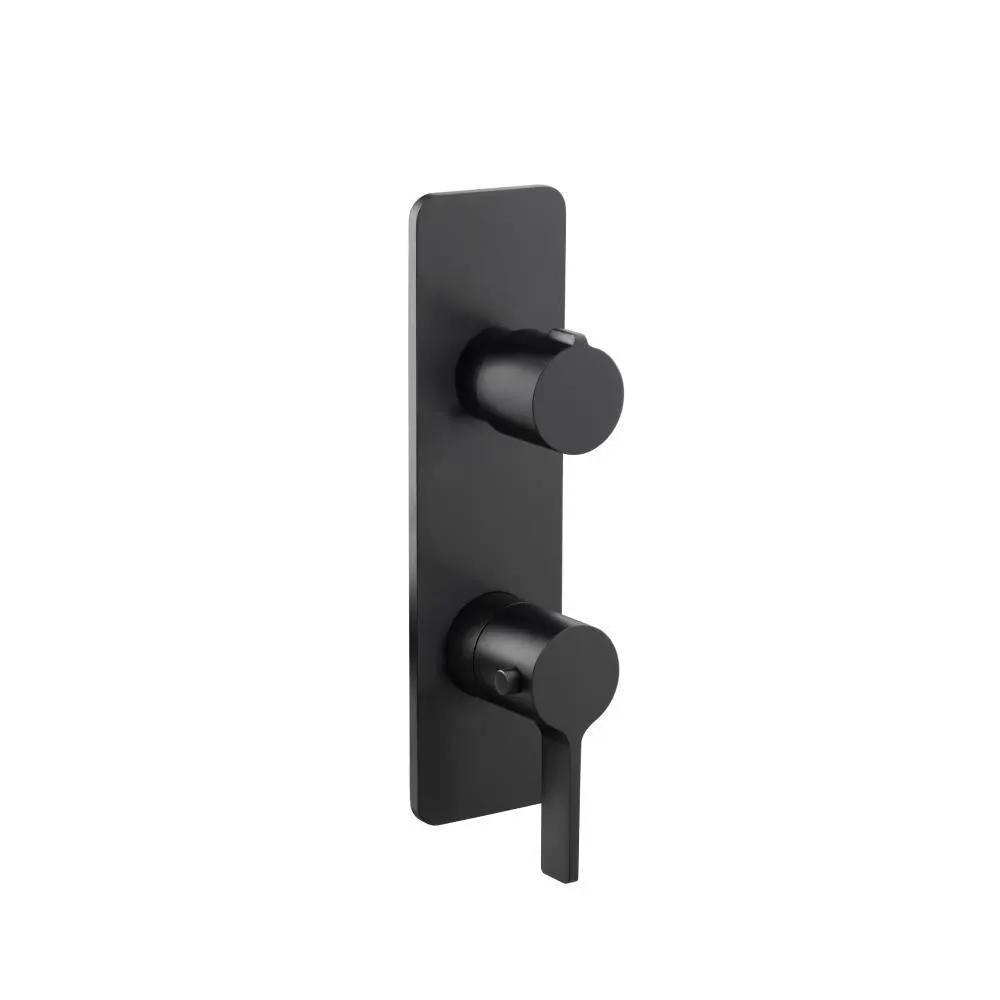

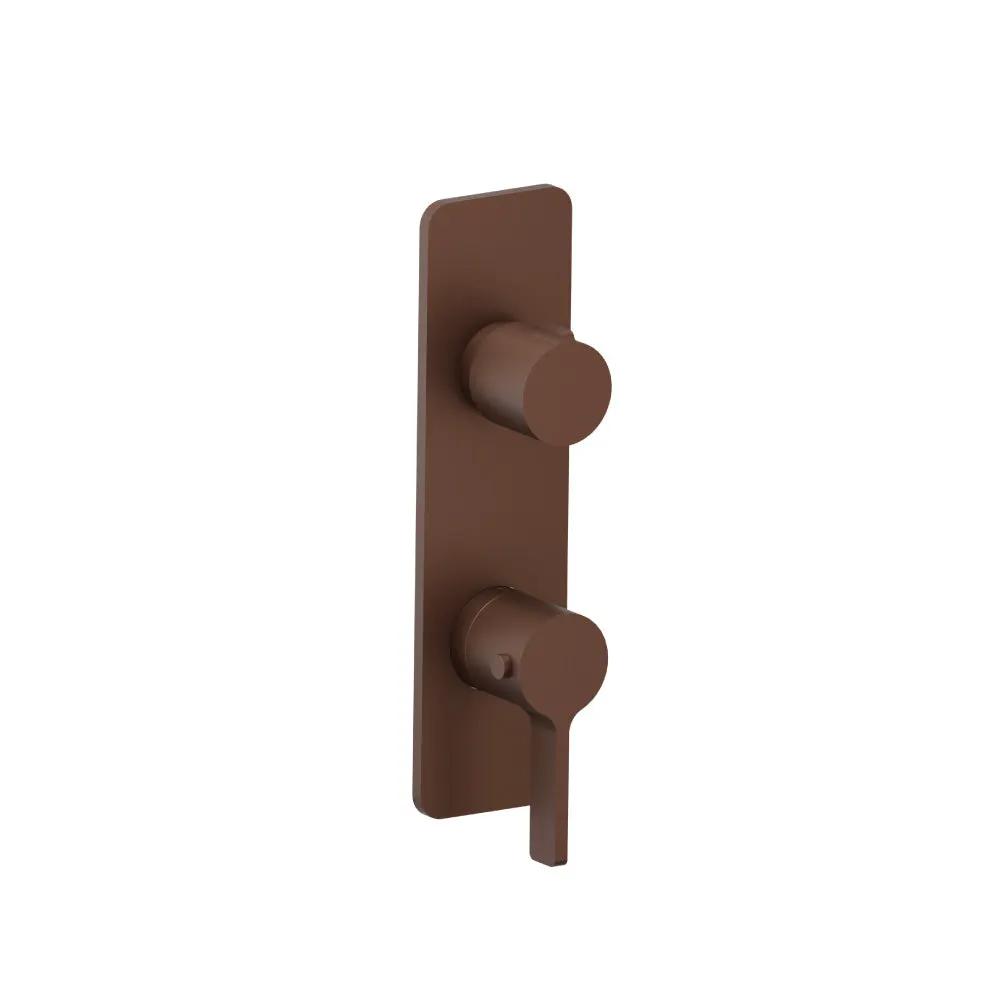

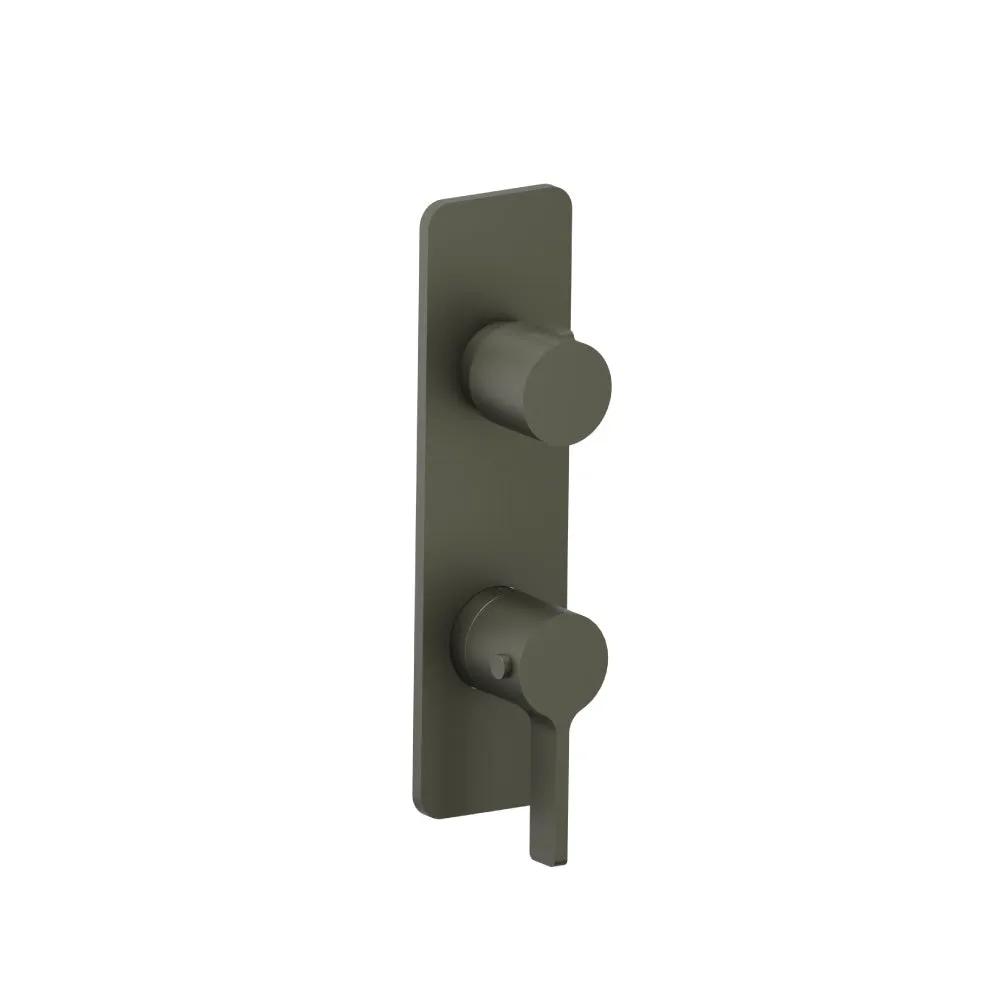

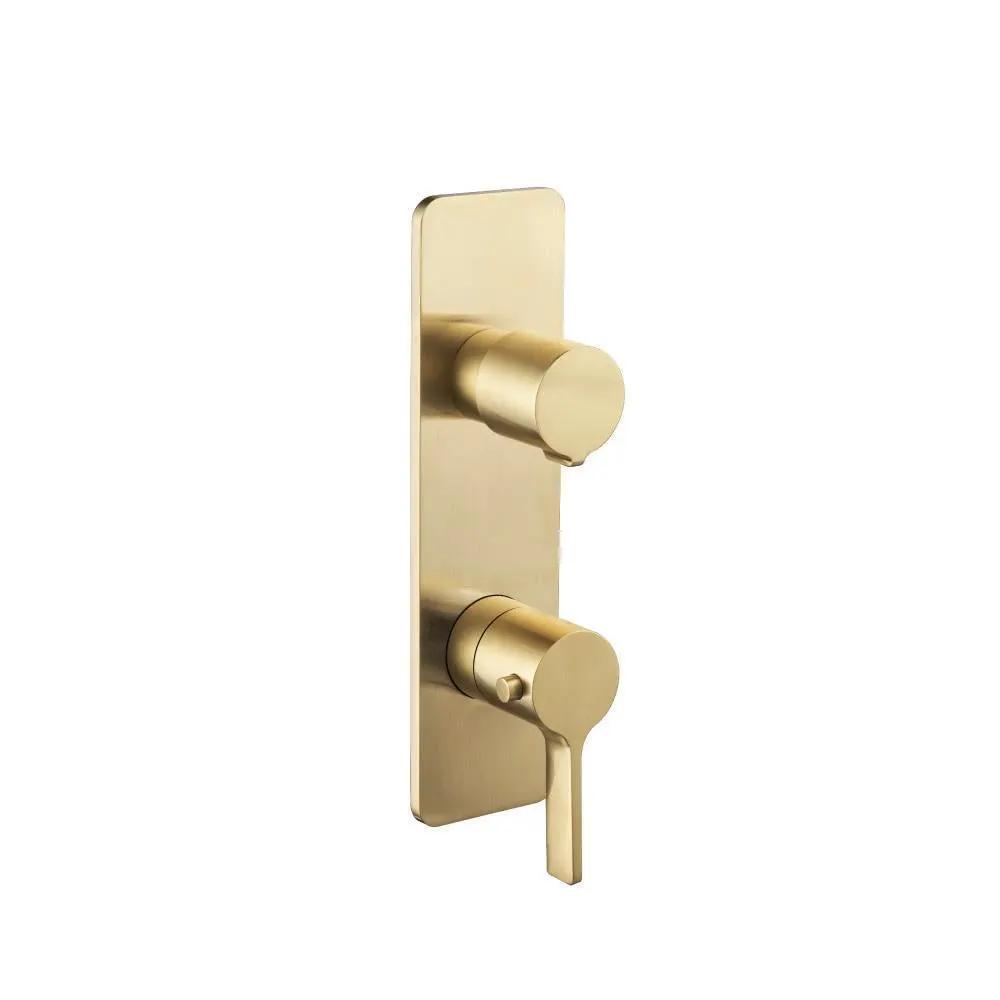

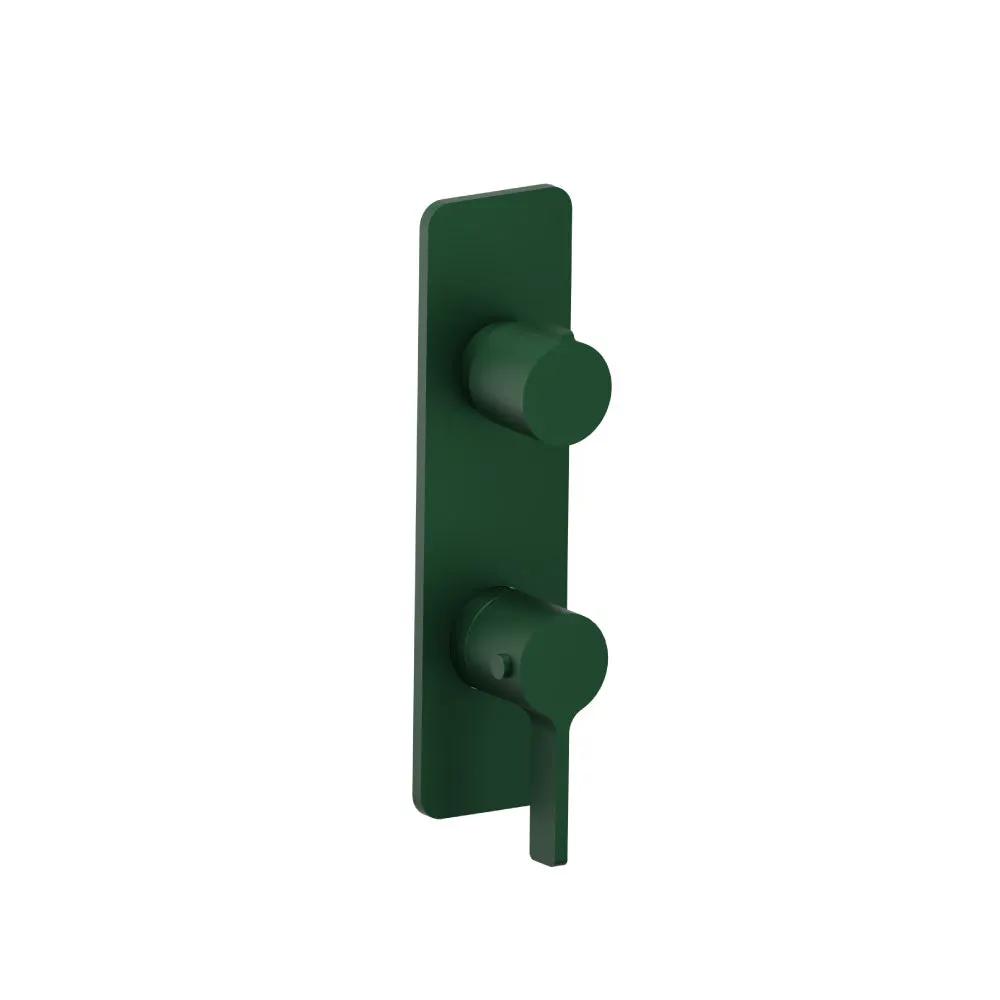

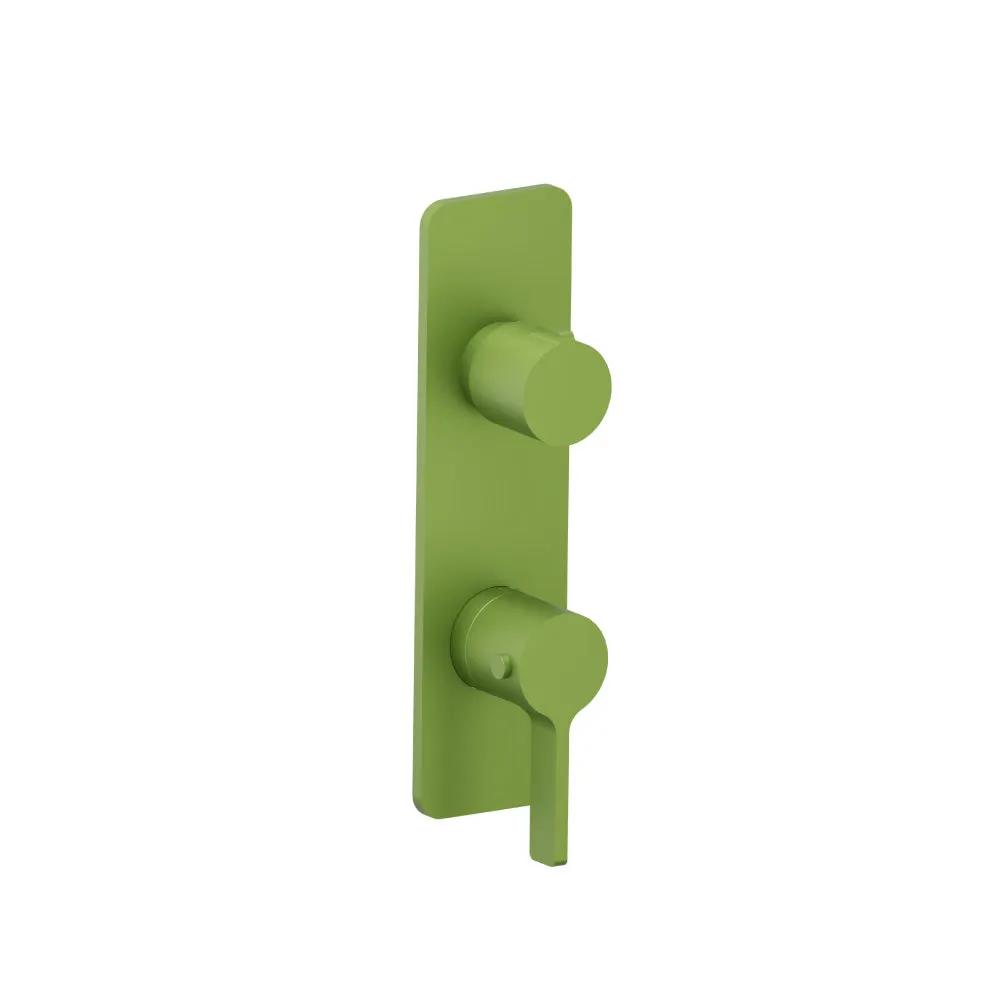

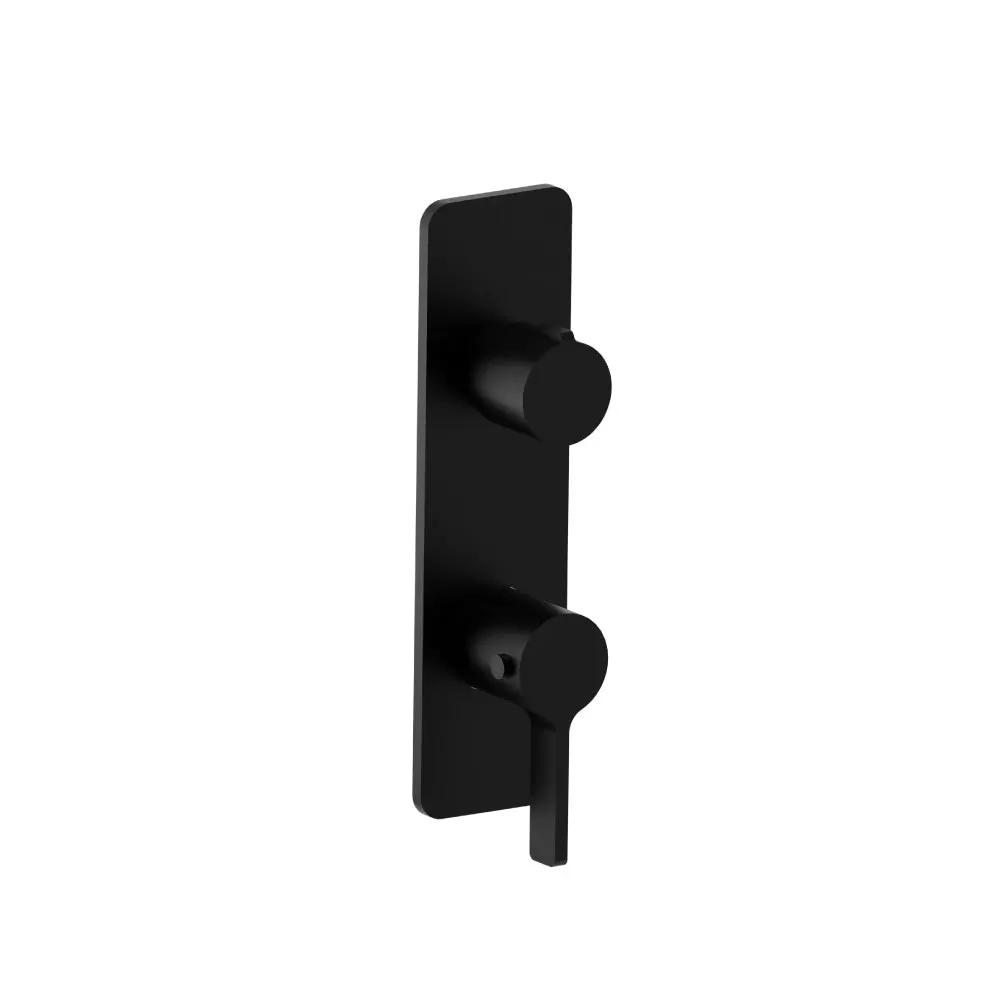

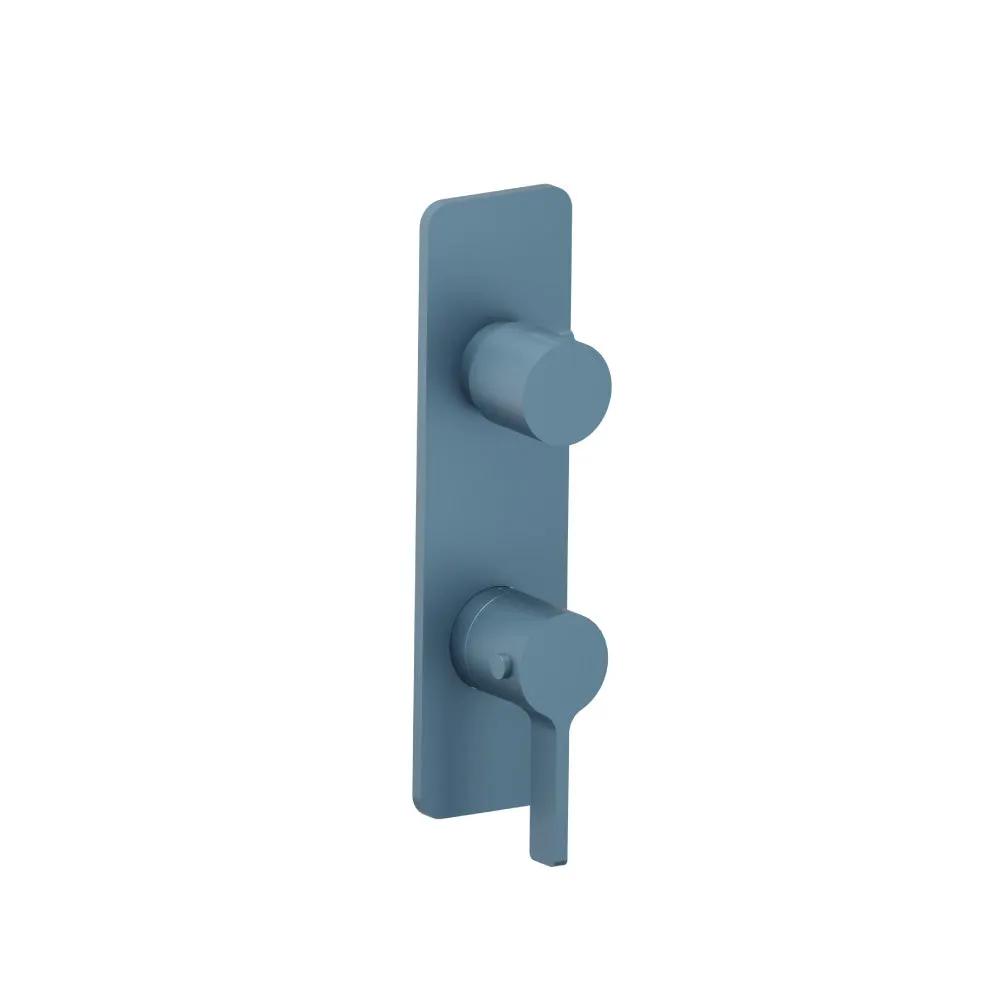

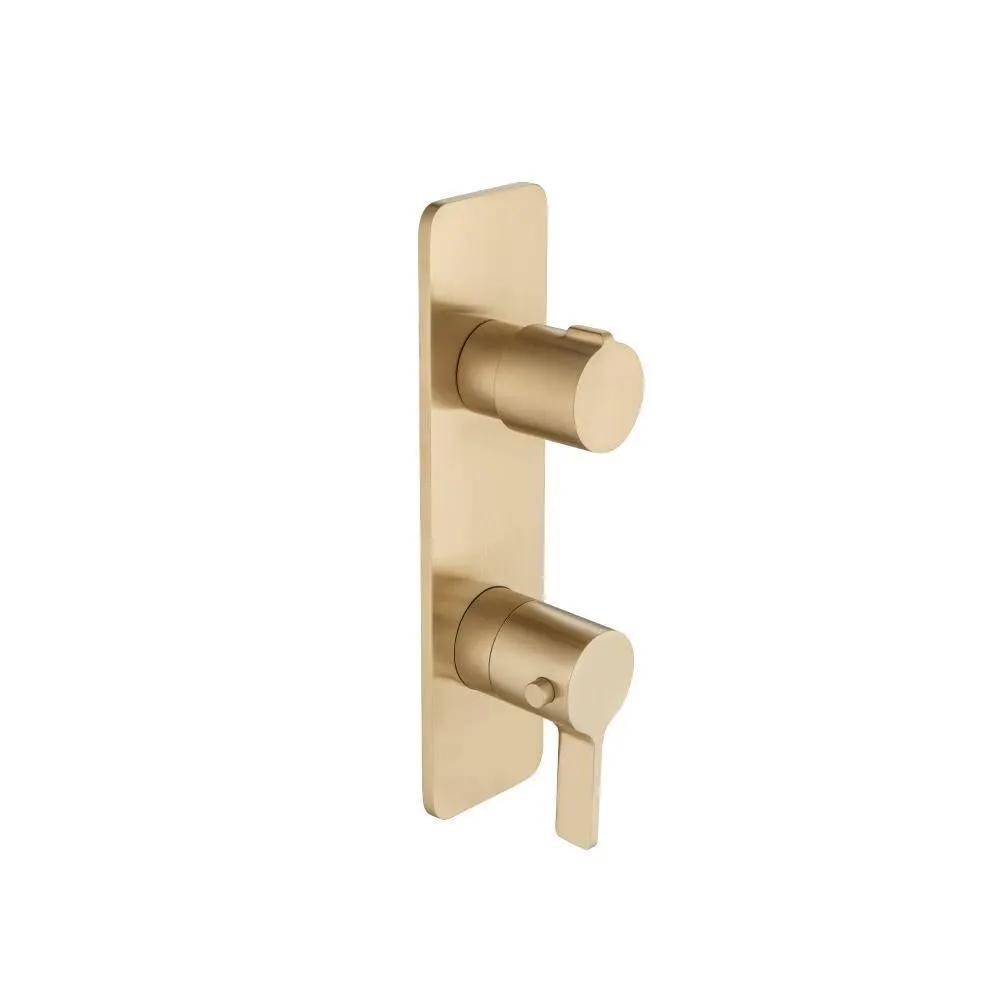

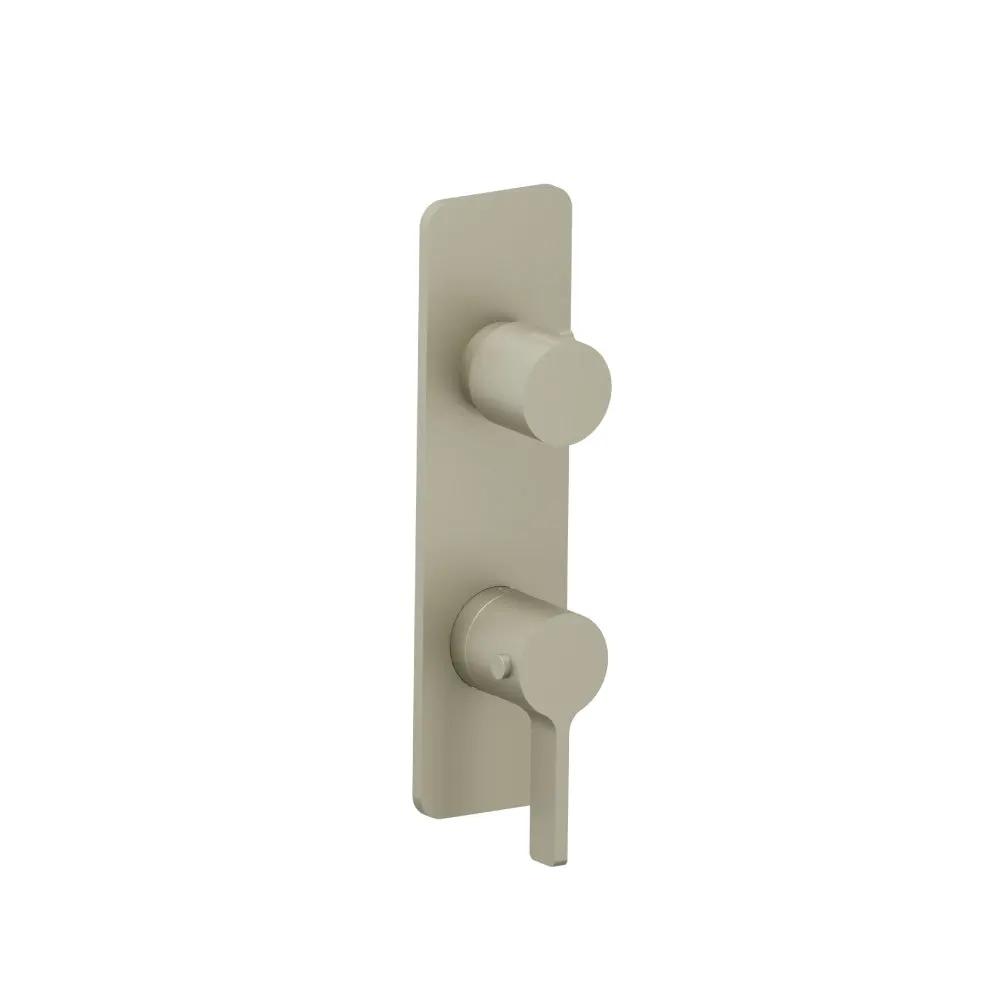

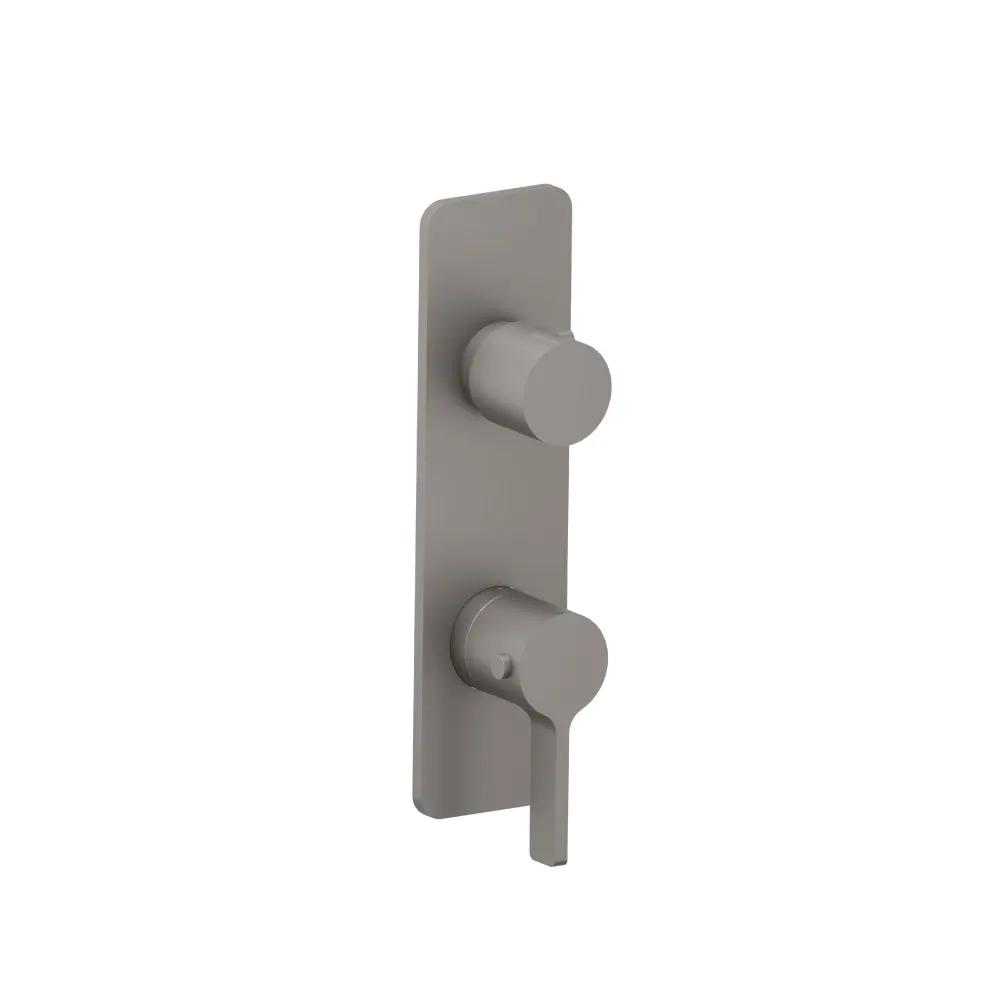

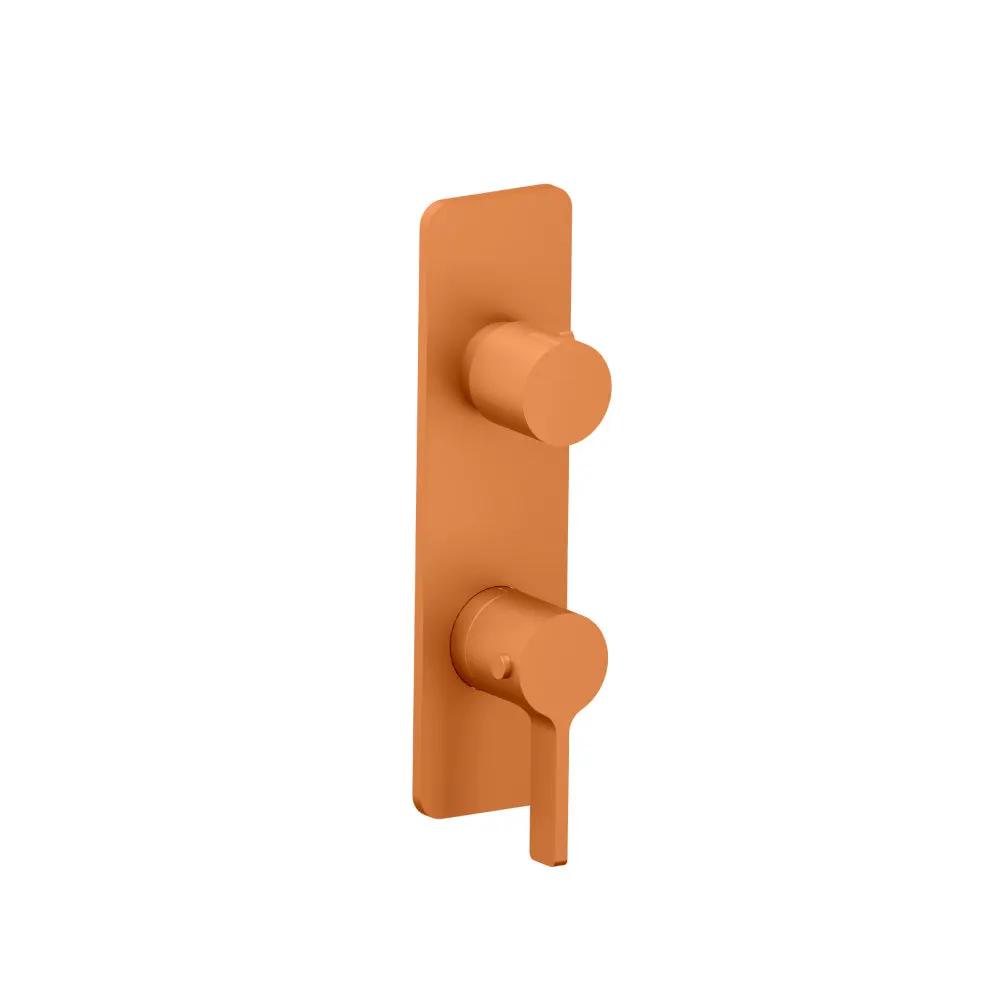

Experience precise temperature control and flexible water delivery with the Flusso Serie 260 3/4" Thermostatic Shower Valve and Trim - 2-Output. Built with solid brass and featuring the TVH.2717F valve, it directs flow between two non-shared ports while preventing scalding through an integrated safety ring. Ideal for upscale bathrooms demanding reliable performance and CAL-Green compliance.
Flusso stands as a premier manufacturer renowned for its commitment to quality and innovation in plumbing fixtures. Specializing in thermostatic valves and shower systems, Flusso products deliver superior performance, durability, and elegant design that meet rigorous standards like CAL-Green compliance, ensuring reliable and efficient water management solutions for discerning homeowners.
Features and Specifications
- The 2740 series of products from Flusso uses the TVH.2717F Thermostatic valve which features 3/4" NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation.
- This product meets CAL-Green compliance criteria.
- HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2717F can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The bottom handle is used to control the temperature of water flowing through the outlet ports. The top handle is used to divert the water between each output port and is capable of controlling the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77" and 3.44" inches [Rough In Spec].
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89" x 1.89" Inches which is properly covered by the trim plate.
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2717F
- Default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
Invest in the Flusso Serie 260 3/4" Thermostatic Shower Valve and Trim - 2-Output for reliable temperature control and dual-port diversion. Flusso's dedication to quality and luxury ensures this thermostatic valve provides safe, precise performance for years.
