Product details
Focal Point Hardware is an authorized Flusso retailer!

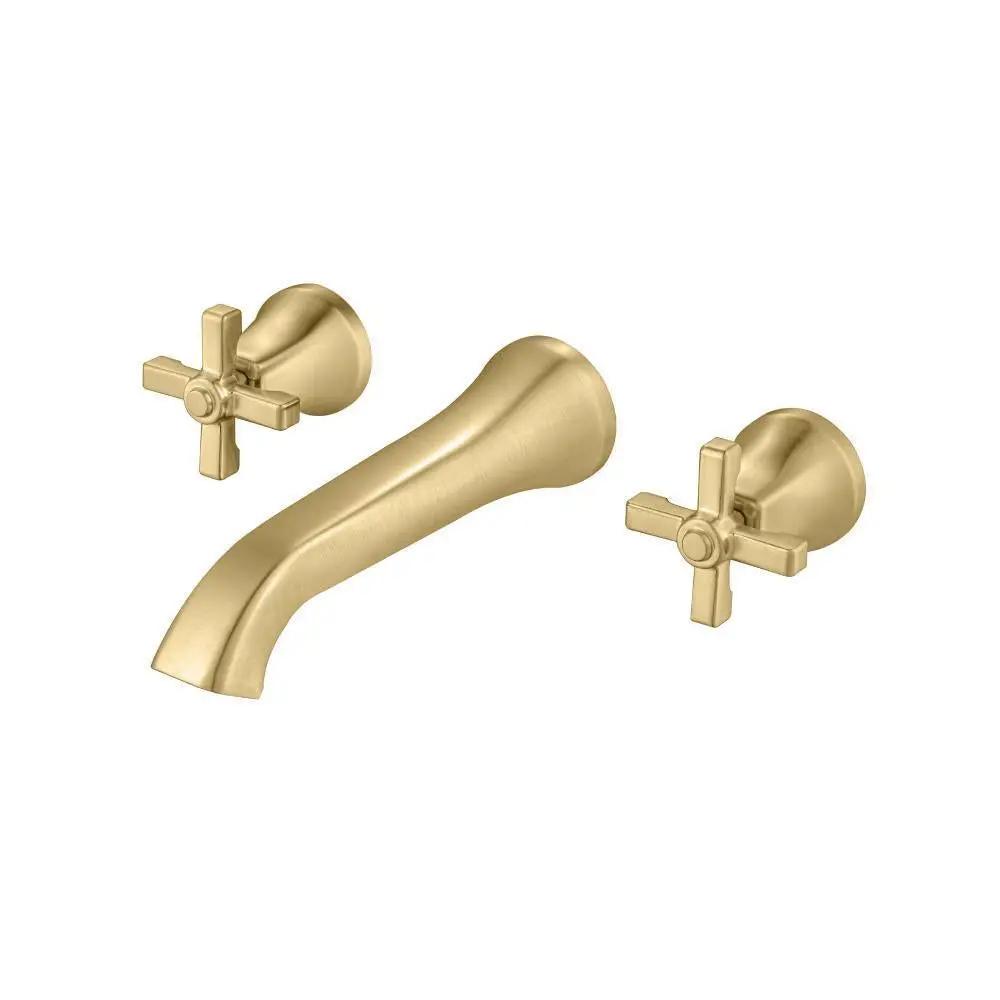

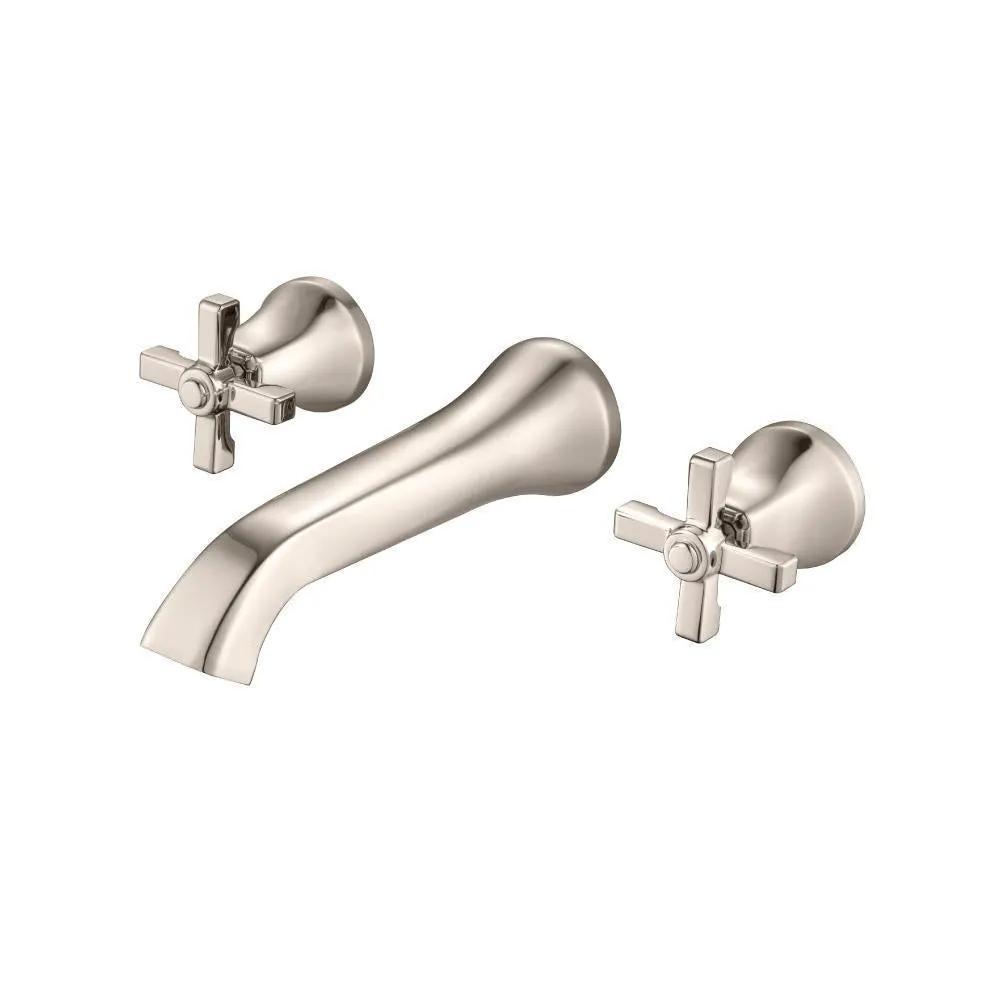

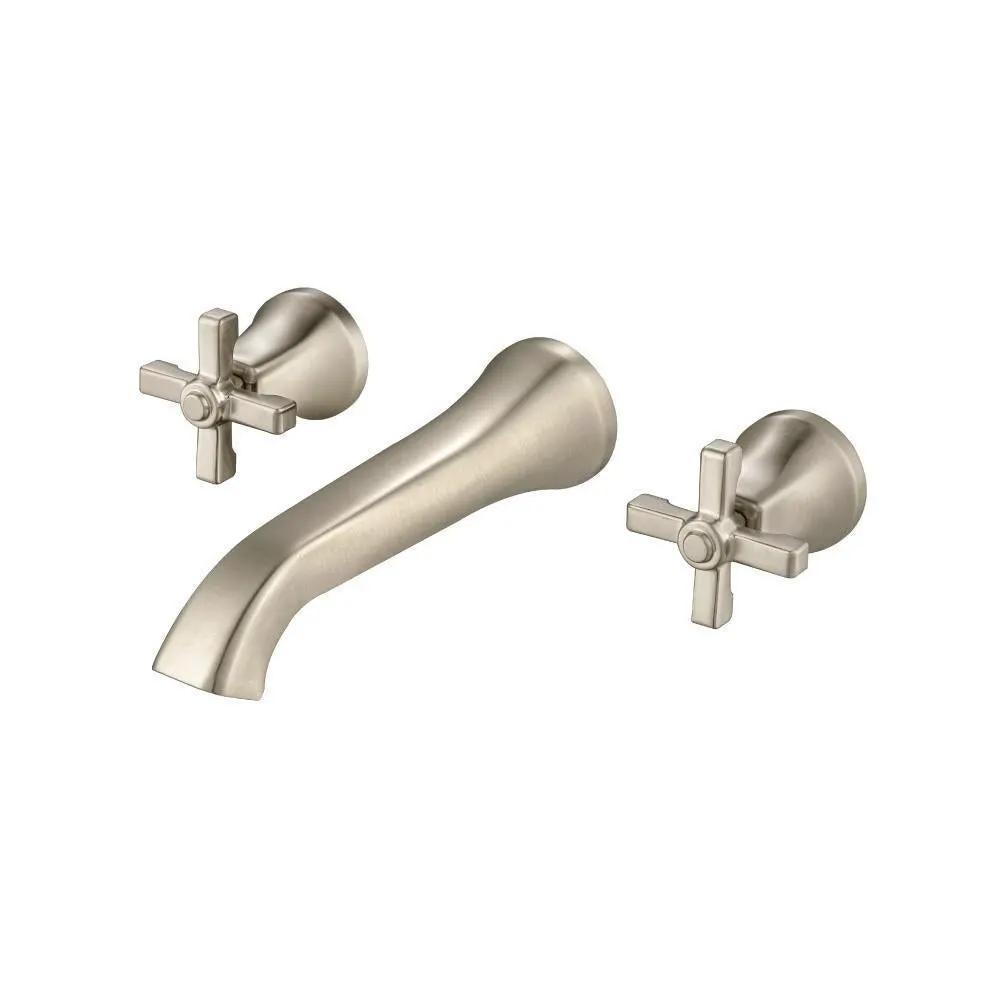

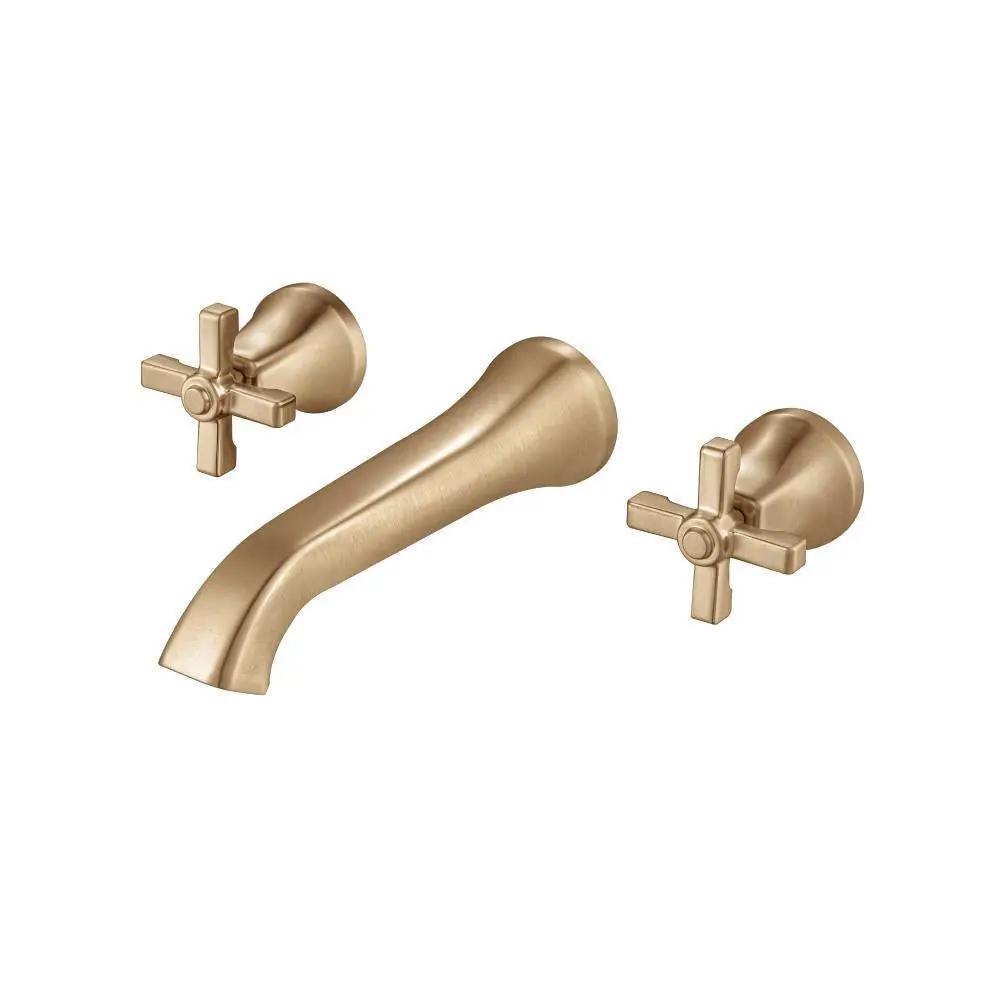

Discover the Flusso Serie 270 Two Handle Wall Mounted Tub Filler, a precision valve and trim combo that delivers balanced hot and cold control with a single mixed output. Built to endure, this system combines solid brass construction, 1/2” NPT connections, and elegantly engineered handles for reliable temperature regulation and timeless bathroom luxury.
Flusso is renowned for innovative bathroom fixtures that blend precision engineering with timeless design, delivering dependable performance and luxe finishes. As a trusted manufacturer, Flusso emphasizes durable brass construction, reliable shutoffs, and installer-friendly features that simplify installation and ensure lasting elegance in high-end baths. Customers appreciate consistent water control, quiet operation, and the brand's commitment to luxury aesthetics.
Features and Specifications
- This product is a 1/2” NPT connection valve and trim combo with two volume control handles separately for hot and cold water with single mixed output.
- Handle Operation – The volume and temperature of the water are controlled by the two handles, HOT and COLD.
- Valve Installation – As the valve [Part # WLM.1900] is installed, care should be taken to maintain a proper distance from the back of the valve to the surface of the finished tile which should be between 2.39” and 3.09”. Also, the valve must be installed horizontally and not at an angle.
- In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure the proper setting of the trim. Extension kits can be ordered separately in Chrome, Brushed Nickel, or other special finishes.
- Cut Out Dimensions – The cut out in wall should be 3 holes, 1.3 inches in diameter which will properly be covered by the trim plates. This will ensure that the trim plate will cover the cut out hole in the wall.
- Trims – The trims comprise of well-finished handle knobs, handle trims, cartridge covers, and spout. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Includes Rough In Valve - WLM.1900
- Separate Hot And Cold Handles
- Extension Available - Part # 270.1950E**
Engineered for reliability and refined aesthetics, the Flusso Serie 270 Two Handle Wall Mounted Tub Filler delivers precise volume control and timeless brass finish, backed by Flusso's reputation for quality and luxury bathroom solutions.
