Product details
Focal Point Hardware is an authorized Flusso retailer!

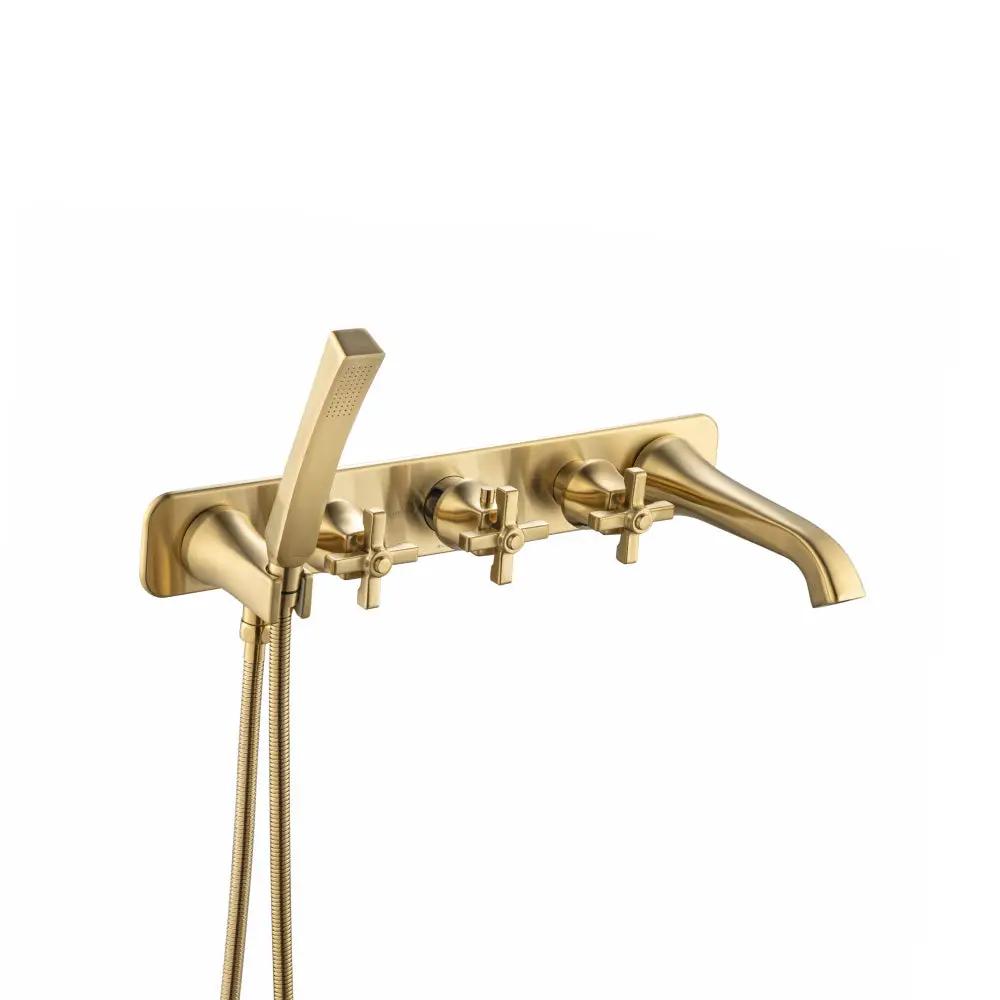

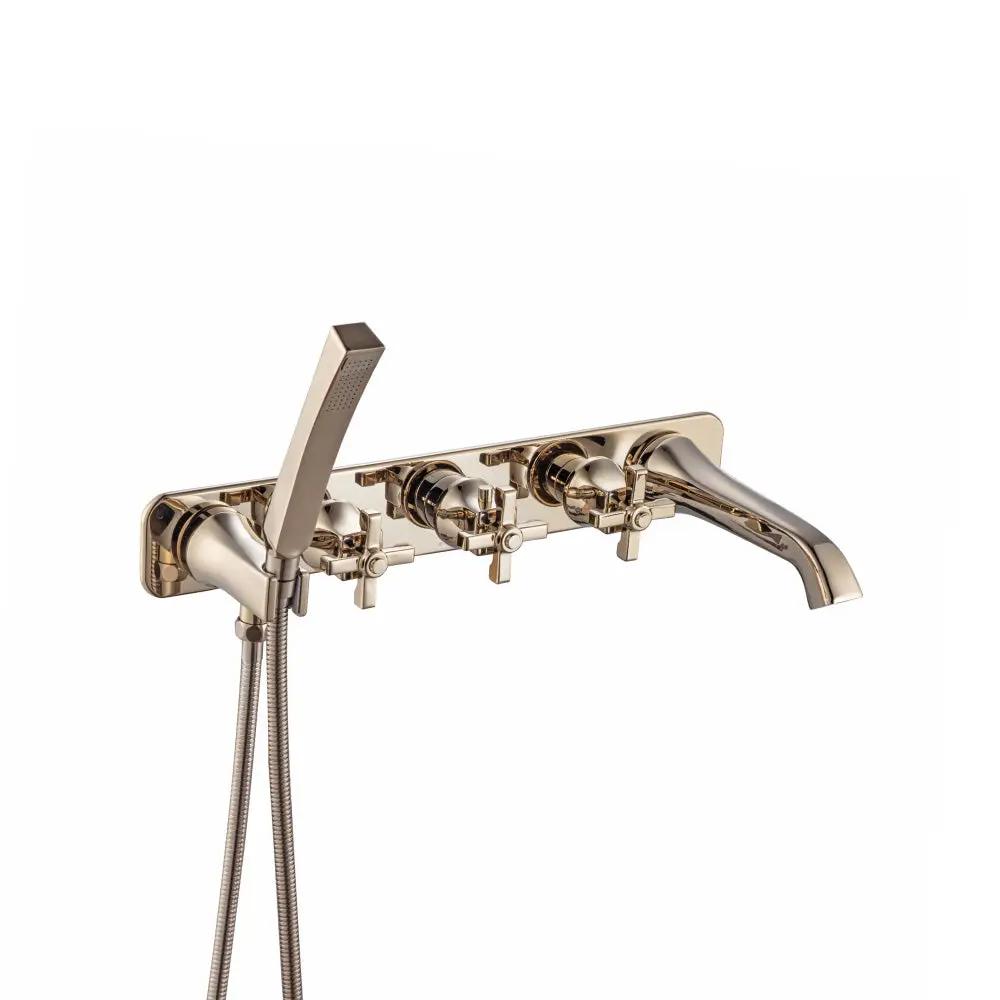

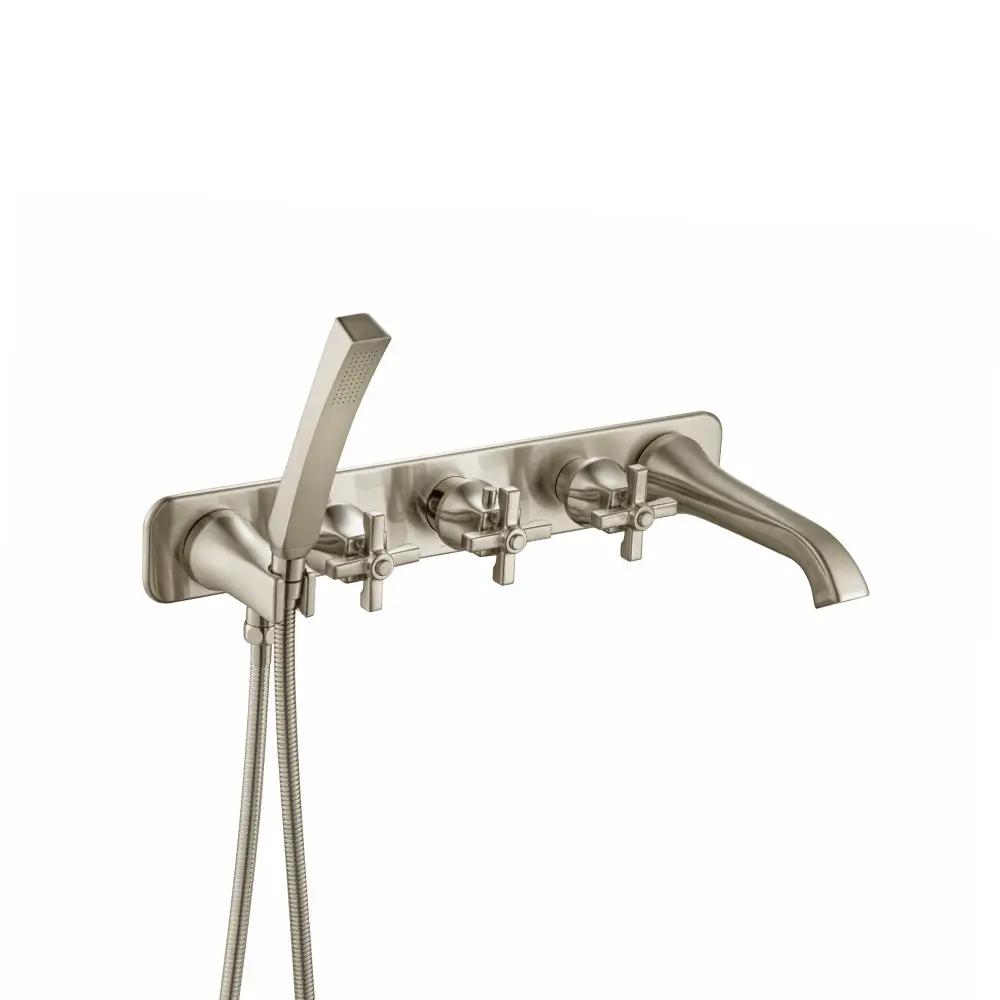

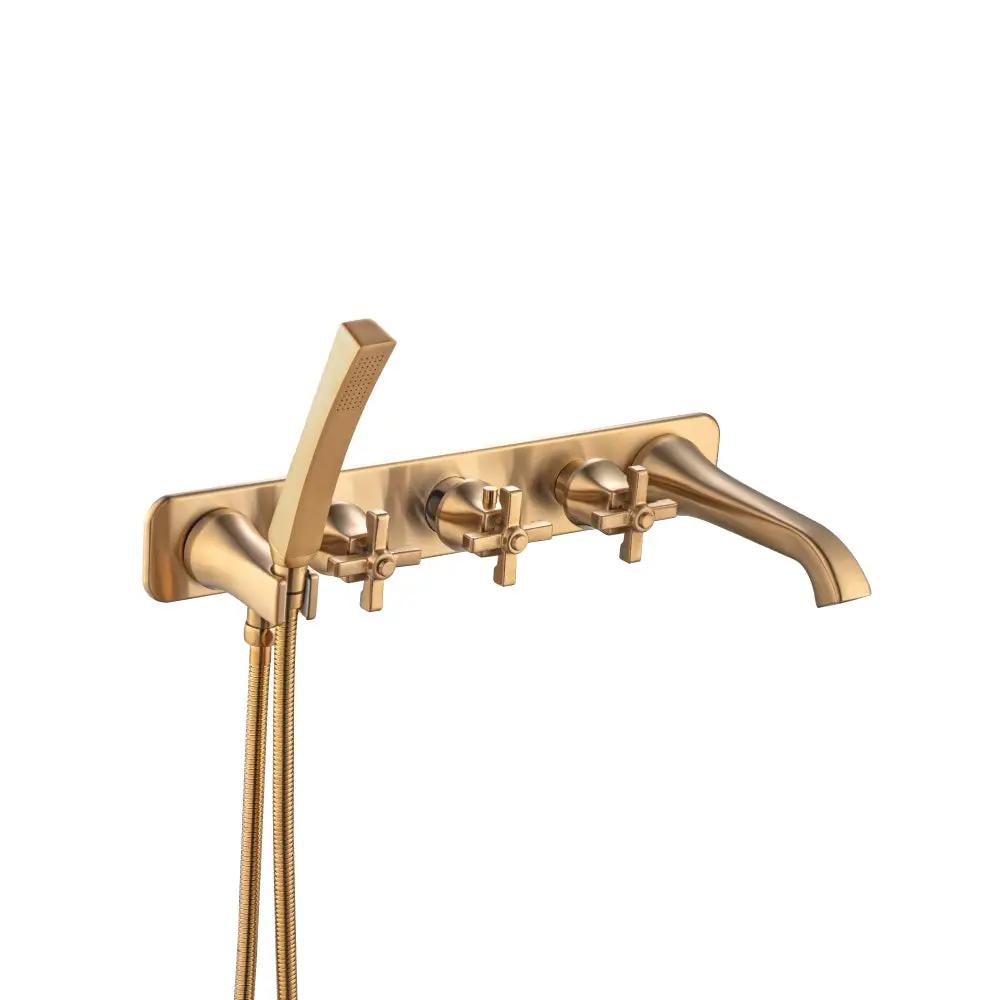

Experience precise water control with the Flusso Serie 270 Trim for Wall Mount Tub Filler with Hand Shower, a coordinated trim set designed for tub fill applications. This trim pairs with the TVH.2691 valve to deliver seamless, simultaneous spout and hand shower operation, enabling effortless temperature and flow customization for a luxurious bathroom experience.
Flusso is renowned for premium bathroom fixtures that blend precision engineering with elegant design. The Flusso Serie line emphasizes durable materials, reliable thermostatic control, and seamless integration with wall-mounted configurations, delivering long-lasting performance and a sophisticated aesthetic that elevates everyday routines. Trusted by installers and homeowners alike for quality craftsmanship, reliable performance, and thoughtful functionality.
Features and Specifications
- Current Product Title: Flusso Serie 270 Trim for Wall Mount Tub Filler with Hand Shower
- Solid Brass Construction
- Valve Not Included - Trim Only
- 2 Output Ports
- Hand Shower Flow Rate Limited to 1.8 GPM
- Hand Shower & Tub Spout positions can be swapped
- HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly. The cover knob has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism.
- CUT OUT DIMENSIONS – The cut out in the wall should be 16.41” X 1.85” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Elevate your bathroom with the Flusso Serie 270 Trim for Wall Mount Tub Filler with Hand Shower, delivering precise temperature control and a durable, luxurious brass design that reflects Flusso's commitment to quality and reliable bathroom solutions.
