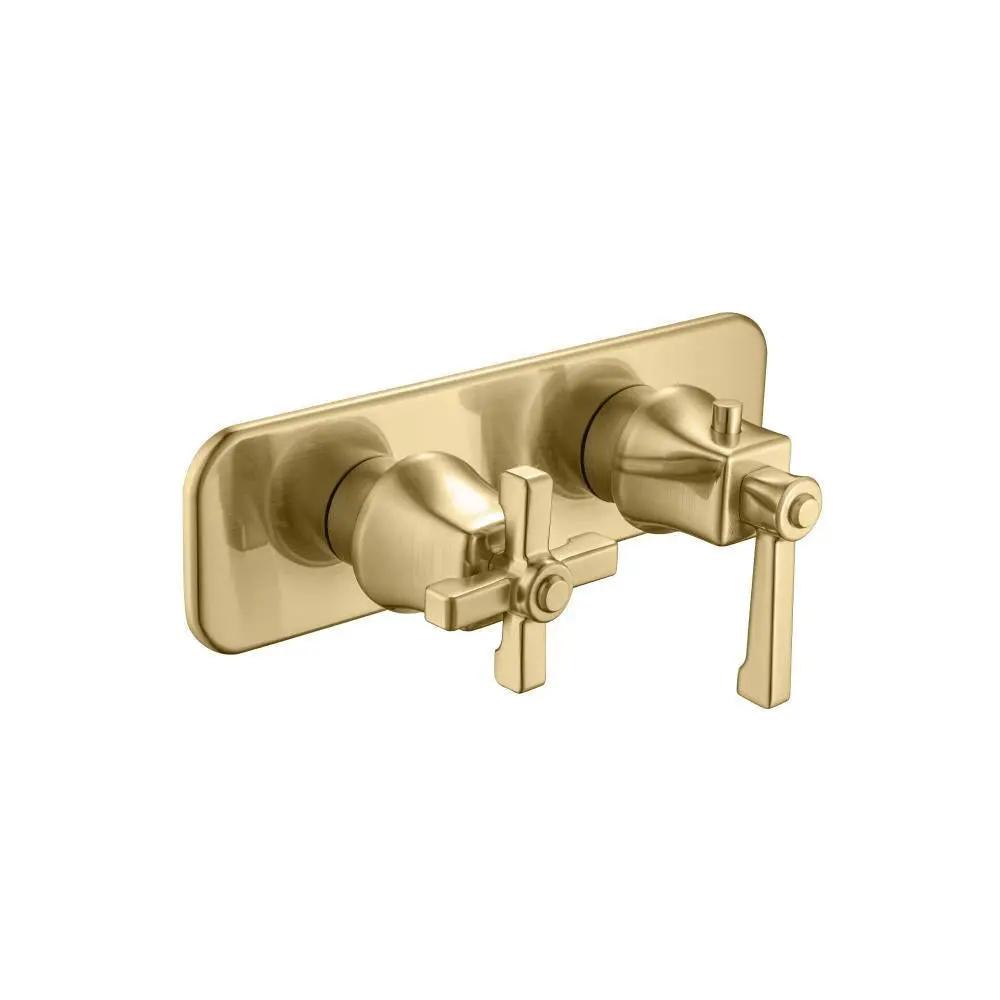

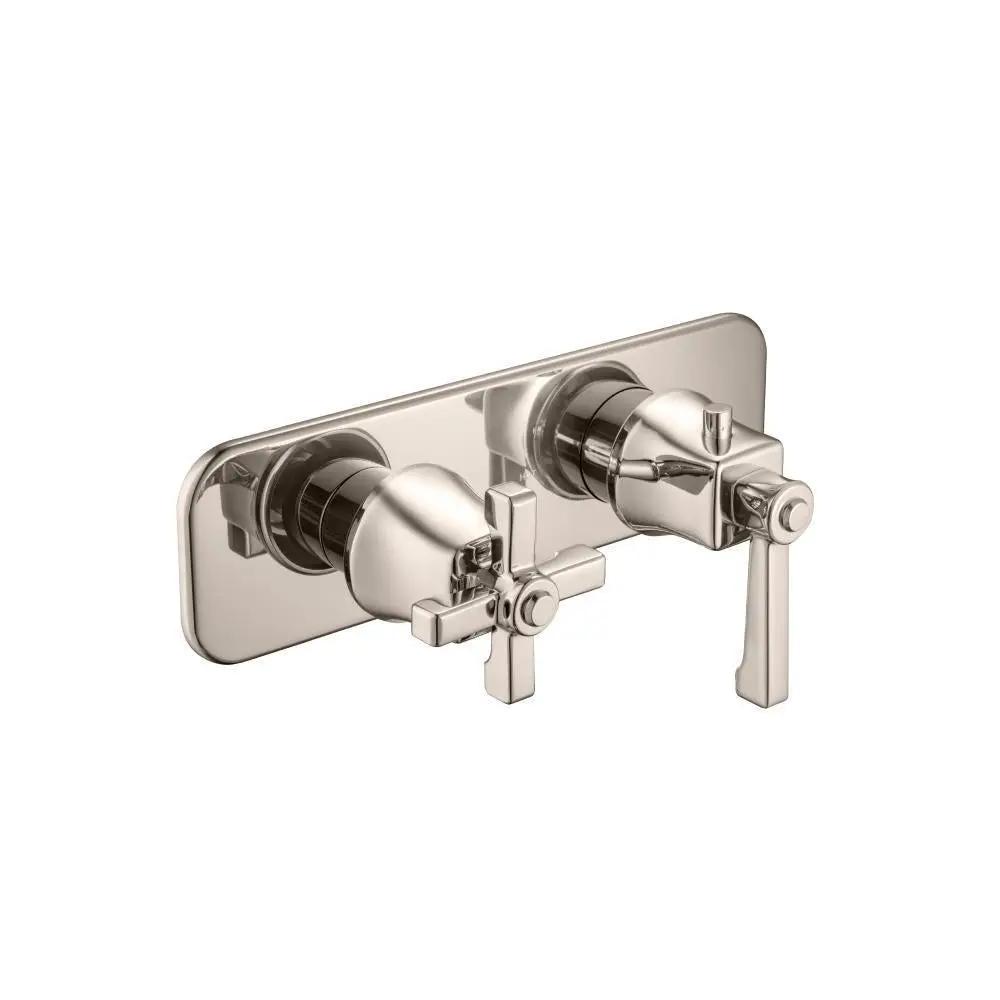

Discover the Flusso Serie 270 Trim for Thermostatic Valve, a precise, stylish upgrade for your shower system. This trim kit offers seamless compatibility with Flusso TVH thermostatic valves, delivering reliable anti-scald performance, easy horizontal or vertical installation, and a solid brass construction that enhances durability and luxury in your bathroom.
Flusso is renowned for premium European engineering, precise thermostatic control, and durable bathroom hardware. As a trusted brand, Flusso combines reliable performance with refined aesthetics, offering solid brass construction, precise temperature management, and easy integration with existing valve systems. This reputation for luxury and long-term reliability informs every Flusso Serie 270 Trim design.
Features and Specifications
- The TVH.2693 Thermostatic valve features 3/4? NPT connections and has one water output.
- The right handle sets the temperature. The left handle controls water volume.
- HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2693 can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to turn water on and off and can control the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction For Use with TVH.2693, TVH.2717F, TVH.2705F Thermostatic Valves
- Valve Not Included - Trim Only
- Extensions Available - TVH.4101E**
Upgrade to Flusso Serie 270 Trim for Thermostatic Valve for precise temperature control and a clean, premium finish that complements any bathroom, reinforcing Flusso's reputation for quality, reliability, and luxury in high-end spa-like showers.
