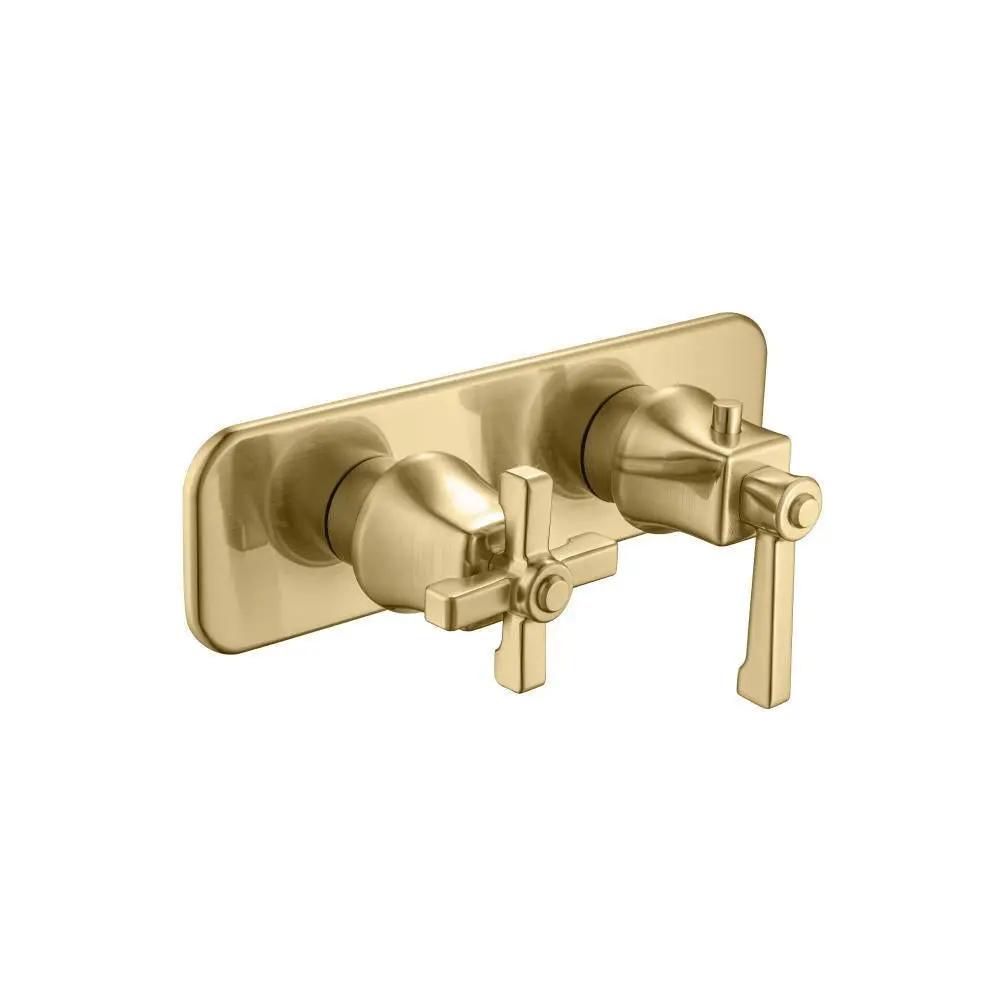

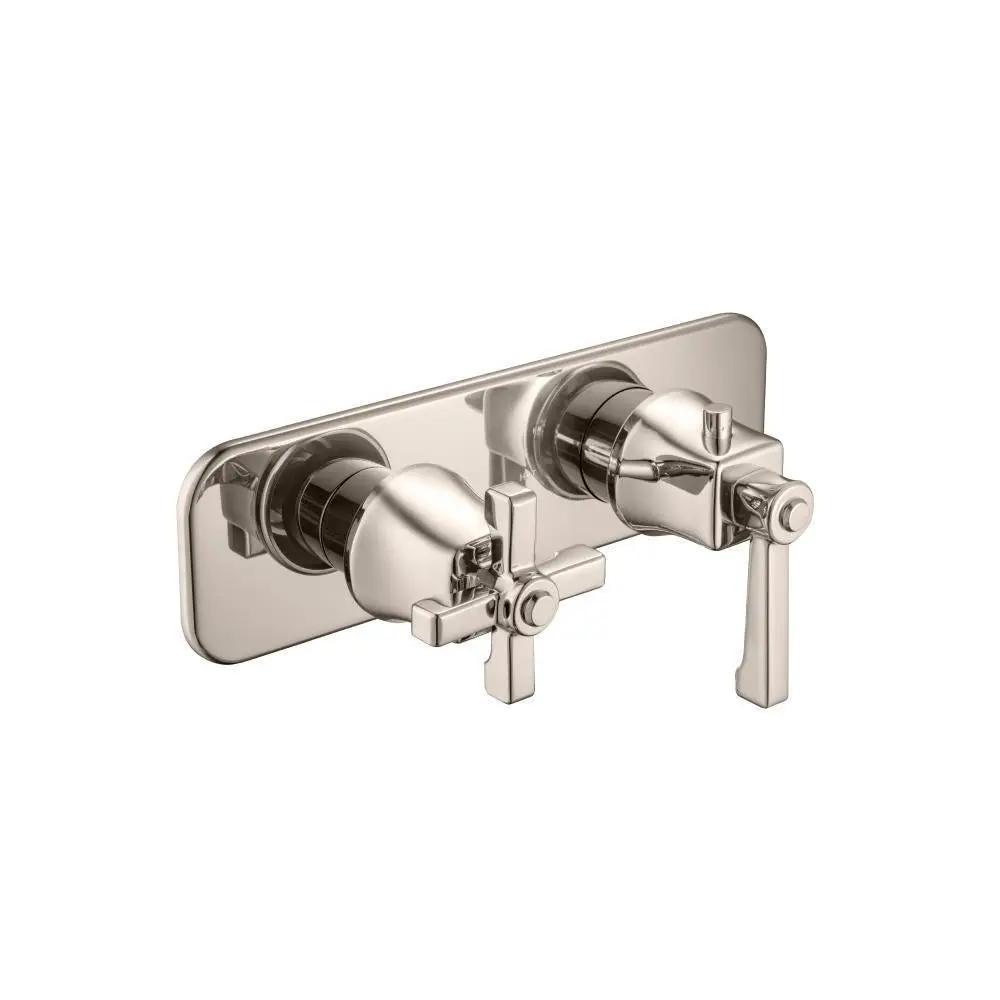

Flusso Serie 270 3/4" Horizontal Thermostatic Shower Valve and Trim - 3 Output

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 270 3/4" Horizontal Thermostatic Shower Valve and Trim - 3 Output, a precision-engineered solution for modern baths. This three-output thermostatic system delivers safe, independent flow to each port with full-volume control, while CAL-Green compliance ensures efficient water use. Flusso combines refined craftsmanship with sleek trim plates for a seamless, contemporary shower experience.

Flusso is renowned for luxury-grade plumbing fixtures that pair precise thermostatic control with solid brass construction and enduring reliability. Known for CAL-Green efficiency, exceptional build quality, and elegant, modern aesthetics, Flusso products emphasize durable performance, intuitive operation, and thoughtful safety features, making them a trusted choice for upscale kitchens and baths.

Features and Specifications

• Valve model: TVH.2705F thermostatic valve with integral service stops
• Connections: 3/4" NPT
• Outputs: 3 water output ports, operable one at a time without shared port operation
• Compliance: CAL-Green compliant
• Controls: Right handle sets the temperature; Left handle diverts water between the 3 output ports and controls volume
• Installation orientation: Horizontal or vertical installation
• Safety features: Supply stops with two safety stops at each water inlet
• Anti-scald: Anti-scald temperature stop ring over the control knob; push-button on the side to adjust; prevents full HOT rotation unless pressed
• Positioning: Maintain distance from back of valve to finished tile between 2.77" and 3.44" (Rough-In Spec); extension kits available for deeper installations
• Cut-out: Wall cut-out 7.89" x 1.89" inches, properly covered by the trim plate
• Trims: Well-finished cover plate and handle knobs; trim plate covers the wall; shapes vary by model
• Cartridge compatibility: Default cartridge Model # 15100 is a 3-output non-shared CAL-Green compliant; optional shared-port cartridge Model # 15200 activates 2 out of 3 ports simultaneously
• Construction: Solid brass
• Includes: Thermostatic valve TVH.2705F with integral service stops; three output ports

Together with Flusso's reputation for quality and innovation, this three-output thermostatic valve delivers precise control, safe operation, and contemporary luxury in the shower, ensuring reliable performance and a refined, spa-like experience.
